XIONGISOLAR Waterproof Plastic Solar PV Array 1000V 1 String Combiner Box Junction Box 1Input 1 Output for Solar Panel
XIONGISOLAR Waterproof Plastic Solar PV Array 1000V 1 String Combiner Box Junction Box 1Input 1 Output for Solar Panel
SPECIFICATIONS
Application: Solar Power System
Brand Name: XIONGISOLAR

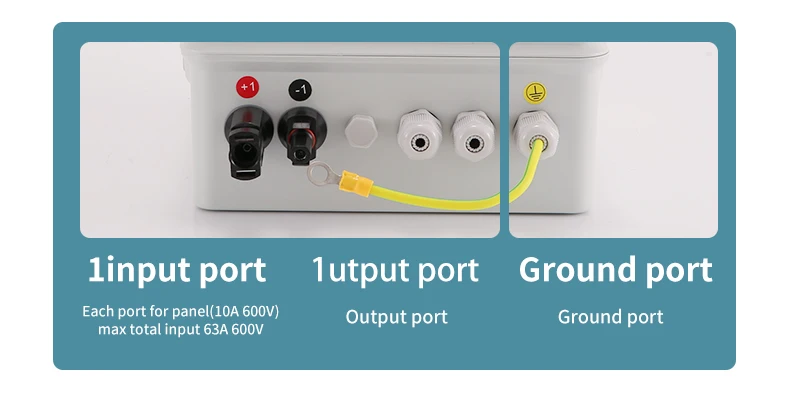

Input strings: 1
Lighting protection: 2P SPD 20~40KA
Max input amp for each string: 15A
Model Number: 1IN1 600V,1 IN 1PV DC Combiner Box
Output strings: 1
Output switch: 63A circuit breaker
Place of Origin: Zhejiang, China
Product name: 1nput 1Output Combiner Box
Rated voltage: 600V DC
SPD Max operation voltage: 600V
Combiner Box provides a means of combining multiple source circuits from a PV array into a single DC output. Each source circuit is fused separately using a touch-safe fuse holder. The combiner box allows for fail-safe operation of the system in the unlikely event that a problem with a source circuit leads to abnormally high current. In addition, the combiner box provides a convenient means of accessing the DC portion of a PV system for routine maintenance and troubleshooting.
Product features
Product functions
| olar PV DC Combiner Box | 1in1out |
| Rated voltage of photovoltaic system | DC 600V |
| Max input amp for each string | 15A |
| Input strings | 1 |
| Number of output strings | 1 |
| Waterproof grade ip65/ Lighting protection | |
| Category of test | II grade protection |
| Nominal discharge amp | 20KA |
| Max discharge amp | 40KA |
| Volt protection level | 2.8KV |
| SPD Max operation voltage | DC 600V |
| Poles | 2P |
| Structure characteristic | Plug push module |
| System | |
| Protection grade | IP65 |
| Output switch | 2P DC Circuit Breaker |
| 63A | |
| Solar connector | Standard |
| Box material | PVC PC ABS |
| Installation method | Wall mounting type |
| Operating temperature | -25℃-+60℃ |
| Installation: indoors/outdoors | Yes |
| Mechanical parameter | |

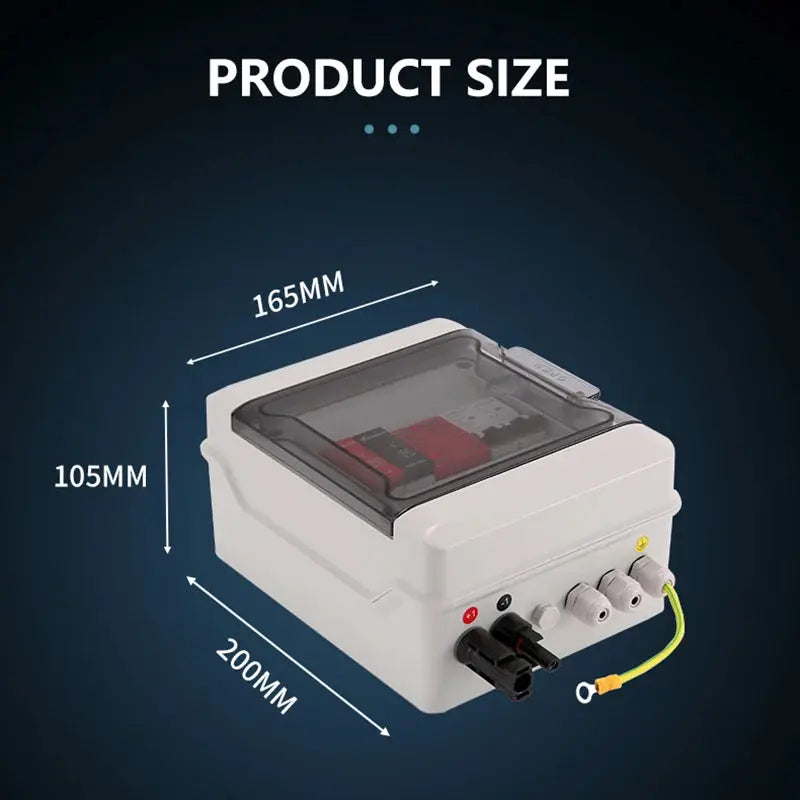

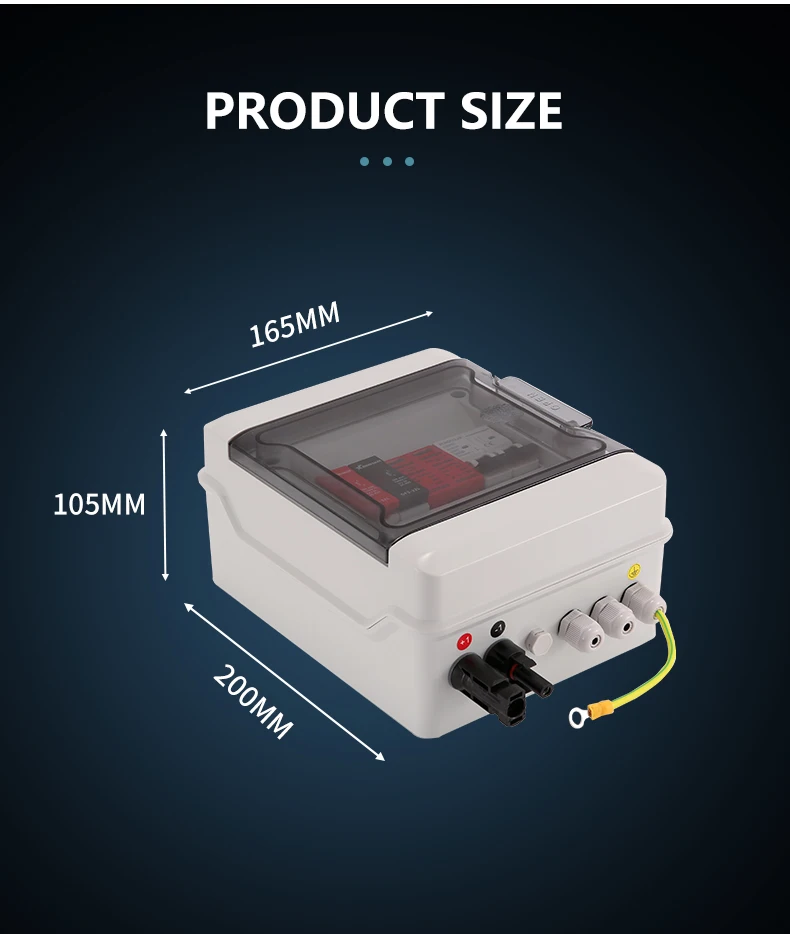

| Widh*high*Depth(mm) | 28*11*36CM |
| item | value |
| Warranty | 3 months |
| Place of Origin | China |
| - | Zhejiang |
| Brand Name | XIONGISOLAR |
| Model Number | 4IN4 600V |
1.The XIONGISOLAR SOLAR 1in1 1000V isolating switch type PV Combiner Box is a high-quality photovoltaic junction box designed to efficiently combine and isolate solar power strings.
2.This innovative PV combiner box is engineered with a unique 1-in-1 input design that supports a single solar-panel string, providing reliable and high-capacity performance.
3.The product boasts a 600V DC rating, ensuring robust operation under various solar power configurations. Its maximum input current capacity extends to a string of 15A, providing excellent flexibility for solar energy installations.
4.The output strings feature a 63A circuit breaker switch, offering secure and stable connections between the combiner box and solar power inverter, reducing the risk of electrical faults.
5.Equipped with lighting protection and a 2P SPD 20~40KA rating, this solar combiner box effectively protects photovoltaic systems from over-voltage, surge currents, and lightning strikes, enhancing overall system safety and durability.
