SPECIFICATIONS

Brand Name: Raygleam

Cell size: 210x70mm

Certificate: CE and RoHs

Color: Full black/White

Feature: CPC flexible solar panel

Junction Box & Cable: IP67 & 900mm/2.5mm2

Model Number: RG-FLX100M-C

Net Weight: 2.3 Kg

Panel Dimensions: 1230x470x2mm

Panel Efficiency: 21.4 %

Place of Origin: Jiangsu, China

Product name: Semi flexible solar panel

Rated Power: 100 W

Type: Standard Solar Panel

Warranty: 10 years

Working Voltage: 18.56

Product Description

Raygleam Flexible panel use unique shingled cells technology. The panel made with conducting resin paste without ribbon to minimizes the optical and resistive losses, improve mechanical load to flexing over 30 degrees, and are able to withstand harsh weather conditions and are almost impervious to corrosion.

Key Features

★ The latest Shingled PERC solar cells technology.

★ Over 30 degrees of ultimate bending no cells cracks.

★ Improved 15~20% power of output than the traditional panel.

★ Minimizes the optical and resistive losses.

★ 10 years workmanship and materials warranty.

★ OEM and ODM supported.

Specification

Typical Electrical Data
at STC: lrradiance 1000 W/m2 module temperature 25°C AM=1.5;
Model/ Electrical Parameters	RG-FLX100M-C
Pmax (W)	100W
Power Tolerance	0 ~ +3%
Vmp (V)	18.56
Imp (A)	5.39
Voc (V)	21.76
Isc (A)	5.72
Nominal Operating cell temperatures	-20°C ~+ 85°C
Temperature coefficient of Pmax	45± 2°C
Temperature coefficient of Voc	-0.4%/ °C
Temperature coefficient of Isc	-0.3 %/ °C
Temperature coefficient of Vmpp	0.06 %/ °C
Nominal Voltage	-0.35 %/ °C
Max. System Voltage	12V
Max. Fusing Current	600Vdc
	15A
Mechanical Data
Cells Type	Prime Monocrystalline Topcon solar cells
Module Dimensions (L/W/H) (mm)	1230*470*2
Module weight	2.3kg
Cell's Efficiency	21.4%
Front Cover (material/ thickness)	Higher Strength CPC 2.2mm
Back Sheet (color)	White/ Black
Bending Range	≧20°
Junction Box (protection degree)	≧IP67 with by-pass diode
Cables & Connectors	900 m/2.5m㎡/MC4 compatible/IP67

Product Details

Product packaging

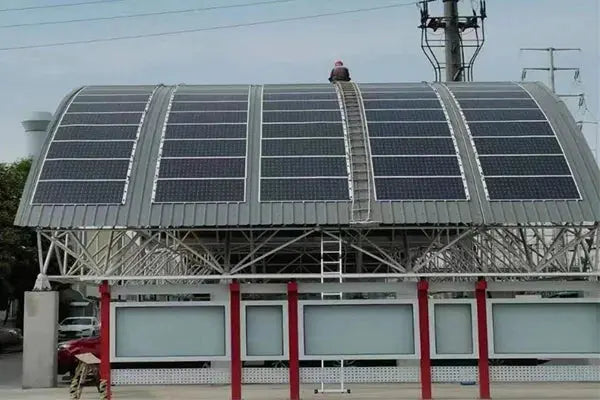

Application

Factory Views
