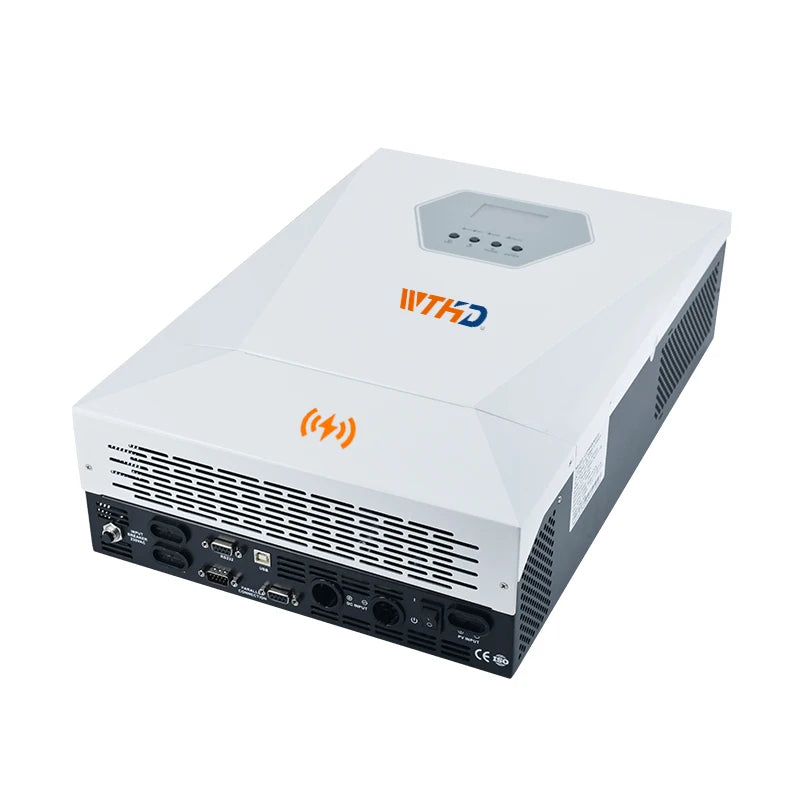

WTHD 3KW AC Solar Inverter Pure Sine Wave 100A 500VDC off Grid 24V MPPT Hybrid Single >94% Efficiency 4200W Max PV Input
Off-Grid Solar System / 3 kW / String Inverter
₱13,019.08PHP
Sale price
₱13,019.08PHP
Regular price
Skip to product information
WTHD 3KW AC Solar Inverter Pure Sine Wave 100A 500VDC off Grid 24V MPPT Hybrid Single >94% Efficiency 4200W Max PV Input
₱13,019.08PHP
Sale price
₱13,019.08PHP
Regular price
SPECIFICATIONS
Brand Name: WTHD
Certificate: EN-IEC 60335-1,EN-IEC 60335-2-29.IEC 62109-1
Controller Type: MPPT
Input Voltage: 220/230/240VAC
Inverter Efficiency: >94%
Maximum AC charging current: 100A
Maximum PV Voltage: 500VDC
Model Number: WTHD-HI-3K/24V
Output Current: Dependent on connected load and conditions
Output Frequency: 50/60Hz±0.1%
Output Type: Single
Output Voltage: 220/230/240VAC±5%
PV maximum input power: 4200W
Place of Origin: Guangdong, China
Product name: AC Solar Inverter
Size: 495*312*146mm
Type: DC/AC Inverters
Warranty: 1 year
Waveform: Pure Sine Wave
Weight: 6.48KG
Working Temperature: -10℃~50℃
3KW Ac Solar Inverter pure sine wave 3000 watt off grid 3Kva 3000w 24v mppt hybrid solar power inverter
Product Paramenters
Model |
WTHD-HI-3K/24V |
WTHD-HI-3.6K/24V |
WTHD-HI-5.5K/48V |
WTHD-HI-6.2K/48V |
|||
Input Formation |
L+N+PE |
||||||
AC Input |
220/230/240VAC |
||||||
Input Voltage Range |
90-280VAC±3V(Normal Mode)185-264VAC±3V (UPS Mode) |
||||||
Frequency |
50/60Hz(Adaptive) |
||||||
Rated Power |
3000W |
3600W |
5500W |
6200W |
|||
Output Voltage |
220/230/240VAC±5% |
||||||
Output Frequency |
50/60Hz±0.1% |
||||||
Output Wave |
Pure Sine Wave |
||||||
Transfer Time(Adjustable) |
10ms for Computer Equipment,20ms for Household Equipment |
||||||
Peak Power |
6000VA |
7200VA |
11000VA |
12400VA |
|||
Overload Ability |
Battery Mode∶21s@105%~150% load 11s@150%~200% load 400ms@>200% load |
||||||
Peak Efficiency
(Battery Model)
|
>94% |
||||||
Rated Voltage |
24VDC |
48VDC |
|||||
Constant Charging Voltage |
28.2VDC |
56.4Vdc |
|||||
Float Charging Voltage |
27VDC |
54VDC |
|||||
PV Charging Method |
MPPT |
||||||
Max PV Input |
4200W |
4200W |
5500W |
6200W |
|||
MPPT Tracking Range |
120~500VDC |
120~500VDC |
120~500VDC |
120~500VDC |
|||
MAX PV Input Voltage |
500VDC |
500VDC |
500VDC |
500VDC |
|||
MAX PV Charge Current |
100A |
100A |
100A |
100A |
|||
MAX AC Charge Current |
60A |
80A |
60A |
80A |
|||
MAX Charge Current |
100A |
120A |
100A |
120A |
|||
LCD |
Can display operating mode/load/input/output |
||||||
RS232 |
5PIN/Pitch2.54mm,Baud Rate 2400 |
||||||
Expansion Slot Communication |
Lithium Battery BMS Communication Card,WIFI 2×5PIN/Pitch2.54mm
|
||||||
Interface |
|||||||
Parallel Interface |
Not Support Parallel |
Support Parallel |
|||||
Operating Temperature |
0℃~40℃ |
||||||
Storage Temperature |
-15℃~60℃ |
||||||
Ork Altitude |
No more than 1000m, If 1000m<,Rate power will lower, MAX 4000m, Refer |
||||||
Operating Environment Humidity |
Non Condensing |
||||||
Noise |
<50dB |
||||||
L*W*H(mm) |
495*312*146mm |
||||||
Standards and Certifications |
EN-IEC 60335-1,EN-IEC 60335-2-29.IEC 62109-1 |
||||||
