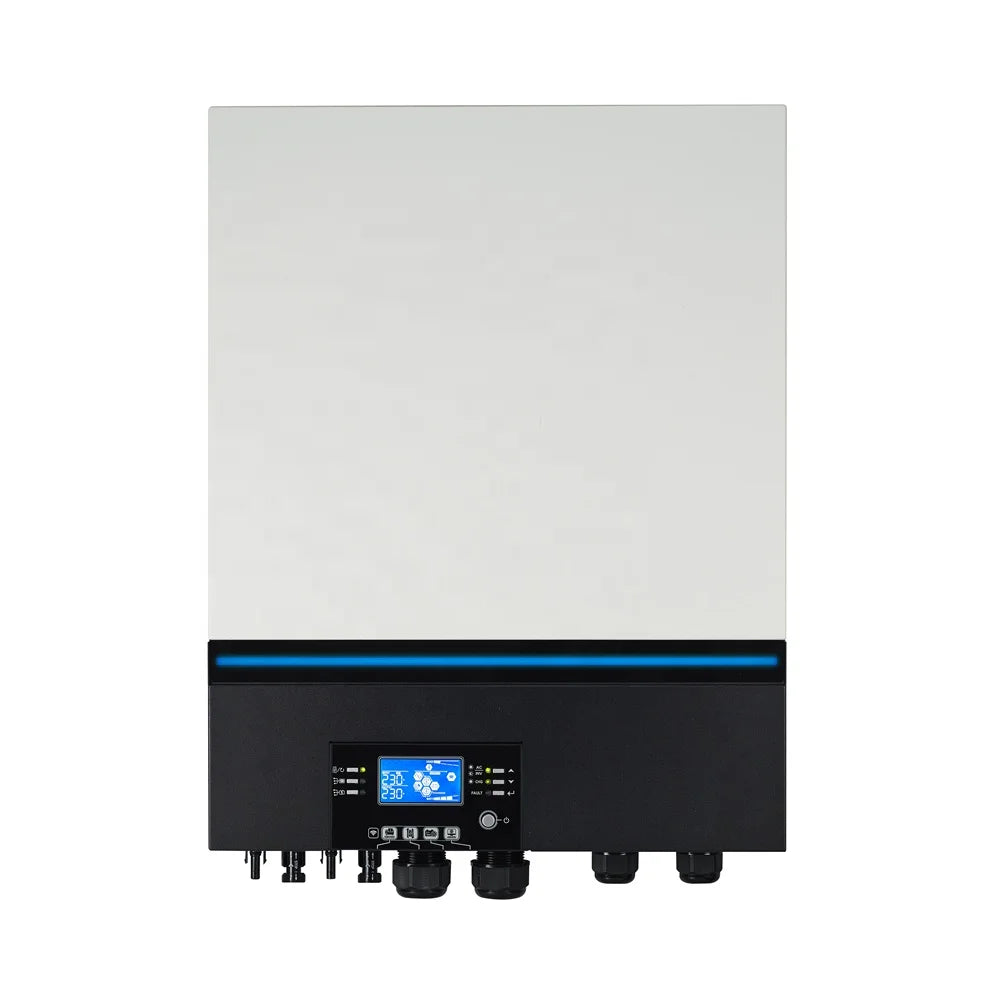

Voltronic Axpert Mks 5kva Axpert Max 7200-48-230 Factory Directly

₱86,793.85PHP

SPECIFICATIONS

Battery Voltage: 48 VDC

Brand Name: Axpert

Input Voltage: 220VAC

Inverter Efficiency: 93%

MPPT Range @ Operating Voltage: 60VDC ~ 115VDC

Maximum AC Charge Current: 60A

Maximum Charge Current: 140A

Maximum PV Array Open Circuit Voltage: 145VDC

Maximum PV Array Power: 4000 W

Maximum Solar Charge Current: 80A

Model Number: Axpert max 7200

Output Current: 20A

Output Frequency: 50/60Hz

Output Type: Single

Output Voltage: 220VAC

Place of Origin: Jiangsu, China

RATED POWER: 5000VA/4000W

Size: 120*295*468mm

Surge Power: 10000VA

Type: DC/DC Converters,DC/AC Inverters

Weight: 12.5kg

Axpert V Value Off-Grid Inverter

Axpert V Off-Grid Inverter

Axpert VM II Off-Grid Inverter

Axpert VM III Off-Grid Inverter

Detachable LCD control module with various communications

This detachable LCD control module can be turned to remote panel. Users can install the LCD panel in accessible area away from inverter up to 20 meters.

Integrated Bluetooth interface with Android App

VM III series is integrated Bluetooth interface ready for mobile monitoring. This technology allows wireless communication up to 6~7m in an open space. Now, WatchPower App is available in google store.

Supports USB On-the-Go function

VM III series supports USB On-the-Go function to facilitate data upload/download.

User-friendly LCD operation

Users can easily set up or change the charging current, output source and charger source prioritization through LCD control panel to optimize inverter performance.

Battery independency

Inverter can keep supplying power to the loads from PV energy or the grid without battery connected.

Reserved communication port (RS-485, CAN-BUS or RS-232) for BMS

This third generation inverter is reserved communication port for BMS. For the detailed information, please contact sales directly.

Battery equalization extends lifecycle

This inverter charger is built in battery equalization function. This function will help remove sulfation to optimize battery performance and even extend lifecycle.
