Solar Invert 3.5KW AC 220V DC 24VDC MPPT 110A 500VDC PV Input Pure Sine Wave Hybrid Inverter Off-Grid with WiFi
Solar Invert 3.5KW AC 220V DC 24VDC MPPT 110A 500VDC PV Input Pure Sine Wave Hybrid Inverter Off-Grid with WiFi

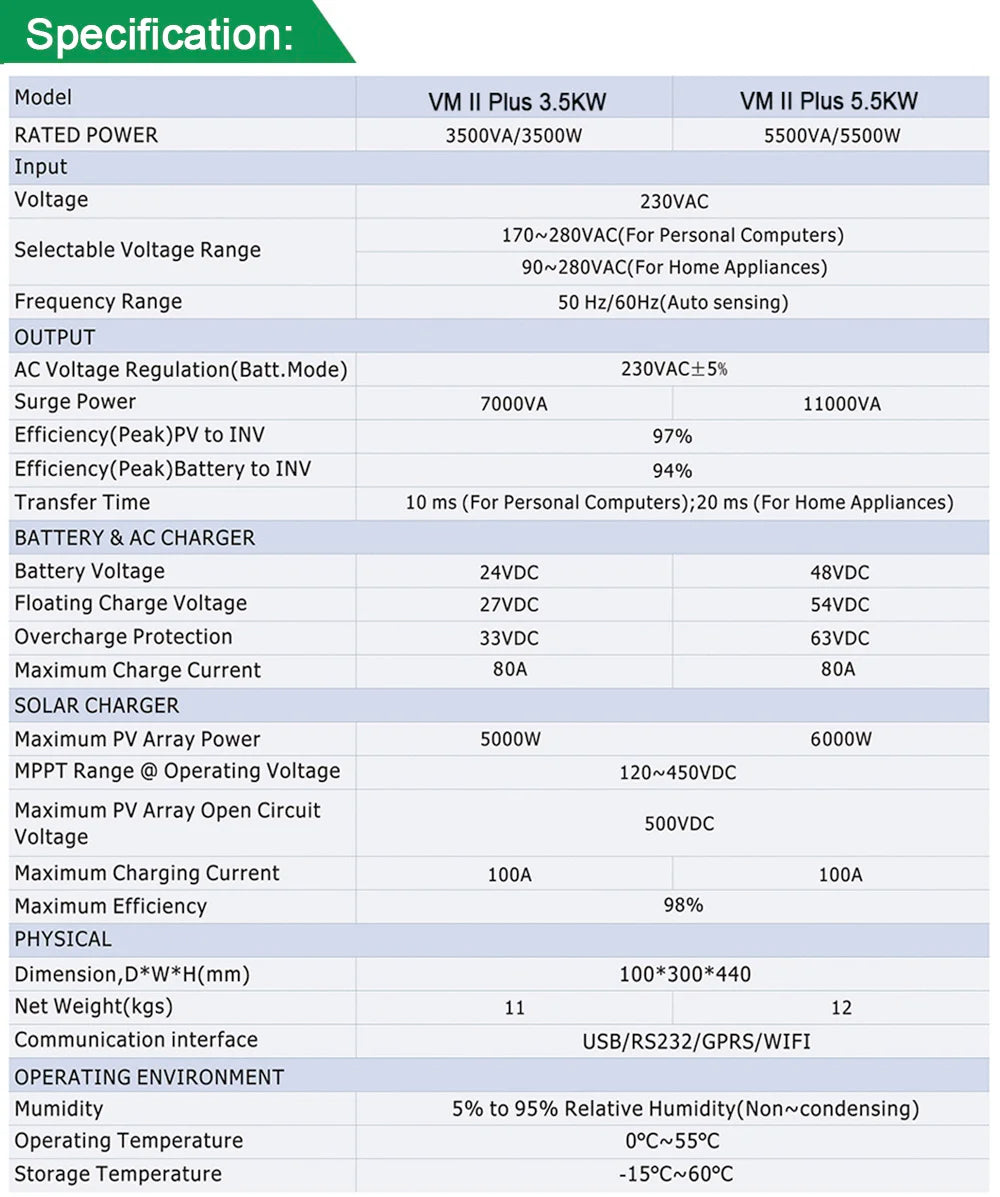

SPECIFICATIONS
Battery voltage: 24VDC
Brand Name: Jesudom
Brazil warehouse: Yes
Can work in the battery: Yes
Certification: CE,RoHS
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Frequency Range: 50Hz60Hz
High-concerned chemical: None
Input Voltage: 230VAC
Is Smart Device: Yes

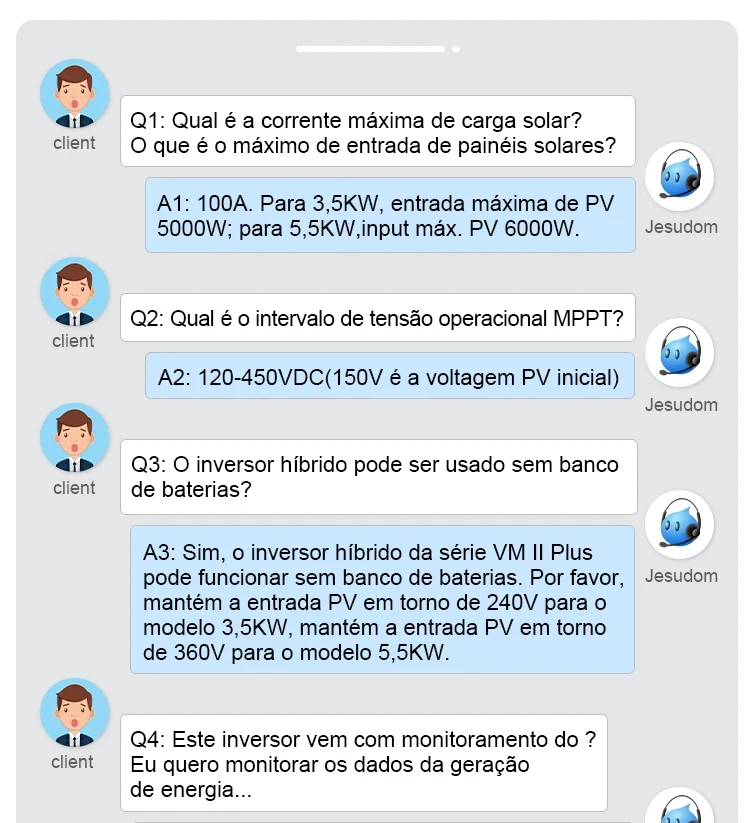

MPPT PV Input voltage range: 120-450VDC
Max charge current: 80A
Max.PV input Voltage: 500VDC
Model: VMII Plus 3.5KW
Model Number: VMII Plus 3.5KW
Origin: Mainland China
Output Frequency: 50HZ/60HZ
Output Type: SINGLE
Rated Power: 3500W
Size: 550*370*210mm
The start PV voltage: 150V
Weight: 12KG
is_customized: Yes
3500W 24V 5500W 48V Solar Hybrid Inverter, MPPT 500Vdc 100A Solar Charger and Pure Sine Wave Inverter for Home Appliance
Features:

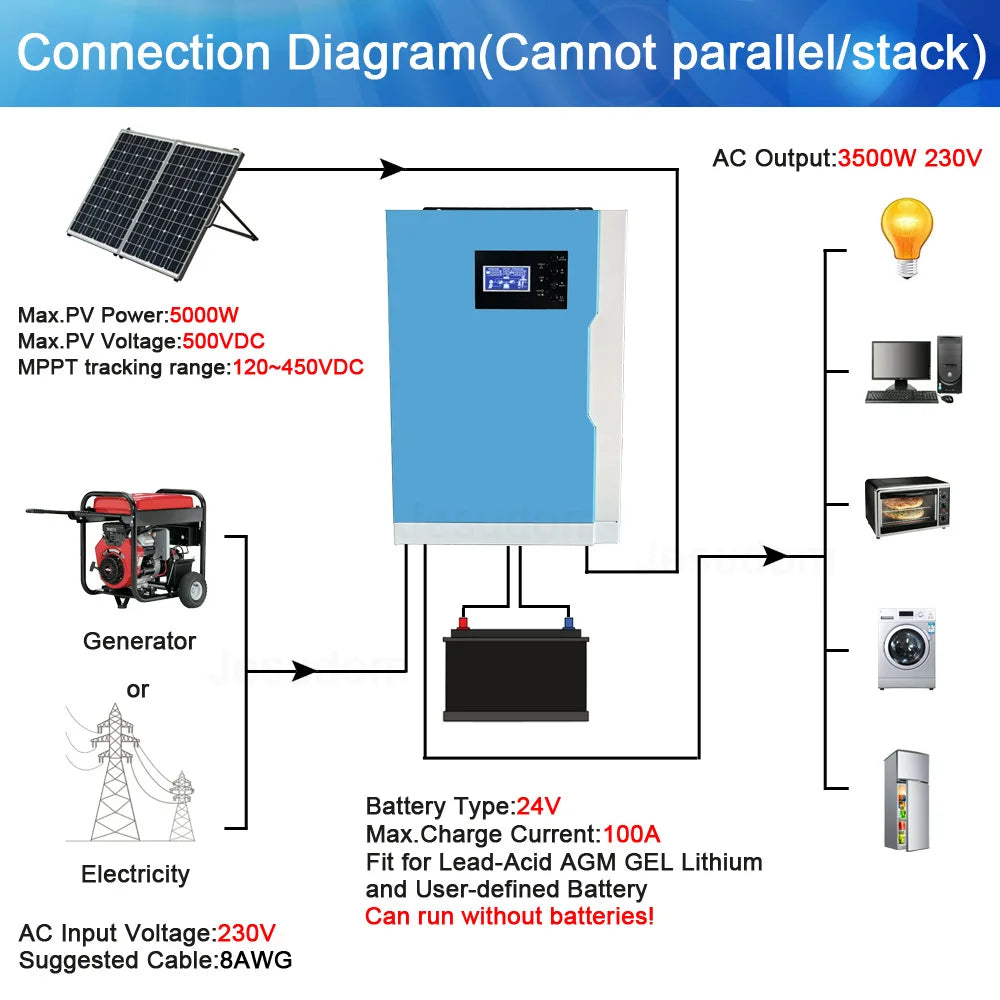

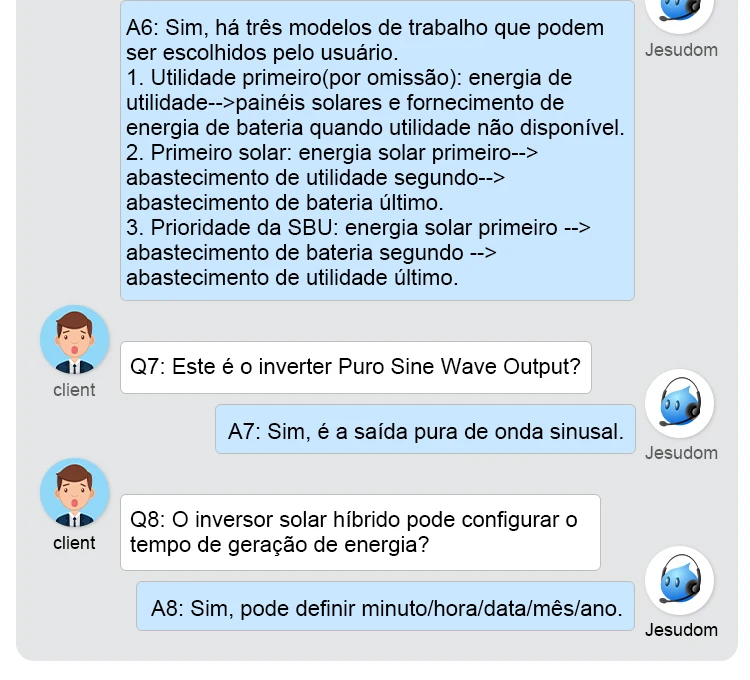

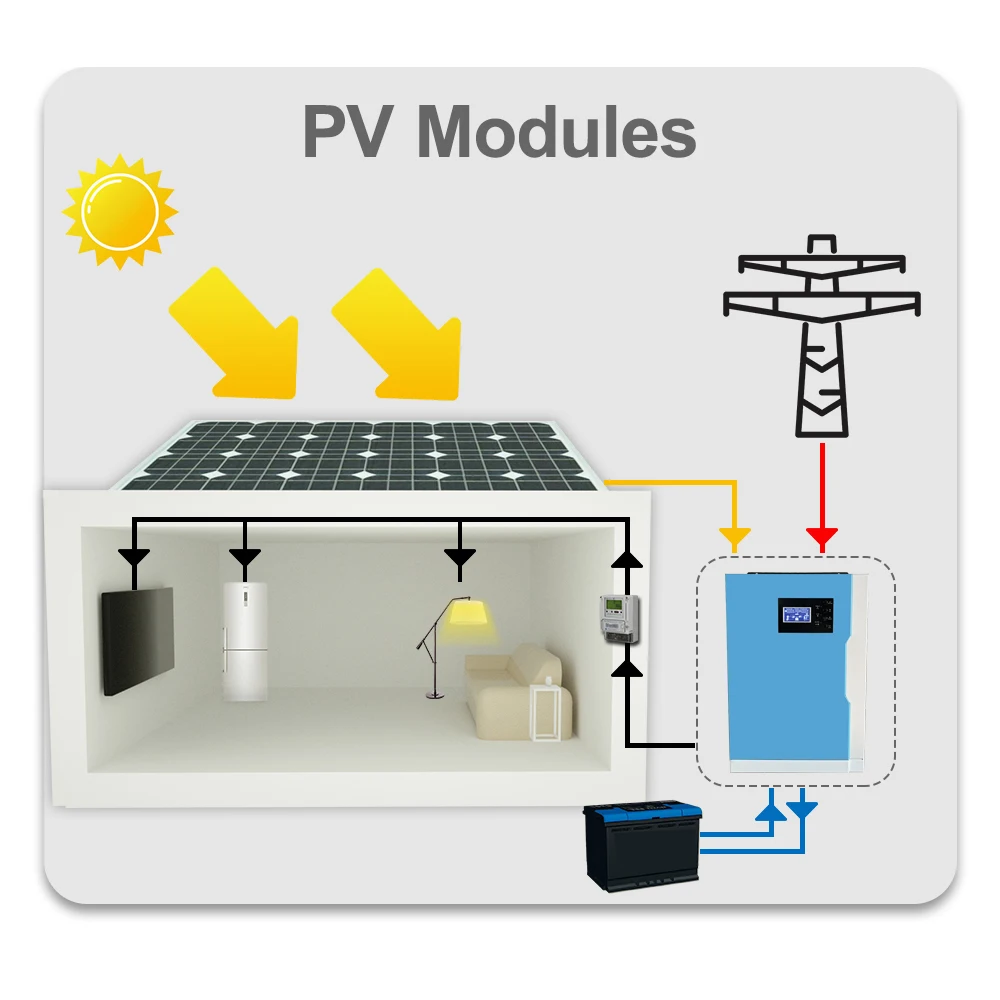

There are 3 priority can be chose:
Utility First: utility supply --->solar and batteries Bank supply (no utility power supply).
Solar first mode: solar supply ---> Main supply --->batteries Bank supply.
SBU mode: solar supply ---> batteries supply --->main supply.
High efficiency pure sine wave inverter (PF = 1).
Wide PV input range (120Vdc -- 450Vdc)
150VDC for starting voltage,100A MPPT SCC;
Intelligent 3 stage 80A AC charger.
Emerges to 2X continuous power for 5 seconds for motor loads.
Intelligent functionality enable utility and solar input prioritization.
Wide utility input range(90Vac -- 280Vac)for unreliable grid even in the most challenging environments.

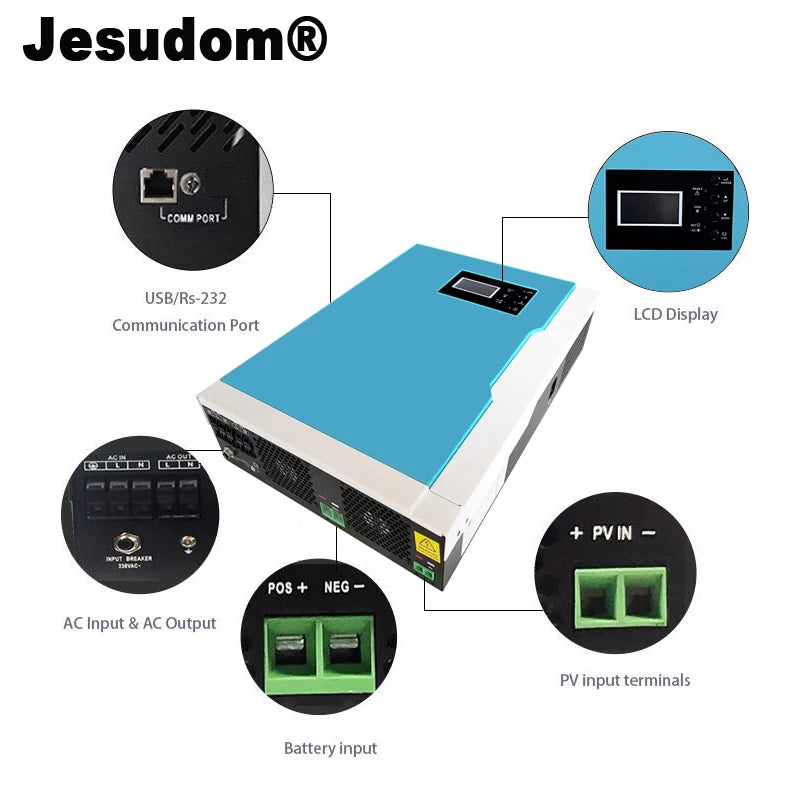

Field serviceable with replacement boards and spare parts.

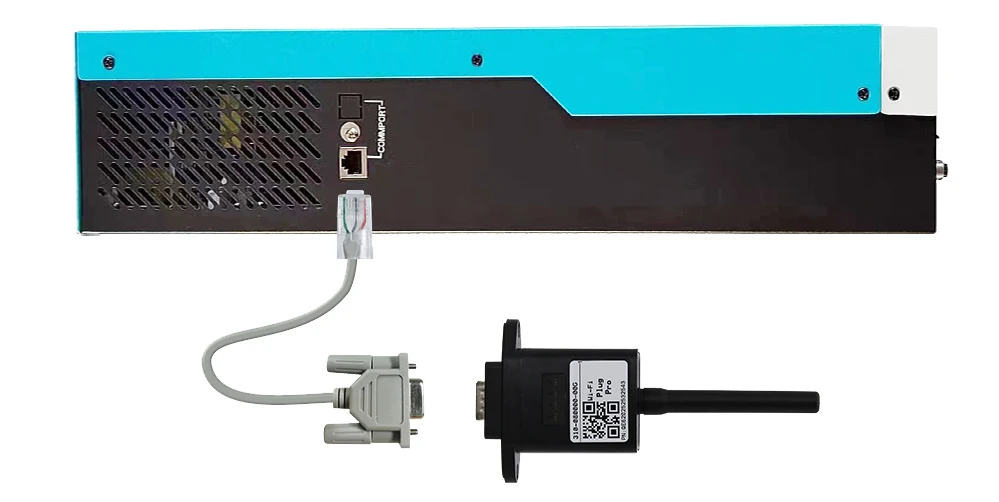

Monitor, troubleshoot, or communication with RS232.
System configures quickly into compact, wall-mounted system.
Can work with Lithium battery/Lead-acid battery/Gel battery

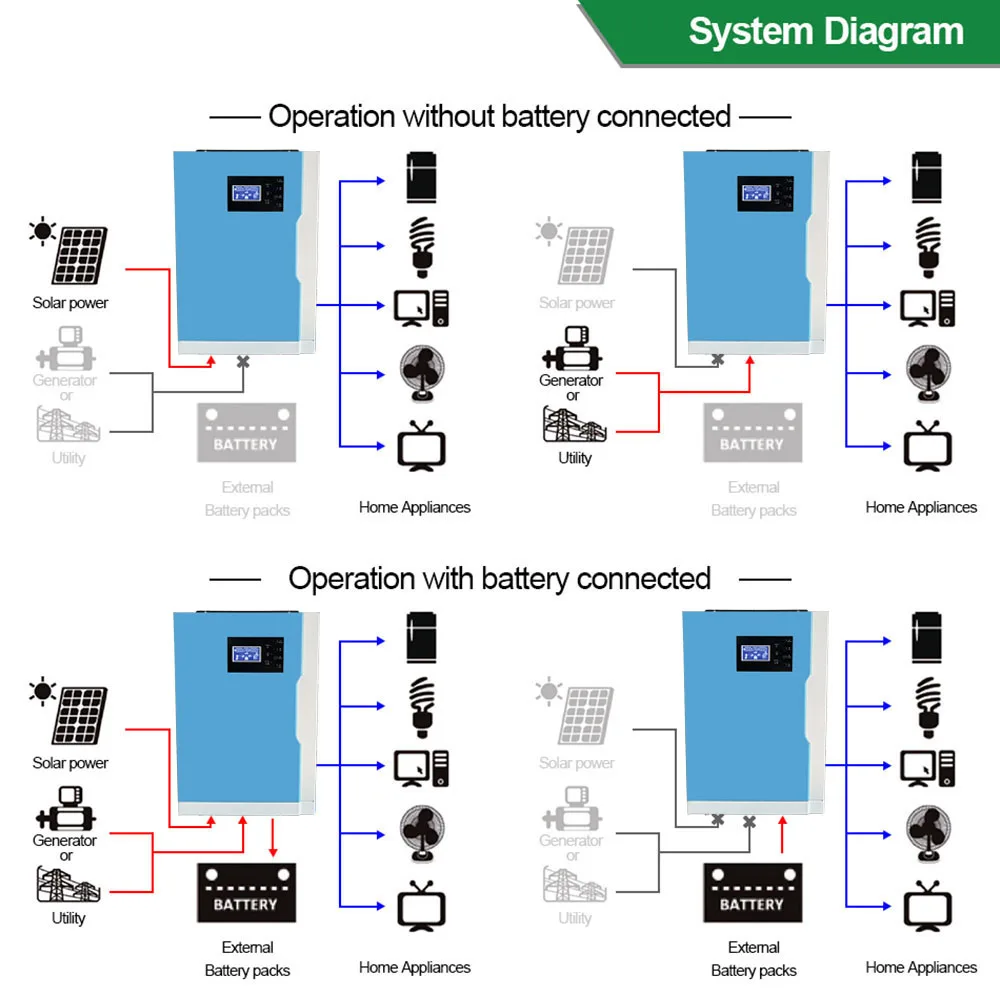

Can Work Without Battery
PV Starting Voltage is 150VDC
