Solar Invert 3.5KW AC 220V DC 24VDC MPPT 110A 500VDC PV Input Pure Sine Wave Hybrid Invert 3500W with WIFI

3.5KW / 230V / China Mainland|24V

₱12,832.47PHP

1/33

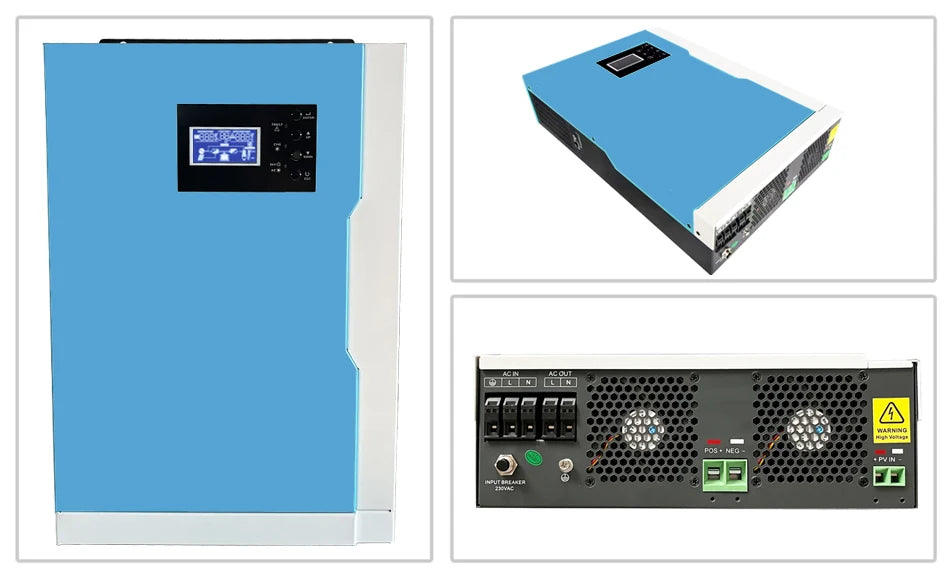

Solar Invert 3.5KW AC 220V DC 24VDC MPPT 110A 500VDC PV Input Pure Sine Wave Hybrid Invert 3500W with WIFI

₱12,832.47PHP

Color 3.5KW 3.5KW with WiF 3.5KW 1 3.5KW with WiF 1

Output Voltage230V

Ships From|Input VoltageChina Mainland|24V

SPECIFICATIONS

Battery voltage: 24VDC

Brand Name: Jesudom

Brazil warehouse: Yes

Can work in the battery: Yes

Certification: CE,RoHS

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Frequency Range: 50Hz60Hz

High-concerned chemical: None

Input Voltage: 230VAC

Is Smart Device: Yes

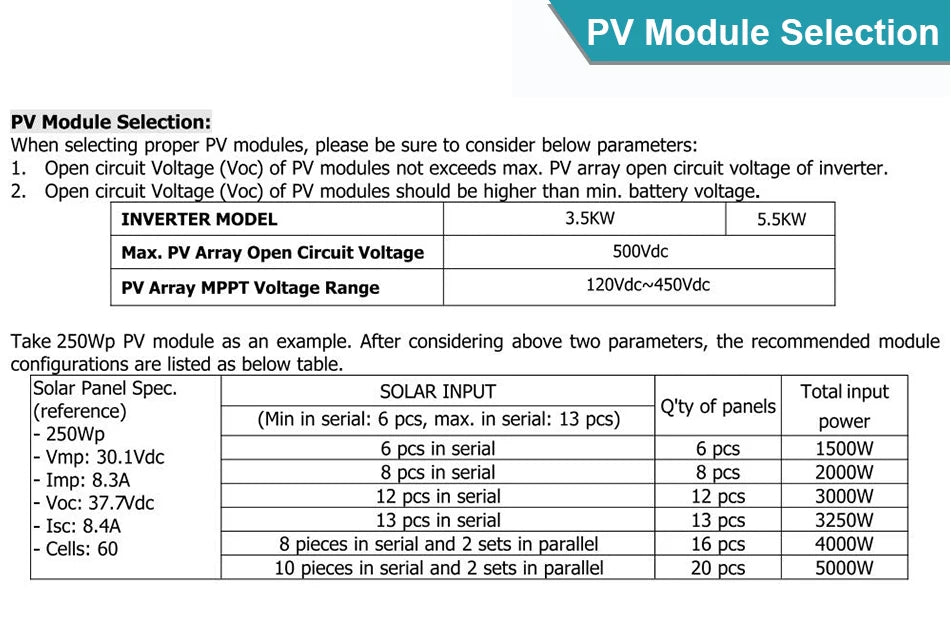

MPPT PV Input voltage range: 120-450VDC

Max charge current: 80A

Max.PV input Voltage: 500VDC

Model: VMII Plus 3.5KW

Model Number: VMII Plus 3.5KW

Origin: Mainland China

Output Frequency: 50HZ/60HZ

Output Type: SINGLE

Rated Power: 3500W

Size: 550*370*210mm

The start PV voltage: 150V

Weight: 12KG

is_customized: Yes

Solar Inverter 3.5KW AC 220V DC 24VDC MPPT 110A 500VDC PV Input Pure Sine Wave Hybrid Inverter 3500W with WIFI

Please note that these two inverters only have different colors, but the specifications are the same.

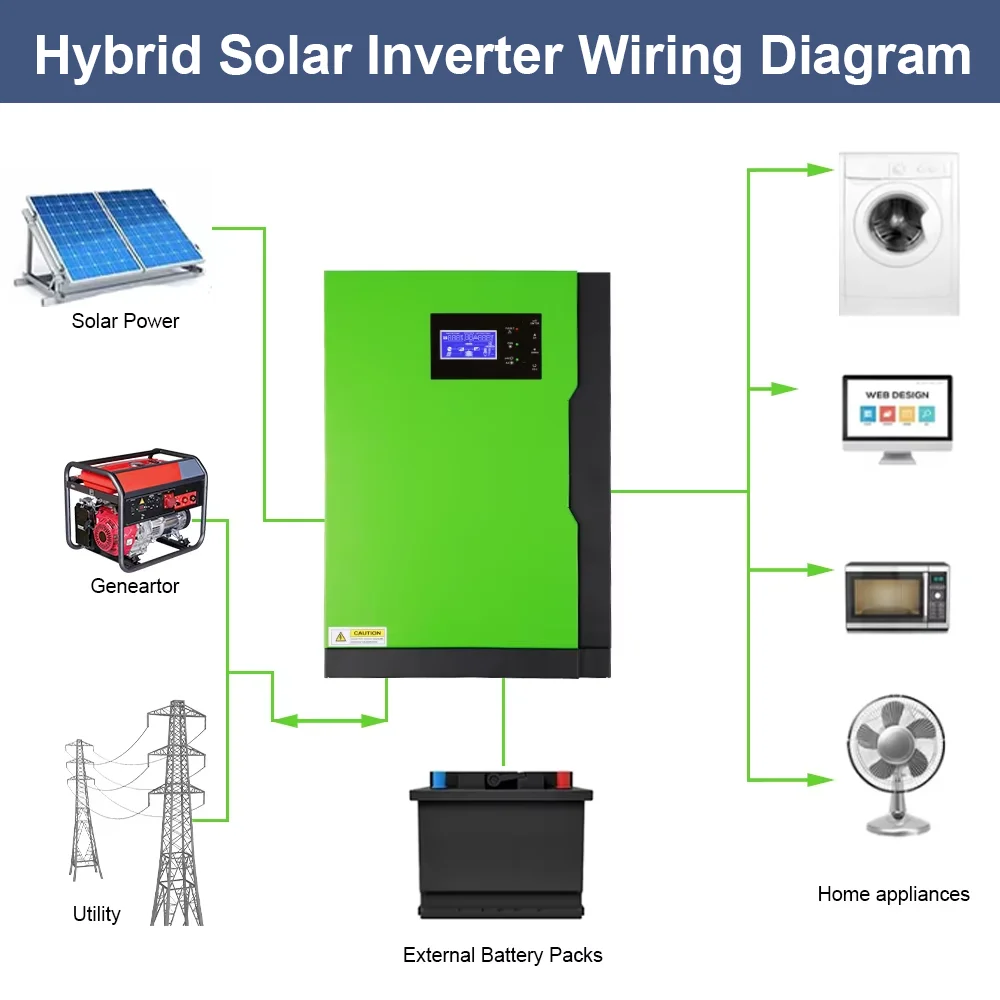

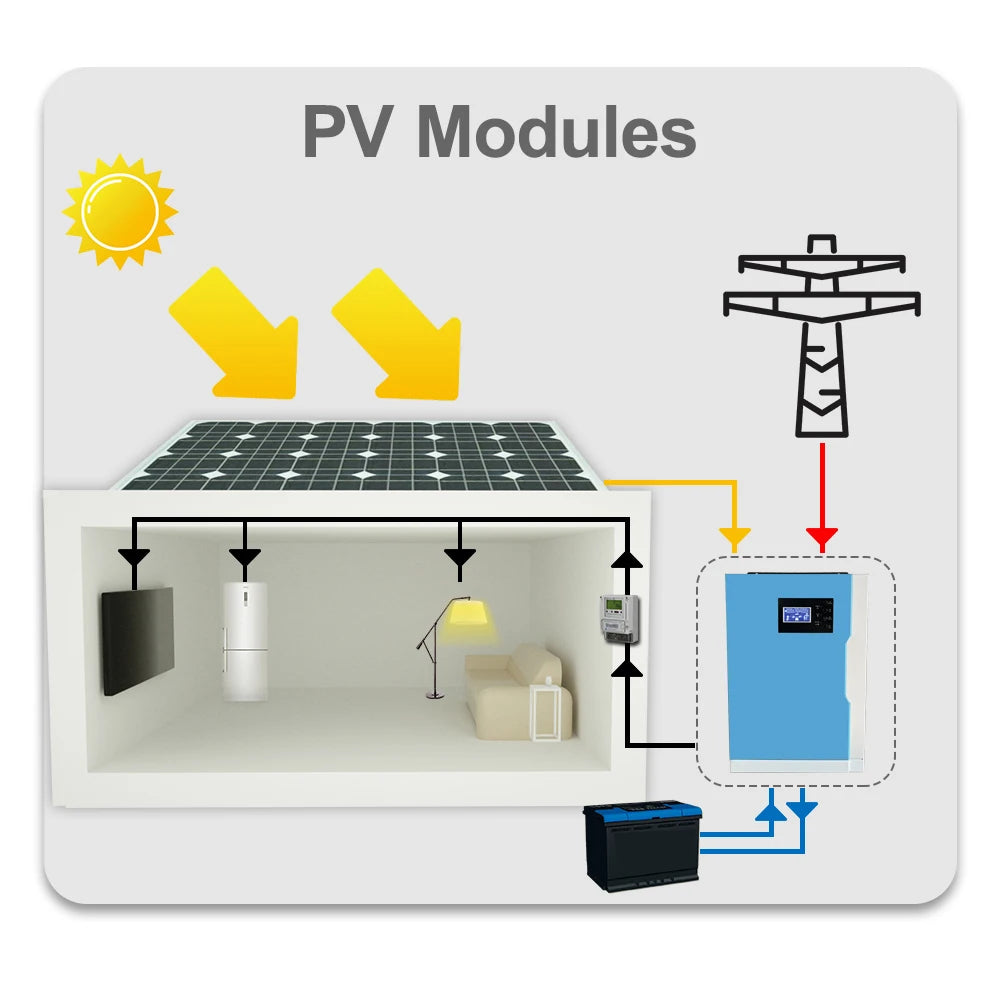

This all in one solar system is the perfect go-to solution for off-grid, backup power for homes , small business and it also deliverers a value added, easy to install system that provides efficient power globally for every need.

• High efficiency pure sine wave inverter(PF = 1);

• Wide PV input range (120Vdc -- 500Vdc),150VDCFor starting voltage, 240VDC is the best for 3500W.360VDC is the besr for 5500W.100A MPPT SCC;

• Arges to 2X continuous power for 5 seconds for motor loads.

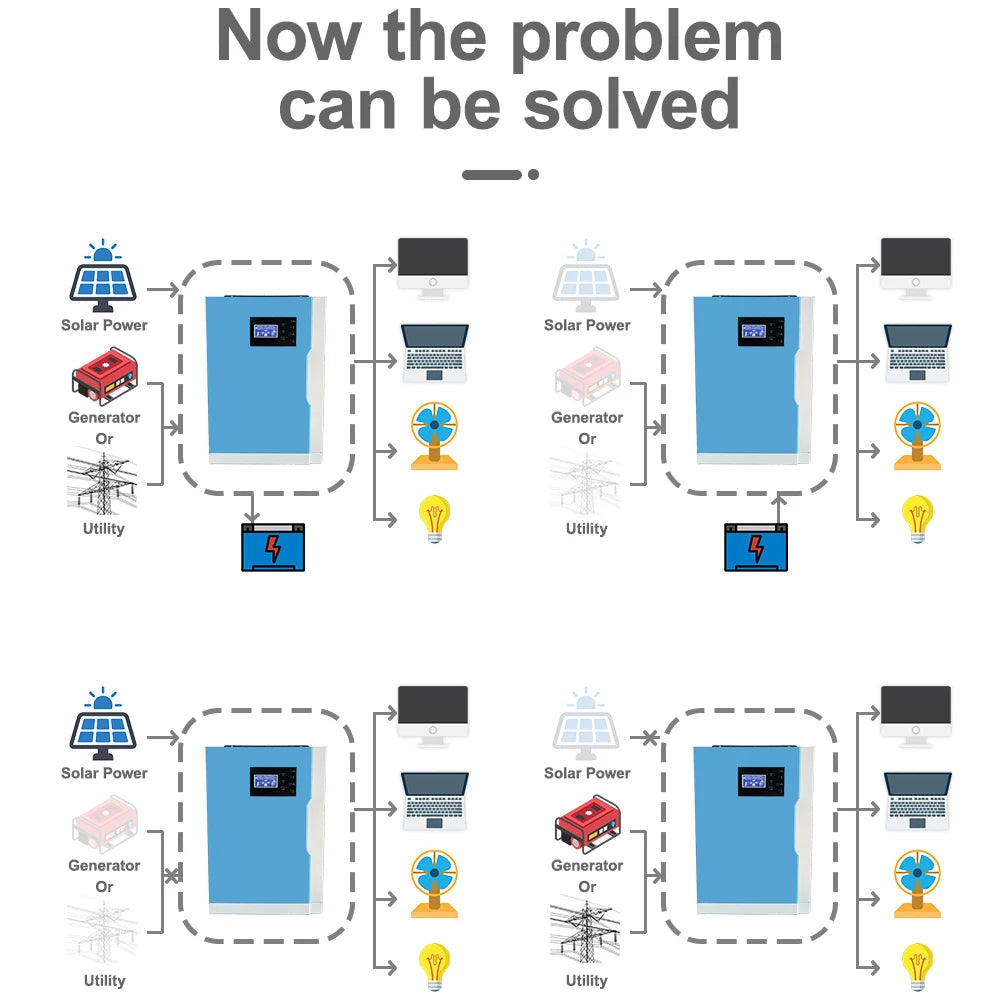

• Intelligent functionality enables utility and solar input prioritization

• Wide utility input range(90Vac -- 280Vac)for unreliable grid even

• In the most challenging environments.

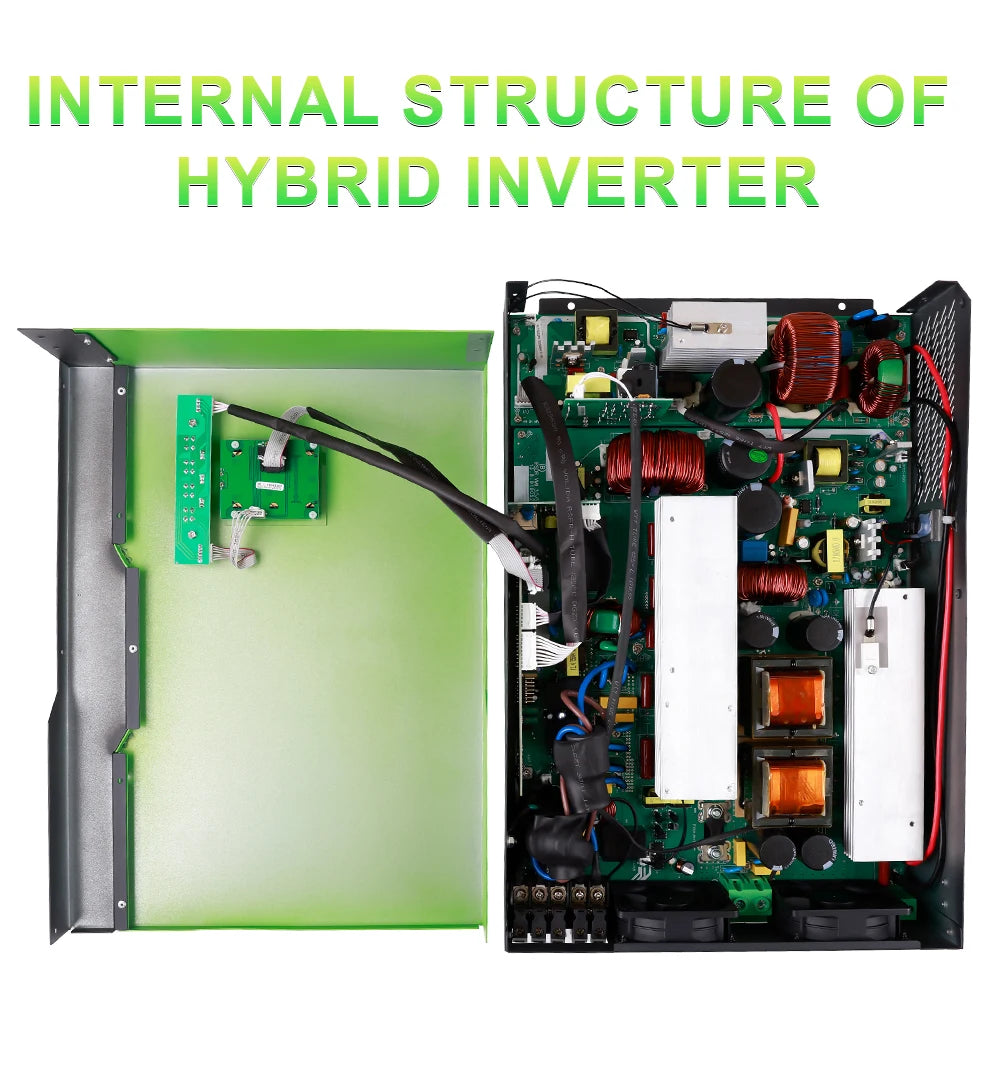

• Field serviceable with replacement boards and spare parts.

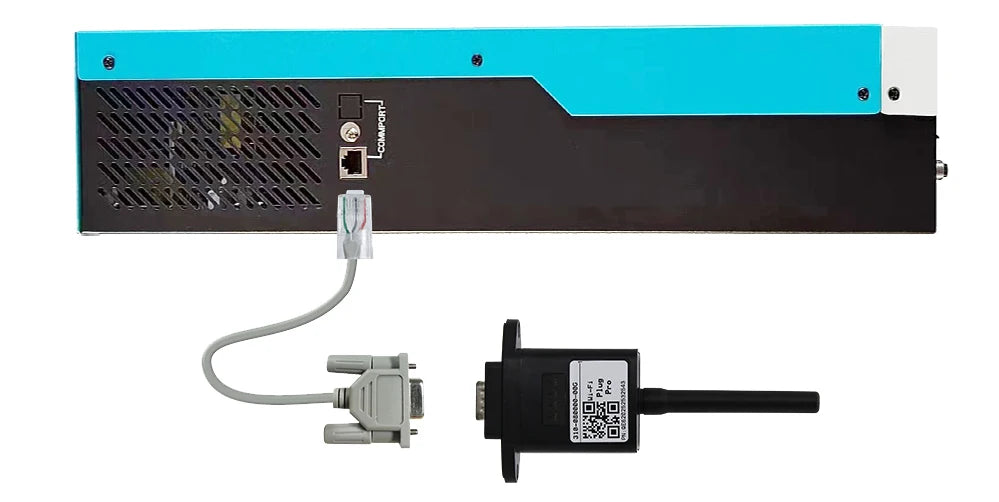

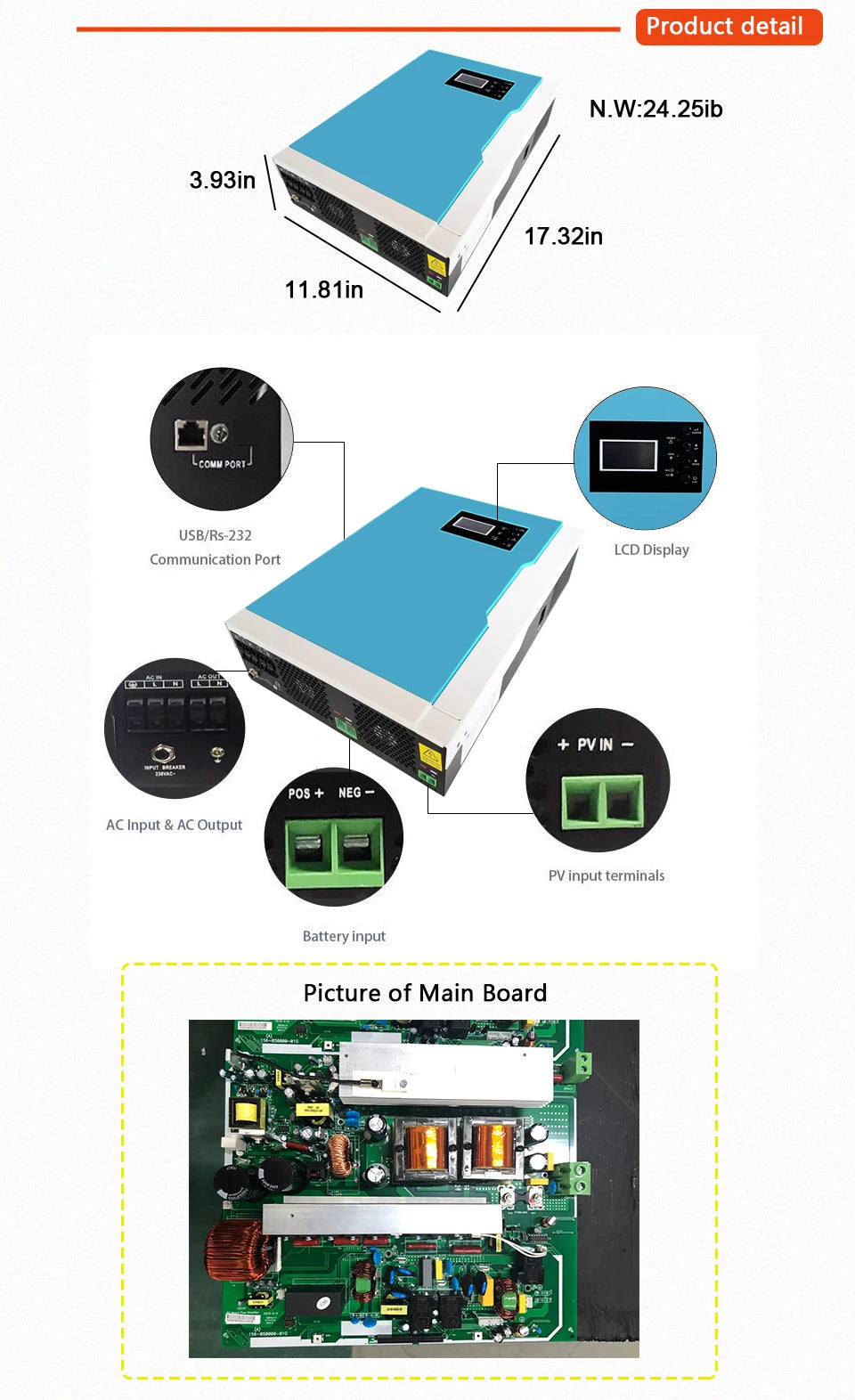

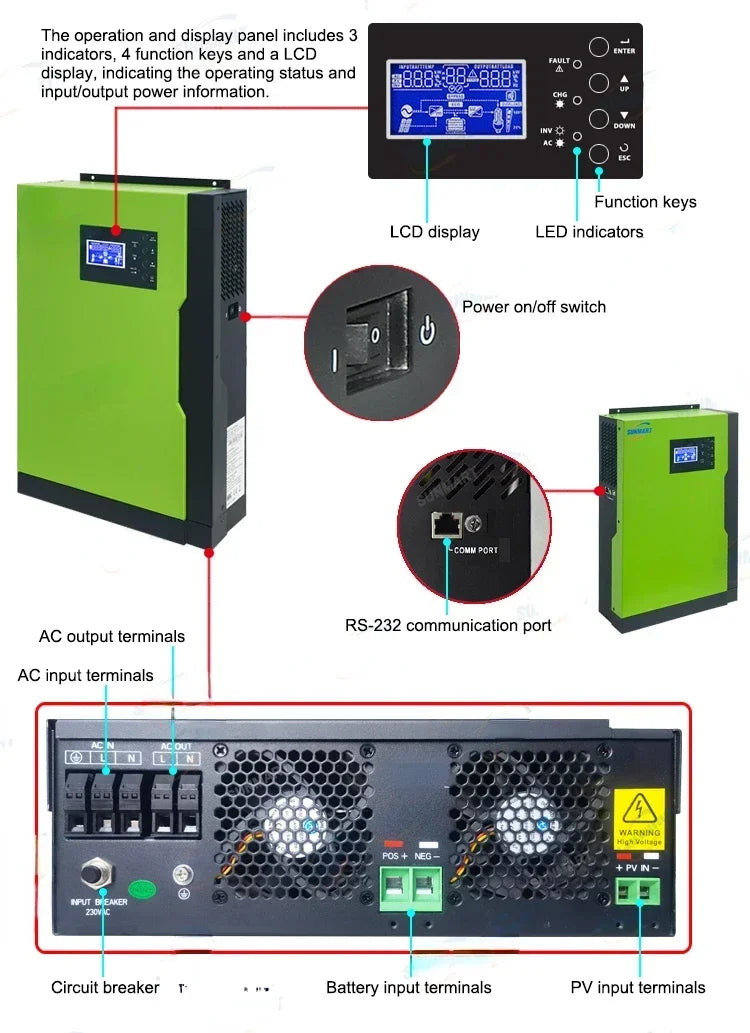

• Monitor,troubleshoot,or communication with USB/RS232.

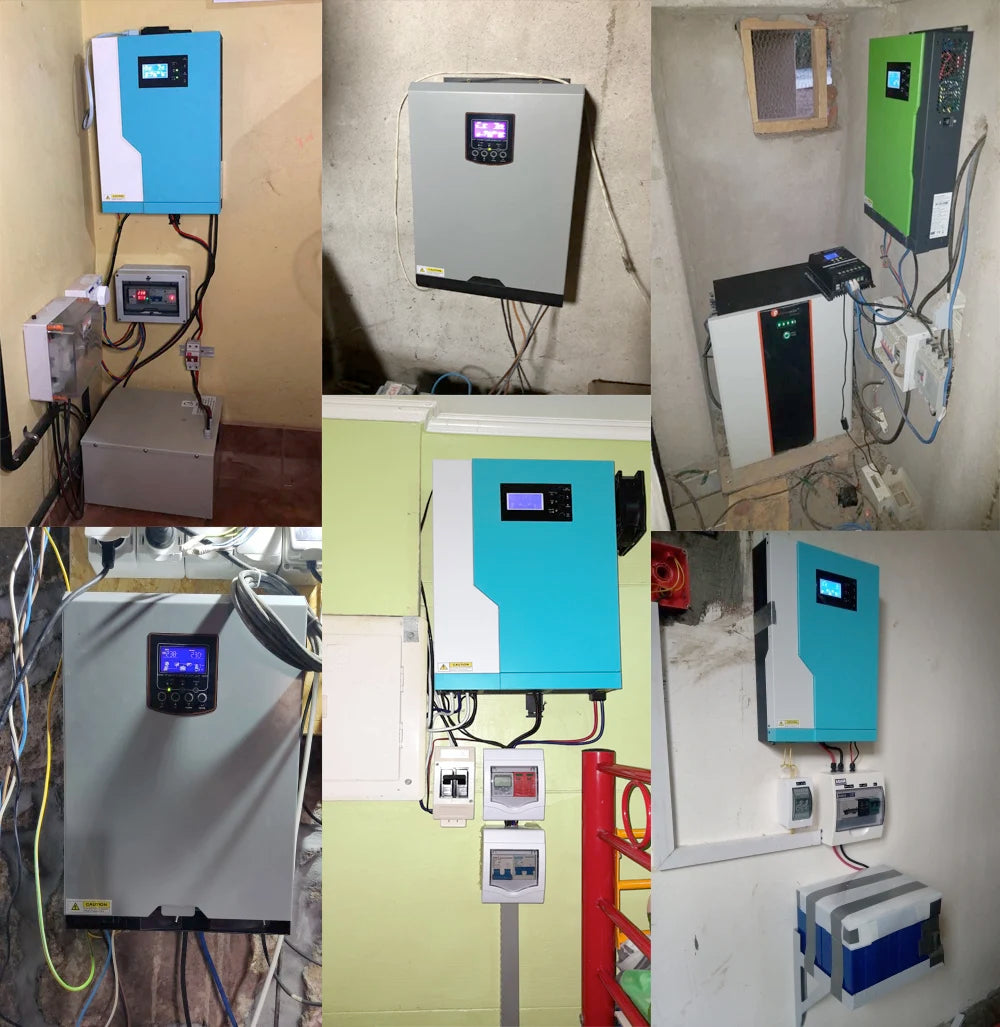

• System configurations quickly into compact,wall-mounted system.

• WorkingWithout batteriesSun in Day

• Can work withLithiumBattery/Lead-acid battery/Gel battery

Model	VMII PLUS - 3.5KW	VMII PLUS - 5.5KW
Power Rated	3500VA/3500W	5500VA/5500W
Voltage Input	230VAC
Selectable Voltage Range	170~280VAC(For Personal Computers)
Selectable Voltage Range	90~280VAC(For Home Appliances)
Frequency Range	50Hz/60Hz(Auto Sensing)
Output
CA Voltage Regulation(Batt.Mode)	230VAC ± 5%
Power Surge	7000VA	11000VA
Efficiency(Peak)PV Th INV	97%
Efficiency(Peak)Battery Th INV	94%
Time Transfer	10ms(For Personal Computers);20ms(For Home Appliances
Battery & AC Charger
Battery Voltage	24VDC	48VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge Protection	33VDC	63VDC
Maximum Charge Current	80A	80A
Solar Charger
Maximum PV Power Array	5000W	6000W
MPPT Range @ Operating Voltage	120~450VDC(150V is The start PV voltage)
Maximum PV Open Circuit Voltage Array	500VDC
Maximum Charging Current	100A	100A
Maximum Efficiency	98%
Physical

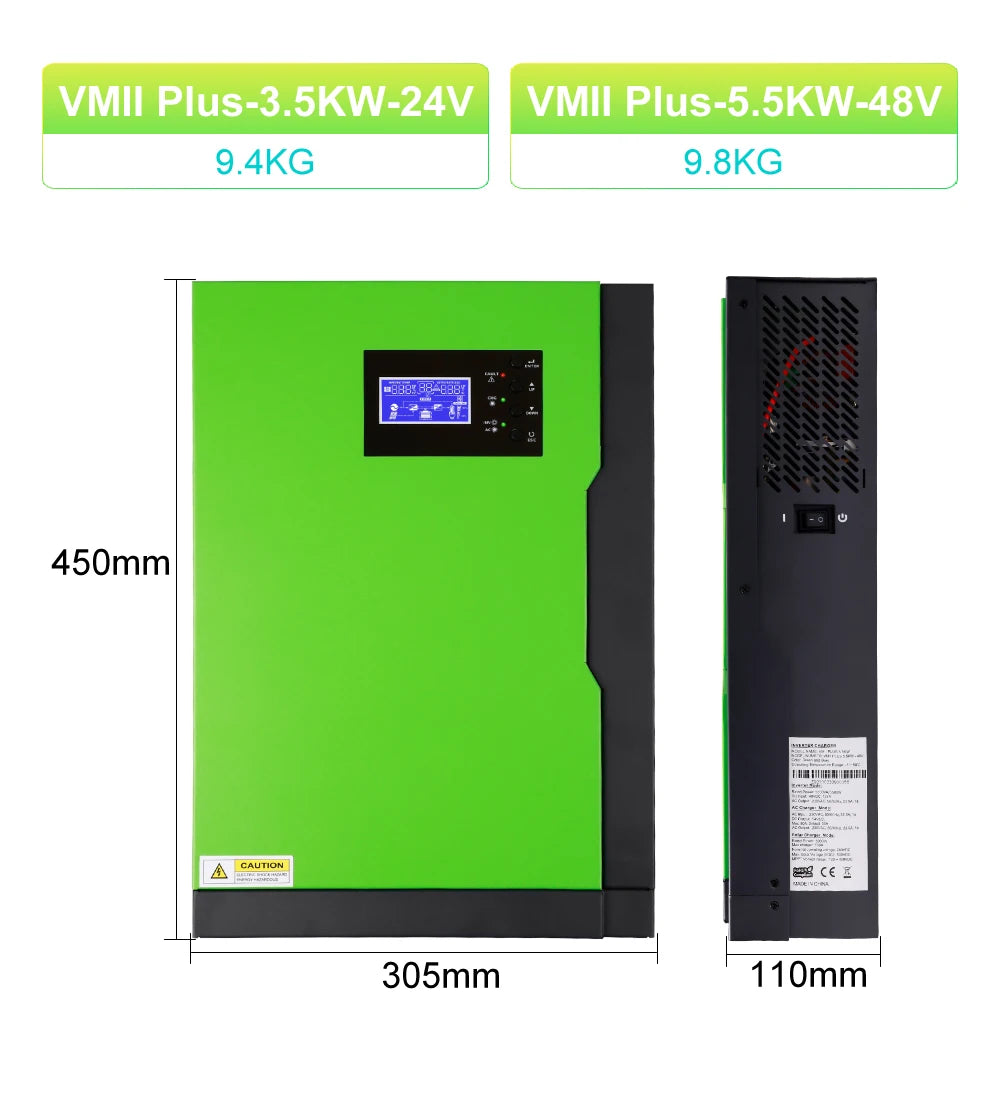

Dimension,D * W * H(mm)	100300440
Net Weight(kgs)	11	12

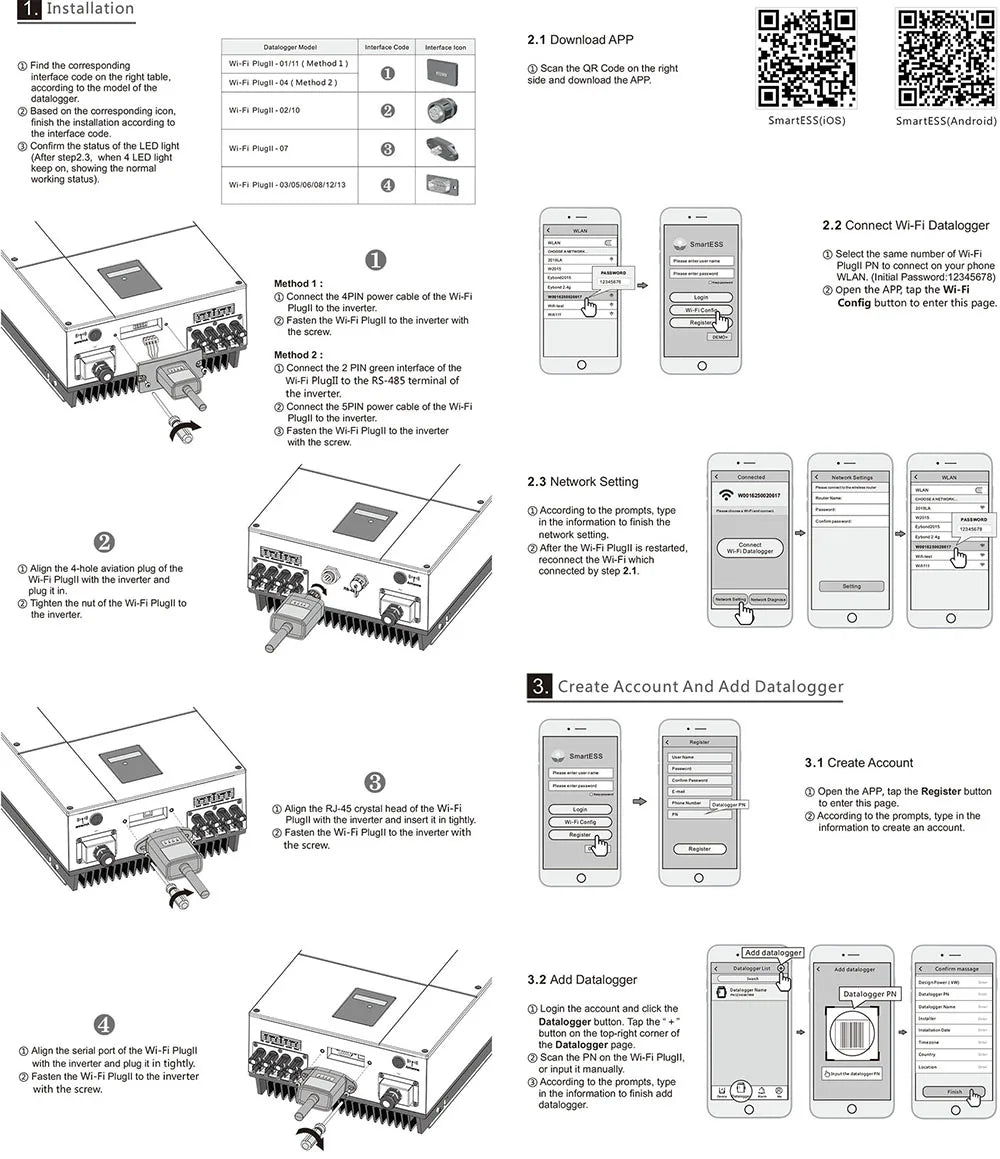

Communication Interface	WIFI
Operating Environment
Humidity	5% to 95% Relative Humidity(Non~Condensing)
Operating Temperature	0℃ ~55℃
Storage Temperature	Fifteen.℃ ~60℃

Dear customers friends,Please do not fill in the island address when you choose the Poland warehouse for shipment.Because the local logistics company will not send it to the island address.Please fill in the mainland address.Thank you for your order.
