SPECIFICATIONS

Application: Charger Controller,Solar System Controller

Battery Voltage: 12V/24V/36V/48V

Battery Voltage Range: 9~60V

Battery type: Lifepo4/Lithium Batteries, Flooded/Gel/AGM Batteries, User Mode

Brand Name: PowMr

Charging Algorithm: 3 stages

Max PV Voltage: DC160V

Maximum Efficiency: ≥98. 1%

Model Number: POW-M60-ULTRA

Operating Temperature Range: -35℃~+45℃

Place of Origin: Guangdong, China

Product name: POW-M60-ULTRA

Rated Output Current: 25A

Type: MPPT,MPPT 60a

Work Time (h): Accept Setting

Products Description

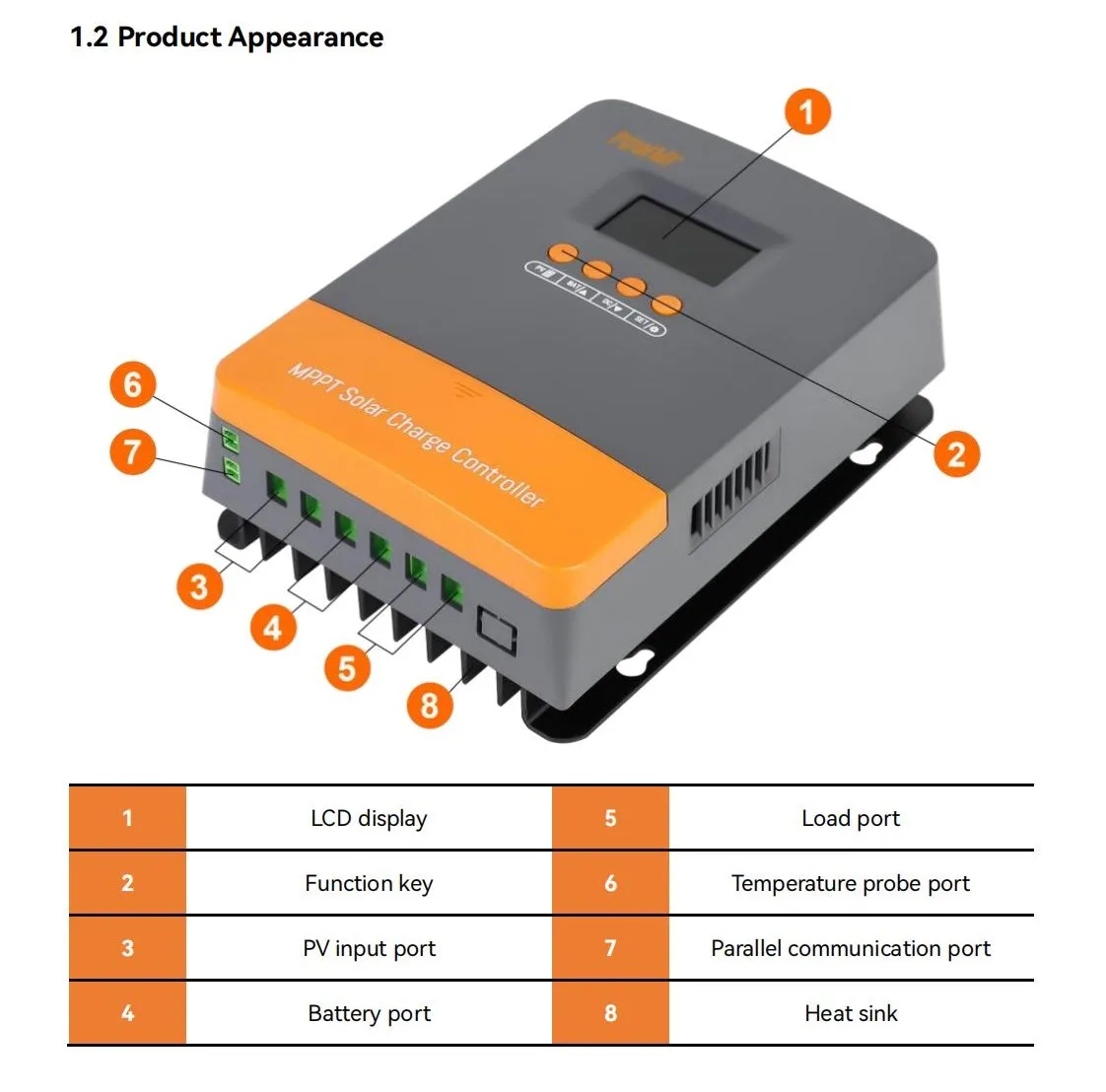

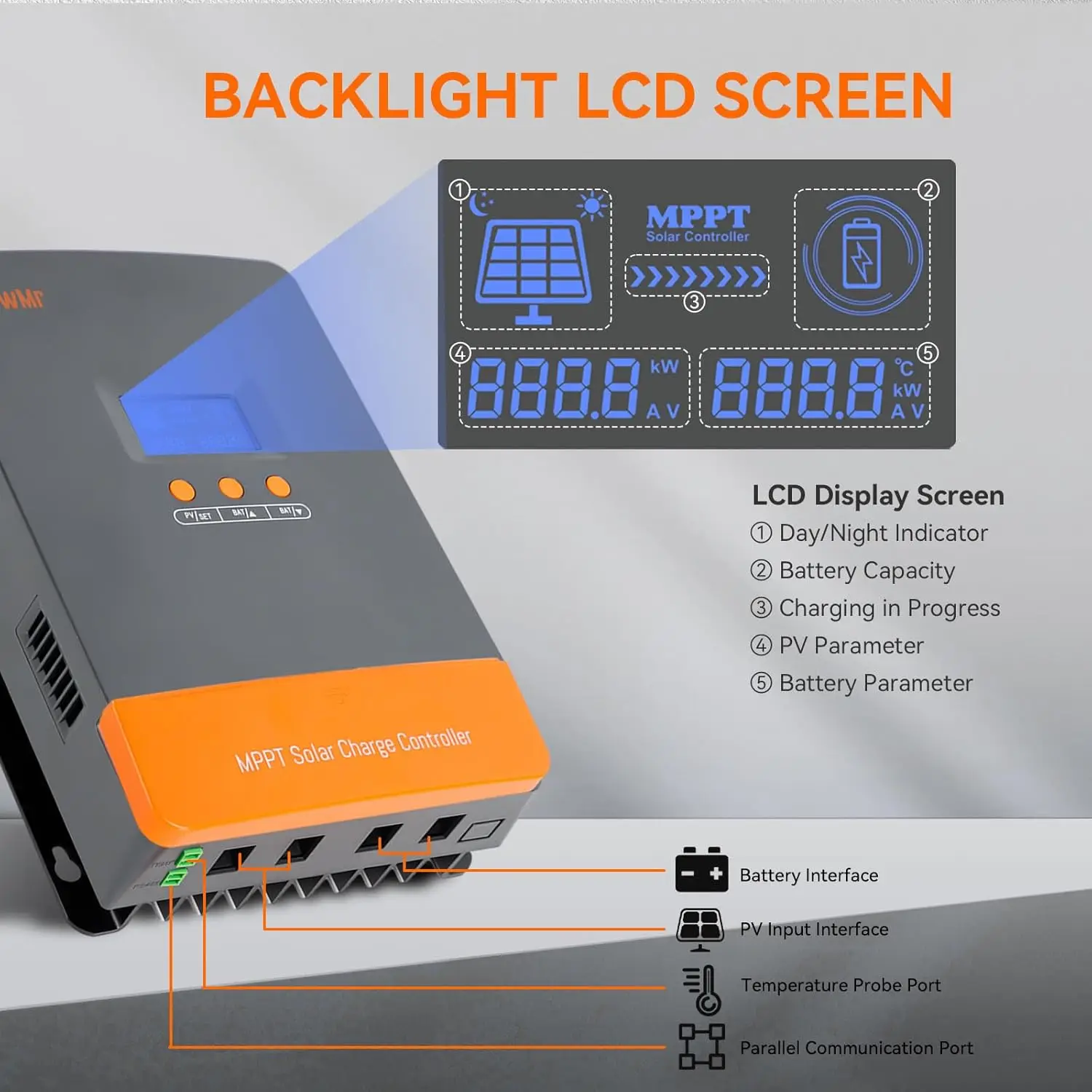

User-Friendly Button Design

Designed to deliver outstanding performance and reliability to your solar system, our meticulously crafted controllers feature advanced CNC technology, an LCD screen, and user-friendly button design, expanding configuration capabilities for real-time monitoring of operational data and system status. Additionally, the controllers support Maximum Power Point Tracking (MPPT) battery charging mode, maximizing energy utilization efficiency.

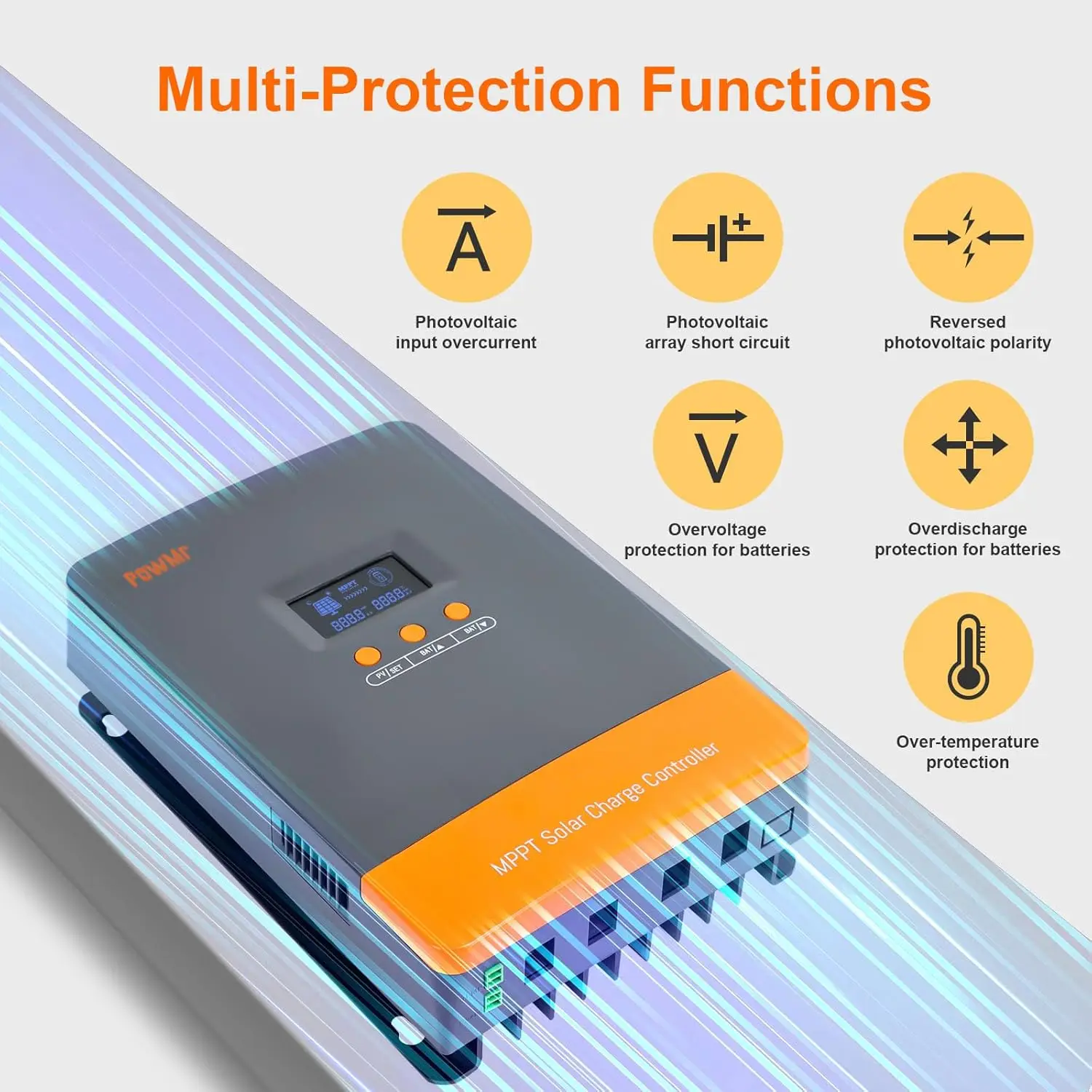

MULTI-PROTECTION FUNCTIONS

This MPPT solar charge controller offers comprehensive protection against PV short circuit, battery overvoltage, over discharge, load overcurrent, load short circuit, and over-temperature conditions to keep your system safe at all times. The intuitive LCD screen allows effortless adjustment of charging mode parameters to meet your requirements.

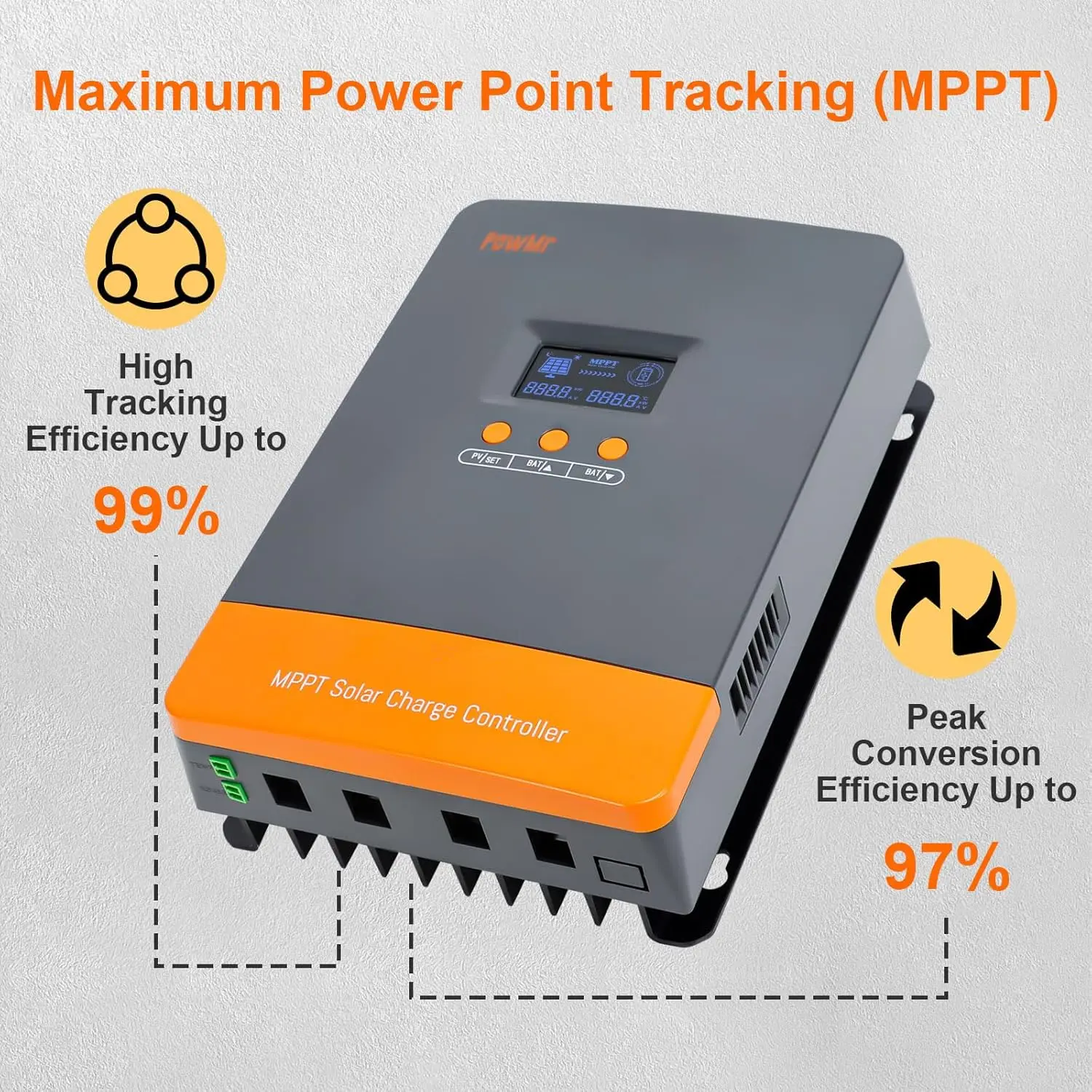

Maximum Power Point Tracking (MPPT) Technology

MPPT technology tracks the maximum power point voltage (Vmp) of the array as it varies with weather conditions, ensuring the collection of maximum power from the array throughout the day

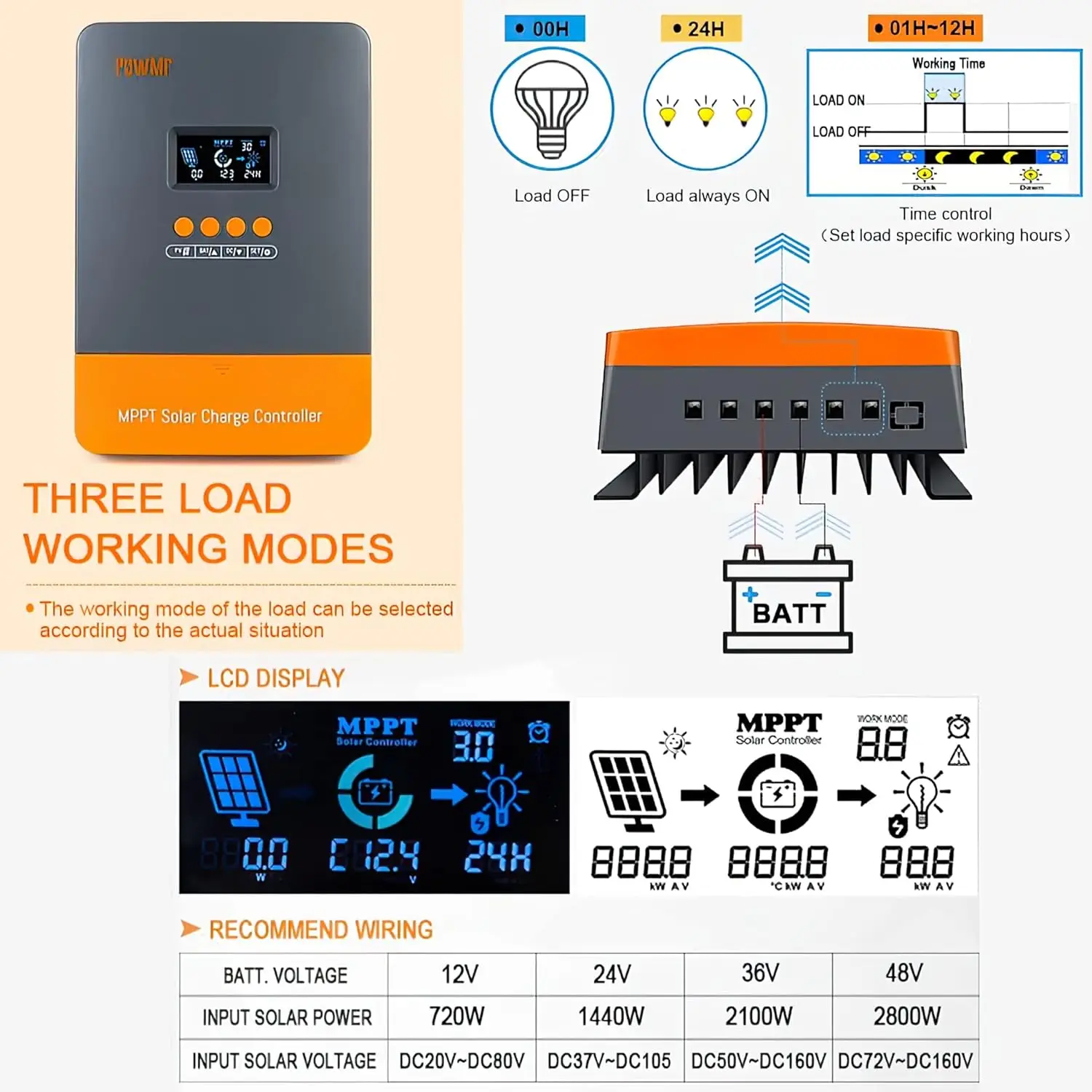

Compatible with 12V/24V/36V/48V Battery

Solar panel access power: 12 V battery/720 W solar module, 24 V battery/1440 W solar module, 36 V battery/2160 W solar module, 48 V battery/2880 W solar module, maximum idle voltage 160 V (if the battery is 48 V, it can reach), please choose the right controller according to the solar panel power and battery pack

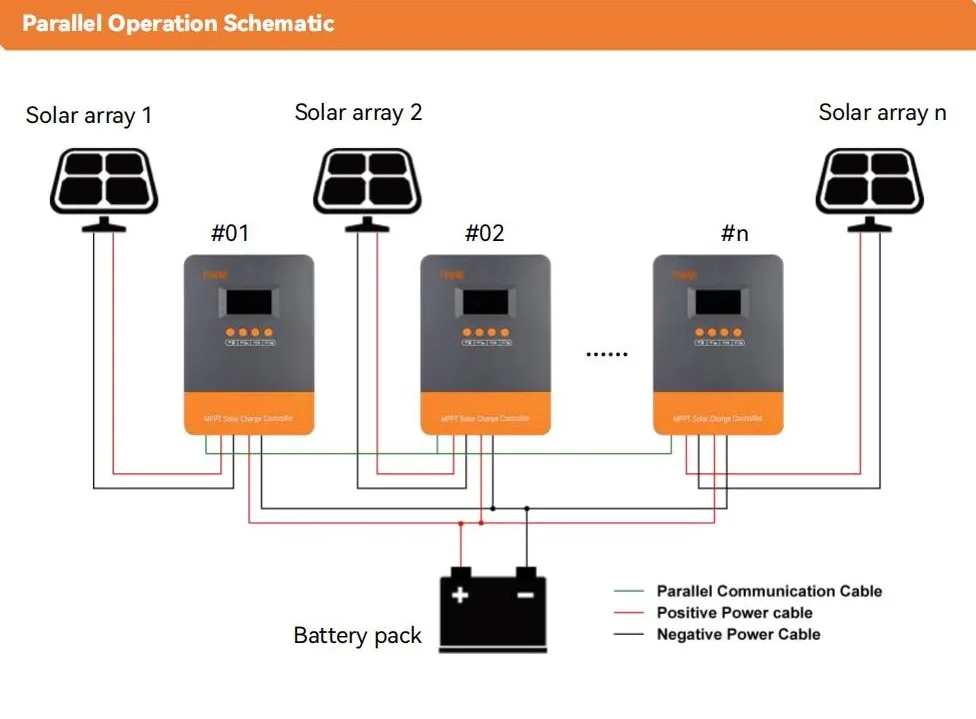

Supports Up to 12 Units in Parallel

This solar controller supports single unit standalone use as well as parallel use of multiple units. The parallel operation function allows for easy expansion of the solar panel configuration and energy storage capacity limits, thus increasing the scale of energy storage. So that can be widely used for various applications, e.g. solar RV, household systems, and field monitoring.

Feature

* MPPT charging current up to 60A

* Compatible with 12V/24V/36V/48V energy storage systems

* Supports charging for lead-acid or lithium batteries * Customizable charging current limit

* Charging efficiency up to 97%

* Maximum power point tracking efficiency up to 99%

* Supports up to 12 units in parallel

* External temperature sensor for precise battery temperature monitoring

* Built-in multiple protection functions for safe operation

* Heat sink design for efficient cooling

* Built-in lithium battery activation function

Product Paramenters

Model	POW-M60-ULTRA
Solar Input Parameters
Max. Input Power:
For 12V System	720W
For 24V System	1440W
For 36V System	2100W
For 48V System	2800W
Input Voltage Range:
For 12V System	20V~80V
For 24V System	37V~105V
For 36V System	50V~160V
For 48V System	72V~160V
Battery Charging Parameters
Charging Technology	MPPT
Charging Algorithm	3 Stages
Nominal System Voltage	12V/24/36V/48V
Battery Voltage Range	9~60V
Rated Charging Current	60A
Conversion Efficiency	≥ 98. 1%
Max. Power Point Tracking Efficiency	>99%
DC Output Parameters
Rated DC Output Current	25A
General Parameters
IP Class	IP32
Operating Temperature Range	-35℃ ~+45℃
Humidity Range	≤ 95% Non-condensing
Altitude	<3000m
Dimensions	221x163x77mm /8.7x6.42x3.03in
Net Weight	1442g / 3.18lb
