SPECIFICATIONS

Application: Solar Power System Home

Brand Name: Voltronic

Display: LCD Display

Input Voltage: 48V

Inverter Efficiency: 93%

MPPT: 150A

Model Number: Axpert Ultra 11KW

Output Current: 27A

Output Frequency: 50/60 HZ

Output Type: Single

Output Voltage: AC220V

Place of Origin: Guangdong, China

Size: 145*438*553.6mm

Type: DC/AC Inverters

Waveform: Pure Sine Wave Inverter

Weight: 18.4KG

Products Description

• Dual output for smart load management
• Two independent AC power sources connected and switched automatically

• Maximum PV input current 27A
• Built-in 2.8 colored LCD with power lighting indicators
• Supports USB On-the-Go function
• Reserved communication port for BMS (RS485, CAN-BUS)
• Replaceable fan design for ease of maintenance
• Battery independent design
• Configurable AC/PV output usage timer and prioritization
• Selectable high power charging current
• Selectable input voltage range for home appliances and personal computers

• Built-in anti-dust kit
• Parallel operation with 6 units
• Built-in current transformer sensor to meet self-consumption application

• Support external BTS (Battery Temperature Sensor)detection
• Support optional GFCI, Rapid shutdown, AFCI detections
• Built-in Wi-Fi for mobile monitoring and OTA firmware upgrade

Details Images

Wiring order & Accessories

1. RGB LED ring (refer to LCD Setting section for the details)
2. LCD display
3. Touchable function keys
4. PV connectors
5. AC input connectors
6. AC output connectors (Load connection)
7. Battery connectors
8. Current sharing port
9. Parallel communication port
10. Power switch
11. Dry contact
12. USB port as USB communication port and USB function port
13. RS-232 communication port
14. BMS communication port: CAN, RS-485 or RS-232
15. DC output connectors
16. Power switch for DC output

Installation Instructions

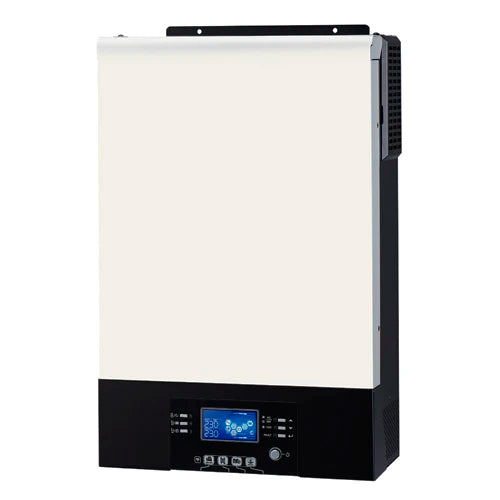

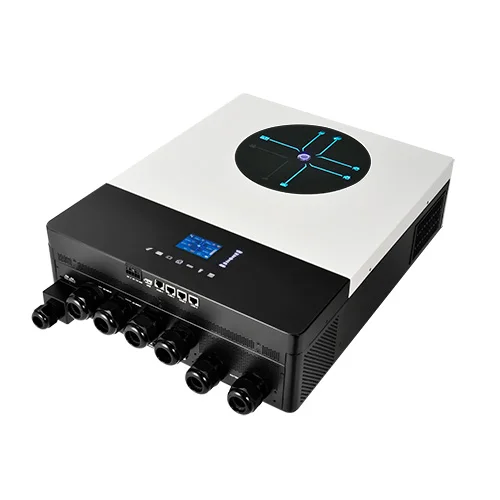

Axpert Ultra 11KW
Equipped with 2 Inputs & 2 smart outputs, CT sensor, and user-friendly interface, Axpert Ultra is top-equipped solar inverter.With two independent input power sources - utility and generator - it ensures uninterrupted AC power and incorporates a super large charger (150A) for fast battery charging, even with limited available time from AC or solar sources. In addition, the Axpert Ultra offers a second AC output,enabling users to customize cut-off voltage, state of charge (SoC) percentage, discharge time, and scheduled on/off time.

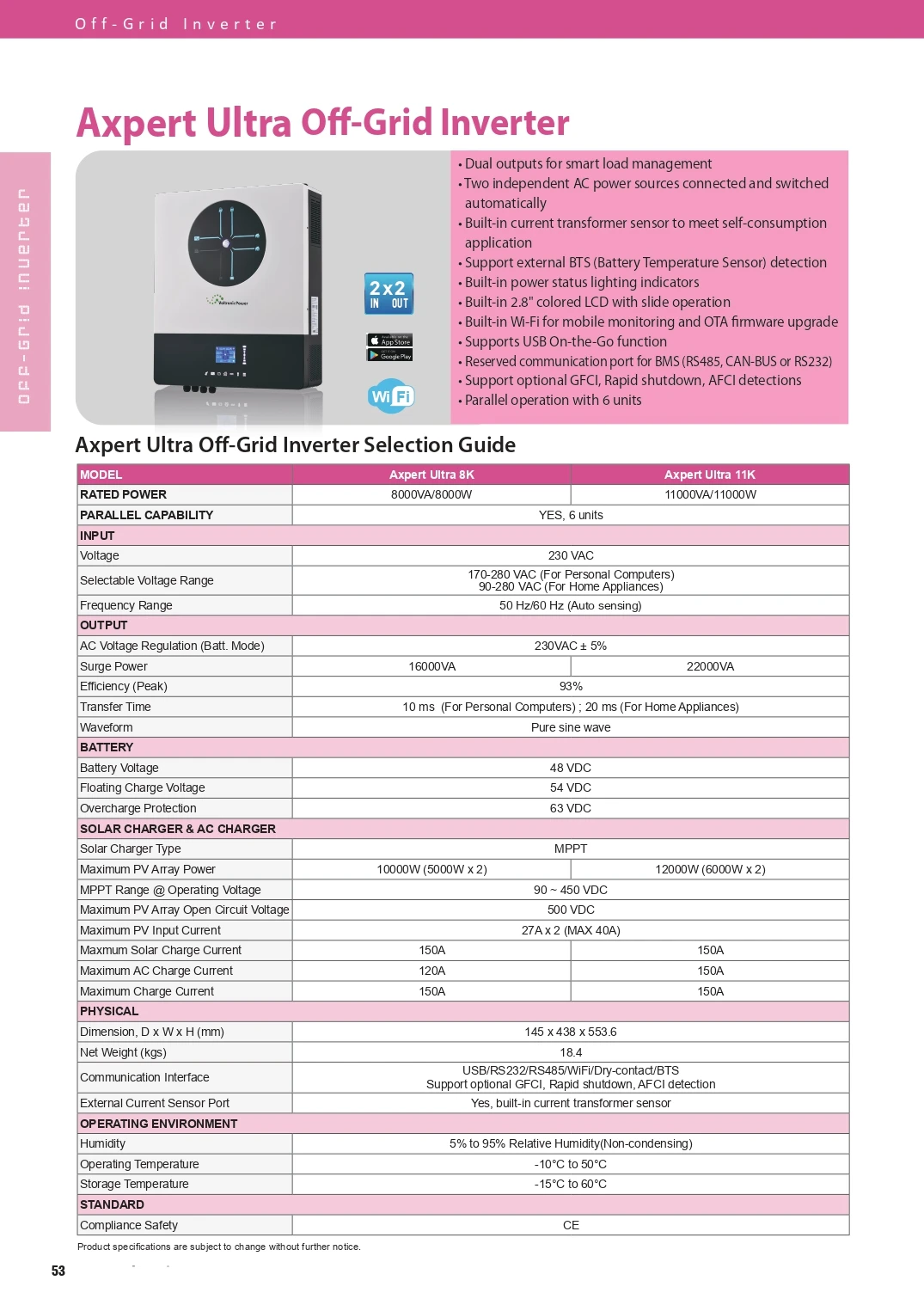

Product Paramenters

Product packaging

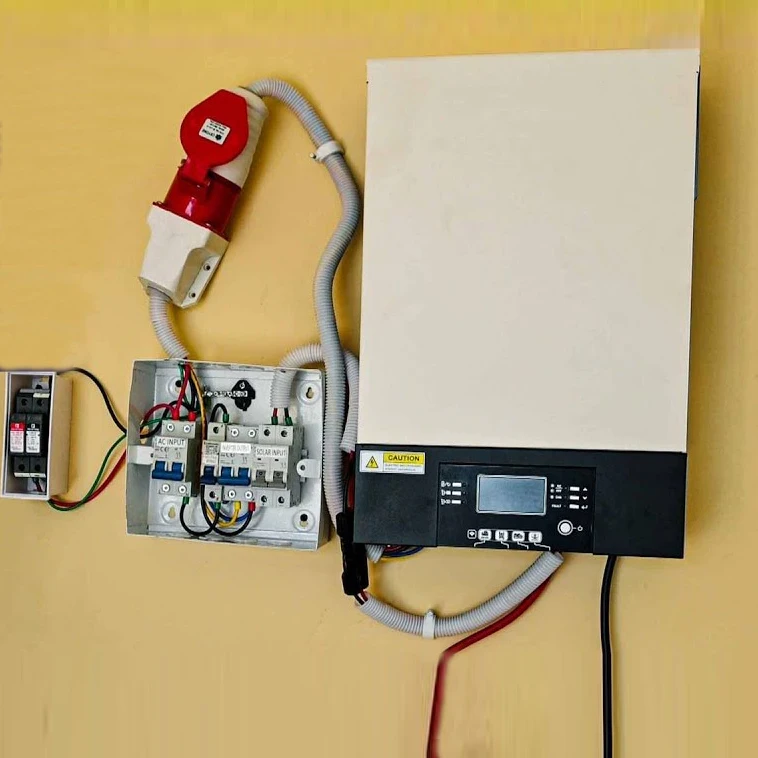

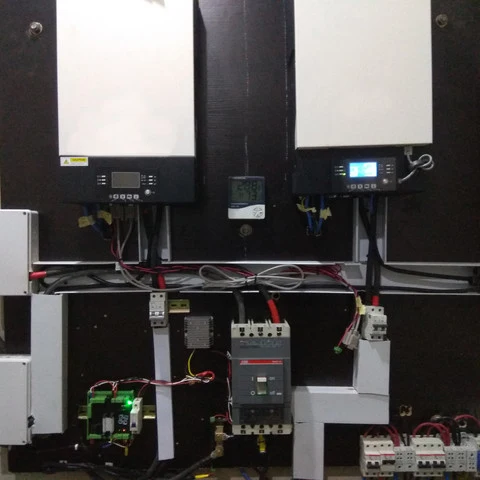

Customer Photos
