SPECIFICATIONS

Application: Home Appliance

Battery type: Gel battery

Brand Name: Panpower

Display: LCD Display

Feature: OEM Accepted

Input Voltage: 220V/230VAC

Inverter Efficiency: 94%

Inverter type: 5.5KW with 100A MPPT

Maximum PV Array Power: 6000W

Model Number: 5KWH Solar System

Output Frequency: 50Hz/ 60Hz

Output Type: Single

Output Voltage: 220V/230VAC

Place of Origin: Guangdong, China

Solar System: Off grid inverter

Solar panels: 300W~460W

Type: DC/AC Inverters

Voltage: 48VDC

Waveform: Pure Sin Wave

Weight: 12KG~300KG

Off Grid Solar System

5500W solar system
Profuct	Description	Quantity (pcs)
Hybrid inverter	48V-5.5KW-100A MPPT.	1
Solar panels	450W Mono solar panel	12

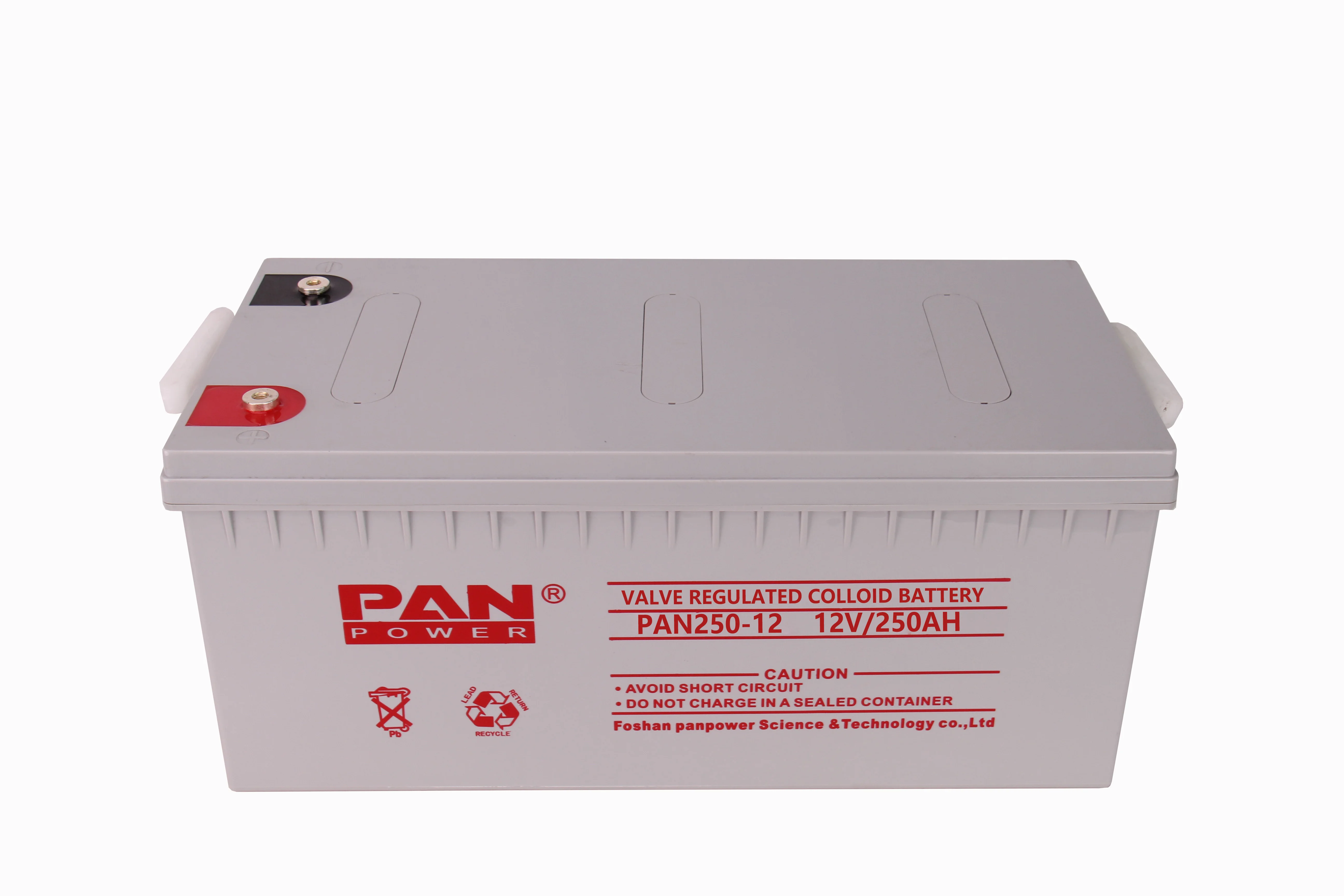

Battery	12V 250AH gel battery	4
PV Cable	4m㎡ single core PV cable
Mounting bracket	Roof/Ground installation	1 set
System voltage	220V-240V   50/60HZ
Certificate	CE/ROHS/TUV
Use	Household

System Diagram

Technical Parameters

Model	Victor NM-II 5.5KW-PLUS
RATED POWER	5500VA / 5500W		5500VA / 5500W
INPUT
Voltage	230 VAC
Voltage	170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliance)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230 VAC ± 5%
Surge Power	11000VA		11000VA
Efficiency (Peak)	94%
Transfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	48VDC		48 VDC
Floating Charge Voltage	54VDC		54 VDC
Overcharge Protection	63VDC		63 VDC
SOLAR CHARGER & AC CHARGER
Max. PV Array Open Circuit Voltage	500VDC		500VDC
Max. PV Array Power	6000 W		6000 W
MPP Range @operating Voltage	120~450VDC		120~450VDC
Max. Solar Charge Current	100 A		100 A
Max. AC Charge Current	80 A		60 A
Max. Charge Current	100 A		100 A
PHYSICAL
Dimension, D x W x H (mm)	100 x 300x 440
Net Weight(kgs)	10		10
Communication Interface	USB/RS232
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10° C to 50° C
Storage Temperature	-15° C to 60° C

Product Description

Working Diagram

Company Profile

Product packaging

FAQ

Q: What’s the payment term?
A: T/T, Alibaba Trade Assurance, Western Union, Paypal, L/C.

Q: Are your inverter pure sine wave output?
A: Yes, all are true pure sine wave.

Q: What is the warranty of inverter?
A: One year warranty on PAN-Solar product.

Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.

Q: What kind of output you can do?
A: Normally single phase 110V 120V 220V 230V 240V 50/60Hz, and three phase 220V 380V 400V 415V 440V 50/60Hz.
