SPECIFICATIONS

Application: Solar Power System Home

Brand Name: Voltronic

Display: LCD Display

Input Voltage: 48V

Inverter Efficiency: 93%

MPPT: 150A

Model Number: Axpert MAX II-8000

Name: Axpert MAX II 8000

Output Current: 23A

Output Frequency: 50/60 HZ

Output Type: Single

Output Voltage: AC220V

Place of Origin: Guangdong, China

Power: 8KW

Size: 700*590*300mm

Type: DC/AC Inverters

Waveform: Pure Sine Wave Inverter

Weight: 25KG

Products Description

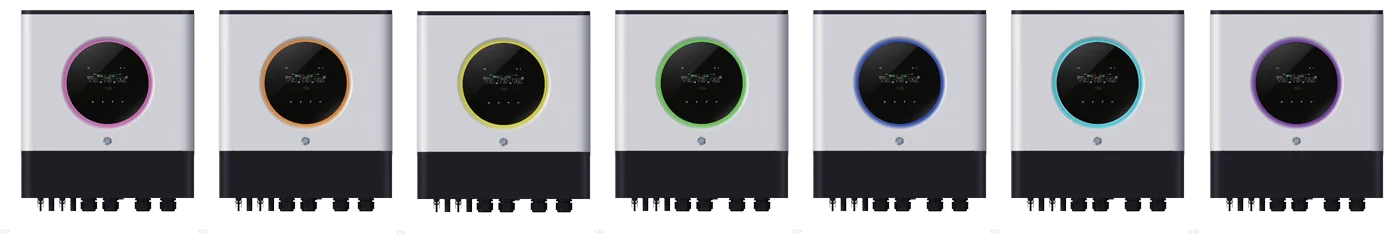

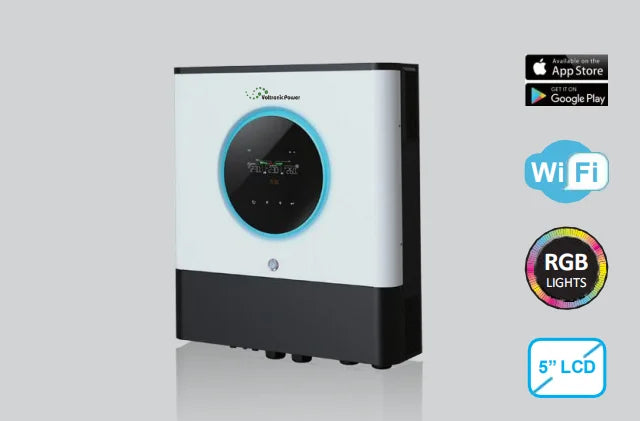

* Customizable status LED bar with RGB lights
* Touchable button with large 5" colored LCD
* Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
* Supports USB On-the-Go function
* Data log events stored in the inverter
* Reserved communication port for BMS (RS485, CAN-BUS or RS232)
* Replaceable fan design for ease of maintenance
* Battery independent design
* Configurable AC/PV output usage timer and prioritization
* Selectable high power charging current
* Compatible to Utility Mains or generator input
* Built-in anti-dust kit
* Built-in DC output for DC fan, LED bulb, router and so on

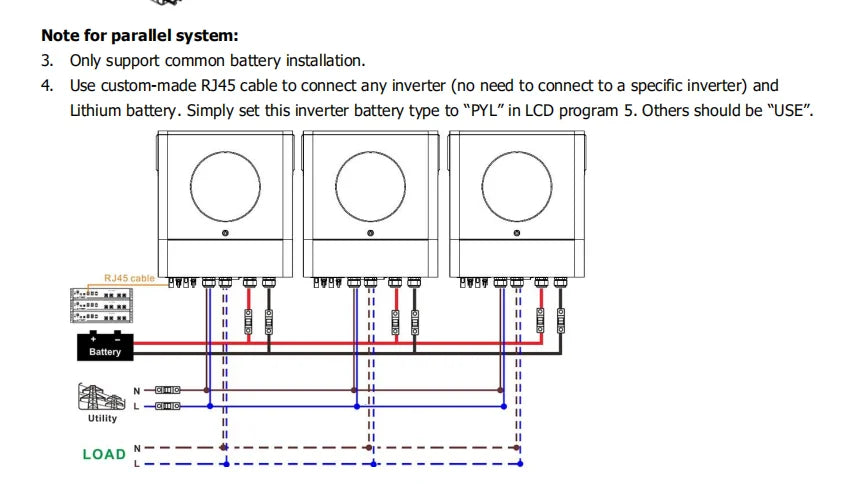

* Parallel operation with 6 units

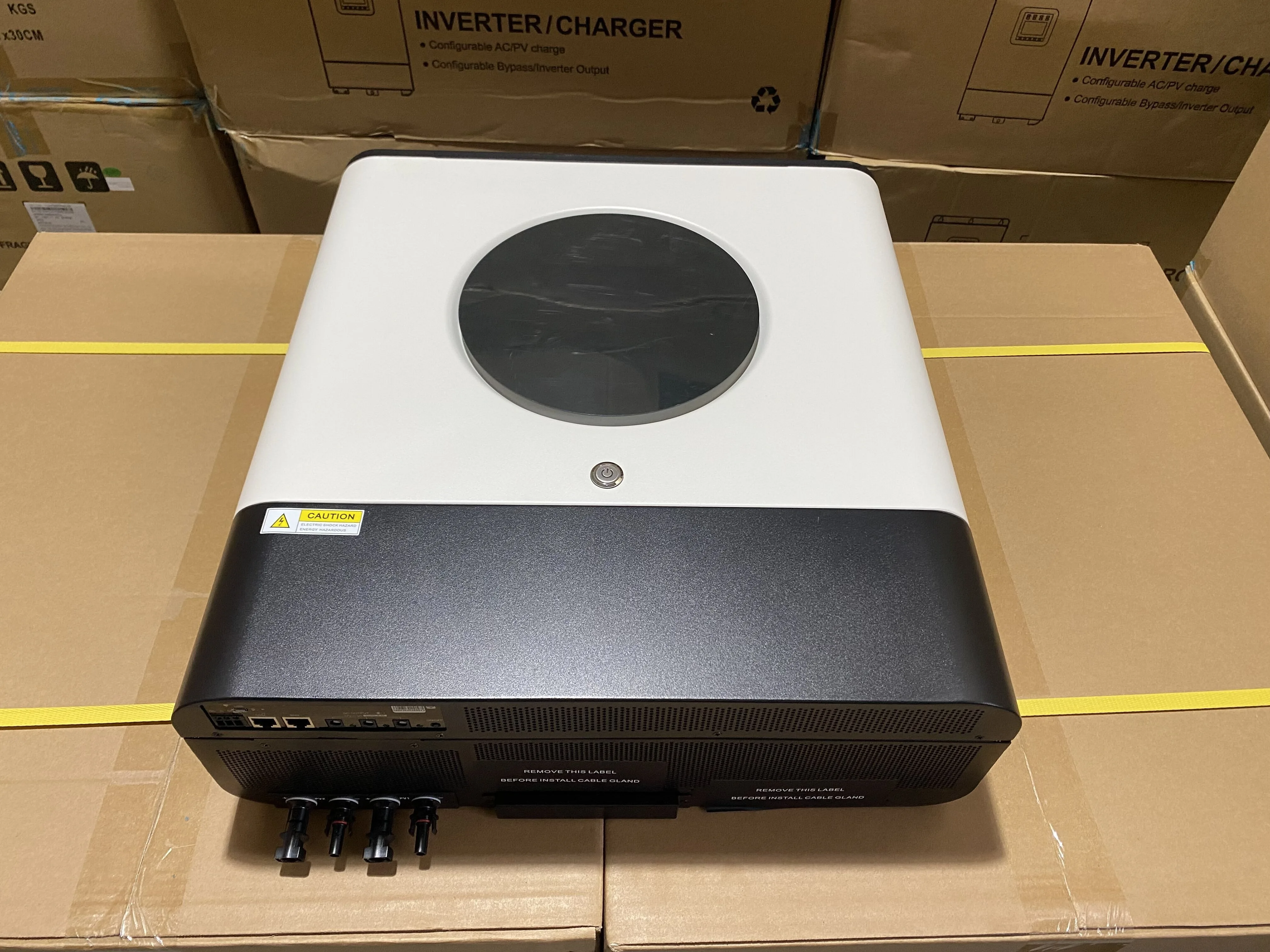

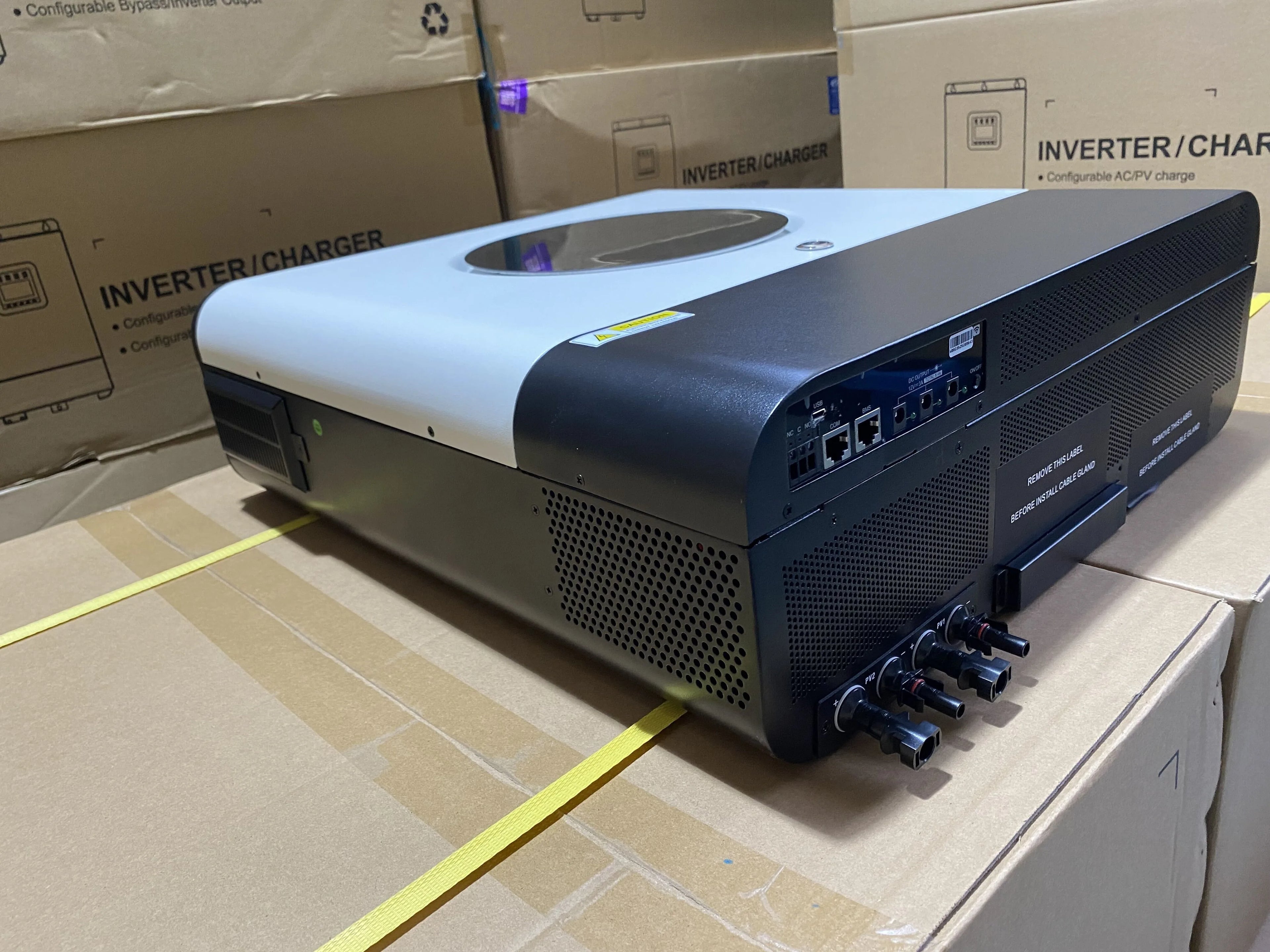

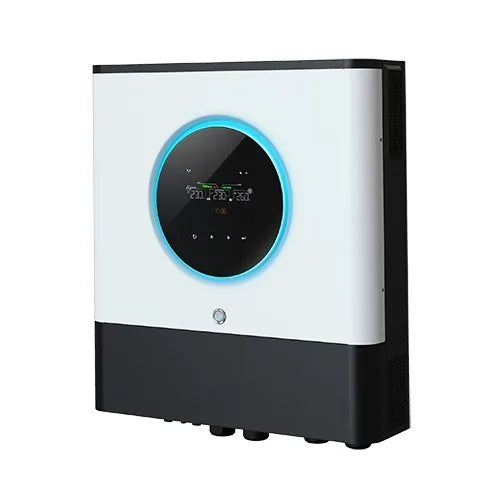

Details Images

Cycling
Quickly scrolling with a color of your choice in a continuous circular motion

Wheel
Illuminates with twinkling lights in a color of your choice

Chasing
Radiatesyour selected color upward  fromthebottomof the ring

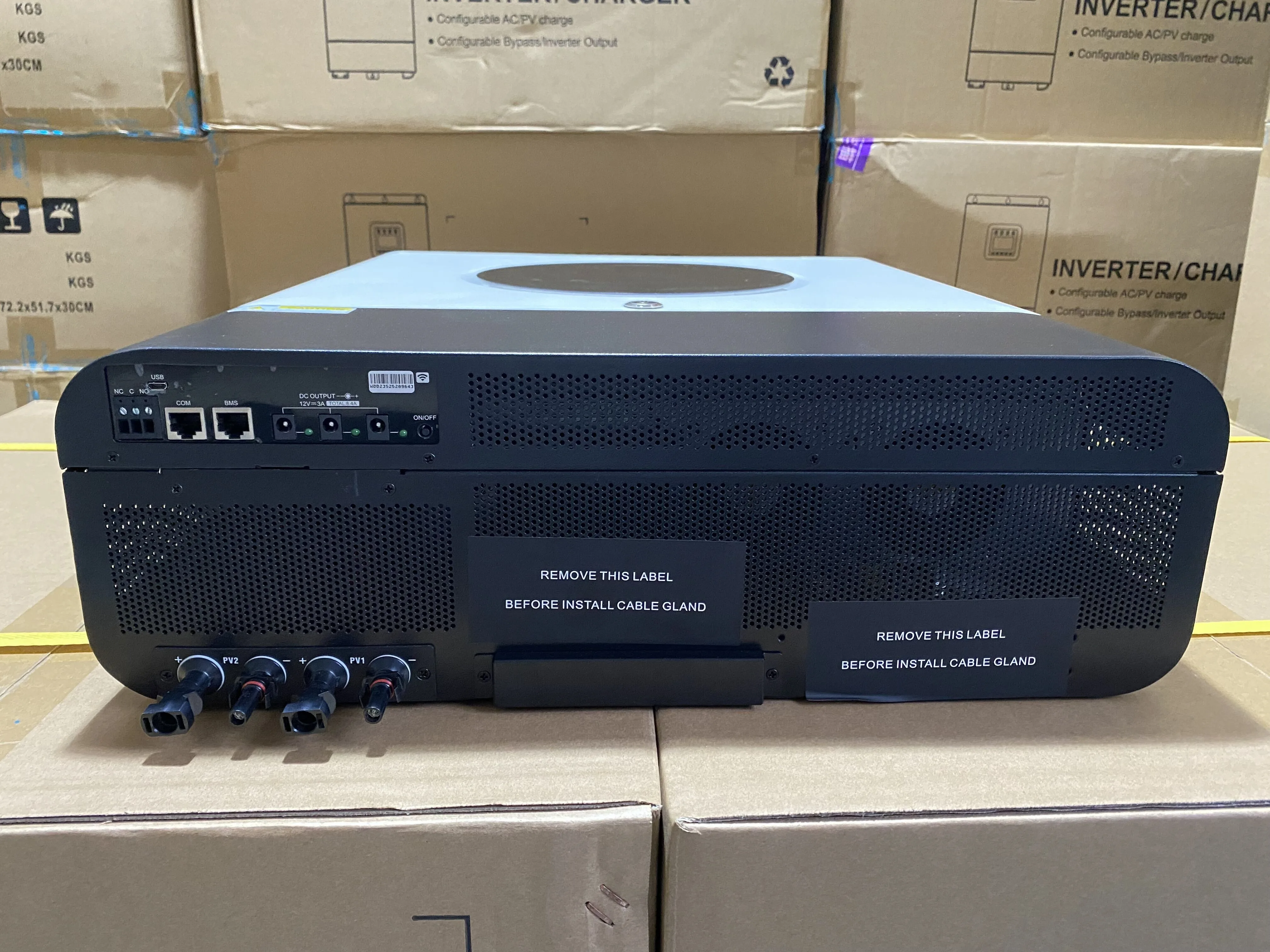

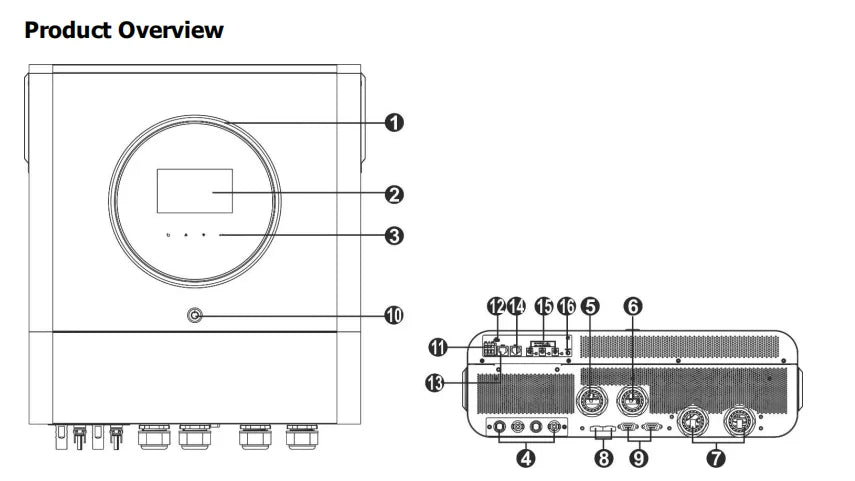

Wiring order & Accessories



1. RGB LED ring (refer to LCD Setting section for the details)
2. LCD display
3. Touchable function keys
4. PV connectors

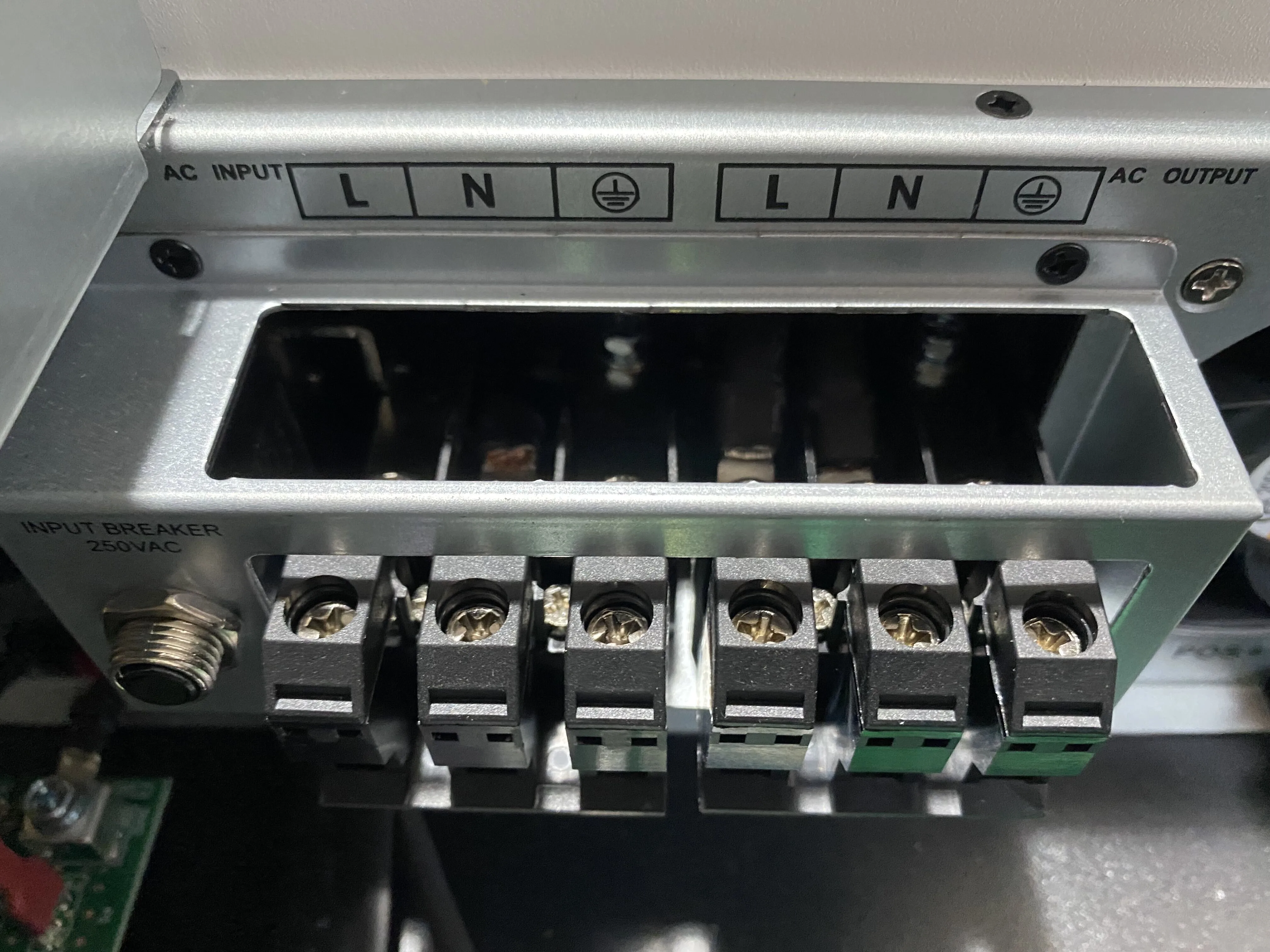

5. AC input connectors
6. AC output connectors (Load connection)
7. Battery connectors
8. Current sharing port
9. Parallel communication port
10. Power switch
11. Dry contact
12. USB port as USB communication port and USB function port
13. RS-232 communication port
14. BMS communication port: CAN, RS-485 or RS-232
15. DC output connectors
16. Power switch for DC output

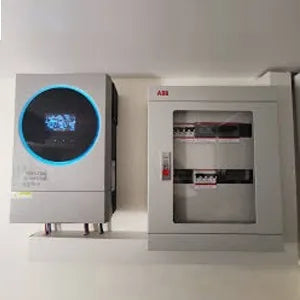

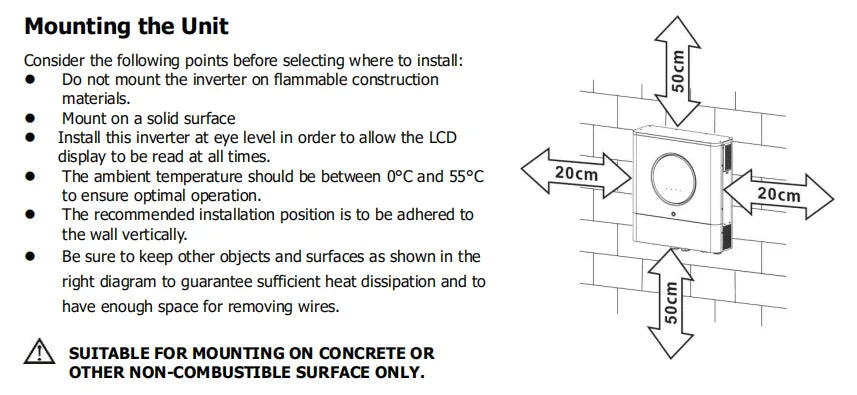

Installation Instructions

Product Paramenters

MODEL	Axpert MAX II 8000
Rated Power	8000VA/8000W
Parallel Capability	YES, 6 units
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230VAC ± 5%
Surge Power	16000VA
Efficiency (Peak)	93%
Transfer Time	15 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure sine wave
No Load Power Consumption	< 70W
DC Voltage	12 VDC ± 5%, 100W
BATTERY
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	66 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type	MPPT
Maximum PV Array Power	8000W (4000W x 2)
MPPT Range @ Operating Voltage	90 ~ 450 VDC
Maximum PV Array Open Circuit Voltage	500 VDC
Maxmum Solar Charge Current	150A
Maximum AC Charge Current	120A
Maximum Charge Current	150A
PHYSICAL
Dimension, D x W x H (mm)	158.4 x 502.5 x 530.8
Net Weight (kgs)	20
Communication Interface	USB/RS232/RS485/WiFi/Dry-contact
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-10°C to 50°C
STANDARD
Compliance Safety	CE

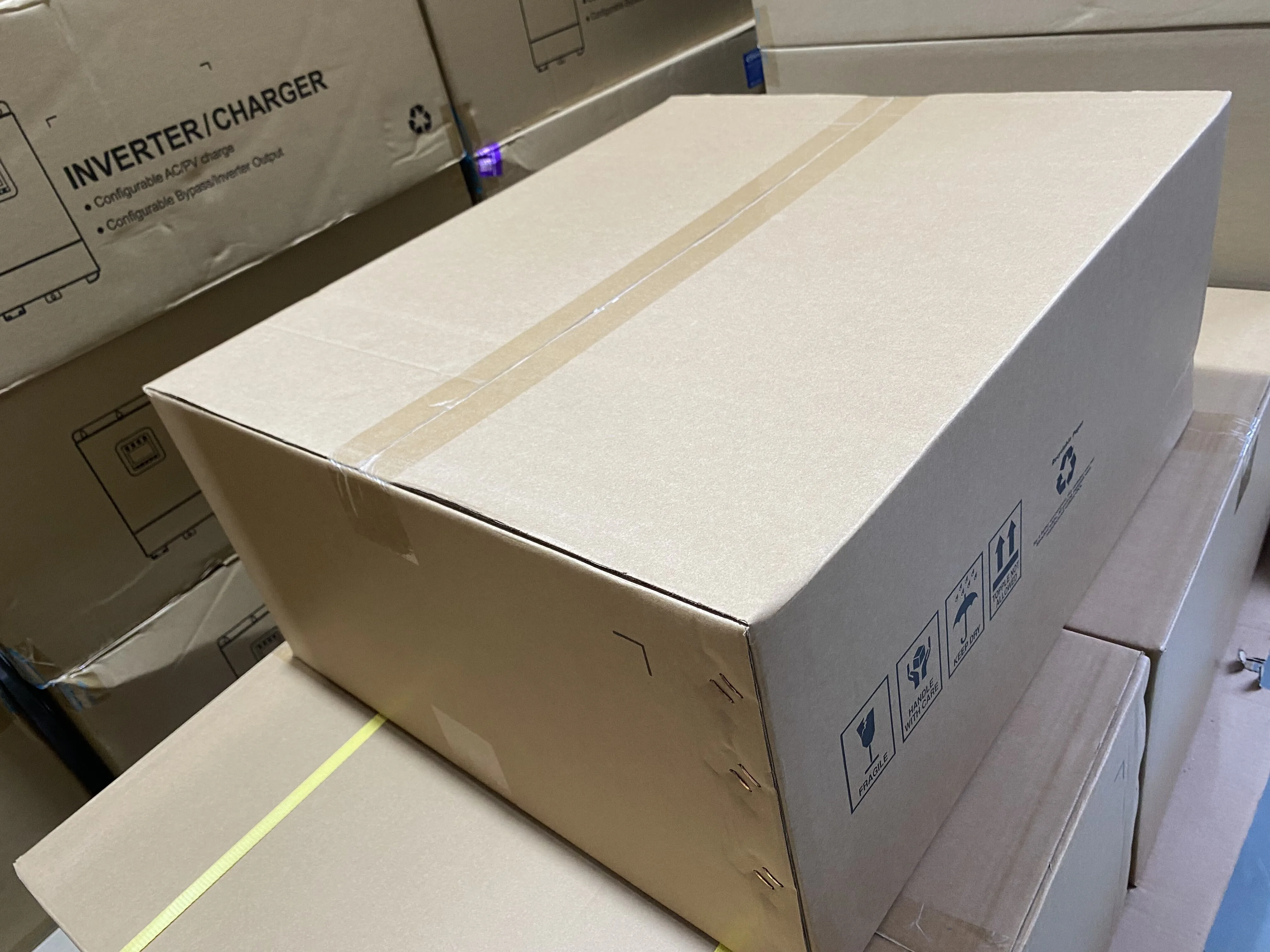

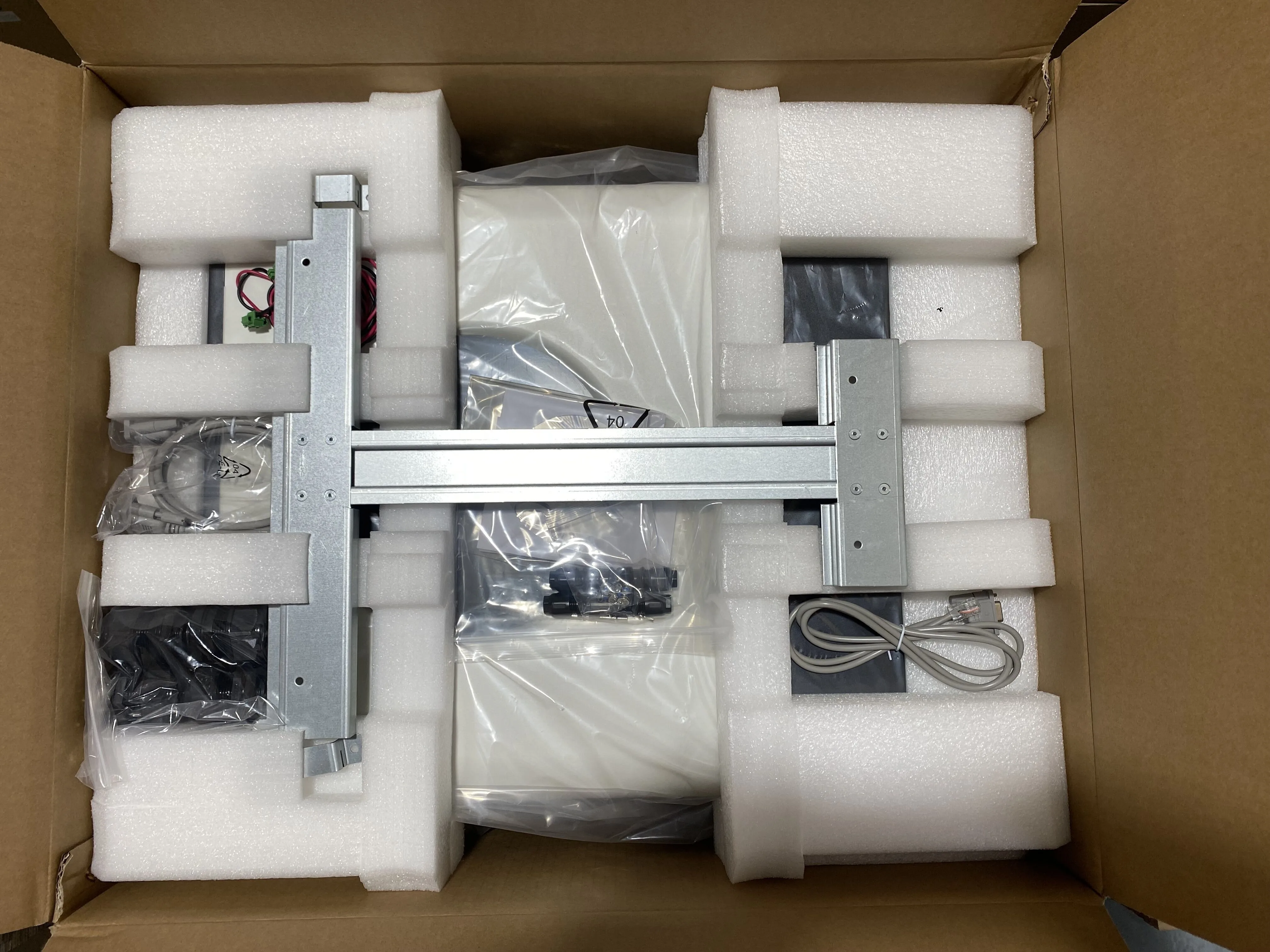

Product packaging
