SPECIFICATIONS

Application: Home

Battery Type: Lead-acid,Lithium Ion

Brand Name: Dawnice

Controller Type: MPPT,Pwm

Free installation service: Yes

Grid Type: 5kw 10kw solar energy system

Inverter: Pure Sine Wave Inverter

Keyword: Photovoltaic Solar Energy System

Load Power (W): 5 kW,10 kW

Model Number: HZEB-LCT-5

Mounting Structure: Customized for roof/ground

Mounting Type: Ground Mounting

Optional Part: Storage battery

Output Frequency: 50/60hz

Output Voltage (V): EU: 220-240/380-400V US: 110/120/208/240/277/480V

PV Cable: 4m /6m /10m

Place of Origin: Guangdong, China

Pre-sales project design: Y

Product name: solar panel system for home

Solar Panel Type: Monocrystalline Silicon,Polycrystalline Silicon

System Type: Off-grid Solar Power Generation

Technical Support: Solar System Installation Vedio

Type: On/Off-grid Hybrid System

Work Time (h): 24 Hours

Specification

How do I choose a solar power system which meet my requirements?
* Home Use(5kw to 10kw); * School and office(1.5kw to 10kw);
* Farm use(10kw to 30kw); * Hospital project( 15kw); * Factory use(20kw to 30kw);
* More large volume of power system can be customized.

5KW Off Grid Solar Power System Components List
Item	Model	Description	Quantity
1	Solar Panel	Mono 390w solar panel	10 pcs
2	PV combiner box	5 input 1 output	1 pc
3	Hybrid inverter(Charge controller & Inverter)	MPPT 48V 60A Rate power: 5KW	1 pc
4	Battery with cable	12V 200Ah	4 pc
5	PV Cable	4mm² PV cable	100 m
6	Connector	Solar connector	10 pairs
7	Ground/Roof mounting system	Customize for 18pcs of 390w solar panel	1 set
10KW Off Gird Solar Power System Components List
Item	Model	Description	Quantity
1	Solar Panel	Mono 390w solar panel	18 pcs
2	PV combiner box	6 input 2 output	1 pc
3	Hybrid inverter(Charge controller & Inverter)	MPPT 48V 120A Rate power: 10KW	1 pc
4	Battery with cable	12V 220Ah	8 pcs
5	PV Cable	4mm² PV cable	200 m
6	Connector	Solar connector	15 pairs
7	Ground/Roof mounting system	Customize for 18pcs of 390w solar panel	1 set
Click here to send an inquiry to get the latest quotation and have a chance to get a $100 coupon, look forward to workhing with you!

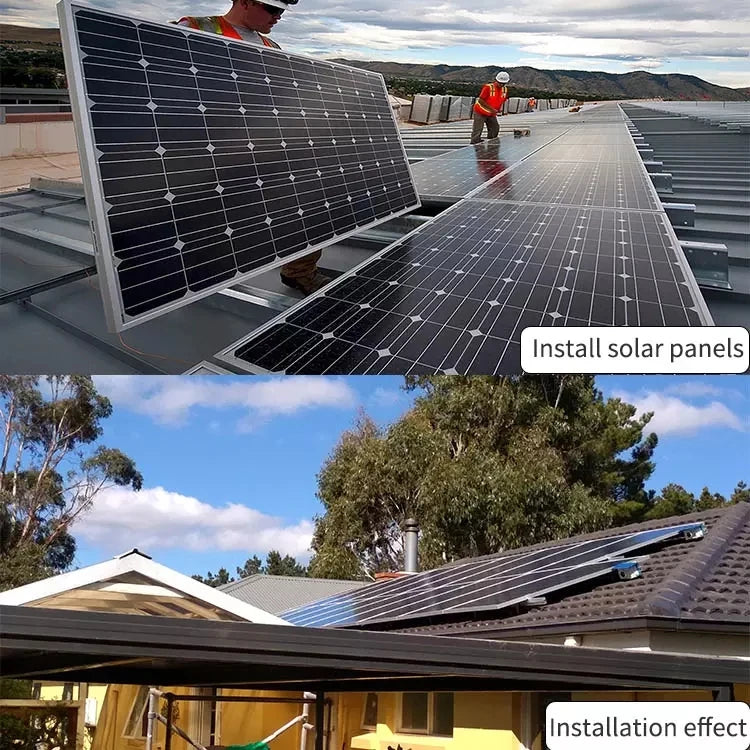

How to install

Application project

Product packaging

FAQ

1: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
2.Q:What are the advantages of your company?
A:Strong R & D team, independent R & D and production of main parts, to control product quality from the source.

3.Q:What kind of certificates your products have acquired ?
A:Most of our products have acquired CE, FCC, UL and PSE certificates, which is able to satisfy most country’s importing requirements.

5.Q:How do you ship the goods since they are high capacity battery ?
A:We have long-term cooperated forwarders who are professional at battery shipment.
