Hybrid Inverter for Home Energy Storage Portable Power Station Inverter for Solar Panel System

Off-Grid Solar System / 5.5 kW / Central Inverter

₱19,528.62PHP

1/6

Hybrid Inverter for Home Energy Storage Portable Power Station Inverter for Solar Panel System

₱19,528.62PHP

SPECIFICATIONS

Application: Solar Power System Home

Battery type: Lead-acid/Lithium/LiFePO4 Battery

Brand Name: EKIS

Color: White Color

Embedded interface: RS485 / CAN / USB / Dry contact

Heat Dissipation: Forced air cooling (variable speed of fan)

Input Voltage: 90-280Vac/170-280Vac

Inverter Efficiency: 99.9%

Inverter type: Off-grid Solar Power Inverter

MPPT Tracking Efficiency: 99.9%

MPPT Voltage Range: 120-450Vdc

Model: GST48-5500 VII

Model Number: GST48-5500 VII

Output Current: 23A

Output Frequency: 50/60Hz

Output Type: Single

Output Voltage: 230 Vac (200 / 208 / 220 / 240 Vac), 50 / 60Hz

Place of Origin: Jiangsu, China

Product name: 5.5KW Hybrid Inverter

Size: 350*130*455mm

Type: DC/AC Inverters

Weight: 12KG

Products Description

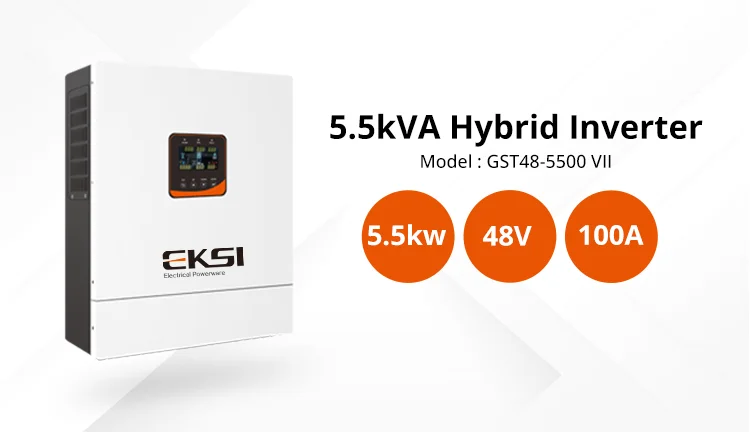

5.5kva Hybrid Inverter

GST series is a new all-in-one solar charge inverter,

which integrates solar energy storage & utility charging energy storage and AC sine wave output.
Support battery-free output and only PV start and load, with battery activation function.

Three output modes

1.When the grid-connected function is enabled.

2.Grid-connected power generation or anti-reverse-current can be set

3.It can also be set to off-grid output mode

Four charging modes

1.Mains priority charging

2.Solar priority charging

3.Mains solar hybrid charging

4.Solar only charging

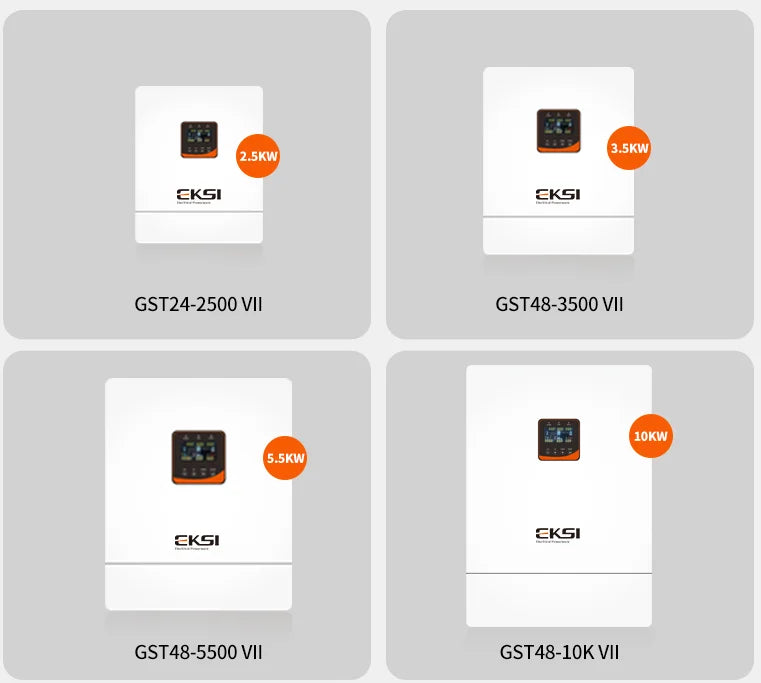

Related Products

MODEL	GST24-2500 VII	GST48-3500 VII	GST48-5500 VII	GST48-10K VII
INVERTER OUTPUT
Rated output power	2500W	3500W	5500W	10000W
Rated output power	2500VA	3500VA	5500VA	10000VA
Maximum Peak Power	5000W	6000W	10000W	15000W
Load Capacity with Motors	2HP	2HP	4HP	6HP
Rated AC Output	230 Vac (200 / 208 / 220 / 240 Vac), 50 / 60Hz
Output Voltage Waveform	Pure Sine Wave
Inverter and Bypass Switching Time	10ms (typical)
Parallel Capacity	9
Maximum Battery Inverter Efficiency	93%
BATTERY
Battery Type	Lithium / Lead-acid / User Defined
Rated Battery Voltage	24Vdc	48Vdc
Battery Voltage Range	20-33Vdc	40-60Vdc
Max.MPPT Charging Current	60A	60A	100A	200A
Max.Mains Charging Current	60A	60A	60A	120A
Max.Hybrid Charging Current	120A	120A	100A
Charging current error	±3Adc
Charging Short Circuit protection	Blown Fuse
PV CHARGING
PV CHARGING	1	1		2
Max. PV array power	1700W	3400W	5500W	5500W+5500W
Max. PV input current	50A	50A	22A	22A+22A
Max. Open Circuit Voltage	100Vdc	145Vdc	500Vdc	500Vdc+500Vdc
MPPT Voltage Range	30-85Vdc	60-115Vdc	120-450Vdc
MPPT Tracking Efficiency	99.9%
MAINS INPUT
Input Voltage Range	90-280Vac/170-280Vac
Frequency Range	50/60Hz±0.3Hz
Output Short Circuit Protection	Circuit breaker
Bypass Overload Current	24A	30A	40A	63A

Product Details

WIFI/GPRS

Remote Wifi/GPRS for option.

Realize workingstatus anytime and anywhere.

LCD SCREEN

Mainly divided into three functional areas:LCD screen, LED display area, Key area.

COOLING SYSTEM

Double cooling fans,good heat dissipation

Forced air cooling (variable speed of fan)

Parallel Function

Parallel function

It can be flexibly combined to achieve up to 9 parallel machines,

The parallel system can output single-phase and three-phase AC voltage.
