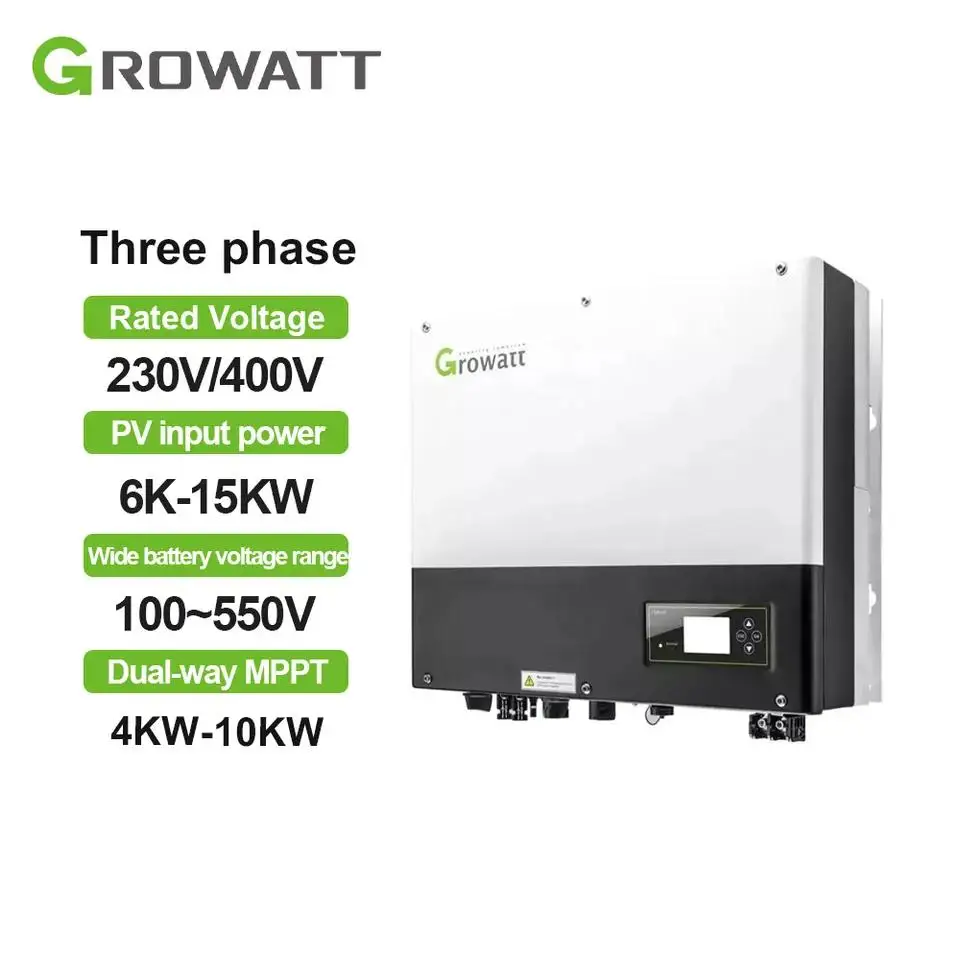

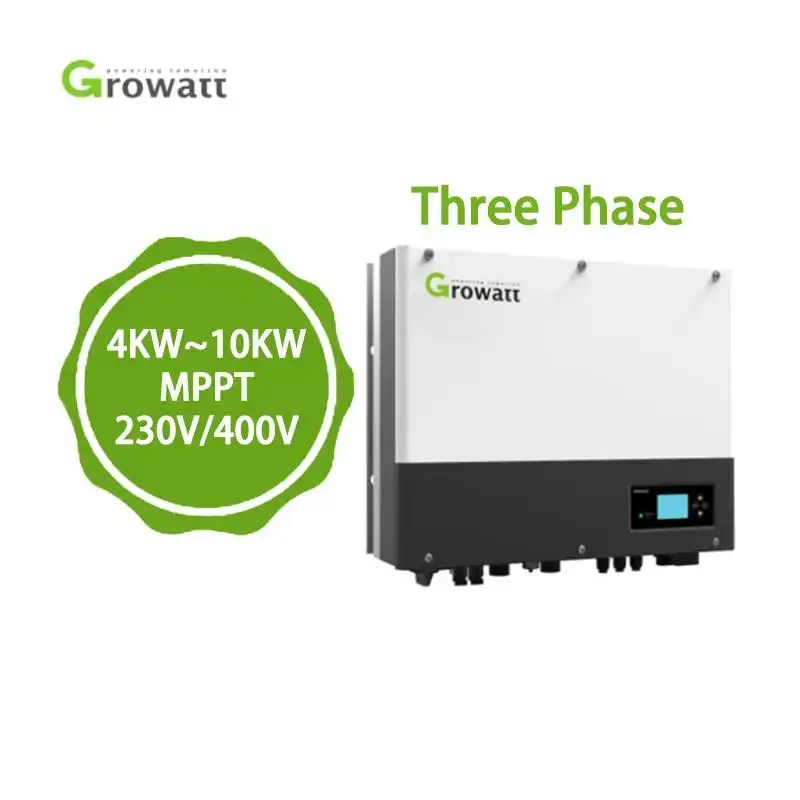

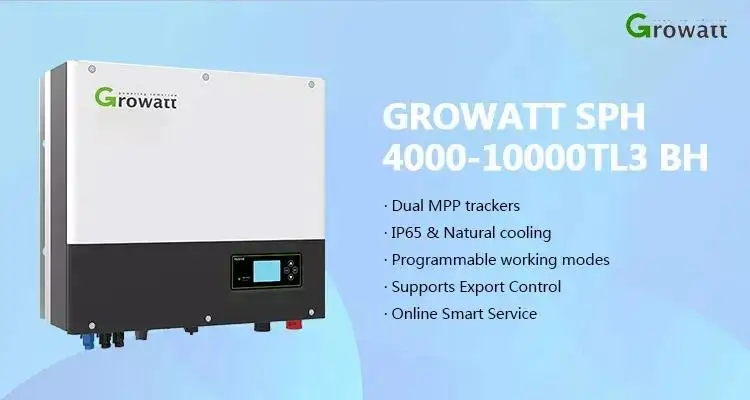

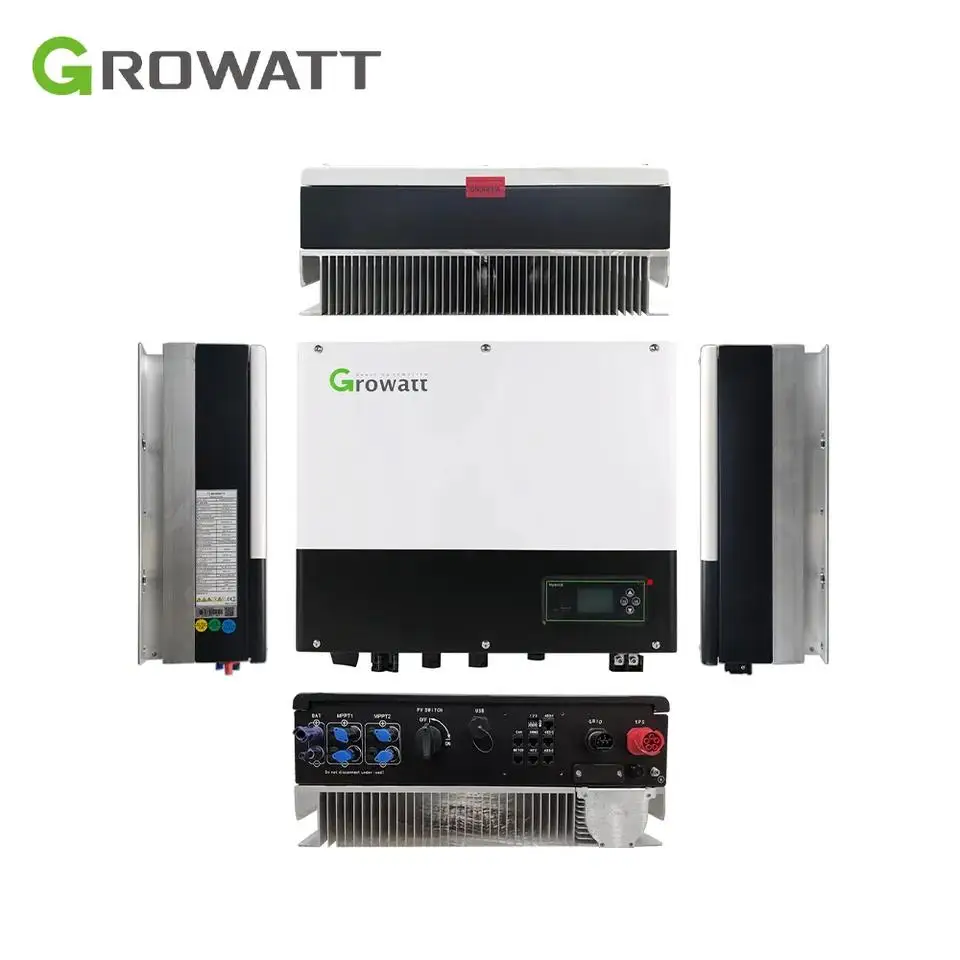

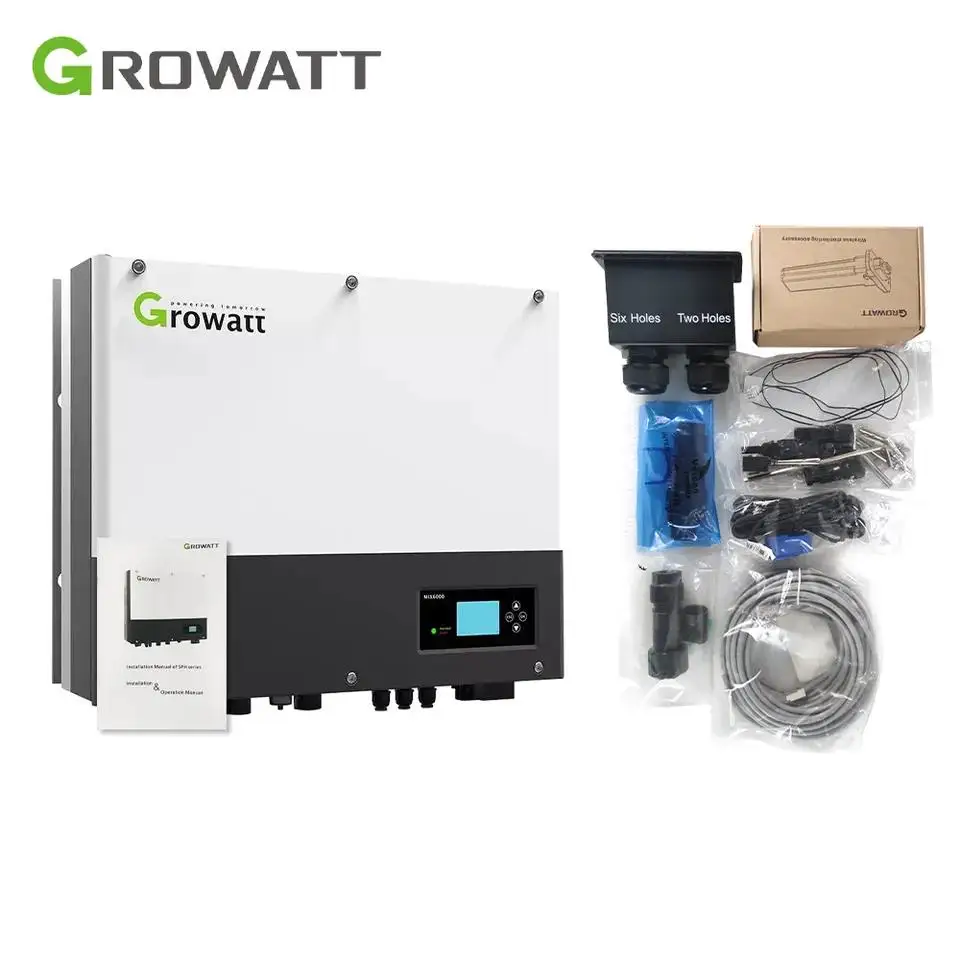

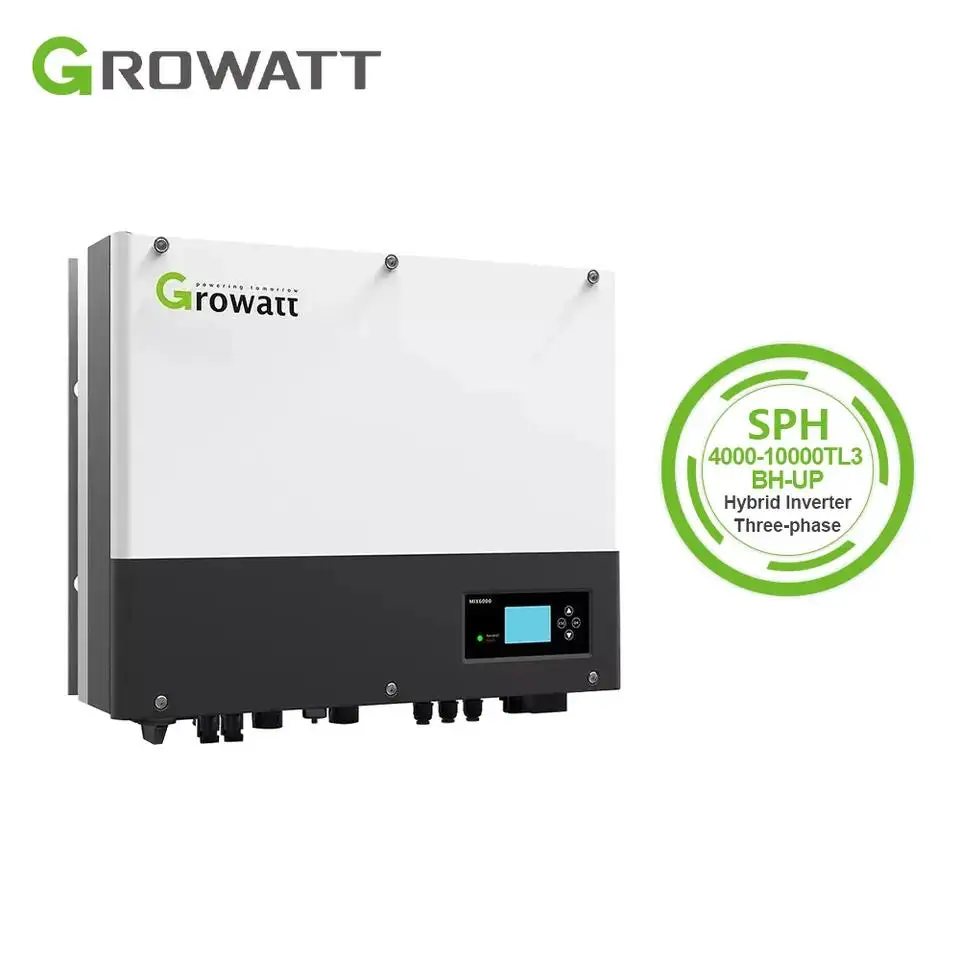

Growatt Hybrid Solar Inverter Eu Warehouse SPH 6000TL3 BH-UP 3 Phase 6kw 8kw 10kw 15kw for Solar Panel
Growatt Hybrid Solar Inverter Eu Warehouse SPH 6000TL3 BH-UP 3 Phase 6kw 8kw 10kw 15kw for Solar Panel
SPECIFICATIONS
AC grid connection type: 3W+N+PE
Adjustable power factor: 0.8leading...0.8lagging
Battery voltage range: 100~550V
Brand Name: GROWATT
Certificate: UL1741,VDE0126,VDE4105,IEC62109,CE,INMETRO
DC connection: H4 / MC4 (Optional )
Input Voltage: 120V-1000V/600V
Inverter Efficiency: 98%
Max charging and discharging current: 25A
Model Number: SPH 6000TL3 BH-UP
Output Current: 9.1A
Output Frequency: 50Hz/60Hz (45Hz-55Hz/55Hz-65Hz)
Output Type: Multiple,Three Phase
Output Voltage: 230V/400V (310~476V)
Place of Origin: Guangdong, China
Protection degree: IP65
Relative humidity: 0-100%
Size: 505/453/198mm
Switch time: <10ms
THDi: <3%
Type: DC/AC Inverters
Weight: 30kg
Datasheet |
SPH5000TL3BH-UP |
SPH6000TL3BH-UP |
SPH8000TL3BH-UP |
SPH10000TL3BH-UP |
||||
Input data(PV) |
||||||||
Max. recommended PV power (for module STC) |
7500W |
9000W |
12000W |
15000W |
||||
Output data(AC) |
||||||||
AC nominal power |
5000W |
6000W |
8000W |
10000W |
||||
Max. AC apparent power |
5000VA |
6000VA |
8000VA |
10000VA |
||||
Max. output current |
7.6A |
9.1A |
10.6A |
15.2A |
||||
Battery data (DC) |
||||||||
Continuous charging and discharging power |
5000W |
6000W |
8000W |
10000W |
||||
Backup power(AC) |
||||||||
Max. AC output power |
5000W |
6000W |
8000W |
10000W |
||||
Max. AC apparent power |
5000VA |
6000VA |
8000VA |
10000VA |
||||
Max. output current |
7.6A |
9.1A |
10.6A |
15.2A |
||||
Efficiency |
||||||||
MAX. efficiency |
97.8% |
98% |
98.2% |
98.2% |
||||
European efficiency |
97.2% |
97.3% |
97.4% |
97.5% |
||||

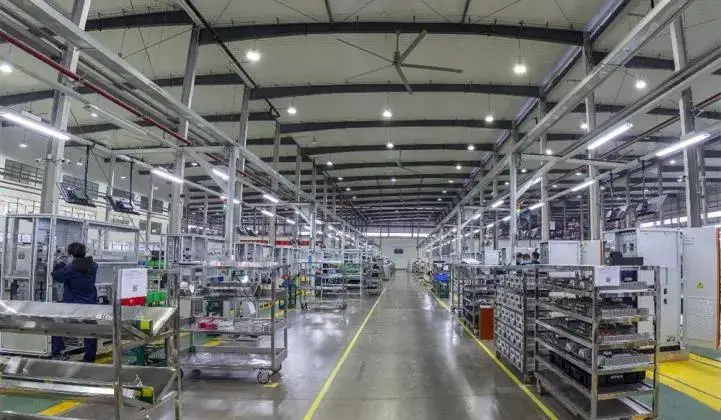

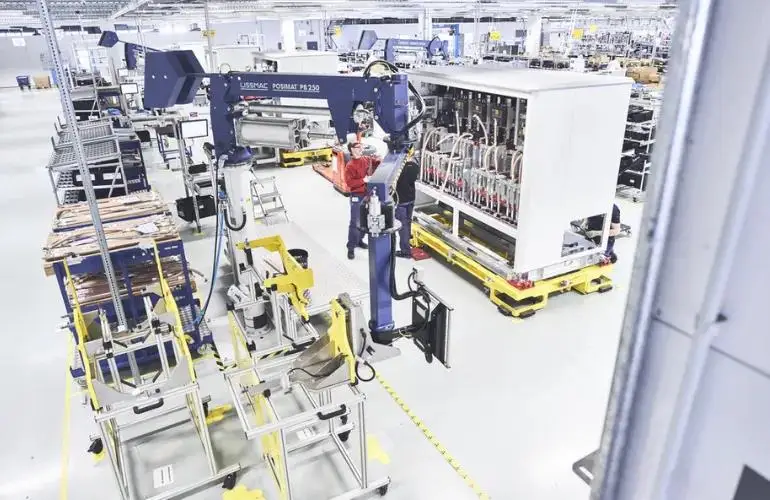

We are based in Guangdong, China, start from 2023,sell to Eastern Europe(30.00%),North America(27.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(8.00%),Western Europe(7.00%),Africa(5.00%),Oceania(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panel,Solar Inverter,Solar Battery,Solar System
4. why should you buy from us not from other suppliers?
Josen Energy Technology (shenzhen) Co., Ltd. Which is an international high-tech and growing group company, specializing in the design, manufacture, sales, installation and maintenance of solar power products.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDP,DDUï¼›
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Japanese
