SPECIFICATIONS

Application: Solar Power System Home

Brand Name: Growatt

Frequency: 50/60 HZ

Input Voltage: 450V,550v

Inverter Efficiency: 97%

Inverter type: Off-grid Solar Power Inverter

Max. pv power: 5500w

Model Number: SPF 12KT HVM-WPV

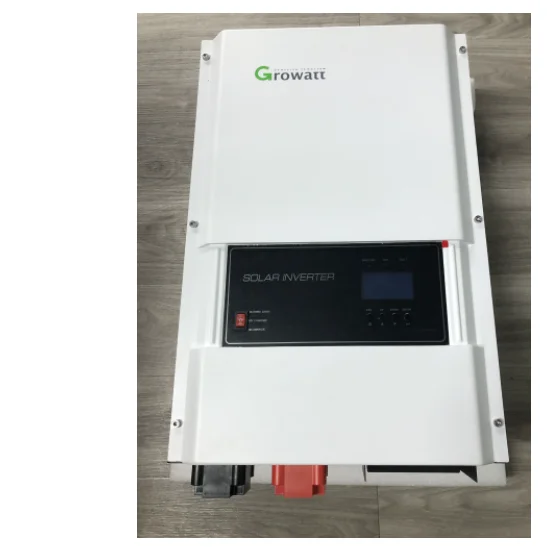

Name: 12kw Off Grid Solar Inverter

Number of Mppt: 2/1

Output Current: 100A

Output Frequency: 50hz/60hz

Output Type: Single

Output Voltage: 230V

Place of Origin: Jiangsu, China

Power: 12kw

Product name: 48v 12KwWOff Grid Inverter

Size: 650*460*255

Type: DC/AC Inverters

Warranty: 5 Years

Weight: 76kg

Product Description

(this is an example parameter,if you need other model inverter informations,please contact me)

Datasheet	SPF 10000T HVM	SPF 12000T HVM
Battery voltage	48VDC	48VDC
INVERTER OUTPUT
RATED POWER	10KW	12KW
Waveform	Pure sine wave/same as input(bypass mode)
Nominal Output Voltage RMS	220V/230V/240VAC(＋/－10%RMS)
Output Frequency	50hz/60hz ＋/－0.3hz
Efficiency (Peak)	＞88%
Transfer Time	10 ms (max)
SOLAR CHARGER
Maximum PV Charge Current	80A	80A
MPPT Range @ Operating Voltage	60VDC-145VDC
Maximum PV Array Open Circuit Voltage	150VDC
Maximum Efficiency	＞98%
AC INPUT
Selectable Voltage Range	184-272VAC(UPS):154-272VAC(APL)
Voltage	230VAC
Frequency Range	50Hz/60Hz (Auto sensing)
MECHANICAL SPECIFICATIONS
Dimension (D/W/H) in mm	650*460*255mm	650*460*255mm
Net Weight (kgs)	76
OPERATING ENVIRONMENT
Operation  Temperature Range	0°C -40°C

Our factory

Jiangsu Morel Energy Co.,Ltd.Is a professional manufacturer of panelized accessories, solar system accessories, off-grid systems
and other products.

Jiangsu Morel Energy Co.,Ltd. is located in jingjiang city by the Yangtze river. It has convenient land and water transportation
and is only 2 hours' drive from Shanghai airport.

Morel pv takes efficient quotation, efficient drawing and efficient production as our code of conduct. We will consider your
needs at the first time, improve the design scheme for you at the first time, and provide competitive quotation and production
plan for the industry.Warmly welcome new and old customers to inquire!Wish all new and old customers grow together with us!

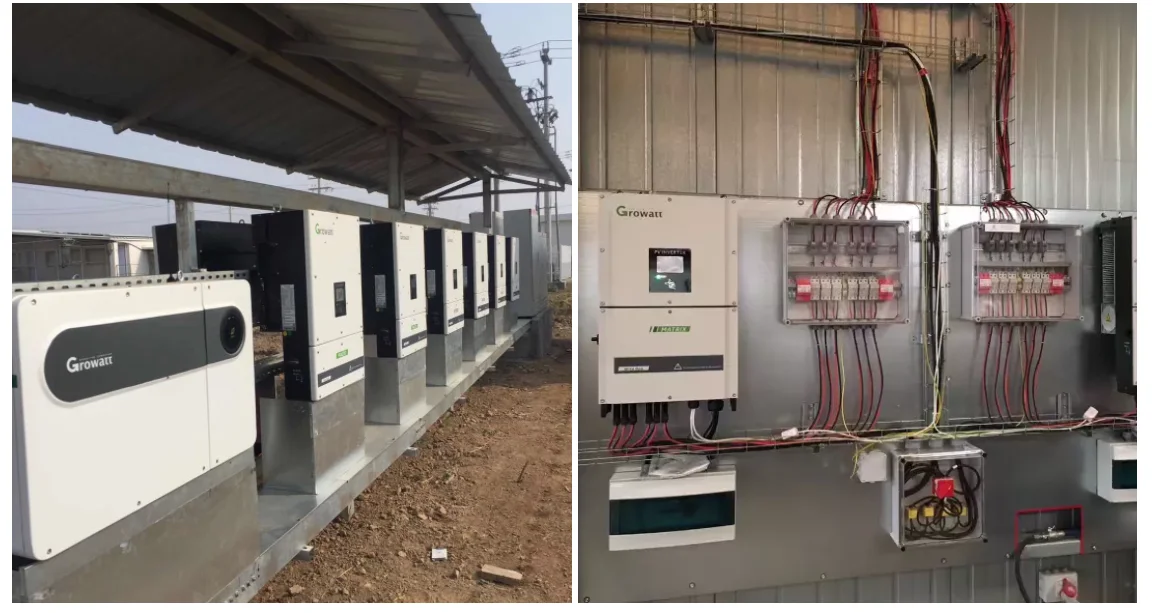

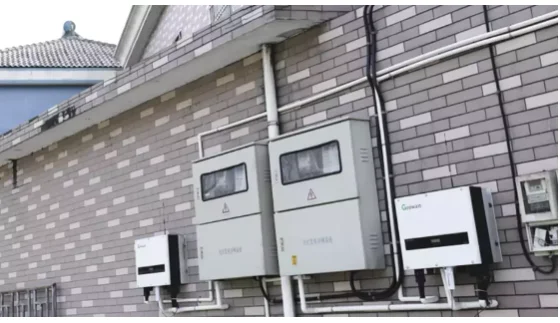

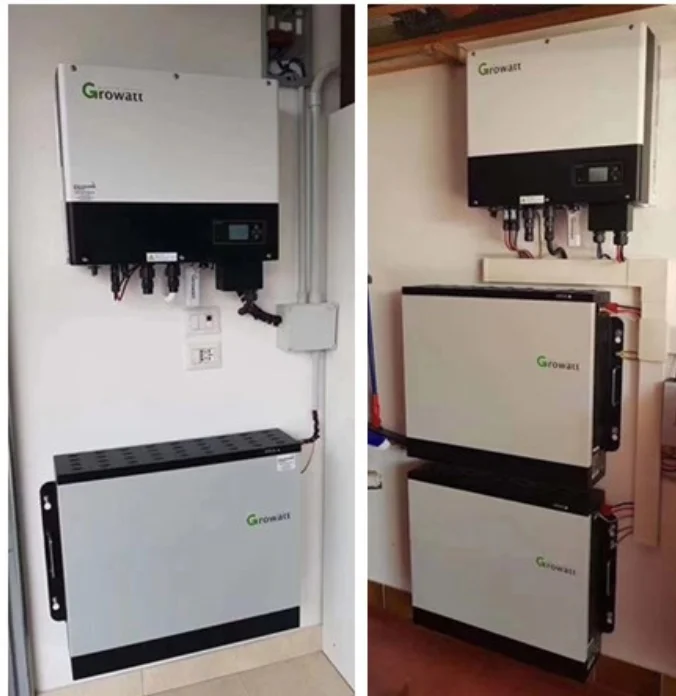

Project case

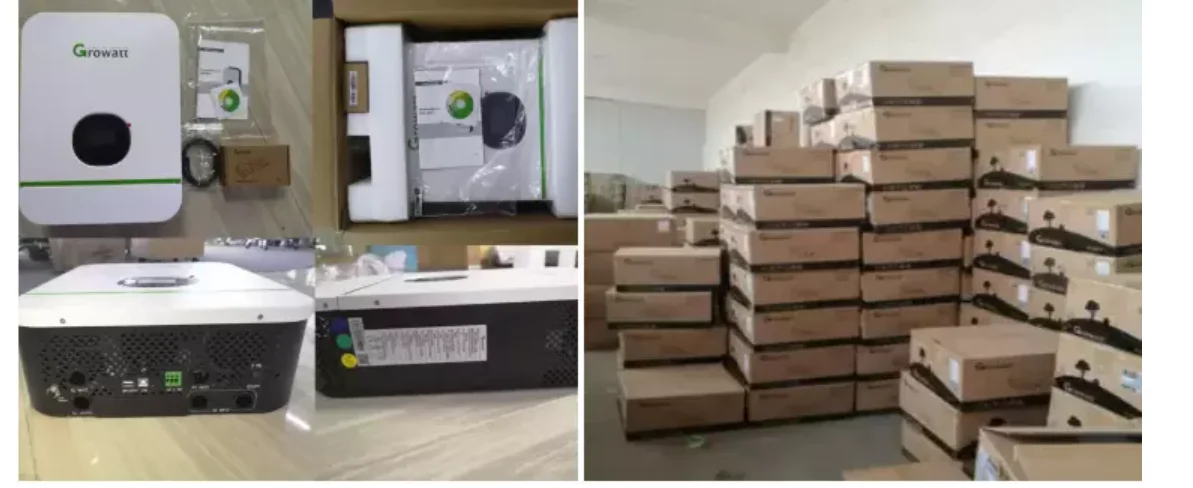

Product packaging

FAQ

Q 1. what's the payment term?
A. We accept T/T, L/C,WEST UNION, PAYPAL, CASH

Q 2. What's the delivery time ?
A. usually it will take about three weeks for production

Q 3. What is the standard of package?
A. Export standard package or special package according to customer requirement
.
Q 4. what kind of product quality your factory offer?
A. We offer most competitive prices with best quality

Q 5. Do you accept OEM business?
A.We accept OEM with your autherization.

Q 6.What is your production capacity?
A. We can finish four 40 HQ mini circuit breaker each month, four 20 HQ contactor, two 20 feet container for the frequency
inverter. Each product has different production capacity, we can talk details by email.

Q 7.Which market do you already sell?
A.We already ship to Europ, Middle East, South America, Asia, Afria etc.

Q8. what kind of certificate you have ?
A.We have ISO9000, CB, CE, INMETRO, SONCAP, SASO

Our Services

1.Flexible and Efficient
a.Optimized global MPPT algorithm, MPPT efficiency higher than 99.5%
b.Asymmetric dual MPPT which are compatible to all kinds of solar roofs
c.Max. efficiency of 98.0%, European efficiency of 97.6%
d.Super wide input voltage range(150V-1000V), supporting all varieties of solar panels and string desings
e.With reduced derating

2.Convenient Installation
a.Transformerless, smaller and lighter
b.AC output quick connector design, for faster installation
c.Speciaized mountingl design, easy to install

3.Smart and Easy to Use
a.One-button safety setting, easy configuration of all parameters
b.Built-in independent RTC chip, supporting data storage of 25 years
c.Integrated LCD graphical display, showing daily/monthly/yearly generating capacity
d.Integrated RS232 / Wi-Fi interfaces, for improved communication
e.Free monitoring anytime anywhere
f.Local and remote intelligent maintenance by PC, IOS and Android devices
g.Responds to power grid dispatching, energy management of micro-grids
h.Integrated with the function of reactive adjusting

4.Safe and Reliable
a.IP65 protection for indoor and outdoor installation
b.Aluminum case design to enhance heat dissipation and prevent rust corrosion, prolong life time
c.Built-in high voltage DC switch for safer maintenance and application
d.Built-in convective fans to lower the temperature of core components, prolong life time
e.Natural convection for longer life
