SPECIFICATIONS

Battery Size: 680*590*740mm

Battery Type: LiFePO4

Brand Name: Delongtop

Certification: CE/ROHS/MSDS/UN38.3/DG certificate

Communication: CAN/RS485/RS232/WIFI/4G/Blue Tooth Communication

Communication Port: CAN,RS-232,RS485,WIFI,5G

Cycle life: 6000 Cycles times

Dimension (L*W*H): 680*590*740mm

Grid connection: Off grid,Hybrid grid,On Grid

Inverter Matched: Blue sun Good we Gro watt Sun grow

Model Number: LFP48100

Output Power Range: 10-20Kw

Place of Origin: Guangdong, China

Product name: Akkus 48V 100ah 200ah Energy Storage

Protection: Built in BMS 100A /200ah

Protection Class: IP65

System Type: Stackable,Rack-mounted

System Voltage: 51.2 V

Type: Split

Usage: Slolar Energy System Solar Power Backup Solar Home Storage

Warranty: 10 Years

Weight: 52KG/85KG

Why Choose Delong Energy

At Delong Energy, we are your trusted one‑stop supplier for solar hybrid inverters, lithium‑ion batteries, and integrated energy
storage solutions. With over 13 years of R&D and manufacturing experience, we focus on safe, stable, and high‑efficiency energy
products for global residential, commercial, and off‑grid applications.

We use premium Grade A LiFePO4 cells and intelligent BMS protection to ensure long cycle life, high safety, and stable output. All
products pass strict quality inspections and hold international certifications including CE, ISO, IEC, MSDS, and UN38.3, fully
compliant with global customs and market standards.

As a professional factory, we provide competitive factory direct prices, stable mass production, and flexible OEM/ODM
customization, including voltage, capacity, communication protocol, and appearance design. Our technical team supports fast
response, on‑site guidance, and complete after‑sales service to help you reduce costs and improve system reliability.

We commit to reliable quality, on‑time delivery, and long‑term partnership. Choosing Delong Energy means choosing stable power,
safer energy storage, lower total cost, and worry‑free global service.

Product Description

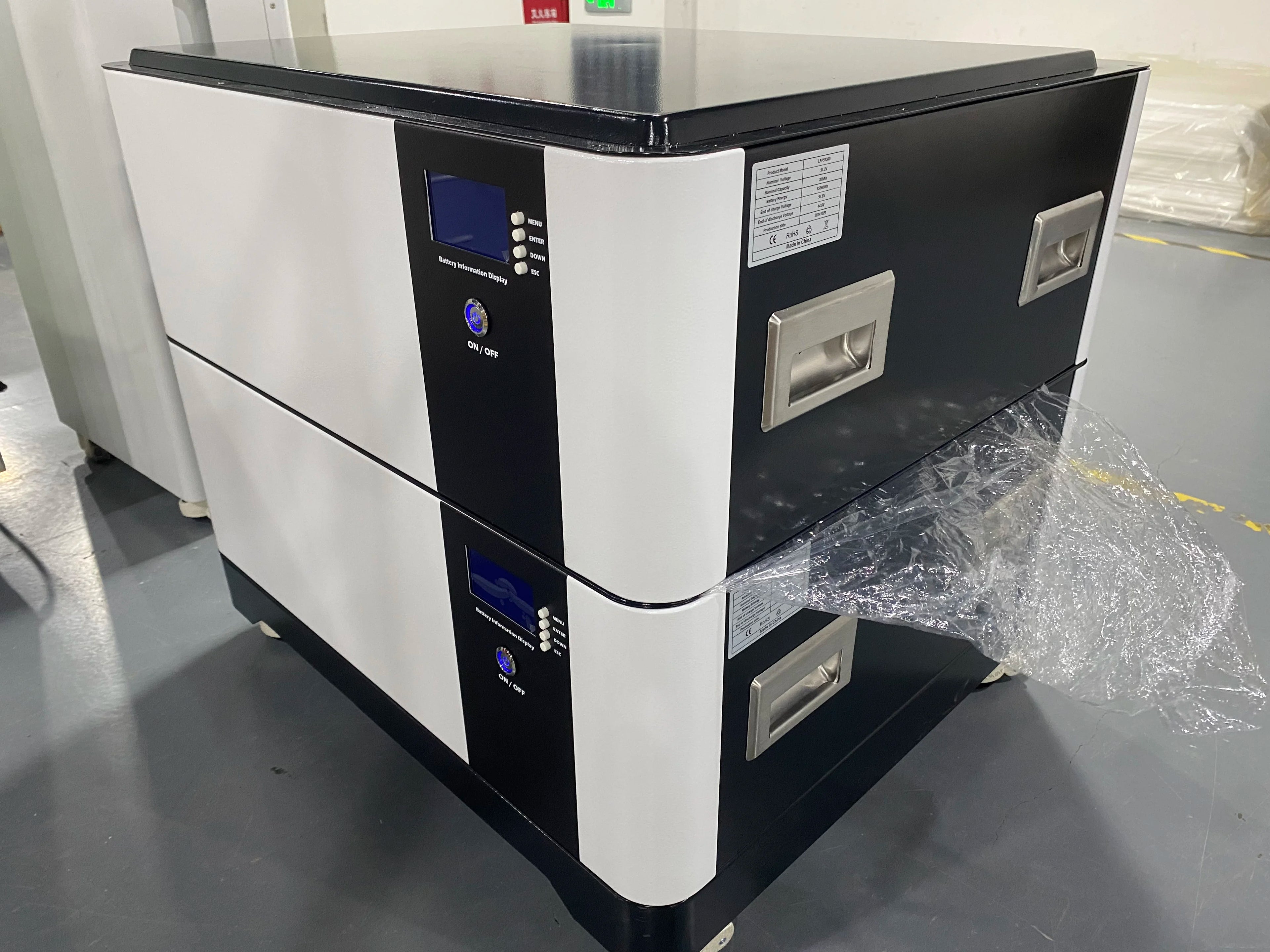

EU Rack-mounted LiFePO4 48V 51.2V 300Ah 15Kwh 30KWh 45Kwh 60Kwh Lithium Ion Batteries for 15KW 20KW Solar Energy Storage System

Battery Specification  LFP51300 Series module can easily expand the capacity to 80kwh				48V
Parameters	LFP51300A	LFP51300B	LFP51300C
Model	LFP51300A	LFP51300B	LFP51300C
Nominal Voltage	51.2V	51.2V	51.2V
Nominal Capacity	280Ah	305Ah	314Ah
Battery Modules	1/2/3/5	1/2/3/5	1/2/3/5
System Nominal Energy	14.33KWh / 28.67KWh / 43.0KWh / 71.68KWh	15.61KWh / 31.23KWh / 46.84KWh / 78.08KWh	16.07KWh / 32.15KWh / 48.23KWh / 80.38KWh
Discharging Cut-off Voltage	44.8V±0.2V	44.8V±0.2V	44.8V±0.2V
Charging Cut-off Voltage	57.6V±0.2V	57.6V±0.2V	57.6V±0.2V
Charging Current	Recommend / 40A; Max. / 100A*	Recommend / 40A; Max. / 100A*	Recommend / 40A; Max. / 100A*
Discharging Current	Recommend / 100A; Max. / 200A*	Recommend / 100A; Max. / 200A*	Recommend / 100A; Max. / 200A*
Peak Discharging Current	205A(5 sec.)*	205A(5 sec.)*	205A(5 sec.)*
Nos of Cells	16pcs (Single battery module)	16pcs (Single battery module)	16pcs (Single battery module)
Weight	≈118±0.5Kg (Single battery module)	≈118±0.5Kg (Single battery module)	≈118±0.5Kg (Single battery module)
Dimensions(LWH)	690590258/388mm (Single battery module)	690590258/388mm (Single battery module)	690590258/388mm (Single battery module)
Cell Type	LiFePO4 Battery	LiFePO4 Battery	LiFePO4 Battery
Terminal	M8	M8	M8
Case Material	Metal Box	Metal Box	Metal Box
Communication Mode	RS485/CAN	RS485/CAN	RS485/CAN
Depth of Discharge	95	95	95
Working Temperature	0°C~50°C Charge / -10°C~50°C Discharge	0°C~50°C Charge / -10°C~50°C Discharge	0°C~50°C Charge / -10°C~50°C Discharge
The Shelf Temperature	-20°C~60°C	-20°C~60°C	-20°C~60°C
Humidity	5~95%(RH)	5~95%(RH)	5~95%(RH)
Design Life Cycle	10+Years (25°C/77°F)	10+Years (25°C/77°F)	10+Years (25°C/77°F)
Cycle Life	≥6500 at 25°C	≥6500 at 25°C	≥6500 at 25°C

You can take our 12Kw inverter, This is All in one Ess system. easily to intall:  This 12KW solar hybrid off grid inverter integrates advanced inverter technology, dual MPPT solar charge controller, and battery management system into one compact unit. Designed for residential, commercial and off-grid power systems, it supports both on-grid and off-grid working modes, providing stable, efficient and reliable power supply for home energy storage, backup power and daily electricity use.		Parameter
Model	SPI48-DL10K
AC Mode
Rated input voltage	230Vac ±5%
Input voltage range	(170Vac~280Vac)±2%@UPS; (90Vac~280Vac)±2%@APL
Frequency	50Hz/60Hz (Auto detection)
Efficiency	>95%
Conversion time (bypass and inverter)	10ms (typical)
Maximum bypass overload current	60A
Inverter Mode
Output voltage waveform	Pure sine wave
Rated output power (VA)/(W)	10000VA / 10000W
Rated output voltage (Vac)	230Vac
Output voltage error	±5%
Output frequency range (Hz)	50Hz±0.3Hz/60Hz±0.3Hz
Maximum Efficiency	>93%
AC Charging
Maximum charge current (can be set)	150A
Charge current error	±5Adc
Charge voltage range	40 ~ 60Vdc
PV Charging
Number of MPPTs	2
Maximum PV open circuit voltage	500Vdc
PV operating voltage range	80-500Vdc
MPPT voltage range	90-450Vdc
Maximum PV input power	5000W+5000W
Maximum PV input current	22A+22A
PV charging current range (can be set)	0~150A
Hybrid charging Max charger current specifications (AC charger+PV charger)
PV charging current range (can be set)	0~150A

All-in-one machine specifications	20Kwh + 10Kw	30Kwh + 10Kw	40Kwh + 10Kw	45Kwh + 10Kw	50Kwh + 10Kw
Battery Module Model * Number	HS51200-10 * 2	HS51200-10 * 3 / LFP51300 * 2	HS51200-10 * 4	LFP51300 * 3	HS51200-10 * 5
Energy	20Kwh	30Kwh	40Kwh	45Kwh	50Kwh
Overall size	690*590*565mm	690*590*710/761mm	690*590*855mm	690*590*1004mm	690*590*1000mm
Overall Weight	≈212Kg	≈297.5Kg / 277Kg	≈383Kg	≈395Kg	≈468.5Kg
General specifications	Parameter
Operating temperature range	0°C to 55°C; > 45°C drop runs
Storage temperature range	-10°C ~ 55°C
Humidity range	5% to 95% (Conformal coating protection)
Heat dissipation	Forced air cooling, variable speed of fan
Communication interface	USB/RS485/WiFi(Optional)/ Dry node control

Advantages of DELONGTOP

We have local warehouses in Europe, which allow us to provide fast delivery, short lead time, and no customs troubles for our European customers. You can receive goods within 3–7 days, greatly improving your capital turnover and market response speed.

Wide compatibility
●Fully compatible with most inverters on the global market,
●such as SMA, SolarEdge, Sungrow， Victron Energy, Schneider, Growatt, EverExceed, Ginlong, Sofarsolar, SolaX,
East, Deye, etc.'

We partner with famous branded cell factories.

We use high-quality Peicheng BMS with Pylon communication protocol, and it is compatible with most inverters on the market.

We offer competitive factory prices, flexible OEM/ODM service, professional technical support and reliable after-sales service.

Choose Delong Energy for stable quality, fast local delivery, strong supply chain and worry-free cooperation.

LFP51Series 51.2V Stacked and Wall-mounted Household Energy Storage

LFP51100 51.2V 100Ah 5Kwh 10Kwh 15Kwh

LFP51220 51.2V 230Ah 11.78Kwh 23.55Kwh 35Kwh

LFP51314 51.2V 314Ah 16Kwh 32Kwh 48KWH

51.2V 15KWH 30KWH 45KWH 60KWH Stackable LiFePO4 Battery

51.2V 300AH 15.36KWH

51.2V 600AH 30.72KWH
51.2V 900AH 46.08KWH
51.2V 1200AH 61.44KWH

Title goes here.

51.2V 200AH 10KWH

51.2V 400AH 20KWH
51.2V 600AH 30KWH
51.2V 800AH 40KWH

51.2V 1000AH 50KWH

LVM series 10kwh to 32Kwh single pack big capacity

51.2V 200AH 10KWH

51.2V 230AH 1.776KWH

51.2V 300AH 15KWH

51.2V 314AH 16KWH

51.2V 460AH 23.5KWH

1.2V 560AH 28.67KWH

51.2V 600AH 30KWH

51.2V 314AH 32KWH

High Voltage 102.4V 100AH/157Ah Module Stackable LiFePO4 Battery

204.8V 100AH 20.48KWH 307.2V 100AH 30.72KWH
409.6V 100AH 40.96KWH
512V 100AH 51.2KWH
614.4V 100AH 61.44KWH

204.8V 157AH 32.15KWH307.2V 157AH 48.23KWH409.6V 157AH 64.3KWH
512V 157AH 80.38KWH
614.4V 157AH 96.39KWH

High Voltage 102.4V 280Ah/ 314Ah 28.67KWH/ 30KWH Module LiFePO4 Battery Cabinet/ Rack mounted

409.6V 280AH 114KWH 512V 280AH 143KWH 614.4V 280AH 172KWH 716.8V 280AH 200KWH 409.6V 314AH 128KWH 512V 314AH 160KWH 614.4V 314AH 192KWH 716.8V 314AH 224KWH

Company Introduction

Shenzhen Delong Energy Technology Co.,Ltd
Established in 2006, we have been in the lithium-ion battery industry for more than 13 years.

Packing&Shipping

Delivery time :

7-15days, but could be changed according to the quantity or other things.
Payment:
1.We accept T/T , PAYPAL , Western Union, Cash and so on. & Trade assurance order

Packaging:
Per battery per carton, Standard export pakcage

Shippment:

DHL, UPS, Fedex, Special Line, Sea shipping, Customer

FAQ

FAQs
Q1: Can I get free samples?
A1: Generally, we do not provide free samples, but we can refund the sample cost when buyers place bulk orders.

Q2: If we place an order, how long is the delivery time?
A2: For small orders, we can deliver within 3-5 working days. For bulk orders, let us confirm when we place the official order.

Q3: What are your payment and delivery terms?
A3: Payment terms: by T/T, 30% deposit and balance all before shipment. For small amounts, we also accept payment via PayPal.

Q4: What kind of packages do you ship? Can I have a customized package?
A4：We have factory current standard package, custom printed logo should meet the buyer's requirement, extra cost will be borne by
the buyer, for more details, please contact us.

Q5: Your factory or trading company?
A5: We are a manufacturer established for more than 10 years. We provide various OEM / ODM services to our customers all over the
world.

Q6： Where is your company's main market?
A6: We focus on the European/North American/Asian/African markets. According to different customers to provide different needs of
products.

Q7: What are your advantages compared to other suppliers?
A7 a) High quality batteries: Our batteries have sufficient capacity and low RI. Before shipping, we will check the products and
make sure the quality is approved by customers.
A7 b) Better service: We always provide what our customers need. Promptly respond to customer's questions. Provide the best
project solution for our customers. We ship on time.

Q8: Can we visit your factory before placing an order?
A8: Of course no problem, we are always welcome to visit our factory.
