SPECIFICATIONS

Application: Charger Controller,Solar Working Station,Lighting Controller,Voltage Controller,Solar System Controller,battery panel regulator,Charger controller,solar system controller

Battery type: Lead acid battery, lithium battery, lithium iron battery

Brand Name: DEMUDA

Charge Control Mode: WIFI APP control for option

Charge way: constant voltage,constant current,Floating charge

MPPT Voltage: 24V/48V/36V/48V auto adapt 96V customoz

Max PV Power: 6240W

Max PV Voltage: 48V

Maximum conversion efficiency: 99.5%

Model Number: MPPT-T

Operating temperature: -20℃~+50℃

Place of Origin: Guangdong, China

Storage temperature: -40℃~+70℃

Tracking efficiency: ≥99.5%

Type: MPPT

USB: 5A USB to RS485 converter

Work Time (h): 24H

Related Products

Product Details

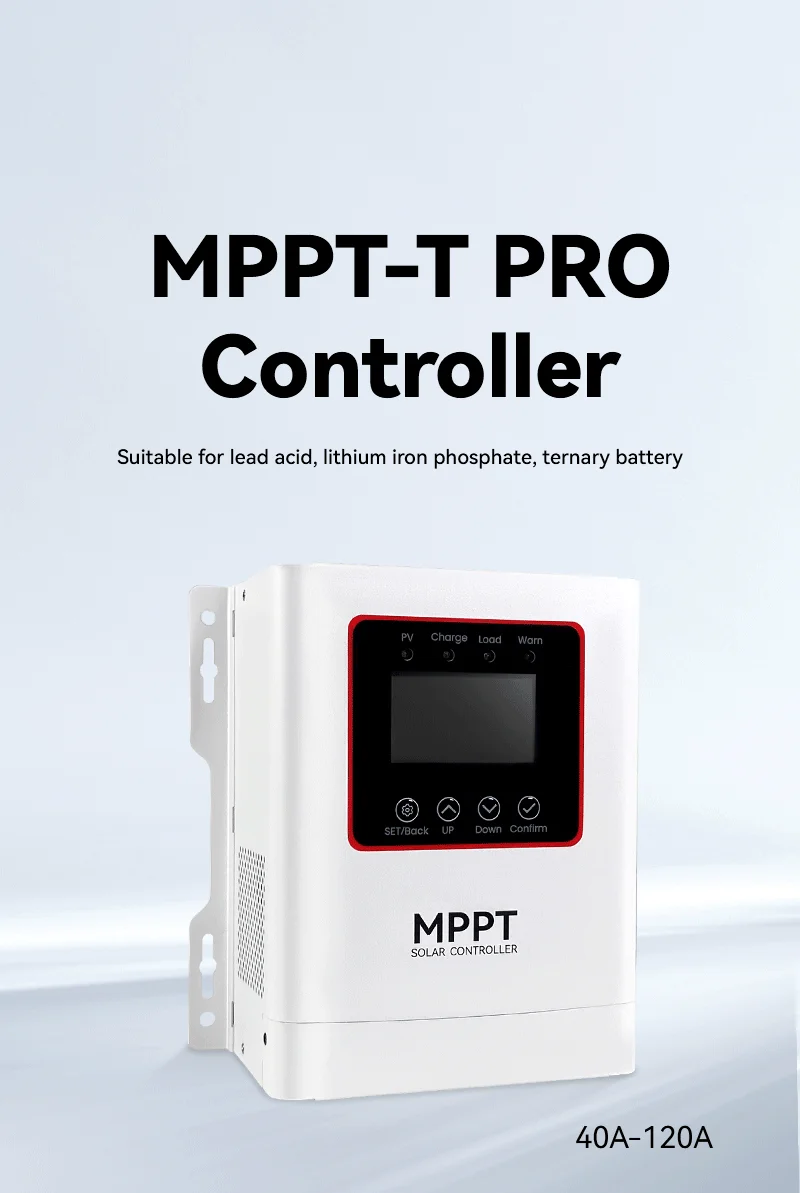

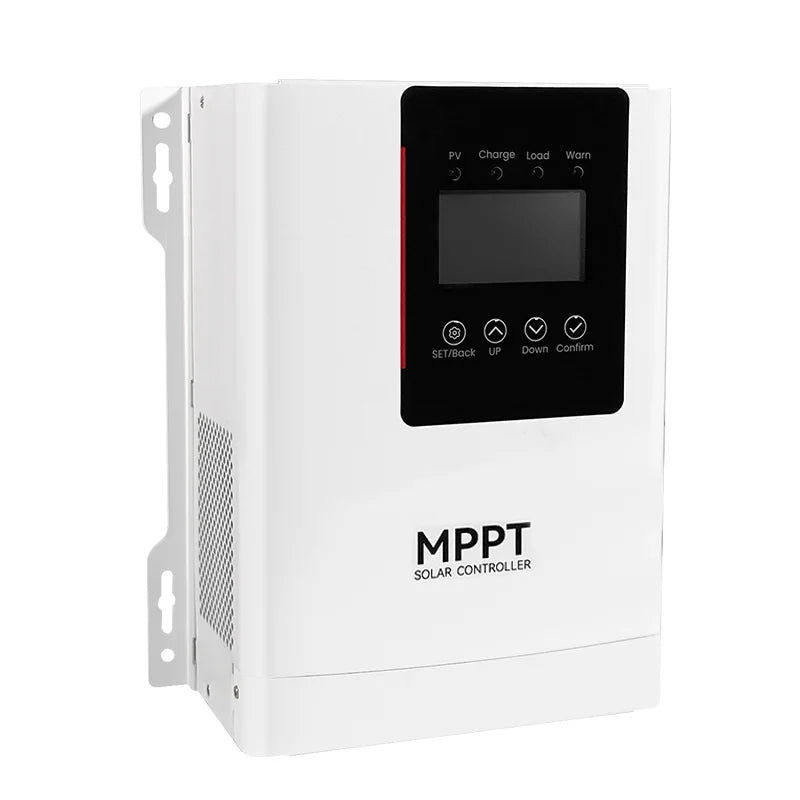

Hot selling NEW MPPT Solar Charge Controller 12V/24V/36V/48V Automatically Identifying

40/50/60/80/100/120amp Solar Panel Regulator

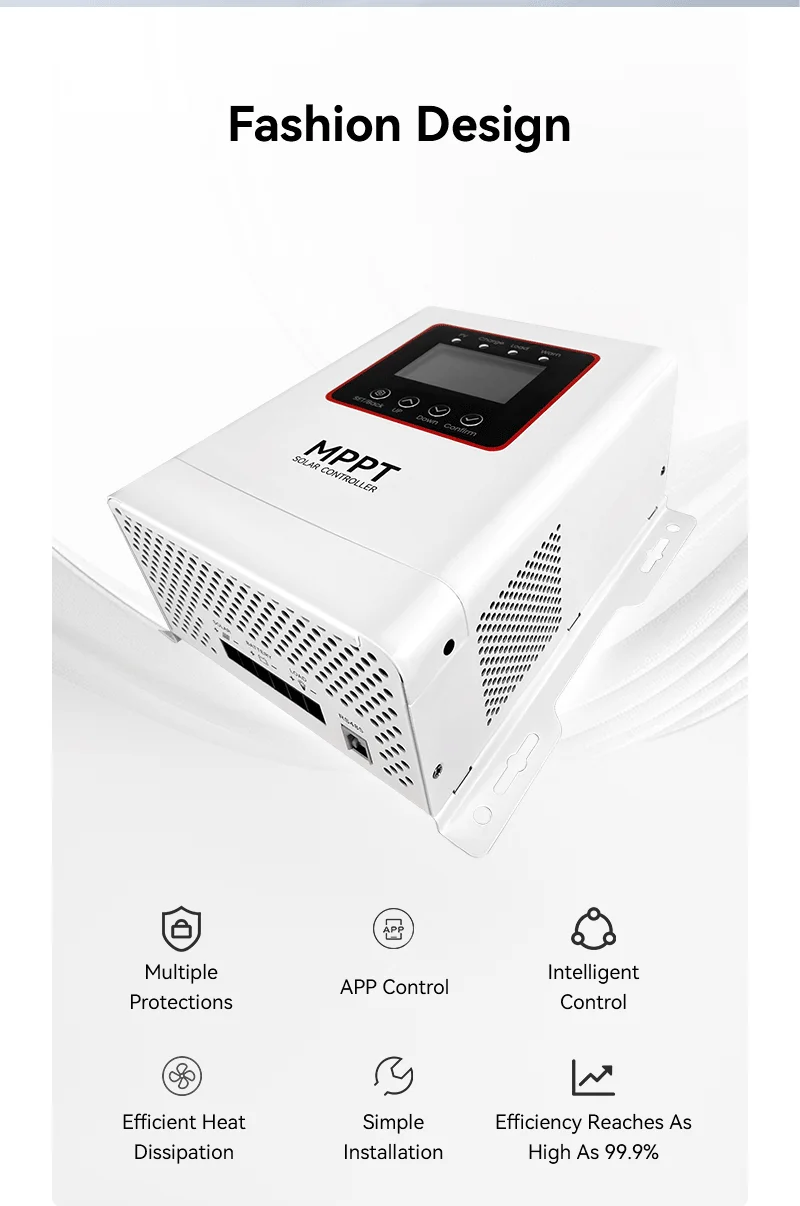

1* New modern design, Upgrade high effectively chip, Fully functional

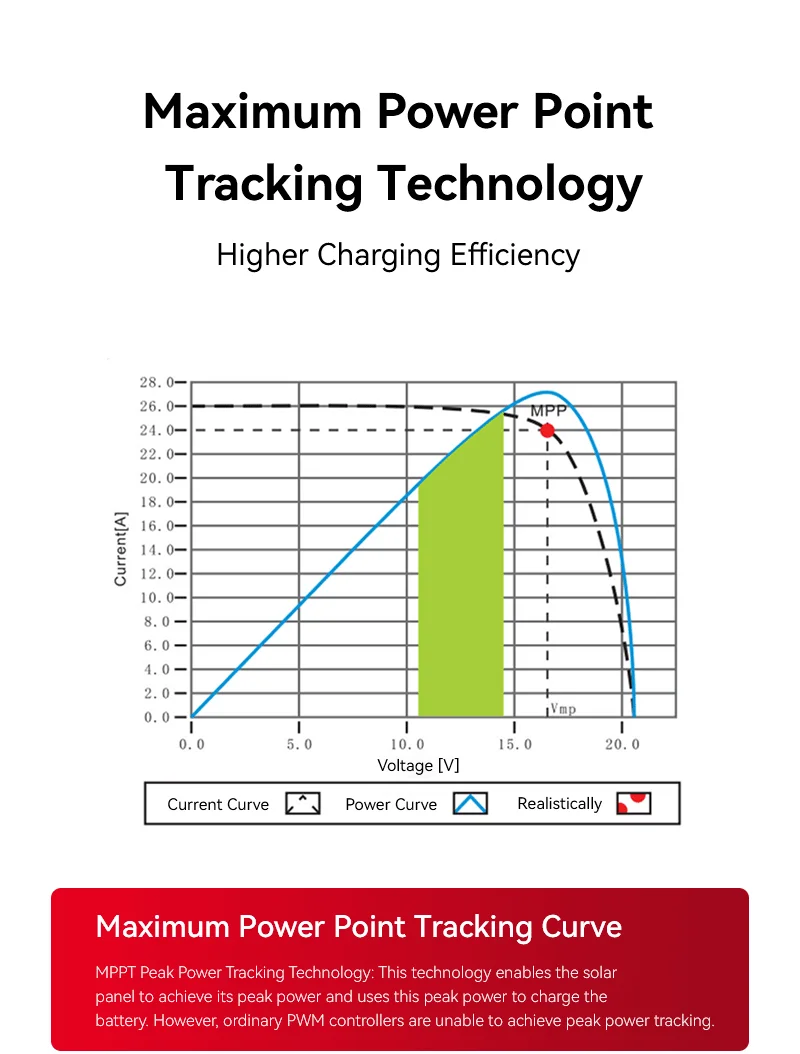

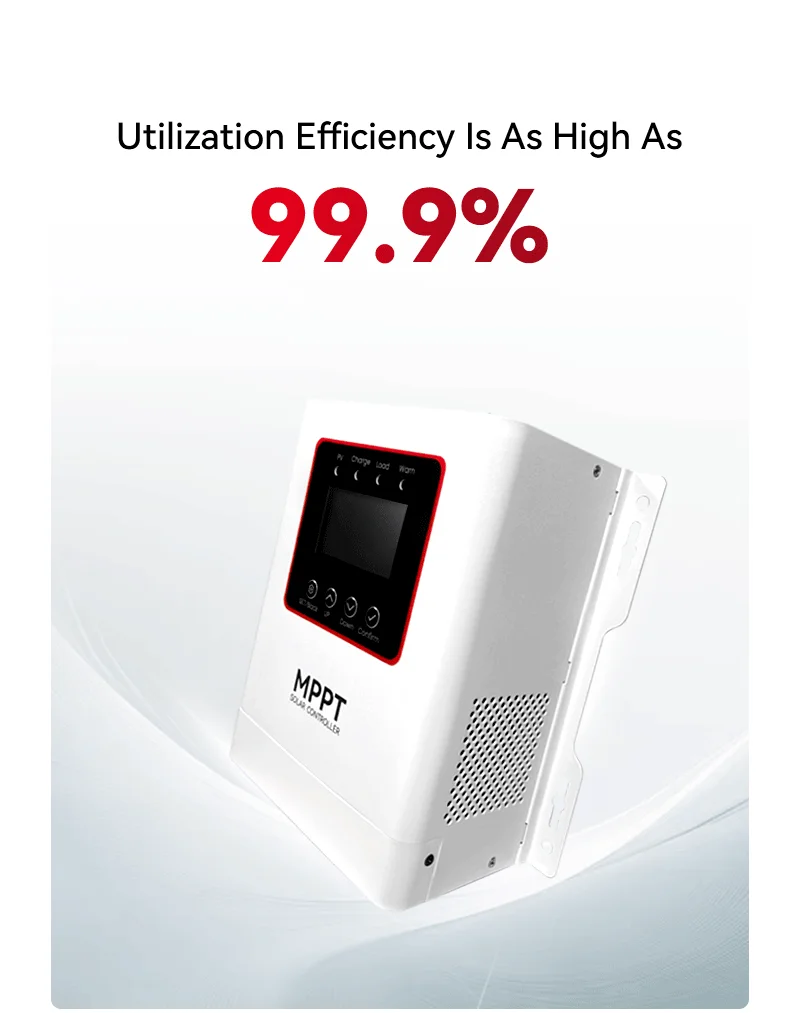

2* MPPT solar charge controller advanced MPPT technology & ultra-fast tracking speed,with tracking efficiency more than 99.5%.

3* Suitable for multy batteries, Lead Acid battery AGM GEL STD, Lithium Ion Lifepo4 LBF Battery.

2* With the adaptive three-stage charging mode based on digital control circuit, MPPT Max controllers can effectively prolong the life-cycle of battery and significantly improve the system performance.

3* Multy protections, including overcharging, over discharging, and PV reverse polarity
protection, effectively ensure the safer and more reliable operation of the solar system for a longer service time. Battery temperature compensation, real-time energy recording and statistical function, automatic over-temperature power reduction function.

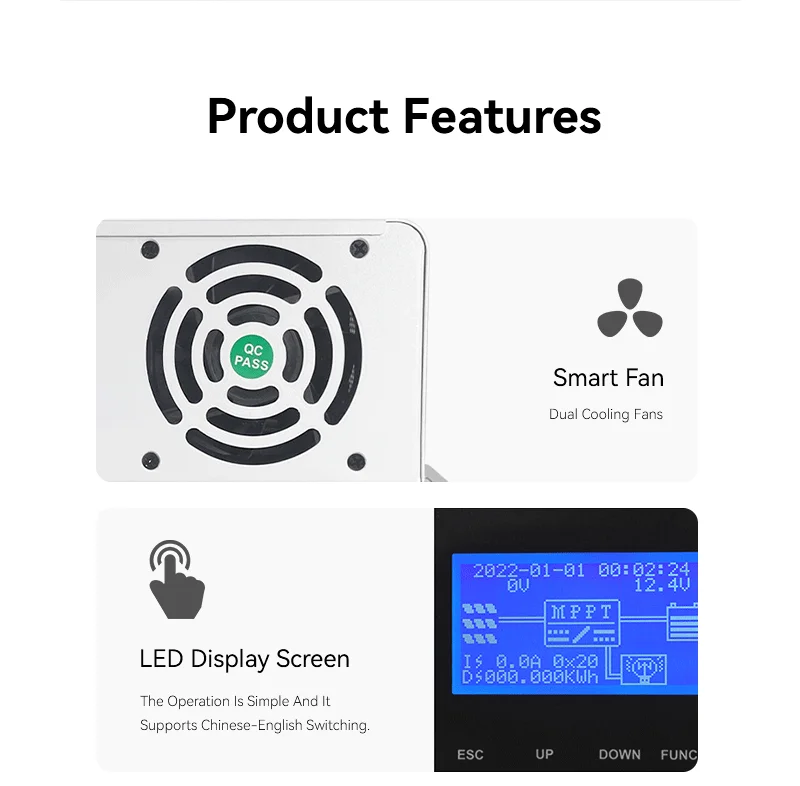

4* LCD and LED control, MCU control, built-in timer.

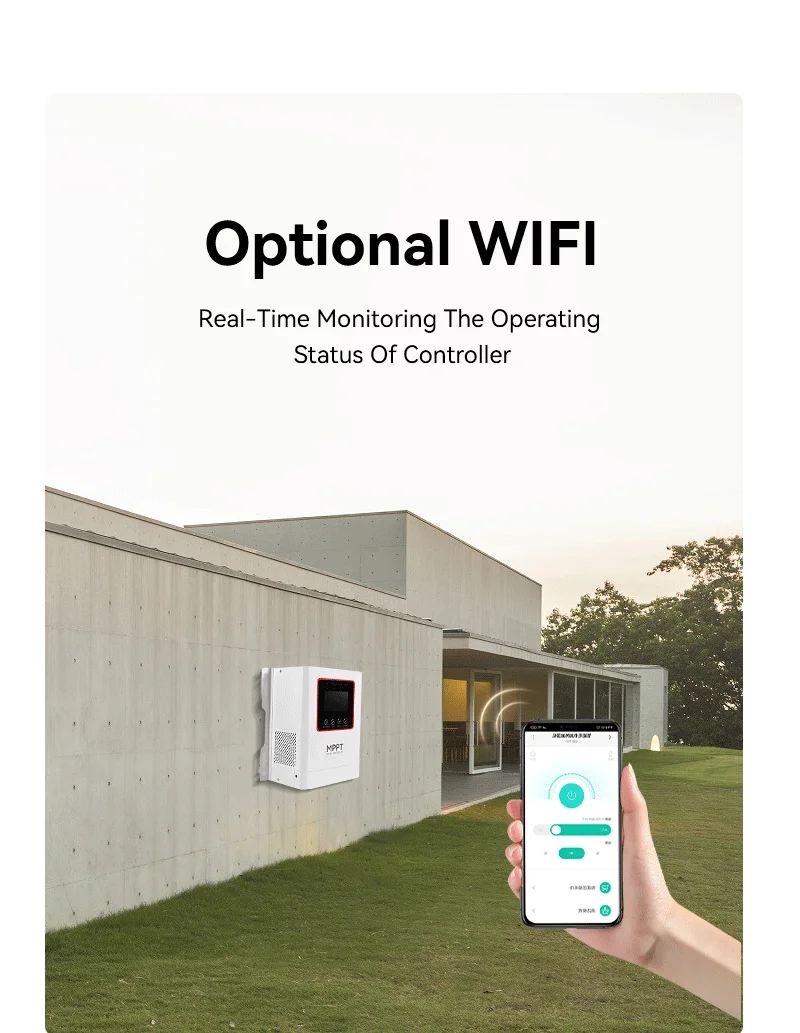

5* Wifi APP function, Remote temperature sensor, Adopt USB to RS485 converter.

6* Three size for choose. High voltage 96V could be customizable.

7* For delevery time, pls check with us for detail shipment date.

If you quantity is more than MOQ, welcome to chat with us for dicsount price

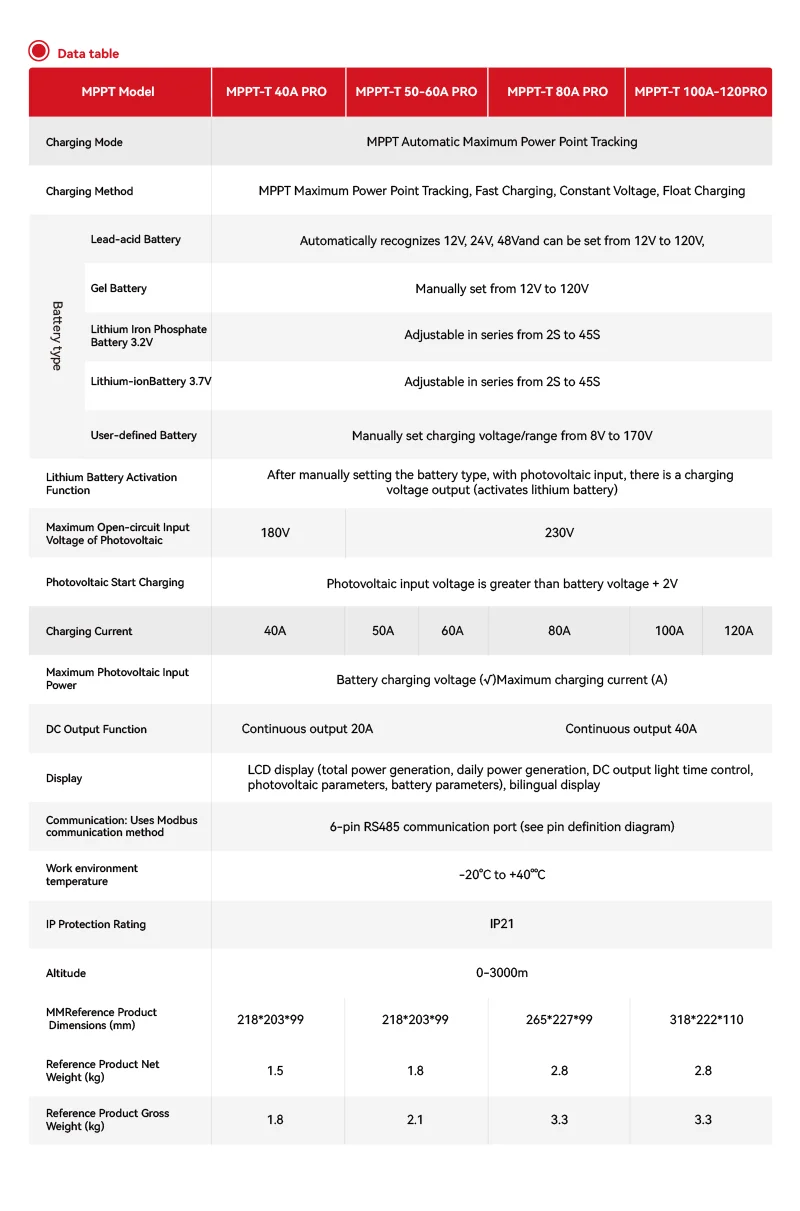

Technical parameter

Parameter xxxxF

40415

60415

80415

100415

40825

60825

80825

100825

System rated voltage

12/24/36/48VDC or self-identification

96VDC

Controller operating voltage range

12～64V

72～128V

Lead-acid battery type

Maintenance-free (default)/colloid/liquid/custom

Lithium battery type

Lithium Iron Phosphate/Ternary Lithium/Custom

Rated charging current

40A

60A

80A

100A

40A

60A

80A

100A

Rated charging power

540W/12V 1080W/24V 1620W/36V 2160W/48V

800W/12V 1600W/24V 2400W/36V 3200W/48V

1040W/12V 2080W/24V 3120W/36V 4160W/48V

1300W/12V 2600W/24V 3900W/36V 5200W/48V

4160W/96V

6240W/96V

8320W/96V

10400W/96V

Maximum open circuit voltage of photovoltaic modules

150V (under the lowest temperature condition) 138V (under 25℃ condition)

250V (under the lowest temperature condition) 225V (under 25°C)

Maximum power point operating voltage range

12V system

20~150VDC

(96V system) 128~250VDC

24V system

36~150VDC

36V system

48~150VDC

48V system

64~150VDC

Tracking efficiency

≥99.5%

Maximum conversion efficiency

97.5%

Temperature compensation coefficient

- 3mV/℃/2V

Static loss

350mA/12V;170mA/24V;85mA/48V;

700mA/12V;350mA/24V;175mA/48V;

40mA/96V

83mA/96V

DC load output voltage

Can be turned on in 12/24V mode

/

DC load rated output current

40A

/

DC load output control

Normally open normally closed mode/time control mode/light control mode

/

Protective function

PV input reverse connection protection, battery input reverse connection protection, battery overcharge protection, battery undervoltage protection, battery over temperature protection, machine over temperature protection

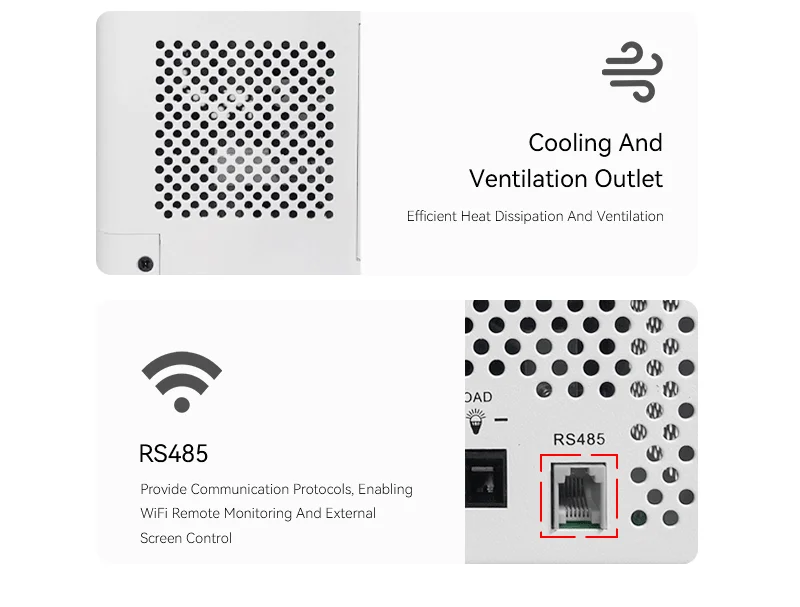

Cooling method

Wind cooling

way of communication

RS485

LCD backlight time

Default 60S, backlight mode can be set

Environmental parameters

Working environment temperature range

- 20℃～+ 50℃

Storage temperature range

- 40℃～+ 70℃

Relative humidity range

0～90% RH

Mechanical parameters

parameter

40415F

60415F

80415F

100415F

40825F

60825F

80825F

100825F

Dimensions

219*300*110mm

219*300*110mm

275*363*109mm

275*363*109mm

219*300*110mm

219*300*110mm

275*363*109mm

275*363*109mm

More kinds of product, welcome to contact with us for any inquiry or E-catalogue

Customer feedback

Product packaging

1.Attach the color sticker and label. 2.Put the battery charger and instruction manual into the color box. 3.Put into export carton. 4.Enter the warehouse and wait for shipment.

Neutral packing with English and Chinese manual.

Welcome to contact with us for customized logo and package.
