DDP EU BYD All in One Solar 12Kw Inverter and Lithium Battery System 15Kwh 20kwh 30Kwh 50Kwh 60Kwh 51.2V Battery Energy Storage
12KW inverter / White / 10 kW
₱58,947.49PHP
Sale price
₱58,947.49PHP
Regular price
Skip to product information
DDP EU BYD All in One Solar 12Kw Inverter and Lithium Battery System 15Kwh 20kwh 30Kwh 50Kwh 60Kwh 51.2V Battery Energy Storage
₱58,947.49PHP
Sale price
₱58,947.49PHP
Regular price
SPECIFICATIONS
BMS Discharge Cut-off Voltage: 40V
Battery Type: LiFePO4,3.2V 300Ah LiFePO4 Battery
Brand Name: delongtop
Charge Current: 0.2C~0.5C
Charge Model: CC/CV
Communication Port: CAN
Cycle Life: 6500 Times
Dimension (L*W*H): 690*590*258mm
Discharge Current: 1C
Energy: 15kwh
Grid connection: Off grid
Model Number: LFP51300
OEM/ODM: Accepatable
Output Power Range: 10-20Kw
Place of Origin: Guangdong, China
Product Name: 48V 300Ah LiFePO4 Battery Pack
Protection Class: IP54
System Type: Rack-mounted
System Voltage: 51.2 V
Type: All-In-One
Warranty: 10 Years
Weight: 130kg
Why Choose Delong Energy
At Delong Energy, we are your trusted one‑stop supplier for solar hybrid inverters, lithium‑ion batteries, and integrated energy
storage solutions. With over 13 years of R&D and manufacturing experience, we focus on safe, stable, and high‑efficiency energy
products for global residential, commercial, and off‑grid applications.
We use premium Grade A LiFePO4 cells and intelligent BMS protection to ensure long cycle life, high safety, and stable output. All
products pass strict quality inspections and hold international certifications including CE, ISO, IEC, MSDS, and UN38.3, fully
compliant with global customs and market standards.
As a professional factory, we provide competitive factory direct prices, stable mass production, and flexible OEM/ODM
customization, including voltage, capacity, communication protocol, and appearance design. Our technical team supports fast
response, on‑site guidance, and complete after‑sales service to help you reduce costs and improve system reliability.
We commit to reliable quality, on‑time delivery, and long‑term partnership. Choosing Delong Energy means choosing stable power,
safer energy storage, lower total cost, and worry‑free global service.
At Delong Energy, we are your trusted one‑stop supplier for solar hybrid inverters, lithium‑ion batteries, and integrated energy
storage solutions. With over 13 years of R&D and manufacturing experience, we focus on safe, stable, and high‑efficiency energy
products for global residential, commercial, and off‑grid applications.
We use premium Grade A LiFePO4 cells and intelligent BMS protection to ensure long cycle life, high safety, and stable output. All
products pass strict quality inspections and hold international certifications including CE, ISO, IEC, MSDS, and UN38.3, fully
compliant with global customs and market standards.
As a professional factory, we provide competitive factory direct prices, stable mass production, and flexible OEM/ODM
customization, including voltage, capacity, communication protocol, and appearance design. Our technical team supports fast
response, on‑site guidance, and complete after‑sales service to help you reduce costs and improve system reliability.
We commit to reliable quality, on‑time delivery, and long‑term partnership. Choosing Delong Energy means choosing stable power,
safer energy storage, lower total cost, and worry‑free global service.
Product Description
Battery Specification LFP51300 Series module can easily expand the capacity to 80kwh
|
48V |
|||||
Parameters |
LFP51300A |
LFP51300B |
LFP51300C |
|||
Model |
LFP51300A |
LFP51300B |
LFP51300C |
|||
Nominal Voltage |
51.2V |
51.2V |
51.2V |
|||
Nominal Capacity |
280Ah |
305Ah |
314Ah |
|||
Battery Modules |
1/2/3/5 |
1/2/3/5 |
1/2/3/5 |
|||
System Nominal Energy |
14.33KWh / 28.67KWh / 43.0KWh / 71.68KWh |
15.61KWh / 31.23KWh / 46.84KWh / 78.08KWh |
16.07KWh / 32.15KWh / 48.23KWh / 80.38KWh |
|||
Discharging Cut-off Voltage |
44.8V±0.2V |
44.8V±0.2V |
44.8V±0.2V |
|||
Charging Cut-off Voltage |
57.6V±0.2V |
57.6V±0.2V |
57.6V±0.2V |
|||
Charging Current |
Recommend / 40A; Max. / 100A* |
Recommend / 40A; Max. / 100A* |
Recommend / 40A; Max. / 100A* |
|||
Discharging Current |
Recommend / 100A; Max. / 200A* |
Recommend / 100A; Max. / 200A* |
Recommend / 100A; Max. / 200A* |
|||
Peak Discharging Current |
205A(5 sec.)* |
205A(5 sec.)* |
205A(5 sec.)* |
|||
Nos of Cells |
16pcs (Single battery module) |
16pcs (Single battery module) |
16pcs (Single battery module) |
|||
Weight |
≈118±0.5Kg (Single battery module) |
≈118±0.5Kg (Single battery module) |
≈118±0.5Kg (Single battery module) |
|||
Dimensions(LWH) |
690590258/388mm (Single battery module) |
690590258/388mm (Single battery module) |
690590258/388mm (Single battery module) |
|||
Cell Type |
LiFePO4 Battery |
LiFePO4 Battery |
LiFePO4 Battery |
|||
Terminal |
M8 |
M8 |
M8 |
|||
Case Material |
Metal Box |
Metal Box |
Metal Box |
|||
Communication Mode |
RS485/CAN |
RS485/CAN |
RS485/CAN |
|||
Depth of Discharge |
95 |
95 |
95 |
|||
Working Temperature |
0°C~50°C Charge / -10°C~50°C Discharge |
0°C~50°C Charge / -10°C~50°C Discharge |
0°C~50°C Charge / -10°C~50°C Discharge |
|||
The Shelf Temperature |
-20°C~60°C |
-20°C~60°C |
-20°C~60°C |
|||
Humidity |
5~95%(RH) |
5~95%(RH) |
5~95%(RH) |
|||
Design Life Cycle |
10+Years (25°C/77°F) |
10+Years (25°C/77°F) |
10+Years (25°C/77°F) |
|||
Cycle Life |
≥6500 at 25°C |
≥6500 at 25°C |
≥6500 at 25°C |
|||

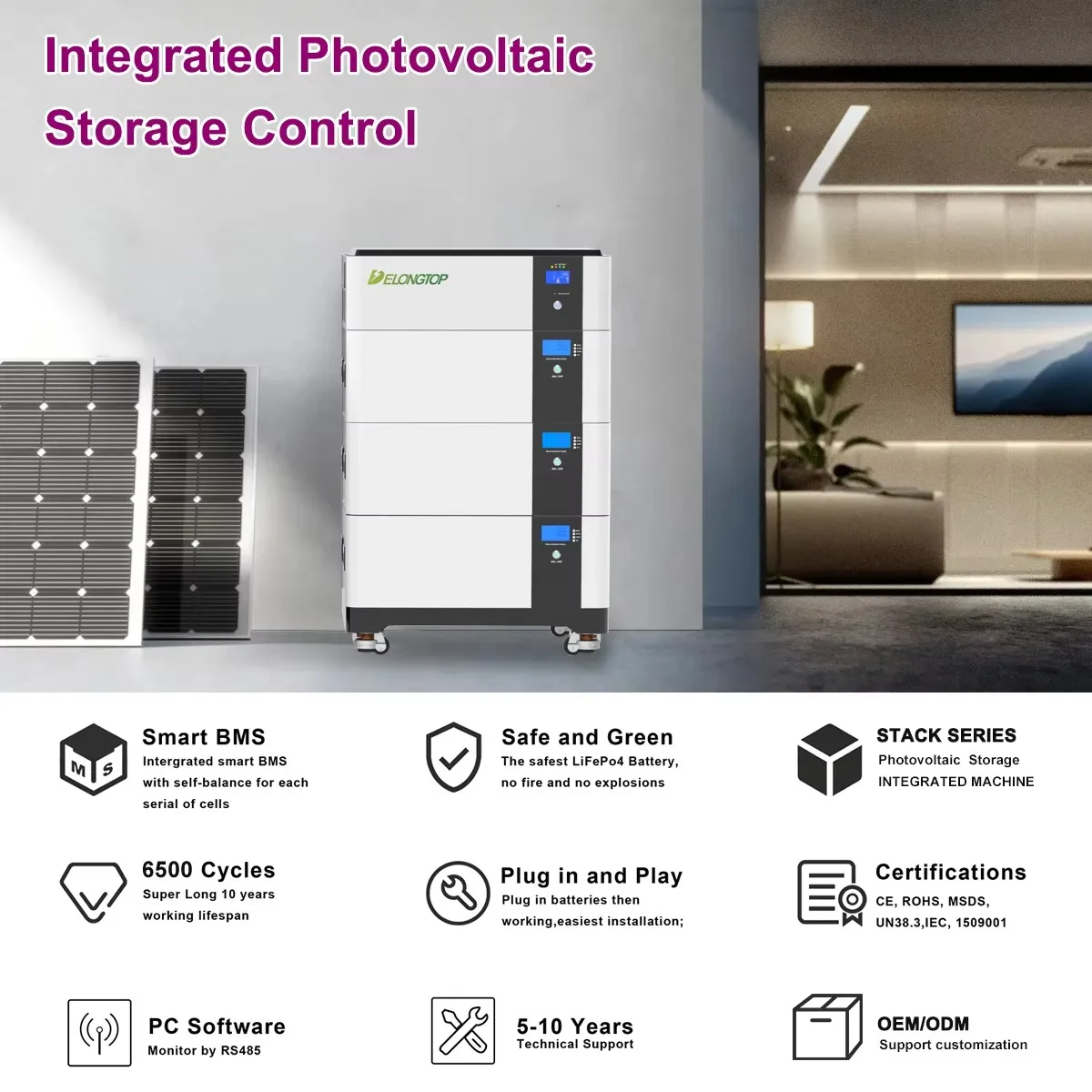

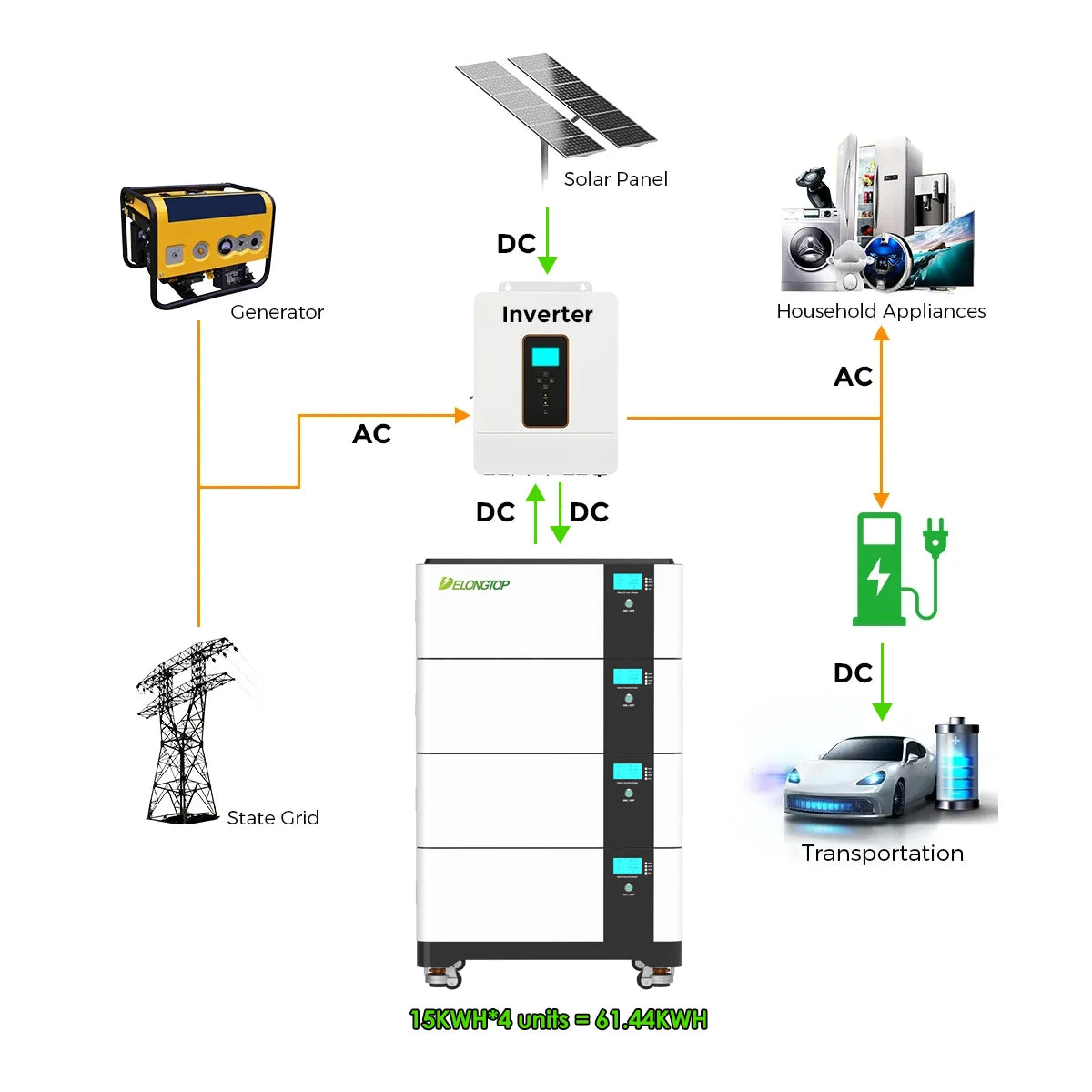

You can take our 12Kw inverter, This is All in one Ess system. easily to intall: This 12KW solar hybrid off grid inverter integrates advanced inverter technology, dual MPPT solar charge controller, and battery management system into one compact unit. Designed for residential, commercial and off-grid power systems, it supports both on-grid and off-grid working modes, providing stable, efficient and reliable power supply for home energy storage, backup power and daily
electricity use. |
Parameter |
|
Model |
SPI48-DL10K |
|
AC Mode |
||
Rated input voltage |
230Vac ±5% |
|
Input voltage range |
(170Vac~280Vac)±2%@UPS; (90Vac~280Vac)±2%@APL |
|
Frequency |
50Hz/60Hz (Auto detection) |
|
Efficiency |
>95% |
|
Conversion time (bypass and inverter) |
10ms (typical) |
|
Maximum bypass overload current |
60A |
|
Inverter Mode |
||
Output voltage waveform |
Pure sine wave |
|
Rated output power (VA)/(W) |
10000VA / 10000W |
|
Rated output voltage (Vac) |
230Vac |
|
Output voltage error |
±5% |
|
Output frequency range (Hz) |
50Hz±0.3Hz/60Hz±0.3Hz |
|
Maximum Efficiency |
>93% |
|
AC Charging |
||
Maximum charge current (can be set) |
150A |
|
Charge current error |
±5Adc |
|
Charge voltage range |
40 ~ 60Vdc |
|
PV Charging |
||
Number of MPPTs |
2 |
|
Maximum PV open circuit voltage |
500Vdc |
|
PV operating voltage range |
80-500Vdc |
|
MPPT voltage range |
90-450Vdc |
|
Maximum PV input power |
5000W+5000W |
|
Maximum PV input current |
22A+22A |
|
PV charging current range (can be set) |
0~150A |
|
Hybrid charging Max charger current specifications (AC charger+PV charger) |
||
PV charging current range (can be set) |
0~150A |
|

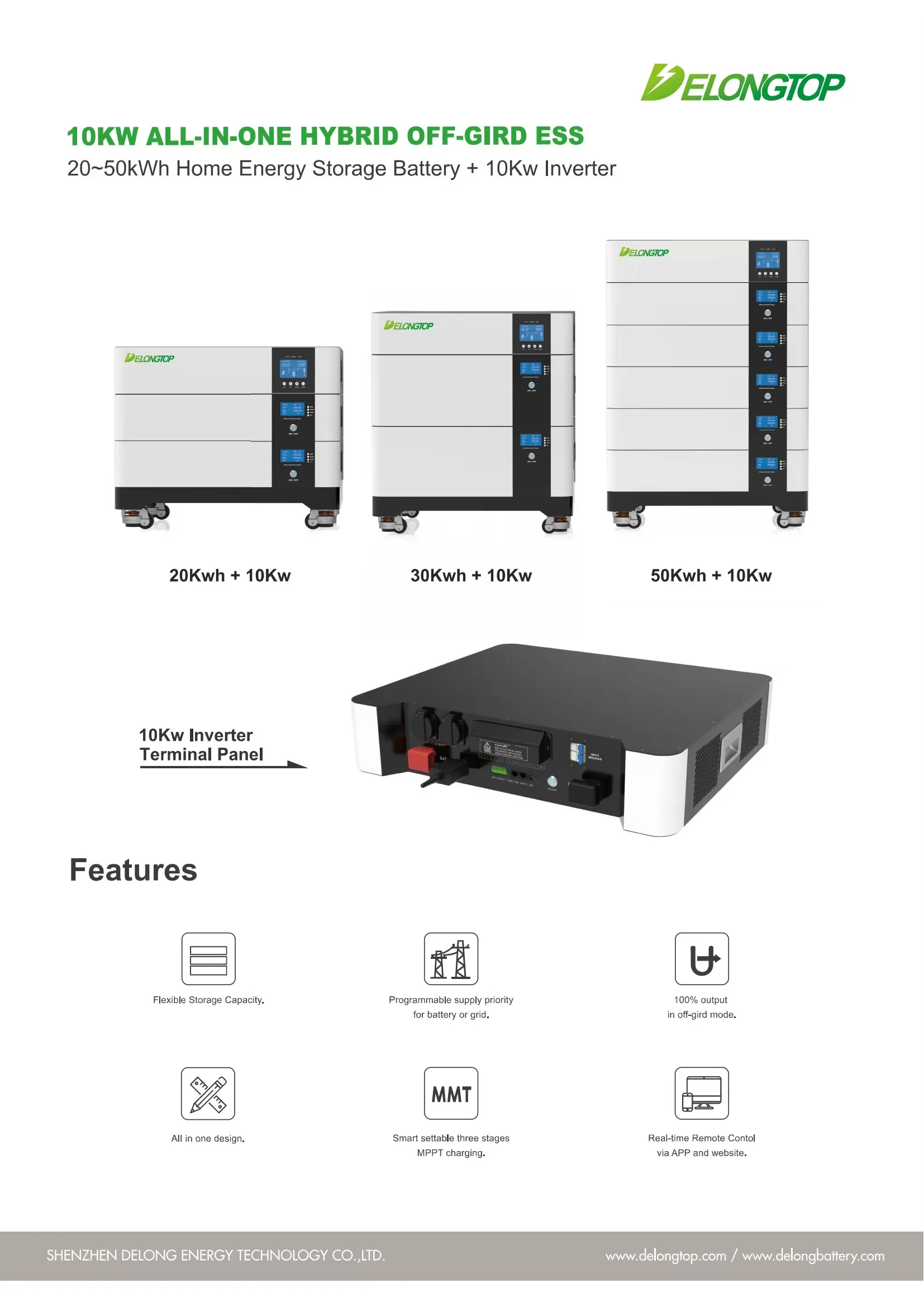

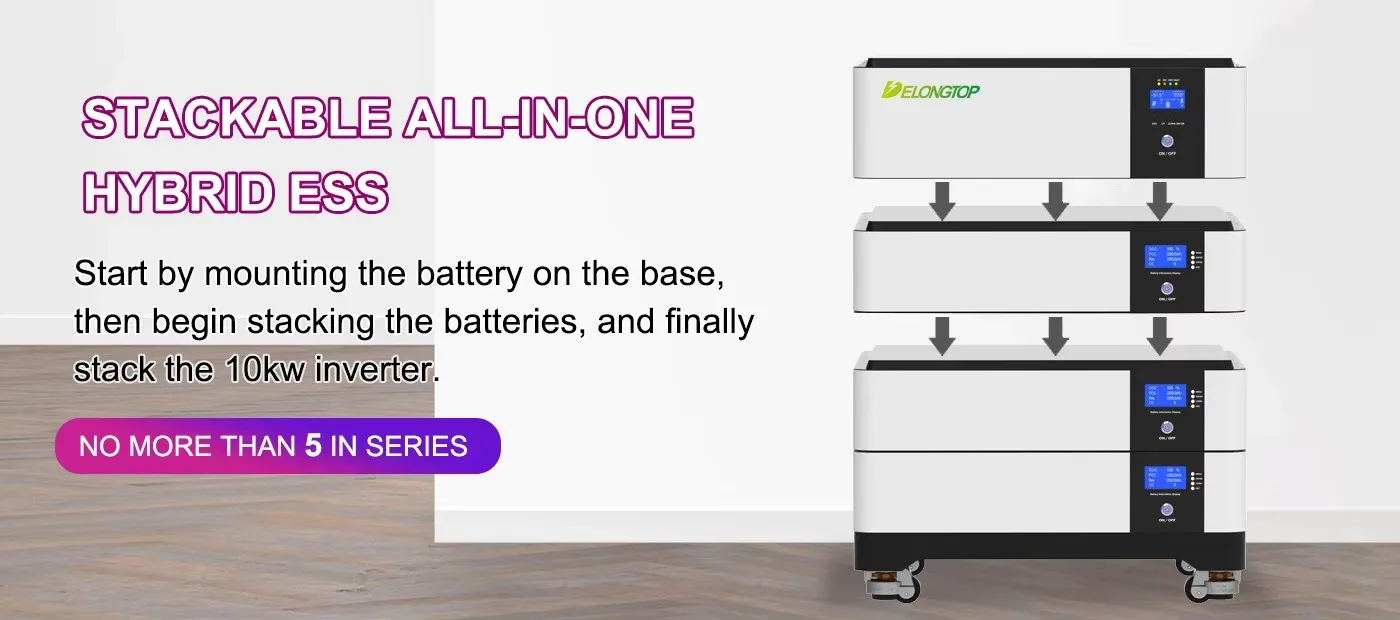

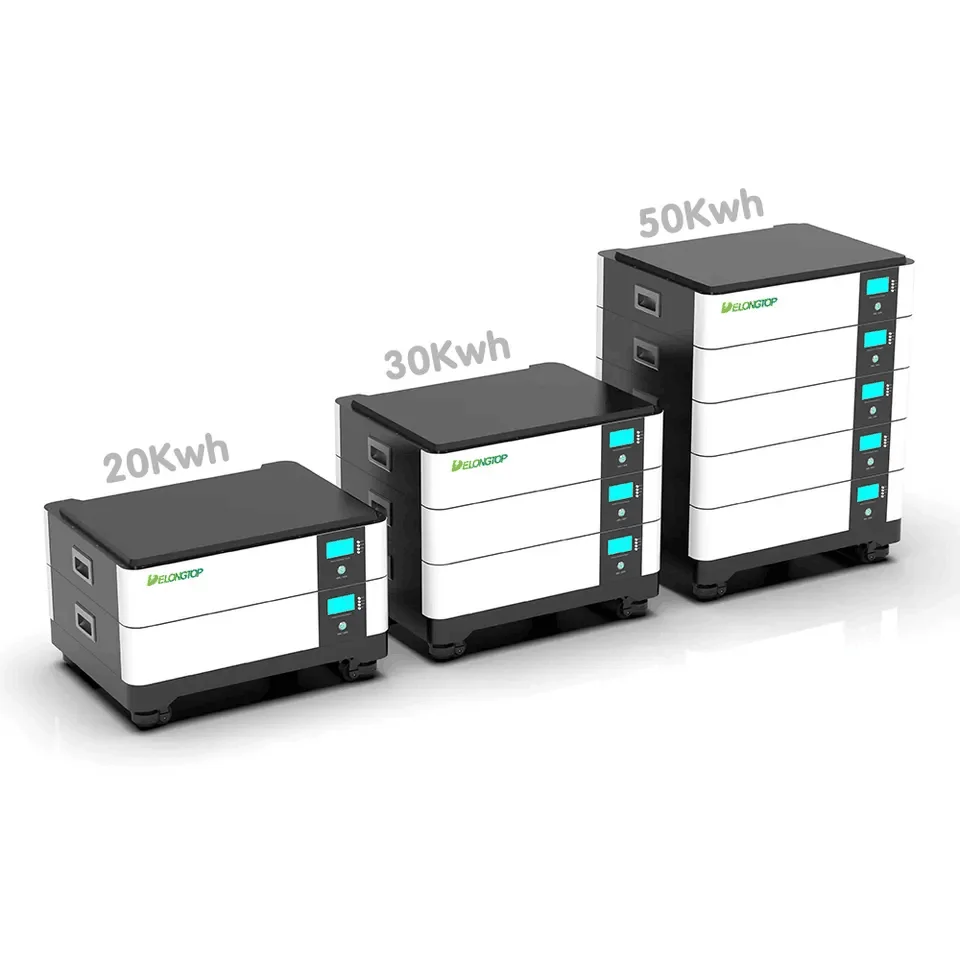

All-in-one machine specifications |
20Kwh + 10Kw |
30Kwh + 10Kw |
40Kwh + 10Kw |
45Kwh + 10Kw |
50Kwh + 10Kw |
||||
Battery Module Model * Number |
HS51200-10 * 2 |
HS51200-10 * 3 / LFP51300 * 2 |
HS51200-10 * 4 |
LFP51300 * 3 |
HS51200-10 * 5 |
||||
Energy |
20Kwh |
30Kwh |
40Kwh |
45Kwh |
50Kwh |
||||
Overall size |
690*590*565mm |
690*590*710/761mm |
690*590*855mm |
690*590*1004mm |
690*590*1000mm |
||||
Overall Weight |
≈212Kg |
≈297.5Kg / 277Kg |
≈383Kg |
≈395Kg |
≈468.5Kg |
||||
General specifications |
Parameter |
||||||||
Operating temperature range |
0°C to 55°C; > 45°C drop runs |
||||||||
Storage temperature range |
-10°C ~ 55°C |
||||||||
Humidity range |
5% to 95% (Conformal coating protection) |
||||||||
Heat dissipation |
Forced air cooling, variable speed of fan |
||||||||
Communication interface |
USB/RS485/WiFi(Optional)/ Dry node control |
||||||||
Advantages of DELONGTOP
We have local warehouses in Europe, which allow us to provide fast delivery, short lead time, and no customs troubles for our European customers. You can receive goods within 3–7 days, greatly improving your capital turnover and market response speed.
Wide compatibility
●Fully compatible with most inverters on the global market,
●Fully compatible with most inverters on the global market,

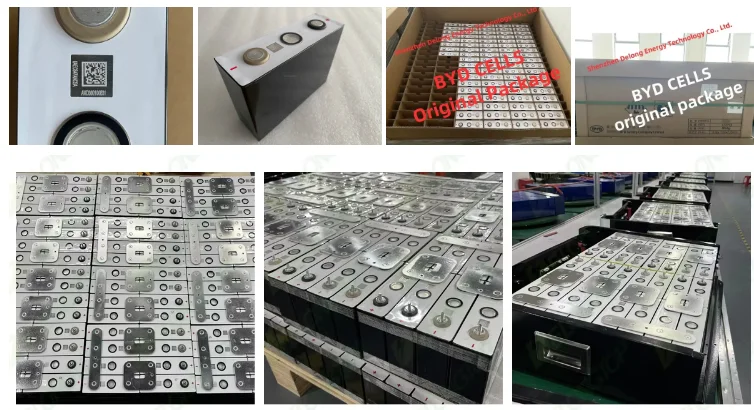

We partner with famous branded cell factories.

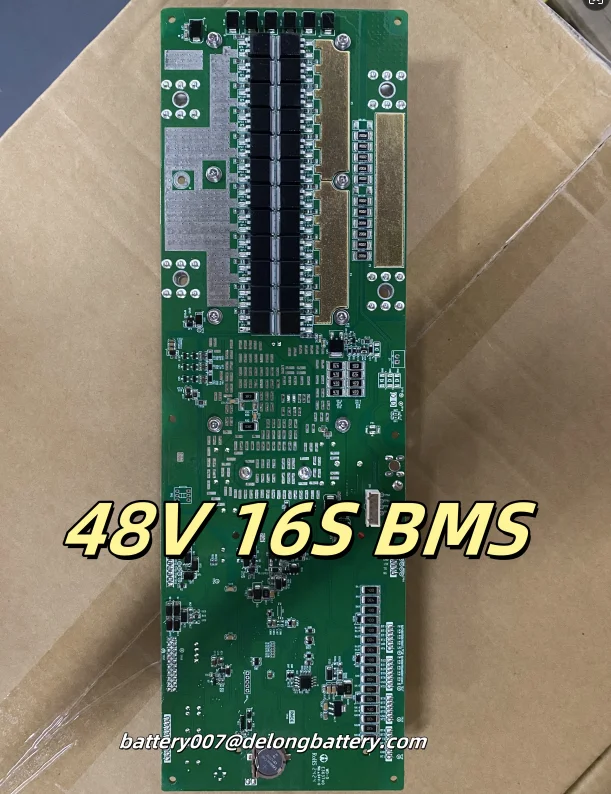

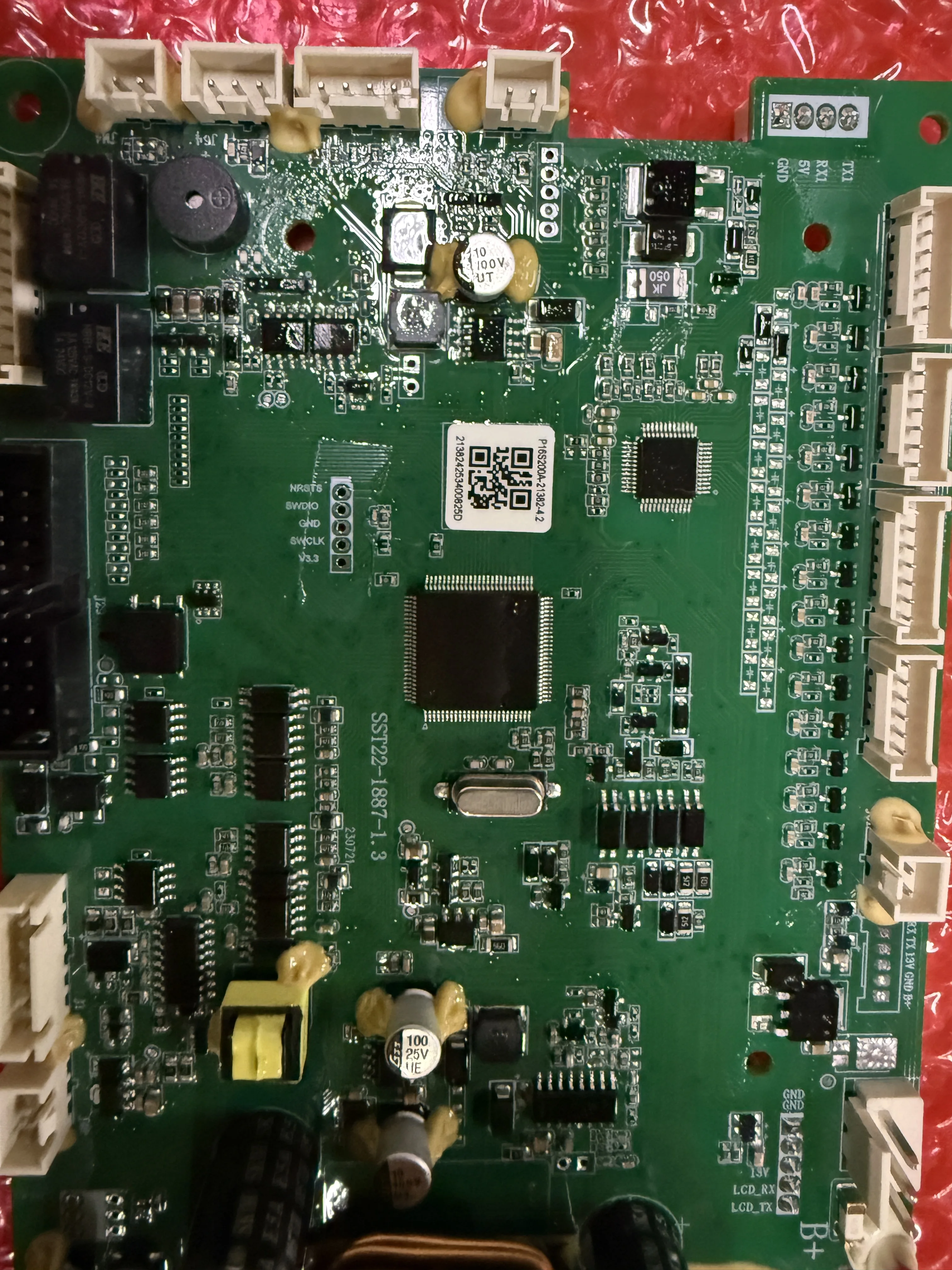

We use high-quality Peicheng BMS with Pylon communication protocol, and it is compatible with most inverters on the market.
We offer competitive factory prices, flexible OEM/ODM service, professional technical support and reliable after-sales service.
Choose Delong Energy for stable quality, fast local delivery, strong supply chain and worry-free cooperation.

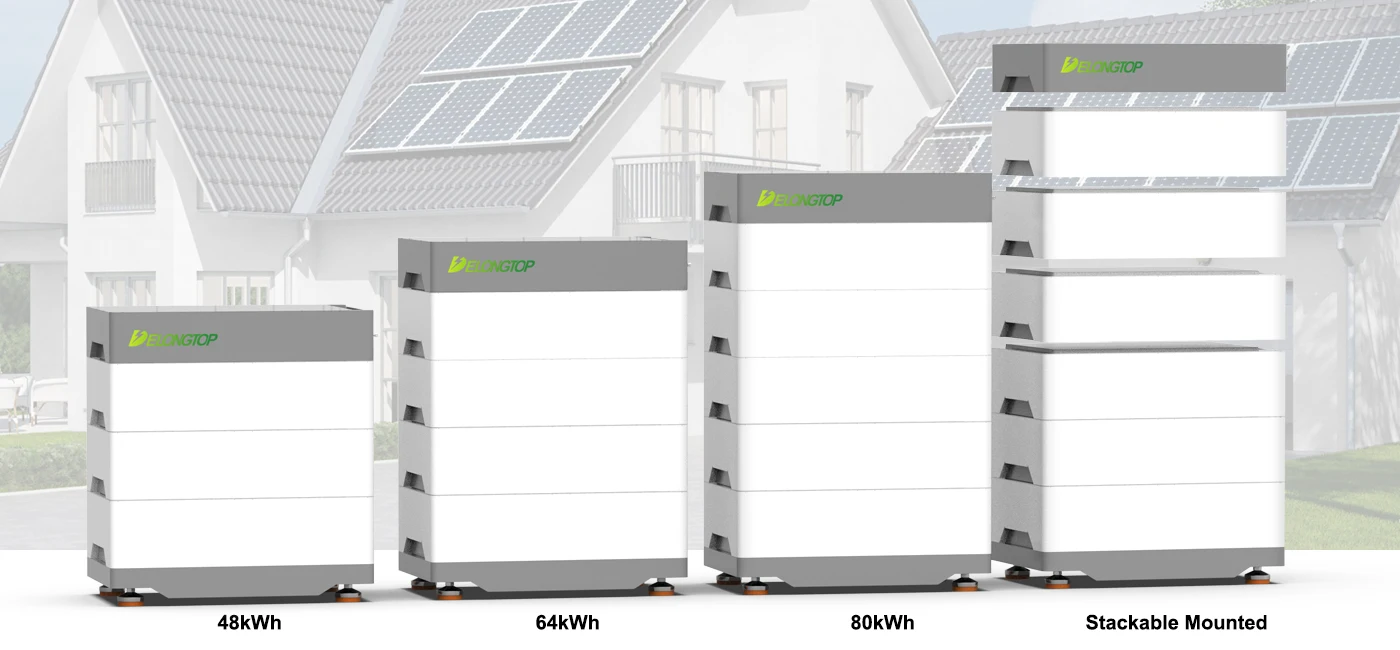

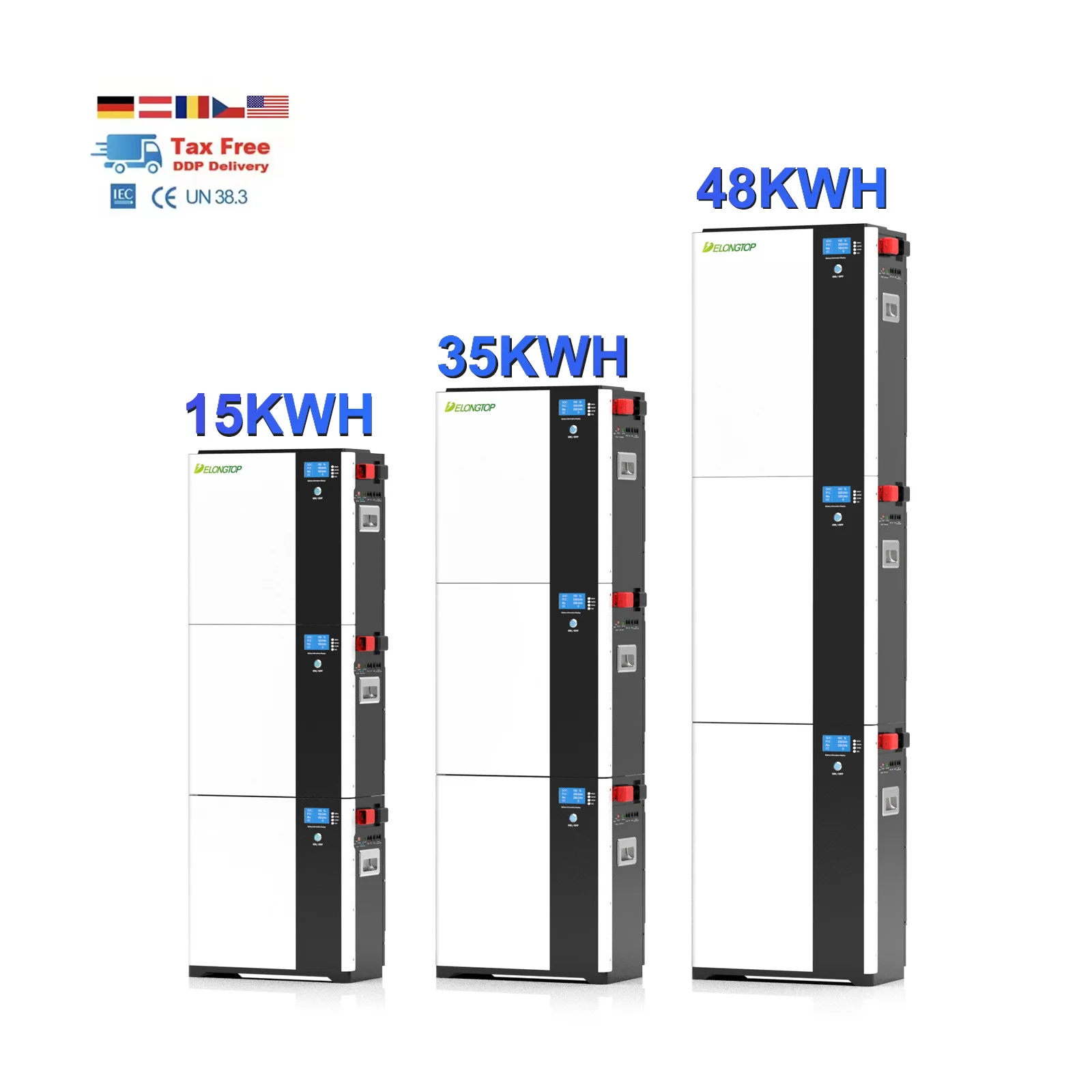

LFP51Series 51.2V Stacked and Wall-mounted Household Energy Storage
LFP51100 51.2V 100Ah 5Kwh 10Kwh 15Kwh
LFP51220 51.2V 230Ah 11.78Kwh 23.55Kwh 35Kwh
LFP51314 51.2V 314Ah 16Kwh 32Kwh 48KWH
51.2V 15KWH 30KWH 45KWH 60KWH Stackable LiFePO4 Battery
51.2V 300AH 15.36KWH
51.2V 600AH 30.72KWH
51.2V 900AH 46.08KWH
51.2V 1200AH 61.44KWH
51.2V 900AH 46.08KWH
51.2V 1200AH 61.44KWH
Title goes here.
51.2V 200AH 10KWH
51.2V 400AH 20KWH
51.2V 600AH 30KWH
51.2V 800AH 40KWH
51.2V 600AH 30KWH
51.2V 800AH 40KWH
51.2V 1000AH 50KWH

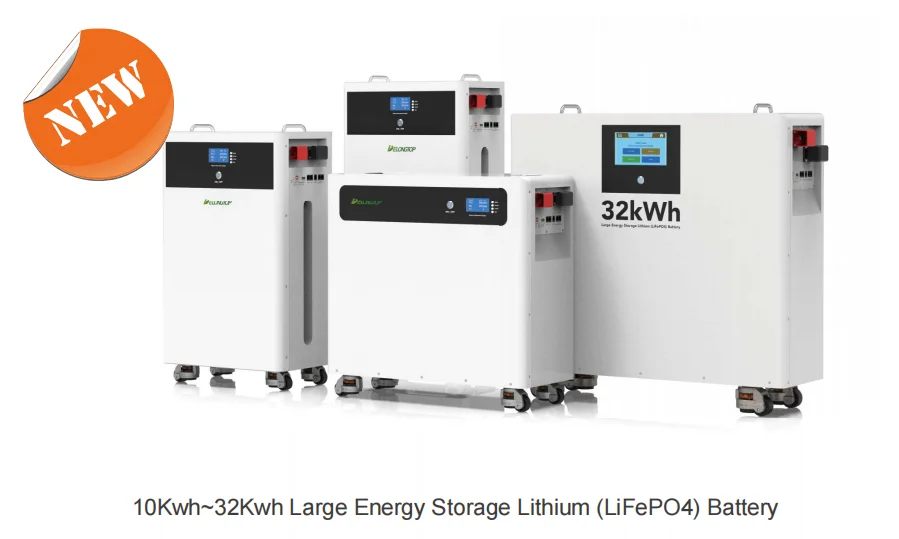

LVM series 10kwh to 32Kwh single pack big capacity
51.2V 200AH 10KWH
51.2V 230AH 1.776KWH
51.2V 300AH 15KWH
51.2V 314AH 16KWH
51.2V 460AH 23.5KWH
1.2V 560AH 28.67KWH
51.2V 600AH 30KWH
51.2V 314AH 32KWH
High Voltage 102.4V 100AH/157Ah Module Stackable LiFePO4 Battery
204.8V 100AH 20.48KWH 307.2V 100AH 30.72KWH
409.6V 100AH 40.96KWH
512V 100AH 51.2KWH
614.4V 100AH 61.44KWH
409.6V 100AH 40.96KWH
512V 100AH 51.2KWH
614.4V 100AH 61.44KWH
204.8V 157AH 32.15KWH307.2V 157AH 48.23KWH409.6V 157AH 64.3KWH
512V 157AH 80.38KWH
614.4V 157AH 96.39KWH
512V 157AH 80.38KWH
614.4V 157AH 96.39KWH
High Voltage 102.4V 280Ah/ 314Ah 28.67KWH/ 30KWH Module LiFePO4 Battery Cabinet/ Rack mounted
409.6V 280AH 114KWH
512V 280AH 143KWH
614.4V 280AH 172KWH
716.8V 280AH 200KWH
409.6V 314AH 128KWH
512V 314AH 160KWH
614.4V 314AH 192KWH
716.8V 314AH 224KWH
Company Introduction
Shenzhen Delong Energy Technology Co.,Ltd
Established in 2006, we have been in the lithium-ion battery industry for more than 13 years.
Established in 2006, we have been in the lithium-ion battery industry for more than 13 years.
Packing&Shipping
Delivery time :
7-15days, but could be changed according to the quantity or other things.
Payment:
1.We accept T/T , PAYPAL , Western Union, Cash and so on. & Trade assurance order
Payment:
1.We accept T/T , PAYPAL , Western Union, Cash and so on. & Trade assurance order
Packaging:
Per battery per carton, Standard export pakcage
Per battery per carton, Standard export pakcage
Shippment:
DHL, UPS, Fedex, Special Line, Sea shipping, Customer
FAQ
FAQs
Q1: Can I get free samples?
A1: Generally, we do not provide free samples, but we can refund the sample cost when buyers place bulk orders.
Q2: If we place an order, how long is the delivery time?
A2: For small orders, we can deliver within 3-5 working days. For bulk orders, let us confirm when we place the official order.
Q3: What are your payment and delivery terms?
A3: Payment terms: by T/T, 30% deposit and balance all before shipment. For small amounts, we also accept payment via PayPal.
Q4: What kind of packages do you ship? Can I have a customized package?
A4：We have factory current standard package, custom printed logo should meet the buyer's requirement, extra cost will be borne by
the buyer, for more details, please contact us.
Q5: Your factory or trading company?
A5: We are a manufacturer established for more than 10 years. We provide various OEM / ODM services to our customers all over the
world.
Q6： Where is your company's main market?
A6: We focus on the European/North American/Asian/African markets. According to different customers to provide different needs of
products.
Q7: What are your advantages compared to other suppliers?
A7 a) High quality batteries: Our batteries have sufficient capacity and low RI. Before shipping, we will check the products and
make sure the quality is approved by customers.
A7 b) Better service: We always provide what our customers need. Promptly respond to customer's questions. Provide the best
project solution for our customers. We ship on time.
Q8: Can we visit your factory before placing an order?
A8: Of course no problem, we are always welcome to visit our factory.
Q1: Can I get free samples?
A1: Generally, we do not provide free samples, but we can refund the sample cost when buyers place bulk orders.
Q2: If we place an order, how long is the delivery time?
A2: For small orders, we can deliver within 3-5 working days. For bulk orders, let us confirm when we place the official order.
Q3: What are your payment and delivery terms?
A3: Payment terms: by T/T, 30% deposit and balance all before shipment. For small amounts, we also accept payment via PayPal.
Q4: What kind of packages do you ship? Can I have a customized package?
A4：We have factory current standard package, custom printed logo should meet the buyer's requirement, extra cost will be borne by
the buyer, for more details, please contact us.
Q5: Your factory or trading company?
A5: We are a manufacturer established for more than 10 years. We provide various OEM / ODM services to our customers all over the
world.
Q6： Where is your company's main market?
A6: We focus on the European/North American/Asian/African markets. According to different customers to provide different needs of
products.
Q7: What are your advantages compared to other suppliers?
A7 a) High quality batteries: Our batteries have sufficient capacity and low RI. Before shipping, we will check the products and
make sure the quality is approved by customers.
A7 b) Better service: We always provide what our customers need. Promptly respond to customer's questions. Provide the best
project solution for our customers. We ship on time.
Q8: Can we visit your factory before placing an order?
A8: Of course no problem, we are always welcome to visit our factory.
