Complete 10kW 3 Phase Off Grid Solar System 3phase Solar Energy System for Home Garden Factory Industrial Zone
Complete 10kW 3 Phase Off Grid Solar System 3phase Solar Energy System for Home Garden Factory Industrial Zone
Pickup currently not available
SPECIFICATIONS
Application: Home
Battery Type: Lead-acid
Brand Name: HOPESUN
Certificate: ce
Controller Type: MPPT
Free installation service: No
Load: lights, refrigerators, TV, air condition etc
Load Power (W): 10kW,10kW
Model Number: HPS-OFFGRID-10KW
Mounting Type: flat ground and roof for optional
Output Frequency: 50Hz/60Hz
Output Voltage (V): AC380V 3-phase, AC220V,AC380V 3-phase, AC220V
Output Wave: pure sine wave solar system
Place of Origin: Guangdong, China
Pre-sales project design: Y
Solar Panel Type: Polycrystalline Silicon
Use Life: 25 years
Warranty: 5 years
Work Time (h): 24h
Complete 10kW 3 Phase Off Grid Solar System 3phase Solar Energy System
Off-Grid Solar Systems
When the utility power is unavailable or too expensive to bring in to your home or cabin, an off grid solar system allows you to be your own utility company!
Advantage of off-grid solar system:
- Reliable electricity supply anytime day or night even without grid access
- Complete independence from external energy supply and electricity costs
Working diagram:

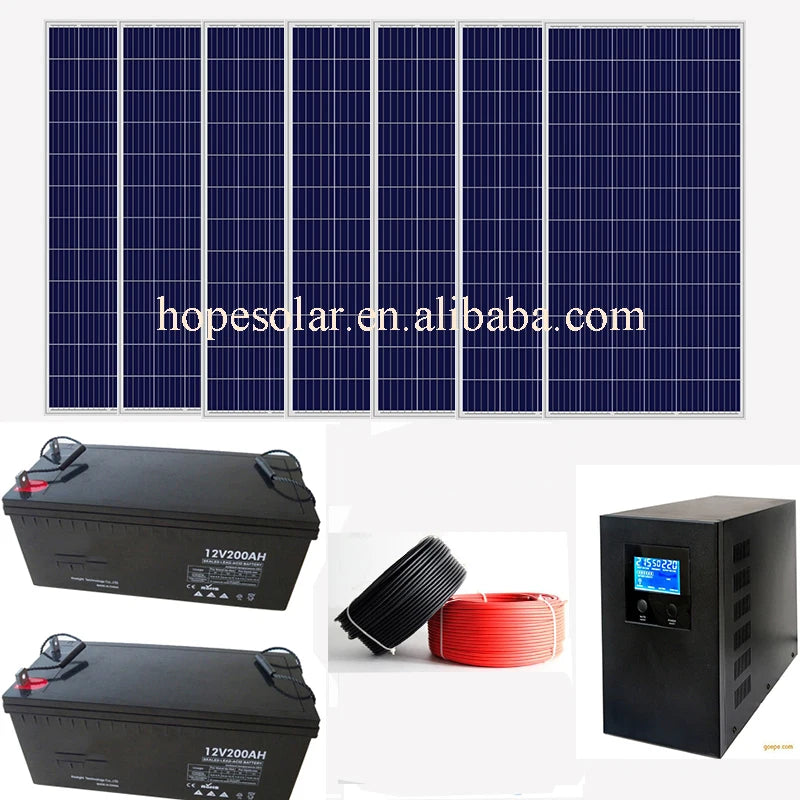

Completed 10 kW off grid solar system including:
| Item | Model | Description | Quantity |
| 1 | Solar panel | Poly 315W solar panel | 32 PCS |
| 2 | Solar charge controller | 192V/50A MPPT controller | 1 PC |
| 3 | Solar Inverter | 10kW 3-phase off grid Inverter | 1 PC |
| 4 | Battery | 12V/200Ah Gel battery | 16 PCS |
| 5 | PV array combiner box | 6 PV input array | 1 PC |
| 6 | Mounting bracket | Flat ground and pitch roof for optional: one set mounts 4 pcs of panels | 8 sets |
| 7 | Solar cables | 4 mm2 solar cables | 300 meters |
| 8 | Solar connector | MC4 solar connector, rated voltage: 1000V | 10 sets |
Technical Parameters:
|

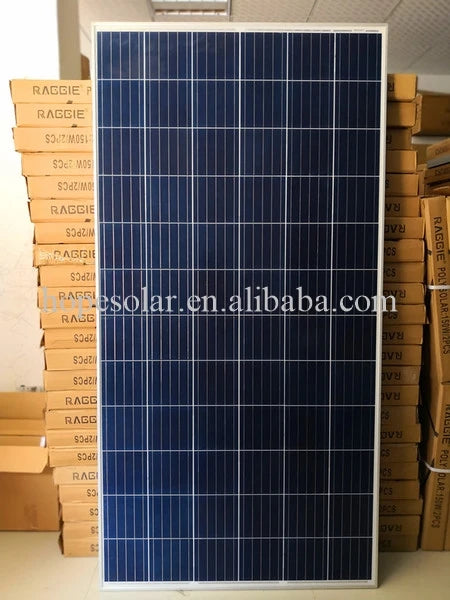

Poly Solar Panels- 32 pcs x 315W, high efficiency A Grade poly cells - Anodic aluminium-alloy frame |
|

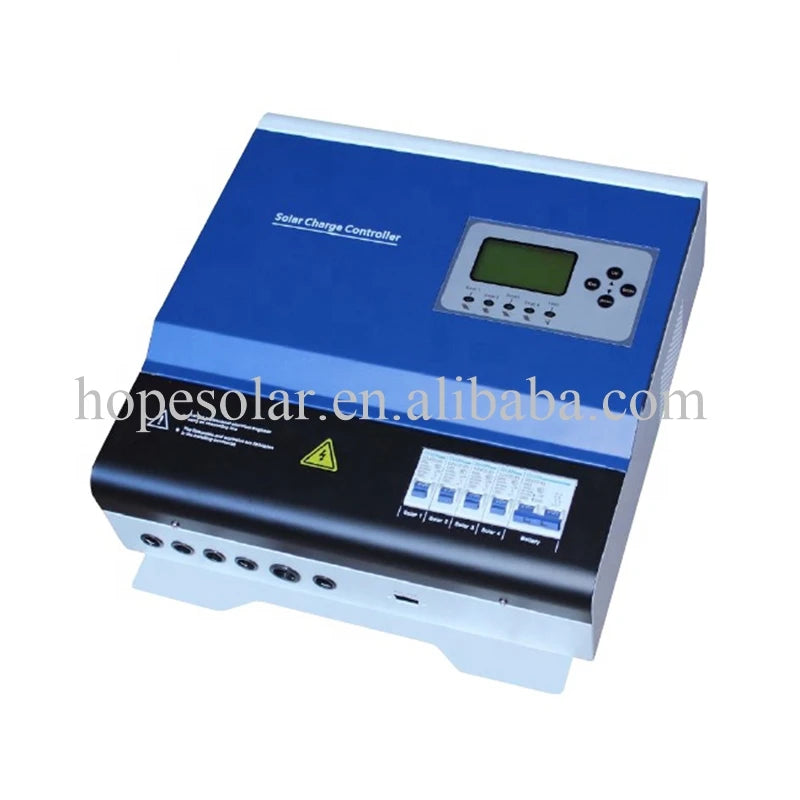

MPPT solar charge controller |
|
|
|
Off grid inverter
- Off grid inverter 10kW - DC input voltage: 192VDC battery reverse polarity, low-voltage, and over-voltage protection, etc. priority, then battery, when battery runs out, inverter will automatic switch to grid / generator power. |
|

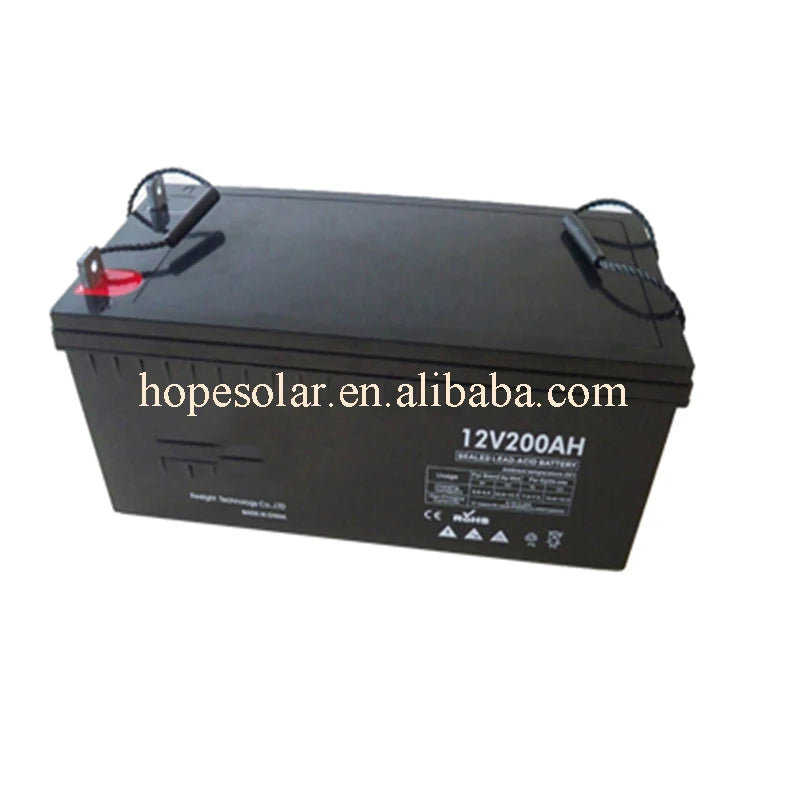

Battery
- Maintenance-free gel battery - Size: 520x240x216 mm - Silver-coated copper terminals, brass insert terminals and lead terminals improve theelectric conductivity |
|
 |

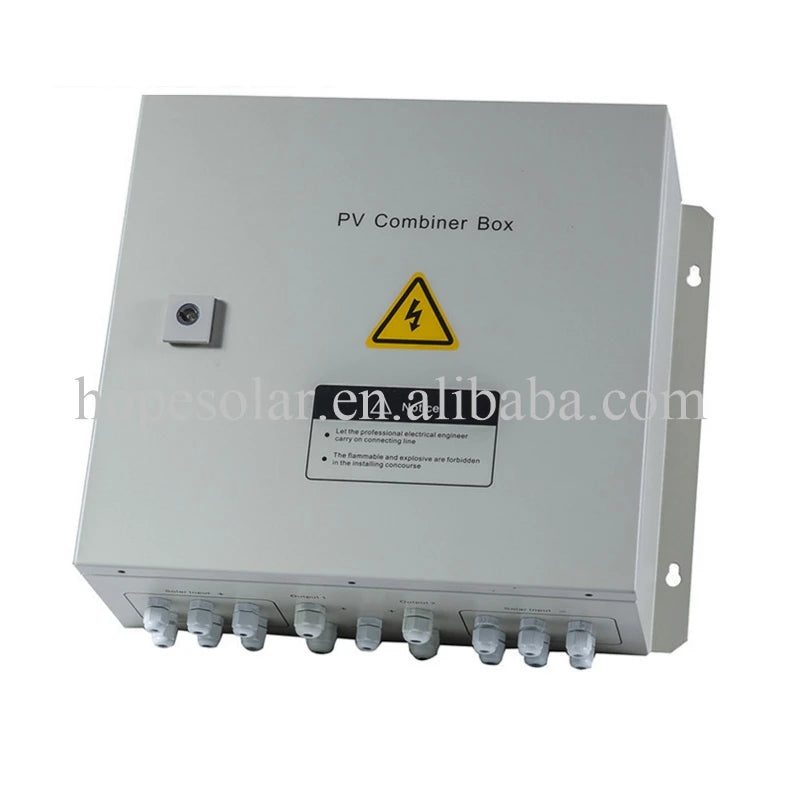

PV array combiner box
- Applicable for outdoor PV systems 600VDC IP65 |
|

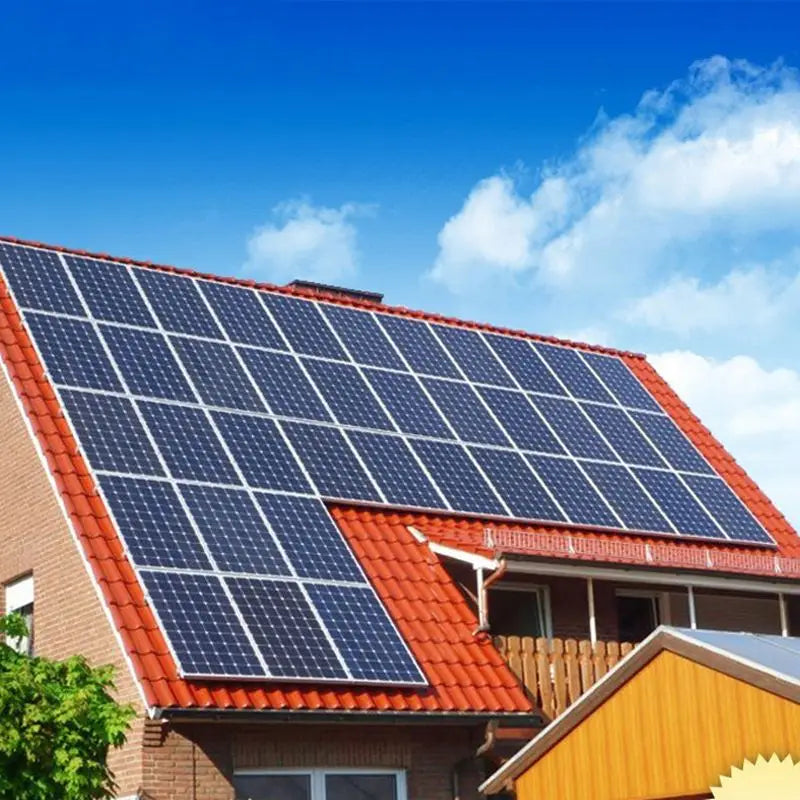

Mounting structure
- Pitched Roof, flat roof, tile roof, tin roof, ground, vertical wall - Wind Load: up to 130mph (60m/s) |
|
Connection cable & connector- Solar panel cables 4 mm2 - MC4 Solar connector - Battery cable connector
|
|
System wiring:
FAQ
1. Q: Are you a factory?
A: Yes, welcome to visit our factory.
2. Q: Which size of solar system do you produce?
A: We can produce different sizes from 100w to 100kw, both on grid and off grid.
3. Q: Can you design if we have any special requirement for the power consumption?
A: Yes, we can. You can just let us know the power consumption of each day or month, and also the power of
the main equipments you need to load.
4. Q: Where can we use the system?
A: You can use our system for home, village, power station, office, communication station, lighting
system, farm and so on, where there is no enough power or the grid power is expensive.
5. Q: What is the voltage of the system?
A: We can adjust any voltage according to different countries or customers requirement, such as AC 110V,
220V, 240V, 380V - 450V and so on, and DC 12V, 24V, 48V, 96V, 192V, 240V, 380V and so on.
