SPECIFICATIONS

Brand Name: Voltronic

Input Voltage: 48V

Inverter Efficiency: 93%

Model Number: Axpert KING II-6000

Output Current: 23A

Output Frequency: 50/60 HZ

Output Type: Single

Output Voltage: AC220V

Place of Origin: Guangdong, China

Size: 600*400*220mm

Type: DC/AC Inverters

Weight: 16KG

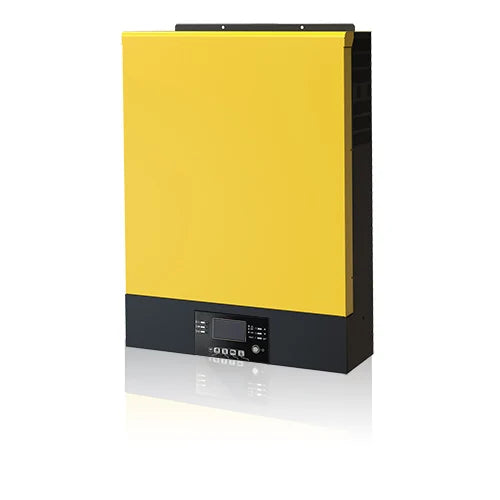

Products Description

* Zero (0ms) transfer time to protect mission-critical loads

such as servers and ATMs
* High PV input voltage range
* Removable LCD control module with multiple
communications
* Selectable high power charging current
* Built-in Wi-Fi for mobile monitoring (App is available)
* Configurable AC/Solar input priority via LCD setting
* Reserved communication port for BMS (RS485 or CAN-BUS)
* Parallel operation up to 9 units

Details Images

Wiring order & Accessories

Basic System Architecture

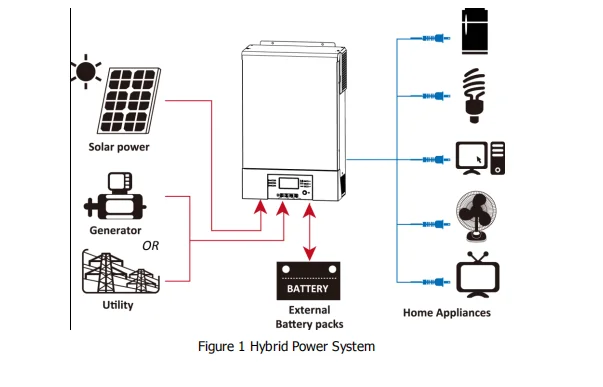

The following illustration shows basic application for this inverter/charger. It also includes following devices to
have a complete running system:
1.Generator or Utility.
2.PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor-type appliances
such as tube light, fan, refrigerator and air conditioner

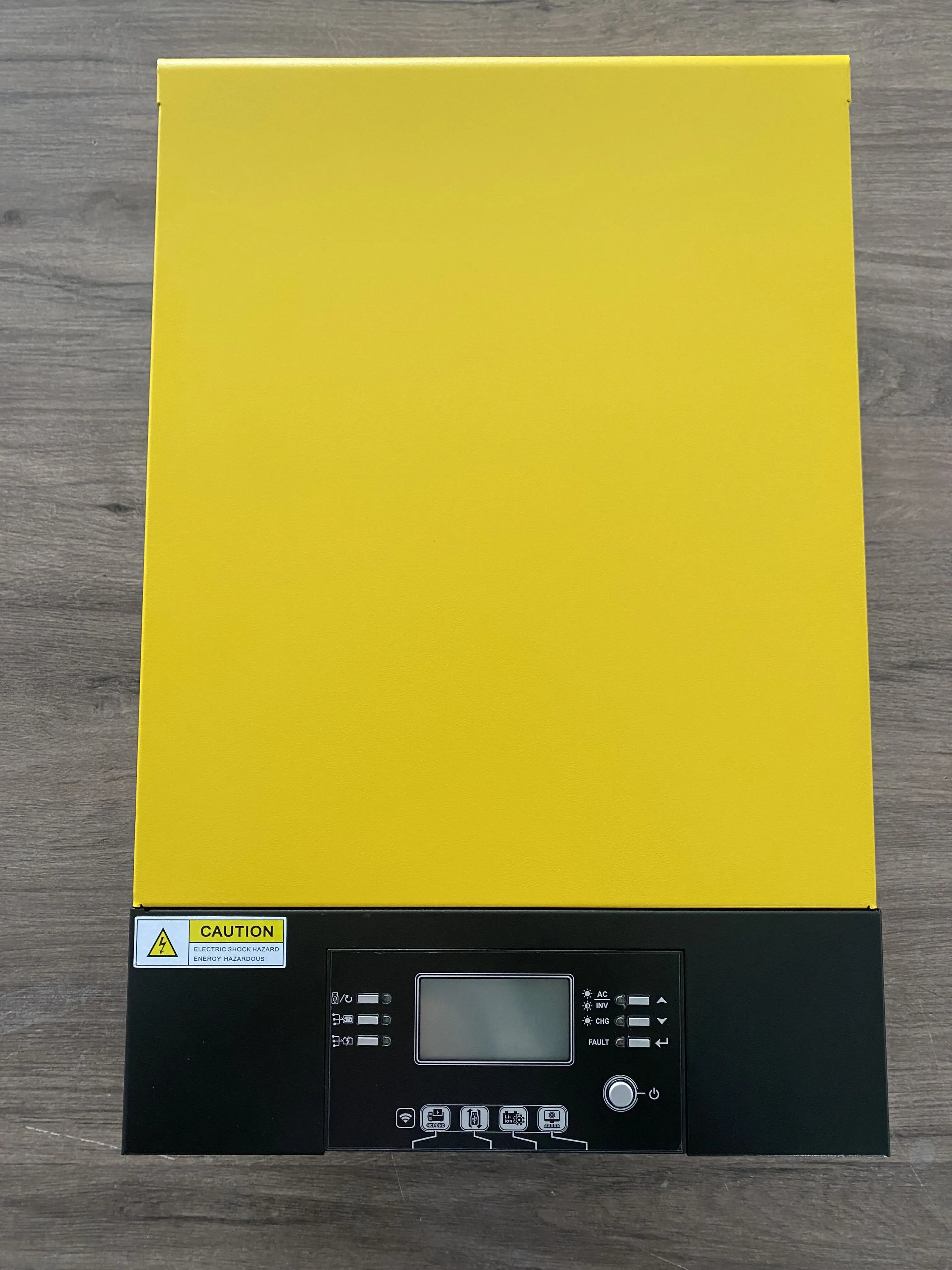

1. LCD display
2. Status indicator
3. Charging indicator
4. Fault indicator
5. Function buttons
6. Power on/off switch
7. AC input
8. AC output
9. PV connectors
10. Battery input
11. Circuit breaker
12. Remote LCD panel communication port
13. USB port: for communication port and USB function port
14. RS-232 communication port
15. Dry contact
16. BMS communication port: CAN and RS232 or RS485
17. LED indicator for USB function settings

Installation Instructions

Product Paramenters

MODEL	Axpert KING II-6000-48
Rated Power	6000VA/6000W
Parallel Capability	Up to 9 units
GRID INPUT
Voltage	230 VAC
Voltage Range	110-280 VAC
Frequency Range	50 Hz/60 Hz (Auto sensing) ± 4Hz
Power Factor	≧ 0.98 @ Nominal Voltage (100% Load)
THDi	≦ 10%
LOAD OUTPUT
AC Voltage Regulation (Line&Batt. Mode)	230VAC ± 5%
Frequency Range (Synchronized Range)	46~54 Hz or 56~64 Hz
Frequency Range (Batt. Mode)	50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Harmonic Distortion	≦3 % THD (Linear Load); ≦ 5 % THD (Non-linear Load)
Transfer Time AC Mode to Batt. Mode	0 ms
Transfer Time Inverter to Bypass	4 ms (Typical)
Waveform	Pure sine wave
EFFICIENCY
Line Mode	40~62 VDC
ECO Mode	54 VDC
Battery Mode	62 VDC
SOLAR INPUT
Solar Charger type	MPPT
Maximum PV Array Power	6000 W
MPPT Range @ Operating Voltage	120 ~ 450 VDC
Maximum PV Array Open Circuit Voltage	500 VDC
Maxmum Solar Charge Current	100A
Maximum AC Charge Current	100A
PHYSICAL
Dimension, D x W x H (mm)	138.4 x 298 x 467.6
Net Weight (kgs)	12
Communication Interface	RS232, USB, DRY CONTACT, WI-FI, RS485, CAN
ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C
