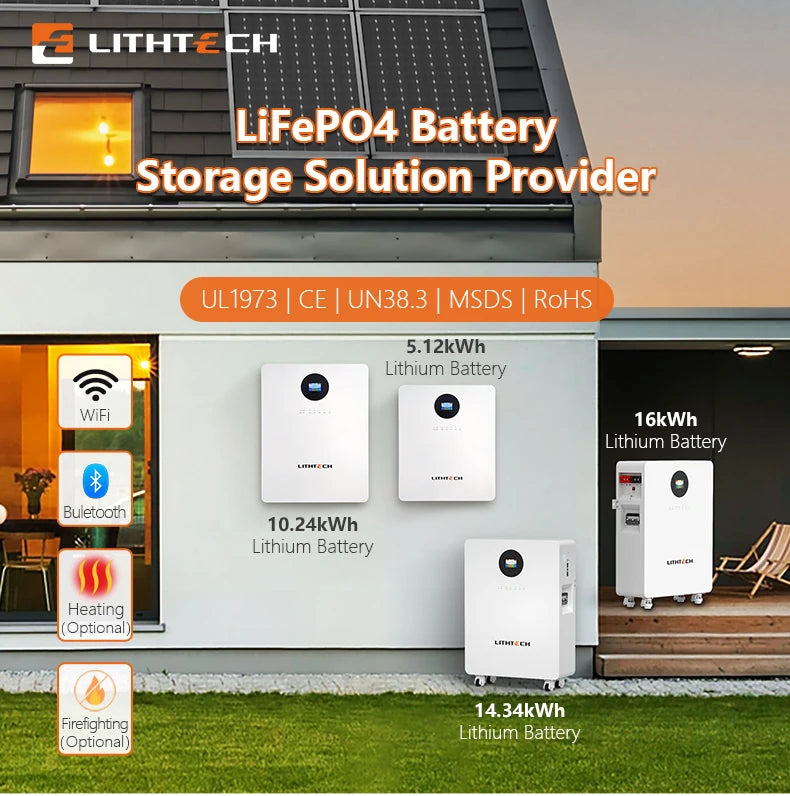

SPECIFICATIONS

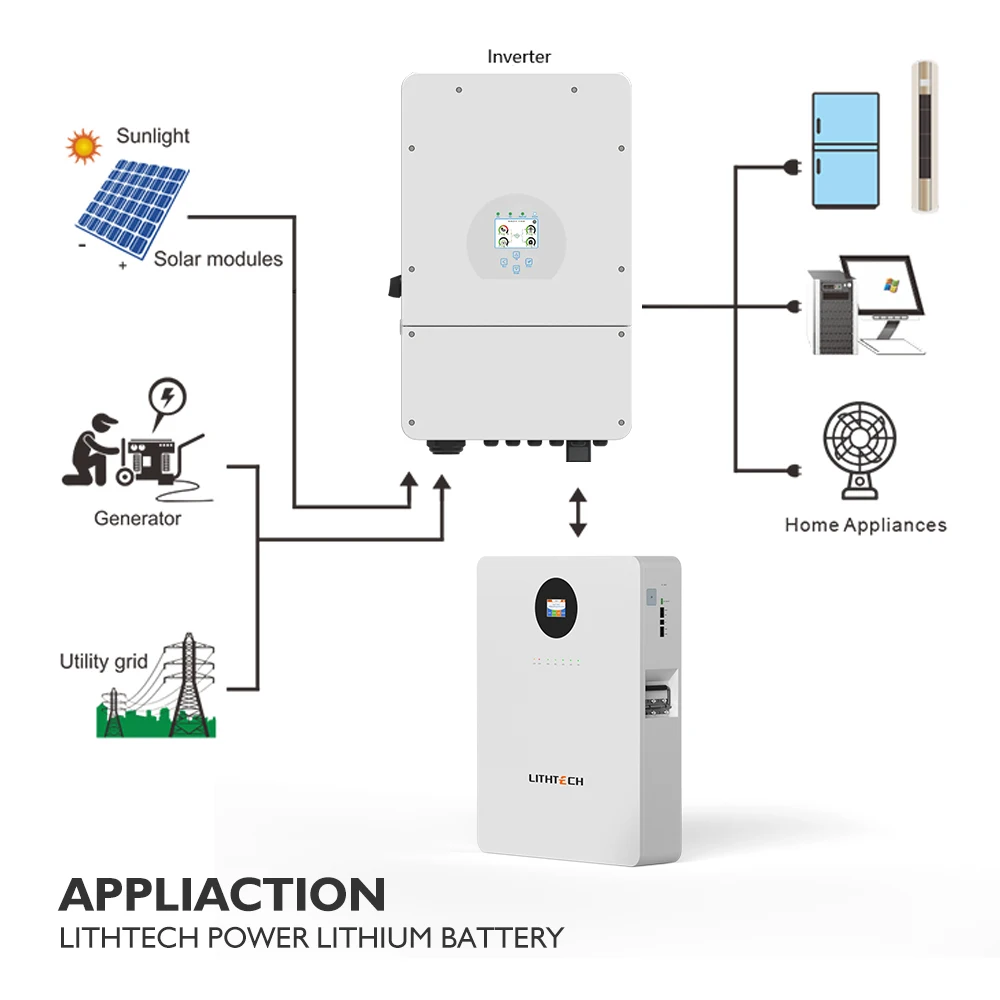

Application: Home Solar Energy Storage System

Battery Type: Lithium Ion,Lithium Ion, LiFePO4

Brand Name: LITHTECH

Certificate: CE/RoHS/UN38.3/MSDS

Communication Port: CAN,RS-232,RS485,Wifi,Bluetooth

Cycle life: 8000+ Times

Dimension (L*W*H): 850x650x167mm(±5mm)

Grid connection: Off grid,Hybrid grid

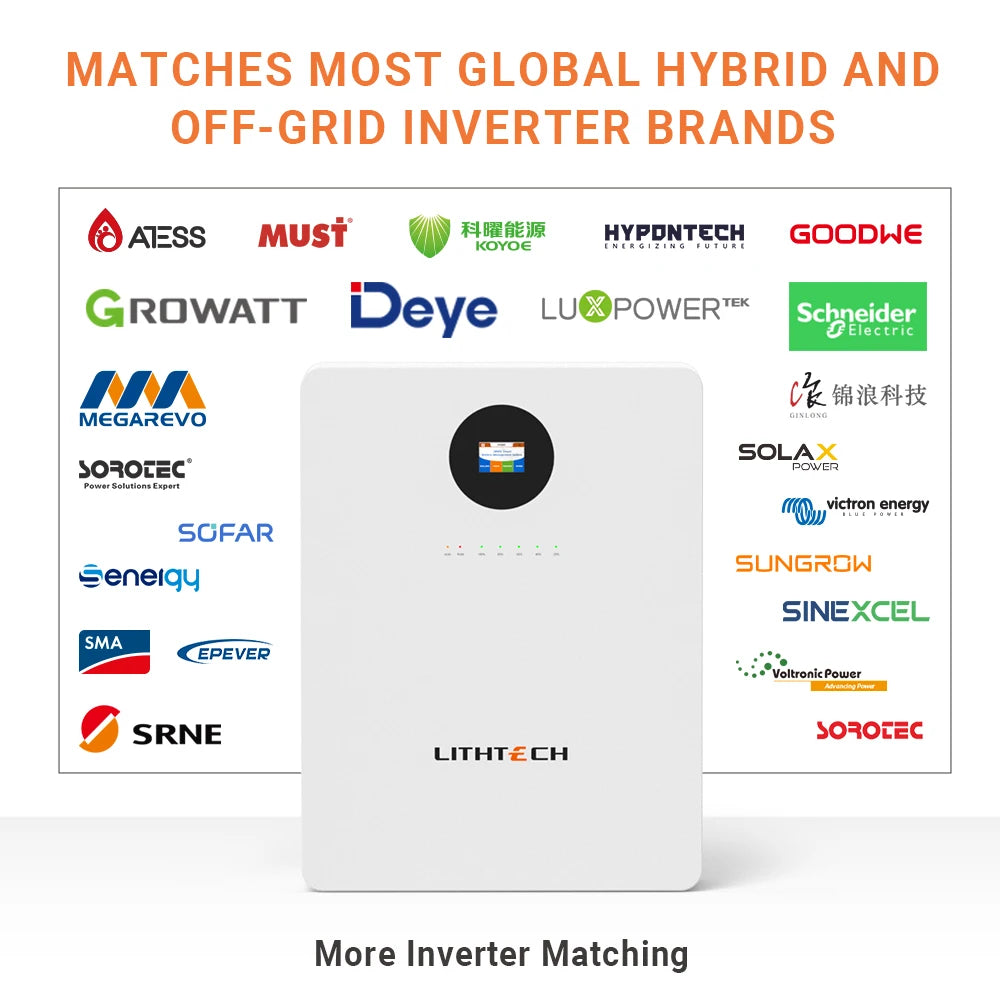

Inverter Matched: Growatt LUXPOWER MEGAREVO Victron SMA and other

Keywords: 51.2V 100ah 200AH 300AH LiFePO4 Lithium Ion Battery

Model Number: HP1500K

OEM/ODM: Yes(Accepted)

Output Power Range: 5-10kW

Place of Origin: Guangdong, China

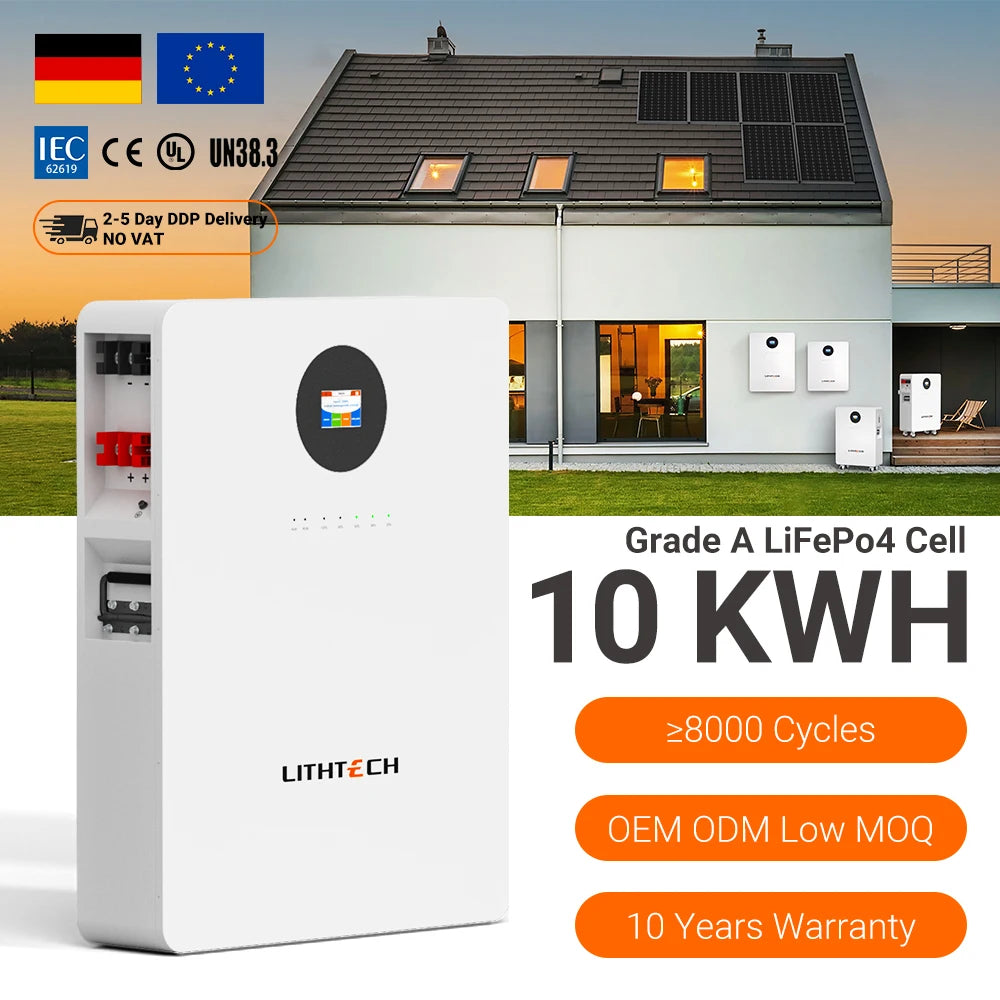

Product name: Home Powerwall Battery

Protection: BMS

Protection Class: IP54

System Type: Wall-Mounted

System Voltage: 51.2 V

Type: All-In-One

Warranty: 10YEARS

Weight: 99.5KG

Products Description

PERFORMANCE SPECIFICATIONS
Model	TR4000WX	TR6000WX	TR8000WX	TR8500WX
Rating Voltage	51.2V	51.2V	51.2V	51.2V
Cell model/Configuration	3.2V100Ah/16S1P	3.2V100Ah/16S2P	3.2V280Ah/16S1P	3.2V314Ah/16S1P
Rating Capacity	100Ah	200Ah	280Ah	314Ah
Rated Energy(kWh)	5.12kWh	10.24kWh	14.34kWh	16.07kWh
Max.Charge/Discharge Current(A)	100A	200A	200A	200A
Voltage Range(Vdc)	44.8V~58.4V

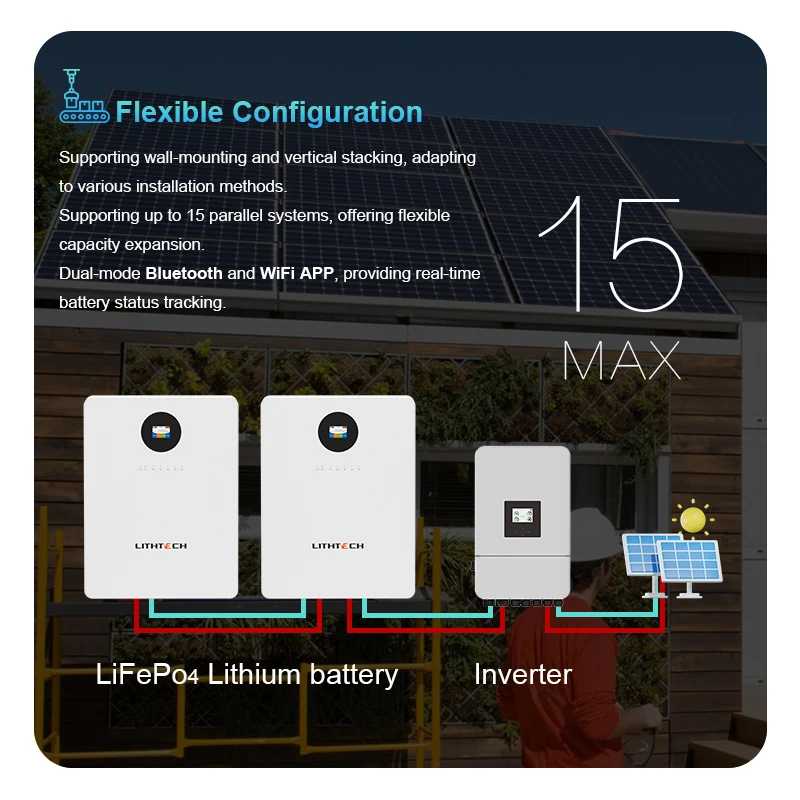

Scalability	Up to 15 parallel
Communication	CAN/RS485/RS232/Bluetooth /WIFI
Cycle Life	≥8000Cydes@25℃
Design Life	≥15Years(25°C)
display usage	LCD color touch display

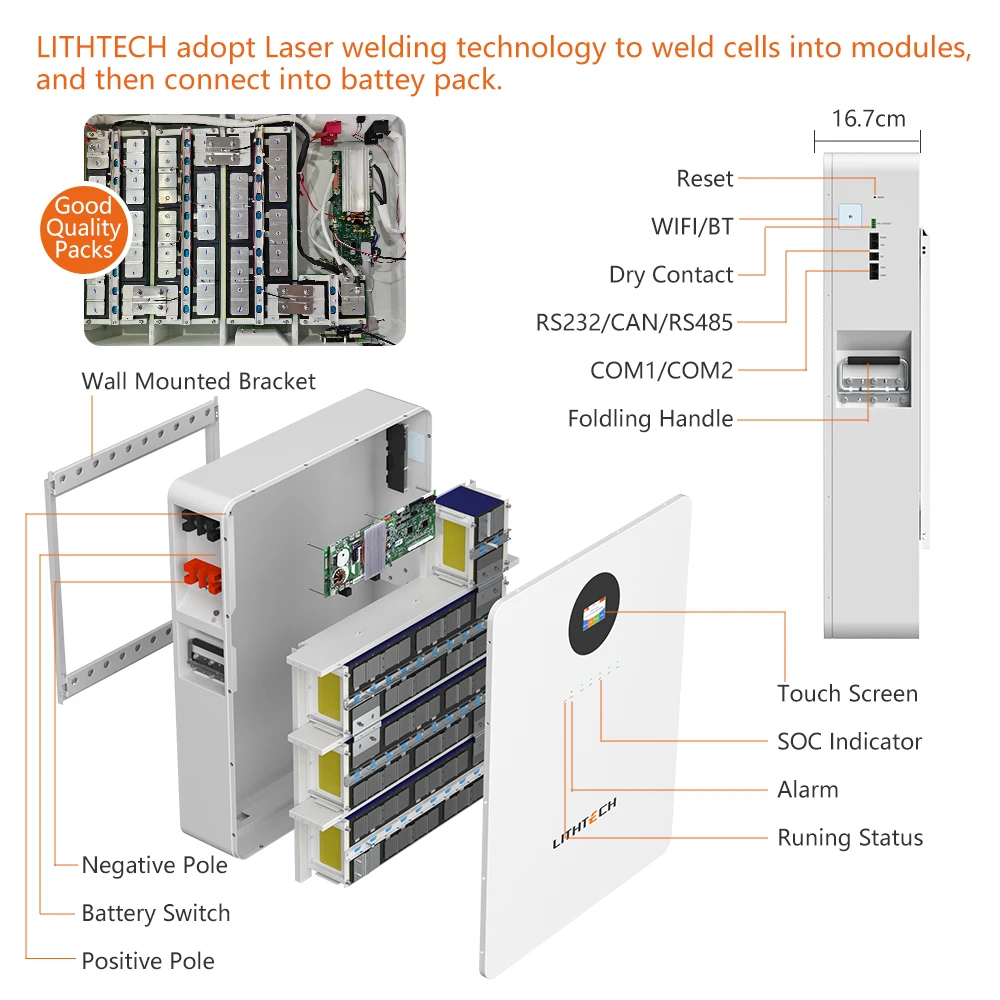

MECHANICAL SPECIFICATIONS
Weight(Net/Gross)(KG)	53kg	99.5kg	132.5kg	134kg
Dimension(W/D/H)(mm)	600*500*167mm	850x650x167mm	850x650x245mm	850x650x245mm
Installation Mode	Wall Mounnted
IP Grade	IP54 (optional)
SECURITY AND CERTIFICATION
Safety(Pack）	UN38.3,MSDS,IEC62619(CB),CE-EMC
Safety(Cell)	UN38.3,MSDS,IEC62619,CE,UL1973,UL2054
Protection	Smart BMS,Breake and Aerogel Fireproofing（optional）
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature(°C)	Charge 0℃~65℃; Discharge -20℃~65℃
Altitude(m)	≤3000m
Humidity	≤95%(Non-condensing)

EU US Warehouse

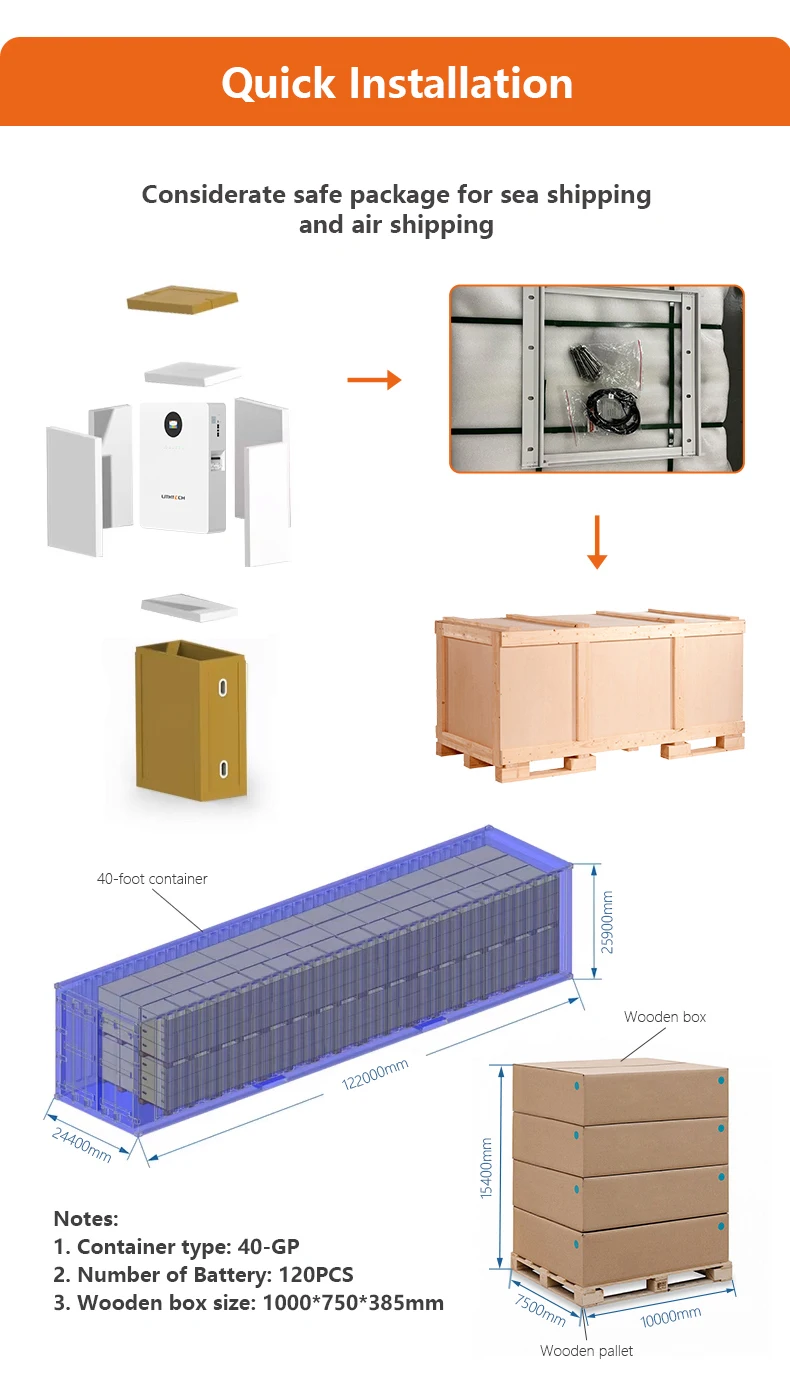

Delivery Time

Item	1-50PCS	50-100pcs	1000+pcs	10000+pcs
Need Dangerous Goods Transport Certificate	5days	10-15days	20days	30days
Not Need Dangerous Goods Transport Certificate	5days	7-15days	15-20days	30days

After Sales Response Time

Beijing Time 9:00-22:00	Weekday	Saturday	Sunday	Chinese Statutory Holidays
Salesman GFL	≤1 Hour	≤2 Hour	≤ 4 Hour	/
CEO GFL	≤1 Hour	≤2 Hour	≤ 4 Hour	≤1 Day

MDSD UN38.8 CE UL RoHS IEC62619 and Other Certificates

If you want to get a whole solar energy storage system solution, please contact the customer manager of Lithtech, or directly click the picture above to transfer to the sales page of the solar energy system.

Why Choose Us

Regional agent

FAQ

1.Q:How long is the delivery time of your products?

A:Overseas Warehousing: Up to 2 days delivery，China:Usually about 15days .

2.Q:What kind of certificates your products have?
A:LITHTECH ENERGY battery products have acquired UN38.3, CE, FCC, UL,MSDS and other certificates, which is able to satisfy most country’s importing requirements.

3.Q:Can you supply OEM &ODM service ?
A:Yes, but there is a minimum order quantity required.

4.Q:Can you ship your battery products by sea or by air ?
A:We have long-term cooperated forwarders who are professional at battery shipment.

5.Q:How long is the warranty?
A:Our warranty is from 5-15 years.

6.Q:How do you provide after-sales service?
A:We have overseas branches can provide repair and replacement.

7.Q:Can I get a sample?
A:Yes, please leave your contact information and our sales manager will contact you soon.
