SPECIFICATIONS

Advantage: lightweight, Easy to install

Application: Industrial, Home

Brand Name: DOKIO

Cable: 4.0mm2

Cell size: 182mmx182mm

Frame: Anodized Aluminium Alloy

Front Glass: 3.2mm HighTransmission

Model Number: DSP-100M

OEM Order: Acceptable

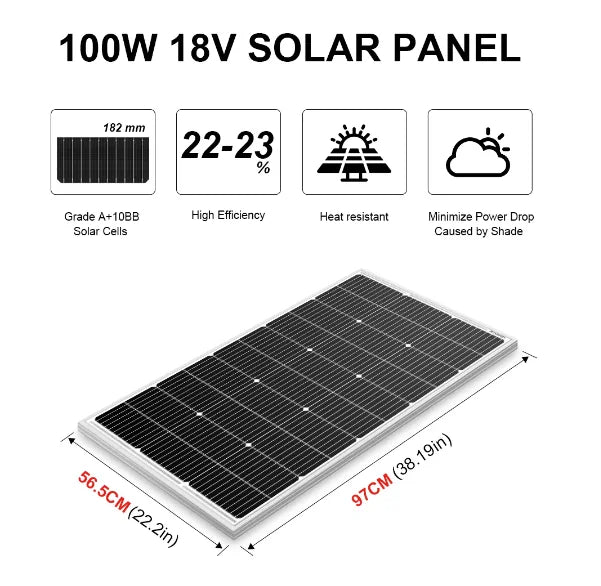

Panel Dimensions: 970*565*25mm

Panel Efficiency: >22%

Place of Origin: Zhejiang, China

Solar cell: Mono 182*91 Cell

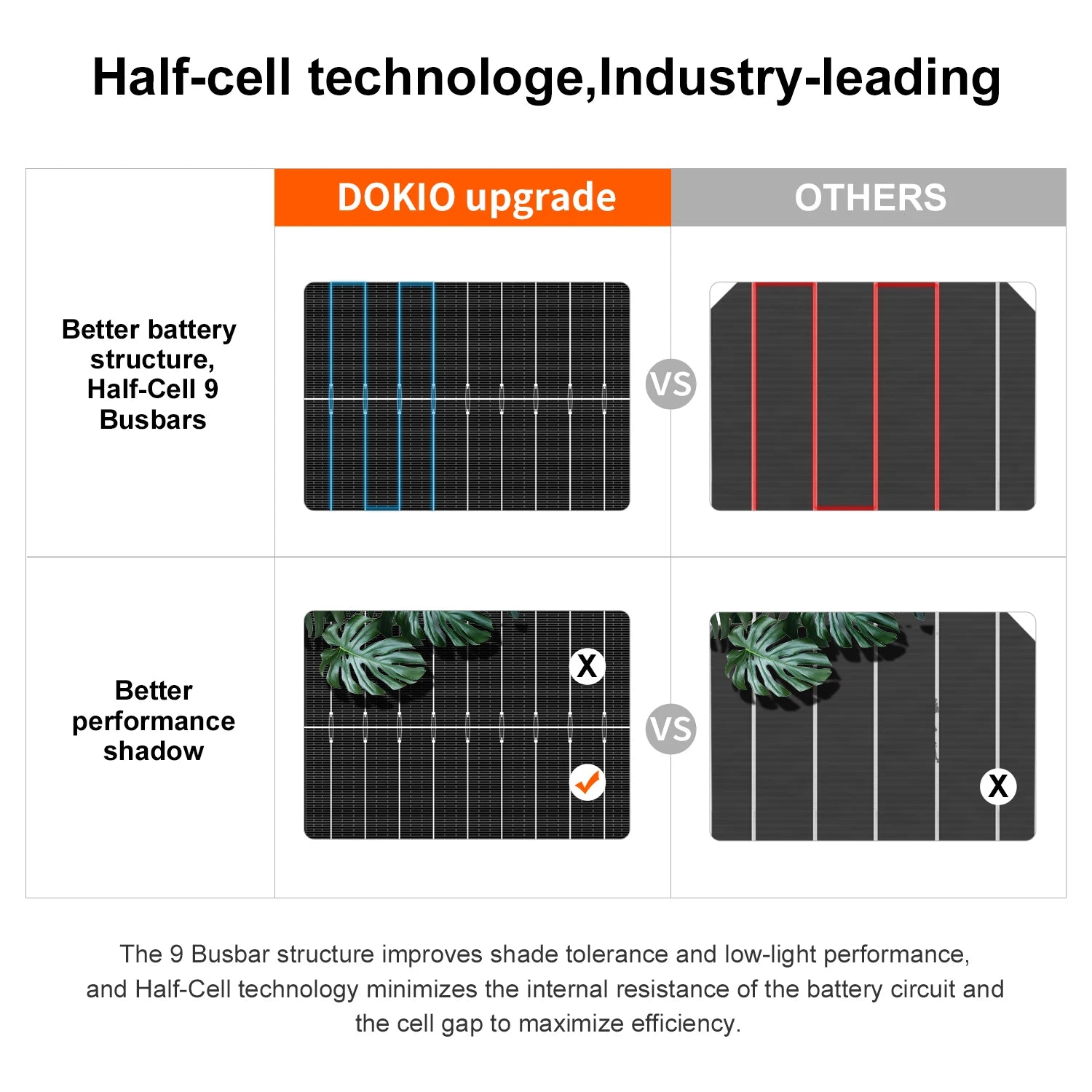

Type: PERC,Half Cell,Mono Solar Panel

Warranty: 5 Years Output Power Guarantee

Weight: 5.8kgs

This is for 1pc 100w mono solar panel price, pls note.

Most of the panels have in stock in our Europe warehouse and American warehourse, we can ship to you within 3 working days after you ordered!!!

FREE SHIPPING FROM OVERSEA WAREHOUSE!!!

Delivery is not supported in the following areas:
*Spanish island region. The zip code starts with "35" and "38".
remote areas in France, and areas subject to transportation restrictions.
Ukraine supports offline delivery.

Recommend Products

All of the following Item have in Stock, Can Click the Link to Purchase, More than 10pcs, Welcome to send me message for Discount!

Specification

pv module	DSP-100M
Ratin power (Pm)	100w
Cells	Mono crystal 182x91 m square
Number of cells	30 (3x10) series connected
Size	970(L) x 565(W) x 25(H)mm
Weight	5.8KGS
Typical application	12V DC
Maximum voltage	600V DC
Operating temperature	45°C
Hail diameter @ 80Km/h	Up to 25 mm
Continuous wind pressure	Up to 24 m/s
Efficiency of cell	≥22%
Tolerance	±3%
Rated current (Im)	5.56A
Rated voltage(Vm)	18V
Short circuit Current(Isc)	5.81A
Open circuit Voltage(Voc)	22.5V

Product Description

Purchase Notes

Our products have been upgraded, the new 100W mono solar panel size: 970*565*25 mm.
Due to product upgrades and production batch issues, the appearance and size of the product you received may be different.

Please Note that if you have a request for the size of the solar panel, please contact us beface ordering

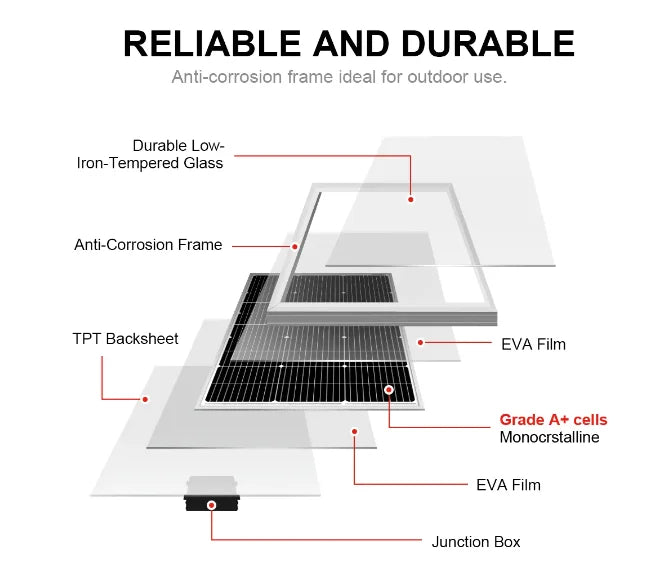

Material structure：
1 floor: Tempering glass
2 floor: EVA Film
3 floor: High Efficiency Solar Cell
4 floor: EVA Film
5 floor: TPT Backsheet

Certifications

Packing & Delivery

Company Profile

Jinhua Dokio Technology Co.,Ltd, with an international Brand of “DOKIO”, which is registered in Madrid, Spain for photovoltaic module. Dokio Soar company is a professional manufacturer of solar panels, solar power station system, solar roof system, balcony system, garden solar system, flexible solar panels, portable folding solar panels and others.

Since our inception in 2007, DOKIO have more than 15 years of experience in production and sales of solar panels. Dokio solar committed to providing the user with cleanest, most efficient and most economical solar panel and solar systems, committed to achieving the “double carbon” goal, adopted advanced equipment with solid techniques and a rigorous technical team make high-quality products, for every solar module from sorting to testing, from welding to lamination, from framing to cleaning, from final testing and packing, then can be put into the market.

DOKIO sincerely hold the tenet of “DO AND KEEP IT OUTSTANDING” in mind when conducting business. At present, Dokio solar company has more than 100 products designs and invention patents, is a national high-tech enterprise and a "little giant" business incubator. DOKIO acquired a wide range of customers from 50 countries and regions in the world, have more of 10 oversea warehouses, which is American, Poland, Germany, France, United Kingdom, Ukraine, Russia, Japan, Australia, United Arab Emirates(UAE), We can ship within 3 days after receiving the order, you can receive the package at home within 7-10 days!! Super service from the beginning to the end!!

Welcome to DOKIO solar energy, join us together!

Exhibition

FAQ

Q1. Can I have a sample order for solar panel?
A: Yes, we welcome sample order to check and test quality.
Mixed samples are acceptable.

Q2. How do you send the goods?
A: Normally sample order is sent by DHL, UPS, FedEx or TNT, bulk order ship by sea.

Q3.What about the lead time?
A:Sample needs 5-10days.
Mass production time: 15--20 days.

Q4.Do you accept custom design and size ?
A: Yes, we can accept custom design and size.

Q5. Is it OK to print my logo on package?
A: Yes.we can do printing customer logo based on customer's requirement.
