SPECIFICATIONS

Battery communication: RS485 / CAN

Brand Name: Solis

Input Voltage: 500 V

Inverter Efficiency: 96.0%

MPPT number / Max. input strings number: 2/2

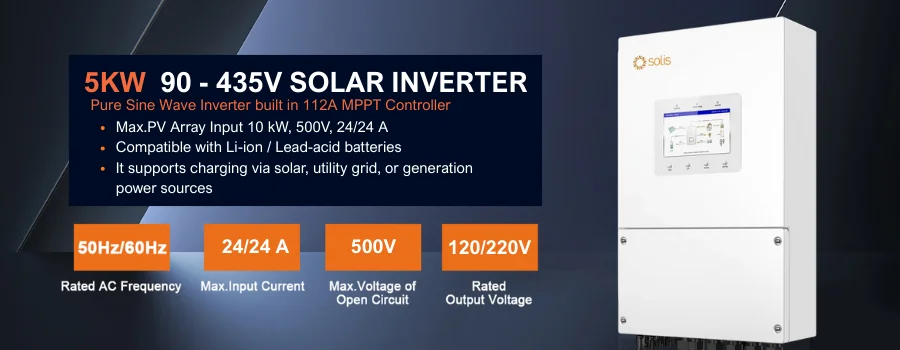

MPPT voltage range: 90 - 435 V

Max. PV array size: 10kW

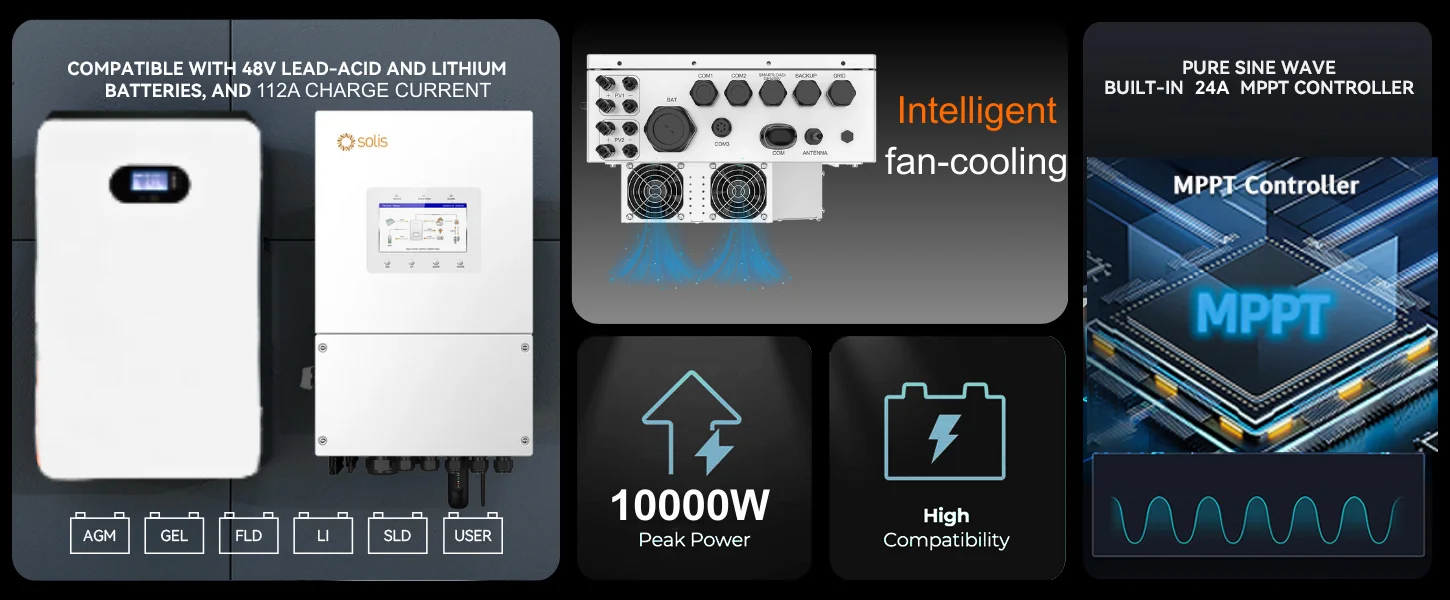

Max. charge / discharge current: 112 A

Max. short circuit current: 24 A / 24 A

Model Number: S6-EH2P5K02-SV-YD-L

Output Current: 22.9 A / 25 A

Output Frequency: 50 Hz / 60 Hz

Output Type: Three Phase

Output Voltage: 220V

Place of Origin: China

Protection Degree: IP66 (TYPE 4X)

Size: 390*620*237 mm

THDi: < 3%

Type: DC/AC Inverters

Weight: 28.8 kg

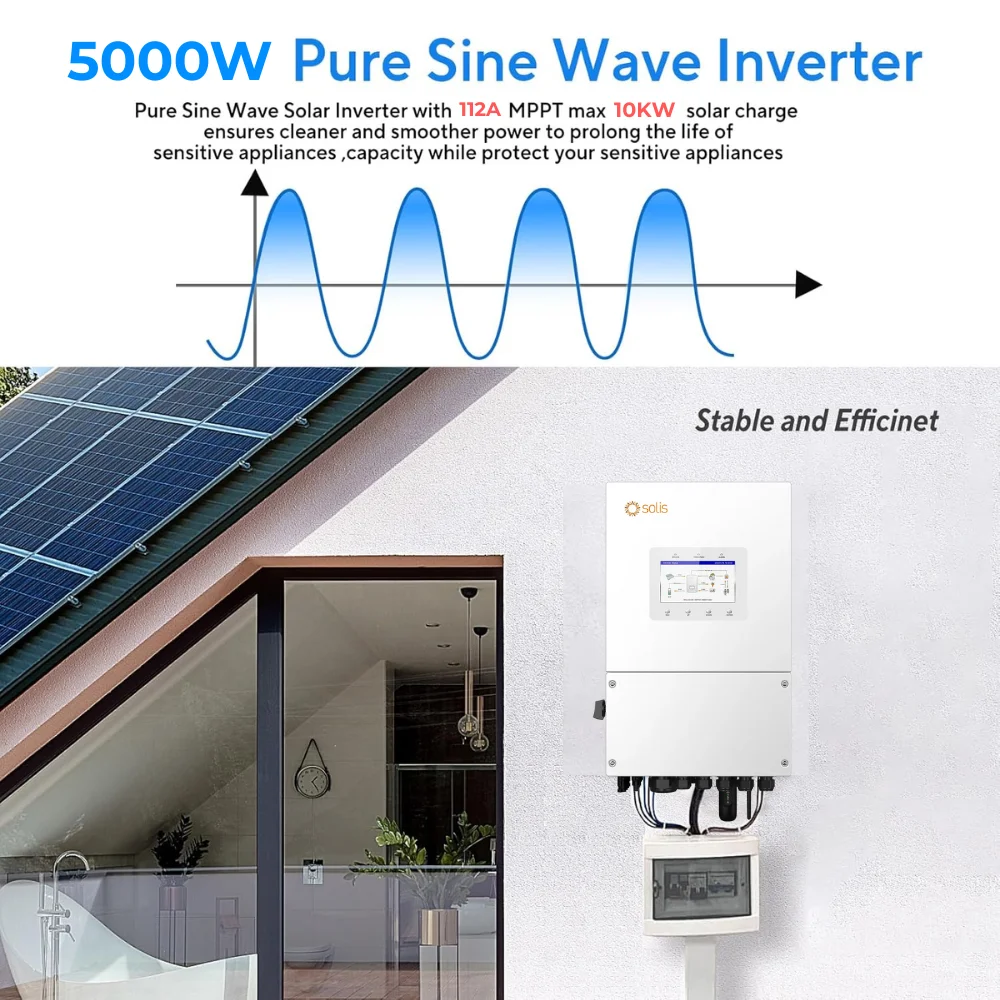

Product Highlights

Up to 21A(5K) of MPPT current input to support 210mm solar panels.

Supports twice DC:AC ratio to connect more PV capacity to the energy storage system.

Up to 135A/6K,190A/(7.5K and 8K) max.charge/discharge rating with industry highest level 8kW of backup loads support capability.

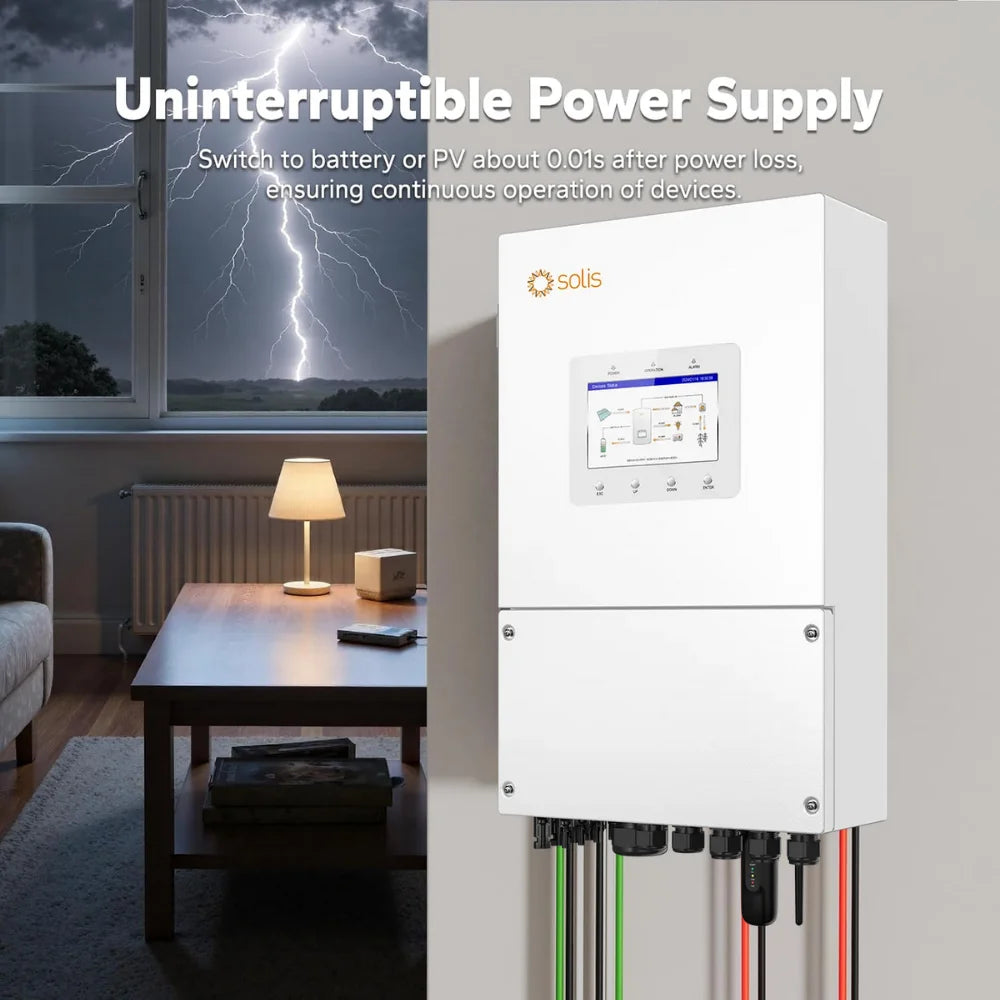

UPS level switching time(<10ms)supporting critical loads all the time.

High PV charge efficiency to prevent excess PV loss. 10 seconds 200% surge power backup overload capability. Support inductor loads.

Safety protection with integrated AFCI function, which actively detects arc faults in the PV Array.

Multiple battery protection function
