SPECIFICATIONS

Brand Name: REDPULSE

Certificate: CEI/EN 62109-1/-2, CEI/EN 61000-6-1/-2/-3/-4, CEI/EN 61000-3-2/-3

Communication Method: WiFi/PLC

Input Voltage: 60V

Inverter Efficiency: 96%

MPPT Efficiency: 99.9%

MPPT Voltage: 18~48V

Max. Input Short-Circuit Current: 25A

Max. Number of Input: 2

Model Number: RPMI-700-1000-2T

Number of MPPTs: 1

Operating Temperature: -40℃~+65℃

Output Current: 3.18A/4.55A

Output Frequency: 50/60Hz

Output Type: Single

Output Voltage: 187-270V

Place of Origin: Shanghai, China

Protection Grade: IP67

Size: 226*198*36mm

Starting Voltage: 16V

Type: DC/AC Inverters

Weight: 2.5kg

Products Description

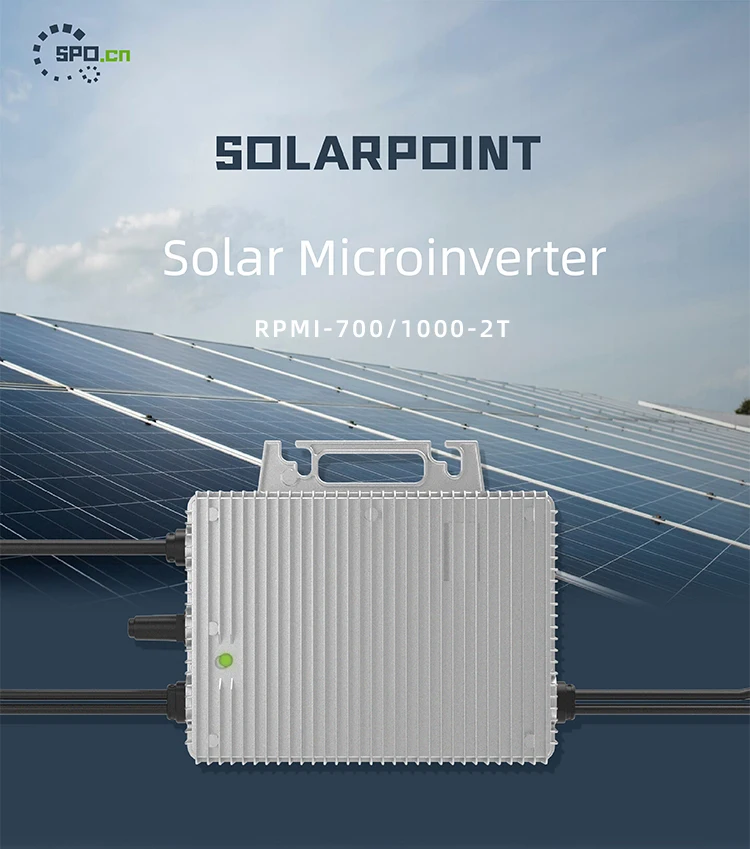

RPMI-700/1000-2T

RPMI-700/1000-2T series microinverter is specially designed for small and medium-sized solar power generation systems, with a typical application case is the balcony solar system.

Equipped with the self-developed zero-export meter to control the power output of PV modules, it automatically matches the real-time power of household electrical equipment.

Data monitoring: Integrated industrial-grade Wi-Fi module, automatic MESH networking function, simple setup can be networked through the home router, RPMI-1000-2T also has PLC communication function, through the Solar Point data platform to view the power generation status of each PV module.

Installation: with user-friendly connectors, plug and play, clean energy,easy to get.

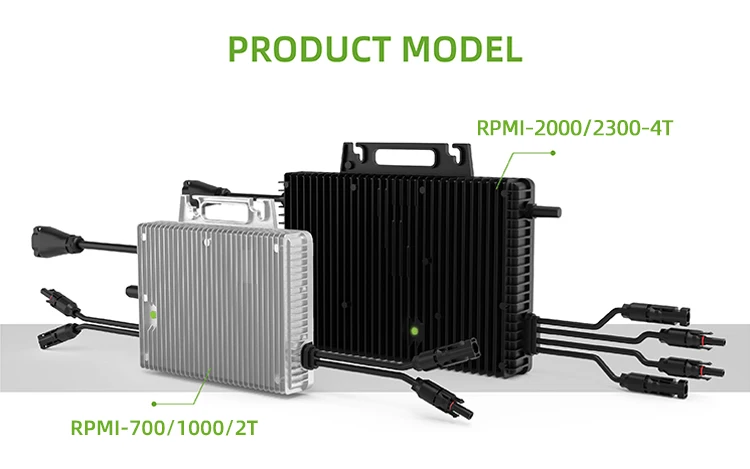

MODEL	RPMI-700-2T	RPMI-1000-2T	RPMI-2000-4T	RPMI-2300-4T
INPUT（DC）
Solar panel	300～730W	300～800W	400～670W	450～730W
Max. input voltage	60V
MPPT voltage range	18～48V					18～48V
Starting voltage	16V
Max. input current	2*12A/20A	2*18A/20A	4*20A	4*20A
Max. input short-circuit current	25A			4*25A
Number of MPPTs	1			4
Max. number of input channels	2			4
OUTPUT（AC）
Rated output power	700W	1000W	2000W	2300W
Rated output current	3.18A	4.55A	9.09A	10.45A
Output voltage/Range	220V/187V~270V
Rated frequency	50/60Hz
Power factor (Adjustable)	>0.99 Default
THD	＜3%
Max. number of microinverter of each branch(10AWG trunk cable)	8	6	3
Max. number of microinverter of each branch(12AWG trunk cable)	6	4	2
EFFICIENCY
Peak efficiency	96%			96%
MPPT efficiency	99.9%
COMMON PARAMETER
Function	Zero-export, Data monitoring
Environmental temperature	-40℃～+65℃
Size	226*198*36mm			326*252*42mm
Weight	2.5kg			5.4kg
Protection grade	IP67
Max. altitude	＜2000m
Cooling method	Natural cooling
Night power consumption	＜50mV
Communication method	WiFi	WiFi / PLC	WiFi	WiFi / PLC
Isolation method	High frequency transformer electrical isolation
Monitoring platform	Solar Point data monitoring platform
Grid connection standard	NB/T 42142 - 2018
Certificate	CEI/EN 62109-1/-2, CEI/EN 61000-6-1/-2/-3/-4, CEI/EN 61000-3-2/-3
SECURITY PROTECTION FUNCTION
Anti-islanding protection, input reverse protection, output short-circuit protection, output over-current protection output over-voltage protection, 6000V surge protection

Solar Point Balcony Solar System Solar Point balcony pv system is a highly efficient grid-tied self use PV system.
Equipped with the self-developed zero-export meter to control the power output of pv modules, it automatically matches the real-time power of household electrical equipment.

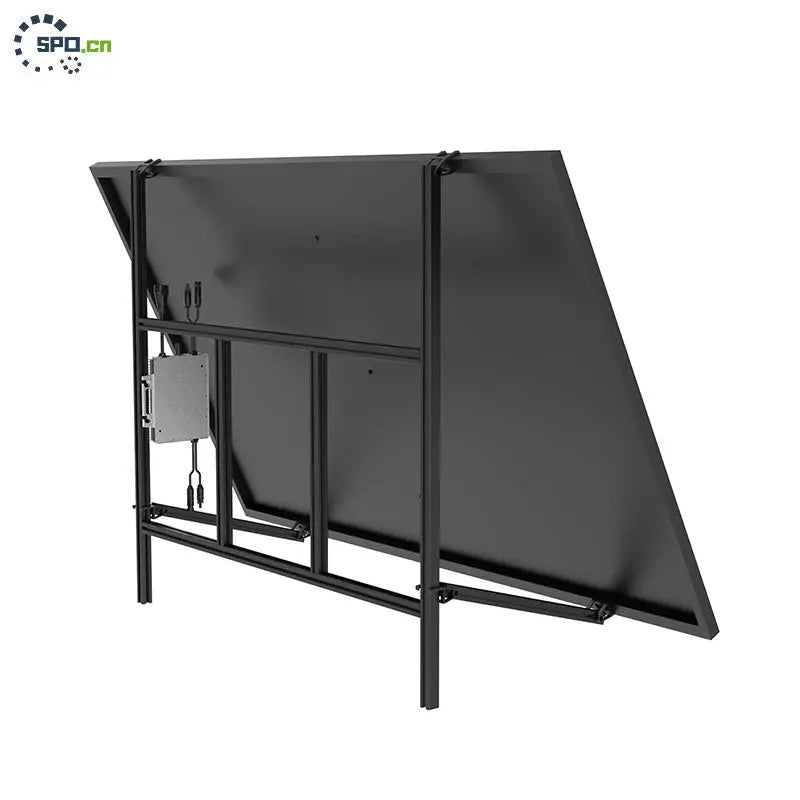

All black PV module and bracket, stylish appearance, easy installation.

Provide two communication versions: WiFi and PLC.

WiFi version plug and play, easy to configure; PLC version power line carrier communication, stable signal without network configuration.

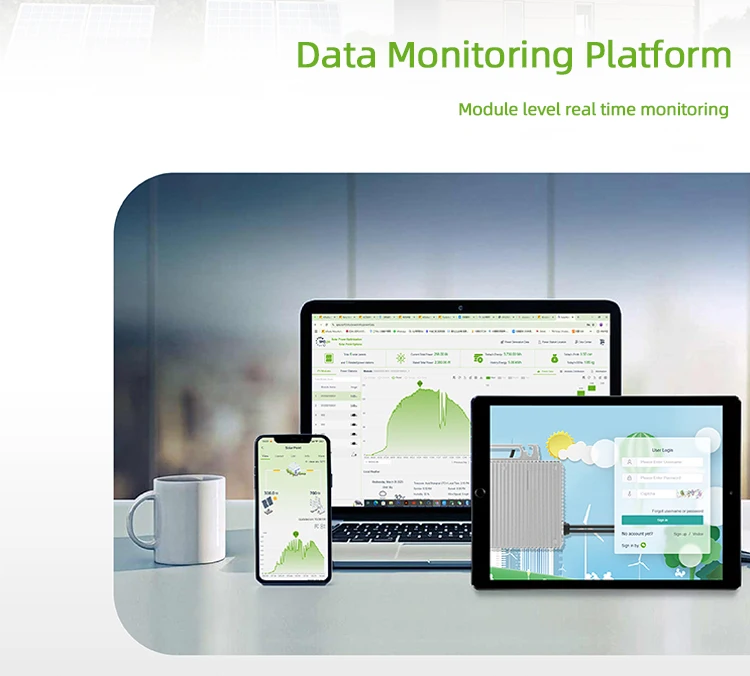

Through Solar Point data platform APP, real time viewing of device and power station data.

Product Configuration
Microinverter	RPMI-700-2T / RPMI-1000-2T / RPMI-2000-4T / RPMI-2300-4T
PV Module	All-Black Bifacial PV Module
Bracket	3 in1 Aluminum alloy bracket
Zero-Export Meter	Optional
Lithium Battery	Optional

Single phase 1 modular energy meter with WiFi module, RS485 interface 330mV CT AC input.
* Bidirectional energy metering 1 DIN modules, 230VAC 50Hz/120VAC 60Hz.
* Accuracy class B according to EN50470-3，Accuracy class 1 according to IEC62053-21.
* Solid-core sensor &open-core sensor, 330mV AC input 100A.
* Total energy usage can be calculated via 5 different modes.
* Reactive power and reactive energy available through interface.
* Built-in RS485 communication port, modbus protocol.
* S0 pulse output, transmission of measured values via pulses.
* Wifi support 802.11b/g/n, Frequency range: 2.412GHz-2.484GHZ.
