SPECIFICATIONS
Application: Solar Home Energy Storage System
Battery Type: LiFePO4
Brand Name: Delong
Capacity: 60KWH 96KWH 172KWH 192KWH
Communication Interface: RS485 RS232 CAN
Communication Port: RS485 RS232 CAN
Cooling: AIR COOLING
Cycle life: 6000-8000
Dimension (L*W*H): 882mm x 745mm x 242mm
Grid connection: Hybrid grid / On grid / Off grid
Model Number: LFP51200
OEM/ODM: Acceptable
Payment: Credit Card.Paypal.TT.Escrow.Western Union
Place of Origin: Guangdong, China
Product name: High Voltage LiFePO4 Battery 60KWH 96KWH 172KWH 192KWH
Shipping: By Sea / By Air
Size: 882mm x 745mm x 242mm
System Voltage: Other
Type: LiFePO4
Voltage: 200V-800V
Weight: 220KG
WHY CHOOSE DELONGTOP
1> Over 13 Years Lithium Battery Production Experiences Factory, R&D Department, Free for OEM & ODM2> Alibaba SKA Golden Supplier: Three Alibaba Store: 12 Years DELONGBATTERY, 7 Years DELONGTOP, 3 Years DELONG FACTORY
3> Two Company Website: delongtop.com, delongbattery.com
4> Promise what we say and what we do

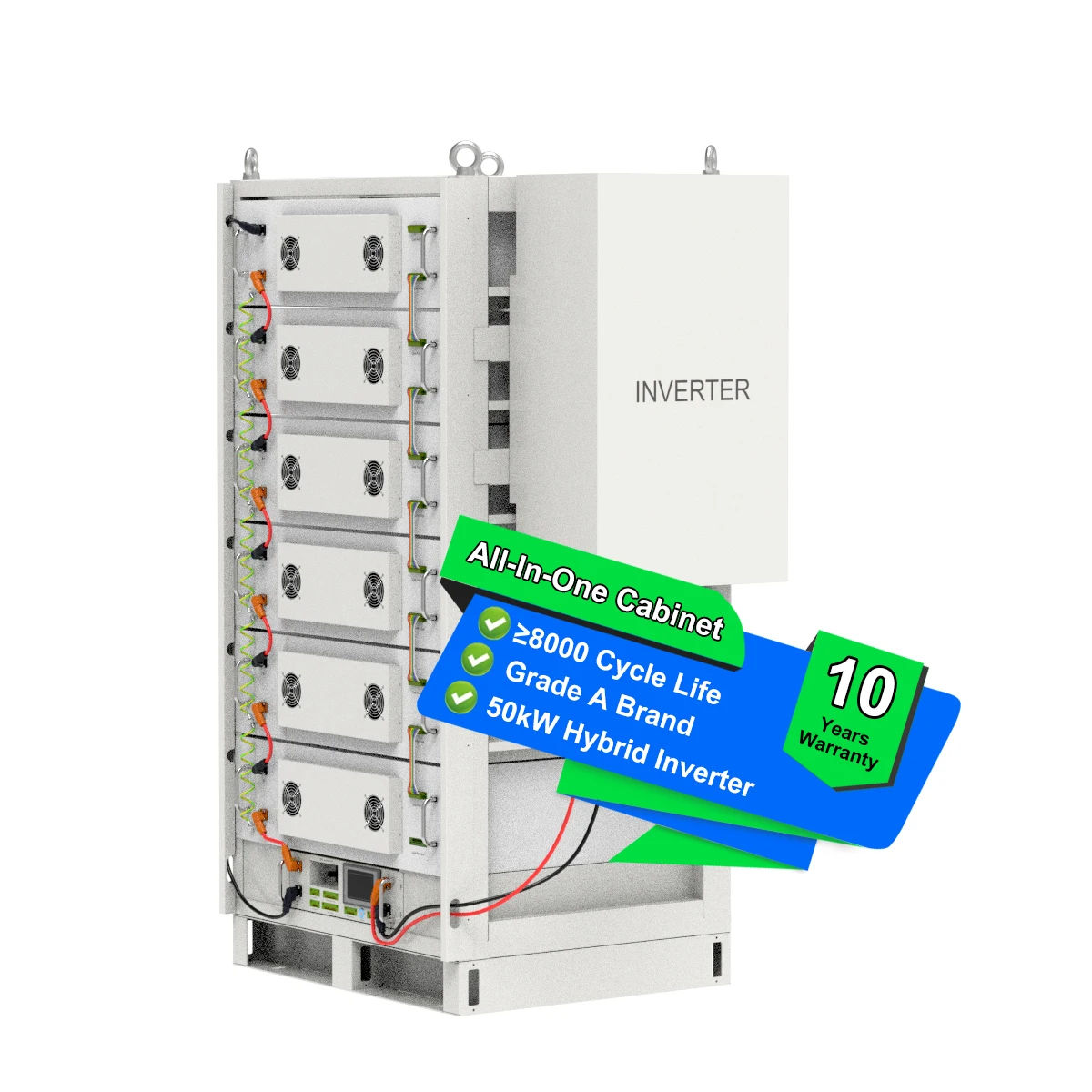

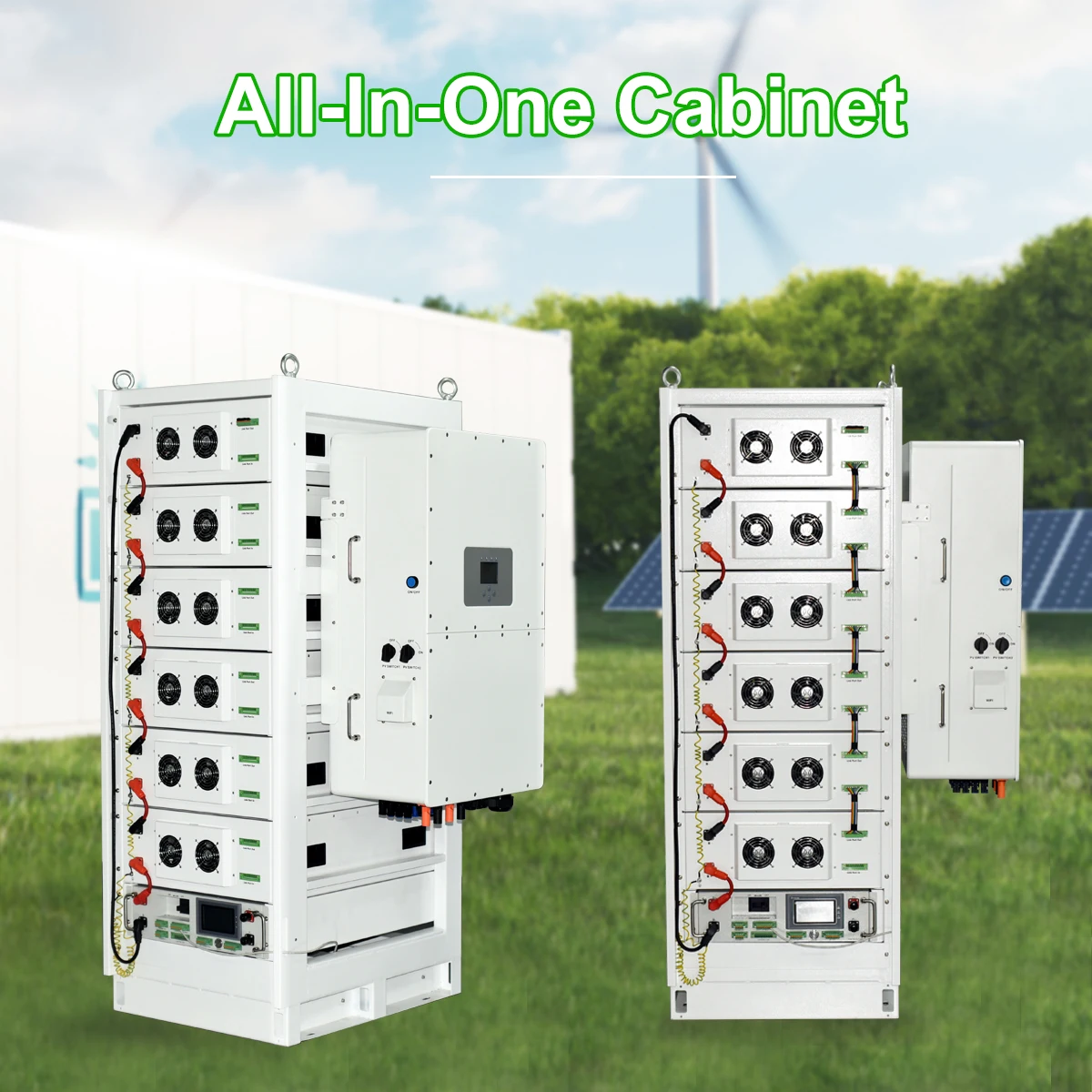

102.4V Module High Voltage 61.44KWH 96.46KWH 172.03KWH 192.92KWH Lithium Ion LiFePO4 Battery Cabinet

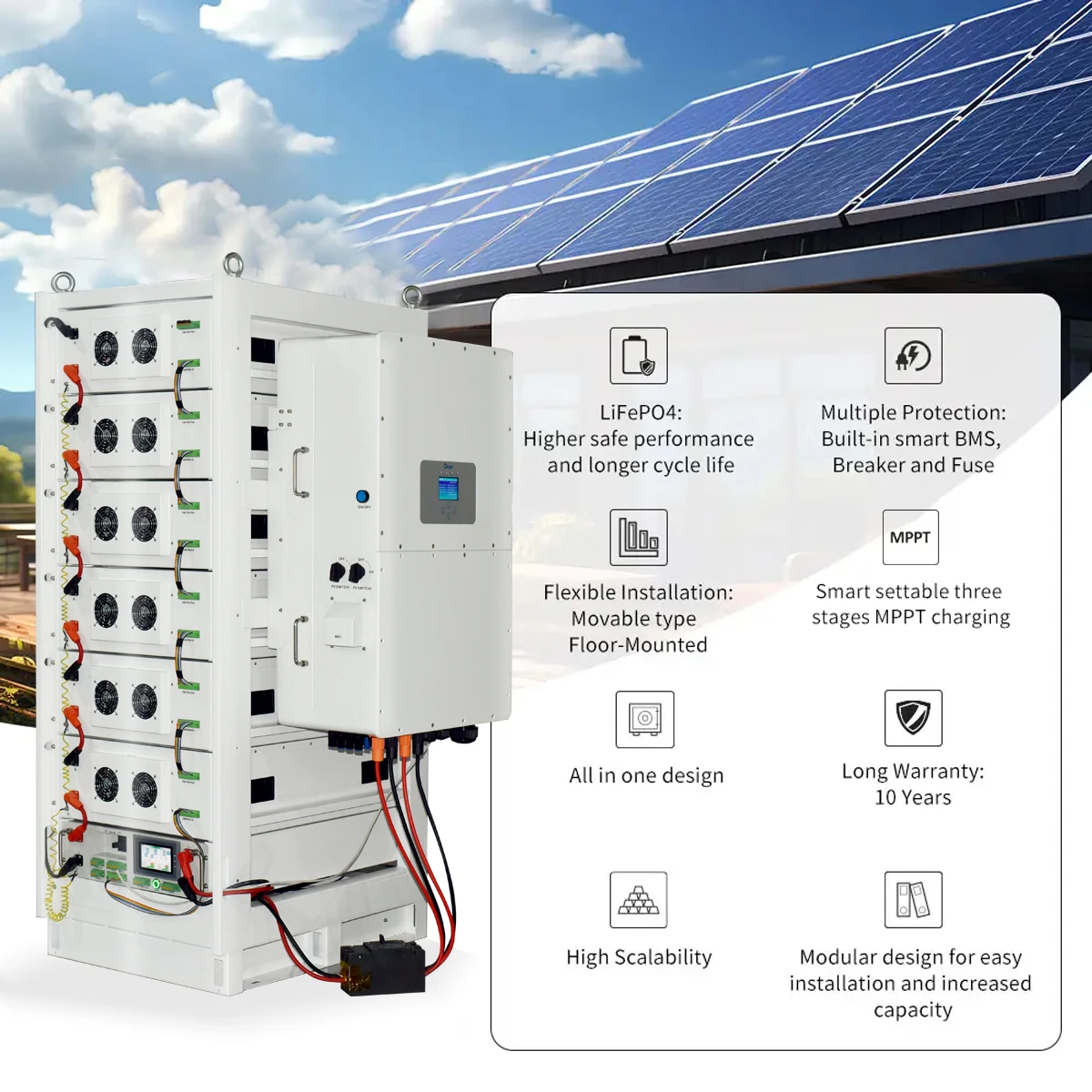

◆Convenient
Quick installation, rack mounted cabinet designed module is comfortable for installation and maintenance.◆Safe and reliable
Cathode material is made from LiFePO4 with safety performance and long cycle life, The module has less self-discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge.
◆Intelligent BMS
It has protection functions including over-discharge, over-charge, over-current and over-high or low temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell.
◆Eco-friendly
The whole module is non-toxic, non-polluting and environmentally friendly
◆Flexible configuration
Multiple battery modules can be in parallel for expanding capacity and power.Support USB upgrade, wifi upgrade (optional), remote upgrade (Compatible with most popular inverters).
◆Wide temperature
Working temperature range is from -20°C to 55°C, with excellent discharge performance and cycle life.

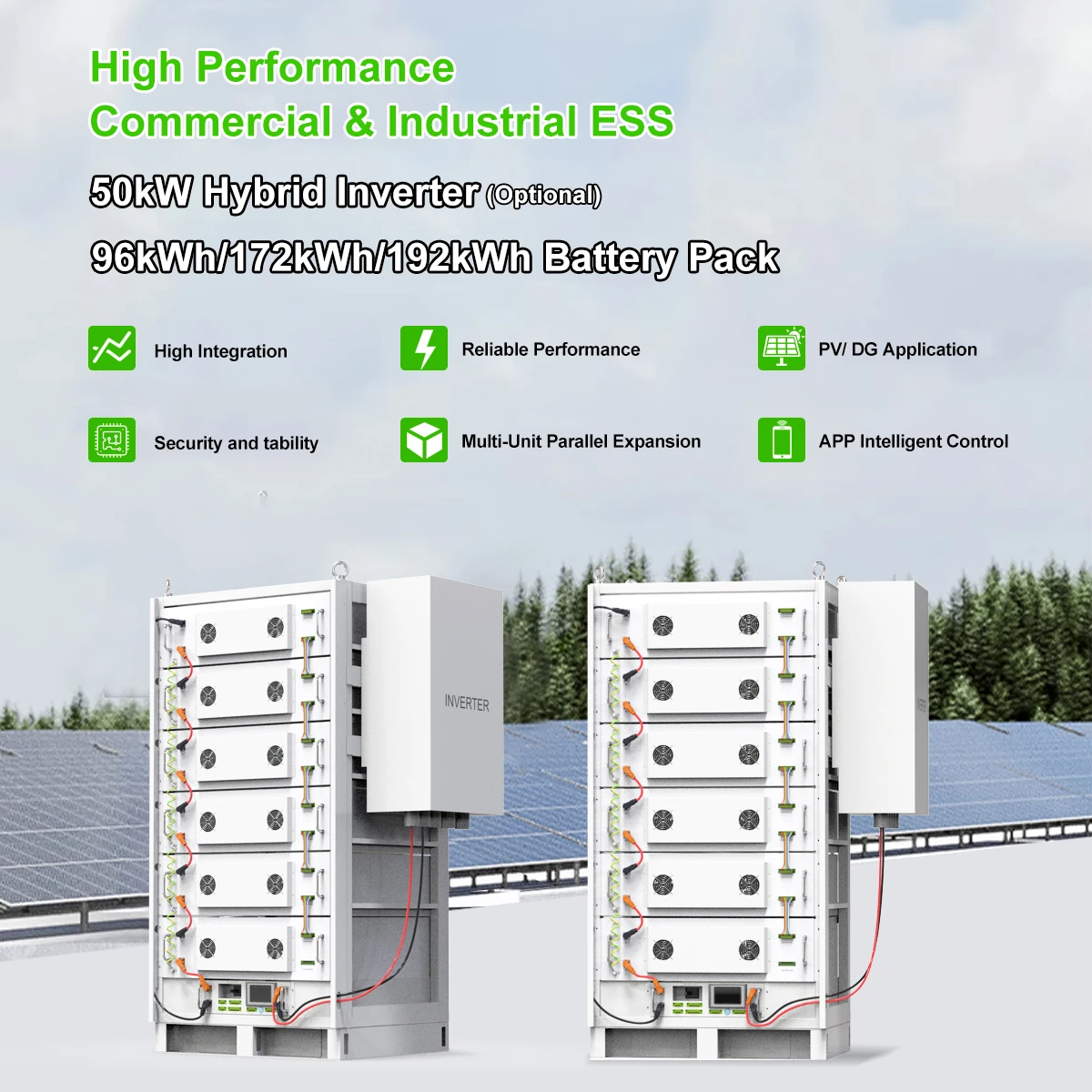

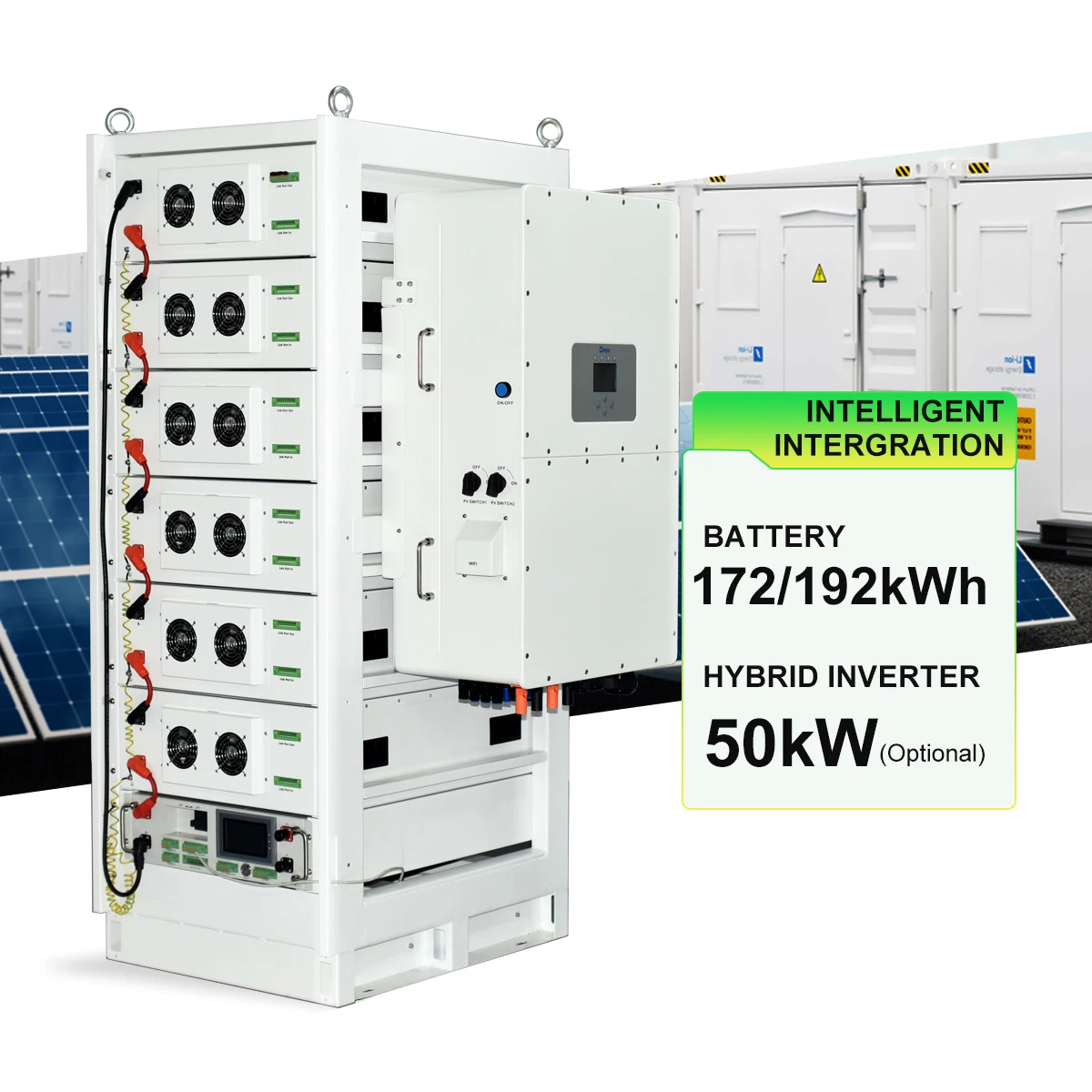

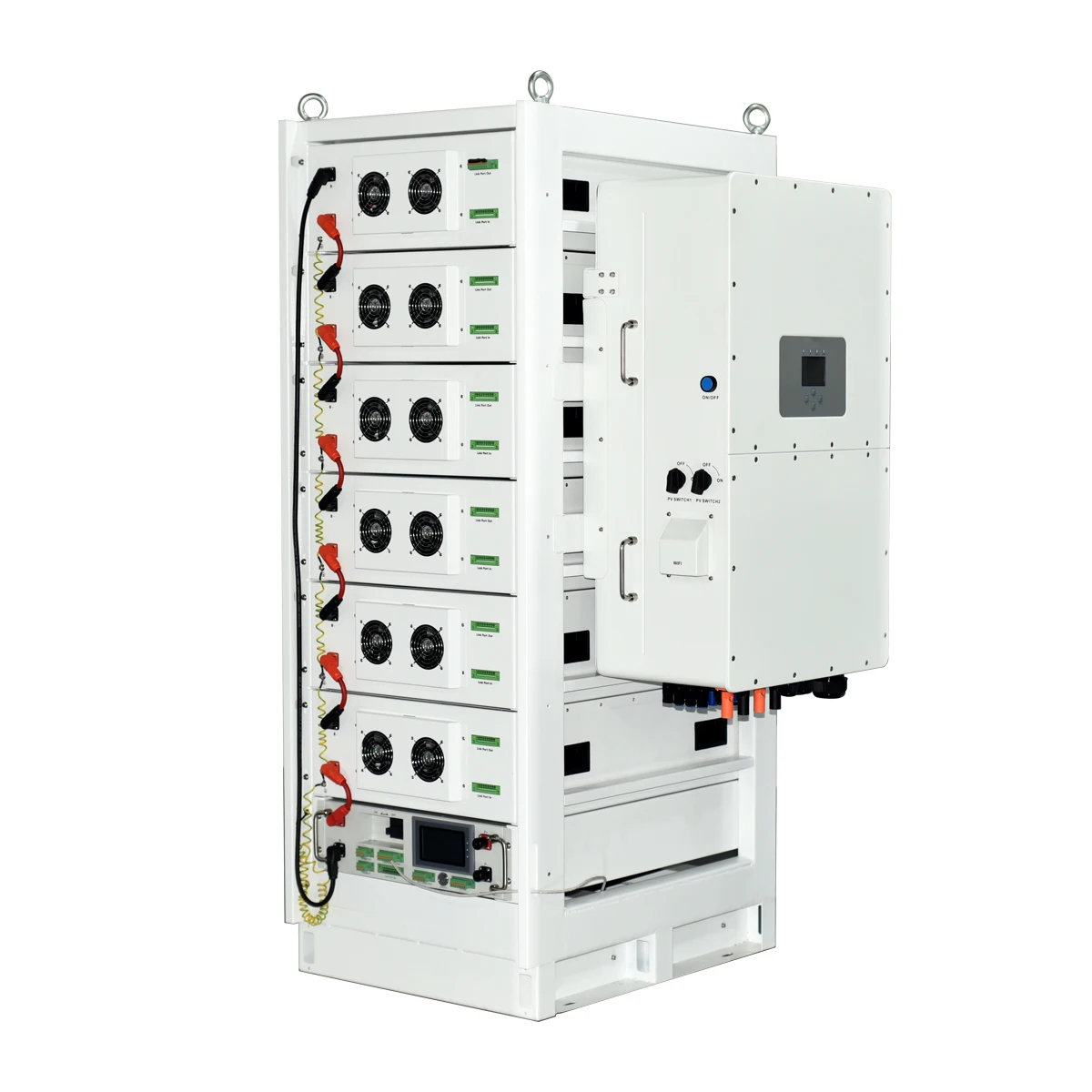

102.4V Module High Voltage 61.44KWH 96.46KWH 172.03KWH 192.92KWH Lithium Ion LiFePO4 Battery Cabinet

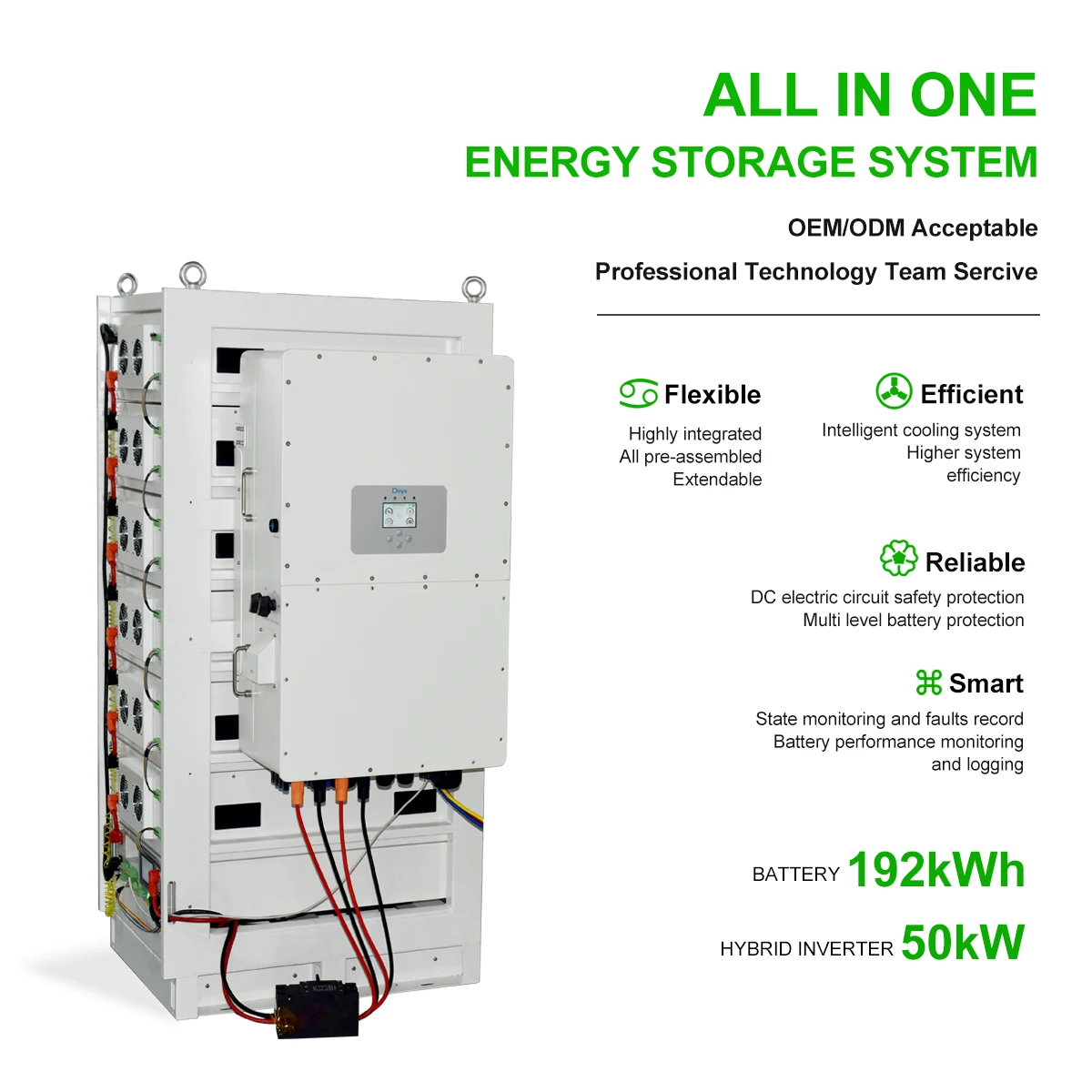

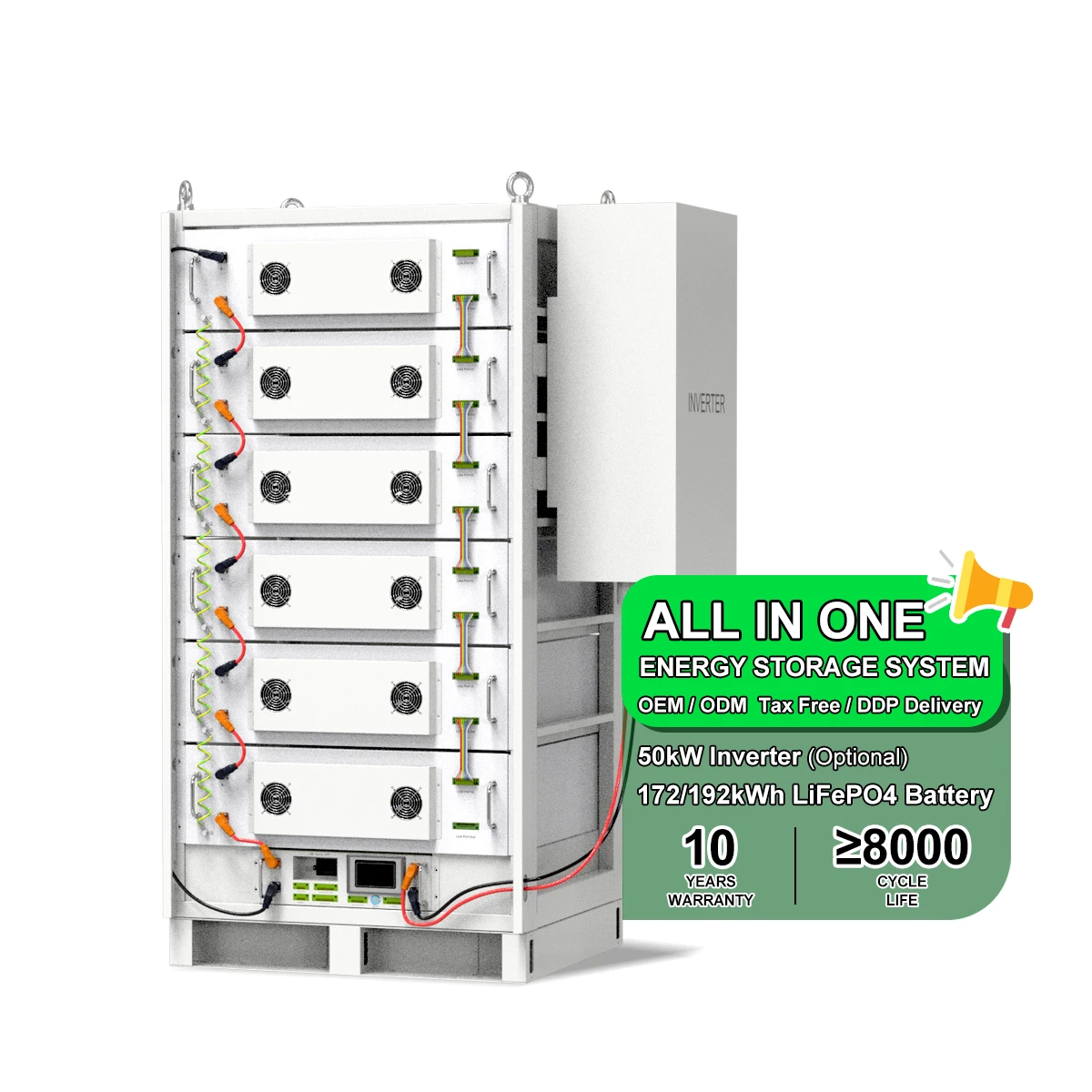

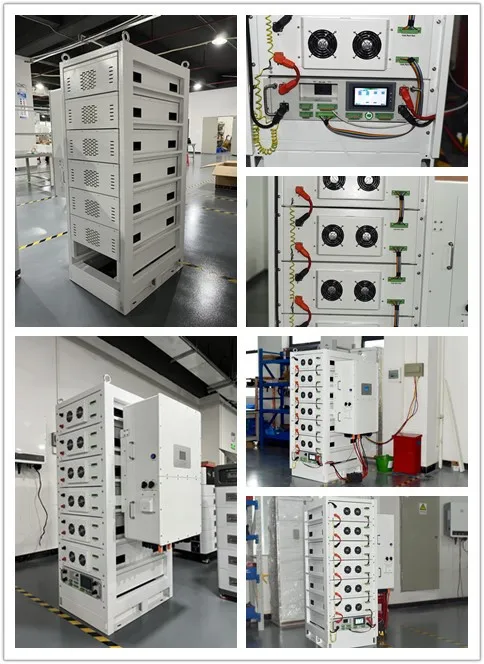

→ 102.4V Module LiFePO4 Battery Pack in Series
→ 1PC High Voltage 1000V Master Box(Monitoring SOC, System voltage, Current, Cell voltage, Cell temperature
→ Support 25KW 30KW 40KW 50KW High Voltage Three Phase Hybrid Grid Inverters, Compatible with Most of Inverter Brands
→ With in series Cables, Earth Cable, Communication Cables and Rack Mounted Cabinet
→ Send with Optional Inverter 25KW 30KW 50KW Inverter
→ Each Pack with Air Cooling
→ With User Manual

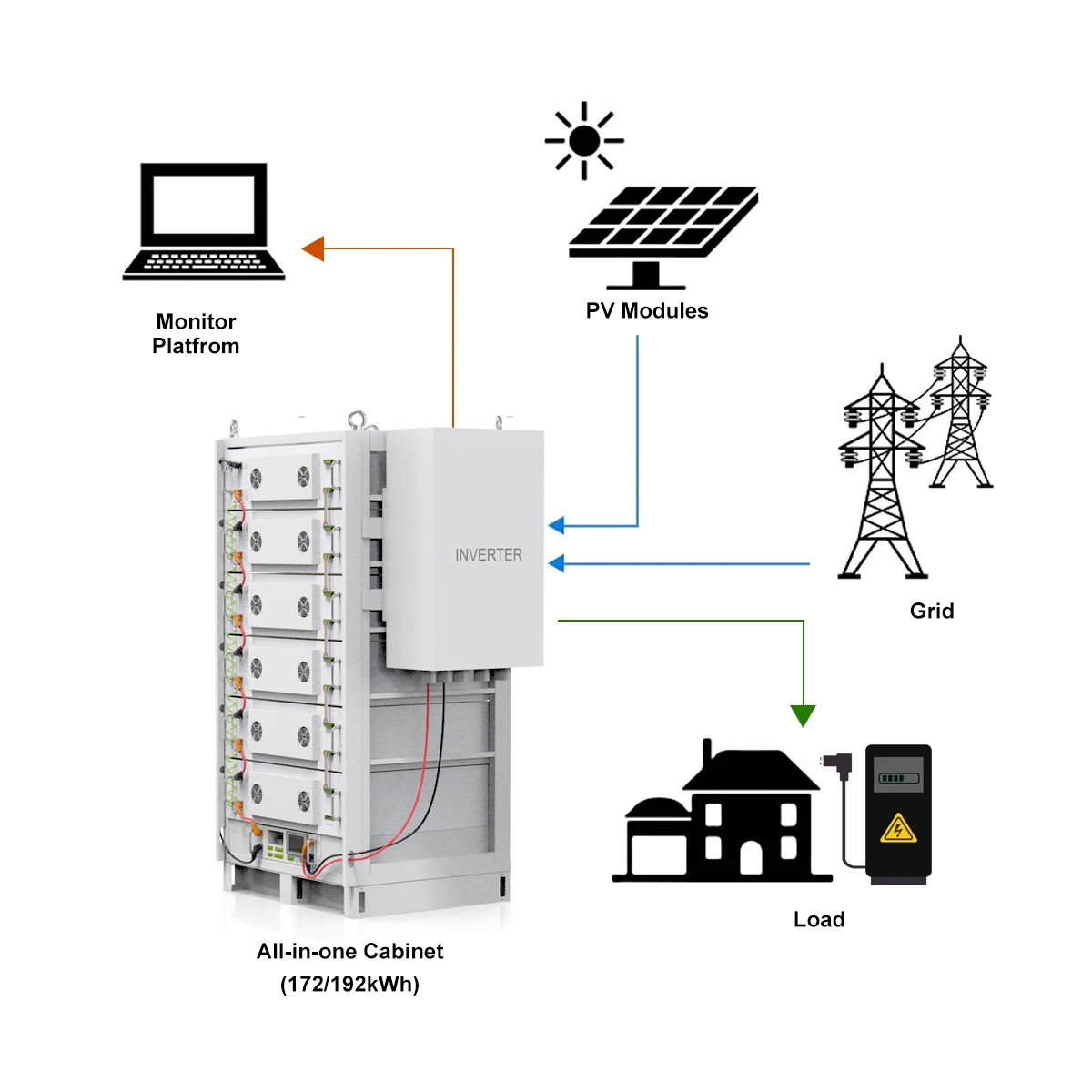

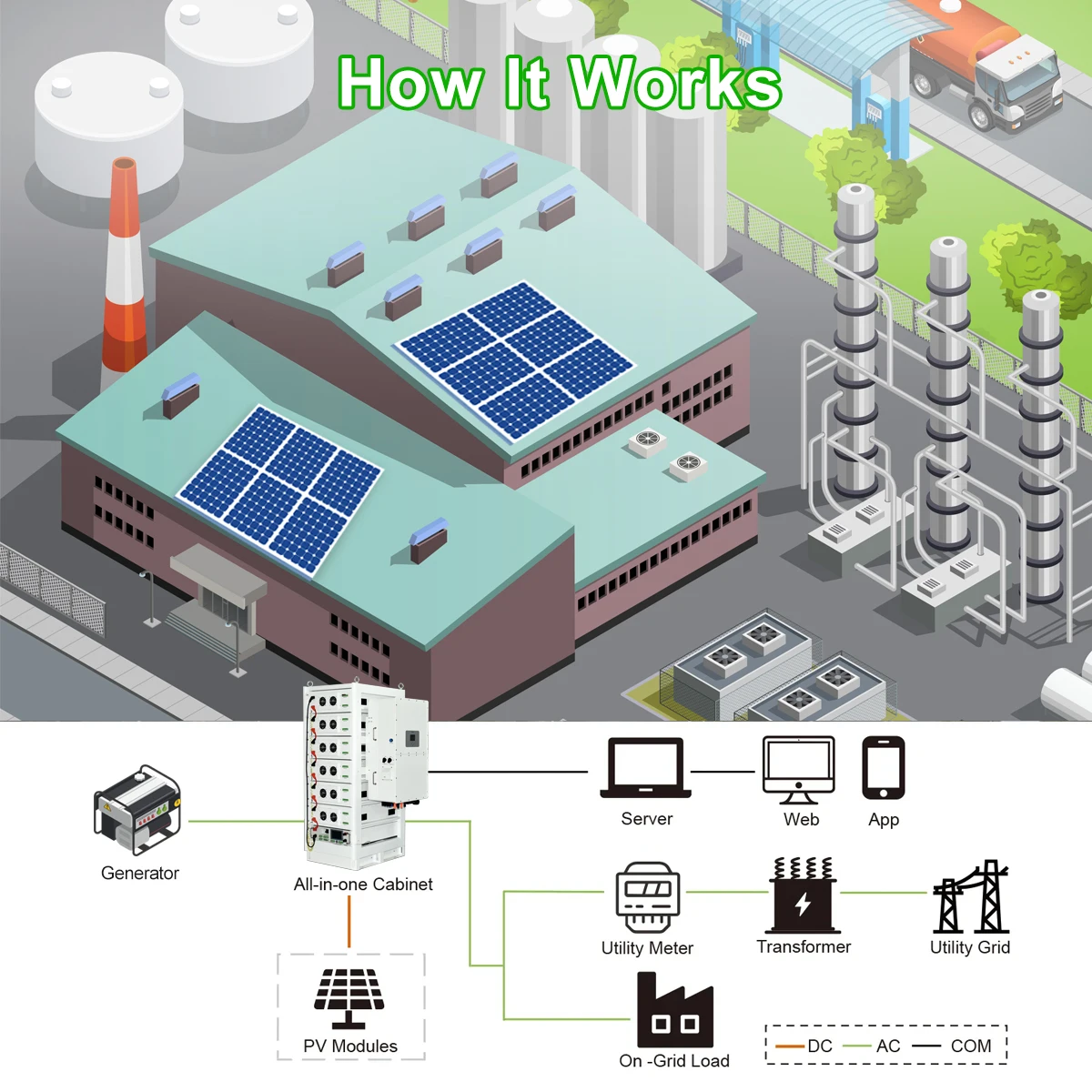

Foucs on Solar Energy Storage System:
Our High Voltage LiFePO4 battery was specially developed for Commercial Industry and Home solar energy storage system. The battery used the lightest cell and can be mounted on the floor with movable wheel base. High Voltage 200V-600V LiFePO4 Battery supply the enough power to the Commercial Industry electricity and home applications , and our battery meet the standard of most inverter and MPPT controller. If you are not sure, you can tell us the information of the inverter and controller you are useing and we will custom the right battery to you.
102.4V Module High Voltage 60KWH 172KWH 192KWH Lithium Ion LiFePO4 Battery Cabinet |
|
|
|
|
BATTERY DATA |
|
|
|
|
Battery Pack |
1P32S100Ah |
1P32S157Ah |
1P32S280Ah |
1P32S314Ah |
Single Battery Module |
|
|
|
|
Energy Capacity |
10.24KWH |
16.07KWH |
28.67KWH |
32.15KWH |
Max. Output Current |
33A |
47A |
84A |
94A |
Nominal Voltage |
102.4V |
|
|
|
Operating Voltage |
96-112V |
|
|
|
Dimensions (L/D/H) |
882mm x 745mm x 242mm |
|
|
|
Battery System Data |
|
|
|
|
Number of Module |
6 |
|
|
|
Energy Capacity |
61.44KWH |
96.46KWH |
172.03KWH |
192.92KWH |
Standard Charge /Discharge Current |
33A / 0.3C |
47A / 0.3C |
84A / 0.3C |
94A / 0.3C |
Nominal Voltage |
614.4V |
|
|
|
Operating Voltage |
576V-672V |
|
|
|

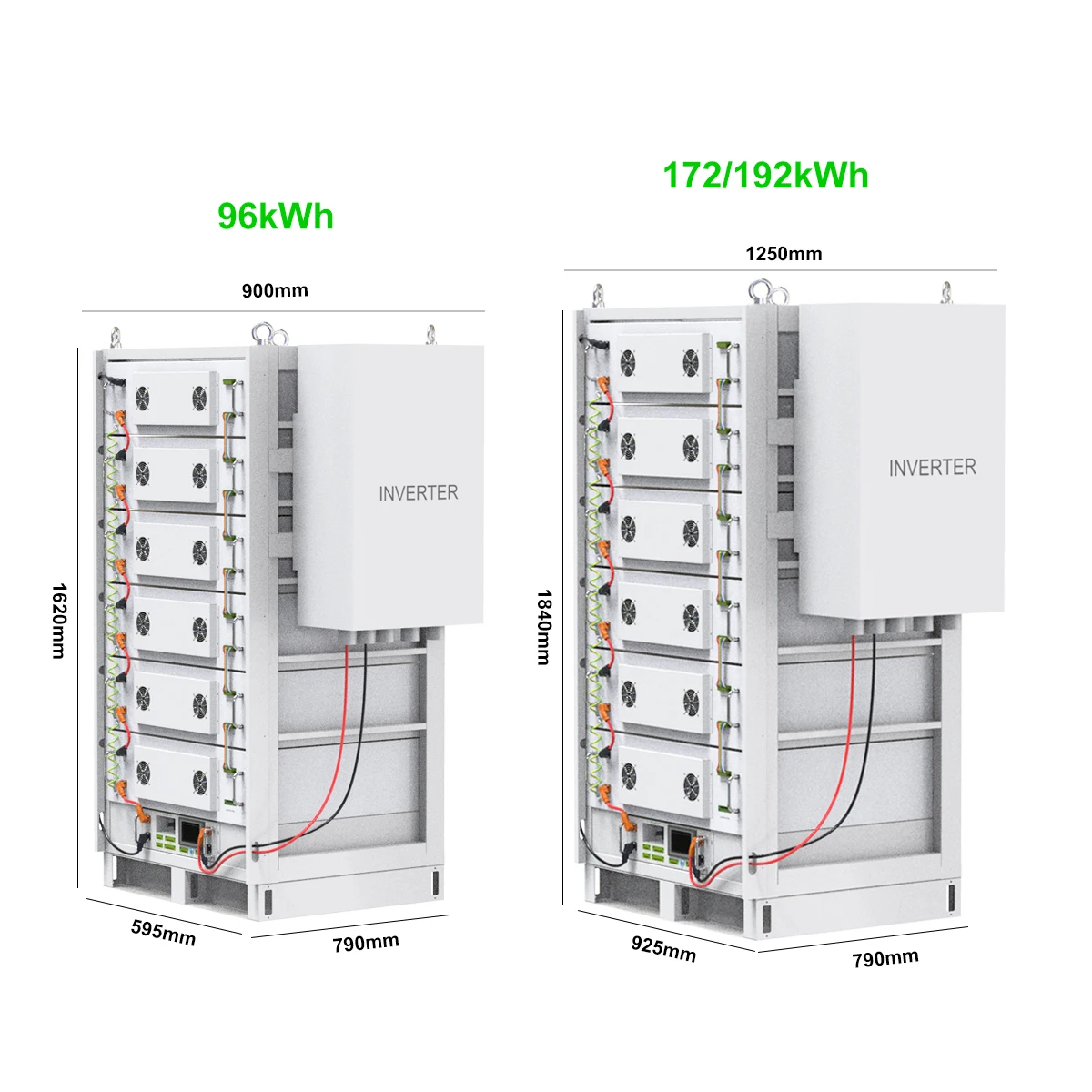

Dimensions (L/D/H) |
595*790*1620mm |
595*790*1620mm |
925*790*1860mm |
925*790*1860mm |
Weight |
780KG |
850KG |
1650KG |
1670KG |
Battery Cell Type |
LiFePO4 Battery(Lithium iron phosphate battery) |
|
|
|
Enclosure Protection Rating |
IP20 |
|
|
|
Round-trip Efficiency |
≤90% |
|
|
|
Operation Temperature |
-10°C to +55°C |
|
|
|
Applications |

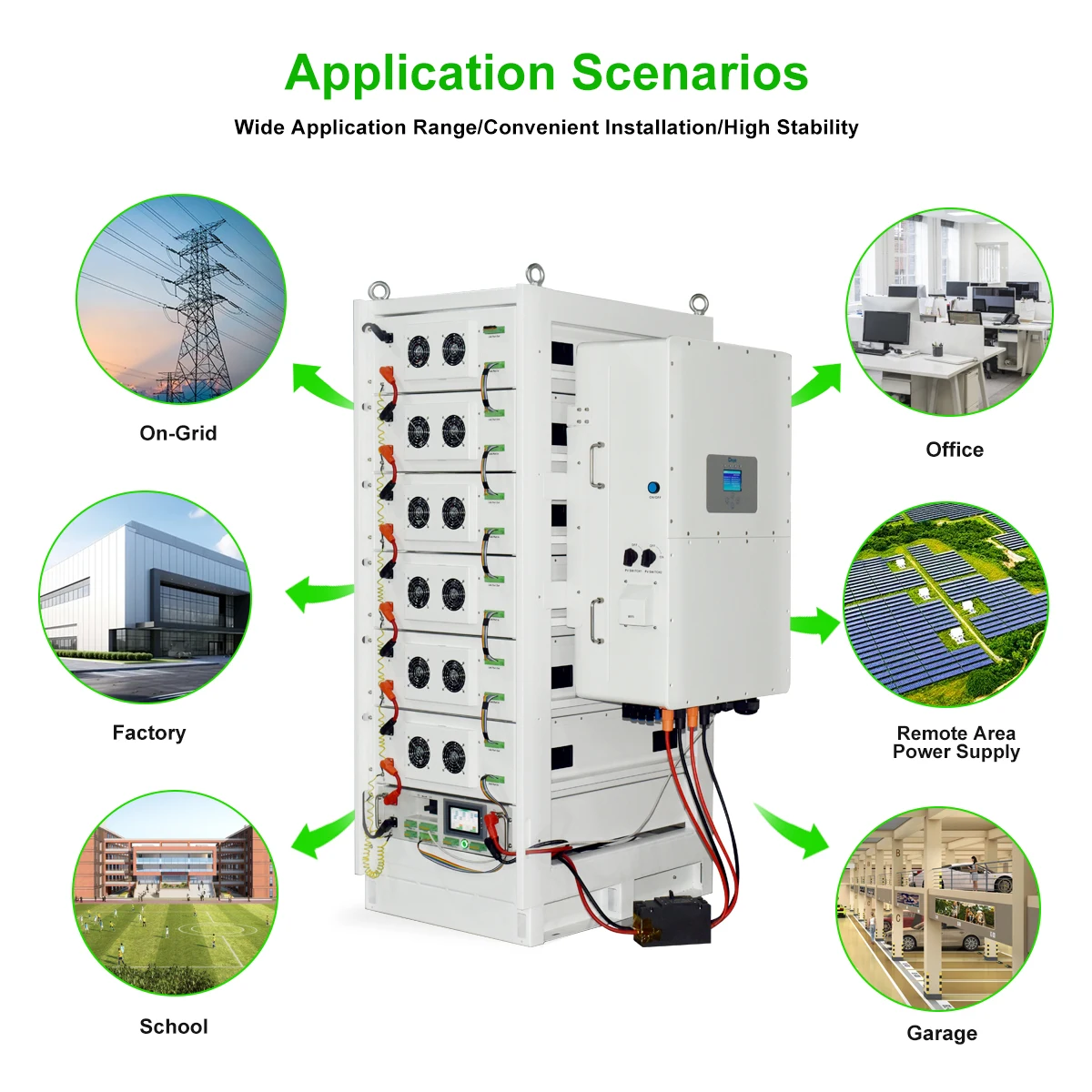

ON Grid / ON Grid + Backup / OFF Grid |
|
|
|
Communication Port |
CAN |
|
|
|
BMS Monitoring Parameters |
SOC,System voltage,Current,Cell voltage, Cell temperature |
|
|
|
INVERTER DATA |
|
|
|
|
Inverter Power |
30KW |
35KW |
40KW |
50KW |
Max. PV Access Power (W) |
60000W |
70000W |
80000W |
100000W |
Max. PV Input Power (W) |
39000W |
45500W |
52000W |
65000W |
MPPT Range (V) |
150V-850V |
|
|
|
Rated AC Output and UPS Power (W) |
30000W |
35000W |
40000W |
50000W |
Max. AC Input/Output Apparent Power(VA) |
33000W |
38500W |
44000W |
55000W |
Output Frequency and Voltage |
50/60Hz; 3L/N/PE 220/380, 230/400Vac |
|
|
|
WHAT WE CAN DO MORE |
|
|
|
|
Warranty |
10 YEARS WARRANTY |
|
|
|
Battery Standard |
CE, UL, IEC, RoHS, MSDS, UN38.3 |
|
|
|
Compatible with Most of Popular Solar Inverters
Our BMS is a complete set of communication functions, supporting RS485, RS232 and CAN-BUS communication protocols. We can also customize the communication content according to the information which customers provide. Customers can through the host computer software to monitor the batteries, and check the working status of each cells and set specific parameters on the computer.
We offer 10 years truly warranty to provide after-sale service and technology support.
1> Resending new battery within 1st year if something is wrong with the quality of the product
2> Provide purchase accessories free within 2nd~5th years warranty
3> Provide technology support free within 6th~10th years warranty

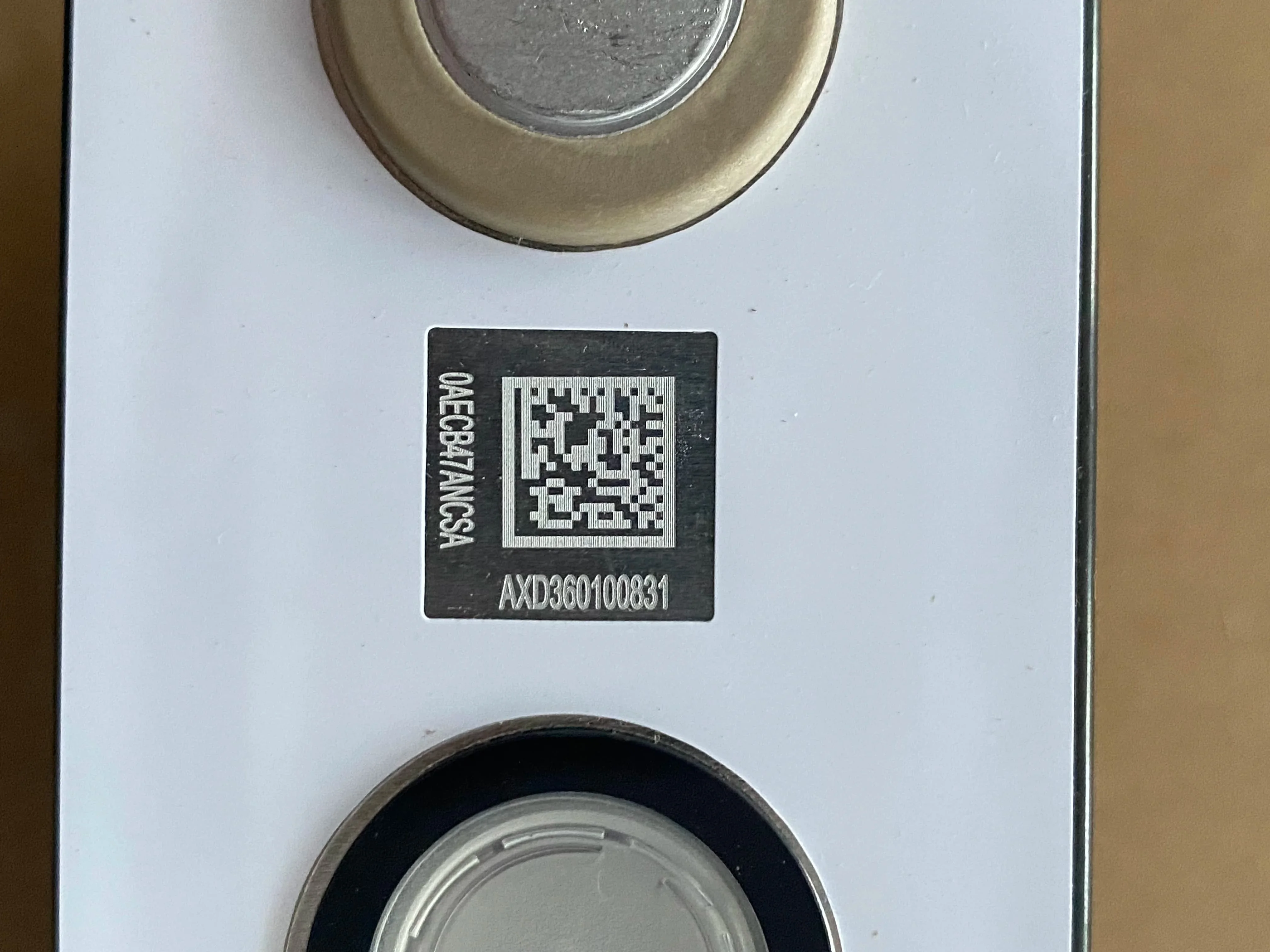

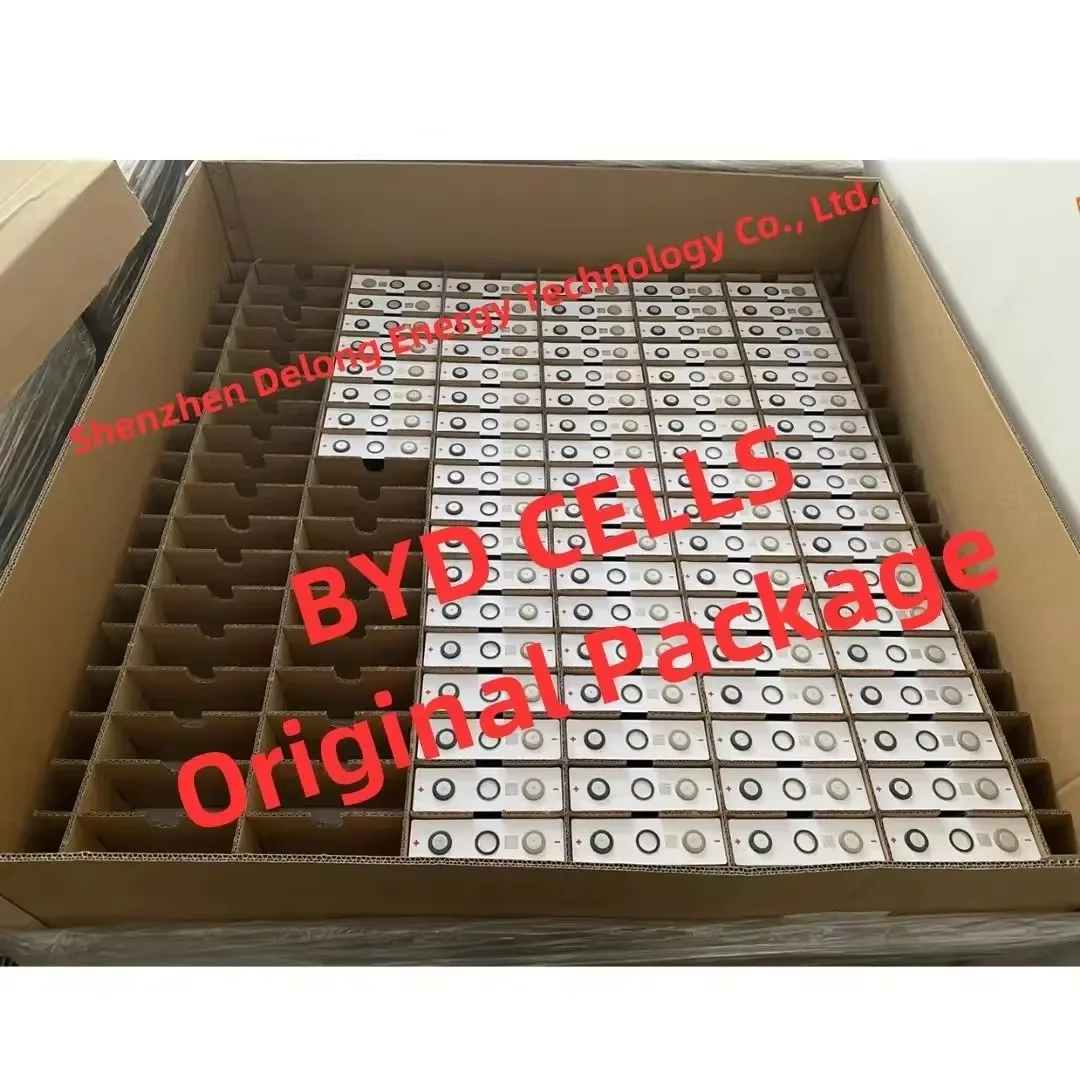

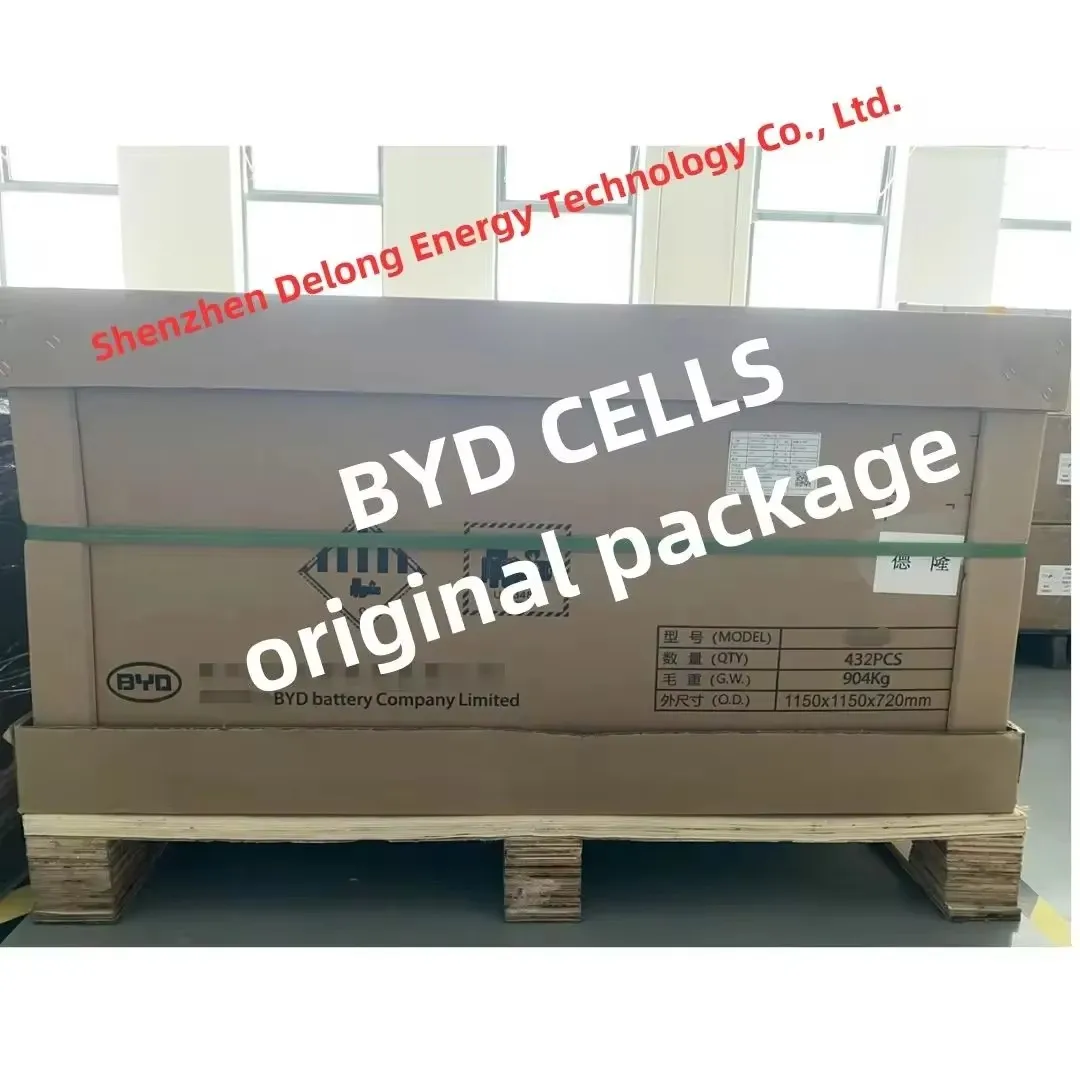

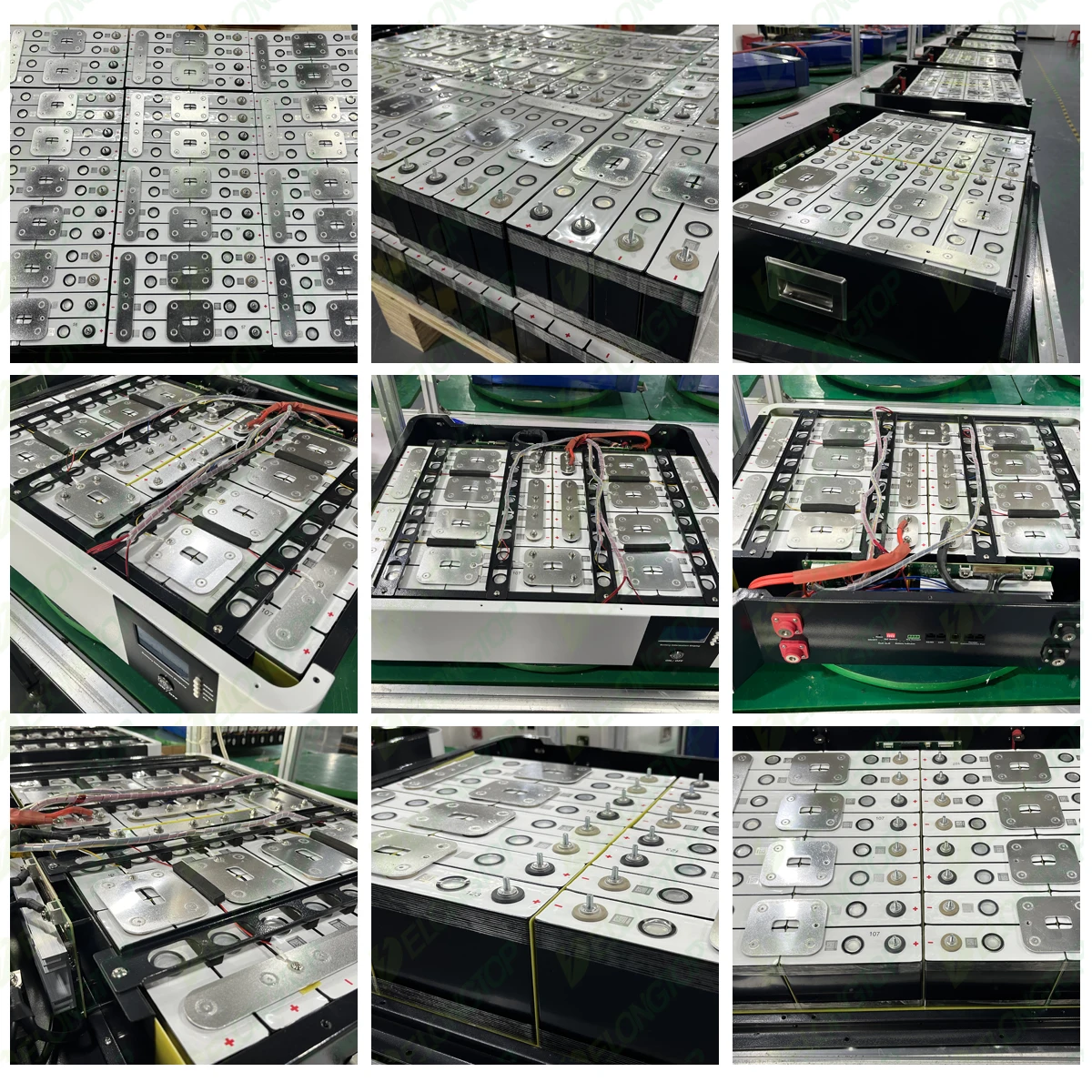

WHAT BATTERY CELL WE USE:
As a 10-year-old store engaged in the battery business, we are responsible for our customers and our brand. Using only A grade cells, the cycle life can up to 6000-8000 times: 10AH/ 25AH/ 30AH/ 50AH/ 100AH/ 200AH/ 300AH / 560AH /600AH...

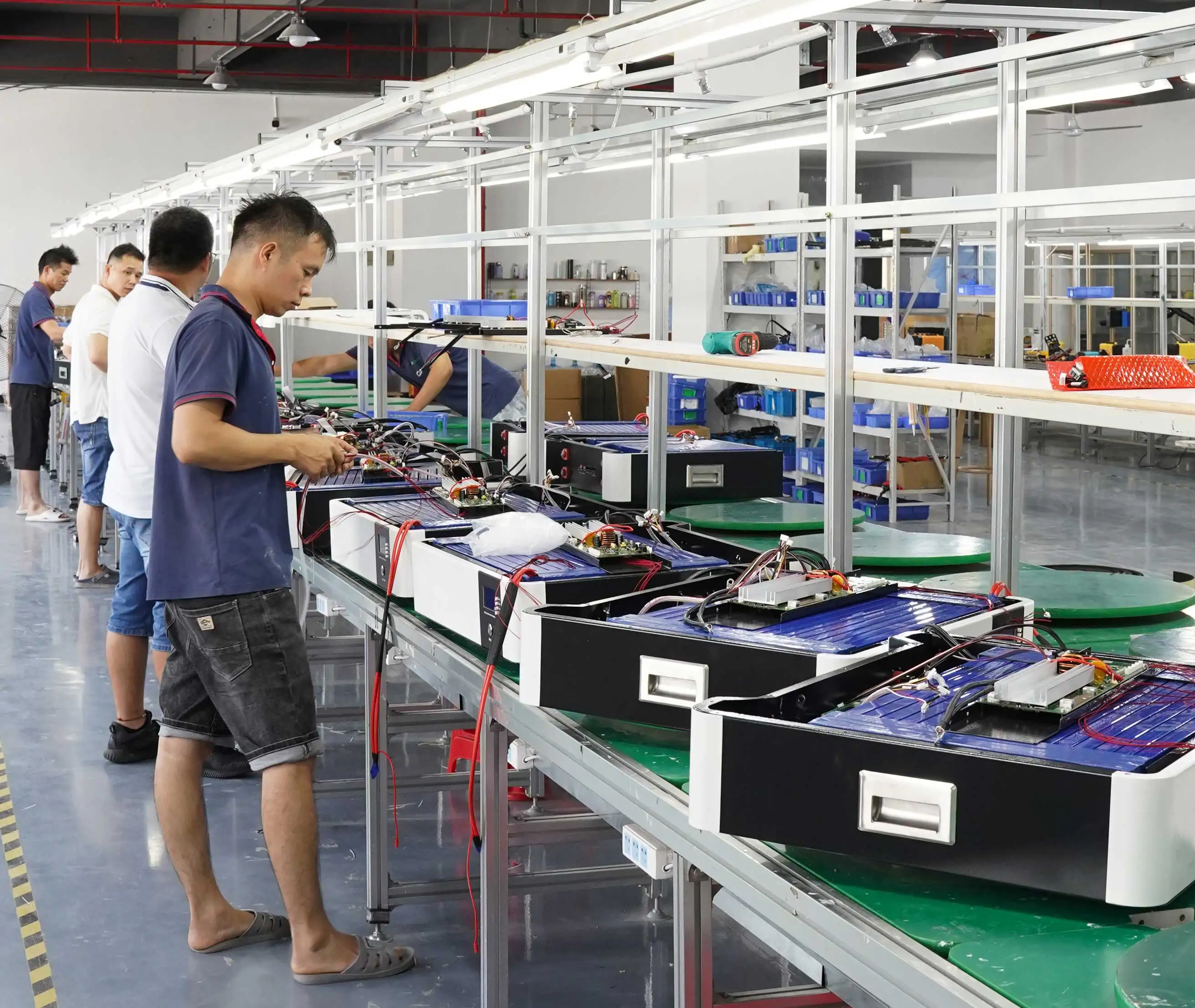

1> Our batteries are the primary source of supply from the original cells manufacturer, battery cells are paired and distributed before outgoing, and can be assembled directly.
2> Through a number of certification and testing, quality assurance.
3> There are two types of pouch cells and prismatic cells. The pouch cells: lighter, cheaper, and easy to customized in special sizes. The prismatic cells: not easily deformed , stable performance, mature market, more popular at present.
MAINLY MARKET AND CUSTOMERS' FEEDBACK
Our batteries are all over the world, the main markets are North America, Europe, Australia, Middle East and Southeast Asia.Solar home energy storage wall-mounted LiFePO4 battery is especially suitable for use in countries and regions where there is a shortage of mains electricity, which is environmentally friendly and safe.
"Quality is our Culture", our batteries are worked well and received many good comments:

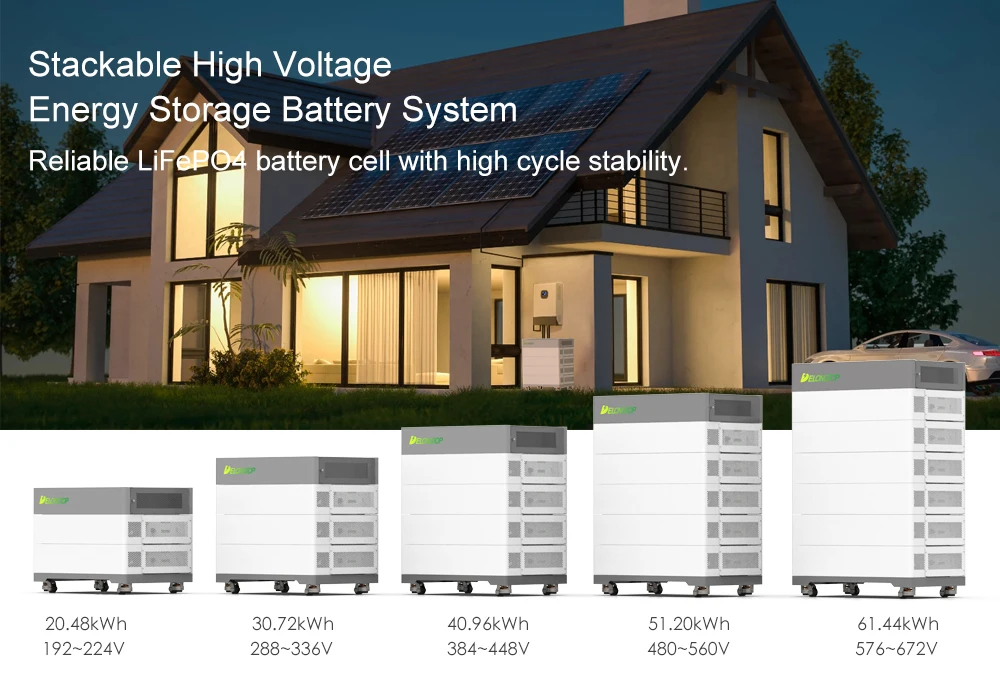

High Voltage 102.4V 100AH Module Stackable LiFePO4 Battery
204.8V 100AH 20.48KWH 307.2V 100AH 30.72KWH
409.6V 100AH 40.96KWH
512V 100AH 51.2KWH
614.4V 100AH 61.44KWH

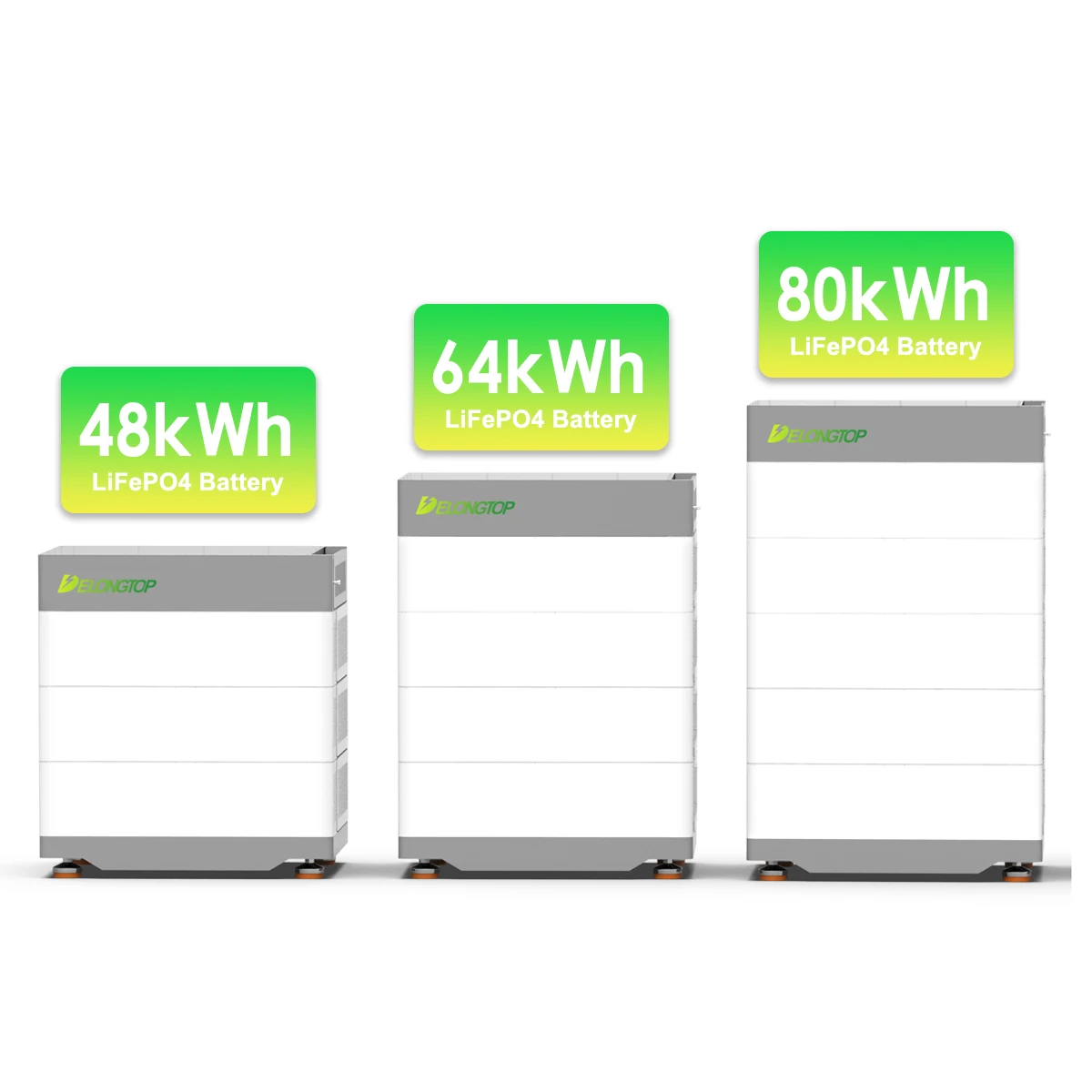

High Voltage 102.4V 157AH Module Stackable LiFePO4 Battery
204.8V 157AH 32.15KWH307.2V 157AH 48.23KWH
409.6V 157AH 64.3KWH
512V 157AH 80.38KWH
614.4V 157AH 96.39KWH
High Voltage 102.4V 16KWH 30KWH Module LiFePO4 Battery Cabinet
307.2V 280AH 86KWH409.6V 280AH 114.68KWH
512V 280AH 143.36KWH
614.4V 280AH 172.03KWH
Floor-standing LiFePO4 51.2V 20KWH Battery Stackable Cabinet
1> 51.2V 200AH LiFePO4 Battery Module, 2 modules in parallel to get 20KWH 2> Supported samrt communication function RS485/ RS232/ CANbus and meet most of Hybrid off grid inverters / MPPT controllers
3> Built in accurate coulomb counter (LED display), ON/OFF Switch, Handles, bracket and moving pulleys.
4> For the bracket, we customized the high quality unique metal bracket which is more stable, safely and very firm to hold the power wall lifepo4 battery
install on the wall and ground.
5> Cycle life over 6000 times
Floor-standing LiFePO4 51.2V 30KWH Battery Stackable Cabinet
1> 51.2V 200AH LiFePO4 Battery Module, 3 modules in parallel to get 30KWH 2> Supported samrt communication function RS485/ RS232/ CANbus and meet most of Hybrid off grid inverters / MPPT controllers
3> Built in accurate coulomb counter (LED display), ON/OFF Switch, Handles, bracket and moving pulleys.
4> For the bracket, we customized the high quality unique metal bracket which is more stable, safely and very firm to hold the power wall lifepo4 battery
install on the wall and ground.
5> Cycle life over 6000 times
Floor-standing LiFePO4 51.2V 50KWH Battery Stackable Cabinet
1> 51.2V 200AH LiFePO4 Battery Module, 5 modules in parallel to get 50KWH 2> Supported samrt communication function RS485/ RS232/
CANbus and meet most of Hybrid off grid inverters / MPPT controllers
3> Built in accurate coulomb counter (LED display), ON/OFF Switch, Handles, bracket and moving pulleys.
4> For the bracket, we customized the high quality unique metal bracket which is more stable, safely and very firm to hold the power wall lifepo4 battery
install on the wall and ground.
5> Cycle life over 6000 times
Q1: What are there included for a battery or pack , may I buy charger from you? A1: Battery case, BMS, battery pack, can buycustomzied connector, charger
Q2: How long frequency does recharge the battery?
A2: Usually per 2 months to recharge the battery pack , to charge full the battery depends on the charger current you use. 20A charger can charge full for 12V 100Ah battery in 5 hours, fast charger 50A in 2 hours.
Q3: What's the sample lead time, and bulk order delivery. How long I can get it?
A3: Fast delivery: If small quantity, can be finished in 3-5 days days after payement, bulk in 10-25 days depends on the quantity
Shipping: sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 50KG, can ship by air or by sea, sea shipping is more cheaper. Customer can tell your nearest airport name and sea port name for sales person to check the best option for you.
Q4. What is your warranty?
A4: We offer 10 years warranty for all our battery pack for different situation. We ensure at least 6000 cycle life for the
LiFePO4 battery pack, which means you can use it for at least 10 years for normal 1 time charge and discharge everyday.
Q5: Can I customize the size of battery?
A5: Of course yes if yourquantity MOQ workable.
Q6. Can we put different LiFePO4 battery pack in parallel or series by ourself?
A6: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1> Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.
2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery.
Q7. Can we use it for car engine?
A7: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for standard car directly, that will need more complex design BMS for the pack.
