SPECIFICATIONS

Application: Home

Battery Type: LiFePO4

Battery cell: 3.2V 304ah 314ah Prismatic Lifepo4 Cell

Brand Name: Delong

Certification: IEC62619/CE,MSDS,UN38.3

Chemistry: Lithium Iron Phosphate (Lifepo4)

Combination: 16S2P=600ah

Controller Type: MPPT,Pwm

Cycle Life: 8000 times

Free installation service: No

Load Power (W): 30 kW,15KW,45KW

Model Number: LFP51200,LVM30L

Mounting Type: Ground Mounting

Output Frequency: 100KHZ

Output Voltage (V): 51.2v

Place of Origin: Guangdong, China

Pre-sales project design: Y

Product name: Energy storage battery 30kwh 32kwh Home Lifepo4 Lithium Battery

Protection: Built in Smart 300A balance BMS

Solar Panel Type: Monocrystalline Silicon,Polycrystalline Silicon

Type: Floor standing

Warranty: 10 Years

Work Time (h): 10 hours

Welcome to Delongtop

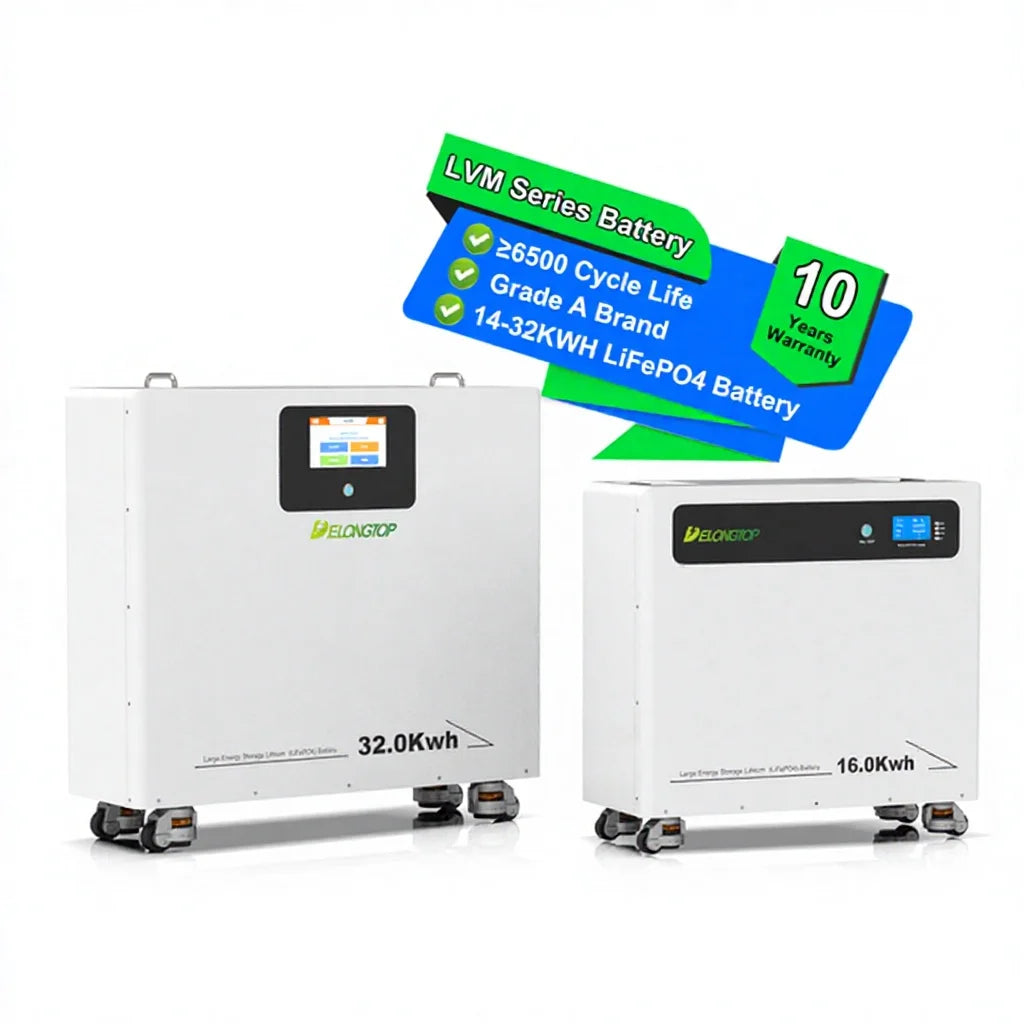

LVM Series Lithium Batteries include:

1) Floor Standing 51.2V 280AH=14.3KWH

2) Floor Standing 51.2V 300AH=15KWH

3）Floor Standing 51.2V 314AH=16KWH

4）Floor Standing 51.2V 560AH=28.6KWH

5）Floor Standing 51.2V 600AH=30KWH

6）Floor Standing 51.2V 600AH=33KWH

Product Description

Parameters	Datasheet
Models	LVM30L			LVM30L	LVM30L
Product Specification	51.2V 560Ah	51.2V 600Ah	51.2V 628Ah
Nominal Voltage	51.2V	51.2V	51.2V
Nominal Capacity	560Ah	600Ah	628Ah
Battery Energy	28.6KWh	30.7Kwh	32.2Kwh
Charging Cut-off Voltage	57.6V±0.2V
Discharging Cut-off Voltage	44.8V±0.2V
Charge Current	Recommend / 75A ; Max./150A
Discharge Current	Recommend /200A ; Max./300A; Peak / 310A(5 sec.)
Cell Type	LiFePO4 Battery
Terminal	M8
Case Material	Metal Box
Communication Mode	RS485/CAN
Charge Temperature Range	0~45C
Discharge Temperature Range	-5~55C
Cycle Life	≥8000 Cycles
Designed Life	12 Years
Weight	≈230Kg

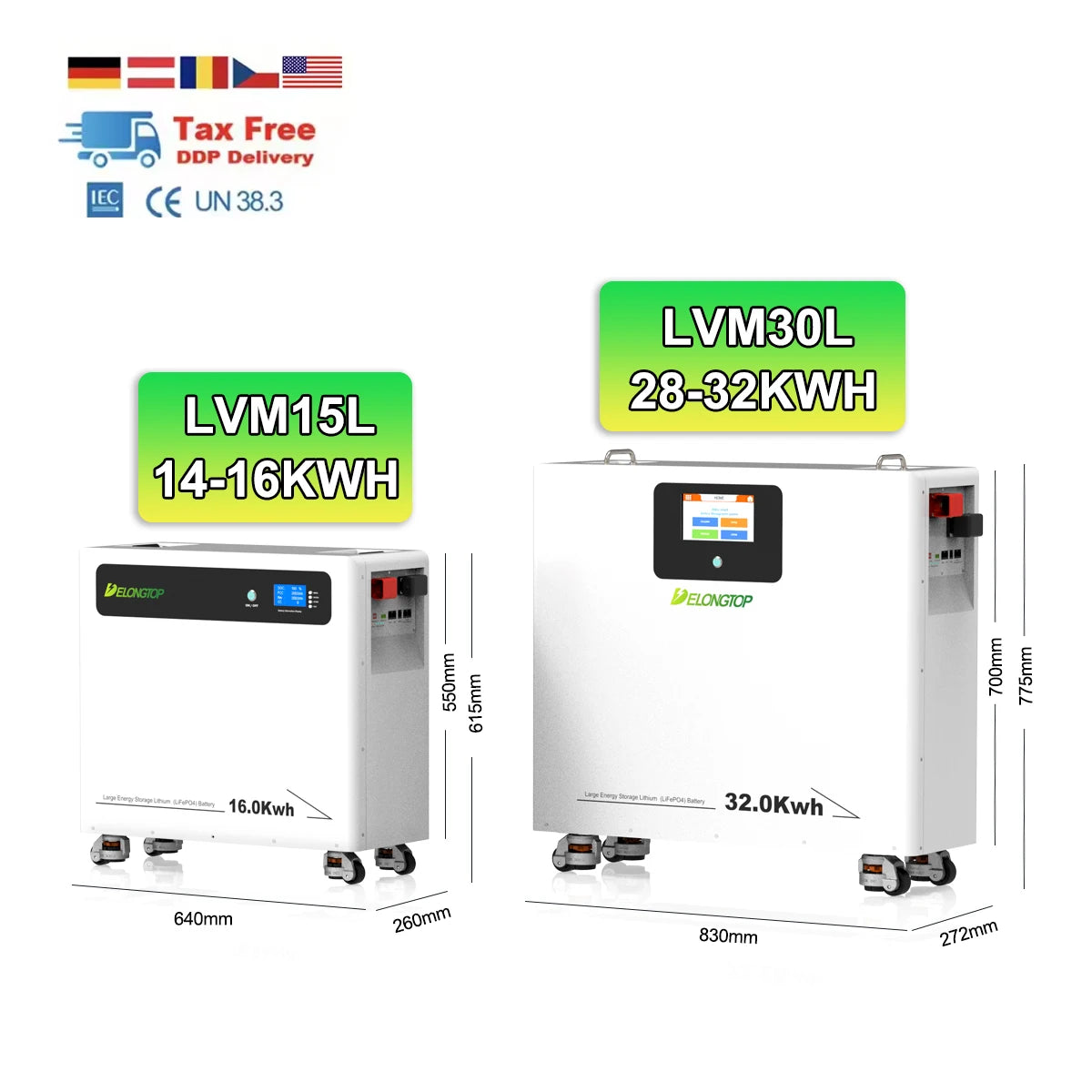

Dimensions (LxDxH)	L830mm x W272mm x H700 (With wheels 775mm)
Warranty	We provide 10 years warranty. Any product quality problems can be replaced in the first year for free. 2-5 years can be free replacement of new parts (e.g. BMS). 6-10 years to provide technical support.
Built in smart 300A BMS	Protection: Low Voltage Disconnect, Short Circuit, Over Voltage, Over Current , Over Charge, Over Discharge, Over Temperature Protection, Internal Cell Balancing, etc.
Products Features:	1> Supported samrt communication function RS485/ RS232/ CANBUS and meet most of Hybrid off grid inverters / MPPT controllers. 2> Built in accurate coulomb counter (LED display), ON/OFF Switch, Handles, pulley base. 3> For the base, we customized the high quality unique metal base which is more stable, safely and very firm

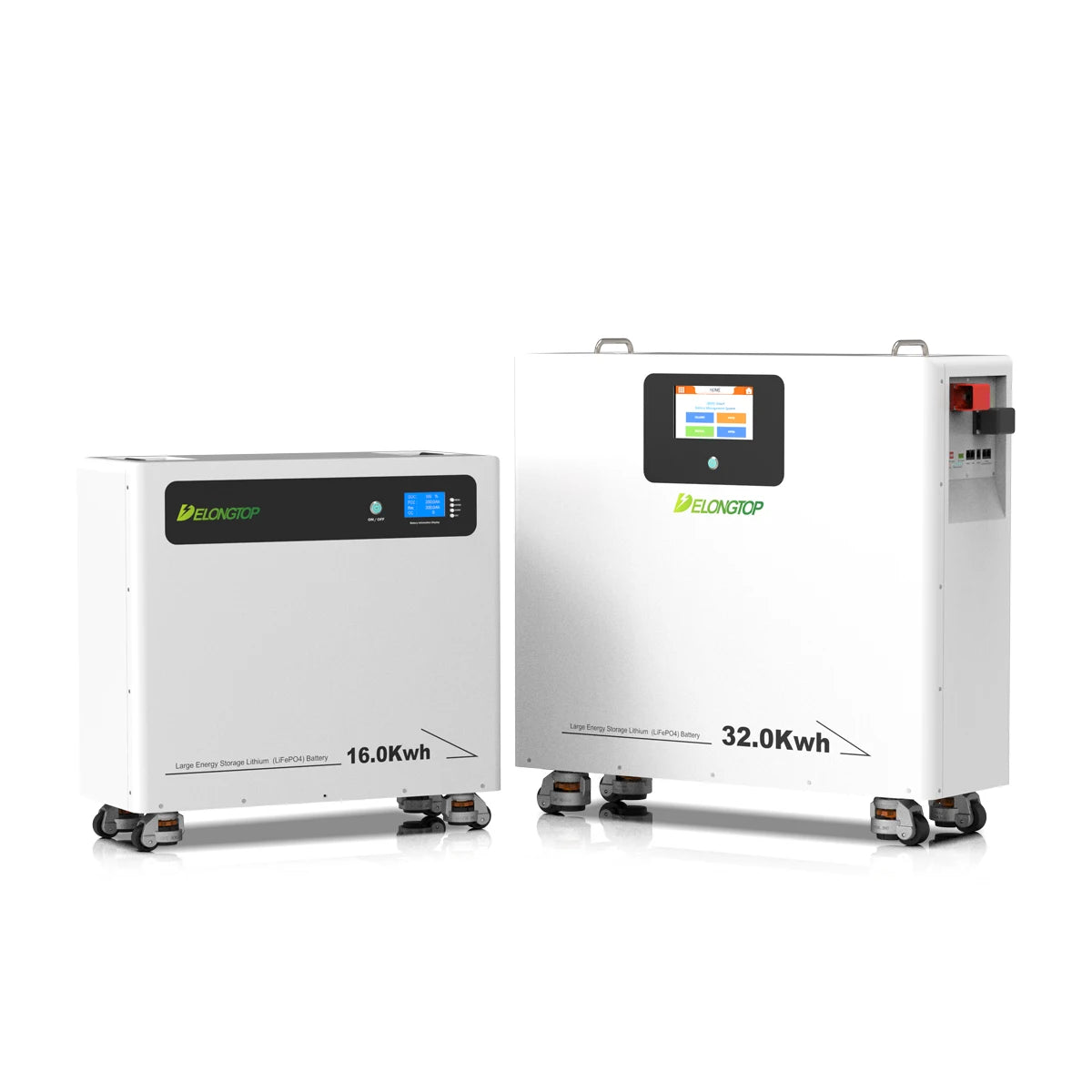

51.2V 560Ah 600Ah 30KWH LiFePO4 Battery

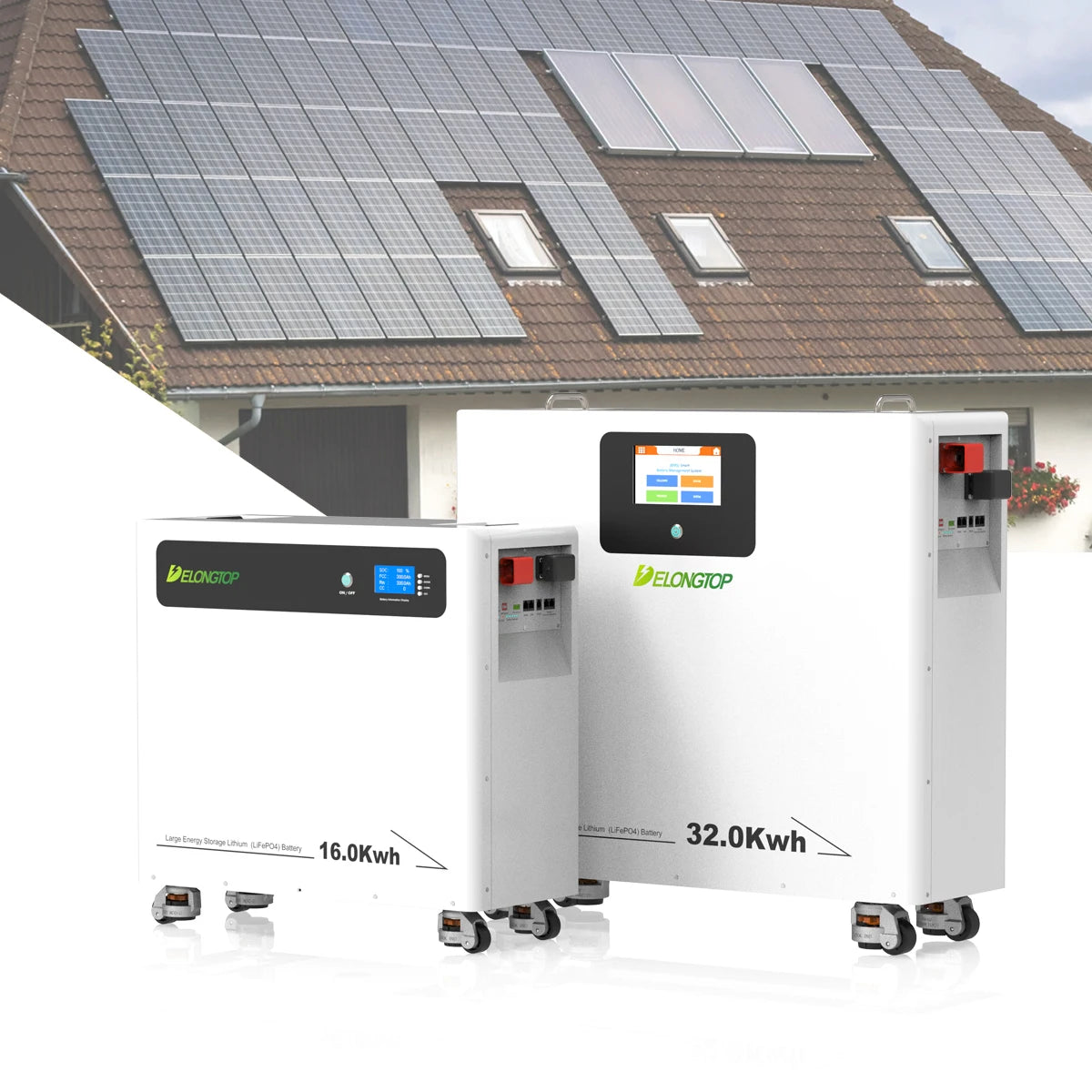

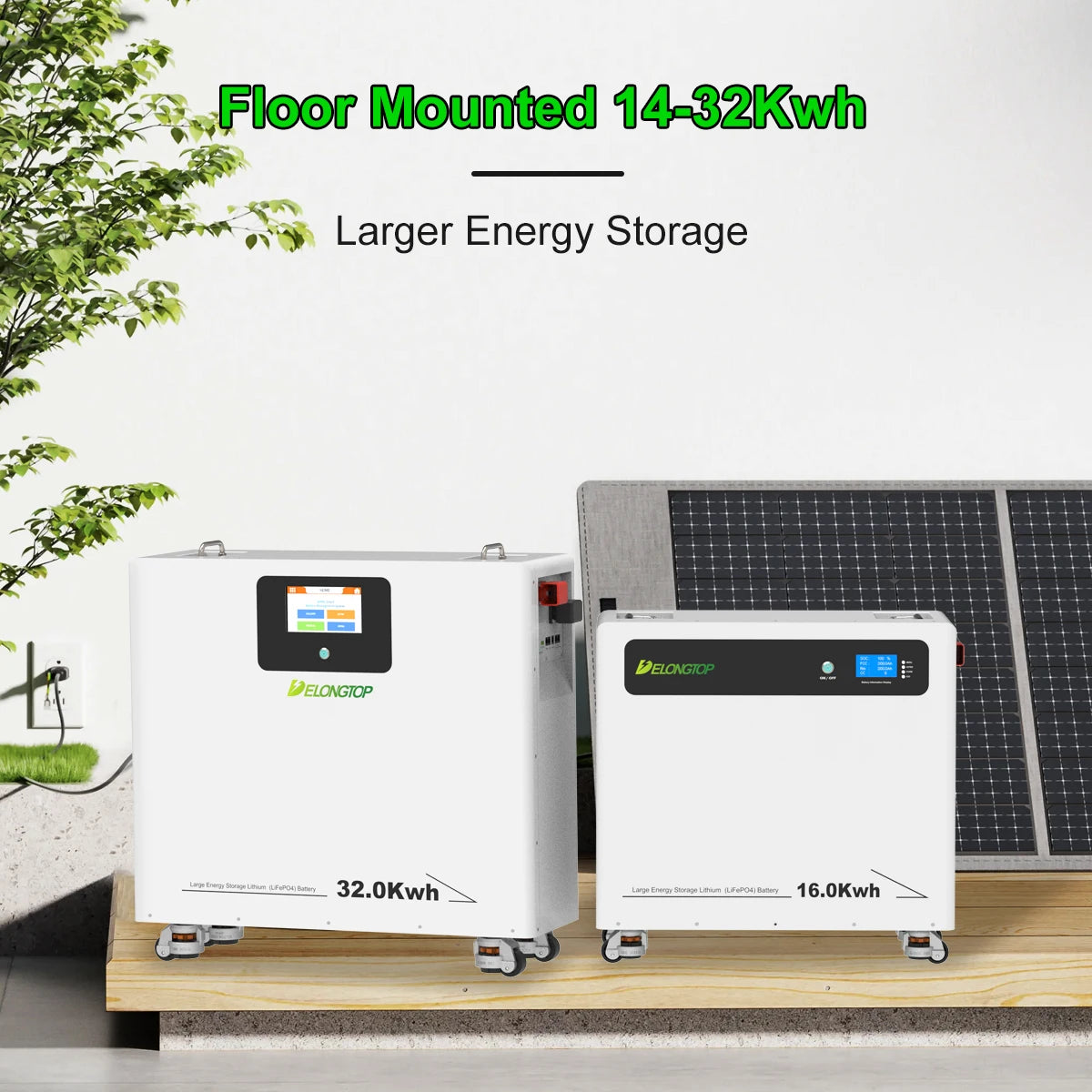

Mobile Floor Standing 51.2V Battery

Premium Quality Energy Storage Batteries – Built to Last
At Delongtop, we deliver high-performance, reliable lithium battery solutions by combining top-brand cells, stringent testing, and in-house manufacturing expertise.1> Certified & High-Quality Battery Cells ((e.g., CATL, BYD, EVE, Lishen, or specify your brands) to ensure long lifespan, stability, and safety.)
2> In-House Manufacturing & Advanced BMS
3> Every battery is 100% tested before shipment, including:
* Capacity Verification (full-cycle discharge test).
* Safety Checks (temperature, vibration, and insulation resistance tests).
* Performance Validation (efficiency, cycle life simulation).

Application

Stackable Lithium Battery Certification ( CE, MSDS, UN38.3, ISO and IEC etc)

How to connect the batteries to Inverters？

Packing

100% brand new grade A battery cells, Each battery pack has a separate QR code.

LiFepo4 Grade A cells offer a higher number of charge-discharge cycles and better stability, making them a reliable choice for devices requiring high-performance, durable power solutions. ensuring consistent performance, minimal self-discharge, and a lower risk of failure. long life.

Related products

Factory View

Project Cases

Product Packaging

FAQ

Q: Are you trading company or manufacturer?
A: We are DELONG original factory from shenzhen , China.

Q. Can I print my LOGO on it？
A: YES, LOGO/sticker/OEM/ODM welcomed

Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.

Q. Can the bms be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.

Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 7 days.and buyer pay for sample cost and shipping cost.

Q. What warranty do I have？
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.

Q: Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.

Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.

Q. Does the app allow to check the voltage of each cell?
A: YES, the App allows you to read the voltage of each at any time.

Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.

Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.

Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.

Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on. If order amount>10K usd, The payment term will be 30%T/T for deposit and the balance before shipment

Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Using lithium chargers to wake up the battery. The lithium charger wakes up the batteries automatically.
