Photovoltaic Kit Lithium Ion Batterie Solar Panel Battery 48v 230ah 280ah 304ah 10kw 15kw 30kw 60kw Lifepo4 Battery Home Bank
280Ah / White / 51.2V 280Ah (14.33KW)
₱84,828.33PHP
Sale price
₱84,828.33PHP
Regular price
₱84,828.33PHP
Skip to product information
Photovoltaic Kit Lithium Ion Batterie Solar Panel Battery 48v 230ah 280ah 304ah 10kw 15kw 30kw 60kw Lifepo4 Battery Home Bank
₱84,828.33PHP
Sale price
₱84,828.33PHP
Regular price
₱84,828.33PHP
SPECIFICATIONS
BMS: 16S 100A or 150A
Battery Type: LiFePO4
Battery cell: EVE A Grade Lifepo4 Cell
Brand Name: EEL-V3-48 280Ah
Certification: CE/ROHS/MSDS/UN38.3
Color: White/Black
Communication Port: CAN,RS-232,RS485
Cycle life: 6000 Cycles
Dimension (L*W*H): 69.8cm*41cm*25cm
Grid connection: Off grid,Hybrid grid
MOQ: 1pcs Sample
Model Number: EEL-A01
Nominal Capacity: 230Ah/280Ah/304Ah
Nominal Voltage: 51.2volts
OEM/ODM: Warmly Welcomed
Output Power Range: 10~20 kWh
Place of Origin: Guangdong, China
Protection Class: IP65
System Type: Stackable
Type: Split
Warranty: 12 Years
Weight: 95KG
FEATURE:

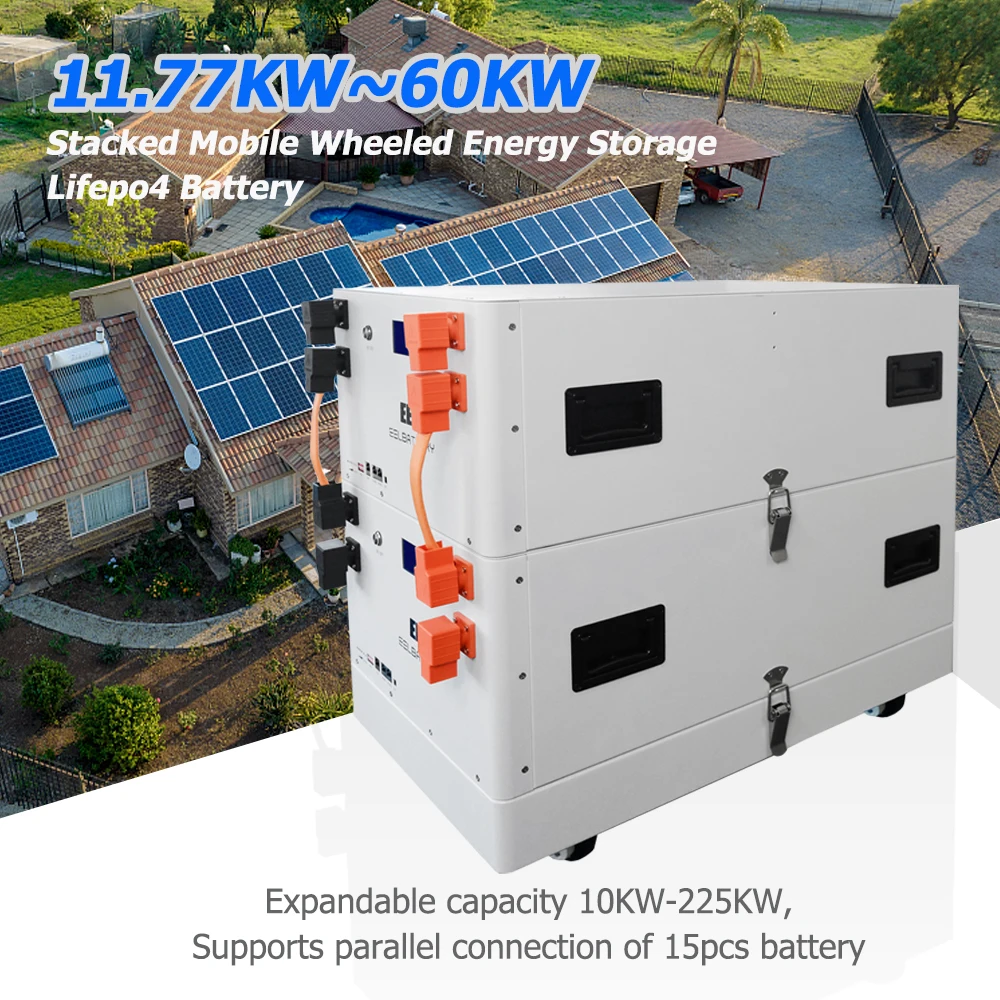

1.Stackable lightweight design with moving wheels

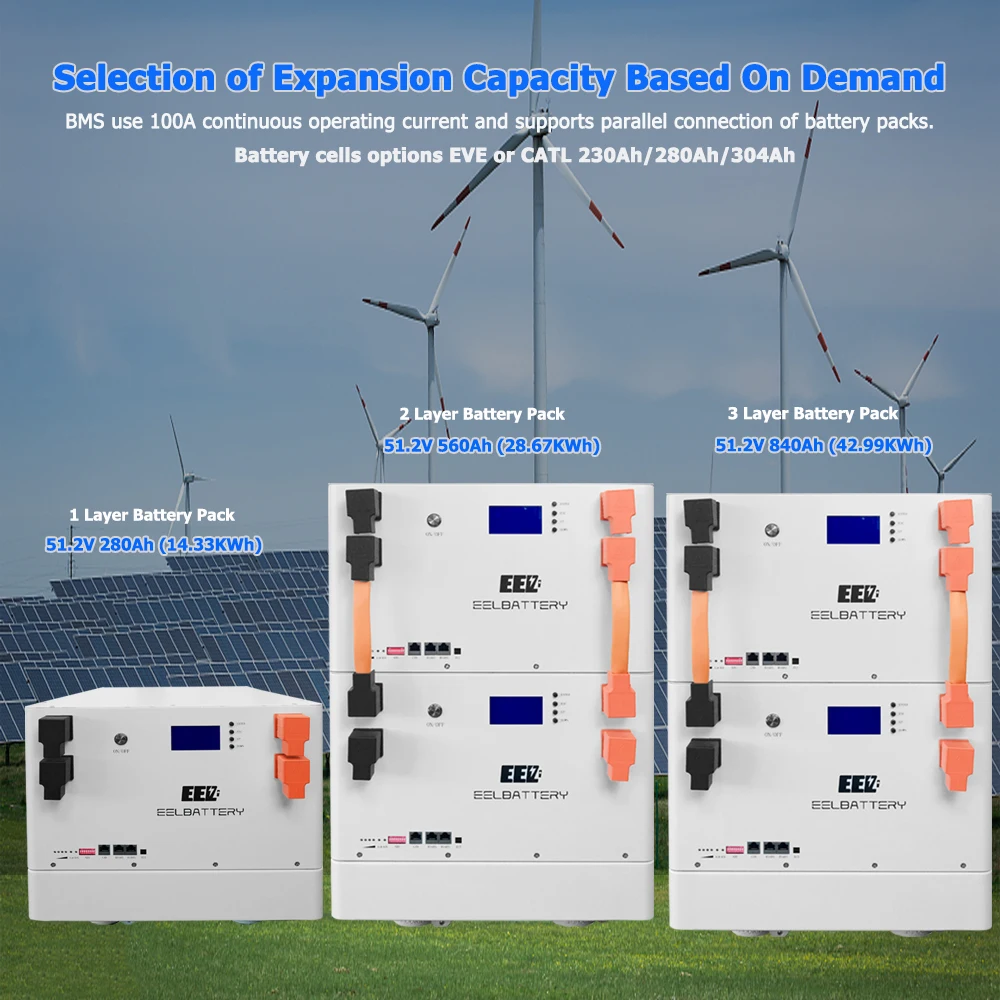

2.Up to 4 batteries can be stacked per energy storage system, supporting up to 15pcs parallel connection
3.We have 3 model of lifepo4 cells choose from to fit into the energy storage system: 230Ah/280Ah/30Ah.
4.We can provide 1 set of samples to test this battery pack, and support customising your logo.
5.This model is shipped from our warehouse in China and supports customisation

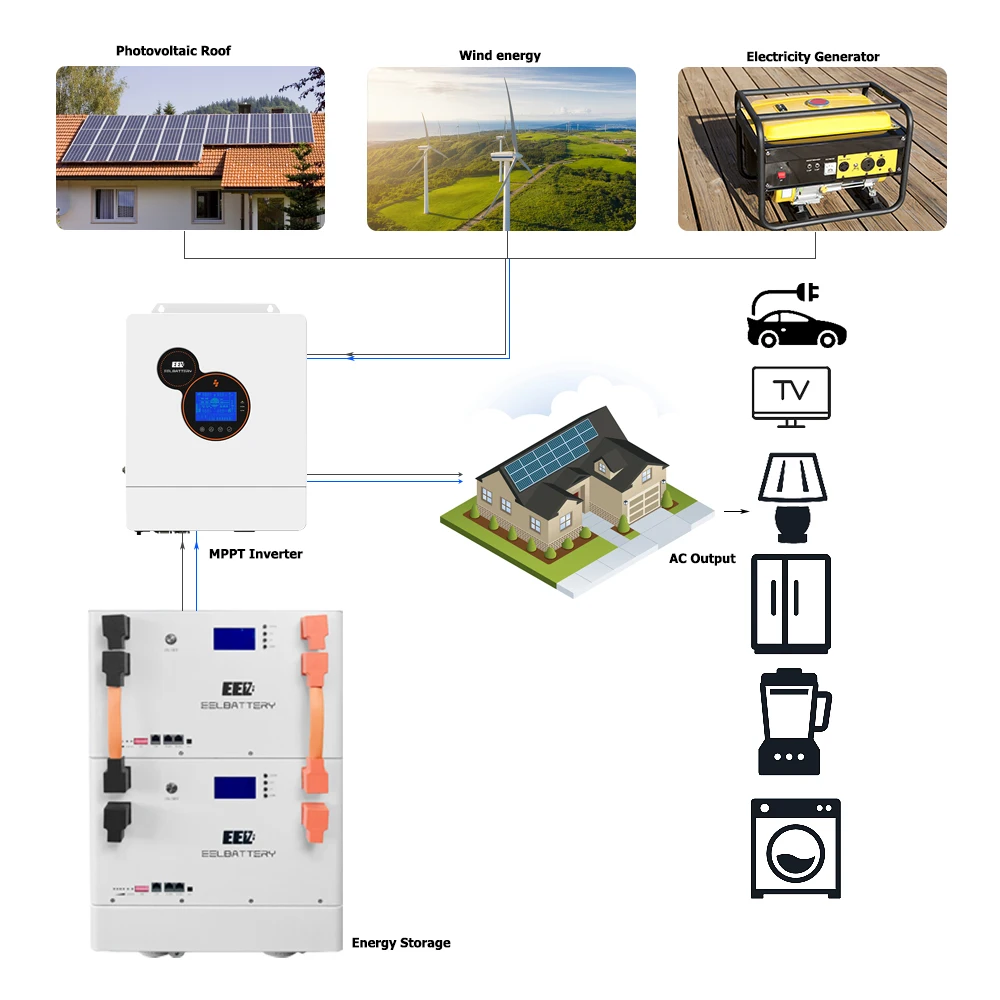

WIDESPREAD APPLICATION
* Solar Energy Storage
* Backup UPS power supply
* Server Rackmount Backup Power
* RV
*Farm photovoltaic energy storage systems
QUALITY ASSURANCE
*All products have passed IEC62619 EMC test, before leaving the factory will passed aging test, vibration test,
cyclic discharge test, high-speed load test, charge and discharge test. * We purchased 1.5 million safety liability insurance for all lithium batteries
cyclic discharge test, high-speed load test, charge and discharge test. * We purchased 1.5 million safety liability insurance for all lithium batteries
* The factory has passed TUV & ISO9001-2015 quality management system certification
* We provide customers with long term technical support and 12 month product warranty period
* Products are 100% compliant with ROHS standards
OUR SERVICES
* 1.The production time for sample orders is 7-10 days, And production time for batch orders is based on order quantity. Lead time within 5000Pack is 30Days.
* 2. Support OEM/ODM.
* 3. You can visit our factory online, welcome to visit us at any time.
ORDER PROCESSING
1.Sample order: We need 7-15 days for sample delivery, we need to prepare production, packaging, inspection,testing according to your order, and then complete the shipment
2. Bulk orders: We will complete the shipment within 30-45 days, which includes preparing the order raw materials, finished product assembly, testing, inspection, packaging, and then complete the shipment
SHIPPING TIME
All items sold at EEL BATTERY are guaranteed to be delivered in 45 days. We will choose air and sea freight according to your order emergency It usually takes 3-10 days to arrive by air, and the time of transportation will vary depending on the port of destination. Please understand us For bulk goods, we will choose sea shipping,the shipping time will generally arrive at the destination port within 30-45 days.
Specification
Model |
XLN-V3-14.33KW |
XLN-V3-28.67KW |
XLN-V3-43KW |
|
Nominal Voltage |
48V |
48V |
48V |
|
Nominal Capacity |
280Ah |
560Ah |
840Ah |
|
lnner Resistance |
≤10Ωm |
≤7-8Ωm |
≤7-8Ωm |
|
Cell Type |
LiFePO4 |
LiFePO4 |
LiFePO4 |
|
Charge Voltage |
58.4V |
58.4V |
58.4V |
|
Standard Charging Current |
56A |
112A |
168A |
|
Max.Continuous Charging Current |
140A |
280A |
420A |
|
Standard Discharge Current |
56A |
112A |
168A |
|
Continuous Discharge Current |
140A |
280A |
420A |
|
Discharge Cut-off Voltage |
42V |
42V |
42V |
|
Charge Temperature Range |
0~50℃ |
0~50℃ |
0~50℃ |
|
Size(LxWxH) |
69.8cm*41cm*25cm |
69.8cm*41cm*50cm |
69.8cm*41cm*75cm |
|
Shell Material |
SPCC |
SPCC |
SPCC |
|
Package Method |
1pcs per carton |
1pcs per carton |
1pcs per carton |
|
Cycle Life |
6000 cycles |
6000 cycles |
6000 cycles |
|
Self Discharge |
2% per month |
2% per month |
2% per month |
|
SOC Indication |
LED Light & LCD Screen |
LED Light & LCD Screen |
LED Light & LCD Screen |
|
Communication Protocol |
RS485/CAN |
RS485/CAN |
RS485/CAN |
|
Matching Inverter |
Growatt, Goodwe, Deye, Luxpower, Zeconex etc |
|||
Protection Class |
IP65 |
|||
Product Description
Certificates
Company Profile
EEL Battery CO.,Ltd is a specialized company which dedicated to R&D,production and marketing of LiFePO4 battery pack,18650 lithium battery pack,ebike battery,LiFePO4 cell,li-ion polymer battery products.After 10years of rapid development,EEL has accumulated core technology and comprehensive solution for power battery products,meanwhile we have obtained the approval and praise of customers from all over the world.Most of our battery models have MSDS,UN38.3,CE,UL1642 certificates.Depending on professional R&D engineers,enthusiastic sales team and reliable after-sales service,our battery products are widely used in the field of off-grid solar power system,solar street light,RV,electric vehicles,golf cart,power tool,backup power,medical device. Our goal is to provide competitive,safe and superior battery products for customers,we also pay attention to environmental protection and take social responsibility, encourage people to use green new energy.Believe in us,EEL will be your trustworthy partner in battery business!

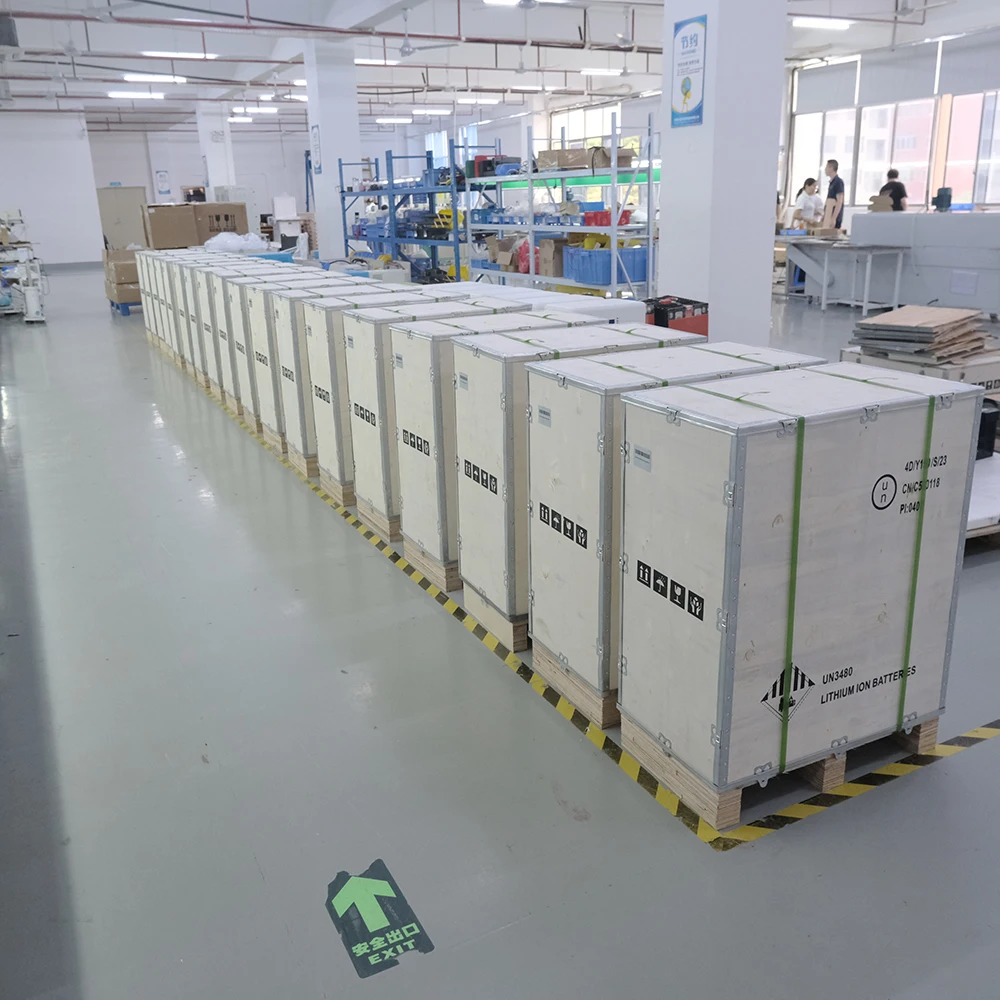

Packing & Delivery
FAQ
Q1:Can I have samples to test? And what is lead time for sample order?
A1:Yes,we can supply samples,the leadtime for samples is 7-10 days.and buyer pay for sample cost and shipping cost.
Q2: Do you provide after-sales serive?
A2: Yes,the warranty is 1-3 years, if any quality problems on our side in this period, we can send a new one as a replacement.
Q3 What is your company's advantage?
A3: We only supply high-level quality of lithium batteries and we guarantee on-time shipment, we also provide excellent after-sales
service
Q4: Do you accept OEM/ODM?
A4: Yes, it is available.
Q5: What information do you need to make a customized battery pack?
A5: We need the details below:
1. The size of the battery pack you need in mm.
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. Casing and Terminals if required.
7. Any protection circuits you may need.
Q6:Are your battery's real capacity?
All of our battery cells are Grade A,100% new, and real capacity.
Are you a factory or a trading company?
A7: We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.
Q8: What kind of certificates do you have?
A8: We can provide CE, ROHS, IEC62133, MSDS, and UN38.3 if you need them.
Q9: What is your lead time for the mass production?
A9: Generally speaking, it takes about 25-30 days depending on different items after getting a down payment and confirmation about
the samples.
