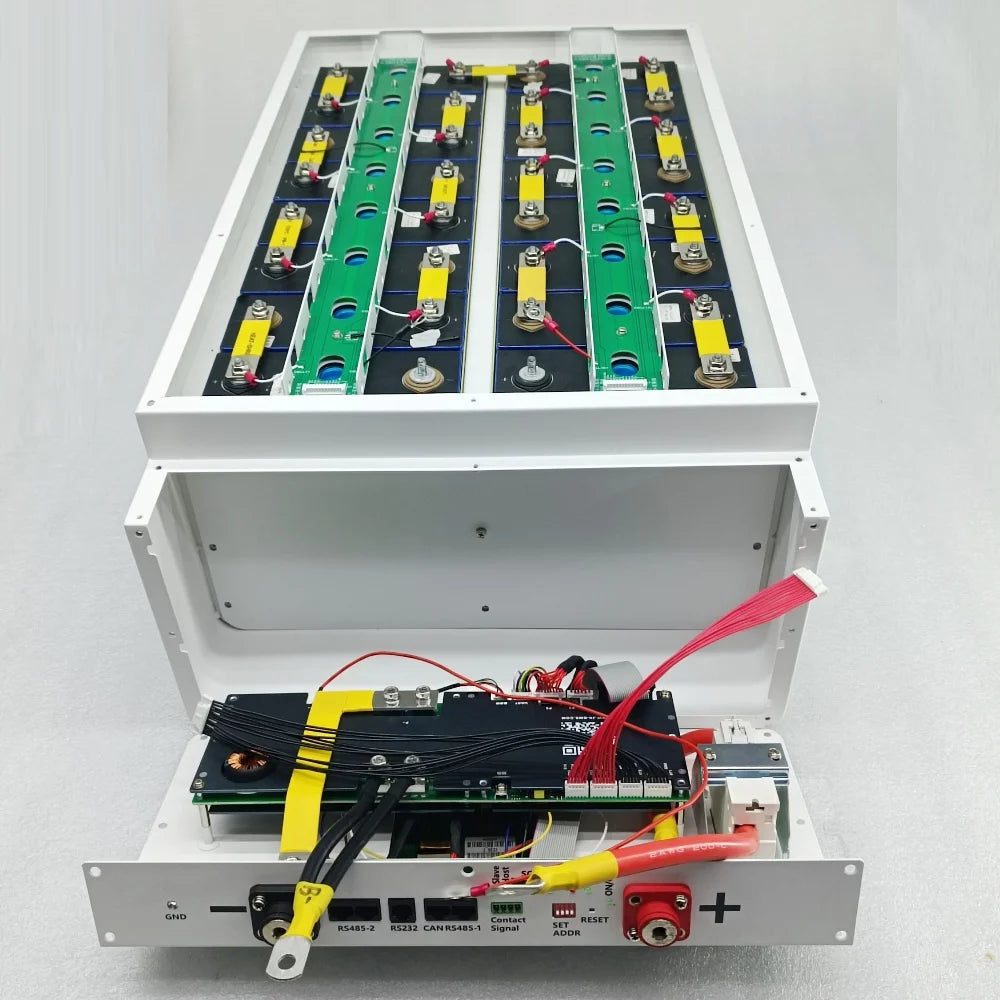

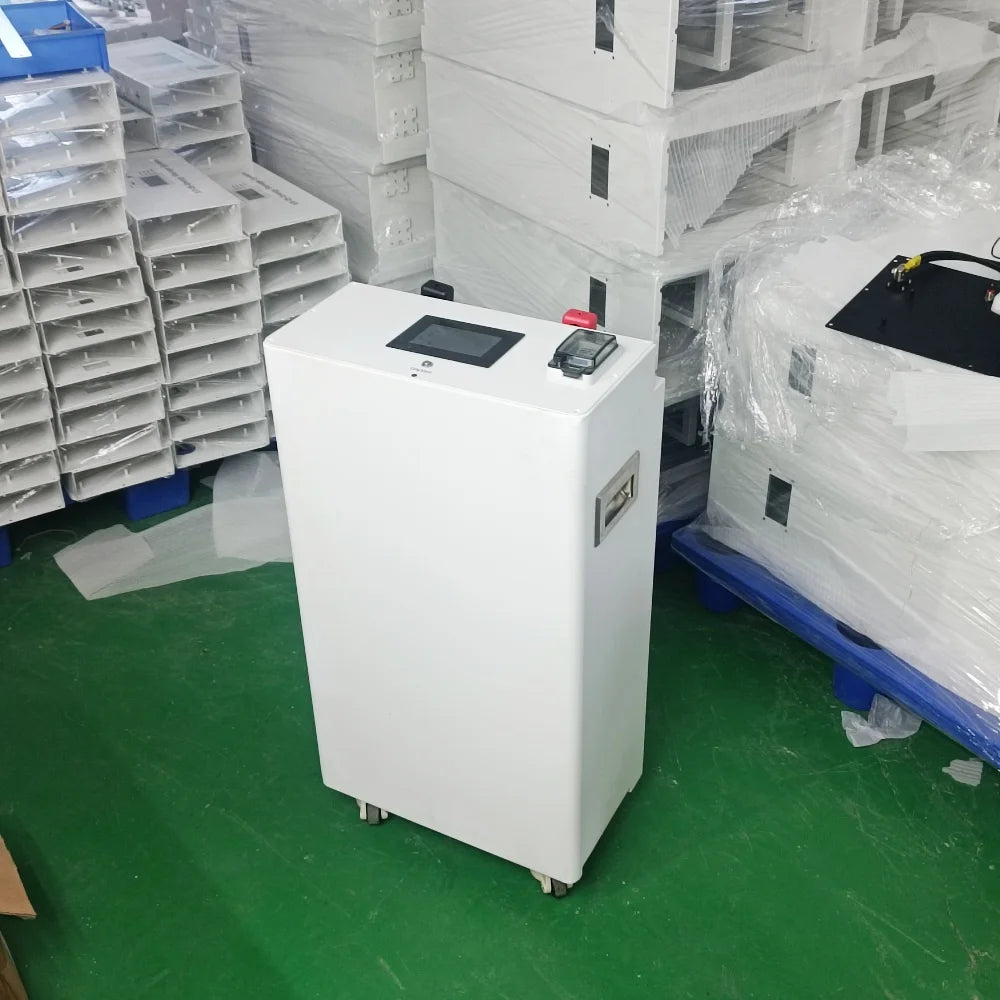

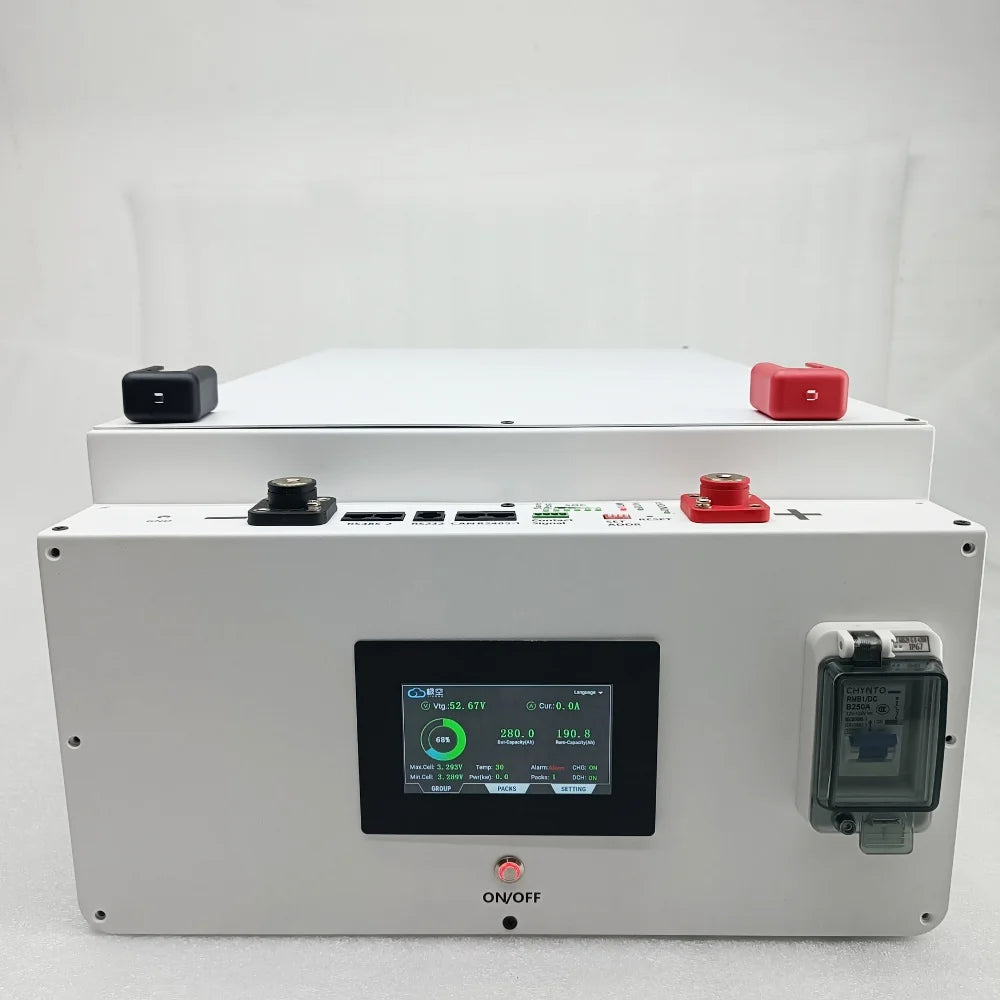

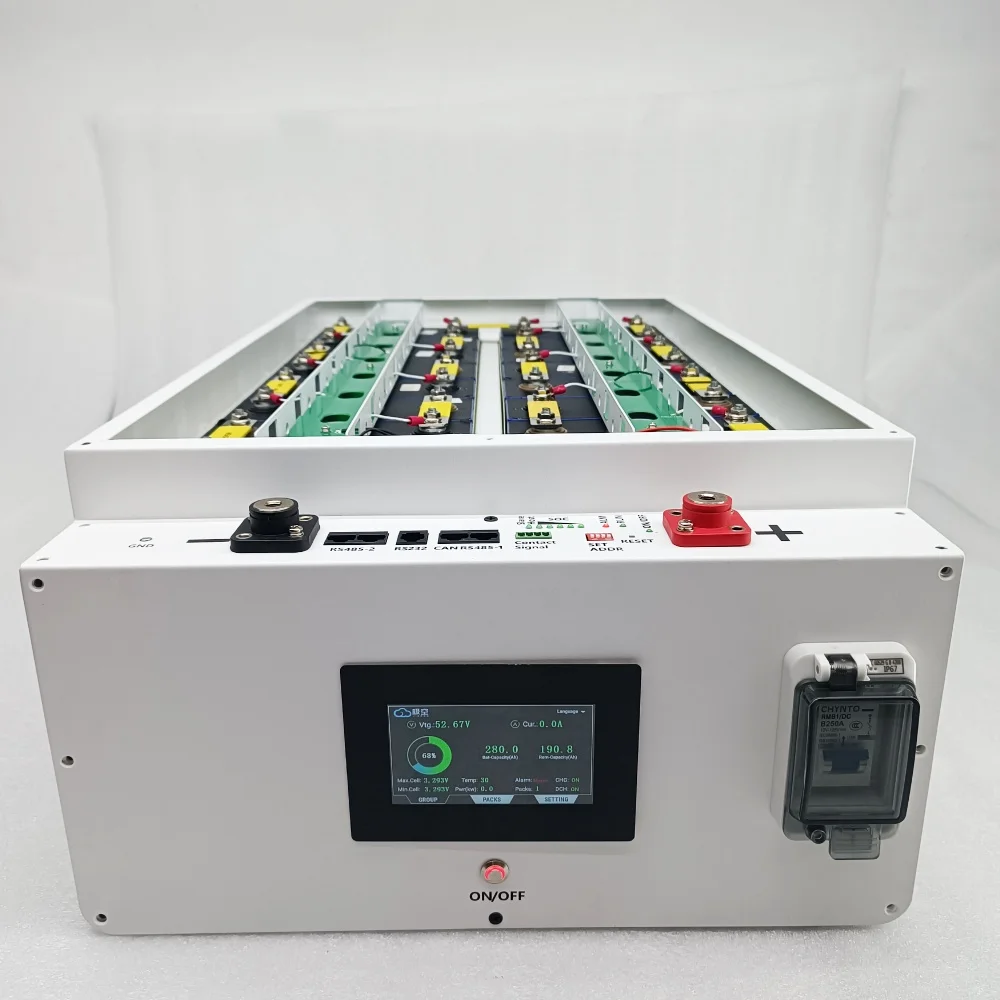

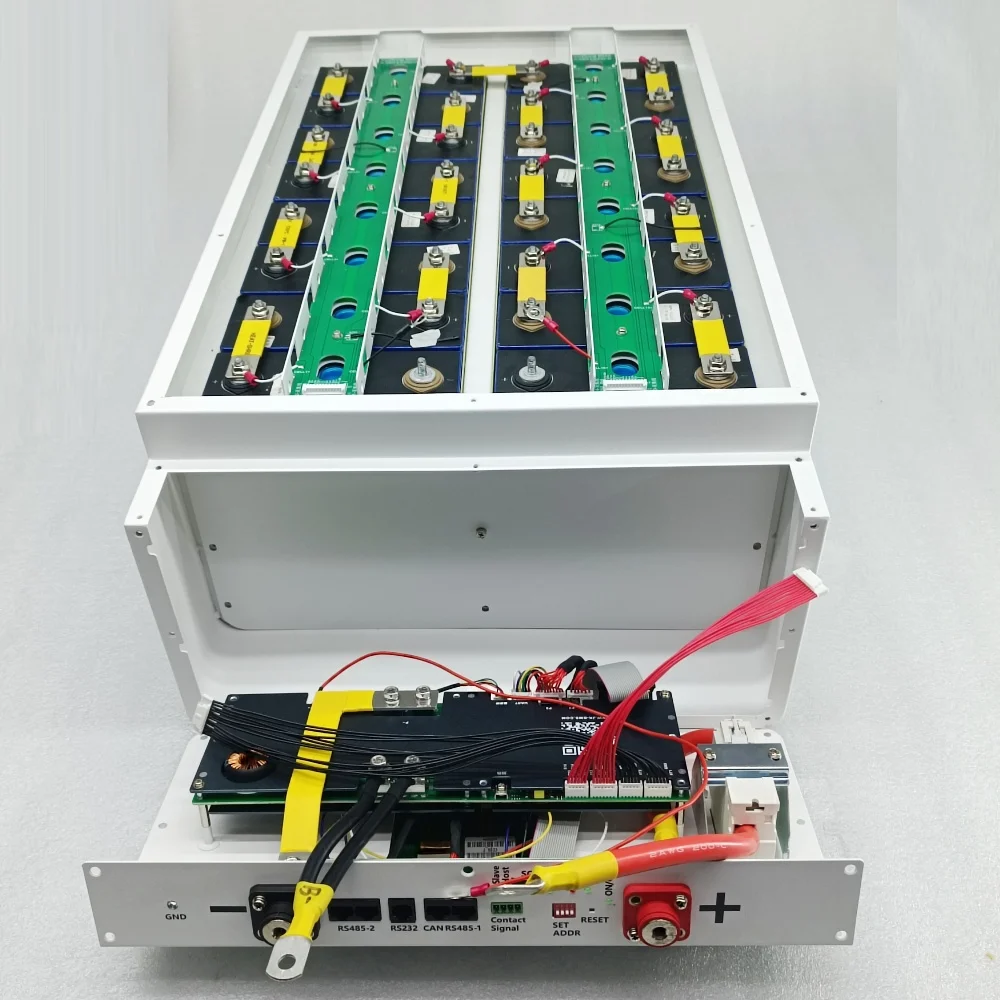

JK Inverter BMS V19 4.3 LCD XR12 48V 280AH 15KW Solar Home Energy Storage LiFePO4 Battery Case DIY Kit for 280AH 314AH

XR12-48V-280AH-Foot

₱15,731.38PHP

1/7

JK Inverter BMS V19 4.3 LCD XR12 48V 280AH 15KW Solar Home Energy Storage LiFePO4 Battery Case DIY Kit for 280AH 314AH

₱15,731.38PHP

color XR12-48V-280AH-Foot XR12-48V-280AH-Foot-PCB-BusKIT XR12-48V-280AH-Foot-PCB-BusKIT-BMS XR12-48V-280AH-Wheel XR12-48V-280Ah-Wheel+PCB+Bus XR12-48V-280Ah-Wheel+PCB+Bus+BMS

SPECIFICATIONS

BMS: compatible V19 JK-PB2A16S20P+ V19 4.3 inch LCD(LCD-4.3-TTL-P)

CELL Type: compatible EVXX CATXX 270AH 280AH 304AH 314AH 320AH

Feature: LiFePO4 Battery BOX

Material: sheet metal

brand name: XinRong

model number: XR12-48V-280AH-Battery Case DIY Kit

place of origin: Guangdong, China

private mold: Yes

product type: Battery Case DIY Kit

Note: Prices are EU/US DDP prices. You can buy directly, except for remote areas.

If it is a remote area, we will contact you to pay the shipping fee or let you cancel the order and refund. (Germany, France, Italy, Poland, Czech Republic, Australia, Belgium,Spain, Netherlands, Finland, Greece, Luxembourg, Sweden, Portugal, Slovakia, Slovenia, Denmark, Austria, Hungary, Lithuania,
Ireland, South Korea, Canada, United States, Japan)

This battery case doesn't include the CELL, because it is very heavy,so it will be sent by train or sea, the transportation time is 35-70 days ,diferent place with different delivery time, therefore, it may be earlier or later,please be noticed before purchasing.Of course, you can contact customer service for more channel quotes.

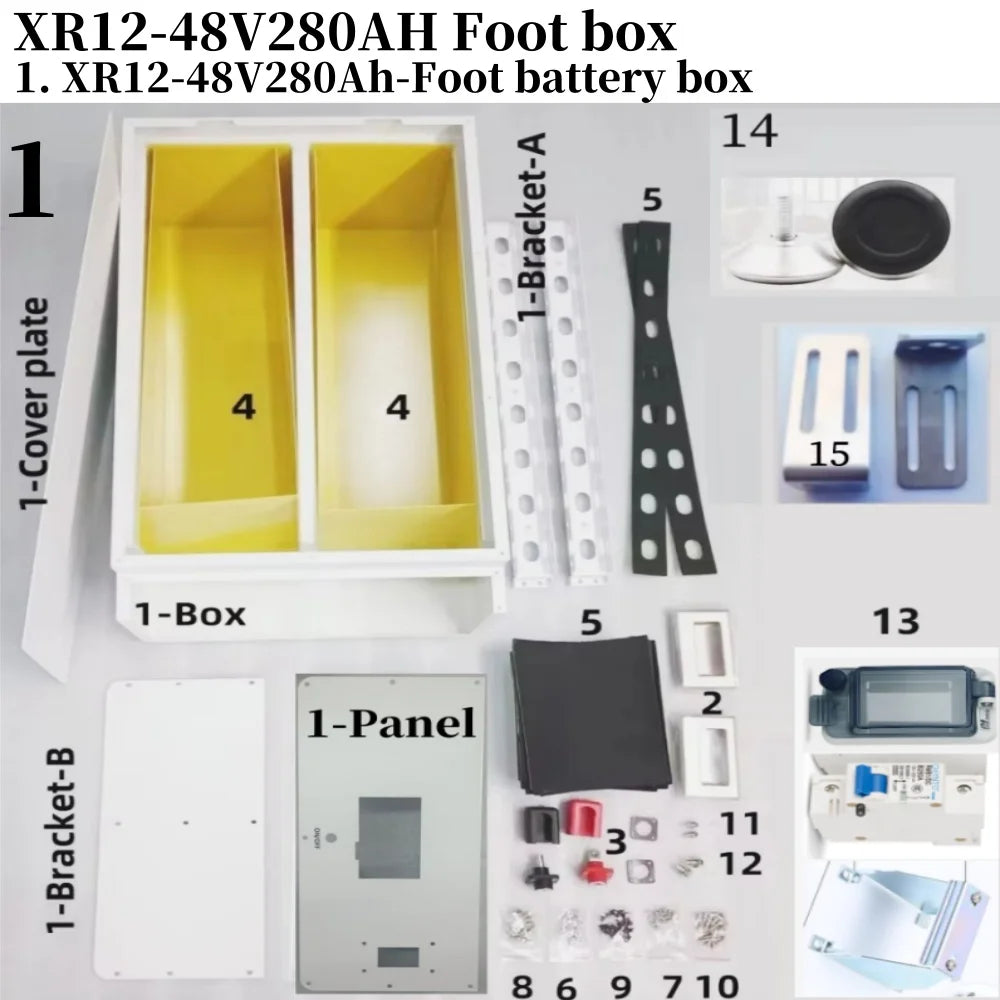

1. Overview

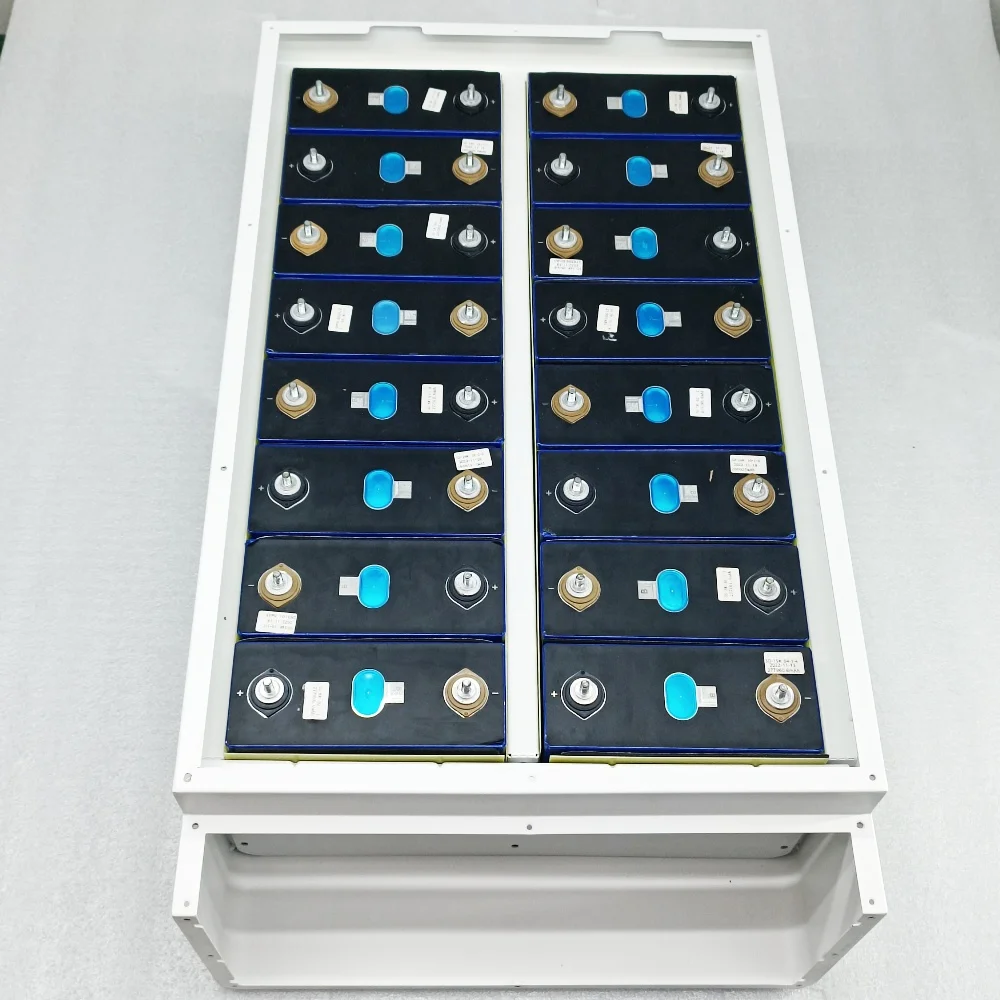

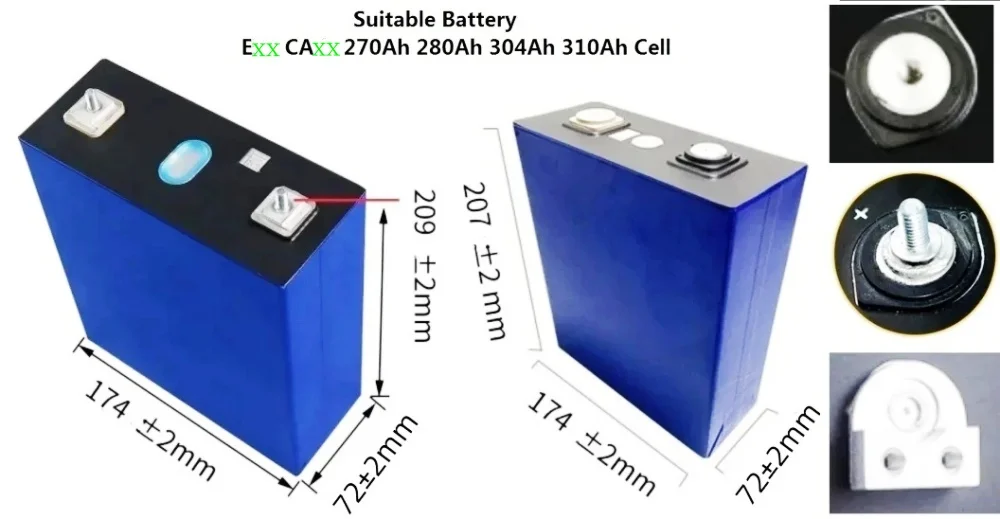

1.1 Suitable Battery:

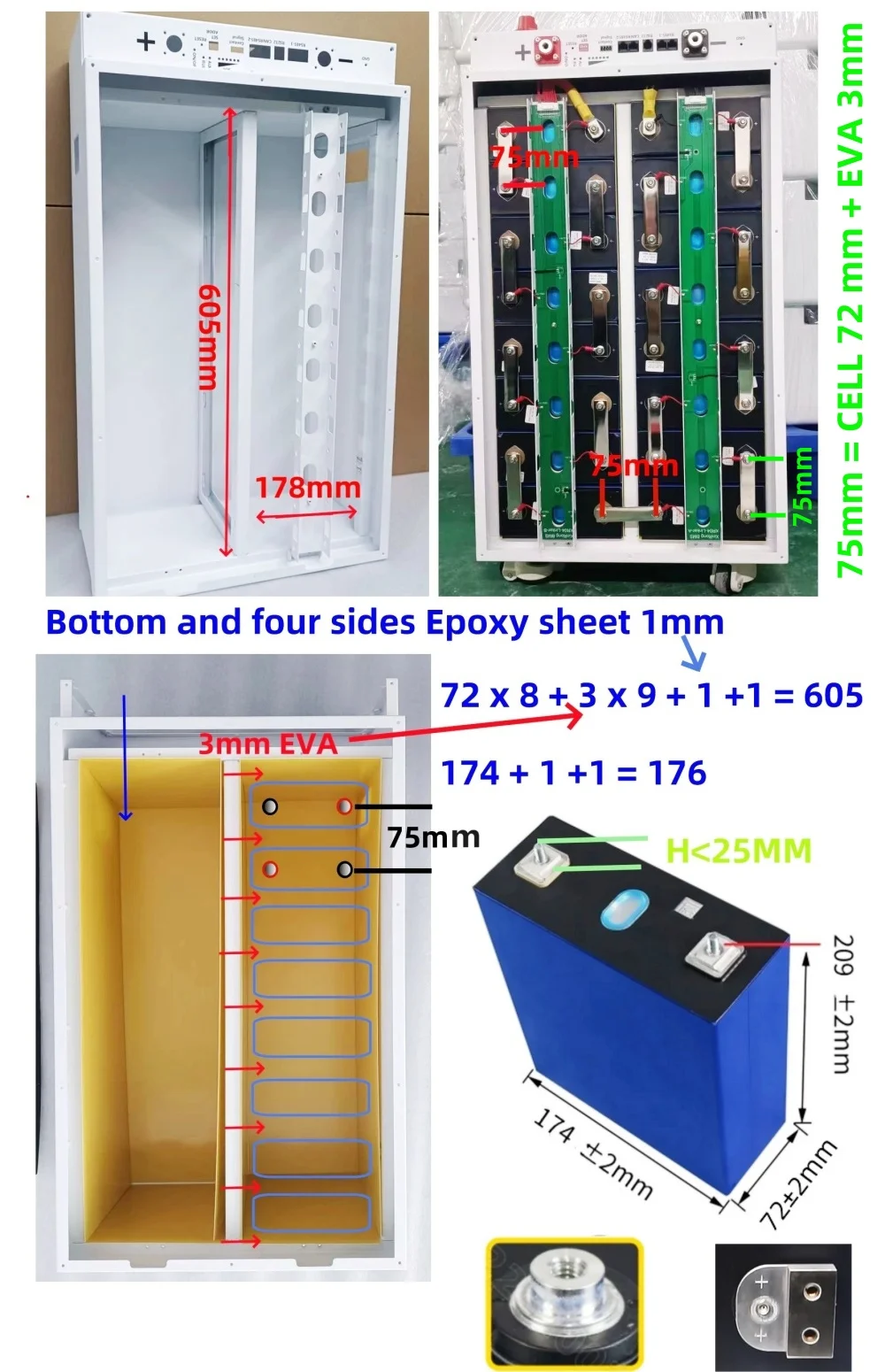

207 X174 X72 mm

EXX/CAXX 270Ah280Ah 304Ah 310Ah Cell

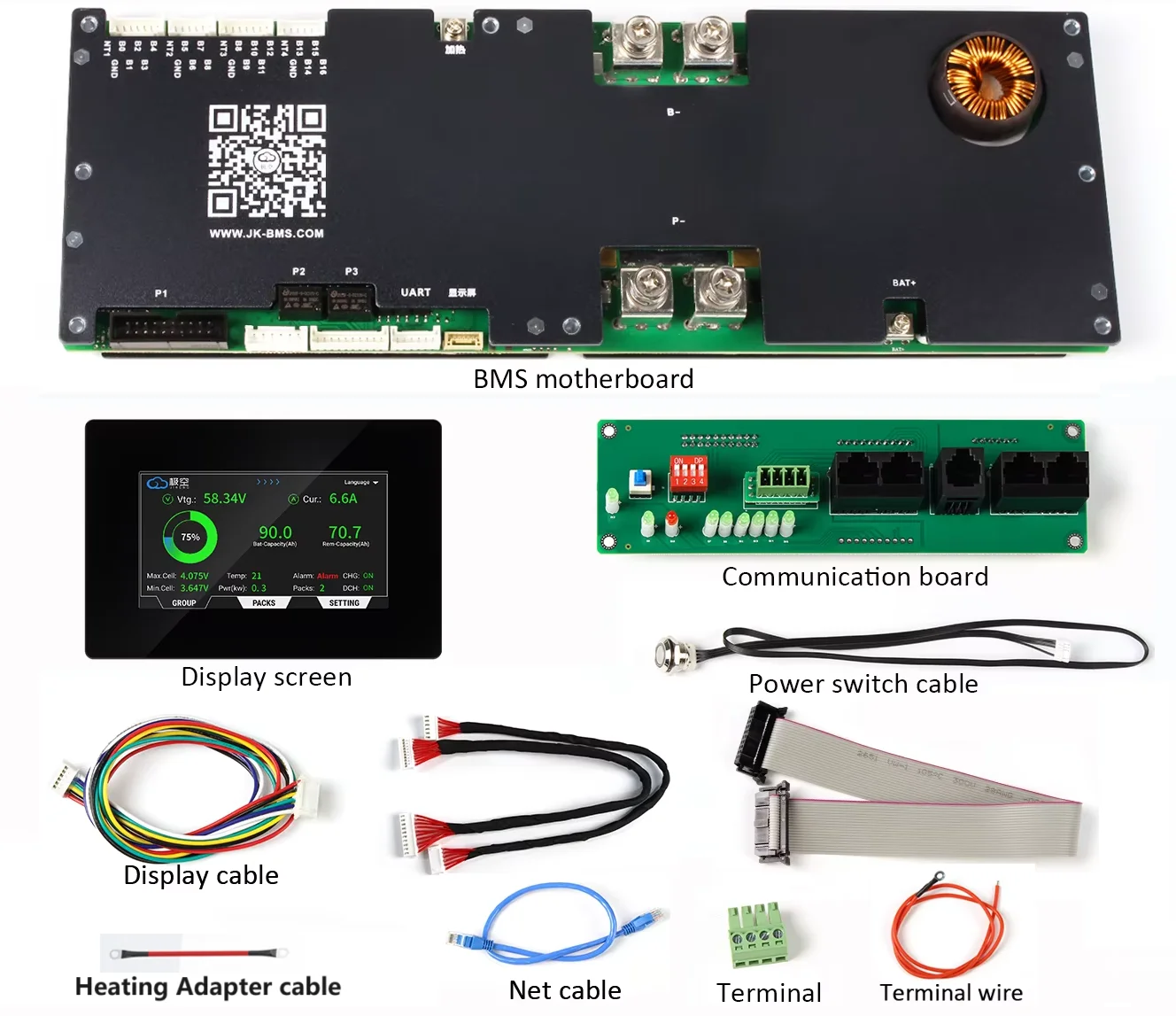

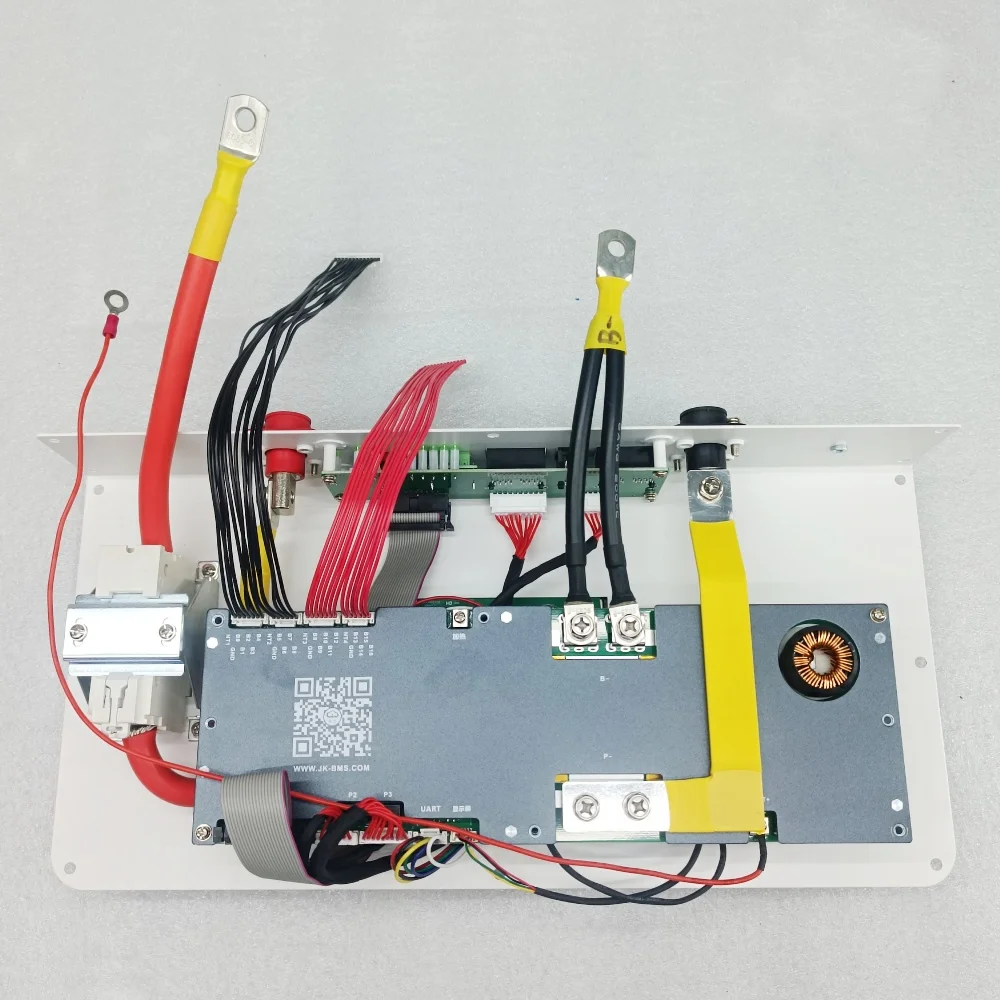

1.2 Suitable BMS:

V19 JK-PBxA16S-xxx BMS V19 4.3 LCD

1.3 Battery Pack Type:

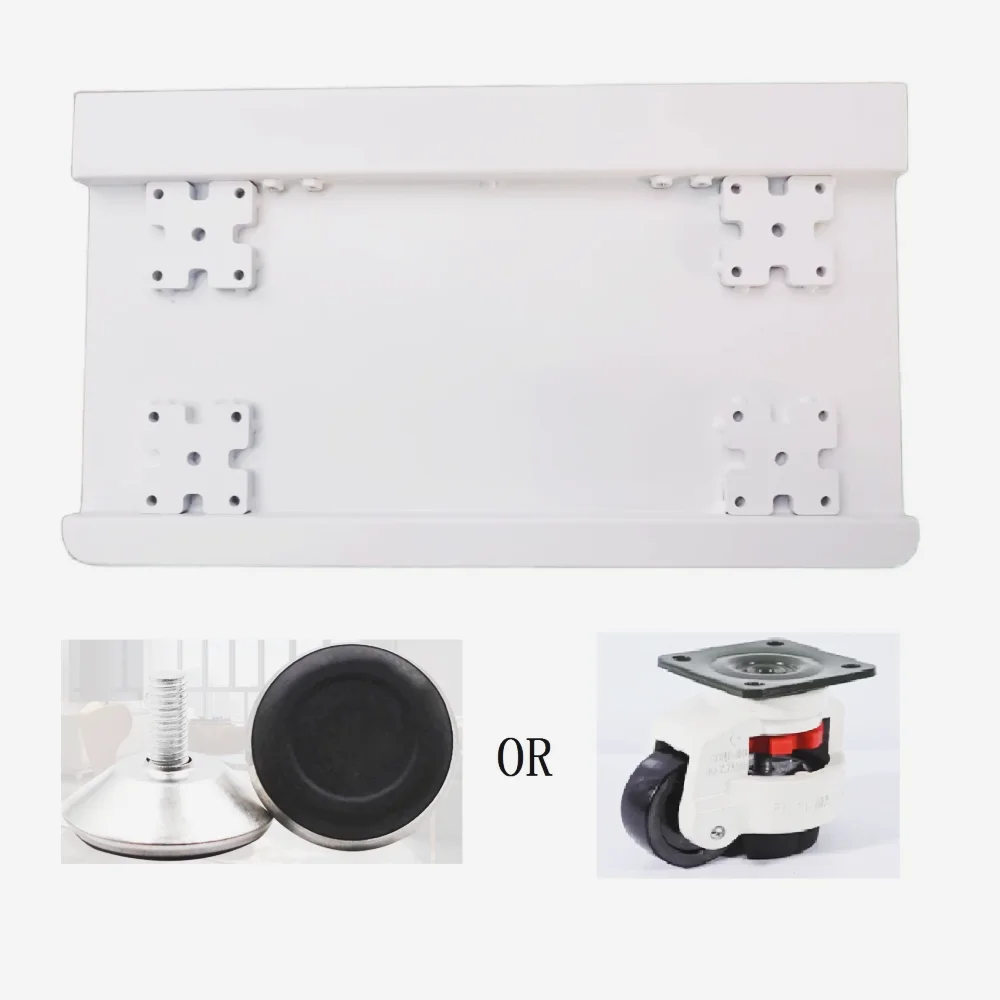

Stand upright OR Stackable

1.4 size:720(780)x420x240mm

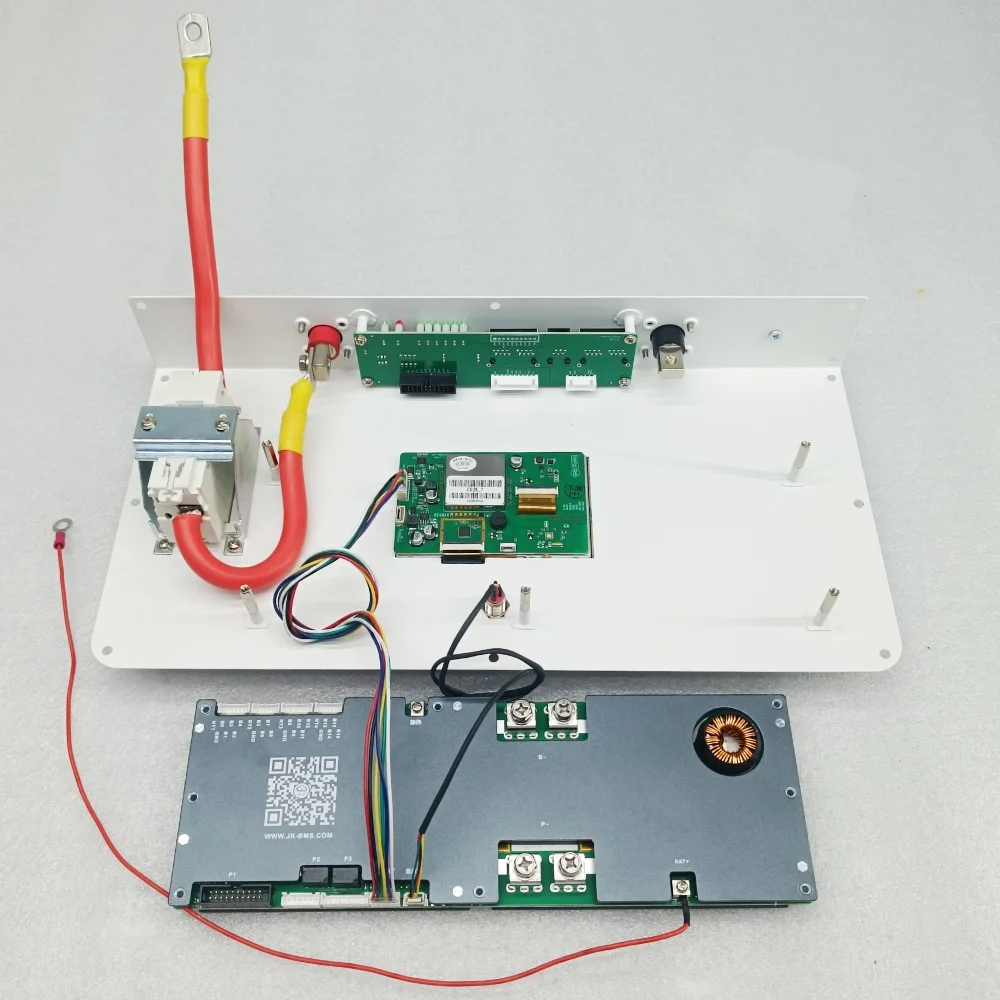

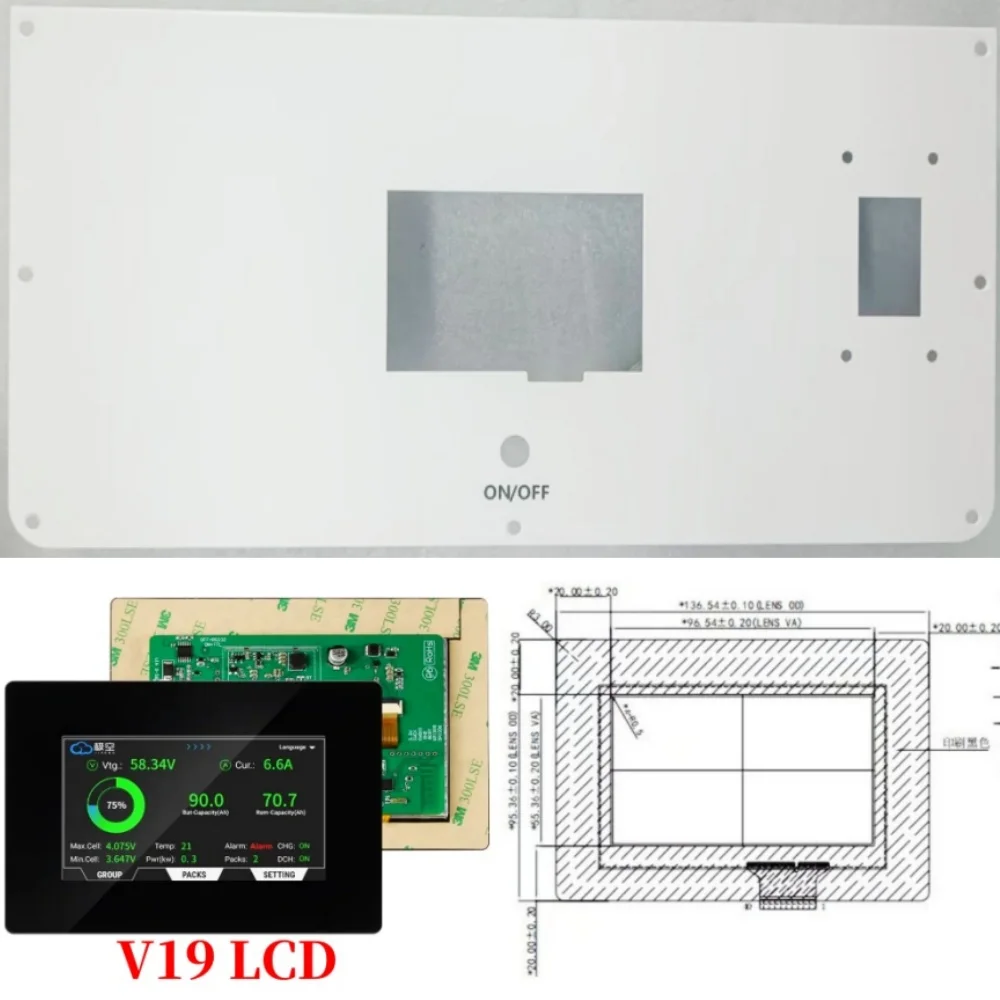

The XR12 panel is only suitable for V19JK-BMS-4.3LCD Version .
The models are as follows:
V19 JK-PB1A16S10P
V19 JK-PB1A16S15P
V19 JK-PB2A16S20P

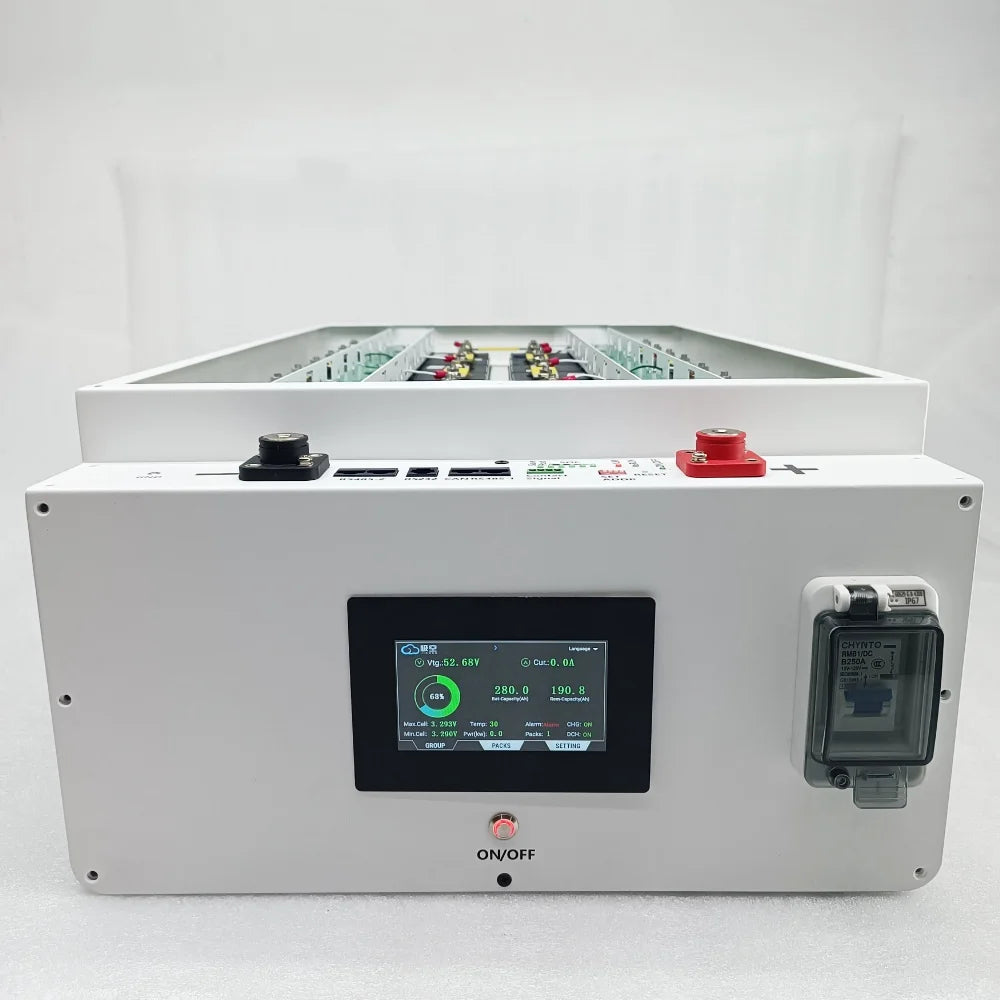

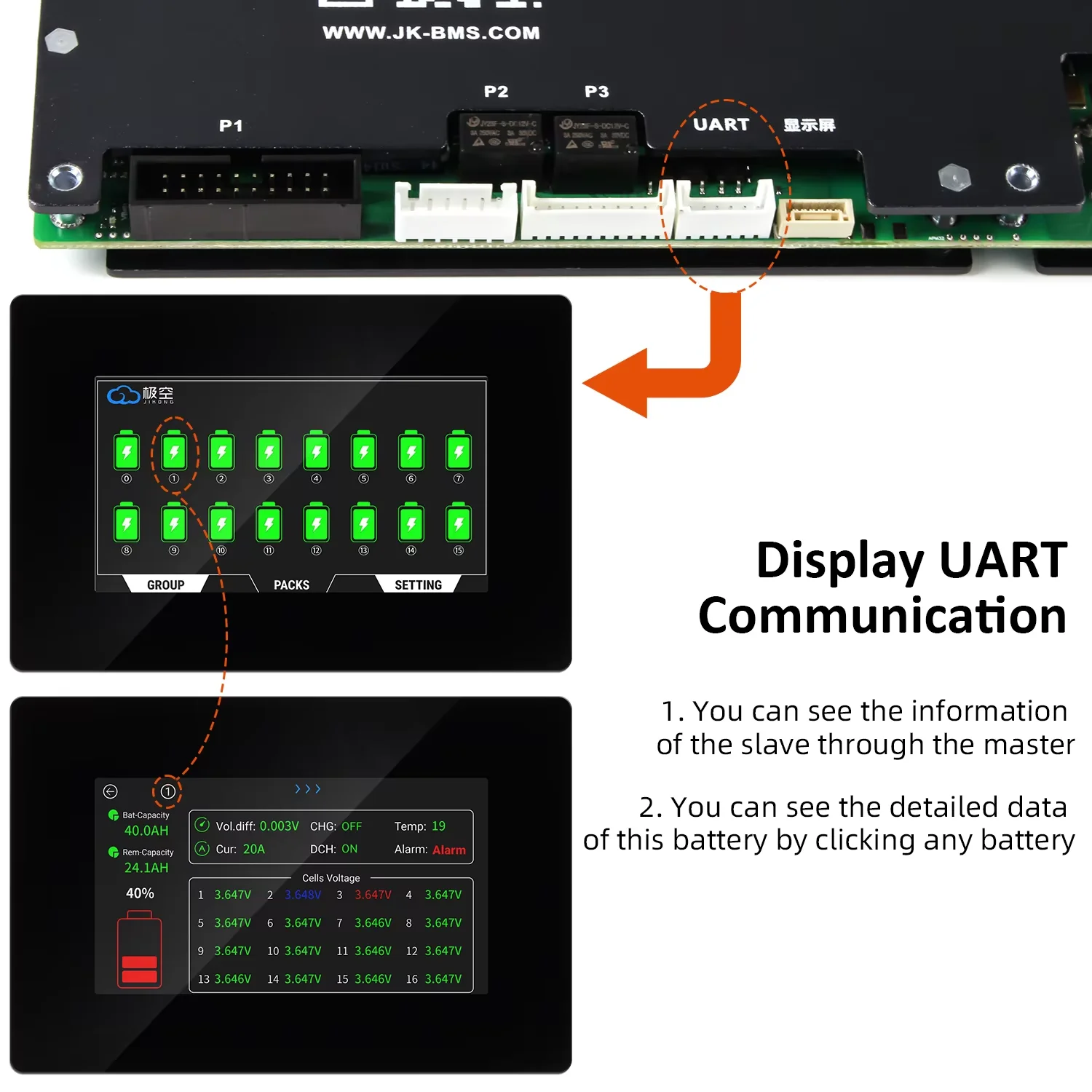

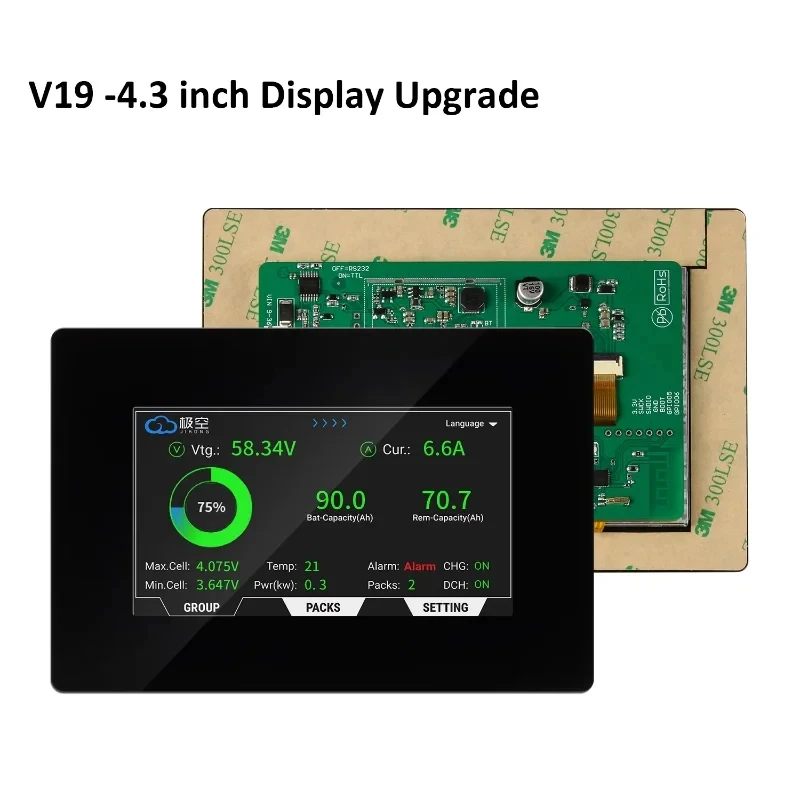

V19 4.3 inch LCD display screen
