SPECIFICATIONS
Brand Name: Yanglin
Certificate: CE VD
Common module power (W): Max 2*375W
Input Voltage: 22-60V
Inverter Efficiency: 96.50%
Maximum input current (A): 2-12
Maximum input voltage (V): 60
Maximum unit per branch: 6@120v 12@230v
Model Number: WVC-600W
Nominal output voltage/range (V): @120v 85-160VAC, @230V 180-265VAC
Operating voltage range (V): 22~60
Output Current: 5@120v 2.6@230v
Output Frequency: 48-51Hz/58-61Hz
Output Type: Single,Three Phase
Output Voltage: @120v 85-160VAC, @230V 180-265VAC
Peak Power MPPT voltage range (V): 30~60
Place of Origin: Fujian, China
Rated Output Current: 5@120v 2.6@230v
Rated output power (VA): 600
Size: 283-200-41.6mm
Start-up voltage (V): 22
Type: DC/AC Inverters
Warranty: 5 years
Weight: 1.46kg
Energy you can trust
Our microinverters are field-proven and guaranteed to perform from sunrise to sunset, year after year.
Easy to install
Our microinverters are built to plug-and-play, ready to get your solar ecosystem up and running sooner
Adjustable power
Configure your microinverters to match your installation and solar panel layout
Highly reliable
Our microinverters come with low failure rates and built-in surge protection
Compliant energy
Our microinverters are compliant with standards like EN50549-1:2019
Looking to go off grid and power your house with a solar energy system? If you plan on using appliances and lights that use AC(Alternating Current) electricity, you will need an off-grid inverter. Solar panels convert sunlight directly into DC
electricity,which is then stored in deep cycle batteries. In an off-grid solar system it’s the job of a solar inverter to convert
the DC electricity to AC electricity.

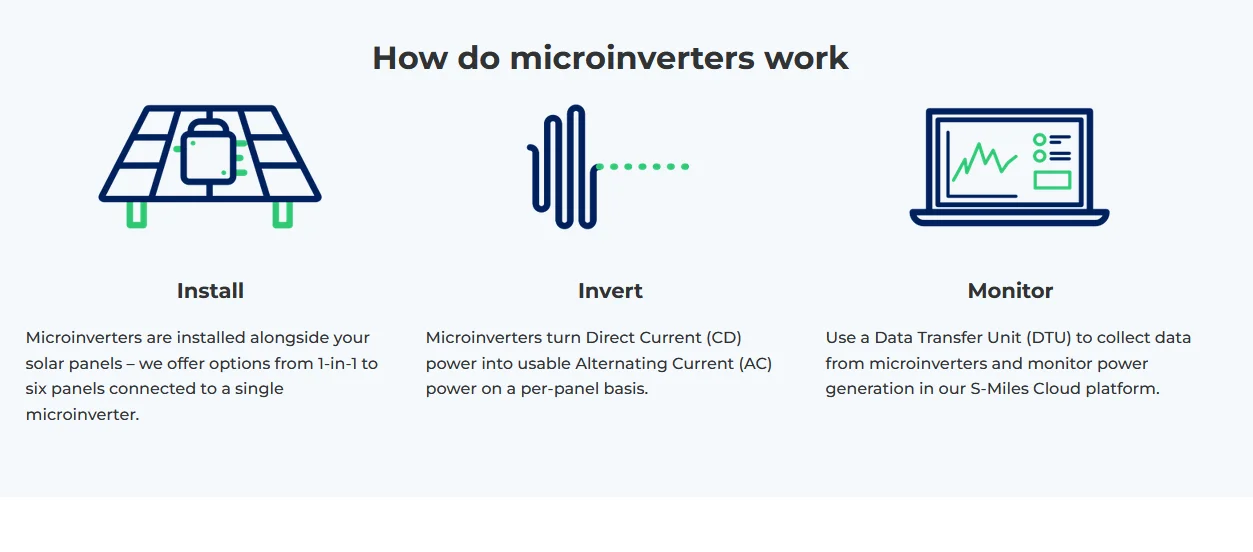

Microinverters turn the power from your solar panels into usable electricity. Single-phase microinverters are usually used in residential and small commercial environments. With us, get frustration-free, long-lasting performance with simple installation, premium quality and low failure rates.
Model# |
WVC-600 |
|
|
Recommended module power (W) |
Max 2*375W |
Peak power MPPT voltage range (V) |
30~60 |
Start-up voltage (V) |
22 |
Operating voltage range (V) |
22~60 |
Maximum input voltage (V) |
60 |
Maximum input current (A) |
2×12 |
Nominal MPPT efficiency |
99.8% |
|
|
Rated output power (VA) |
600 |
Rated output current (A) |
5@120v 2.6@230v |
Nominal output voltage/range (V) |
@120v 85-160VAC, @230V 180-265VAC |
Nominal frequency/range (V) |
@120v 48-51HZ/58-61HZ @230v 48-51HZ/58-61HZ |
Power factor(adjustable) |
0.8 leading…0.8 lagging |
Maximum units per branch |
6@120v 12@230v |
|
|
CEC weighted efficiency |
92.50% |
Nominal MPPT efficiency |
99.80% |
Ambient temperature range (℃) |
-20~+50 |
Question 1: Is it 2 in 1 unit?
“The world's best daisy-chain 2 in 1 microinverter with reactive power control” is designed for two solar panels with dual MPPT, applicable for modules up to 540W, targeting high-power residential and commercial solar applications.
Question 2: What is MOQ request?
Answer: 200 unit is acceptable. For more quantities, welcome to contact us for details.
Question 3 Are you a manufacturer?
Answer: Our factory is located in the beautiful coastal city Xiamen, China. From our factory to your place, quality is assured.
Question 4: Does this solar inverter fit all that I need?
Answer: Please inform 1) which country and which state you are from 2) your average daily electricity kilowatt-hour, voltage, 3) ideal for balcony solar panel system
Question 5 How long can you ship this item after I place orders?
Answer: 30 days of lead time after payment.
Question 6 How about your service and warranty?
Answer:We will answer any of your question within 24 hours.
Our microinverters are field-proven and guaranteed to perform from sunrise to sunset, year after year. That’s why they all come with a minimum 5-year warranty as standard.
Question 7: Do you design the solar panel mounting system for us?
Answer:Yes. We can always offer a satisfying solution after we get your requests.
Question 8: Can I receive the solar inverter without damages?
Answer:We care the package very much and the products will be packed more safely for better protection.
