High 192v/96v 60A MPPT Solar Charge Controller 100 Amp 384v/240v 96volt Solar Panel App Controller Regulator 12v/24v 150v
High 192v/96v 60A MPPT Solar Charge Controller 100 Amp 384v/240v 96volt Solar Panel App Controller Regulator 12v/24v 150v
SPECIFICATIONS
Application: Charger Controller,Solar Working Station,Voltage Controller,Solar System Controller
Battery type: Lead-acid/Gel battery etc.
Brand Name: Changi/Xindun
Charge mode: MPPT Charging
Charge way: Three Stage Charging
Color: Orange
Display: LCD display
Keywords: 96v 60a mppt solar charge controller
Max PV Power: 5.6kw~22.4kw*2
Max PV Voltage: 300v~800v
Model Number: PY-XD-MPPT solar charge controller 100 amp
OEM: Accept OEM
Place of Origin: Guangdong, China
Product name: mppt solar panel charge controller regulator
Protection: over voltage/over temperature/under voltage
Rated Current: 60a 100 amp
Type: MPPT
Work Time (h): 1-24H

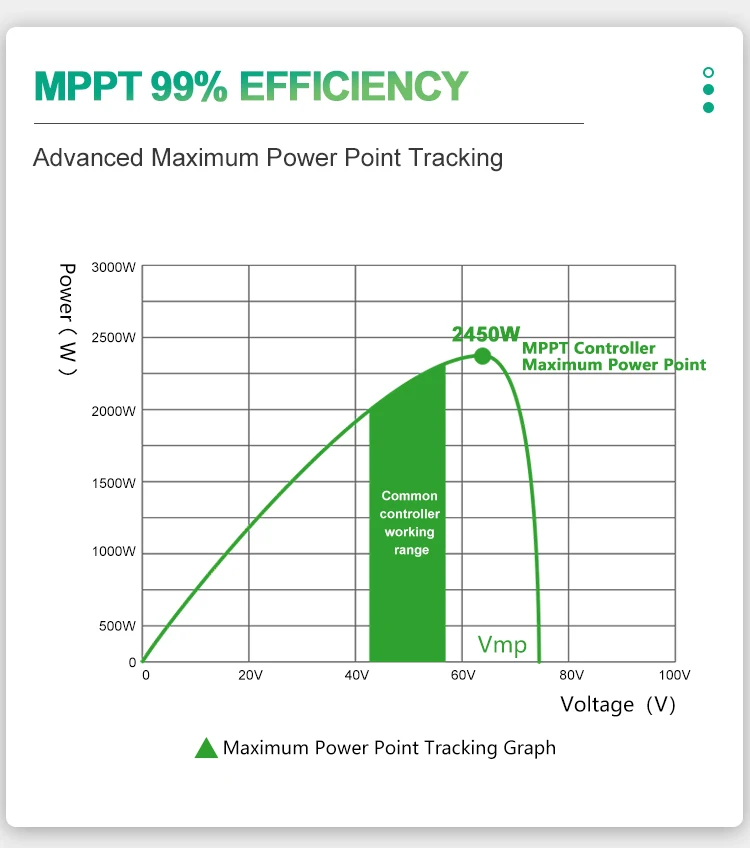

1. Advanced MPPT tracking, 99% tracking efficiency. Compared with PWM, the generating efficiency increase near 20%.

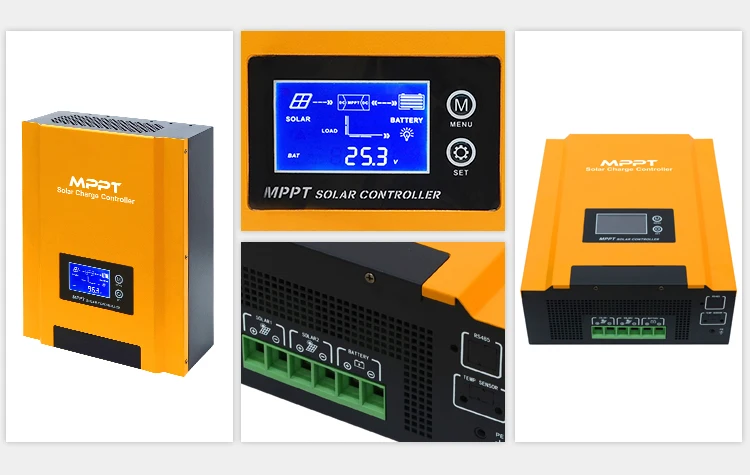

2. LCD display PV data and chart simulates power generation process.
3. Multiple working modes to adapt different working occasion.

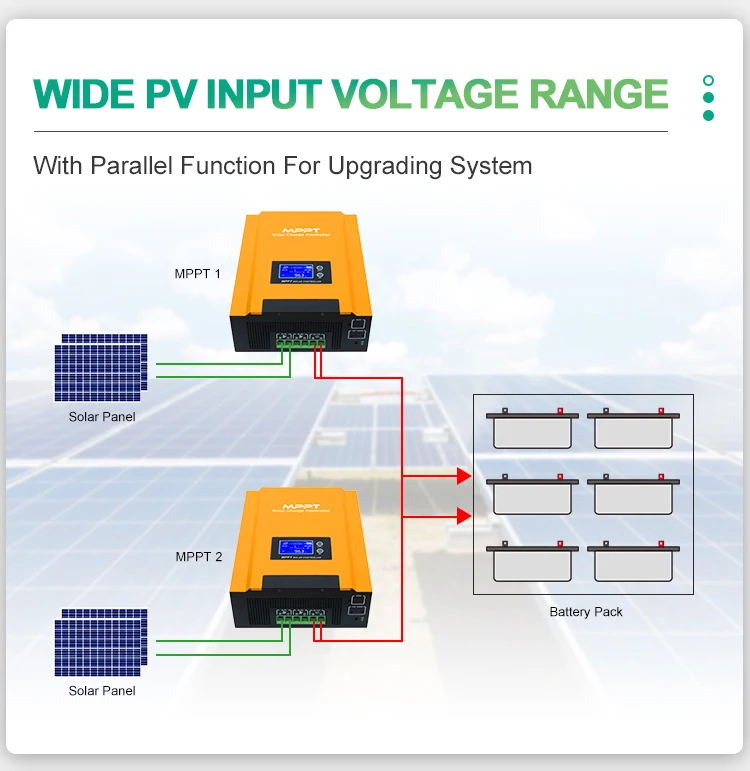

4. Wide PV input voltage range, convenient for system configuration;
5. Intelligent battery management function, extend battery life.
6. WIFI or GPRS or RS485 communication port optional.
| Model: Wonder1 | 96/50 (50) |
96/100 (100) |
192/50, 216/50, 240/50, 384/50 (50) |
192/100, 216/100, 240/100, 384/100 (100) |
||
| Rated Current | 50A | 100A | 50A | 100A | ||
| Rated System Voltage | 96V | 96V | 192V/216V/240V | 384V | 192V/216V/240V | 384V |
| Max PV Input Voltage(Voc) (At the lowest ambient temperature) |
300V(96V system) / 450V(192V/216V system)/500V(240V system) / 800V(384V system) | |||||
| PV array Max power | 5.6KW | 5.6KW*2 | 11.2KW/12.6KW/14KW/22.4KW | 11.2KW*2/12.6KW*2/14KW*2/22.4KW*2 | ||
| MPPT Tracking Voltage Range | 120V~240V(96V system) / 240V/270V~360V(192V/216V system)/ 300V~400V(240V system) /480V~640V(384V system) | |||||

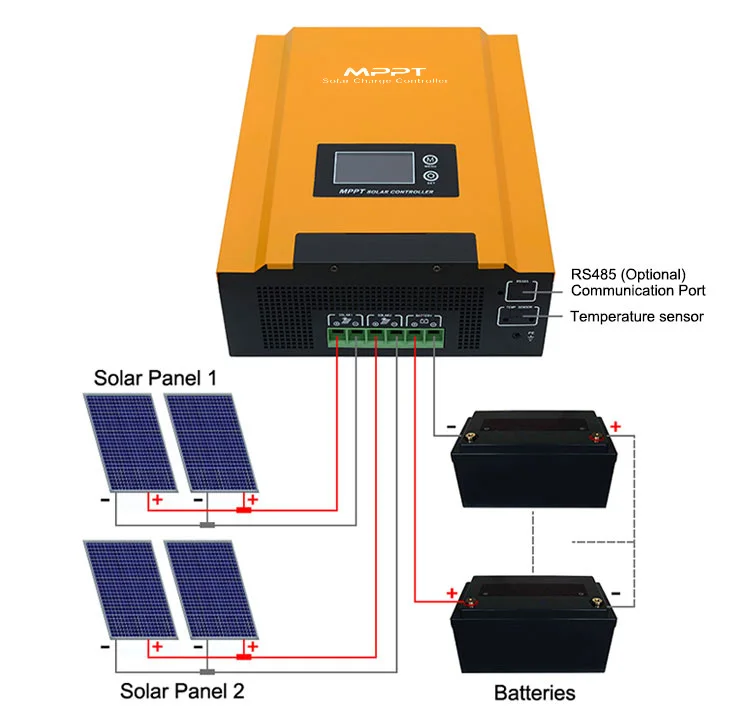

| MPPT route number | 1 | 2 | 1 | 2 | ||
| Recommended operating voltage range | 120V-160V(96V system); 240V-320V(192V system); 270V-320V(216V system); 300V-350V(240V system); 480V-560V(384V system) | |||||
| Battery Type | Lead acid battery(Battery type base on user charge specification) | |||||
| Floating Voltage | 110.4V(96V system)/220.8V(192V system)/248.4V(216V system)/276V(240V system)/441.6V(384V system) | |||||
| Charge Voltage | 113.6V(96V system)/227.2V(192V system)/255.6V(216V system)/284V(240V system)/454.4V(384V system) | |||||
| Charging Protection Voltage | 120V(96V system)/240V(192V system)/270V(216V system)/300V(240V system)/480V(384V system) | |||||
| Promote recovery voltage | 105.6V(96V system)/211.2V(192V system)/237.6V(216V system)/264V(240V system)/422.4V(384V system) | |||||
| Temperature Compensation | -3mV / ℃ / 2V (25℃ is base line) (Optional) | |||||
| Charging Mode | MPPT maximum power point tracking | |||||
| Charging Method | Three stages: constant current(MPPT); constant voltage; floating charge | |||||

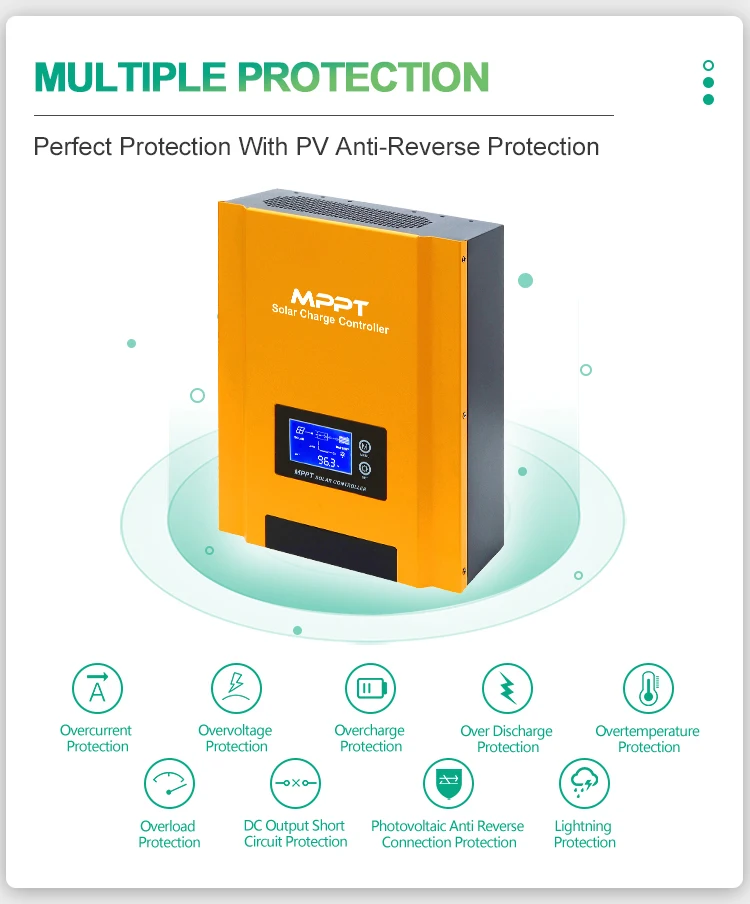

| Protection | Over-voltage/under-voltage/over-temperature/PV&Battery anti-reverse protection | |||||
| Conversion Efficiency | >98% | |||||
| MPPT Tracking Efficiency | >99% | |||||
| Machine Size(L*W*Hmm) | 315*250*108 | 460*330*140 | 530*410*162 | |||
| Package Size(L*W*Hmm) | 356*296*147(1pc) / 365*305*303(2pcs) | 509*405*215 | 598*487*239 | |||
| N.W(kg) | 4.5(1pc) | 5.6(1pc) | 13.5 | 15 | 22.6 | 26.5 |
| G.W.(kg) | 5.2(1pc) | 6.3(1pc) | 15 | 16.5 | 24.6 | 28.5 |
| Display | LCD | |||||
| Thermal Method | Cooling fan in intelligent control | |||||
| Type Of Mechanical Protection | IP20 | |||||
| Operating Temperature | -15℃~+50℃ | |||||
| Storage Temperature | -20℃~+60℃ | |||||
| Elevation | <5000m(Dreating above 2000m) | |||||
| Humidity | 5%~95%(No condensation) | |||||

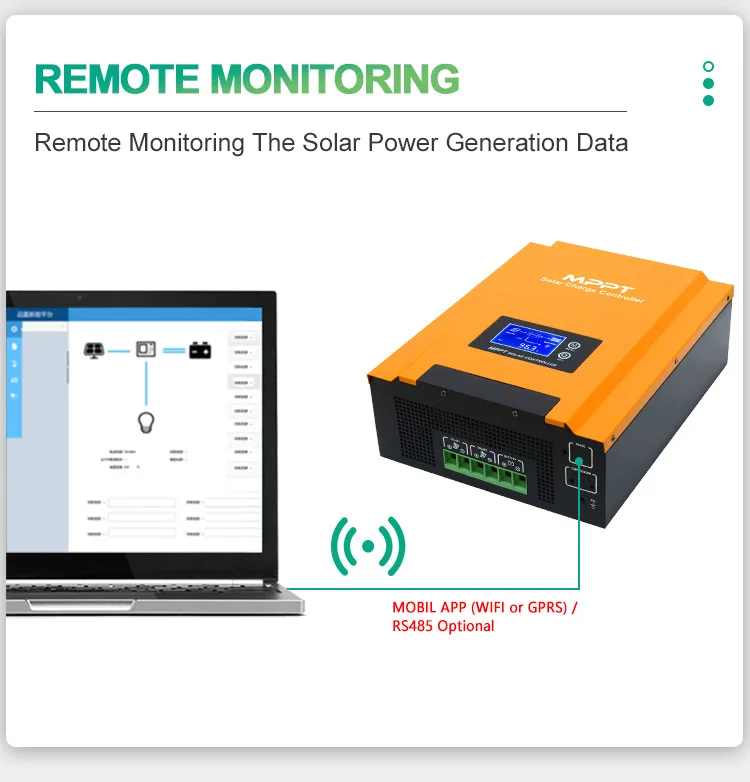

| Communication | RS485/APP(WIFI monitoring or GPRS monitoring) | |||||
| Accept OEM/ODM | ||||||
Our factory specialize in designing and manufacturing portable power stations, solar inverters, and pure sine wave inverters for more than 15 years.

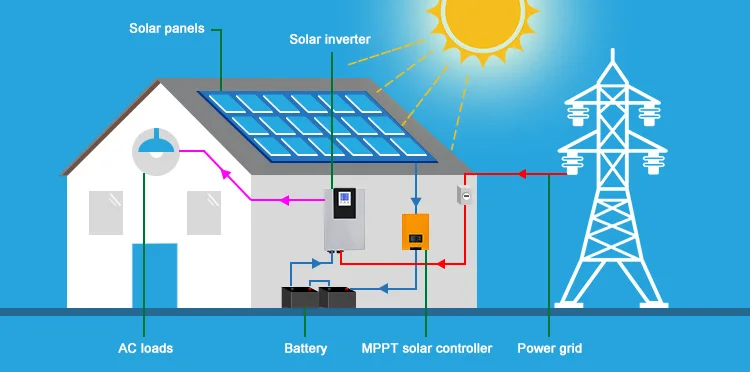

Q1: What is the purpose of solar controller?
A:Solar controller is used to have solar charge for the battery. When solar panel generate solar power, solar controller will store the solar power to the batteries.
Q2: MPPT or PWM, which one should I choose?
A: PWM can get about 80% solar power from the solar panel, mppt can get about 99% solar power from it. Small solar system (1kw or under 1kw) recommend to use pwm, price is cheaper than mppt. If need high efficiency to store solar power, recommend mppt.

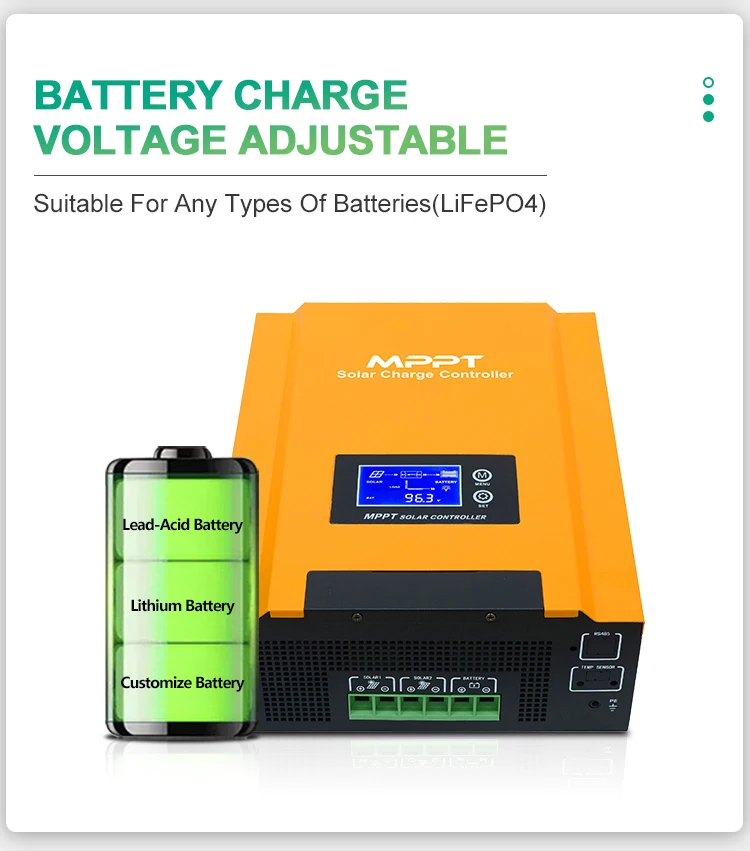

Q3: Can we use lithium batteries for this MPPT solar charge controller?
A3: Yes,the battery charge voltage of the MPPT can be adjustable, suitable for most of the battery types.

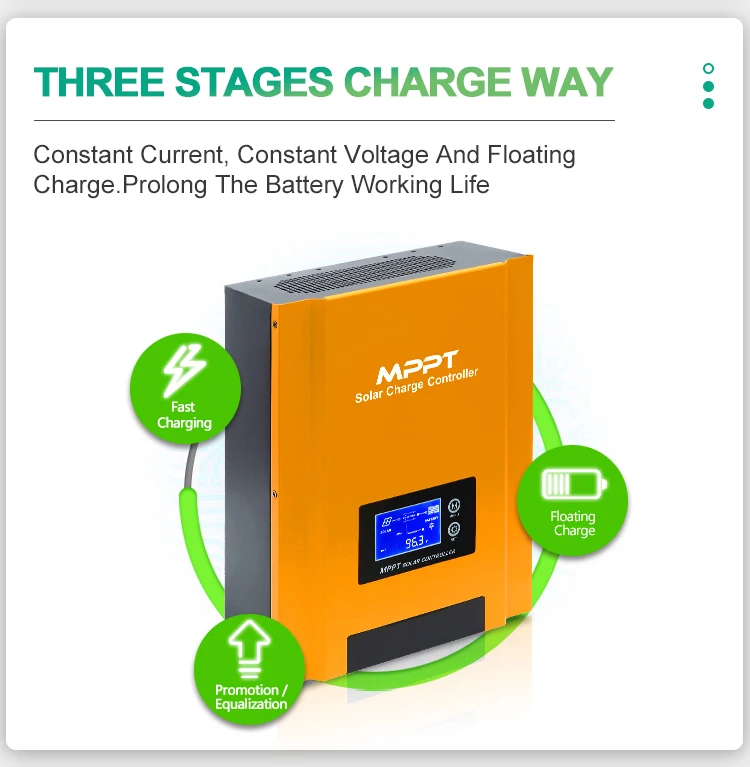

Q4: What is the charging method of the MPPT?
A4: The MPPT use three stages charge way: constant current, constant voltage and floating charge. Prolong the battery working life.
Q5: Does MPPT has anti-reverse connection function?
A5: Yes,the MPPT is with PV anti-reverse protection.
