SPECIFICATIONS

Brand Name: NO

Controller: MPPT

Input interface (set): 2

Inverter Efficiency: 88%

Model Number: 800W

Output Frequency: 50hz/60hz

Output Type: Single

Output Voltage: 230V

Output cable: 1.8M

Output frequency: 50/60Hz

Place of Origin: Guangdong, China

Product Name: Grid micro inverter(stand by WIFI) Mobile APP communication

Solar panel input power: 600W~830W

Type: DC/AC Inverters

Warranty: No warranty

Weight: 2.5KG

communication Way: WIFI-2.4G

model: LOGO-800W /600W (Power Adjustable)

water proof grade: IP65

> IP65 waterproof grade, the whole body machine is covered with waterproof glue

> Smart phone APP Tuya intelligence system
>The heat dissipation plate installed on the back of
> the fuselage is better for heat dissipation
> 20% More Efficient Than Traditional Solar Inverter
> MPPT power automatic tracking smart solar micro inverter 800w 600w

Get a Quote | Price Discount | Customized Services | Get Samples

Please click here

Specification

Micro Inverter	600W	800W		800W
Recommendedsolar panel input power (W)	300-400W*2	300-400W*2
Maximum DC input voltage	52V
Operating voltage range	20V ~ 50V
Controller Type	mppt
MPPT Tracking Range	22-48V
MPPT Tracking accuracy	>99.5%
Maximum DC input current	12A*2
Rated output Power	600W	800W
Rated output voltage	120V / 230V
Output voltage range	190-270V
Rated AC current (at 120V)	5A	6.6A
Rated AC current (at 230V)	2.6A	3.47A

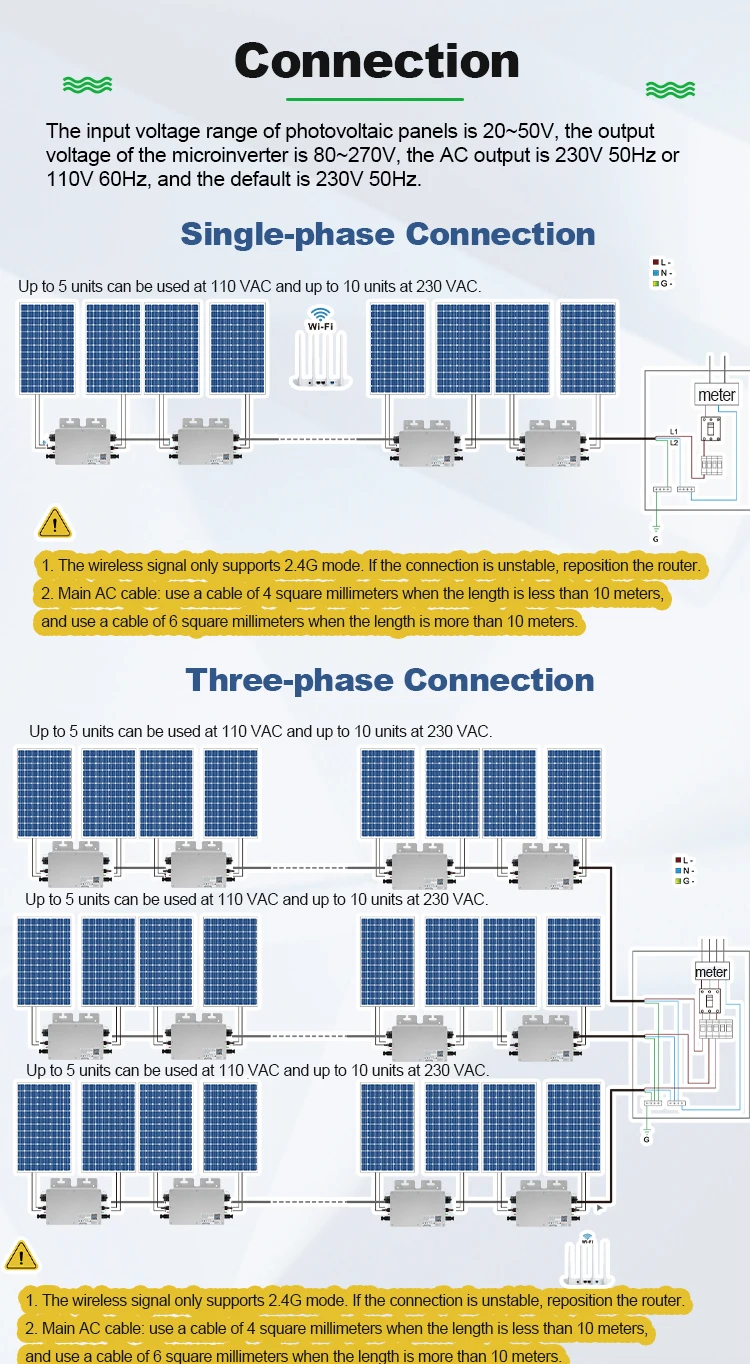

Maximum number of branch circuit connections	@120VAC : 5 set / @230VAC : 10 set
Maximum conversion efficiency	95%
Rated output frequency	50Hz
Protection class	IP65
Working environment temperature	-40℃——+65℃
Certification	CE / ROHS
Weight (KG)	1.5KG			1.81KG
Carton Spec	Inner box weight：2.2KG Inner box size：34*24*9.5cm Carton weight (5PCS):12KG Carton size (5PCS):51*37*26.5cm			Inner box weight：2.5KG Inner box size:34*24*9.5cm Carton weight (5PCS):13.5KG Carton size (5PCS):51*37*26.5cm
Communicationconnection mode	WiFi/2.4G

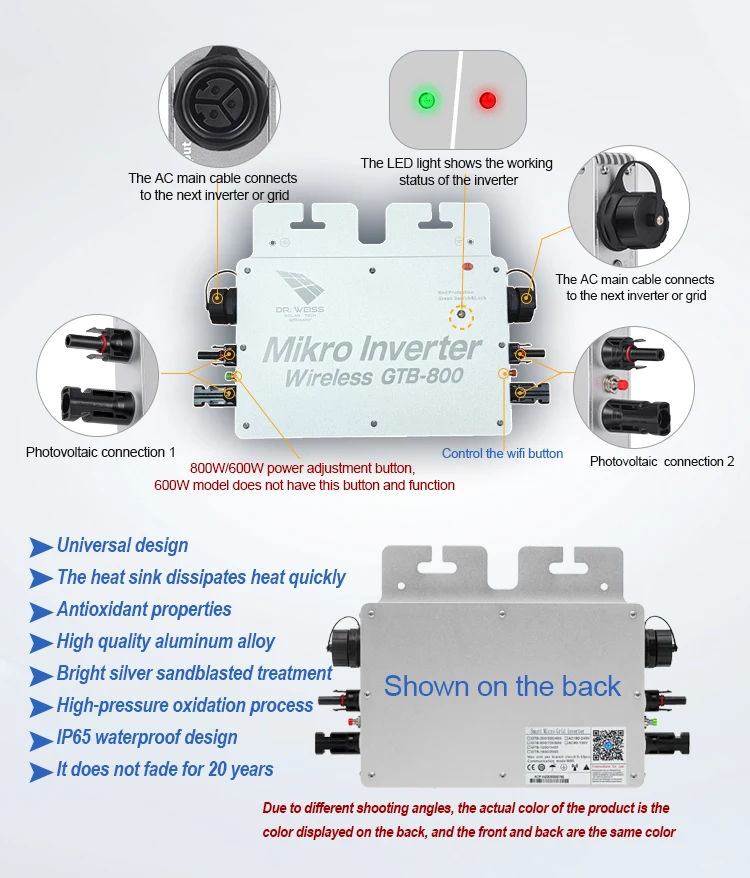

Indicator lights quantity	Working status LED light *1 + Wifi signal led light *1
Cooling method	Natural cooling (no fan)
Working environment	Indoor and outdoor

Supply Ability
Supply Ability：5000
Packaging & Delivery

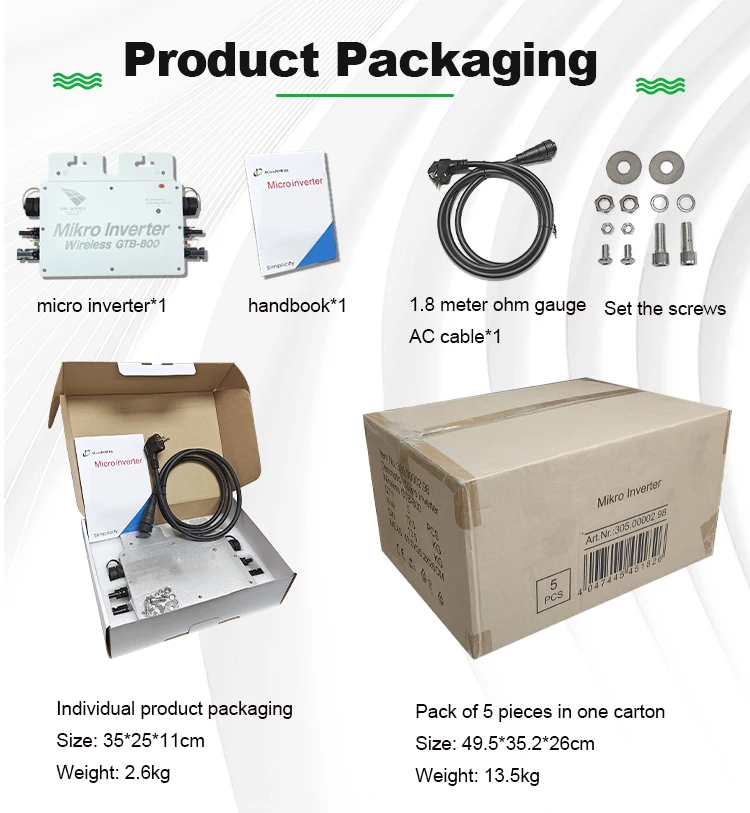

Packaging Details： Cardboard boxes with inner foam box packaging. If you have any special needs, please let us know, we can design the packageaccordingly.

Quantity(sets)	500	1000	2000	1000+
Est. Time(days)	10	20	25	30-35

Company Profile

FAQ

Q1: How to insatll and use the micro inverter?

A1: We have the English teaching manual and videos;All the videos about every step of micro inverter Disassembly, assembly,operation will be sent to our customers.

Q2: What if I don't have export experience ?
A2:We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.

Q3:Can you provide the free shipping to sea port ?
A3:Yes, we provide the free shipping to your convenient sea port.If you have agent in China, we can also ship it to them for free.

Q4: How is your technical support?
A4:We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.

Q5: How can I make sure it's a secure transaction ?
A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information,
Alibaba will release us the money.

Q6: Can you get the the micro inverter customized for us ?
A6: Of course, brand name, micro inverter color, designed unique patterns available for customization.

Q7:How to become your agent?
A7:Contact us through Alibaba,we will give you the best price and look forward to your greetings.

Contact Us

Send your detail inquiry below for Good price, Click "Send" now!
