SPECIFICATIONS

Application: Solar System/Solar Panel system

Battery Type: LiFePO4

Battery type: LiFePO4 Battery Pack 100Ah cell byd quality A cell

Brand Name: Delongtop

Capacity: 48V 51.2V 100Ah

Certificate: CE / MSDS/ ISO9001 / Rohs/un38.3

Communication: CAN/RS485/WIFI/4G/Blue Tooth Communication

Communication Port: CAN,RS-232,RS485,WIFI,5G

Cycle time: 6000 times

Dimension (L*W*H): Customized size

Grid connection: Off grid,Hybrid grid,On grid

Inverter Matched: Bluesun Goodwe Growatt Sungrow

Model Number: LFP48100

OEM/ODM: Customized OEM ODM Battery Pack

Output Power Range: 5-10kW

Place of Origin: Guangdong, China

Product name: 48V 5Kwh 10Kwh 15Kwh Home Solar Battery Pack

Protection: Built-in BMS 100A

Protection Class: IP64

System Type: Wall-Mounted,Vertical Type

System Voltage: 51.2 V

Type: All-In-One

Weight: 52Kg

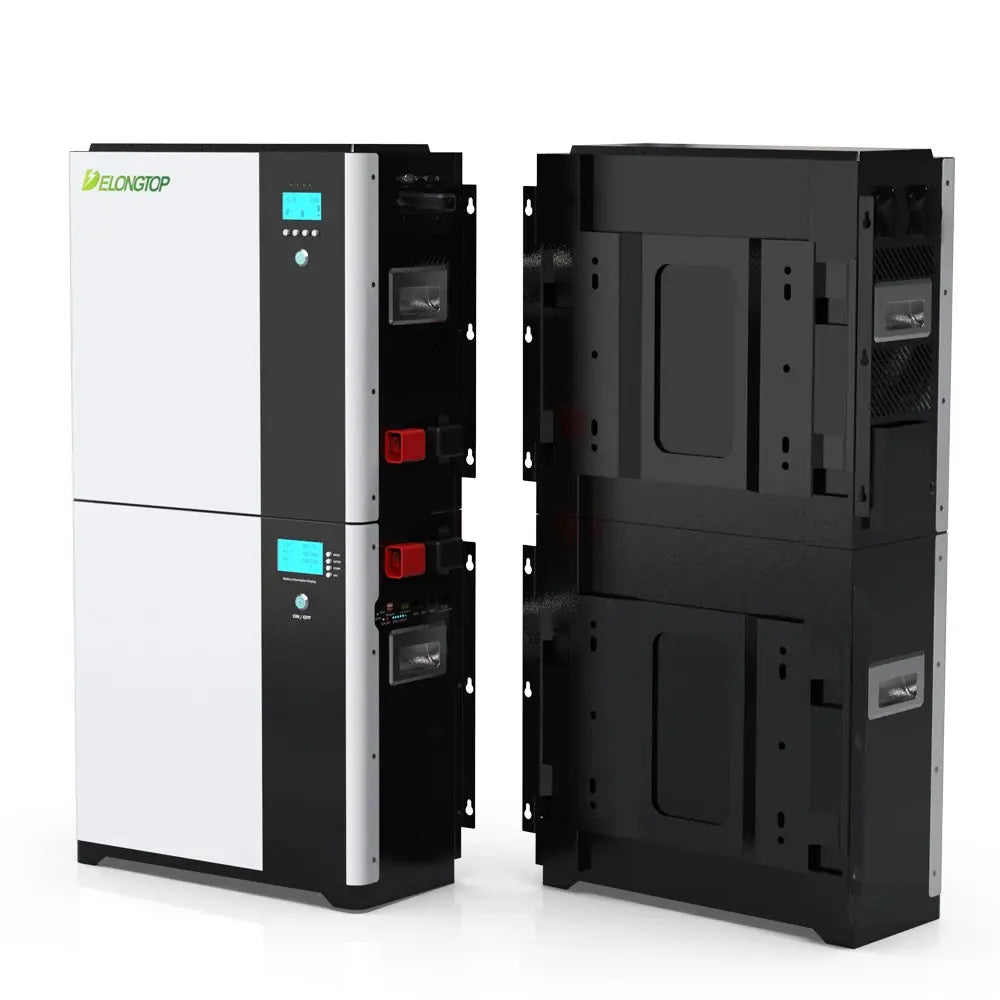

EU Stock Battery Wall Mounted BYD 48V 100Ah 5Kwh 10Kwh 15Kwh Battery Pack All in One Inverter and Battery for Solar Panel System

Product Specification

Item	Model	5Kwh+5Kw	10Kwh+ 5Kw	15Kwh +5Kw
Battery Module	Voltage	48/51.2V	48/51.2V	48/51.2V
		Battery Capacity	DL-LFP-HS51100*1 100Ah	DL-LFP-HS51100*2  200Ah	DL-LFP-HS51100*3 300Ah
		Battery Energy Power	5.12Kwh	10.24Kwh	15.36Kwh
		Charger Voltage	52.5V--58.4V	52.5V--58.4V	52.5V--58.4V
		Discharge cut -off Voltage	42V--44.8V	42V--44.8V	42V--44.8V
		Charger Current	40A	40A	40A
		Max Charger Current	70A	70A	70A
		Discharge Current	100A	100A	100A
		Max Discharge Current	150A 100mS	150A 100mS	150A 100mS
		Communication Protocol	RS485/232/Canbus	RS485/232/Canbus	RS485/232/Canbus
Hybrid Inverter	Power	5Kw	5Kw	5Kw
		Output /Input Voltage (AC)	200-240V AC	200-240V AC	200-240V AC
		Frequency	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz
		Input Power(PV)	7000W	7000W	7000W
		Input Voltage Range (PV)	150V-500VDC	150V-500VDC	150V-500VDC
		Communication  Connect Port	RS485/232/Canbus	RS485/232/Canbus	RS485/232/Canbus
Parameter	Material /Color	Metal White + Black	Metal White + Black	Metal White + Black
		Size/Dimension	483*200*940mm	483*200*1390mm	483*200*1840mm
		Weight	62KG+-2KG	107KG+-2KG	152KG+-2KG
		Temperature	Charge : 0-50 ℃     Discharge :-5-55 ℃	Charge : 0-50 ℃ Discharge :-5-55 ℃	Charge : ℃       Discharge :-5-55 ℃

EU STOCK Available

In Poland Warehouse,we have good price for those battery!

51.2V 100Ah/200Ah/280Ah/300Ah/314Ah LIfePO4 Battery!

5kwh 10kwh 14.4kwh 15kwh 16kwh LifePO4 Lithium Battery !

12V 100Ah 200Ah 300Ah LIfePO4 Battery

All in One 5Kva 10kva inverter & Roller base!

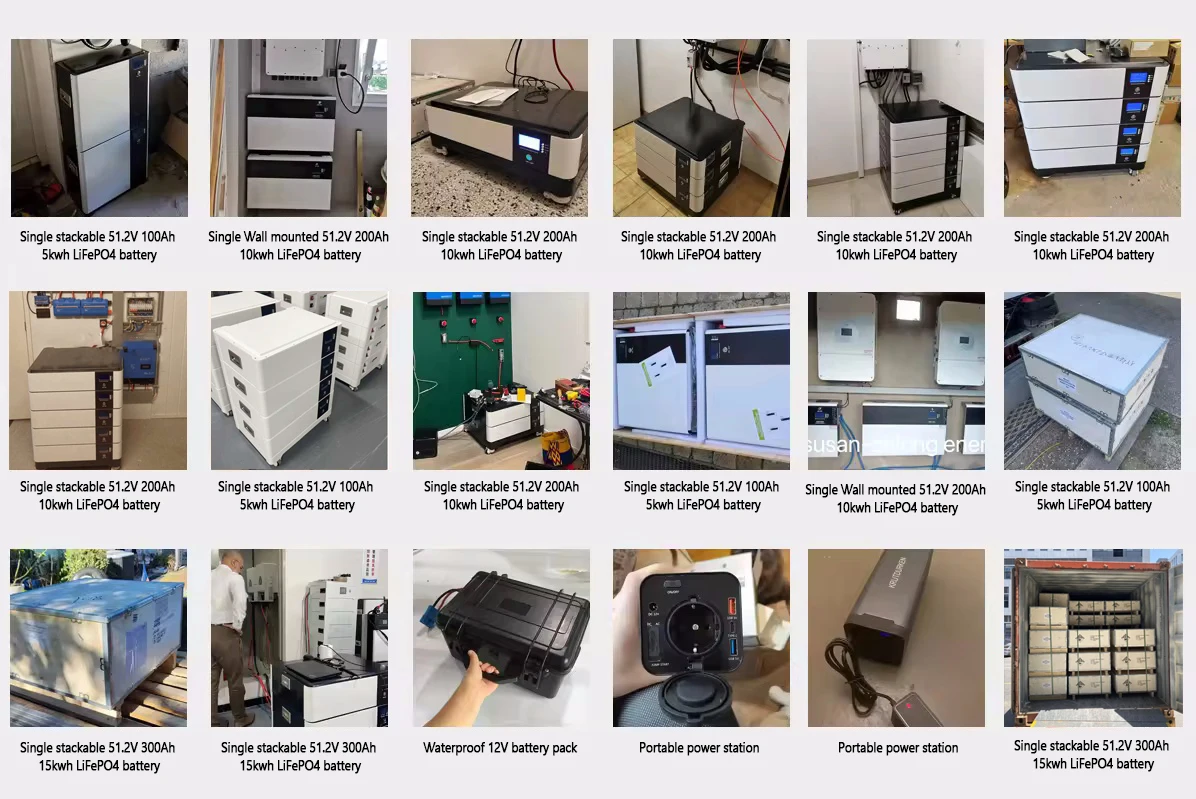

Project Cases

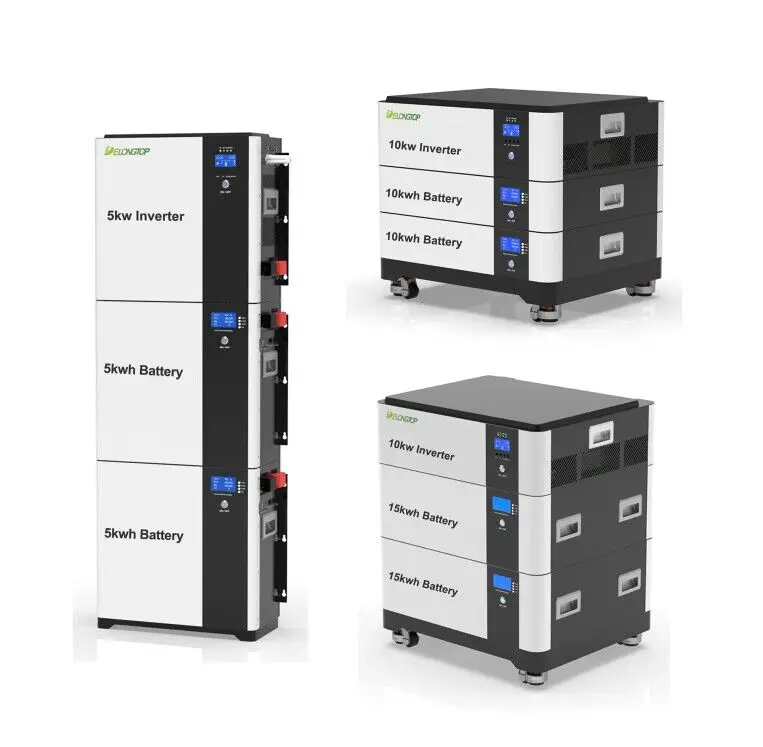

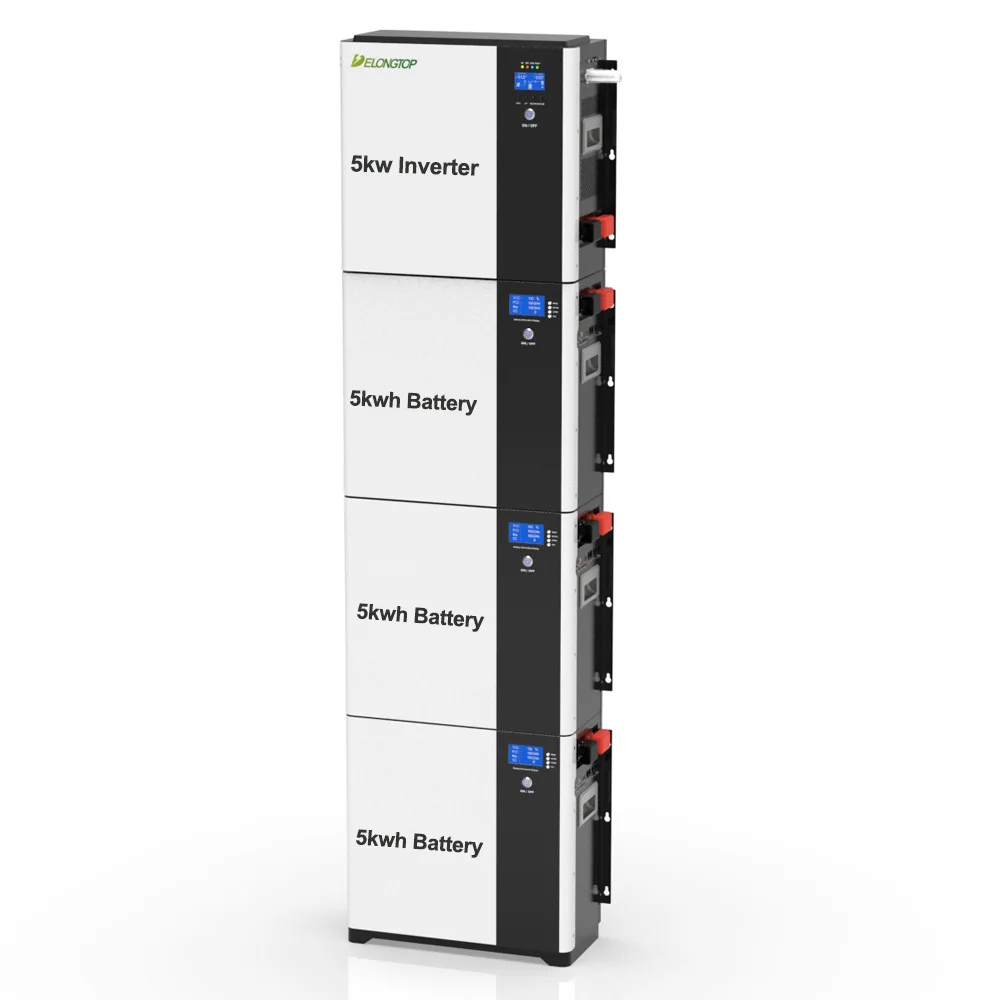

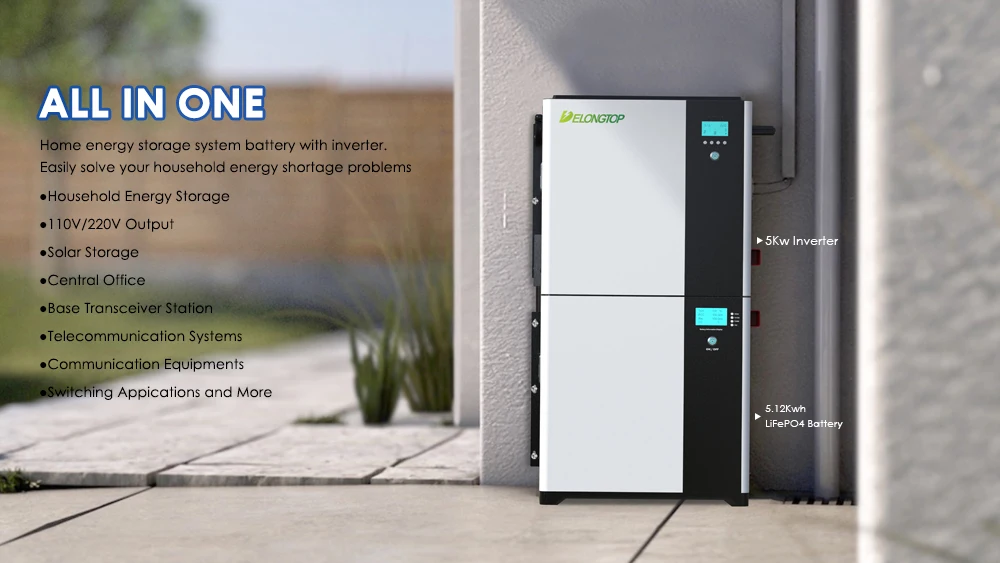

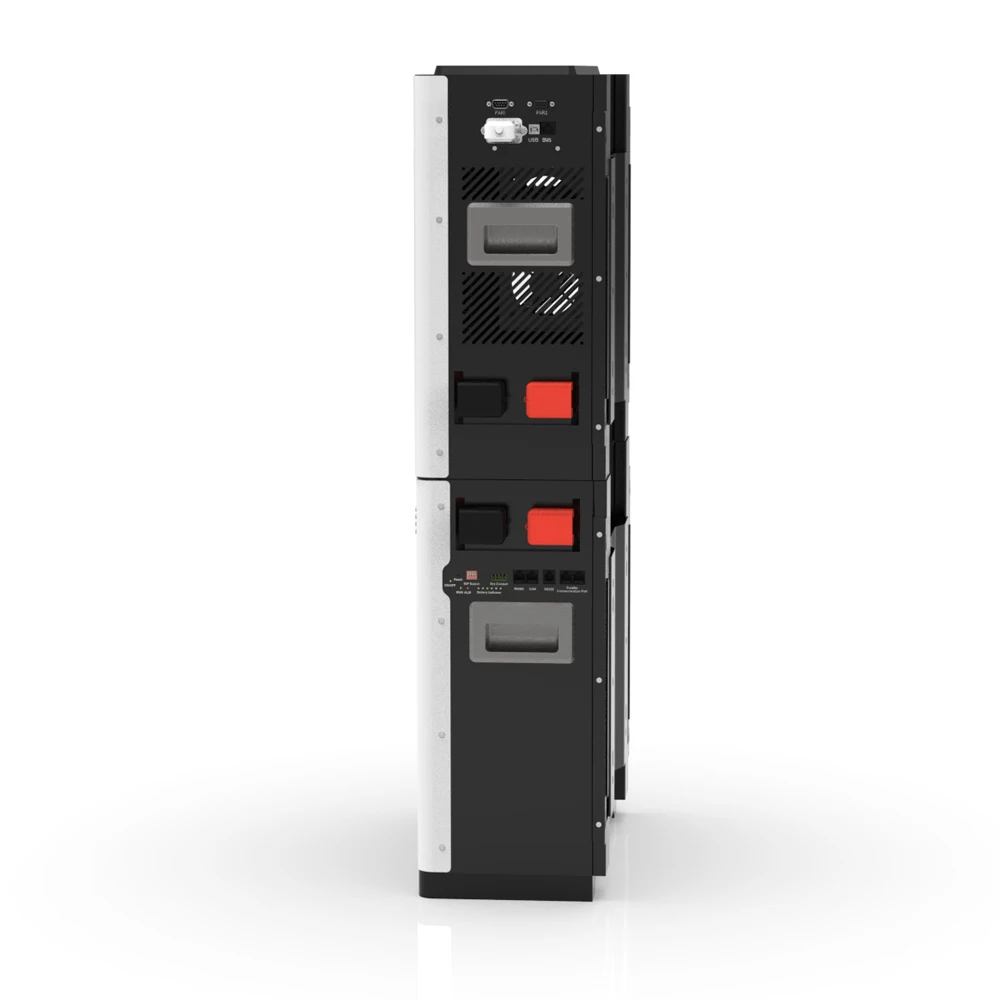

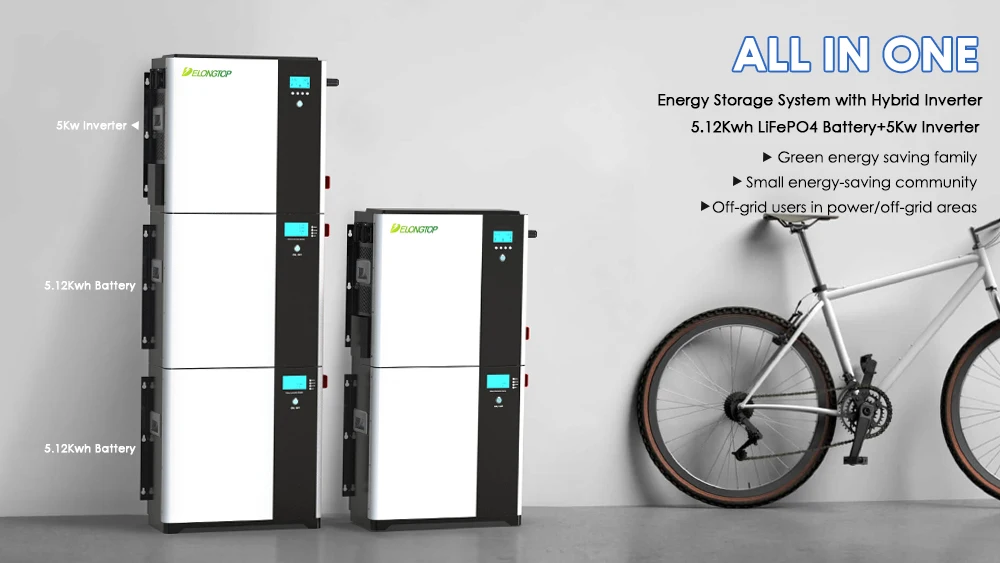

Images of 48V Wall-Mounted LIFEPO4 Battery Inverter

Related Products

Company Profile

1. Shenzhen Delong Energe Technologe Co. Ltd. was established in 2012.
2. Our factory is a CE,ROHS,IEC62133,ISO9001:2015 certificated high-tech factory with over 10 years experience on this battery filed.,We hae a technician team with over 10 people.

3 Specialized in Developing,Manufacturing new energy, customized products mainly is LIFEPO4 Battery Pack,also 18650/ 21700 lithium ion battery pack, lithium polymer battery pack,AC output power banks etc..

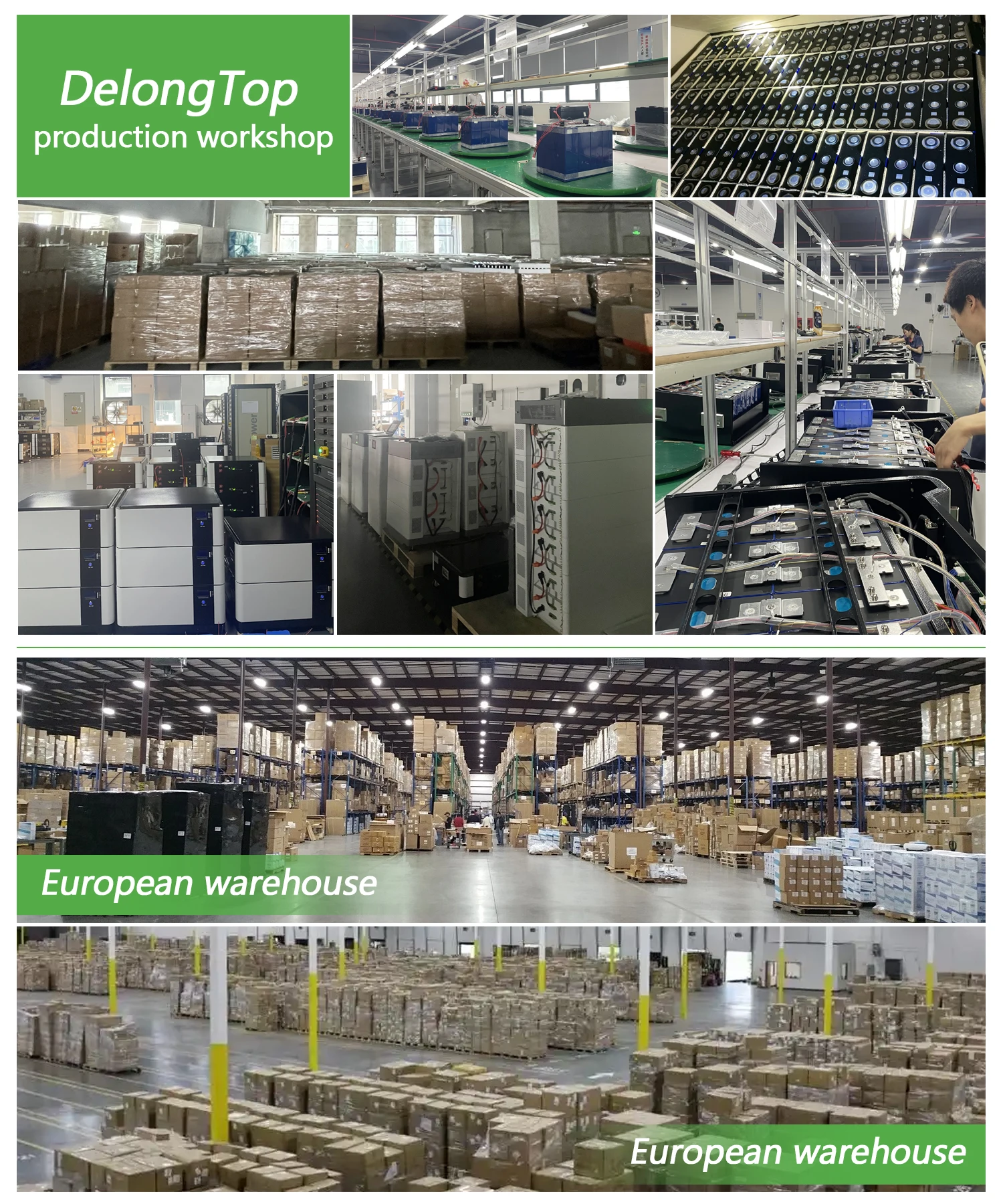

4. Factory occupied with more than 5,000 square meters & strong R&D department,over 200 well-trained workers.

Package & Shipping

1 PC in a CARTON， 30pcs/Pallet, CARTON: 56*29*28cm , Pallet: 110*110cm

FAQ

1. Are you a trader or manufacturer?

A: We Are a manufacturer. in Dongguan Guangdong!

2. Is the battery able to make in Series or Parallel?

A: YES

3. Can the BMS and Cell be removed and replaced ?

A: YES, you can open the case and replace the BMS & cells,but you need to be a professional on this.

4. Do you have any communication Apps for batteries?

A: YES,you can add RS485 & RS232 & CANbus Protocol,even with Blue-tooth.we have APP for you.
You can connect to your phone and see the Voltage and Capacity changes.
It's English version.

5.What certificates do you have?
A:We have CE/ MSDS/ UN38.3 etc./ certificates.

6. Delivery time? Warranty time?
A: 3 to 7 days,depends on air or sea or Express shipping you use.
10 years warranty!We would provide repair or replacement if quality problem.

7. Can I print LOGO on it？
A: YES, LOGO/sticker/OEM/ODM is accepted.

8. Package details
A: Each battery with a carton box,with bubble inside to protect the battery,
Big battery we will use a wooden box,mostly 500kg /Pallet,means about 30 PCS/Pallet.

9. What kind of payment do you accept?

A:Credit card/TT/Bank Wire transfer/PayPal/L/C,Any currency we accept .

Like RMB/USD/EURO/AU/HK Dollars etc..

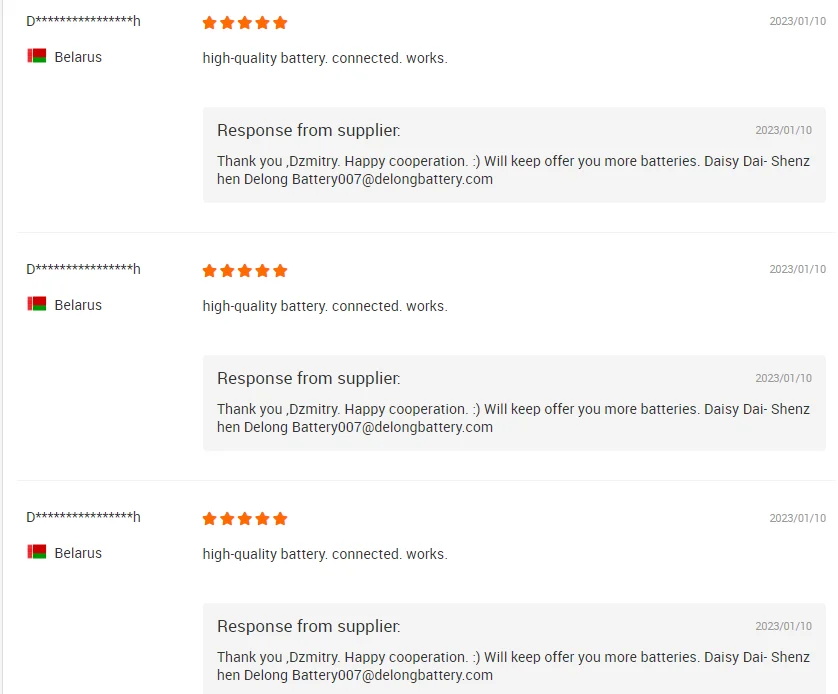

Feedback
