* Advantages:
* Higher efficiency (less energy lost as heat due to lower current for the same power).
* Compatible with larger solar/storage systems (e.g., whole-house backup, commercial use).
* Fewer cables/simpler wiring (lower current = thinner cables).
* Inverter Compatibility: Requires an HV inverter (e.g., hybrid inverters like DEYE, Solis, Sungrow, or Sofar, Goodwe, etc).
ESS High Voltage BYD Solar 30Kwh 40Kwh 50Kwh 100Kwh 200Kwh Lithium Batteries Industrial & Commercial Home Energy Storage System
102.4V 100AH=10KWH / White / 102.4VDC|HVBattery for HV inverter
₱92,218.46PHP
Sale price
₱92,218.46PHP
Regular price
Skip to product information
ESS High Voltage BYD Solar 30Kwh 40Kwh 50Kwh 100Kwh 200Kwh Lithium Batteries Industrial & Commercial Home Energy Storage System
₱92,218.46PHP
Sale price
₱92,218.46PHP
Regular price
Pickup currently not available
SPECIFICATIONS
Battery Type: LiFePO4
Brand Name: Delongtop/OEM
Communication Port: CAN,RS-232,RS485
Dimension (L*W*H): L780mm x W520mm x H175mm
Grid connection: Off grid
Model Number: HV32-10
Output Power Range: ＞50KW
Place of Origin: Guangdong, China
Protection Class: IP55
System Type: Stackable
System Voltage: 102.4 V
Type: Split
Weight: 121kg

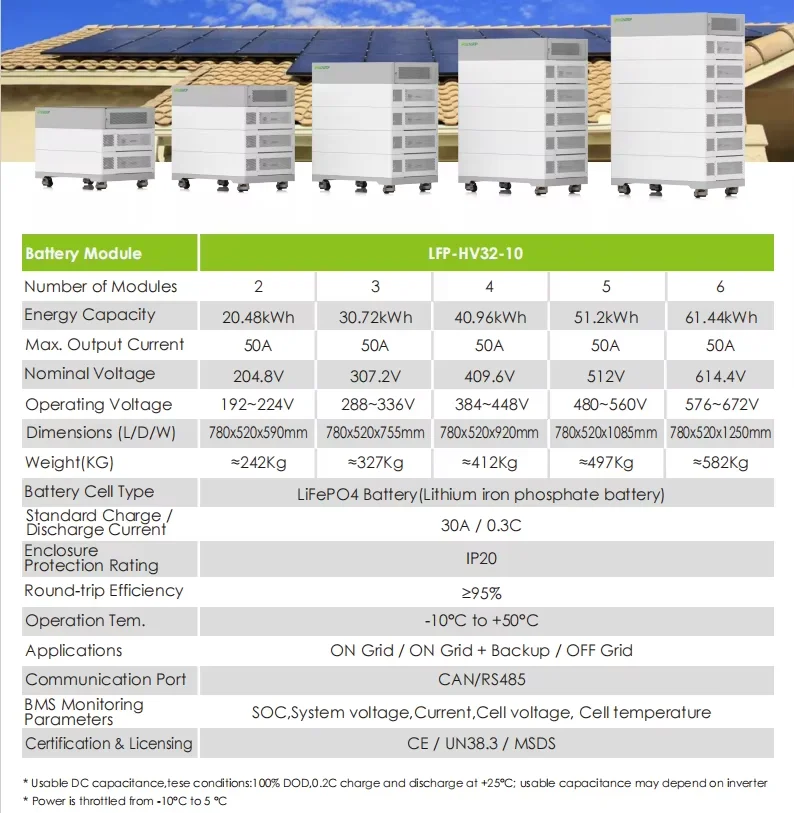

Product Parameter
Single Flat= Stackable High Voltage Lithium Ion LiFePO4 Battery 102.4V 100AH=10KWH |
||||||||||
Model NO：HV32-10 |
||||||||||
Number of Module |
2 |
3 |
4 |
5 |
6 |
|||||
Energy Capacity |
20.48kWh |
30.72kWh |
40.96kWh |
51.2kWh |
61.44kWh |
|||||
Max. Output Current |
50A |
|||||||||
Nominal Voltage |
204.8V |
307.2V |
409.6V |
512V |
614.4V |
|||||
Operating Voltage |
192~224V |
288V-336V |
384~448V |
480~560V |
576-672V |
|||||

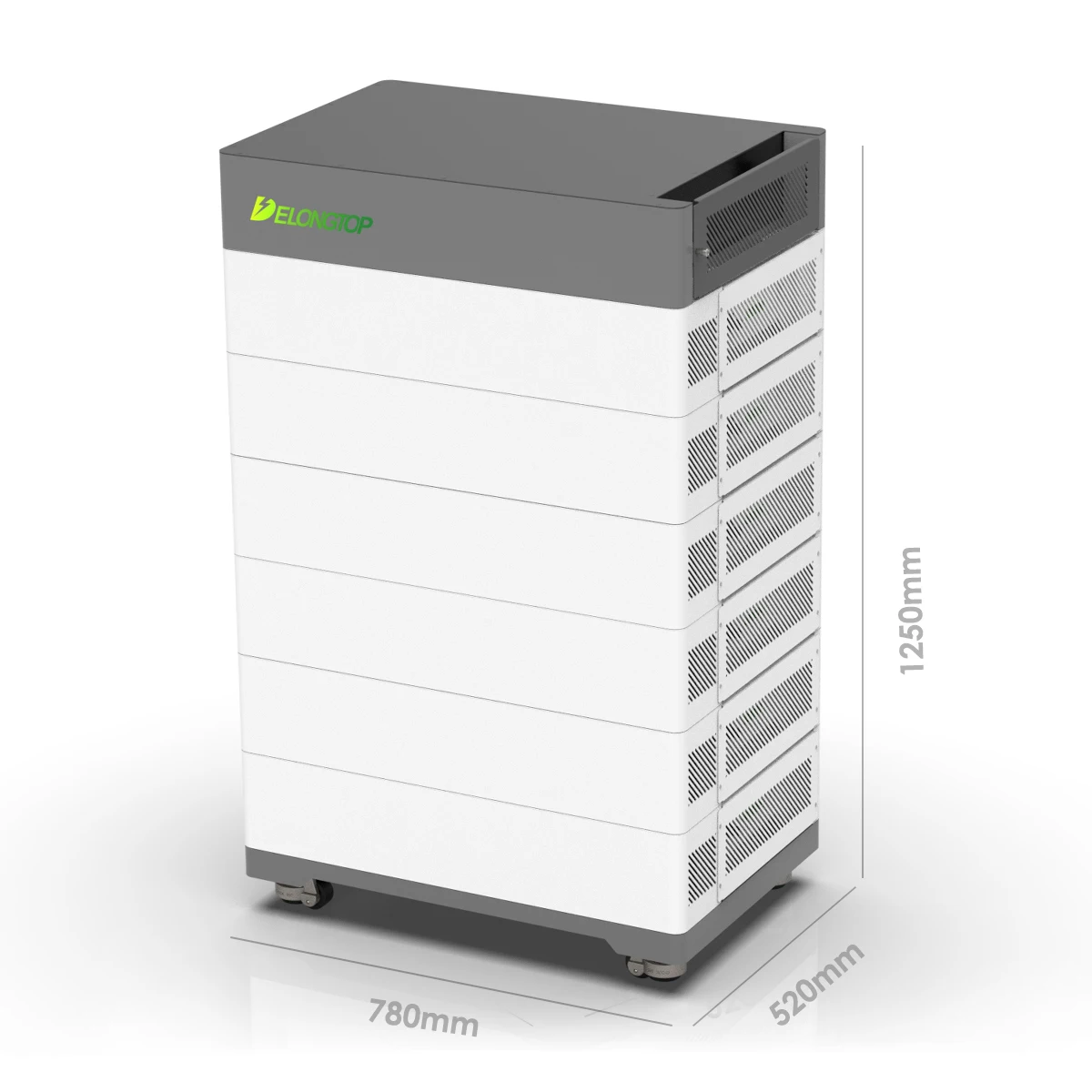

Dimensions (mm) |
780*520* 590 |
780*520*755 |
780*520* 920 |
780*520 *1085 |
780*520 *1250 |
|||||
Weight |
≈242KG |
≈327KG |
≈412KG |
≈497KG |
≈582KG |
|||||
Battery Cell Type |
LiFePO4 Battery(Lithium iron phosphate battery) |
|||||||||
Standard Charge / Discharge Current |
30A / 0.3C |
|||||||||
Enclosure Protection Rating |
IP65 |
|||||||||
Round-trip Efficiency |
99% |
|||||||||
Operation Tem. |
-10°C to +50°C |
|||||||||

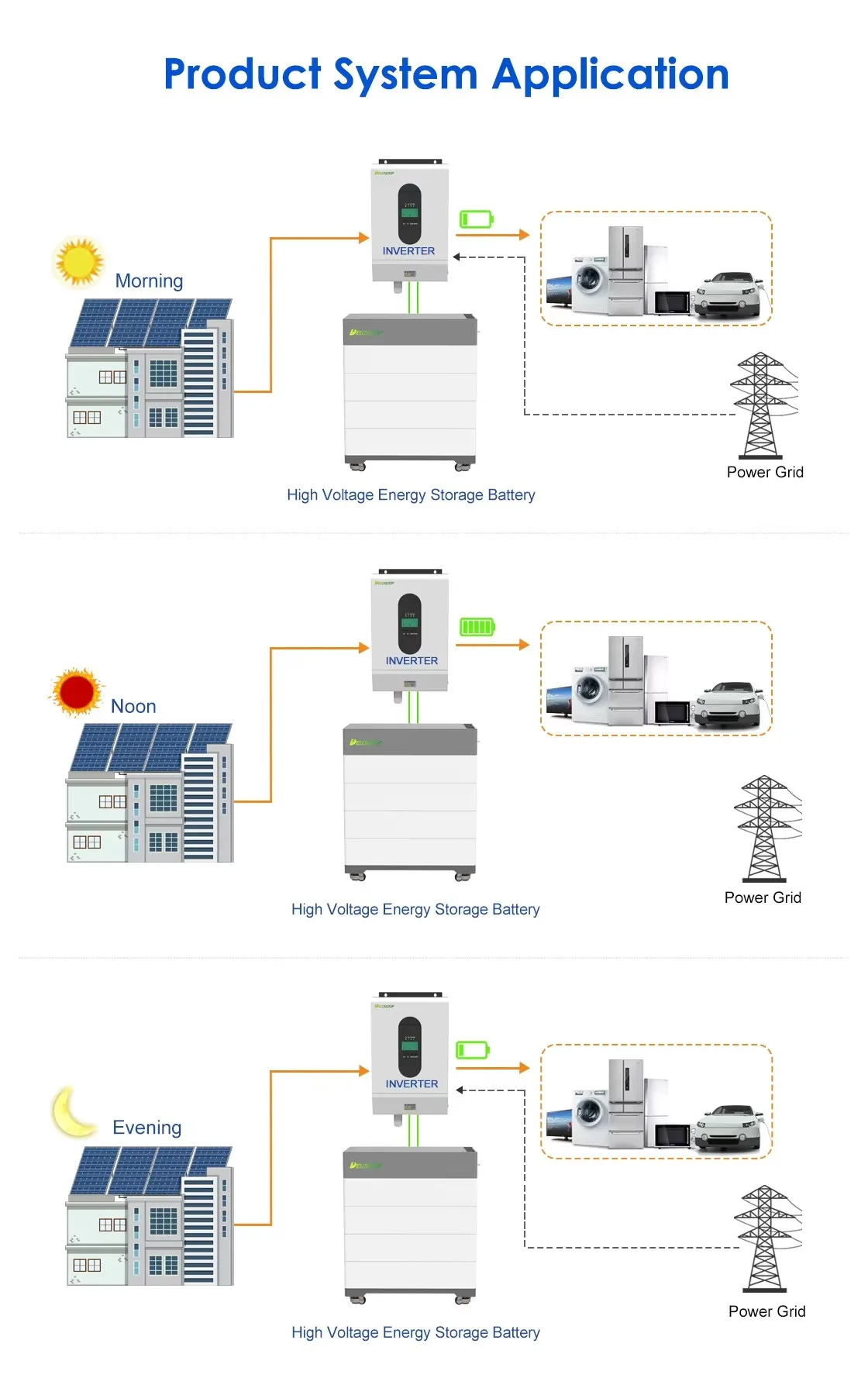

Applications |
ON Grid / ON Grid + Backup / OFF Grid |
|||||||||
Communication Port |
CAN/RS485 |
|||||||||
BMS Monitoring Parameters |
SOC,System voltage,Current,Cell voltage, Cell temperature |
|||||||||
Battery Standard |
CE-EMC, UL1642, IEC62619, REACH, RoHS, UN38.3, MSDS |
|||||||||
Warranty |
10 YEARS |
|||||||||
! These are Stackable Modular Battery 102.4V 10KWH LiFePO4 Battery Solar Home Energy Storage Battery+Controller Box

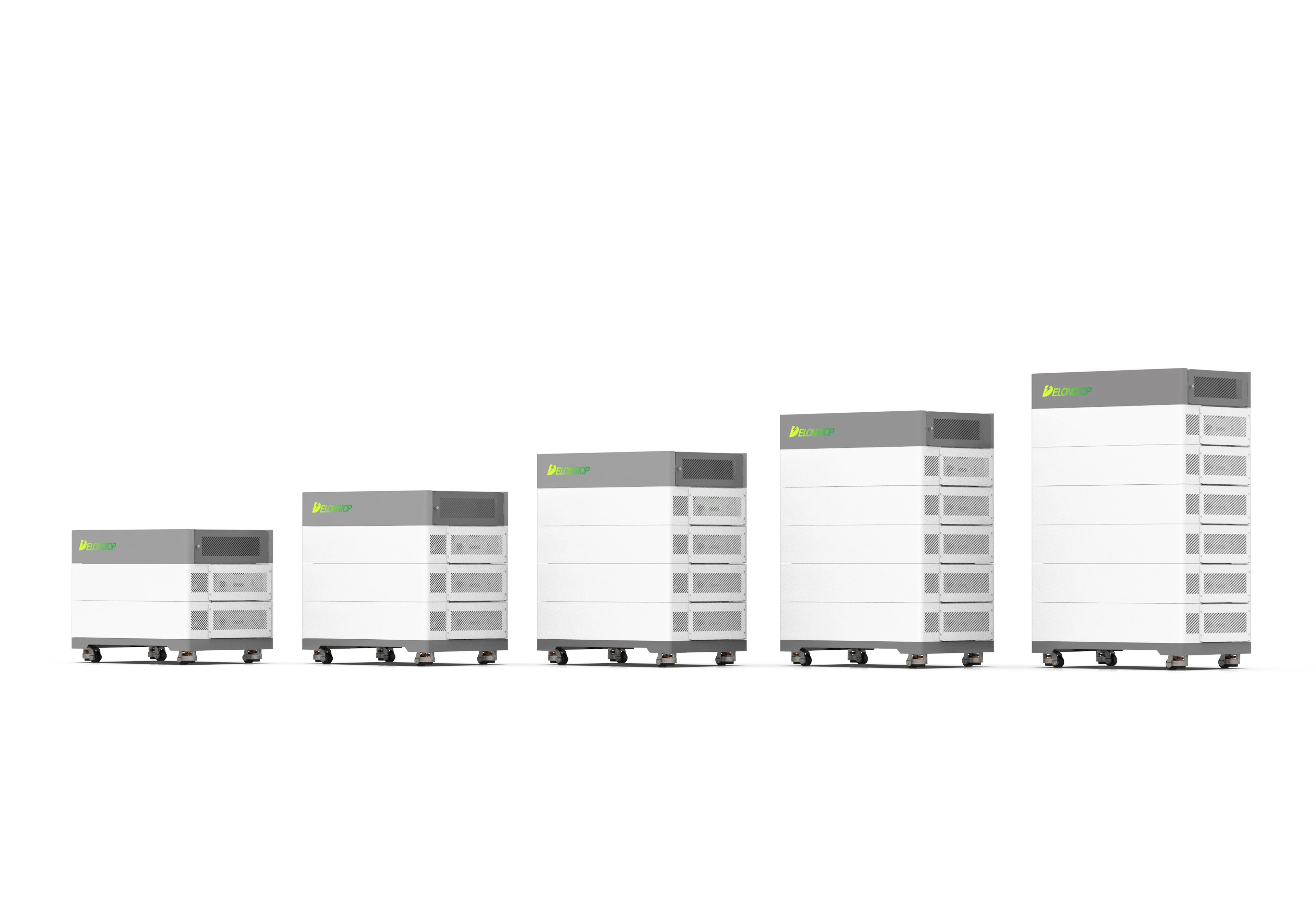

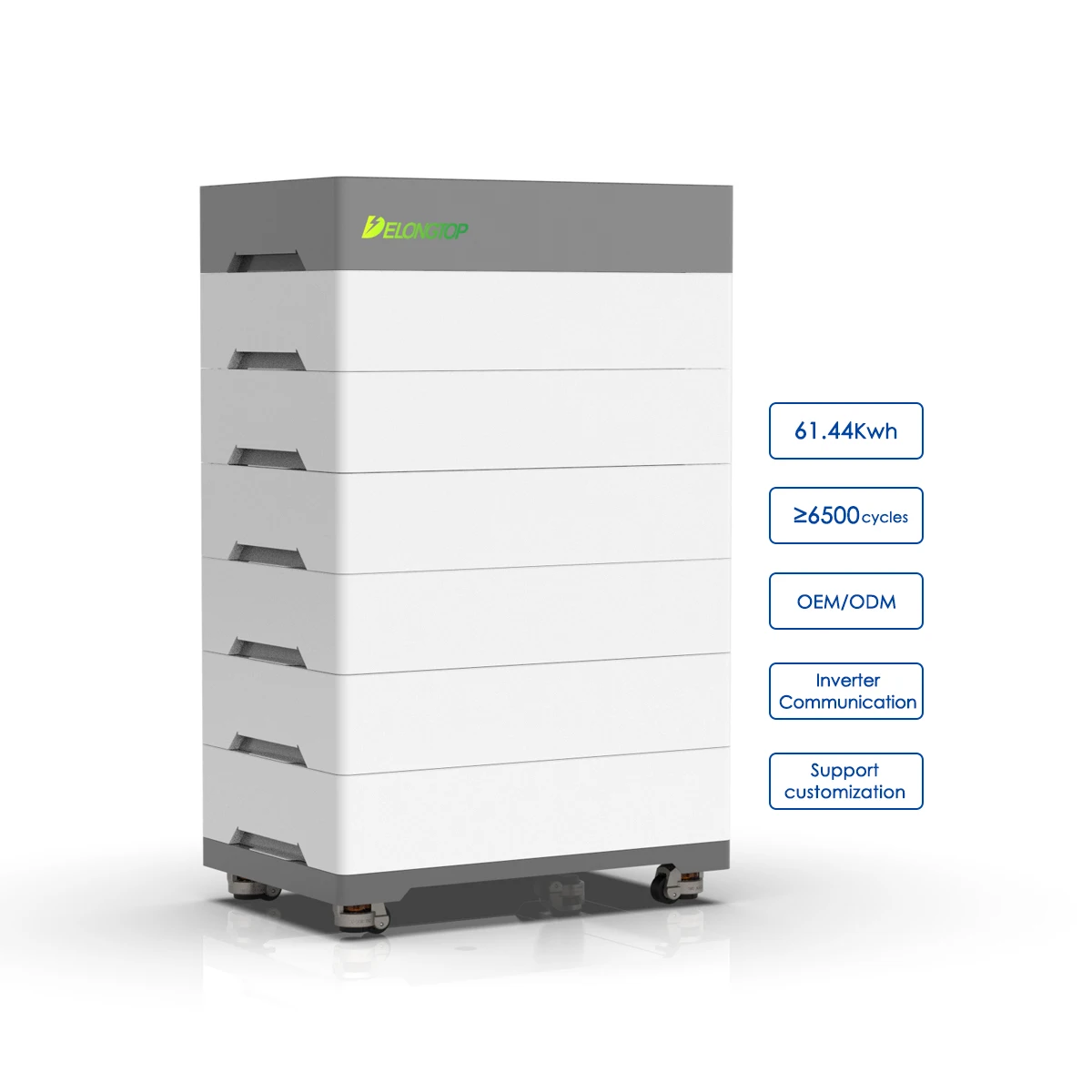

Stackable LiFePO4 20KWH 30KWH 40KWH 50KWH 60KWH Battery vertical Cabinet:
1>Two Flat 20KWH 204.8V 100AH LiFePO4 Battery , 3pcs Stackable modules in series will get 30KWH,4PCS Stackable modules in series will get 40KWH...+ Control box on the top
1>Two Flat 20KWH 204.8V 100AH LiFePO4 Battery , 3pcs Stackable modules in series will get 30KWH,4PCS Stackable modules in series will get 40KWH...+ Control box on the top
2> Battery Support smart communication function RS485/ RS232/ CANbus and can compatible with most of famous Hybrid off grid inverters / MPPT controllers

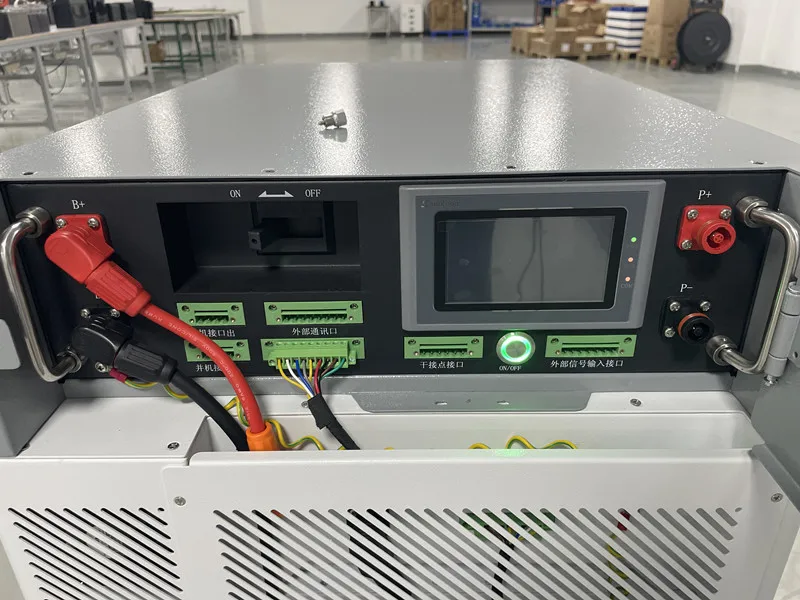

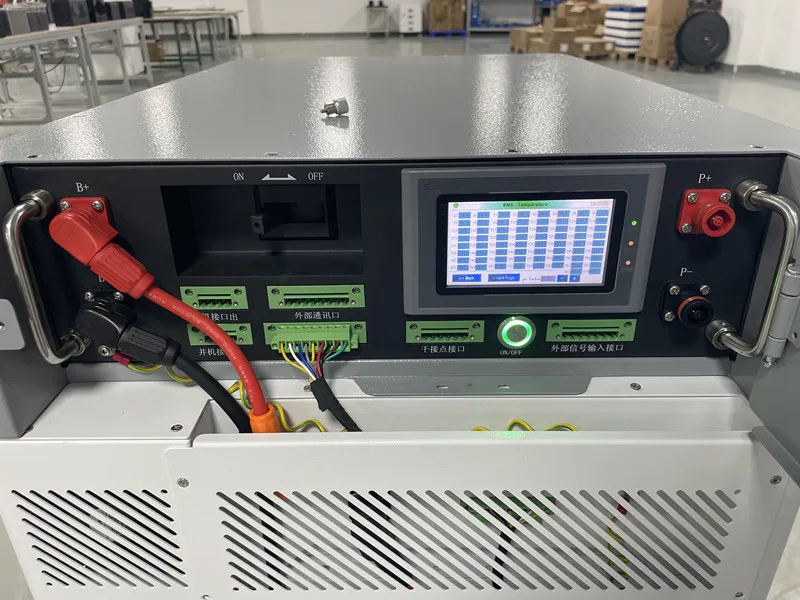

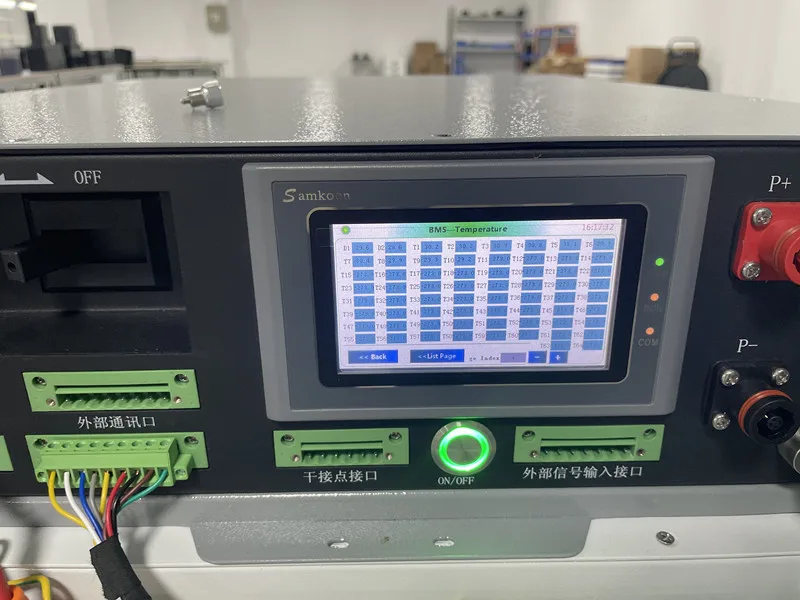

3> Built in accurate coulomb counter (LCD display), ON/OFF Switch, Handles，bracket and movable base.
3> Built in accurate coulomb counter (LCD display), ON/OFF Switch, Handles，bracket and movable base.
4>For the bracket, we customized the high quality unique metal bracket which is more stable, safely and very firm to hold the power wall lifepo4 battery install on the wall and ground.
Movable High Voltage LiFePO4 Battery 200V-600V 20KWH 30KWH 40KWH 50KWH 60KWH Solar Energy Storage Stackable Battery：

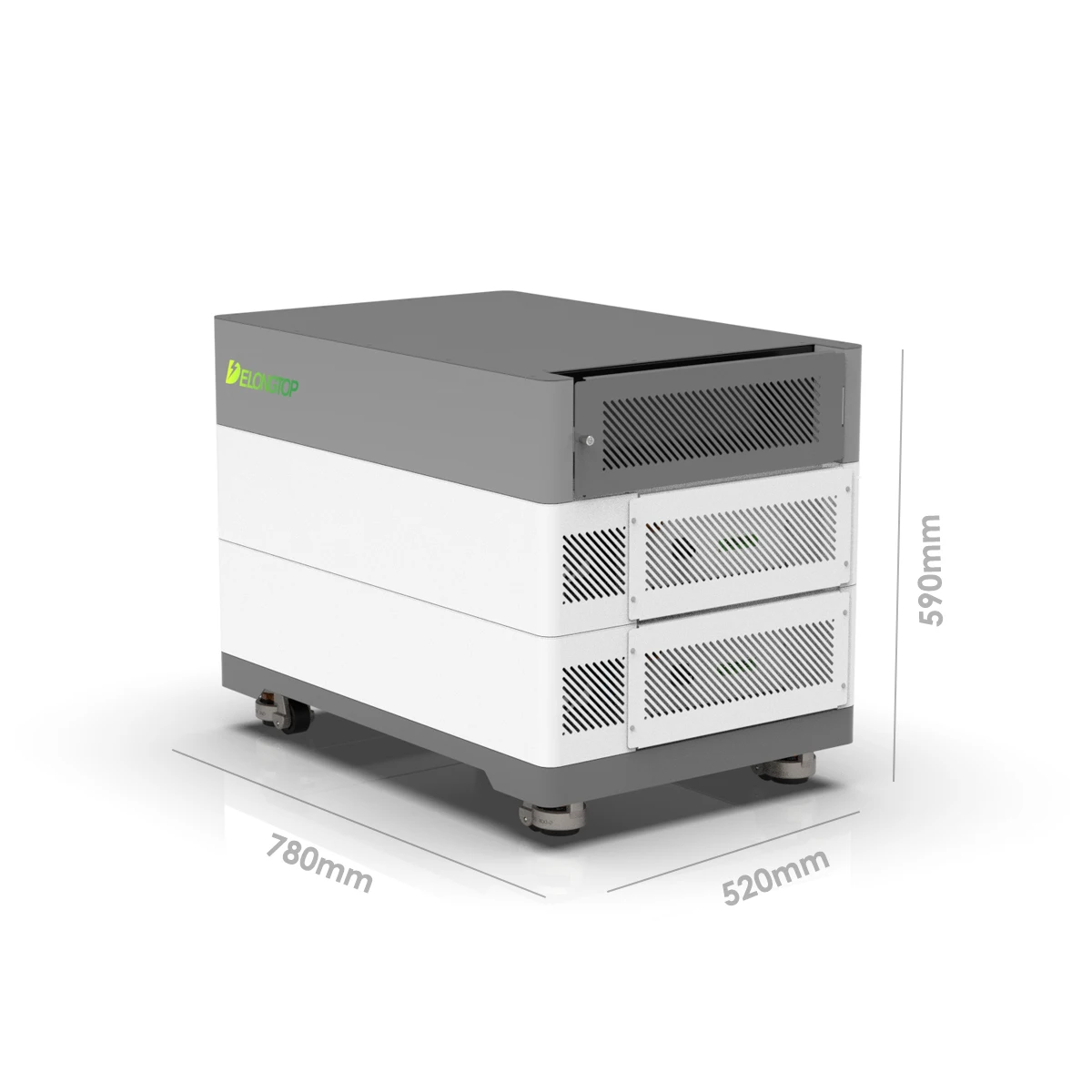

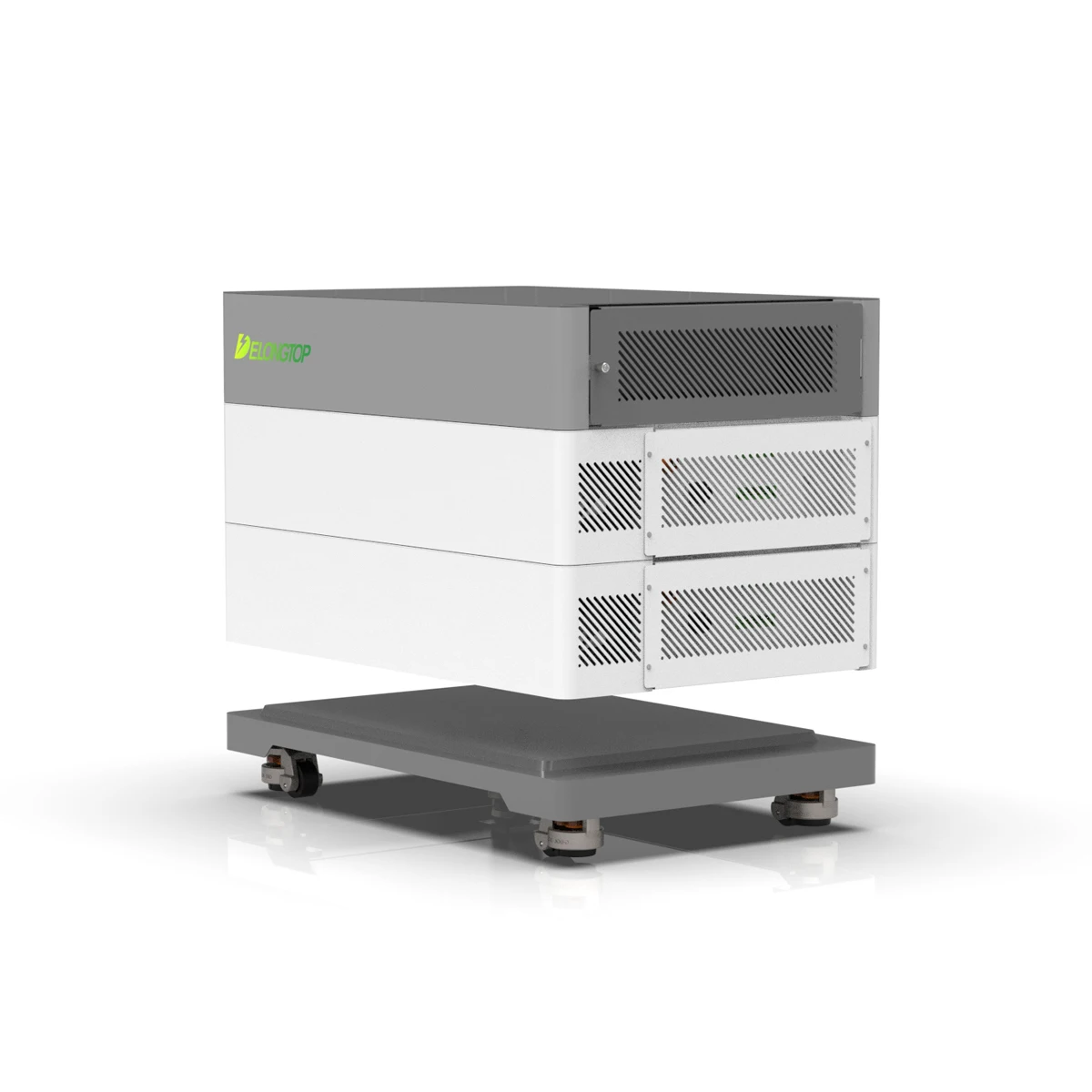

HV 204.8V 100AH=20KWH Stackable LiFePO4 Battery

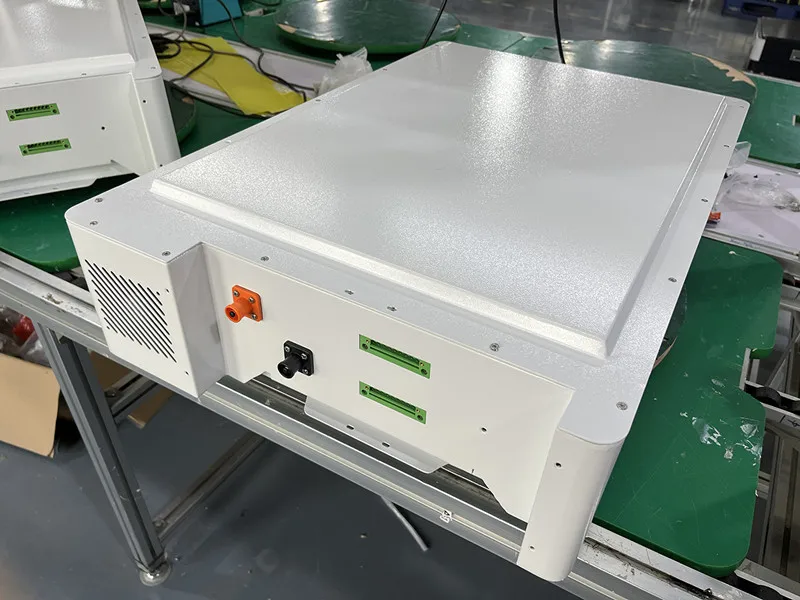

Single Module is 102.4V 100AH =10KWH,
2PCS 10KWH Stacked in Series to Get 204.8V 20KWH+Control Box on the top + Moveable Base
Accessory:
Communication Cables, Connection Cables, Earth Cable
With User Manual

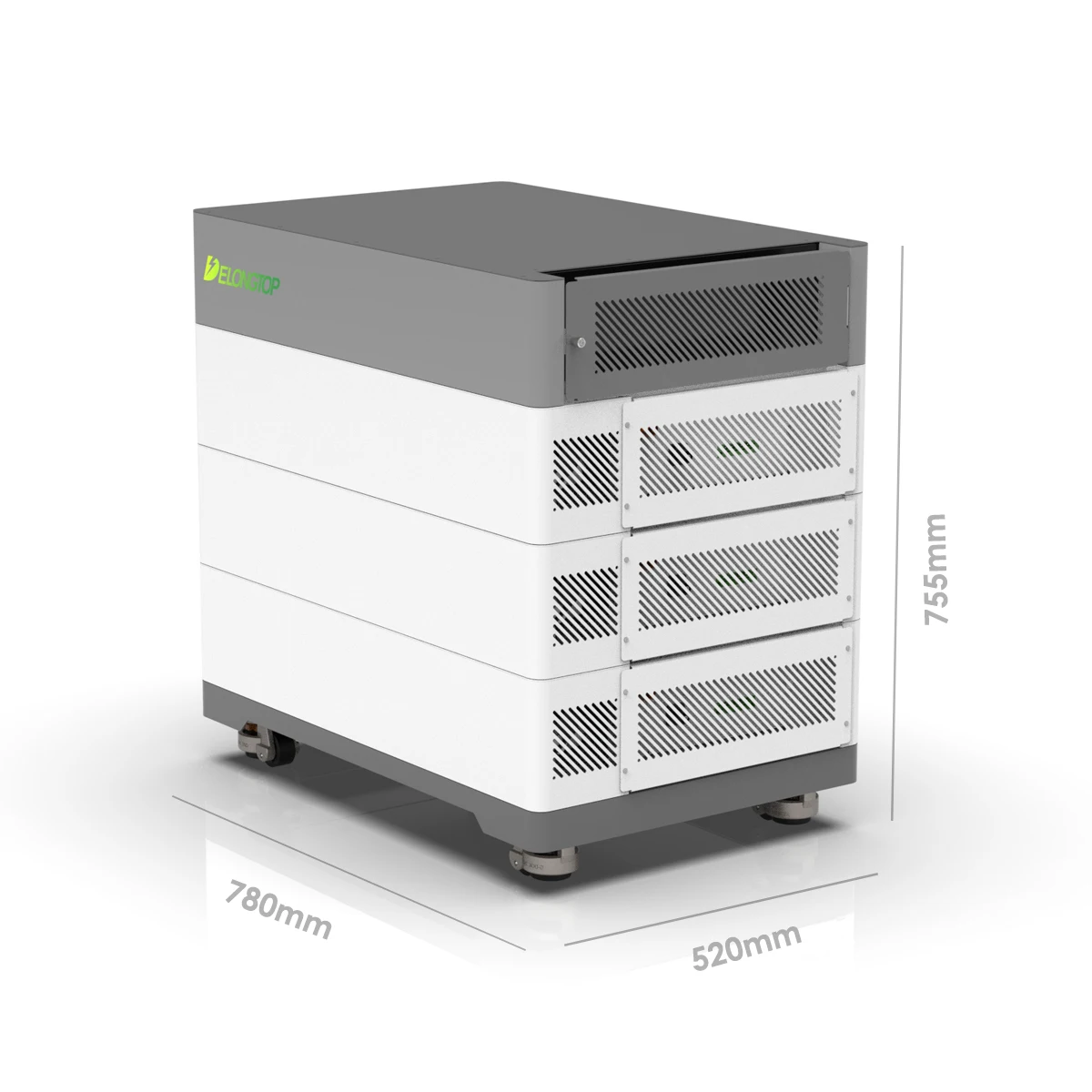

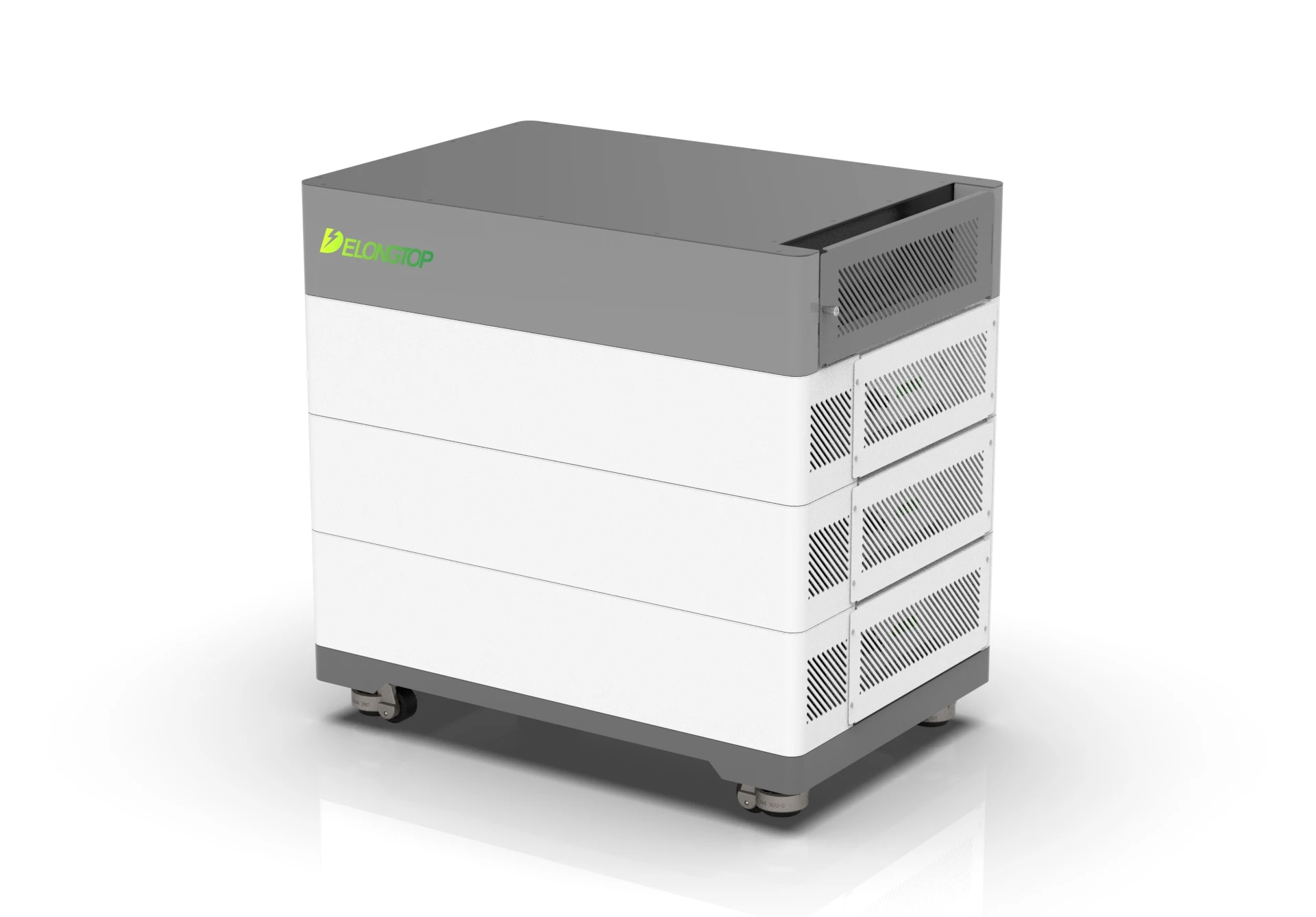

HV 307.2V 100AH=30KWH Stackable LiFePO4 Battery
Single Module is 102.4V 100AH= 10KWH,
3PCS 10KWH Stacked in Series to Get 307.2V 30KWH +Control Box on the top + Moveable Base
Accessories
Communication Cables, Connection Cables, Earth Cable
With User Manual
With User Manual

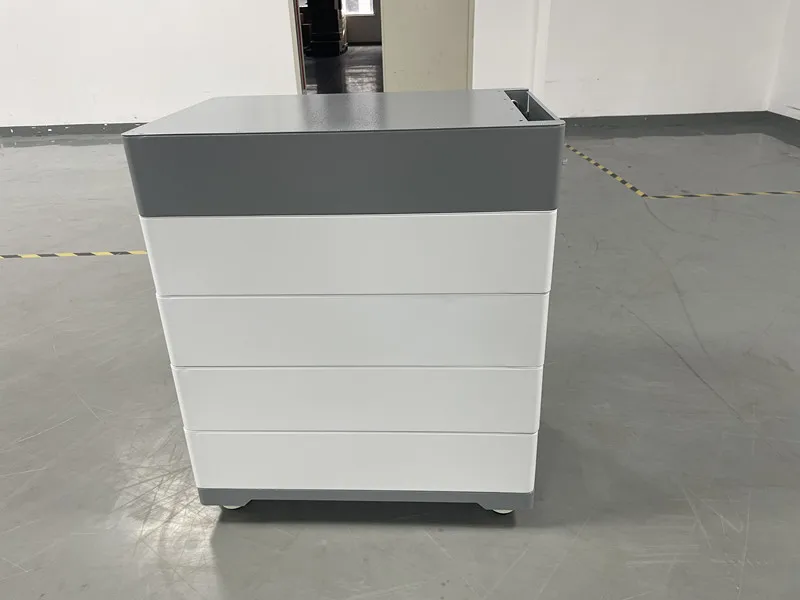

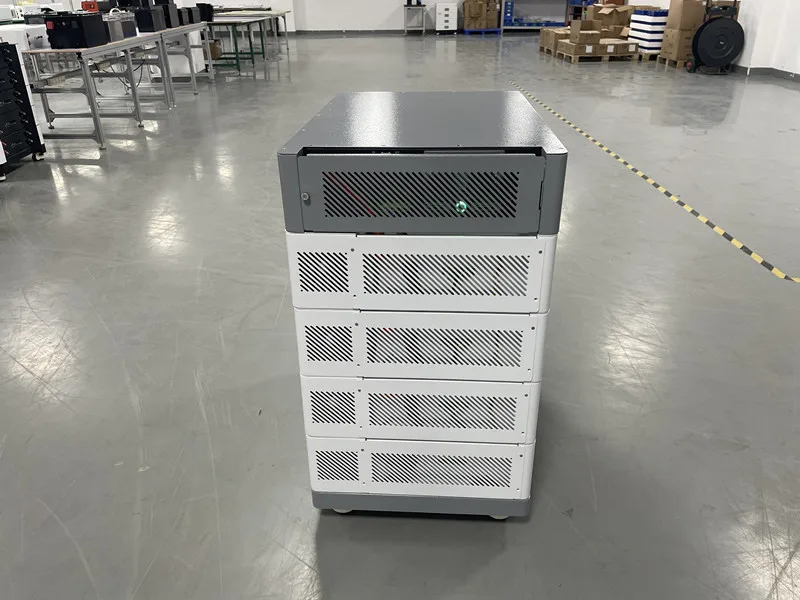

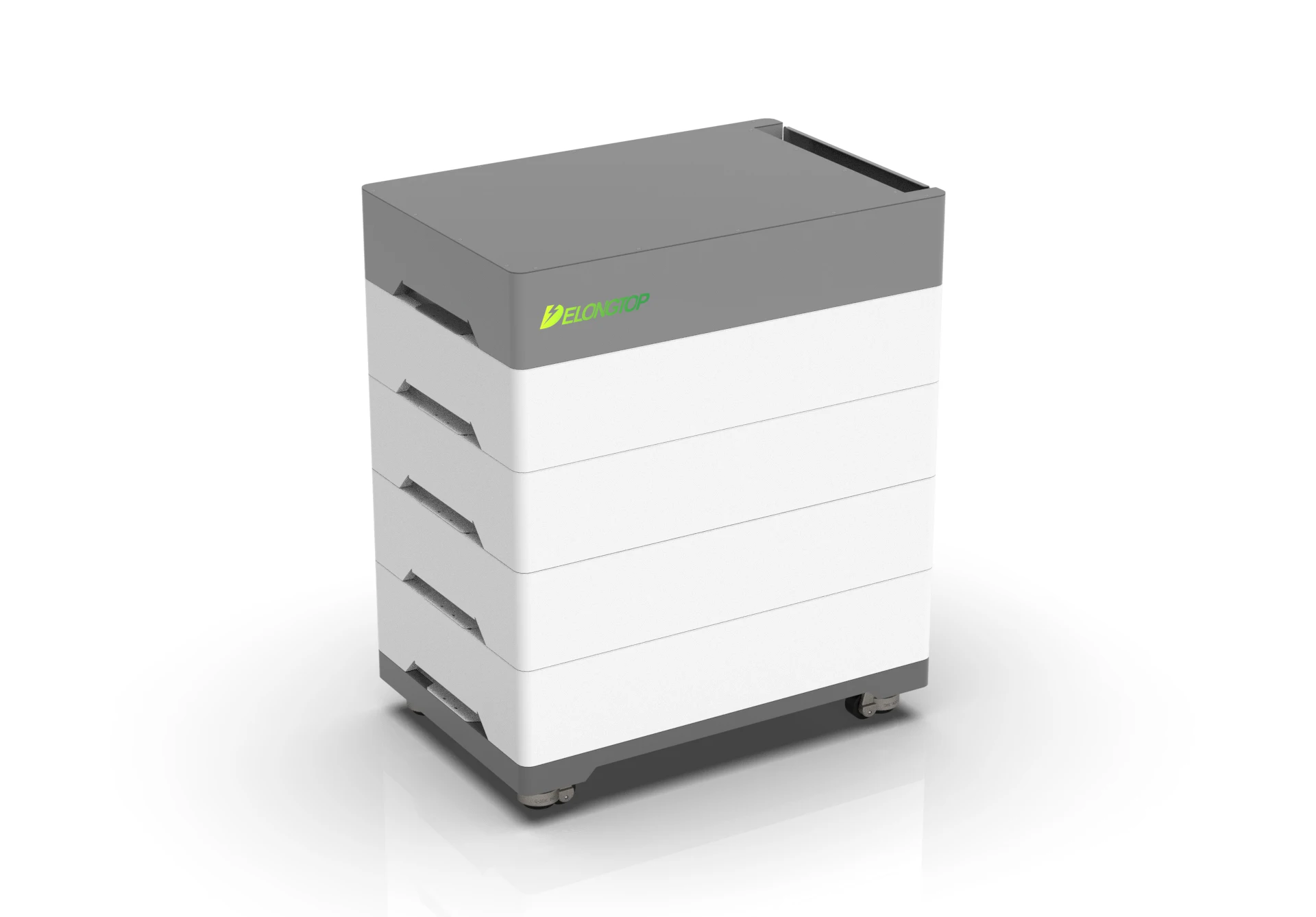

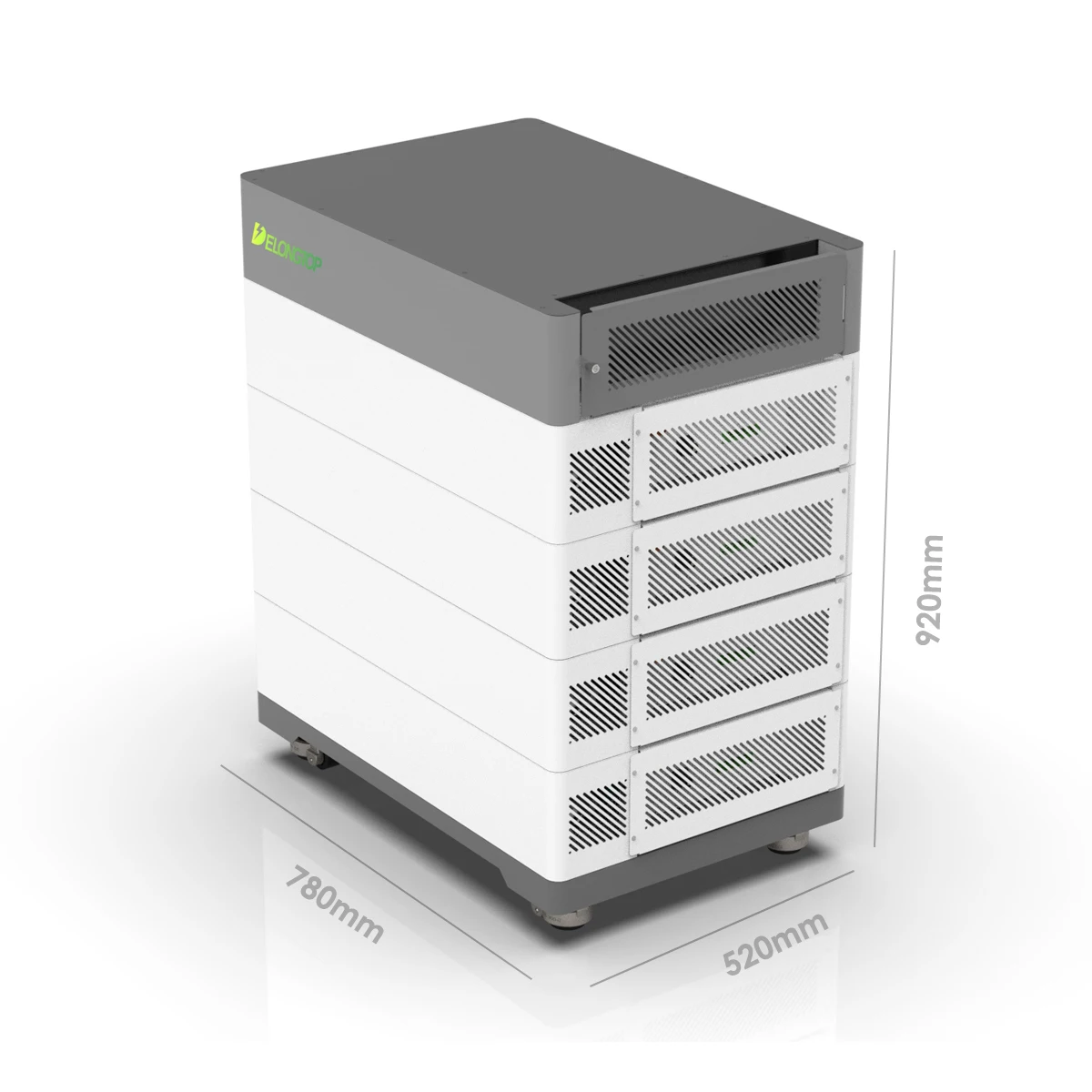

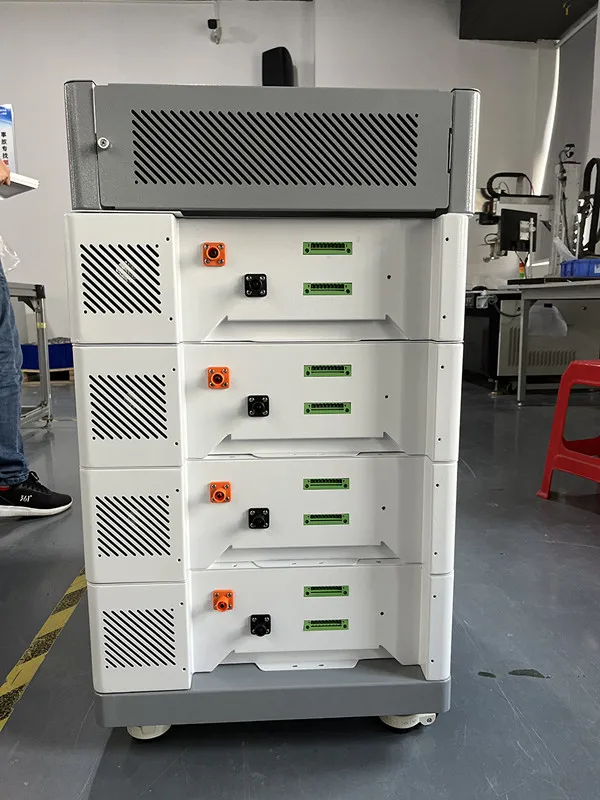

HV 409.6V 100AH= 40KWH Stackable LiFePO4 Battery
Single Module is 102.4V 100AH= 10KWH,
4PCS 10KWH Stacked in Series to Get 409.6V 40KWH +Control Box on the top + Moveable Base
Accessories
Communication Cables, Connection Cables, Earth Cable
With User Manual
With User Manual

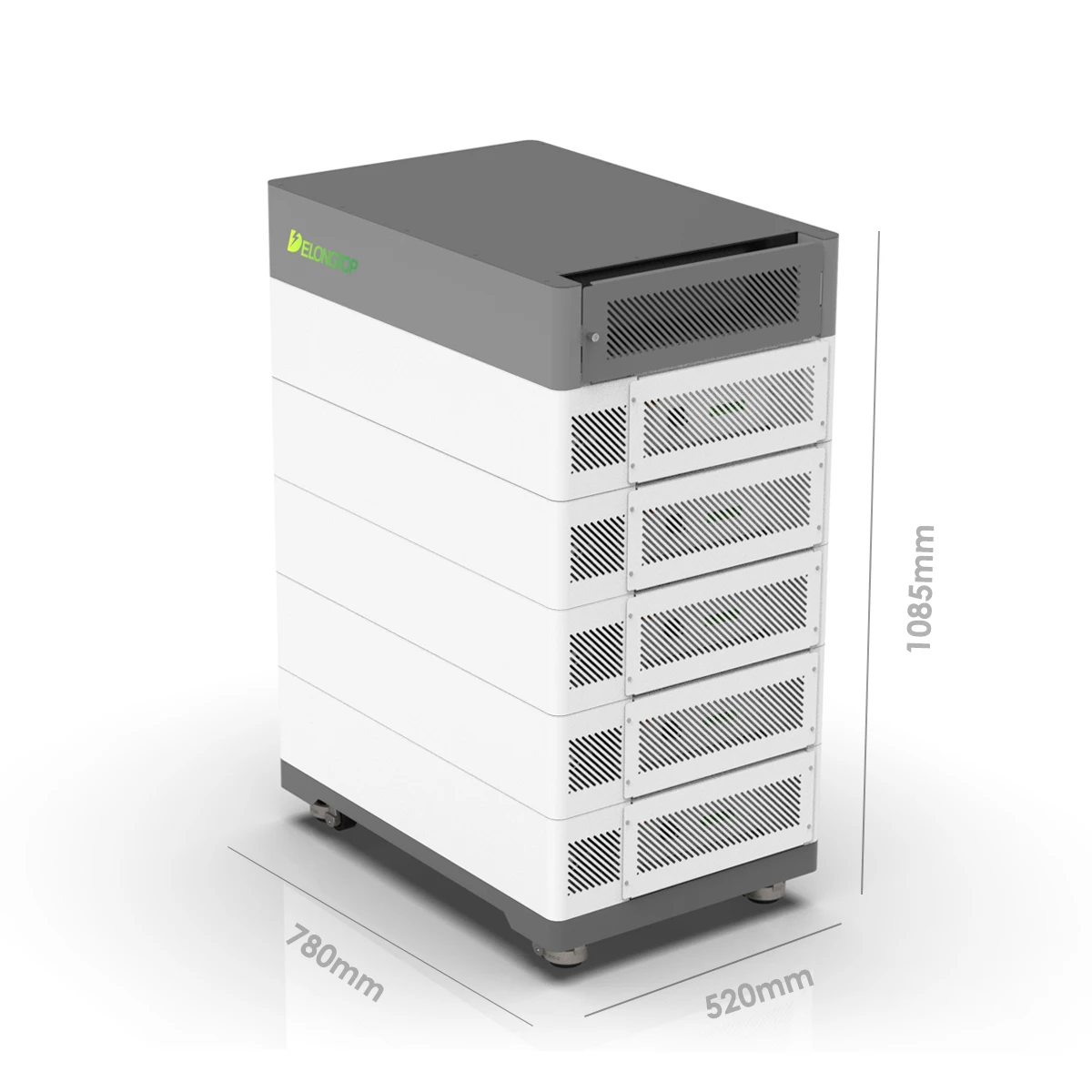

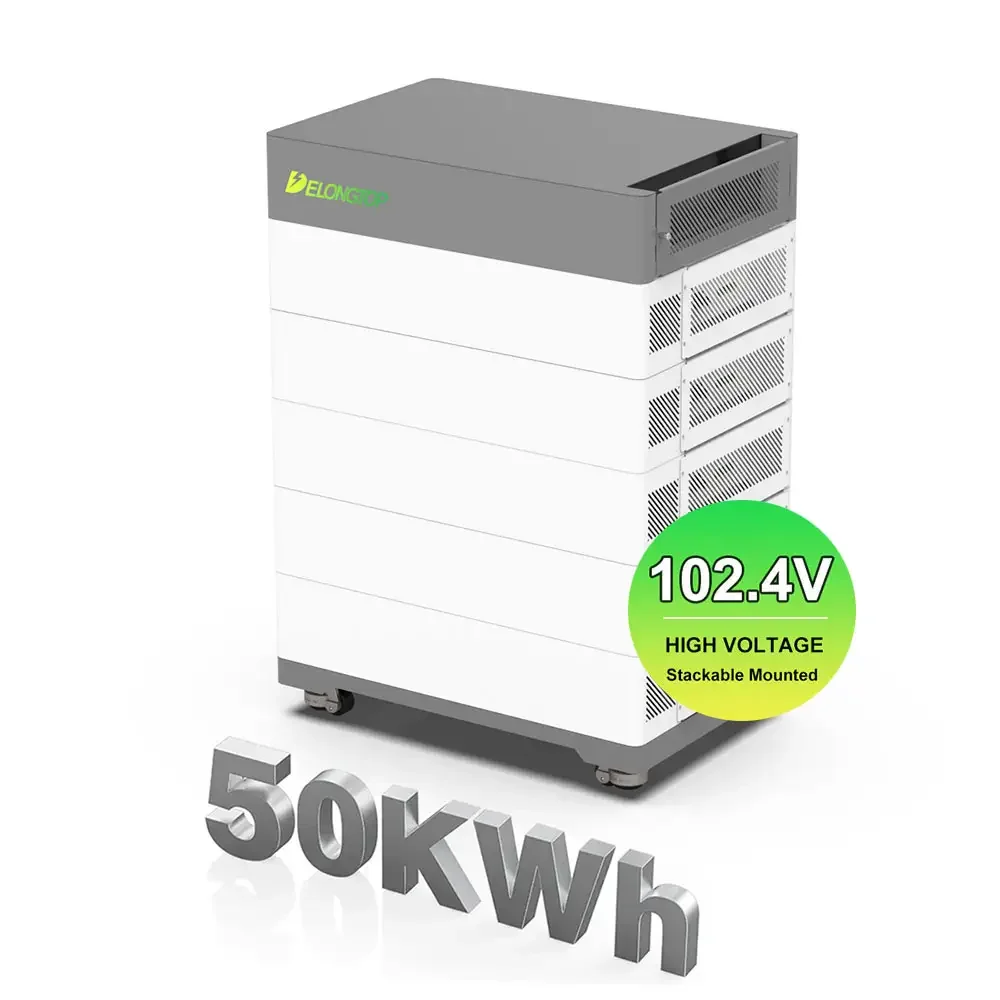

HV 512V 100AH= 50KWH Stackable LiFePO4 Battery
Single Module is 102.4V 100AH= 10KWH,

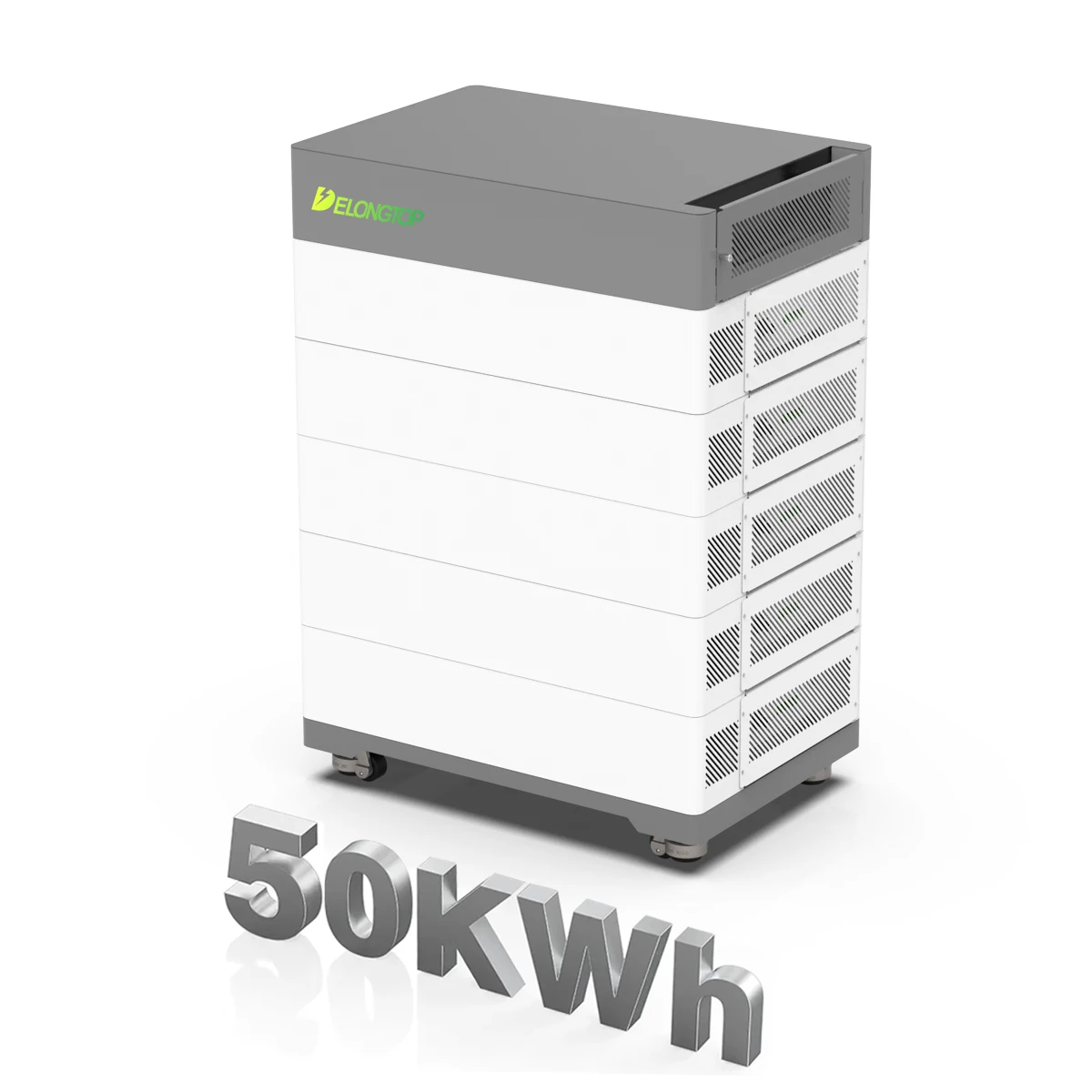

5PCS 10KWH Stacked in Series to Get 512V 50KWH +Control Box on the top + Moveable Base
Accessories
Communication Cables, Connection Cables, Earth Cable
With User Manual
With User Manual
HV 614.4V 100AH= 60KWH Stackable LiFePO4 Battery
Single Module is 102.4V 100AH= 10KWH,
6PCS 10KWH Stacked in Series to Get 614.4V 60KWH +Control Box on the top + Moveable Base
Accessories
Communication Cables, Connection Cables, Earth Cable
With User Manual
With User Manual
Compatible Solar Partner
Our Solar batteries supports for all mainstream inverter brands.
1.Pls check the above Inverter brands that DELONGTOP supports and are compatible with:
DEYE, Solis,LuxPower, Growatt, Victron,Goodwe, Solaredge,Sofar,Megarevo,SMA,Voltronic,Axpert,,Pylontech, LTW,Solplanet, Sorotec, Must, , SAJ,SRNE, Syrio power,Sungrow,Solarmax etc common brand.

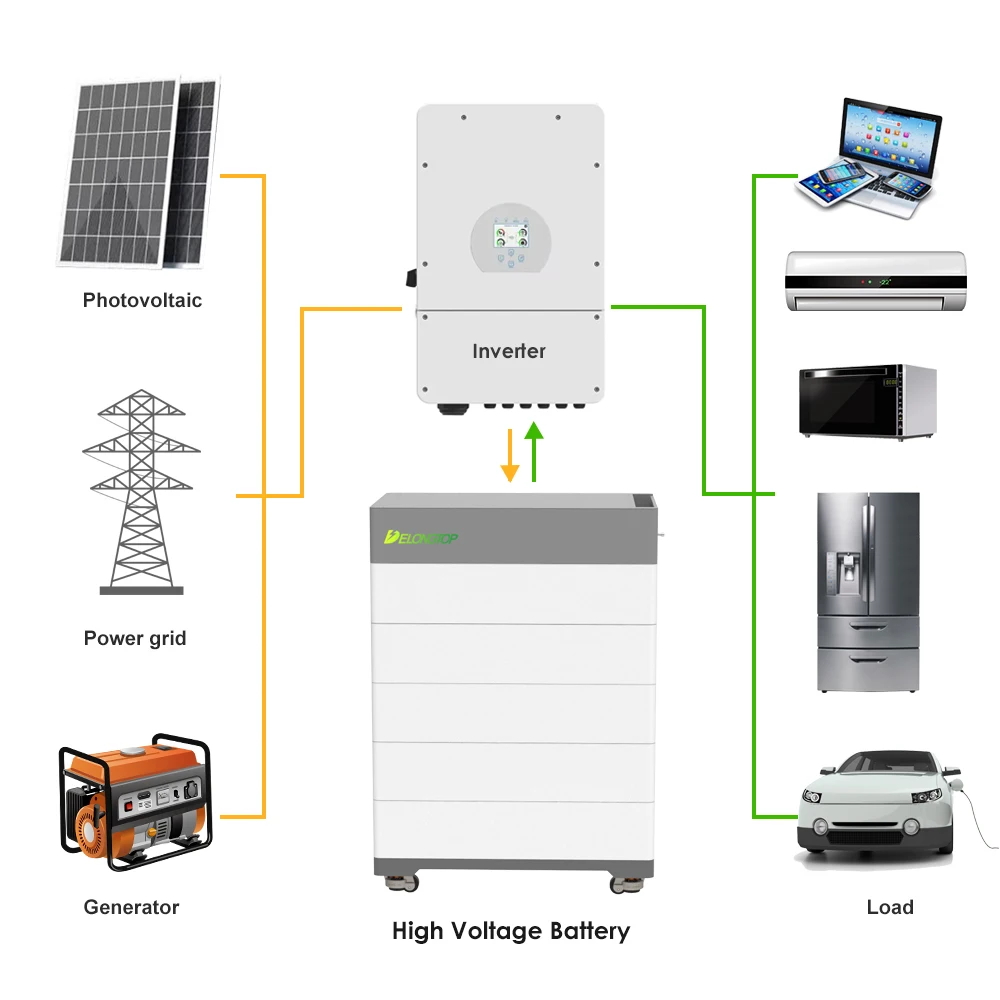

2.How to Pair Batteries with Inverters
* HV Battery + HV Inverter: Ideal for grid-tied or large off-grid systems.
* Example: 300V Li-ion battery + Sungrow 10kW HV inverter.
* LV Battery + LV Inverter: Best for small-scale/mobile systems.
* Example: 48V LiFePO4 battery + Victron 5kW LV inverter.
* HV Battery + HV Inverter: Ideal for grid-tied or large off-grid systems.
* Example: 300V Li-ion battery + Sungrow 10kW HV inverter.
* LV Battery + LV Inverter: Best for small-scale/mobile systems.
* Example: 48V LiFePO4 battery + Victron 5kW LV inverter.
Premium Quality Energy Storage Batteries:
Premium Quality Energy Storage Batteries – Built to Last
At Delongtop, we deliver high-performance, reliable lithium battery solutions by combining top-brand cells, stringent testing, and in-house manufacturing expertise.
At Delongtop, we deliver high-performance, reliable lithium battery solutions by combining top-brand cells, stringent testing, and in-house manufacturing expertise.

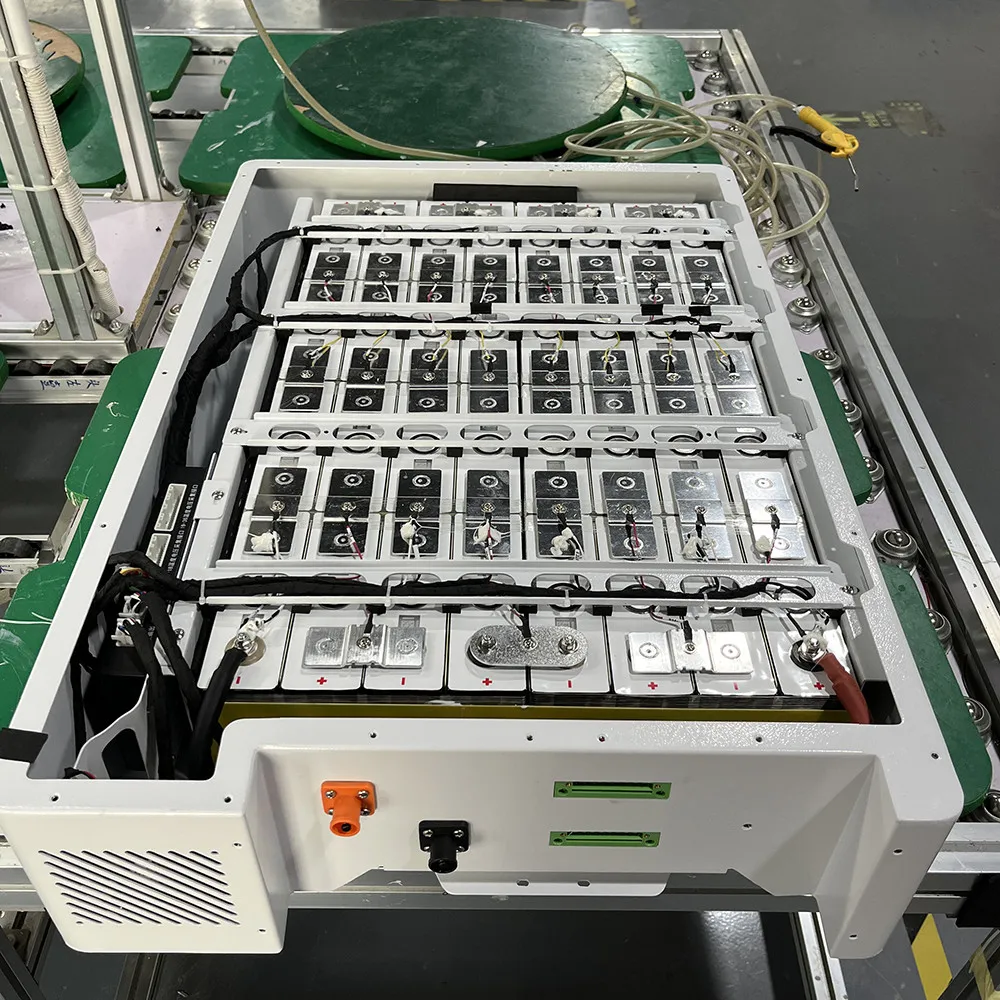

1> Certified & High-Quality Battery Cells ((e.g., CATL, BYD, EVE, Lishen, or specify your brands) to ensure long lifespan, stability, and safety.)
2> In-House Manufacturing & Advanced BMS
3> Every battery is 100% tested before shipment, including:
* Capacity Verification (full-cycle discharge test).
* Safety Checks (temperature, vibration, and insulation resistance tests).
* Performance Validation (efficiency, cycle life simulation).
* Capacity Verification (full-cycle discharge test).
* Safety Checks (temperature, vibration, and insulation resistance tests).
* Performance Validation (efficiency, cycle life simulation).
Company Profile
Delongtop New Energy Technology Co., Ltd. is a forward-thinking high-tech enterprise built on our own trusted brand Delongtop. We specialize in the R&D, production and global marketing of premium lithium energy storage battery packs. Driven by technical innovation and rigorous scientific management, we have assembled a world-class team spanning R&D engineers, product designers, quality assurance experts and customer service specialists—all dedicated to delivering reliable, high-performance lithium battery solutions.
Holding authoritative certifications including CE, ROHS, FCC, UN38.3, MSDS, IEC 60335 and IEC 62368, we focus on the design and development of LiFePO4 batteries, lithium-ion batteries and integrated energy storage systems. We provide end-to-end technical support and efficient global shipping to partners worldwide.Our lithium battery products are widely applied across diverse scenarios: home energy storage systems, UPS backup power, power substations, golf carts, electric motorcycles, RVs and industrial power tools, among others.
As one of China’s rapidly growing, experienced battery assembly suppliers, Delongtop stands for innovation, reliability and agility. We are committed to advancing breakthrough technologies and developing next-generation energy storage products, striving to deliver tailored, integrated energy solutions to every customer.By leveraging cutting-edge lithium battery technologies, we aim to provide higher-value products and exceptional service, empowering a better, more sustainable quality of life for people around the globe.
Factory View
Why Choose Our Factory?
✅ Massive Production Capacity: Dedicated workshops and automated assembly lines enable us to fulfill large orders with fast lead times.
✅ Expert Team & Tech: Our skilled engineers and workers supervise every detail. Combined with premium raw materials, we ensure consistent performance of products.
✅ End-to-End Control: From cell sorting to final packaging, we maintain full control over the entire production lifecycle, ensuring reliable quality.
✅ Expert Team & Tech: Our skilled engineers and workers supervise every detail. Combined with premium raw materials, we ensure consistent performance of products.
✅ End-to-End Control: From cell sorting to final packaging, we maintain full control over the entire production lifecycle, ensuring reliable quality.
Package & Shipping
STABLE & SAFETY PACKAGE Package
Carton + Wooden + Pallet or Customized
Certifications
Our products are certified with KC, CE, RoHS, UL, FCC, and also equipped with MSDS and UN38.3 for lithium-ion batteries, fully meeting diverse certification requirements of different countries and regions. Our products have been exported to over 200 countries and regions worldwide, and we have participated in numerous key governmental projects across the globe.
Customization capabilities
✅ Precision 3D Design & Rendering: Create high-precision 3D models, vivid product images, and dynamic videos in various colors to
visualize your brand-new battery pack before production.
✅ Brand-Centric Customization: Seamlessly integrate your logo, specific dimensions, and unique color schemes into every design,
ensuring your products stand out in the market.
✅ Cost-Effective Prototyping: Minimize upfront capital investment with our flexible design process. We prioritize your interests
by reducing unnecessary costs while delivering superior quality.
visualize your brand-new battery pack before production.
✅ Brand-Centric Customization: Seamlessly integrate your logo, specific dimensions, and unique color schemes into every design,
ensuring your products stand out in the market.
✅ Cost-Effective Prototyping: Minimize upfront capital investment with our flexible design process. We prioritize your interests
by reducing unnecessary costs while delivering superior quality.
Trade show participation
Customer Cases
FAQ
Q1: What type of batteries do you produce?
A1: We specialize in LiFePO4 (Lithium Iron Phosphate) battery packs and high-voltage energy storage systems, mainly used for residential and commercial energy storage, solar systems, and off-grid power solutions.
Q2: What is the capacity range of the HV32-10?
Q2: What is the capacity range of the HV32-10?
A2: The HV32-10 supports 2 to 7 battery modules, providing scalable capacity from 20.48kWh up to 71.68kWh, making it suitable for a wide range of residential and light commercial energy storage applications.
Q3: What is the nominal voltage of the HV32-10?
Q3: What is the nominal voltage of the HV32-10?
A3: The HV32-10 battery module operates at 102.4V per module. Depending on the number of modules stacked, the system nominal voltage ranges from 204.8V (2 modules) up to 716.8V (7 modules).
Q4: What is the operating voltage range of the HV32-10?
Q4: What is the operating voltage range of the HV32-10?
A4: The operating voltage ranges from 192–224V (2 modules) to 672–784V (7 modules), covering the full high-voltage input requirements of mainstream hybrid inverters.
Q5: What is the cycle life of the HV32-10?
Q5: What is the cycle life of the HV32-10?
A5: The HV32-10 is rated for ≥6,500 cycles at 25°C, with a design life of 10+ years (at 25°C/77°F), ensuring reliable long-term performance for residential and commercial installations.
Q6: What is the round-trip efficiency of the HV32-10?
Q6: What is the round-trip efficiency of the HV32-10?
A6: The HV32-10 delivers a round-trip efficiency of ≥92%, minimizing energy loss during charge and discharge cycles and maximizing the return on your solar investment.
Q7: What is the standard charge and discharge current?
Q7: What is the standard charge and discharge current?
A7: The standard charge current is 20A (0.2C) and discharge current is 50A (0.5C), ensuring stable and safe operation under normal conditions.
Q8: What communication protocols does the HV32-10 support?
Q8: What communication protocols does the HV32-10 support?
A8: The HV32-10 supports both RS485 and CAN communication protocols via a built-in BCU (Battery Control Unit) and BMU (Battery Management Unit), enabling seamless integration with mainstream high-voltage hybrid inverters and energy management systems.
Q9: What does the BMS monitor?
Q9: What does the BMS monitor?
A9: The built-in BMS monitors SOC (State of Charge), system voltage, current, individual cell voltage, and cell temperature in real time. It also supports cascade communication, software upgrades, and automatic module encoding for plug-and-play installation.
Q10: What is the working temperature range?
Q10: What is the working temperature range?
A10: The HV32-10 operates from 0°C to 50°C during charging and -10°C to 50°C during discharging, with a storage temperature range of -20°C to 60°C, suitable for a wide range of installation environments.
Q11: Can the HV32-10 be used with solar power systems?
Q11: Can the HV32-10 be used with solar power systems?
A11: Yes. The HV32-10 is designed for ON Grid, ON Grid + Backup, and OFF Grid applications, making it a versatile solution for solar self-consumption, backup power, and fully off-grid energy systems.
Q12: How scalable is the HV32-10 system?
Q12: How scalable is the HV32-10 system?
A12: The HV32-10 supports 2 to 7 battery modules per stack, scaling from 20.48kWh to
71.68kWh. Multiple systems can also be deployed in parallel to meet larger project capacity requirements.
Q13: What are the dimensions and weight of the HV32-10 system?
71.68kWh. Multiple systems can also be deployed in parallel to meet larger project capacity requirements.
Q13: What are the dimensions and weight of the HV32-10 system?
A13: All configurations share a footprint of 780×520mm. Height and weight vary by module count — from 590mm / ≈223kg (2 modules) up to 1,415mm / ≈652kg (7 modules), suitable for floor-standing installation with built-in casters for easy positioning.
Q14: What certifications does the HV32-10 hold?
Q14: What certifications does the HV32-10 hold?
A14: The HV32-10 holds CE, UN38.3, and IEC62619 certifications, ensuring compliance with international safety, quality, and transportation standards.
Q15: Do you offer OEM or ODM services?
Q15: Do you offer OEM or ODM services?
A15: Yes, we provide both OEM and ODM services, allowing customization in capacity, voltage configuration, appearance, and branding according to client requirements.
Q16: What is your warranty policy?
Q16: What is your warranty policy?
A16: We offer a tiered 10-year warranty: full unit replacement in Year 1, free accessory replacement from Years 2–5, and free technical support from Years 6–10.
Q17: What is your minimum order quantity (MOQ)?
Q17: What is your minimum order quantity (MOQ)?
A17: MOQ starts from 1 unit for sample orders, with competitive tiered pricing available for bulk purchases. Please contact our sales team for a customized quote.
