EEL 15Kwh Lithium Ion Battery Lithium Solar Battery Solar Panel Kit Complett Lithium Iron Phosphate Battery System

Pack / 200Ah / 51.2V

₱10,853.89PHP

₱10,853.89PHP ₱10,853.89PHP

1/6

EEL 15Kwh Lithium Ion Battery Lithium Solar Battery Solar Panel Kit Complett Lithium Iron Phosphate Battery System

₱10,853.89PHP

₱10,853.89PHP ₱10,853.89PHP

Battery TypePack

Nominal Capacity 200Ah 230AH 280AH 302AH

Nominal Voltage51.2V

SPECIFICATIONS

200/230Ah size: 550*410*260 mm

280/302Ah size: 680*410*260 mm

Application: Electric Power Systems,Solar Energy Storage Systems,Home Energy Storage Battery

BMS: 48V 16S 150A/200A BMS

Battery Pack Type: in parallel

Battery Type: lifepo4 200ah 230ah 280ah 302ah

Brand Name: EEL

Communication: CANBUS/RS485

Material: Stainless Steel

Model Number: EEL-A01

Nominal Voltage: 48V/51.2V

Place of Origin: Guangdong, China

Sample/OEM/ODM: Acceptable

Weight: 120KG/145KG

Product Paramenters

Model	48V 16S LFP Battery Pack
Application	Solar energy household system
Battery type	200Ah 230Ah 280Ah 302Ah Lifepo4 battery cell
Communication	CANBUS and RS485
BMS	48V 16S 100A 150A 200A BMS with bluetooth/USB adapter
Weight	120/145kg
Nominal Voltage	48V/51.2V
Battery Pack Type	Stackable
Continuous current	300A
Material	iron
230Ah Size	410550260mm
280Ah Size	410680260mm
Sample OEM/ODM	Acceptable
Shipping trade term	DDP

Super compatible application

It is suitable for the common mainstream inverters on the market, and the communication methods include CAN and RS485, with strong compatibility

Attention:

the standard configuration does not come with Bluetooth(Bluetooth module set in LCD screen), if you need it, please remember to order the Bluetooth LCD together, or send a message to me

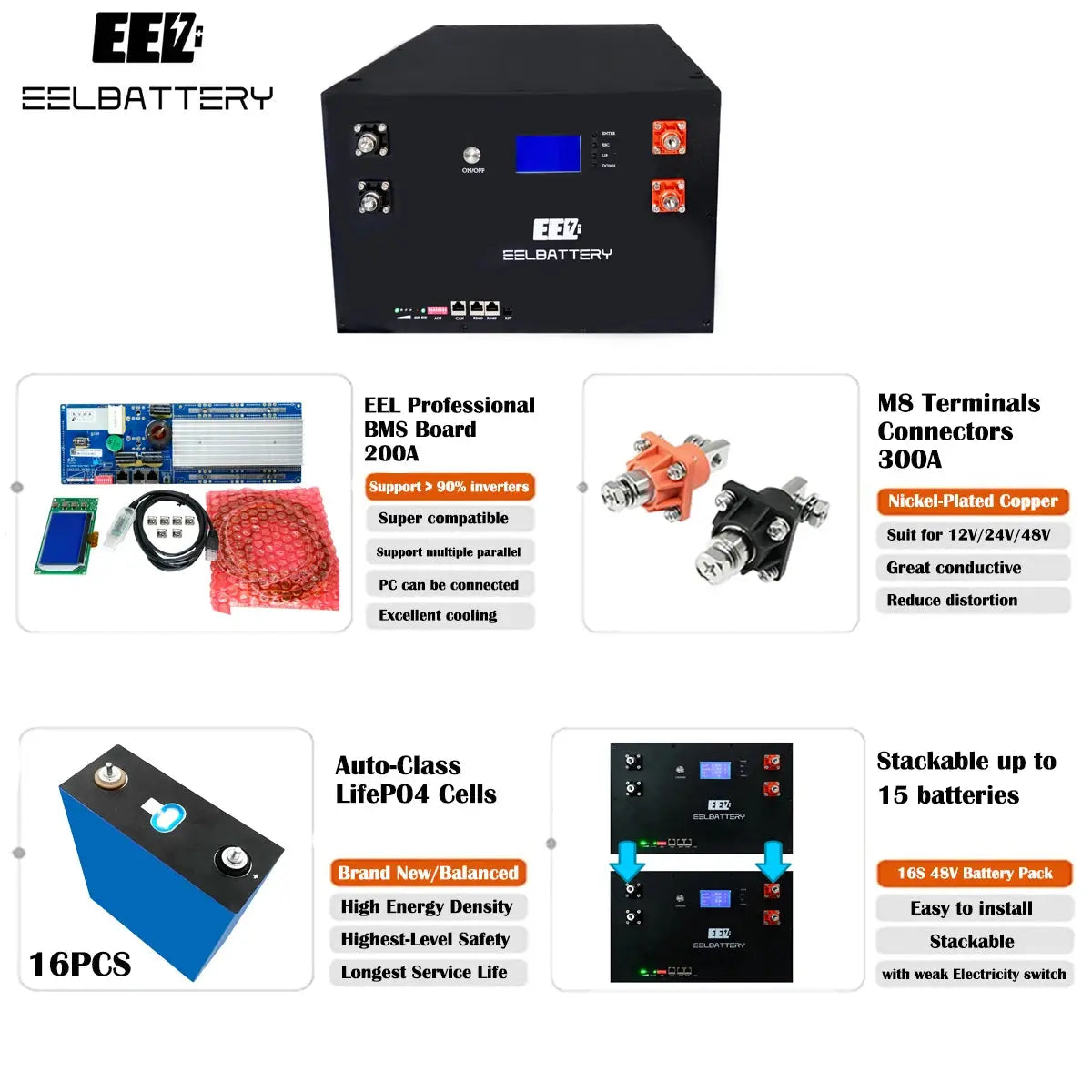

Parts List(does not come with the battery cells)

1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover) 1 * 48V 100/150/200A 16S BMS 1 * Weak electric switch 4 * Handle 2 * PCB Board for BMS and Cell Connection 3 * Upper and Lower Latch lock 1 * LCD Screen

1 * Fuse 4 * Button Cap 3 * Wires (LCD Screen wire, PCB board A and PCB board Connector) 4 * Battery Terminals (P+ Terminal and P- Terminal)

16 * EVA Boards(for cells)

16 * Epoxy Boards

Battery Accessories

Packing & Shipping

FAQ

Q： What BMS is in the 48V battery box? A: We use the 100/150/200A BMS in the box with CAN/RS485 Communications. Q: Can I only take the battery box without BMS? A: Yes, the BMS is 200USD/each, we can remove this price for you if you want to place the order. Q: If I want to build a 48V server rack system, what should I choose? A: It depends on how much capacity you want, our battery box can be stacked up to 15 sets. Q: Can I buy the completed 48V server rack battery? A: Sure, because our battery box does not include the cells, please leave a message to us if you want the completed battery system. Q: How to set up the system? A: The battery system can be connected to PC, and you can set and manage the whole system on your computer. Q: I have my own logo, can I print my logo in the battery pack? A: Yes, we accept customizing the logo, but need a large amount(>10 sets), if you like a sample, welcome to contact us. Q:Does the 48V kit contain batteries? A: Not included, see above for parts list. Q: What should I do if I don't know how to install the battery box after receiving it? A: This kit is particularly easy to install and we have a detailed installation video as well as instructions. You can also contact us anytime Q:Why has my logistics information not been updated? A:The goods will be shipped by UPS or a local shipping company, but due to the tedious process of shipping across borders, the logistics information will not be updated for a while until the goods arrive in your country. It is only when the goods are picked up by the local carrier and ready for dispatch that the logistics status will be updated accordingly.

Factory Show
