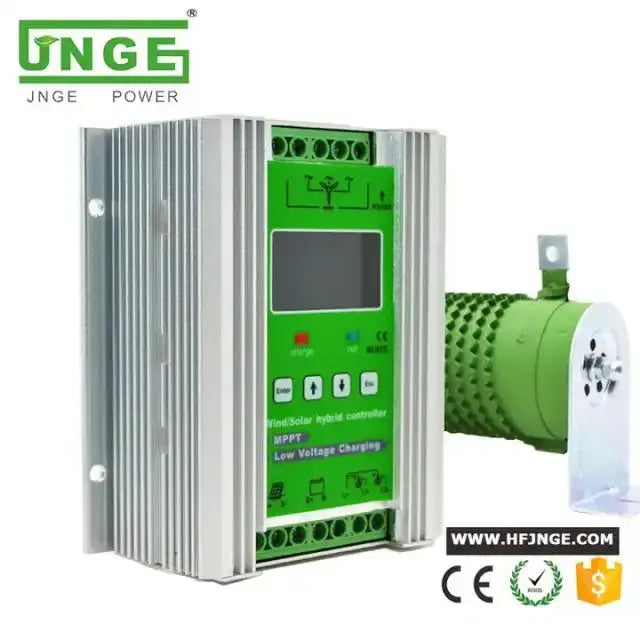

Easy Use Wind Turbine 300W 500W 600W 1KW 1.2KW 1.5KW Controller Solar Panel MPPT DC/AC Wind-solar Hybrid Controller

Power W300w/S500w / 12V/24V/48V

₱4,057.28PHP

₱4,057.28PHP ₱4,057.28PHP

1/10

Easy Use Wind Turbine 300W 500W 600W 1KW 1.2KW 1.5KW Controller Solar Panel MPPT DC/AC Wind-solar Hybrid Controller

₱4,057.28PHP

₱4,057.28PHP ₱4,057.28PHP

Maximum Current Power W300w/S500w Power W400w/S500w Power W500w/S600w Power W600w/S600w Power W800w/S1000w Power W1000w/S1000w Power W1200w/S1000w Power W1500w/S1200w

Rated Voltage12V/24V/48V

SPECIFICATIONS

Brand Name: JNGE

Charge mode: MPPT

Display: LCD+LED

MPPT efficiency: 99.5%

Model Number: JN-W800/S800

PV rated current: 30A

Place of Origin: Anhui China

Product name: hybrid wind turbine charge controller

Solar panel power: 300W 500W 600W 1KW 1.2KW 1.5KW

Type: MPPT,Pwm

Wind turbine power: 300W 500W 600W 1KW 1.2KW 1.5KW

Wind turbine rate voltage: 48V

Wind turbine rated current: 12.5A

Work Time (h): 24h

Work temperature: -20℃ ~ +50℃

Product Introduction

MPPT Hybrid Wind Solar Charge Controller

Product Parameters

Hybrid Wind Solar Charge Controller

Product Details

Hybrid Wind Solar Charge Controller

▷ 12/24V auto and 48V independent system

▷ Fit all kind of batteries, Lead acid, Gel, LIFEPO4, LiNiCoMn

▷ Advanced MPPT maximum power point tracking technology,tracing efficiency > 99.5%, maximum conversion efficiency > 98%; full-load efficiency can reach 97%

Hybrid Wind Solar Charge Controller

▷ Dump load resistance is default part, no need pay additional for it

▷ Comprehensive protection functions : overcharge, over discharge and overload etc

▷ In the high wind speed or fan’s power is beyond scope of battery and load absorption, controller immediately launched step-less unloading resistance protection system

▷ Remote Monitoring by three ways: computer monitoring; WIFI by mobile phone; GPRS by mobile phone

▷ Fan three-stage charging mode: MPPT charging - Lifting charging - floating charging-

▷ Photovoltaic three-stage charging mode: CC constant current- lifting charging- floating charging-

▷ It has various load control modes, DC load has two route outputs, output power and time can be set

▷ Time Control: street light & household Street light mode: time can be set by UP & DOWN keys, default Value “15H”, you can set other hours as you want, this time set is street light work time at night.

Household mode: time is “24H”, it means DC load need work at 24H
