SPECIFICATIONS

BMS: 150A

Battery Type: LiFePO4

Battery capacity: 15.36kWh

Brand Name: DATOUBOSS

Communication Port: RS485

Dimension (L*W*H): 64*63*81

Grid connection: Hybrid grid

Included: 6.2KW inverter+16KWh lifepo4 battery

Model Number: JC-6216

Nominal voltage: 51.2V

OEM/ODM: Accepatable

Operating temperature: -10°C to 50°C

Output Power Range: 16.07kWh

Output voltage: 220V

Place of Origin: Henan, China

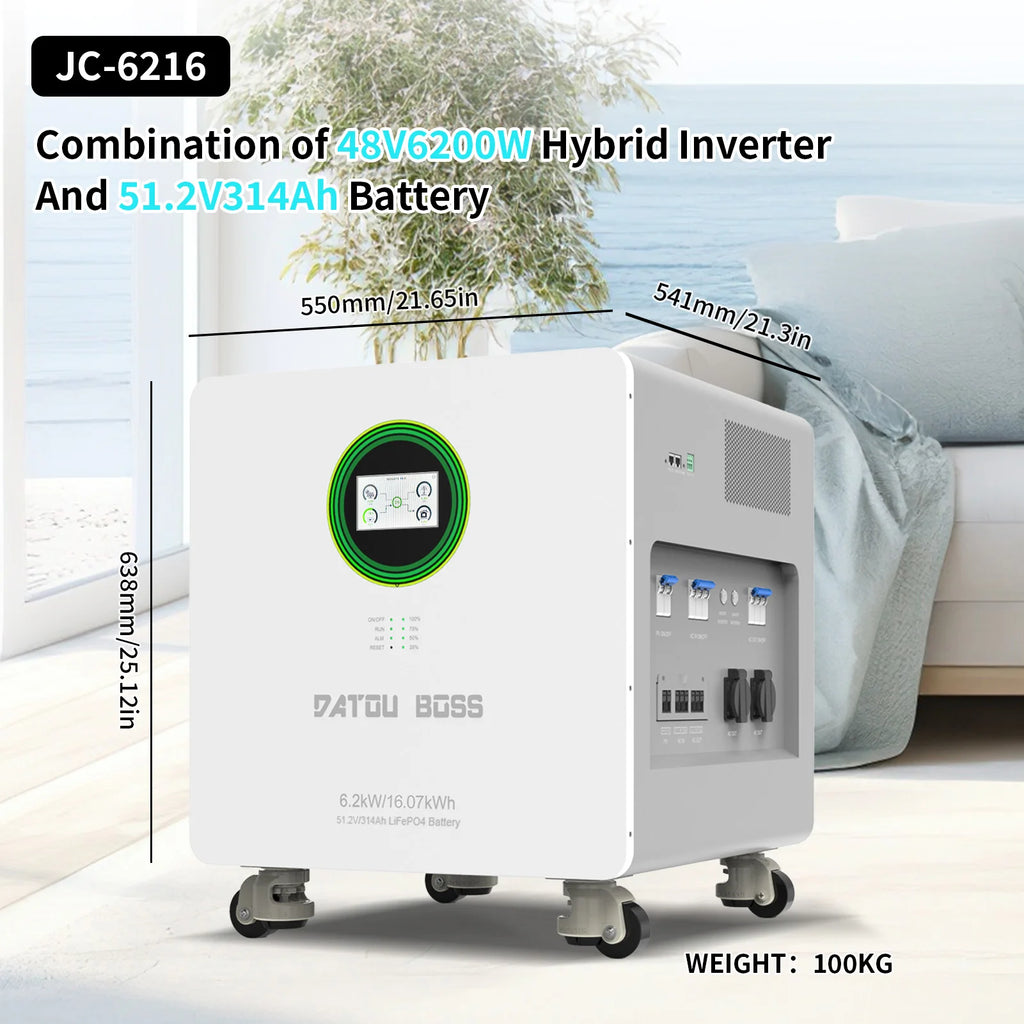

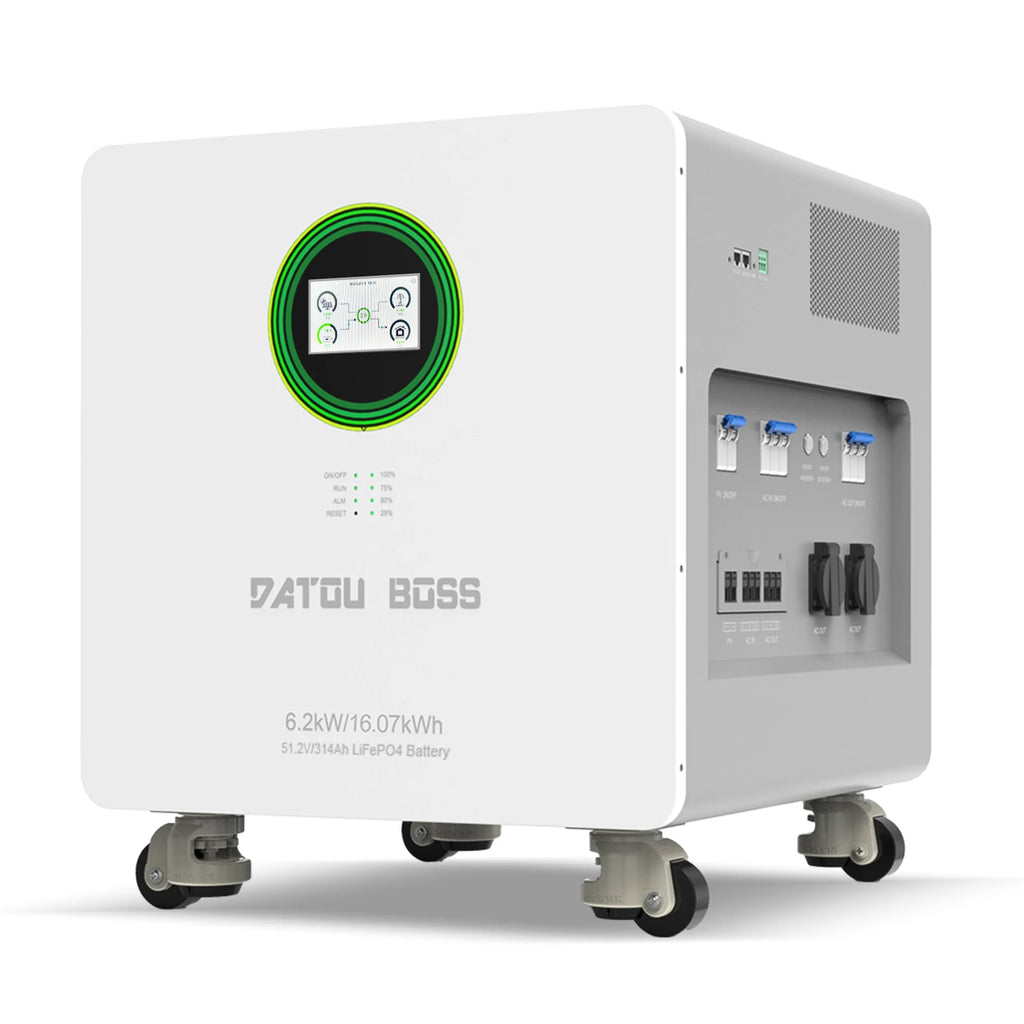

Product name: JC-6216 Energy storage system

Protection Class: IP66

Storage temperature: 0°C to 45°C

System Type: Wall-Mounted

System Voltage: 51.2V

Type: All-In-One

Warranty: 3 Years

Weight: 138KG

Products Description

Product Model	JC-6216
Battery Type	All-in-one machine
Battery Capacity	16.076kWh
Nominal Voltage	51.2V
Battery Cycle Life	25°C: 8000 cycles, 70%SOH			45°C: 3000 cycles, 70%SOH
PV Charging Mode:	MPPT	Max PV Input Current:	27A
PV Input Power Max.:	8500W	Charging Current Max.:	120A
MPPT Tracking Range:	60 - 500Vdc	Input Format:	L - N - PE
Optimum Voltage:	300 - 400Vdc	Rated Input Voltage:	220/230/240VAC
Max PV Input Voltage:	500Vdc	Voltage Range:	90 - 280VAC 3%(Normal Mode); 170 - 480VAC 3%(UPS Mode)
Output Rated Power:			Battery Inverter: 6200W; PV Inverter: 6500W
Output Voltage:			220/230/240VAC±5%
Switching Time (Settable):			Computer equipment 10ms, Household appliances 20ms
Peak Power:			12400VA
Overload Capacity:			Battery Mode 11s@105% - 150%Load: 2s@150% - 200%Load, 400ms@>200%Load
Storage Temperature:			-15°C - 60°C
Altitude:			Altitude should not exceed 1000m, Derated above 1000m, Up to 4000m, Refer to IEC62040
Noise Level:			≤50db

Company Profile

Mingde Times (Shenzhen) Green Energy Technology Group Co., Ltd.

We are a dynamic company committed to providing high-quality inverter products.

We are proud to have multiple overseas warehouses around the world, including Germany, the United States, Australia and Japan, ensuring that we can deliver products quickly and efficiently to meet our customers' urgent needs.

Our factory has a strong R&D team that continuously innovates and pursues technological excellence.
Our production department is equipped with advanced production equipment to ensure high-quality manufacturing of products.

The sales team actively cooperates with global customers to export our products to multiple countries and promote the use of clean energy.

Our mission is to provide reliable inverter solutions that meet our customers' power conversion needs.
Through global overseas warehouses and global export operations, we provide customers around the world with excellent products and services, contributing to clean energy and sustainable development.

Our Feedback

FAQ

1. Who are we?

We are DATOUBOSS Factory is a leading high-tech enterprise which established in 2017.
It is located in zhengzhou China, sell to North America(25.00%),Mid East(15.00%),Southern Europe(15.00%),Western
Europe(10.00%),South America(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(5.00%),Oceania(5.00%),Eastern
Asia(5.00%),Northern Europe(5.00%). There are total about 50-100 people in our office.

2. Why choose us ?
With strong R&D, manufacture and quality control of inverter products; We have
built a comprehensive sales & marketing network and experienced after-service center;

3. What can you buy from us?
Car inverter,solar inverter, solar panel, solar controller, inverter battery.

4. Q: How to order ?
Step 1, please tell us model name or link and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything,can arrange the payment;
Step 4, finally we deliver the goods within the scheduled time.

5. Q: When will make delivery ?
Delivery Time
-Sample order: 1-3 days after receipt of the full payment.
-Stock order: 3-7 days after receipt of the full payment.
-OEM/ODM order: 12-20 days after receipt of the deposit.

6. After-sales Service
1 year warranty for all kinds of Inverter;
If you find any defective accessories after receiving the goods, please contact us at once.
we will give you the new parts for free to replace in the next order after confirmation, as an experienced manufacturer, you can
rest assured of the quality and after-sales service.
( Please refuse to sign if the goods package in broken situation )

7. What services can we provide?
Accepted Delivery Terms:FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type:T/T,L/C,PayPal,Western Union,Cash,Escrow;
Transportation: DHL, UPS , EMS, FedEx, TNT, Air freight , Sea freight, Train way.
