SPECIFICATIONS

Battery Cell: CATL/EVE/Other

Battery Type: Lithium Ion,LifePO4 Lithium Battery Pack

Brand Name: JApower

Communication Port: CAN,RS-232,RS485,Wifi,Bluetooth

Cycle Life: 8500 Times

Dimension (L*W*H): 2083*830*964mm(contain inverter)

Grid connection: Hybrid grid

IP Rating of Enclosure: IP21-IP65

Inverter: Deye

Inverter Communication: CAN, RS485, WIFI, ETH

Max Parallel connection sets: 16

Max. charging/discharging efficiency: 95%

Model Number: CES-JA6428-M

Operating Temperature Range (°C): -40-60(>45°℃ derating)

Output Power Range: ＞50KW

Place of Origin: Guangdong, China

Protection Class: IP65,IP66

System Certification: UN38.3, IEC62619,CE,CEI 0-21.VDE-AR-N 4105,IEC 62109

System Type: Stackable,Rack-mounted

System Voltage: 51.2 V

Type: All-In-One

Weight: 900KG

Main Products

To become a distributor or agent of JApower Energy, please contact us！！！

We can ship from 30+overseas branches in the United States, the European Union, Nigeria, South Africa, the Philippines,Myanmar,Dubai, Mali... and provide fast transportation services. If you need it, please click here to contact us directly.

Schneider 300A DC Molded

Case Circuit Breaker

Schneider Grid input

output ports

PV lightning protection

circuit breaker

Product Features:
Battery cells：	Equipped with REPT high-quality battery cells

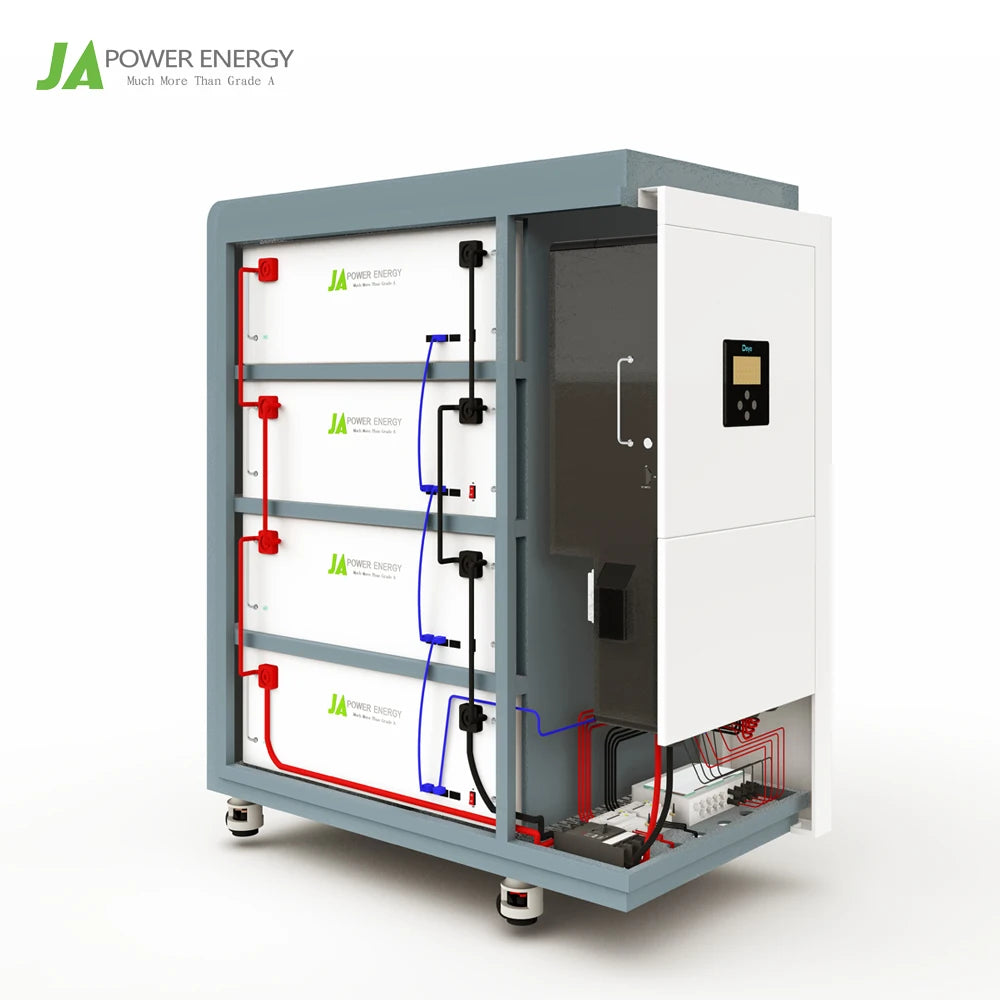

Technology Integration:	Integrated technology EMS, hybrid inverter and BMs integrated technology, power redundancy design, support black start function,off-grid operation
Safety protection:	Comprehensive protection Combustible gas, smoke and temperature detection, active exhaust system Fire alarm
App Smart Monitoring	Smart APP monitors data in real time and supports remote control

Model	ESS-EU12K43kWh	ESS-EU-16K57kWh	ESS-EU-20K64kWh	ESS-EU-20K80kWh
NominalOutputPower/UPS Power (w)	12000	16000	20000	20000
AC Output Frequency and Voltage	50/60Hz;3L/N/PE220/380,230/400Vac 0.85Un-1.1Un
Dimension (contain inverter(WxDxH,mm)	1060*516*1100	1060*516*1295			1060*516*1578
Weight Appr. (kg)(contain inverter)	472	590		550	700
Rated AC Input/Output Current(A)	18.2/17.4	24.3/23.2	30.4/29
Battery Chemistry	LiFePO4
IP RatingofEndosure	IP21~IP65
System Certification	UN38.3, IEC62619, CE,CEI 0-21, VDE-AR-N 4105, IEC 62109
(W)RatedACInput/Output Active Power	12000	16000	20000
Max ACInput/Output Apparent Power(VA)	13200	17600	22000
Warranty	10 years 15years
Inverter Technical Specification
Max.PVAccessPower(W)	24000	32000	40000
Max. PV Input Power(W)	18000	25600	32000
Max. Operating PV Input Current (A)	26+13	36+36
Rated PV Input Voltage (Vdc)	550
Start Up DCVoltage(Vdc)	160
MPPTVoltageRange(Vdc)	200-650	160-650
Max. Input Short-Circuit Current (A)	34+17	54+54
No.ofMPPTTrackers/No.of Sting PerMPPTTracker	2/2+1	2/2+2
Peak Power (off grid)	1.5 time of rated power, 10s
Power Factor	0.8 leading to 0.8 lagging
Total Cument Hamonic Distortion THDi	<3%(of nominal power)
DC injection current (mA)	<0.5%In
Display	LCD
Operating Temperature Range (°C)	-40~60(>45'℃ derating)
Relative Humidity	0%~100%(No Condensing)
Max.ContinuousACPassthrough (grid to load)(A)	45
Inverter Communication	CAN, RS485, WIFI, ETH
Safety EMC / Standard	IEC/EN 62109-1,IEC/EN 62109-2,IEC/EN,61000-6-1,IEC/EN 61000-6-2,              |EC/EN61000-6-3,1EC/EN 61000-6-4
Grid Regulation	VDE4105, IEC61727/62116,VDE0126,AS4777.2, CE10 21, EN50549-1,G98. G99,C1011, UNE217002,NBR16149/NBR16150
Max. Efficiency	97.6%
Max. charging/discharging efficiency	95%
Max Parallel connection sets	10
Battery Technical Specification
Battery Module Nominal Voltage(V)	40-60
Battery Capacity (Ah)	280			314
Battery Energy (kWh)	43.00	57.32	64.28	80.35
BMS Communication	Self-adaption to BMS

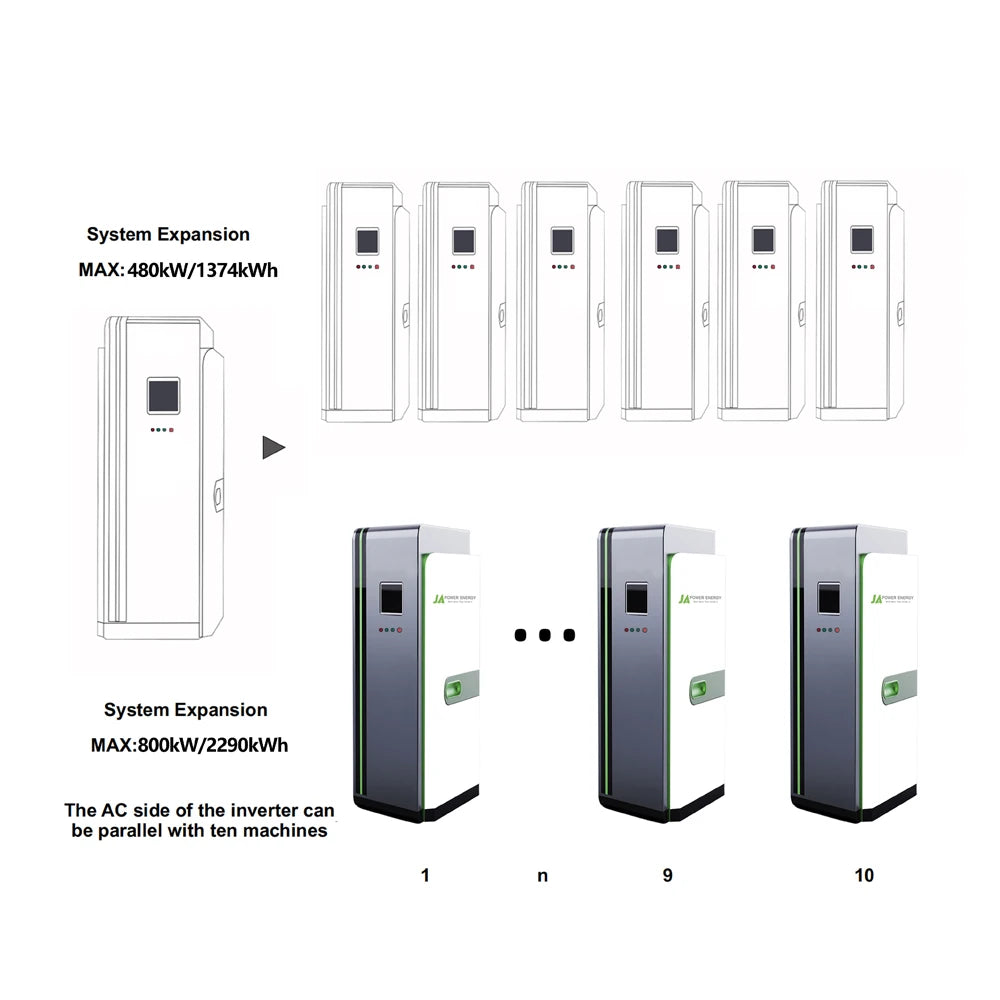

BMS parallel support connection	Modular design, scalable up to 10 units
Max Charge & Discharge Current (A)	200
Operating Temperature Range	Charge:0~55℃C/Discharge:-30℃~55°℃
Cycle Life	>8000(@25℃C+2'℃,0.5C/0.5C,70%EOL)
