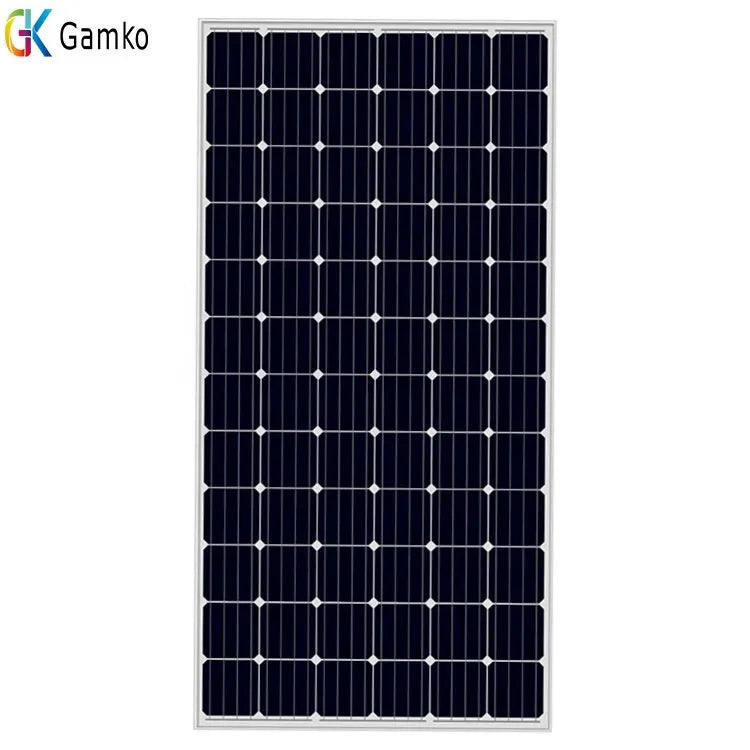

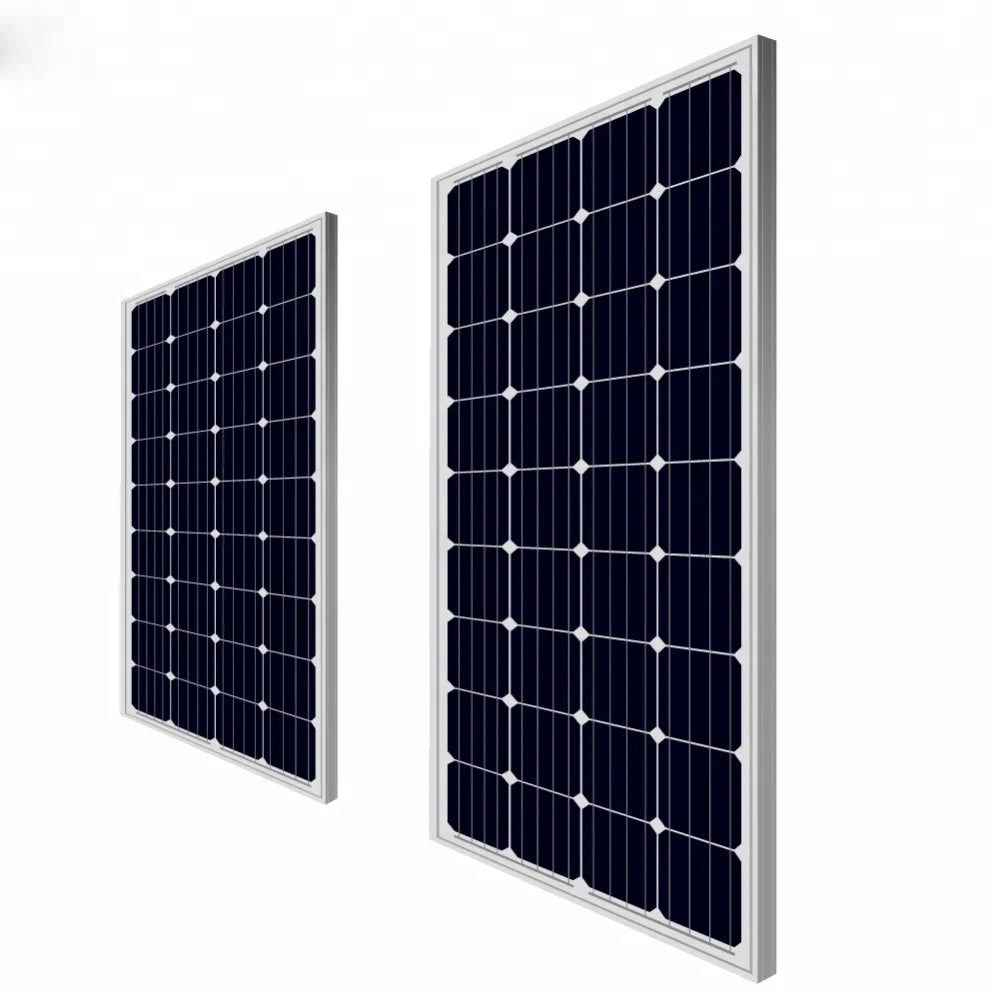

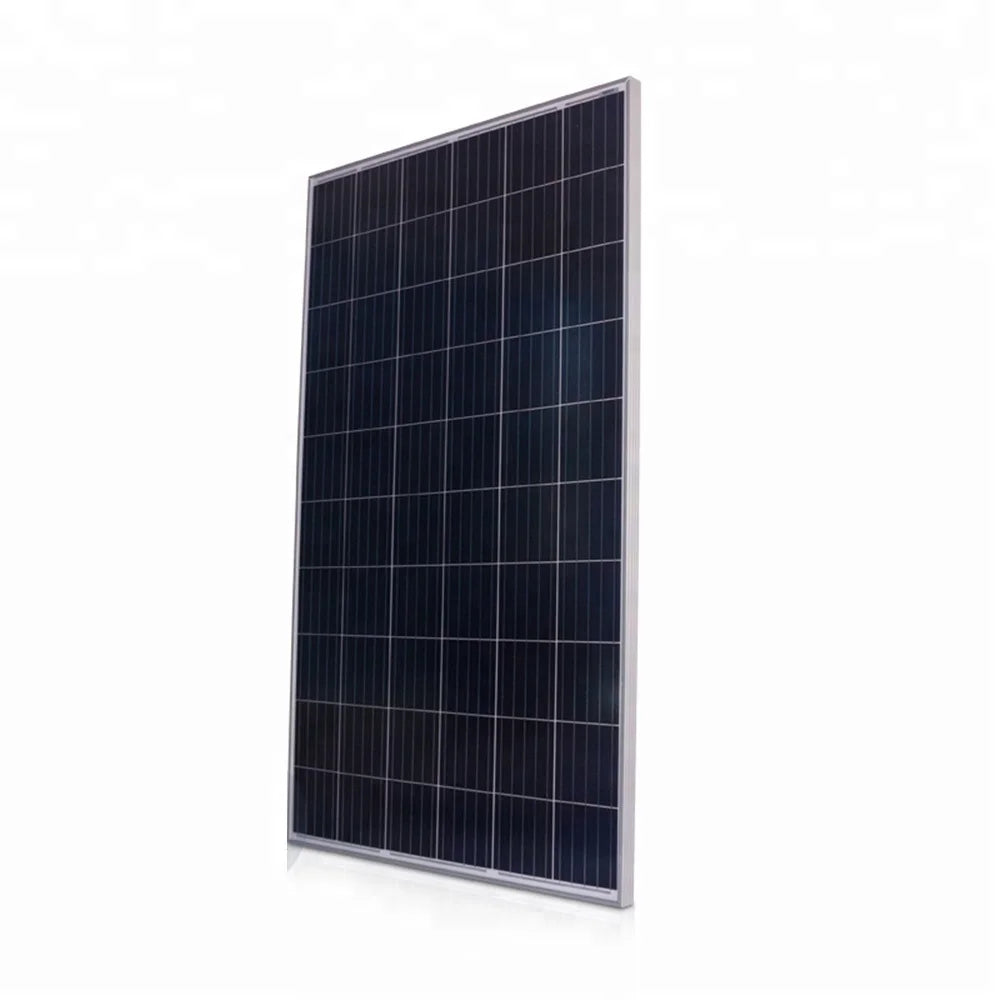

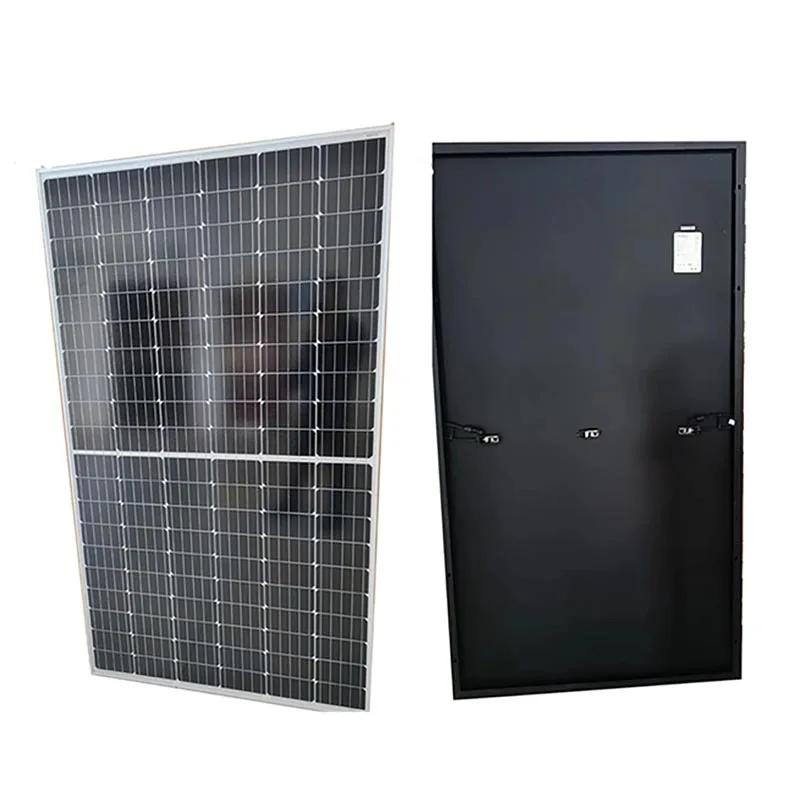

710W Complete Kit New Energy System Monocrystalline Home Use Solar Panel PRIME RJ SOLAR PH

710W Complete Kit New Energy System Monocrystalline Home Use Solar Panel

Monocrystalline Silicon / 710W / 132(6 x 22)|650W-700W
₱5.79PHP
Sale price  ₱5.79PHP Regular price
Skip to product information
710W Complete Kit New Energy System Monocrystalline Home Use Solar Panel PRIME RJ SOLAR PH
1/16

710W Complete Kit New Energy System Monocrystalline Home Use Solar Panel

₱5.79PHP
Sale price  ₱5.79PHP Regular price
MaterialMonocrystalline Silicon
Max. Power710W
Number of Cells|Power Range132(6 x 22)|650W-700W

SPECIFICATIONS

Application: Light Industry,Agriculture,Industrial

Brand Name: GAMKO

Cell Type: Mono-crystalline 210*105mm

Cell size: 210*105mm

Dimensions: 2384*1303*35mm

Frame: Anodized Aluminium Alloy

Junction Box: IP68 Rated

Model Number: GKA210N132710W

No.of cells: 132 Cells

Panel Dimensions: 2384*1303*35MM

Panel Efficiency: 22.86%

Place of Origin: Jiangsu, China

Short Circuit Current: 19.34A

Short Circuit Voltage: 46.25V

Standard Packaging: 31PCS/Pallet

Type: N-TYPE

Weight: 34 kg

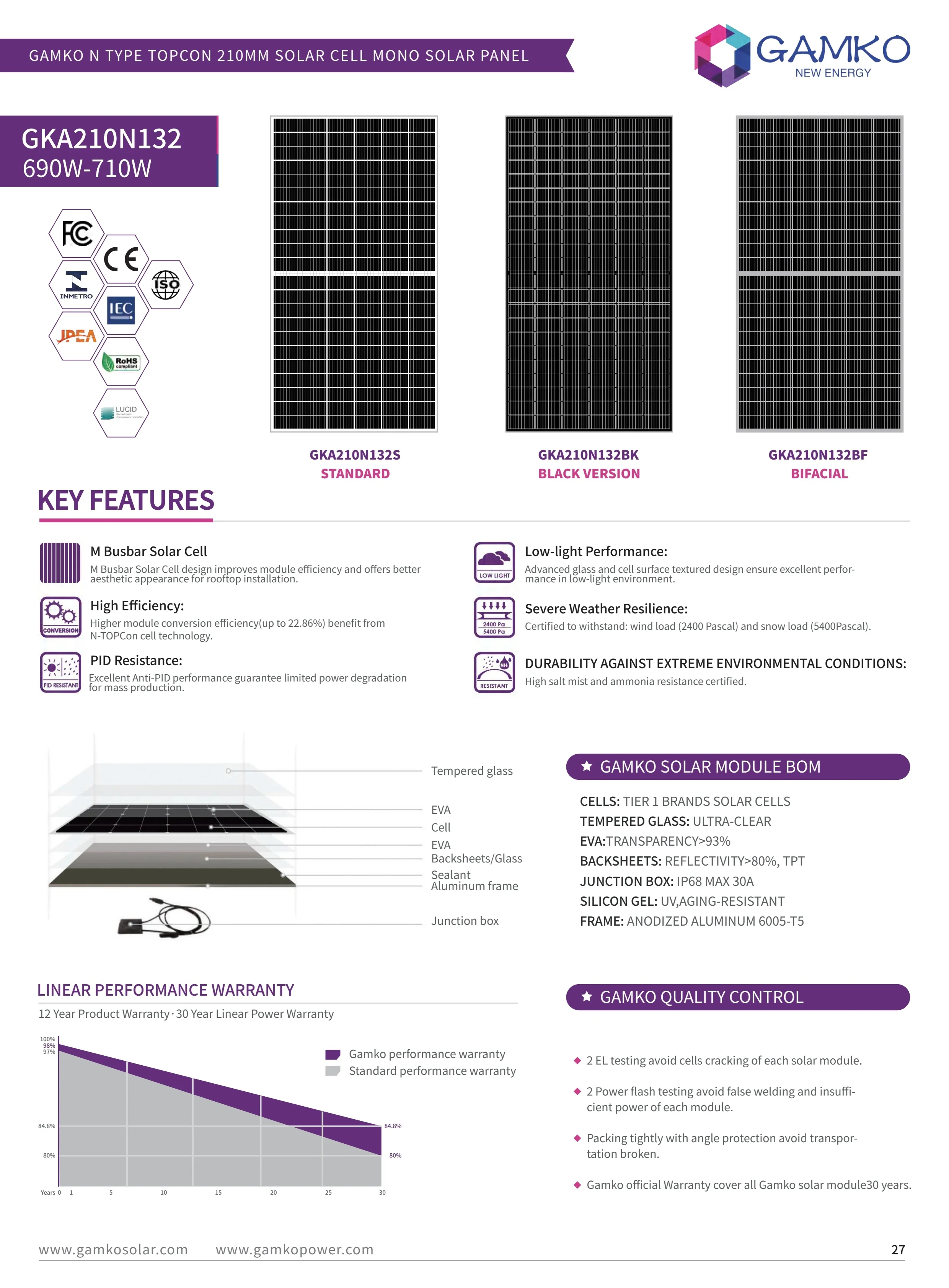

Products Description

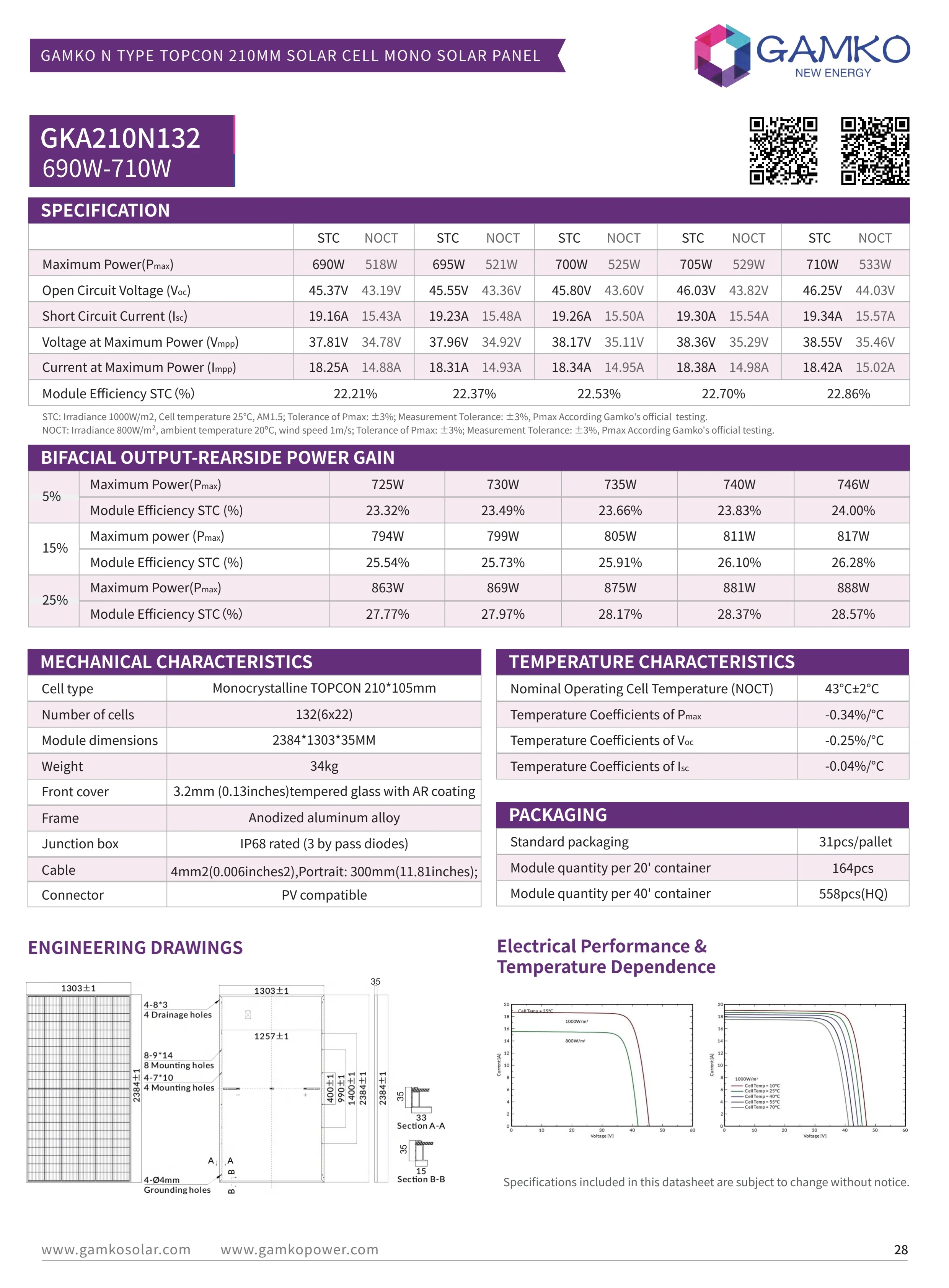

MECHANICAL  CHARACTERISTICS
Cell type
Monocrystalline TOPCON 210*105mm
Number of cells
132(6x22)
Module dimensions
2384*1303*35MM
Weight
34kg
Front cover
3.2mm (0.13inches)tempered glass with AR coating
Frame
Anodized aluminum alloy
Junction box
IP68 rated (3 by pass diodes)
Connector
PV Connector (compatible)

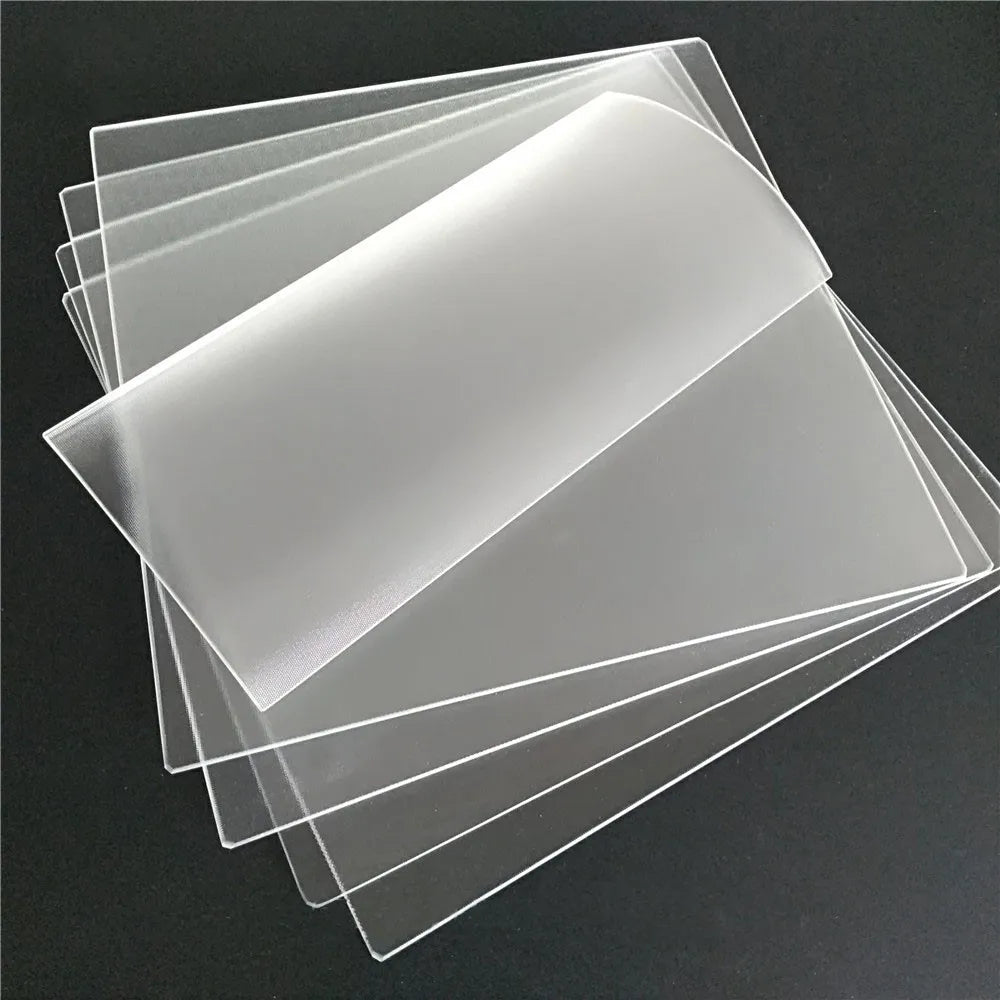

Solar panel

Glass

Low iron high transmittance


Ultra clear textured


Thermal stability


High strength


High flatness

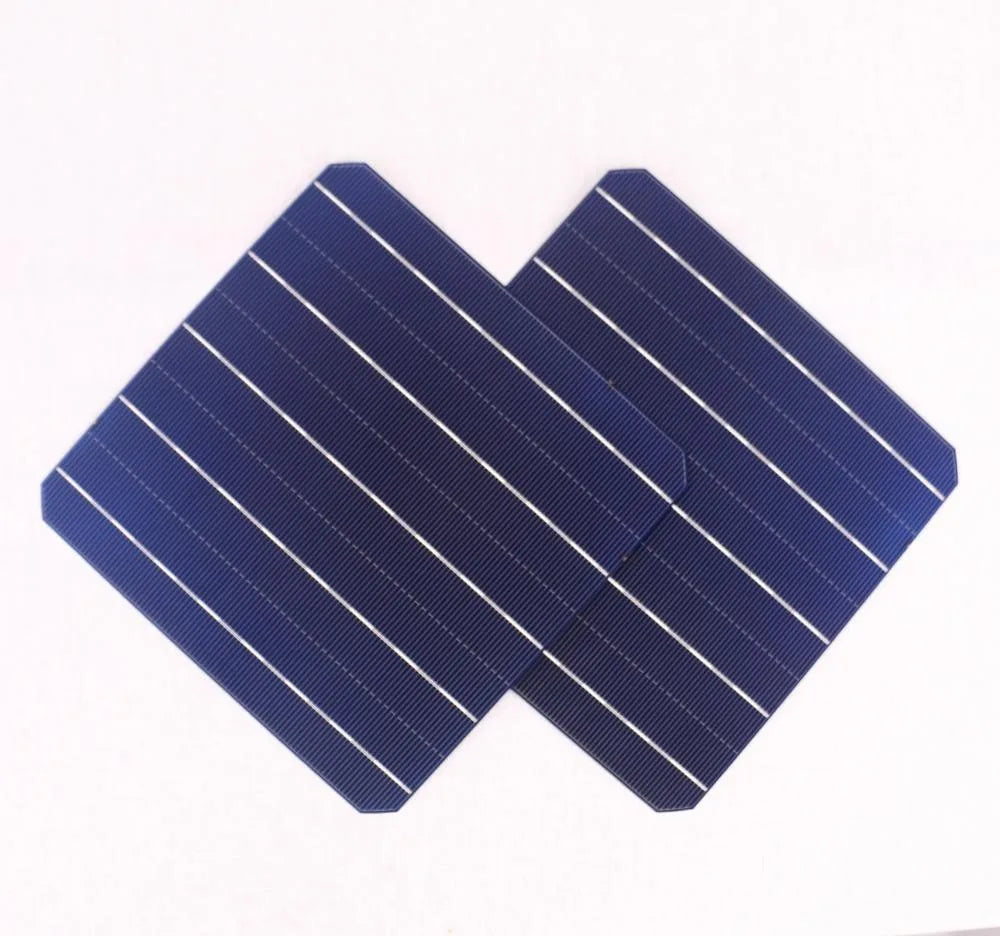

Solar cell

High efficiency 21.5-23.5% MBB solar cells

Bypass diode minimizes the power drop by shade

Strict check of hot-spot , avoiding loss of efficiency and reliability.

Lower LID

Frame

Aluminum frame


Good machinability


Excellent for welding


Above average corrosion resistance


Resistant to stress cracking and non-magnetic.

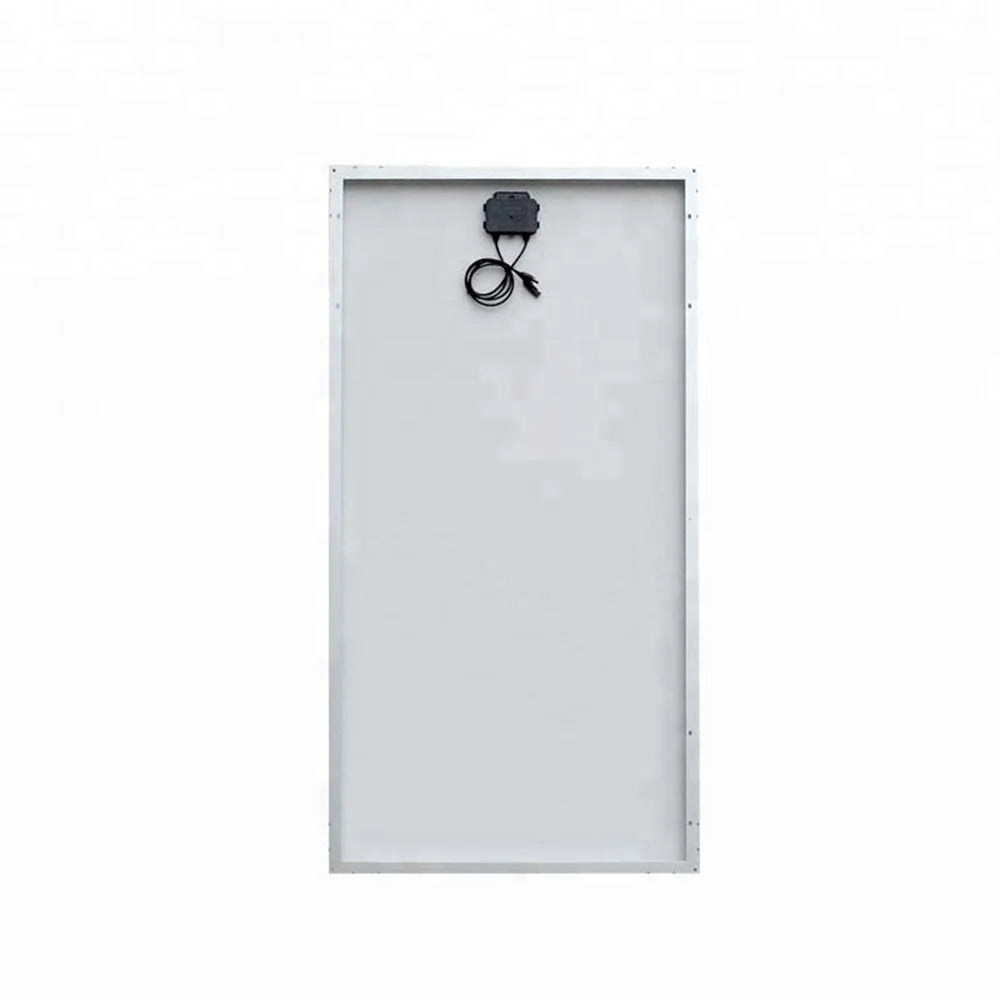

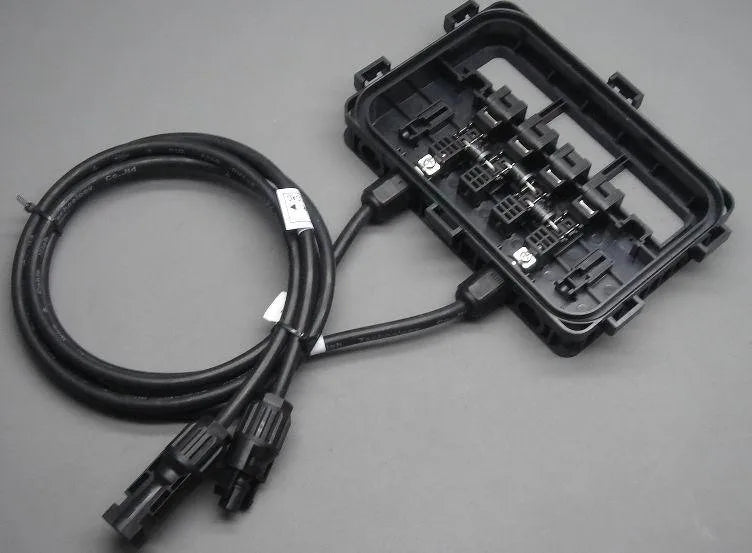

Junction box

IP67 protection level


Alloy shell, high mechanical strength, impact resistance


Shell surface temperature electrostatic spray, anti-static ability, eye-catching color.


Company Profile
Packing&Shipping

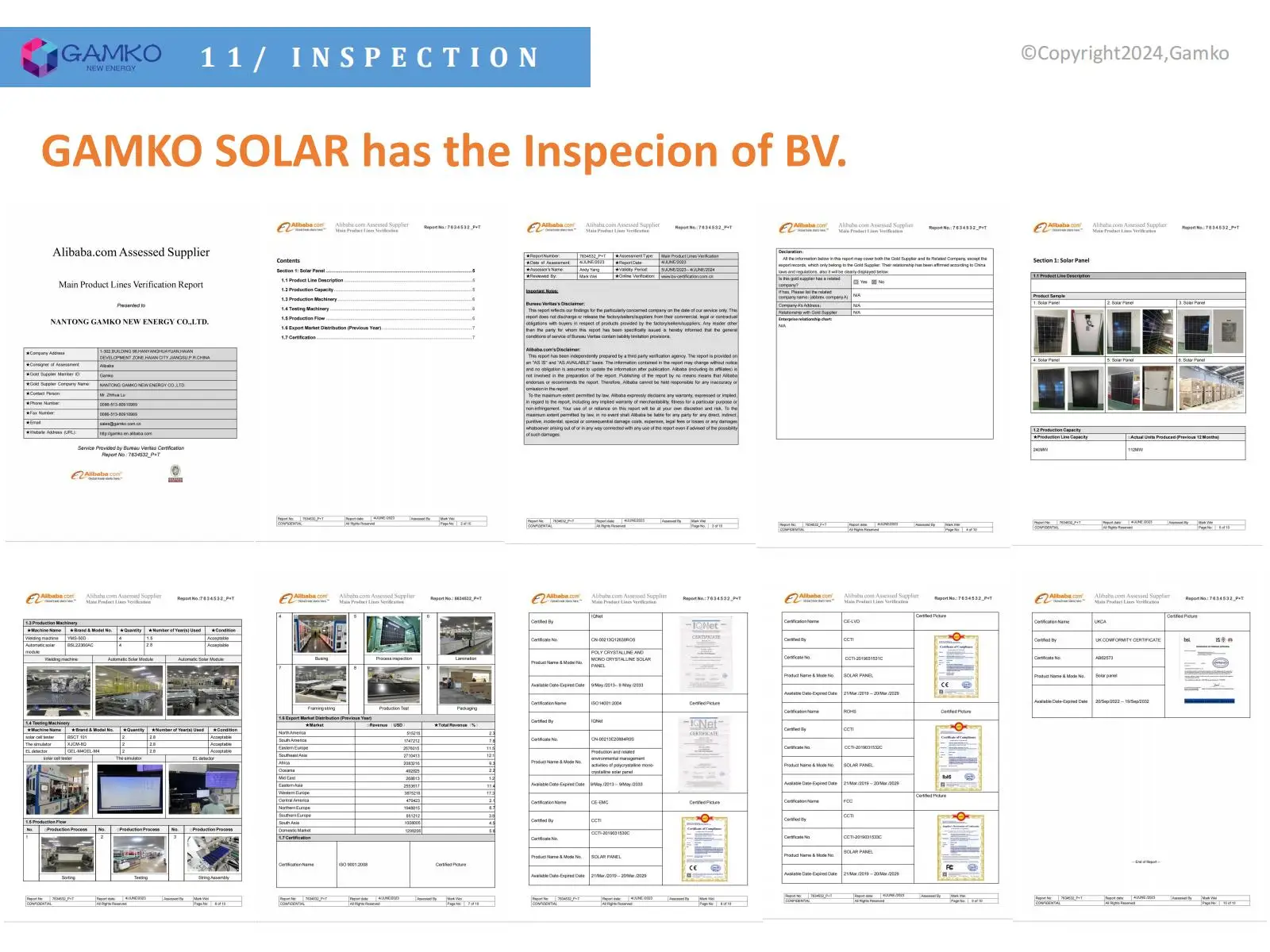

Certifications
FAQ

Q1. Why are some tier1 solar panels very cheap? There are many trading companies selling tier1 solar panels.
There are a lot of fake solar panels in the spot market. Customers can't get the warranty after purchasing, and even they have to face a high fine of 2-5 times the value of the goods due to the lack of export authorization, the goods will be confiscated in the customs.
A large number of branded solar panels with quality problems that need to be destroyed, flow into the market at low prices.
Customers who buy from unqualified and unauthorized traders will bear all the risks after purchase.
Solar panel power decays with the passage of time. After a long time, due to the poorer stacking sites, stock solar panels have a greatly reduced service life and power.
Without export permit from original factory, all brands solar panel or brands solar inverter are fake items, no warranty no power guarantee.


Q2. Can you provide PV system design and package sale service of the whole system? Can you provide installation guidance and door-to-door installation service?
Yes, we have professional engineers for preliminary design on grid,off grid and hybrid systems, but the largest system, we have designed overseas is 1.27MW. If there is a larger system, we suggest that the customer can seek the design of the local power company, and we will provide quotations according to the material list, and we will provide transportation service to the port.
For the system design, we will provide the data collection form for the customer to fill in, including land information, grid
voltage, etc. During the quotation process, we will also provide the bracket drawings for the customer's reference.
For the installation part, our company can provide remote and online guidance service. At present there is no door-to-door
installation service.


Q3. Why do some companies offer extra cheap shipping, are there any hidden fees?

If it is a full container, there is no hidden fee.
If it is LCL, the shipping company can choose not charge or charge less at the port of departure, and most part or all of the
charges will be collected at the port of destination. In order to avoid the hidden charges, we suggest our customers to do the FOB terms or CIP terms. Most of the customers will face the uncertainty of the charges of the port of destination if they do the CIF terms, and in the CIP terms, the charges of the port of destination will be borne by the seller, and the buyer will only bear the
taxes.


Q4. Can you provide DDP price? Can we make a lower invoice to reduce the import tariff?
Yes, we can. But in fact, DDP is not cost-effective, because the seller does not much know the destination country's land freight and the tax policy, and can only charge the customer in accordance with the principle of the highest. It is recommended to take the CIP terms. Buyers can find an experienced agent in their own country to help declare tax at the cheapest price, there will be many such agents in port cities.
As for the requirement of low invoice, we can cooperate to do it, but buyers need to consider the risk.


Hot sales

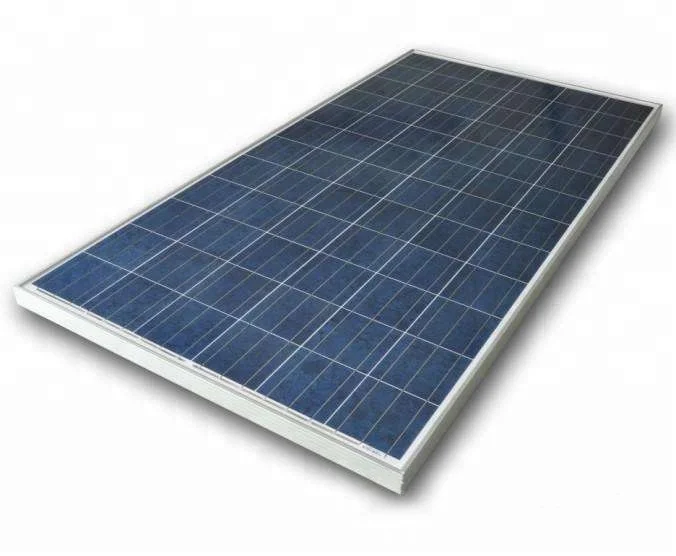

350w 360w 370w 380w black mono solar panel


Customized OEM 5kw,10kw on grid solar system


Customized OEM 5kw,10kw off grid solar system

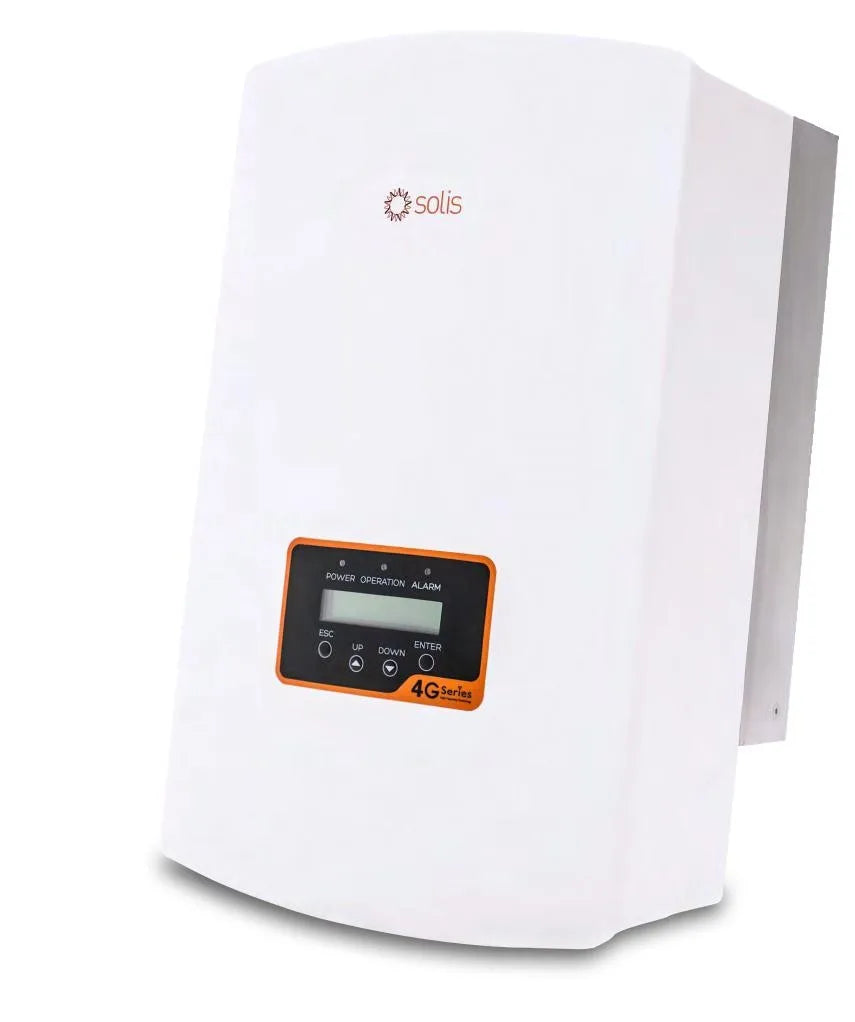

Solis10kw,20kw,30kw,40kw

50kw on grid solar inverter


Deep cycle long life 12v 100Ah,150Ah,200Ah,250Ah lead acid gel battery

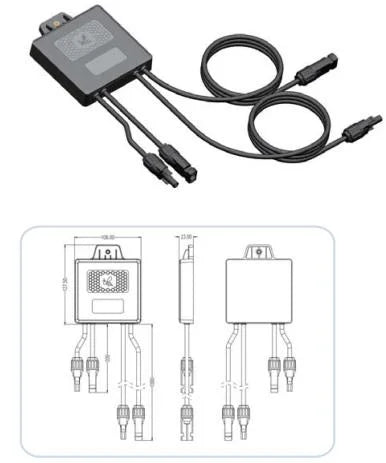

Cheap price high efficiency solar optimizer for solar panel
