SPECIFICATIONS

Brand Name: LVNOON

Copper Thickness: 1 oz

Model Number: LB1A8S100A

Place of Origin: Guangdong, China

Type: bms pcba

feature 1: 24/7 active balancing, efficiency boost

feature 2: Overcharge, over-discharge, short-circuit , temp protection

feature 3: Super capacitor energy transfer, all in protection

feature 4: 1A balance current, 100A charge/discharge

feature 5: smartphone app operator with BT communication

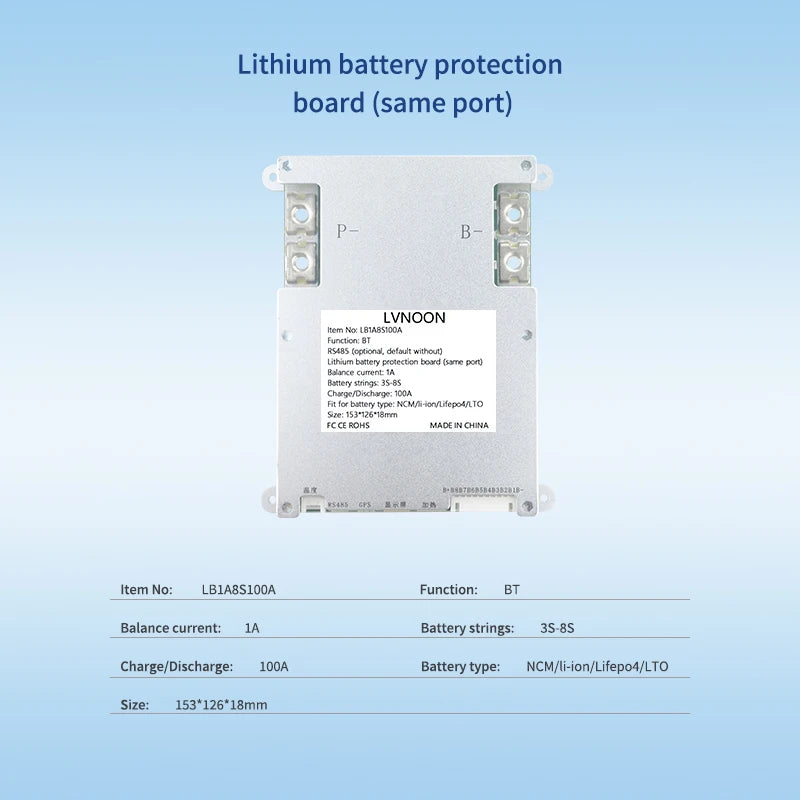

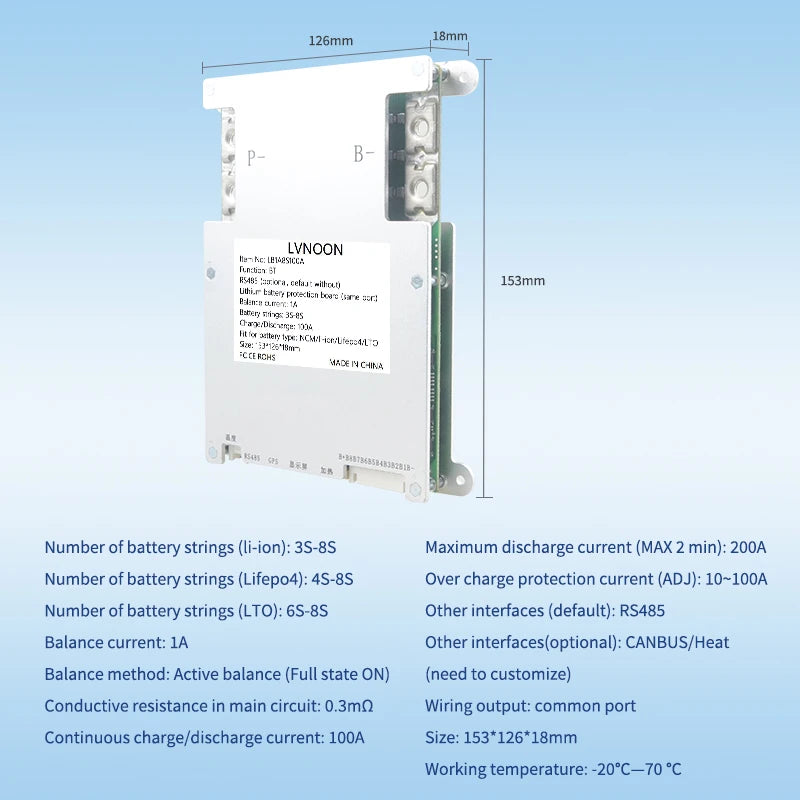

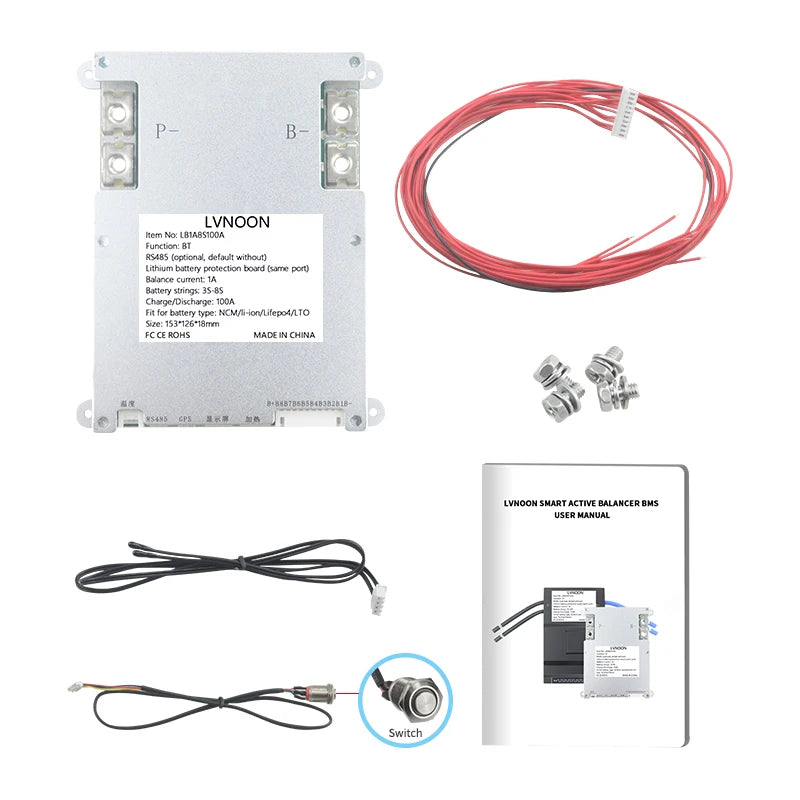

product name: Active BMS LB1A8S100A

Products Description

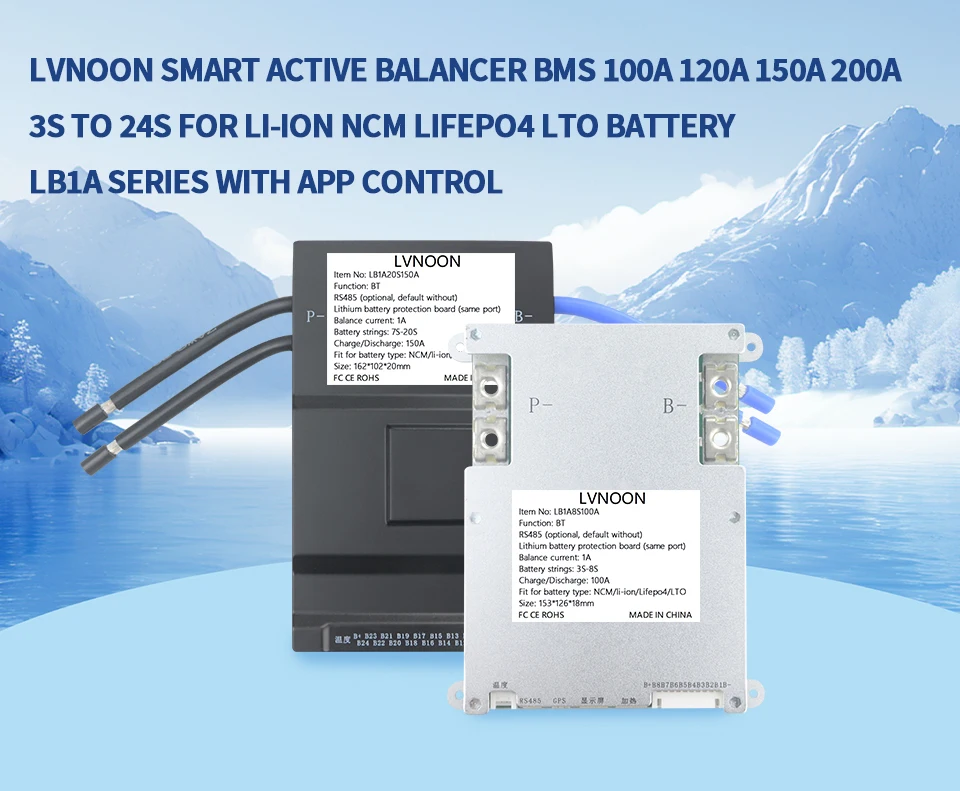

This is LVNOON LB1A8S100A series Smart active balance BMS lithium battery protection board with smartphone APP control fit for 100A Li-ion NCM LFP LiFePo4 LTO Battery Management System 3S to 8S

Balance current:	1A
Continuous charge/discharge current:	100A
Battery pack case:	Li-ion NCM LiFePo4 LTO
Battery strings:	3-8S battery packs

Main features

Main features:

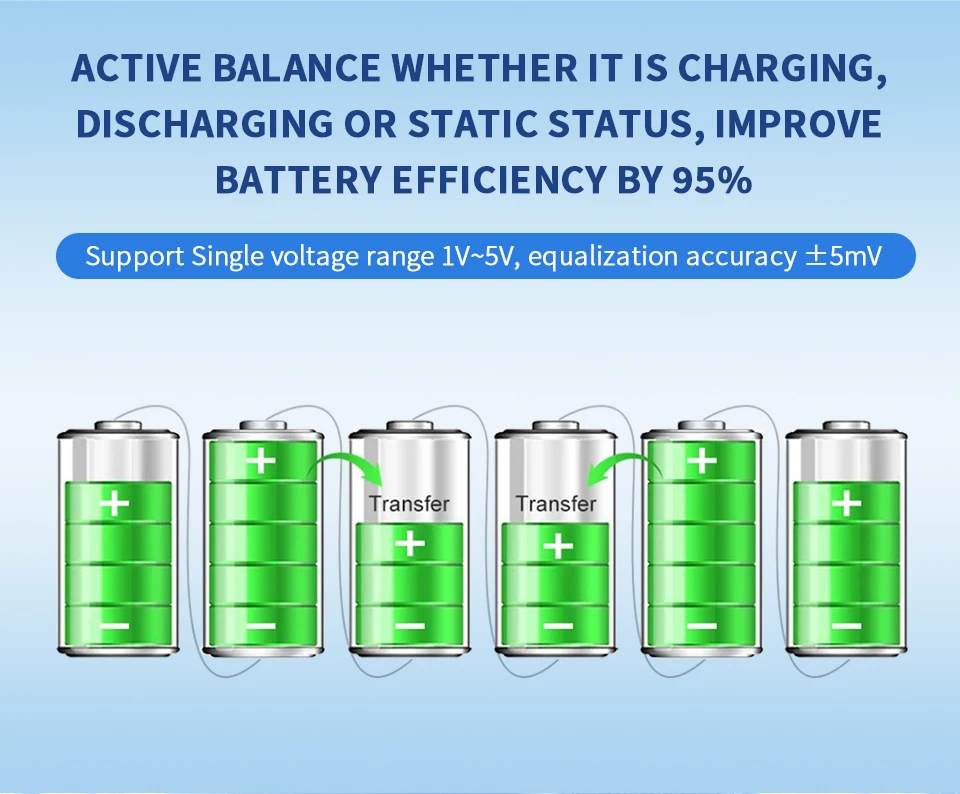

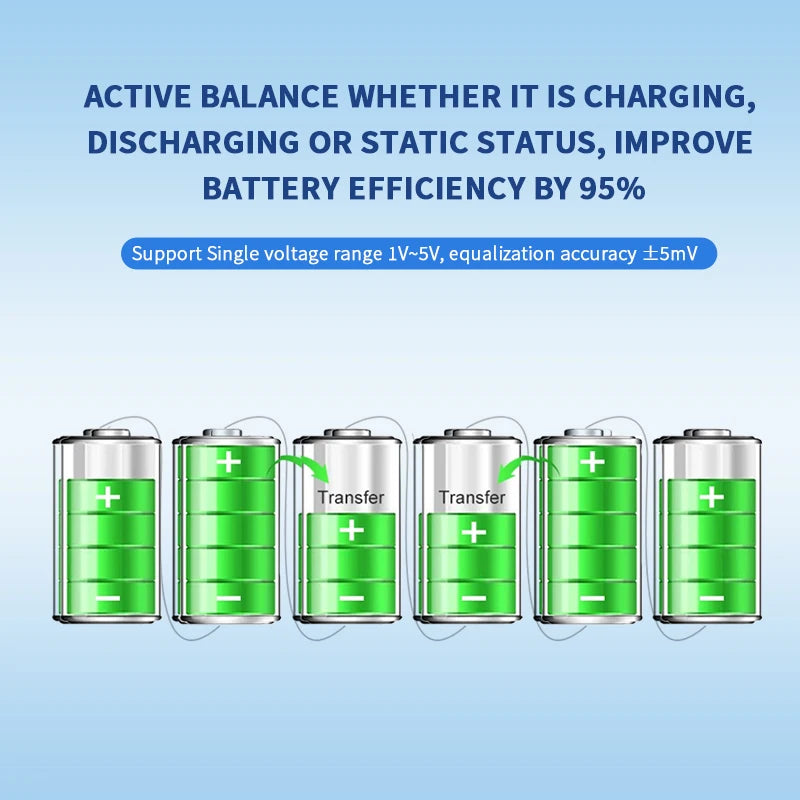

1.7*24-hour real-time active balance whether it is charging, discharging or static status, improve battery efficiency by 95%.
Support Single battery cell voltage range 1V~5V, equalization accuracy ±5mV with high
2. All in protection: With Balanced protection, over charge protection, over discharge protection, over current protection, short circuit protection, temperature protection, PCB protection, Disconnection protection your battery better.
3. Real-time active energy transfer equalization with super capacitor as the medium

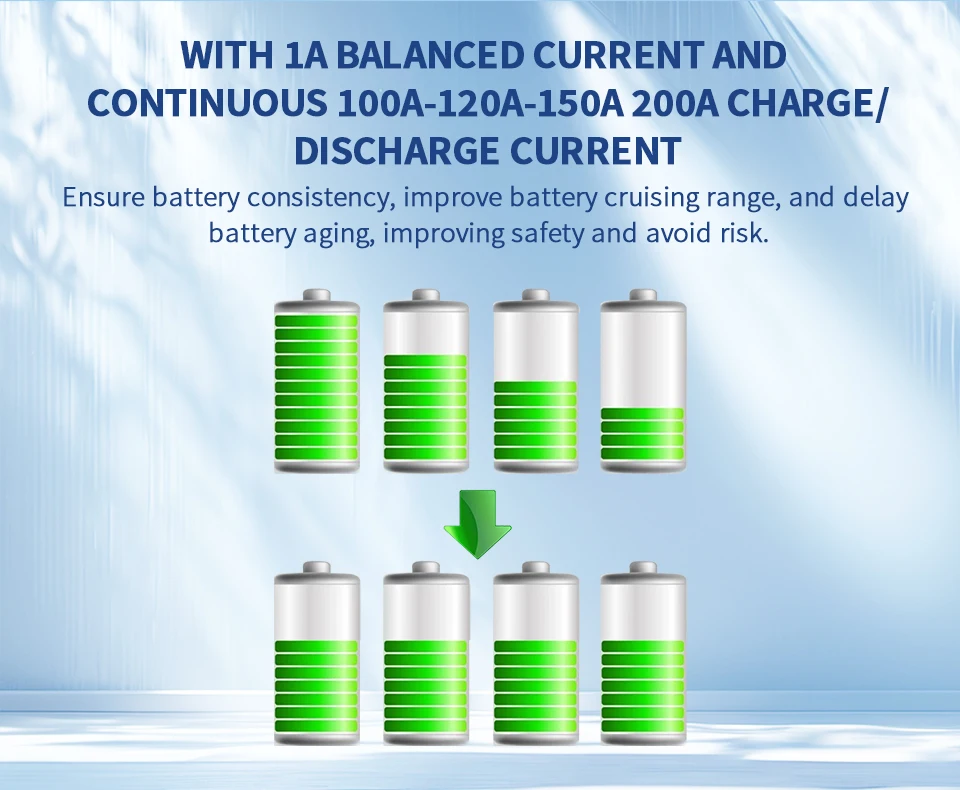

4. With 1A balanced current and continuous 100A-120A-150A-200A charge/discharge current, ensure battery consistency, improve battery cruising range, and delay battery aging, improving safety and avoid risk.

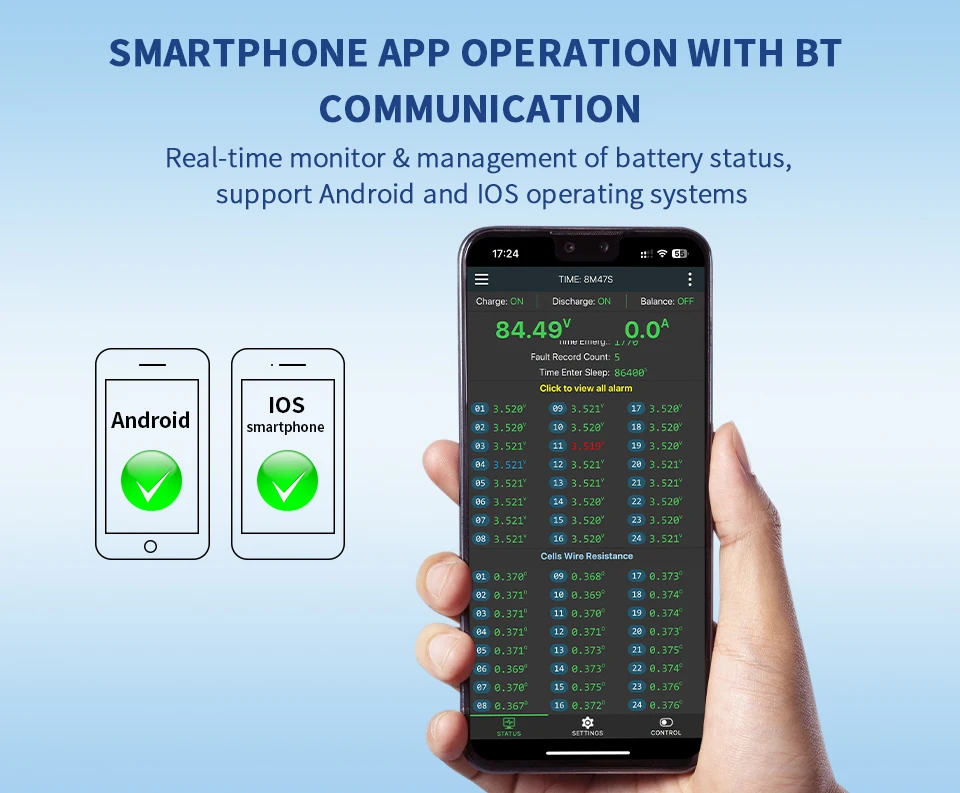

5.Smartphone APP operation with BT communication, real-time monitor & management of battery status, support Android and IOS operating systems.

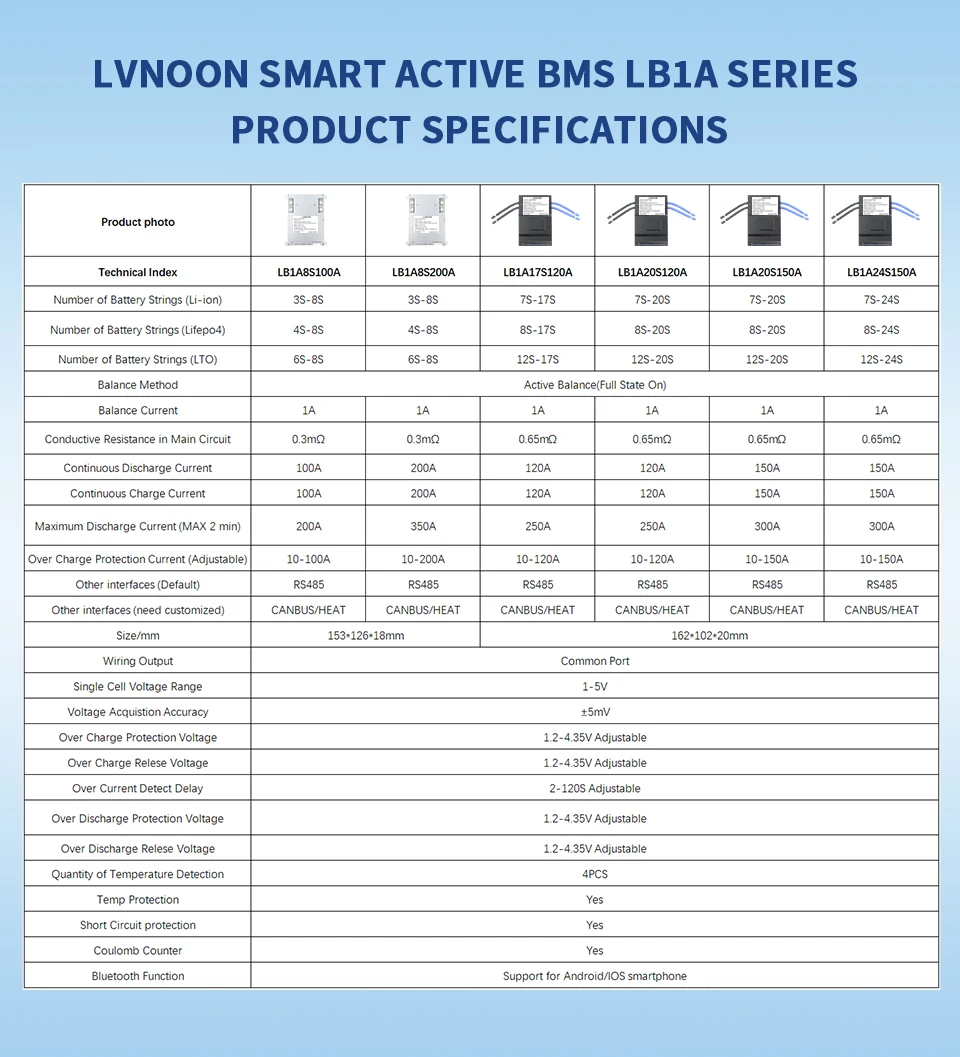

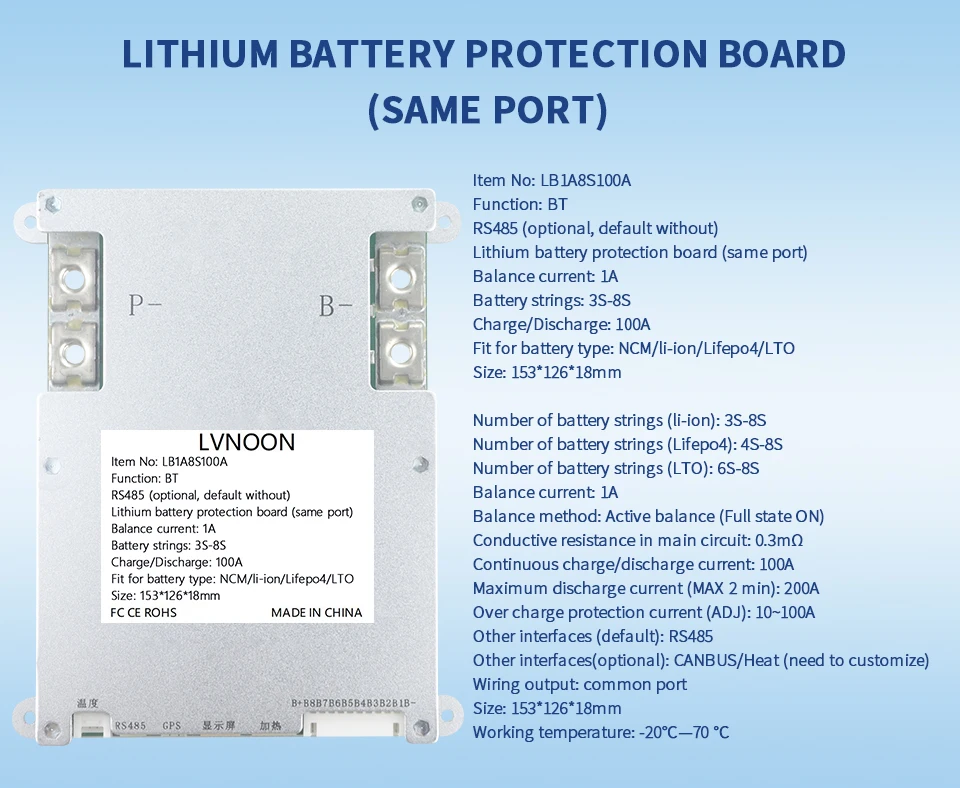

Product Paramenters

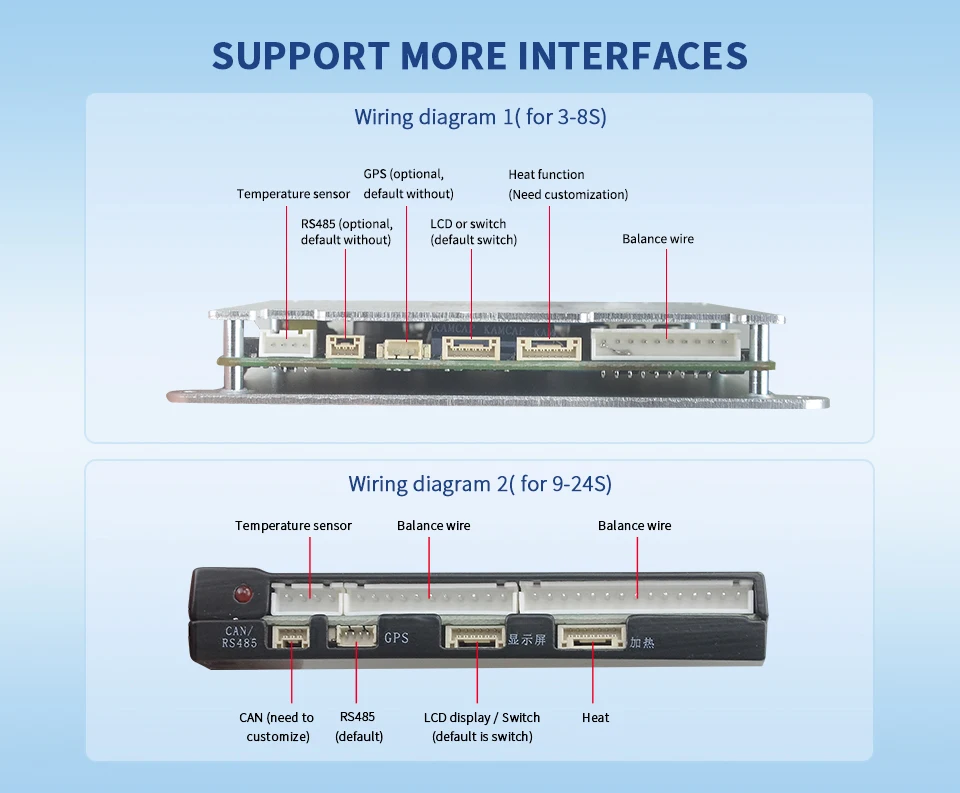

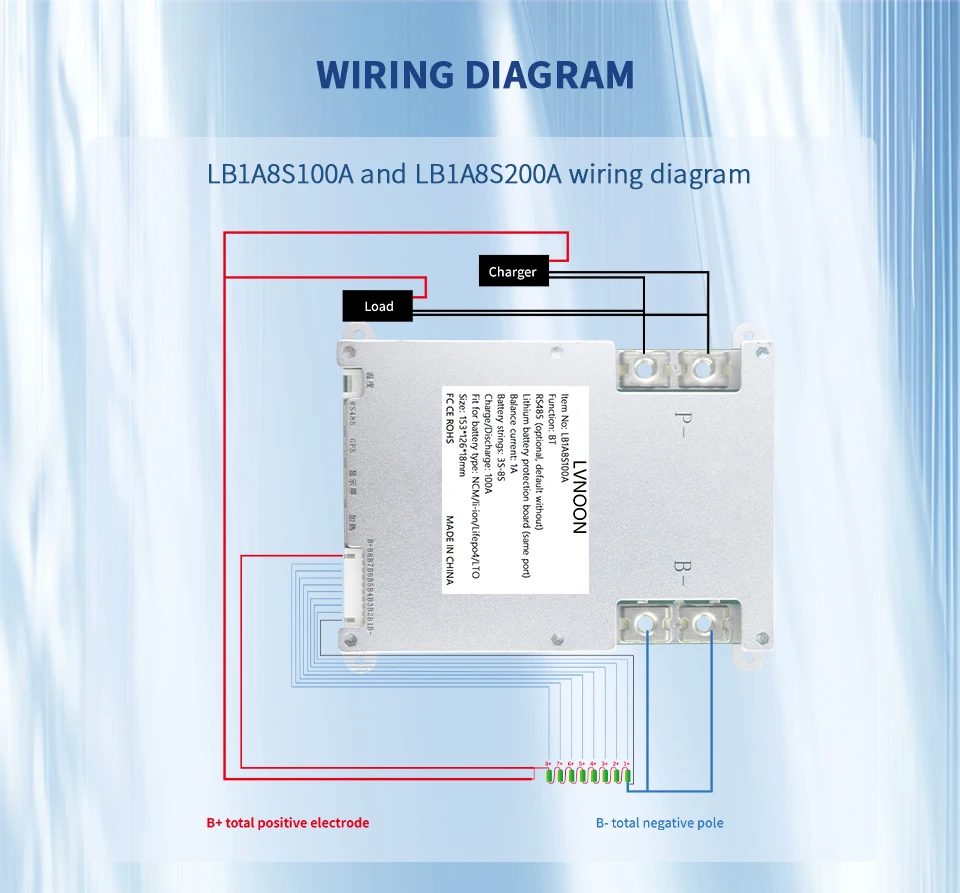

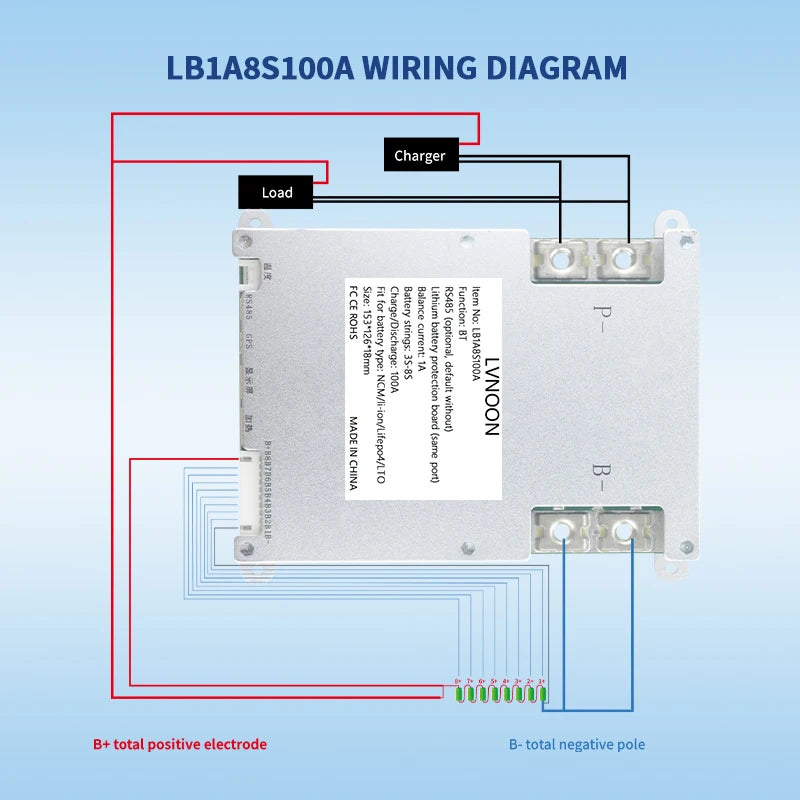

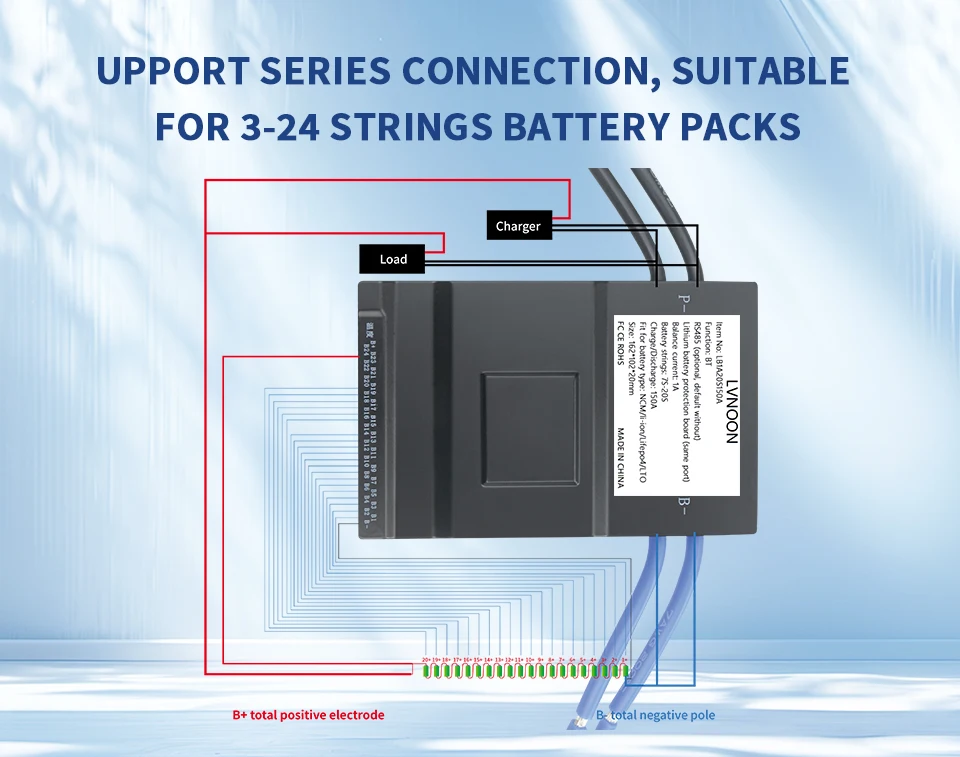

Wring diagram

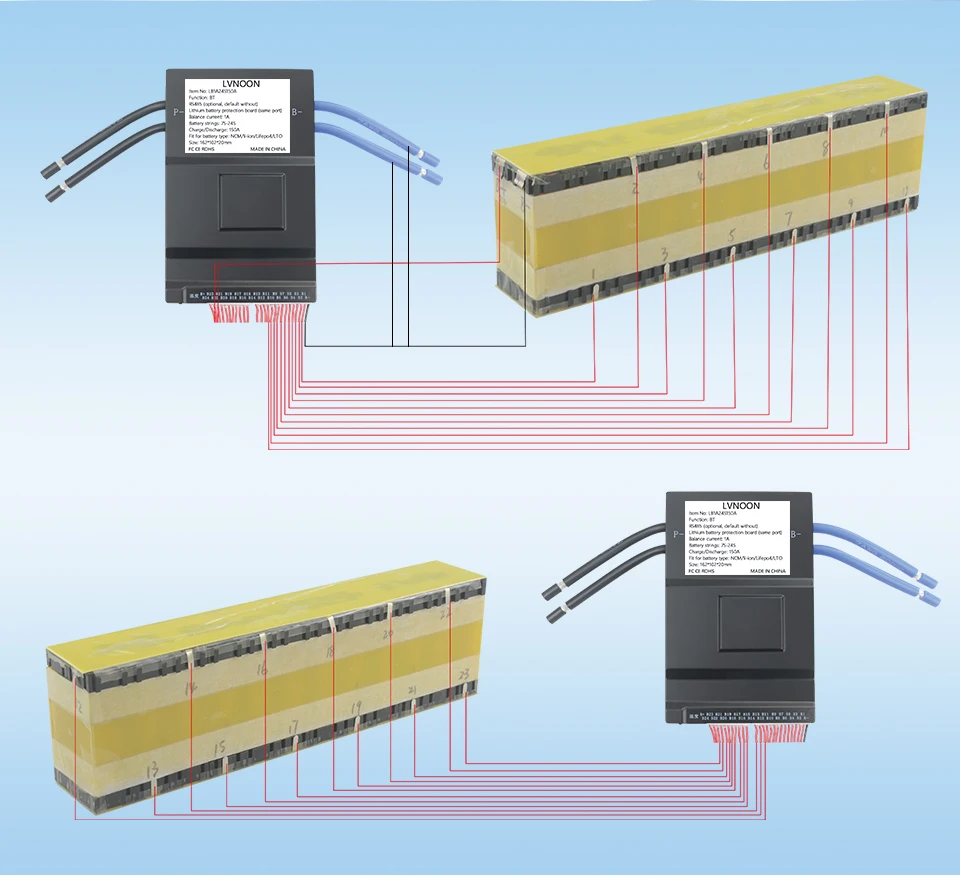

soldering example

Application Scenario

This product is widely used for 2 wheels/ 3 wheels eletrical vehicles and electric tools.
