SPECIFICATIONS

Application: Home Energy

Battery Number: 1-32

Brand Name: Lighteen

Bundle: Bundle 1

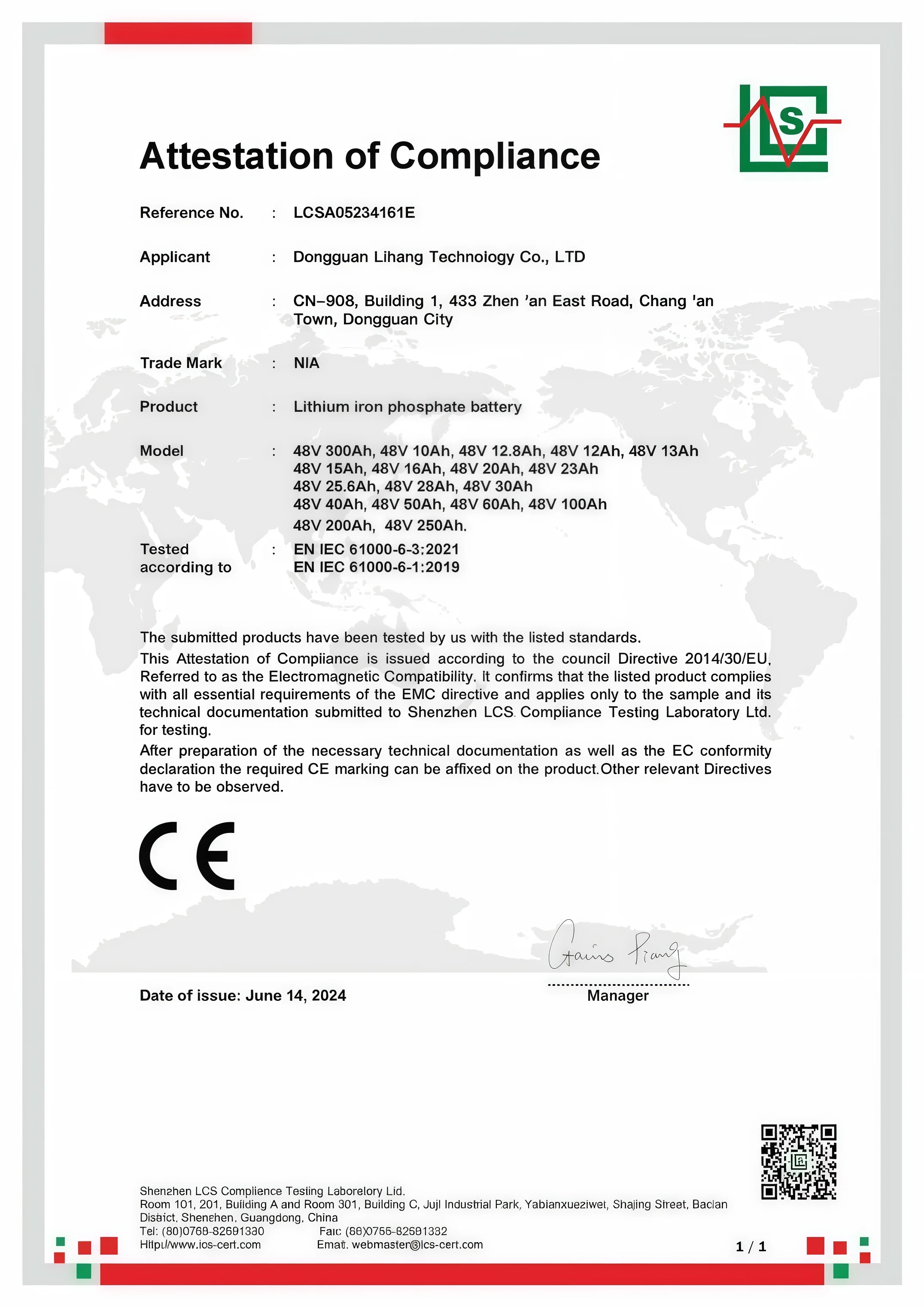

Certification: CE,FCC,RoHS

High-concerned chemical: none

Model Number: 3.2V340AH

Nominal Capacity: 340000mAH

Origin: Mainland China

Replacement Battery: Yes

Set Type: Batteries Only

Size: 215*175*70mm

Type: LiFePO4

Description

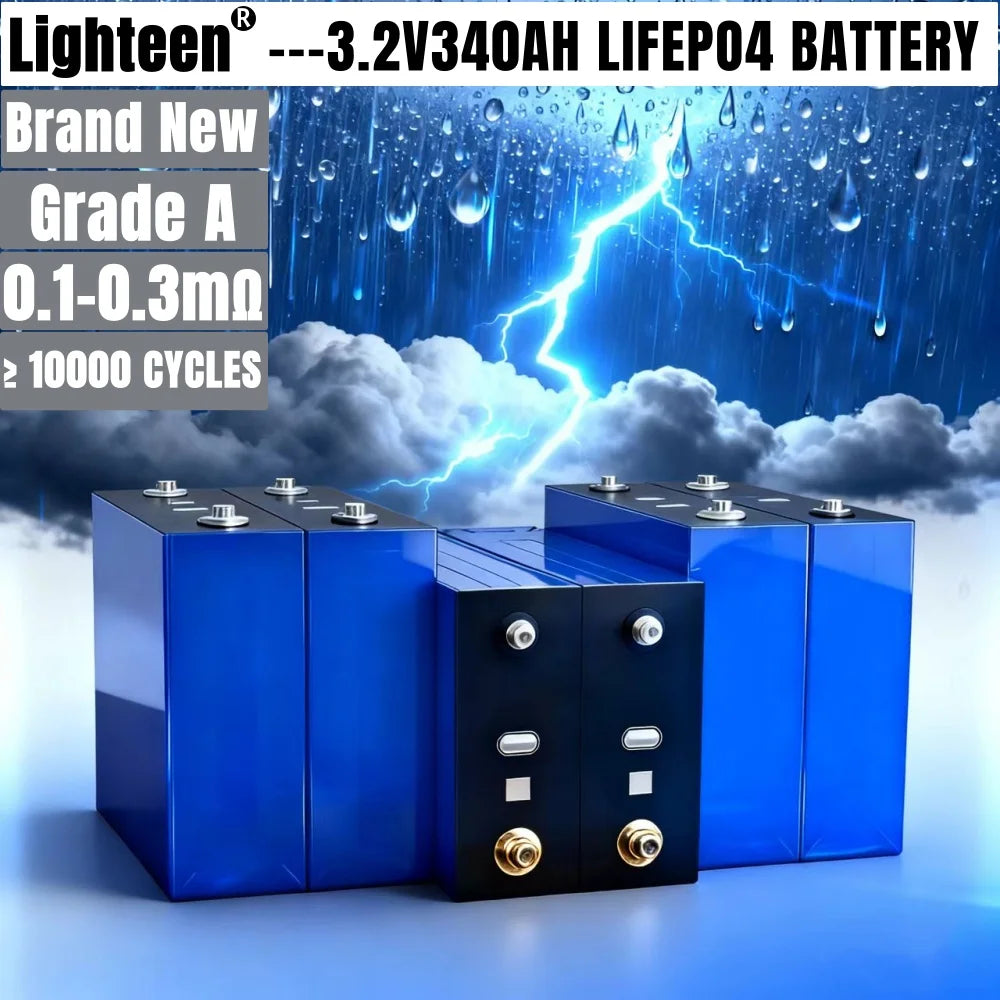

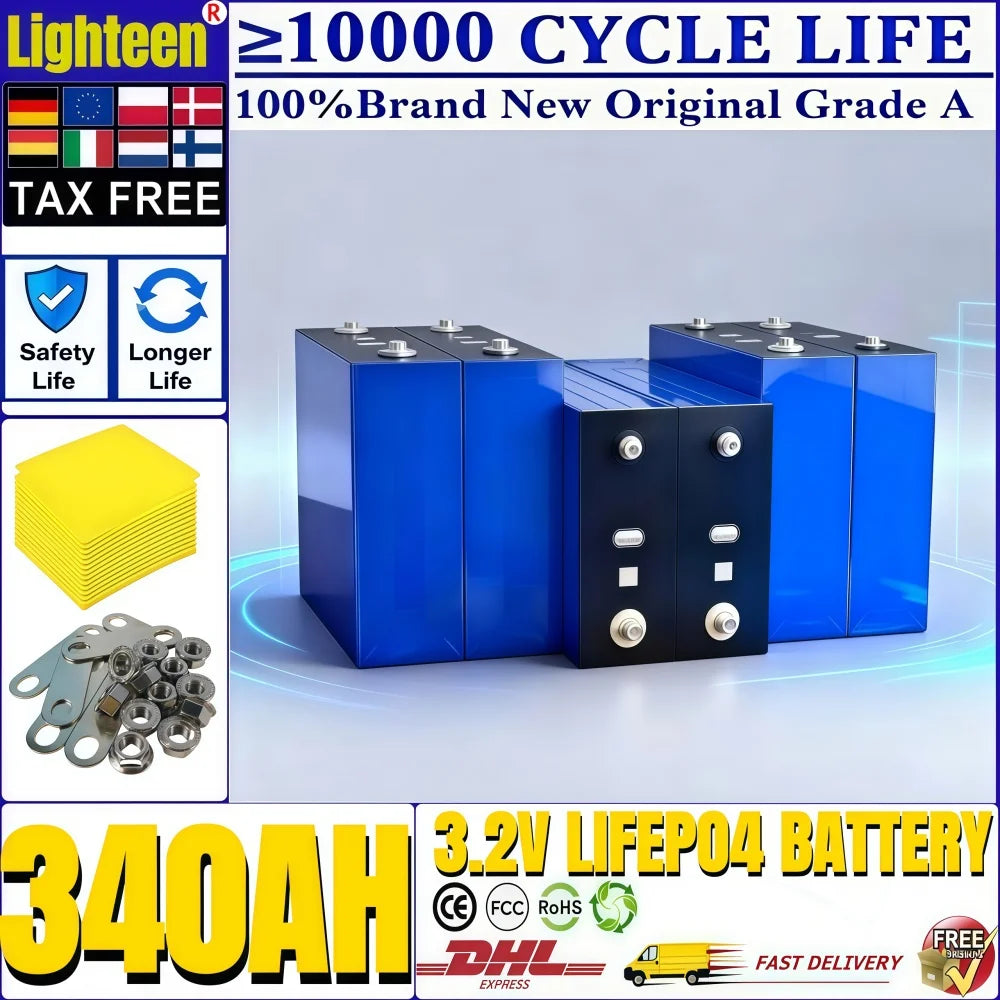

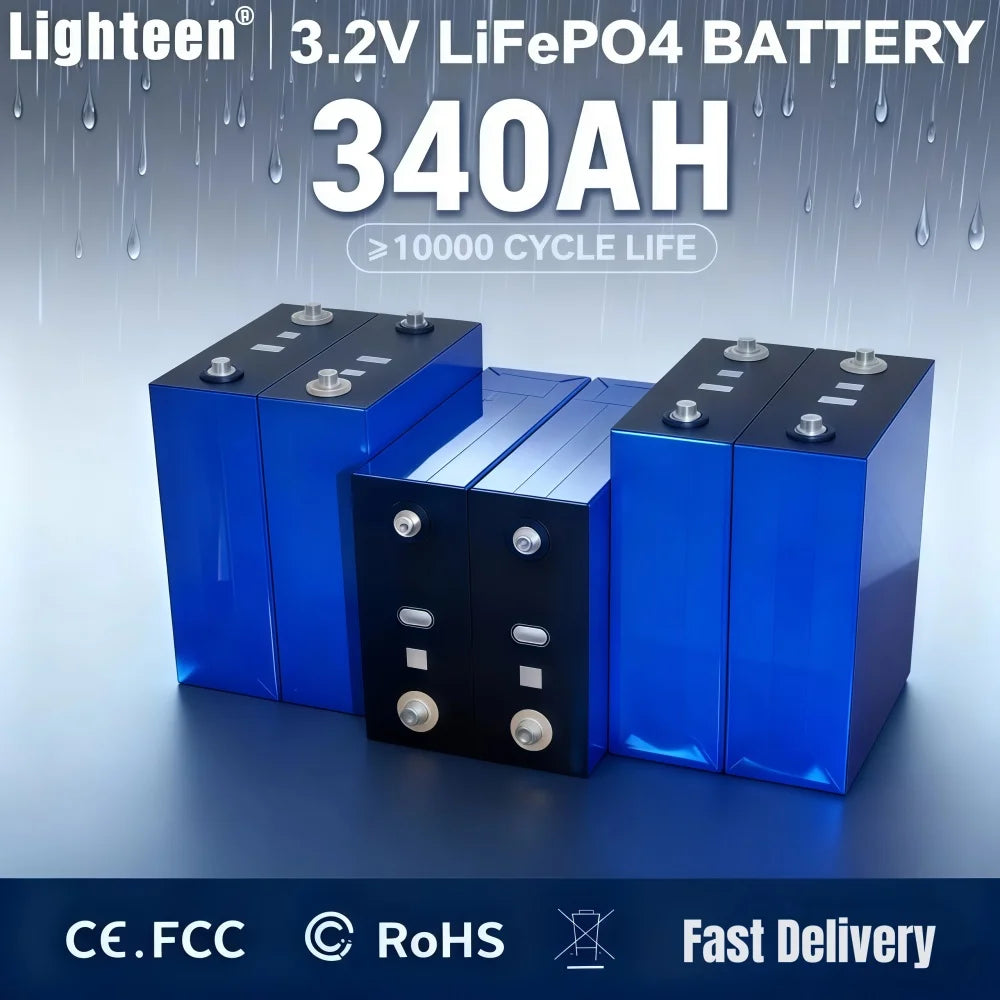

1-32PCS Lifepo4 Battery 3.2v340ah Grade A 10000+Cycle DIY 12V 24V 48V Lithium iron phosphate Cell For Camping Golf Cart

• Versatile Application

Ideal for home energy solutions, these batteries are perfect for camping, golf carts, and other DIY projects.

• Diverse Quantity Options

Choose from a range of 1-32pcs to perfectly suit your project's needs, offering flexibility and convenience.

• High-Cycle Life

Experience lasting power with our LiFePO4 batteries, designed for over 10,000 cycles, ensuring longevity and reliability.

• Easy Replacement

Our replacement battery option makes maintenance a breeze, saving you time and effort.

• Safe and Certified

Rest assured with CE certification, these batteries are free from high-concerned chemicals, promoting safety.

Product parameters:

Battery Type   :  Lithium iron phosphate

Rechargeable  : Yes

Shell Material  : Aluminium

Nomincal Capacity  : 320-340AH

Nominal Voltage  : 3.2V

Cut off Charge Voltage  : 3.65V

Cut off Discharge Voltage  : 2.5V

Internal impedance  : ≤0.3 mΩ

Recommend Constant Charge Current  : 0.5C

Max Charge Current ：1C

Recommend Constant Discharge Current  : 0.5C

Max Discharge Current  : 3C

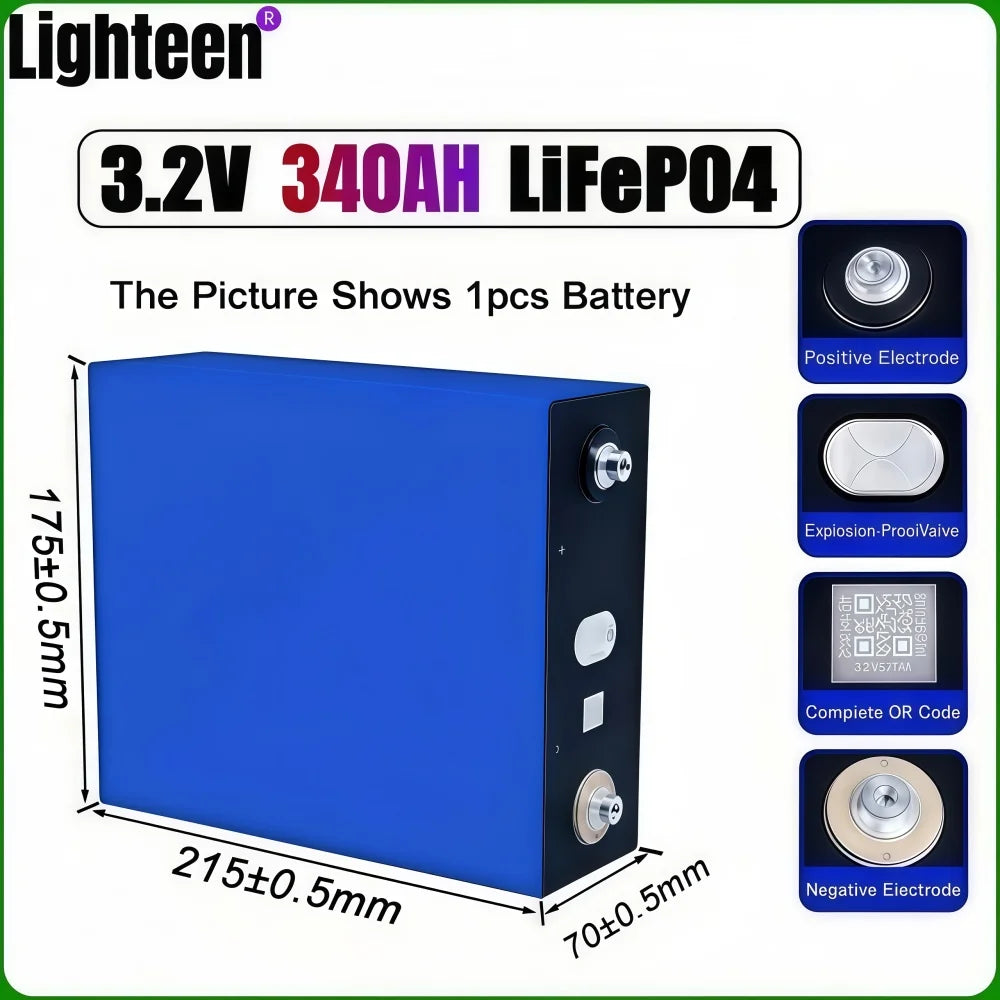

Dimensions(L*W*H)  : 174.3*72*207.3mm±0.5mm

Weight:5.45±0.3Kg

Cycle life  ：10000+ times

Charging Temperature  ：0℃ ~ 60℃

Discharging Temperature  ：-30~60 ℃

Screw Size  ：M6

Suit for System：12V 24V 48V 72V 96V 108V Solar Energy Storage System

Applicantion：RV Vans Campers EV Boats Yacht Golf Carts Forklift Solar Battery

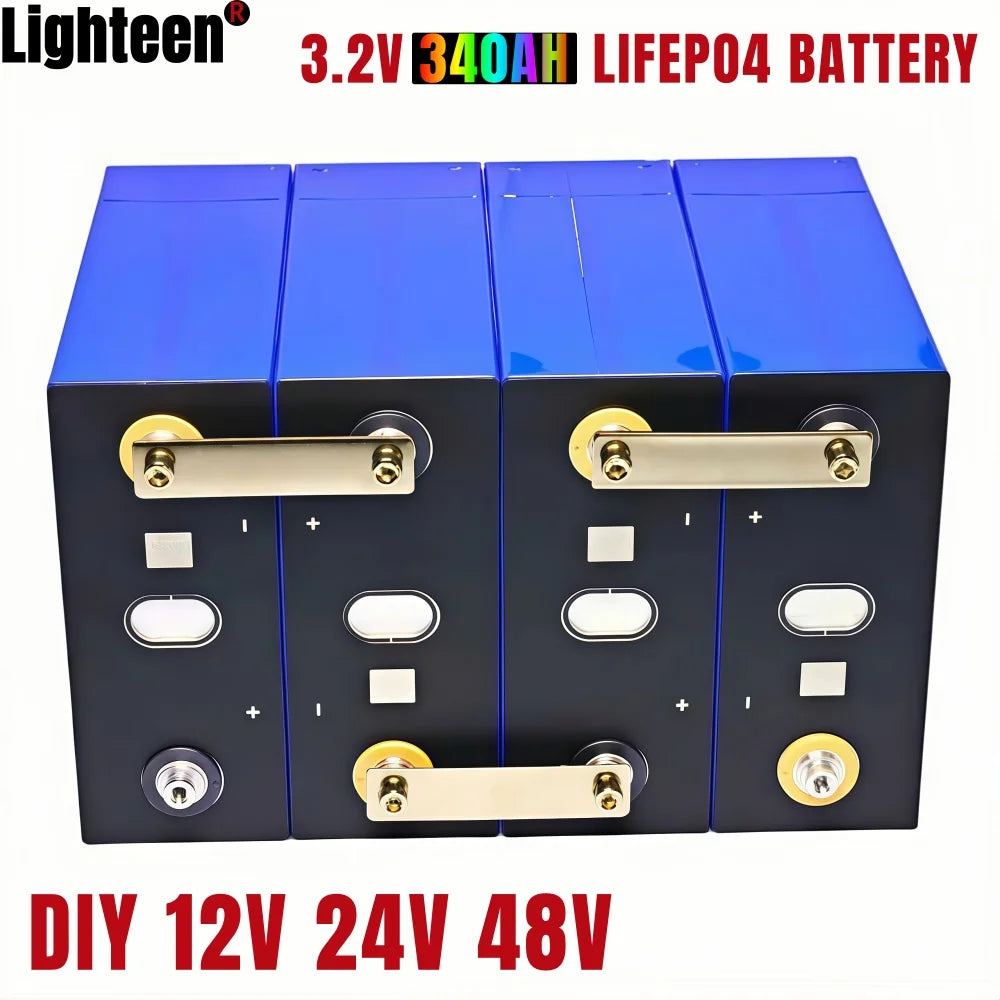

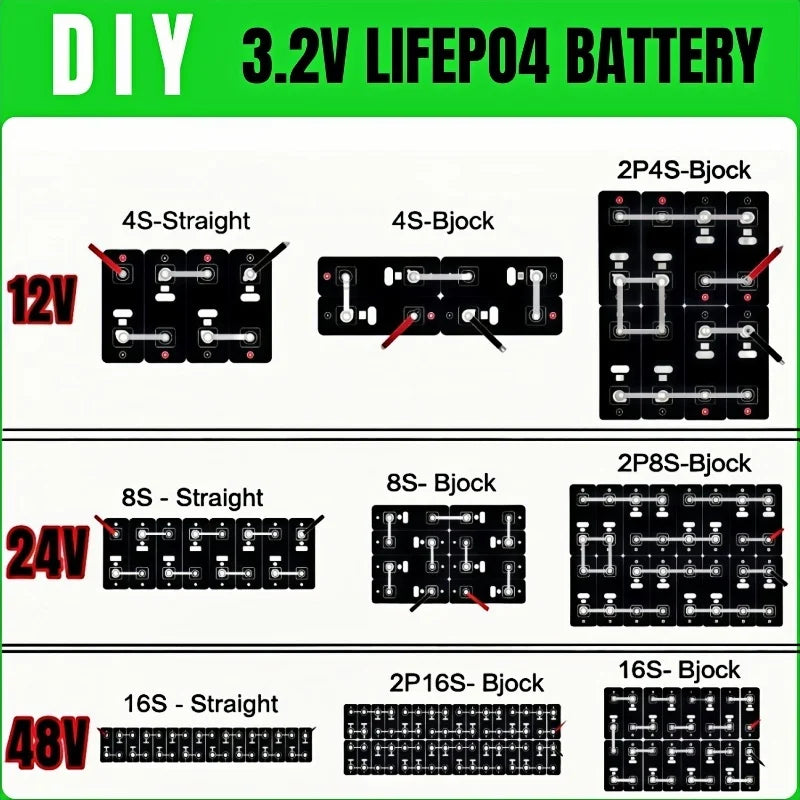

As shown below, you can use a combination of batteries connected in series and parallel to get voltage levels of 12V, 24V, and 48V.Get creative to DIY and build your own battery packs for RV&Trailer/Vans/Campers,Boat,Yacht,Trolling Motor,Golf Cart,Electric Wheelchair,Truck,Home Solar Bank,etc.

1.Please balance the battery cells before assembly.

2.Install and connect the screws.

3.Fix the entire battery pack with an insulation board and wrap it with nylon tape.

4.Install BMS!!!

*It is recommended that all screw assembly be done manually; It is not recommended to use electric tools since Electric tools have a torque peak that can easily damage the terminals of laser welding.

Application

• RV power supply

• Offshore power supply

• Household energy storage

• Backup power supply

• Outdoor power supply

• For

klift power supply
