SPECIFICATIONS

Brand Name: LVNOON

Copper Thickness: 2 OZ

Feature 1: 24/7 active balancing, efficiency boost

Feature 2: Overcharge, over-discharge, short-circuit , temp protection

Feature 3: Super capacitor energy transfer, all in protection

Feature 4: 0.6A balance current, 60A charge/discharge

Feature 5: smartphone app operator with BT communication

Model Number: LB06A17S60A

Place of Origin: Guangdong, China

Product name: LB06A17S60A

Type: bms pcba

Products Description

LVNOON LB06A Series Smart Active Balance BMS LB06A17S60A for NCM LifePO4 LTO Battery 8S 10S 12S 14S 16S 17S 60A 48V with APP Control

Balance current:	0.6A
Continuous charge/discharge current:	60A
Compatible battery strings:	7-17S
Battery pack type:	NCM/li-ion/Lifepo4/LTO

Attention:

Please select the right item number when buying! If you don’t know how to select, please contact us before buying

Main features

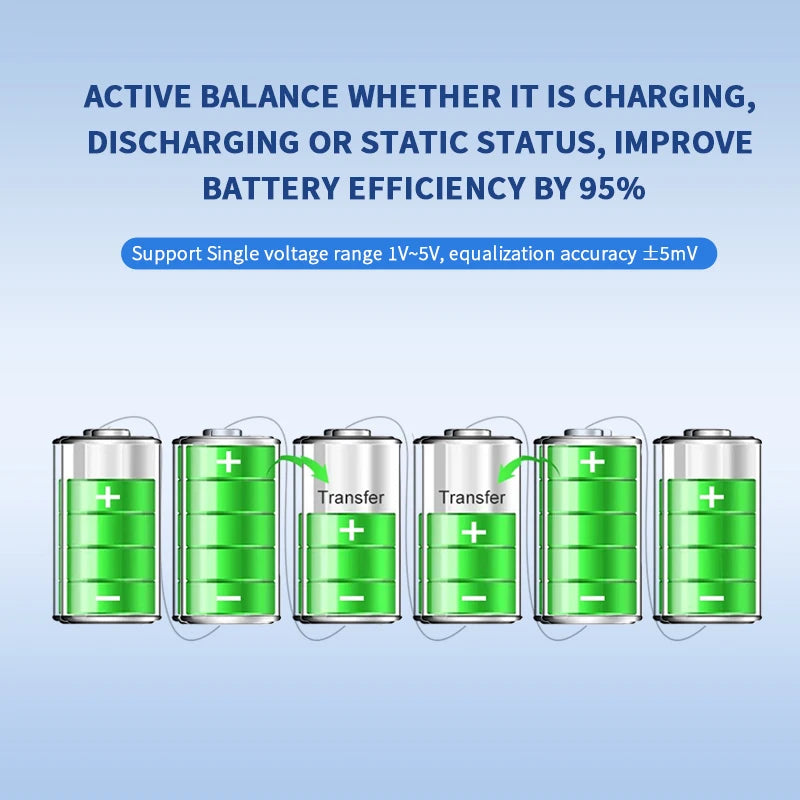

Main features: 1.7*24-hour real-time active balance whether it is charging, discharging or static status, improve battery efficiency by 95%. Support Single battery cell voltage range 1V~5V, equalization accuracy ±5mV with high 2. All in protection: With Balanced protection, over charge protection, over discharge protection, over current protection, short circuit protection, temperature protection, PCB protection, Disconnection protection your battery better. 3. Real-time active energy transfer equalization with super capacitor as the medium 4. With 0.6balanced current and continuous 60A charge/discharge current, ensure battery consistency, improve battery cruising range, and delay battery aging, improving safety and avoid risk. 5.Smartphone APP operation with BT communication, real-time monitor & management of battery status, support Android and IOS operating systems.

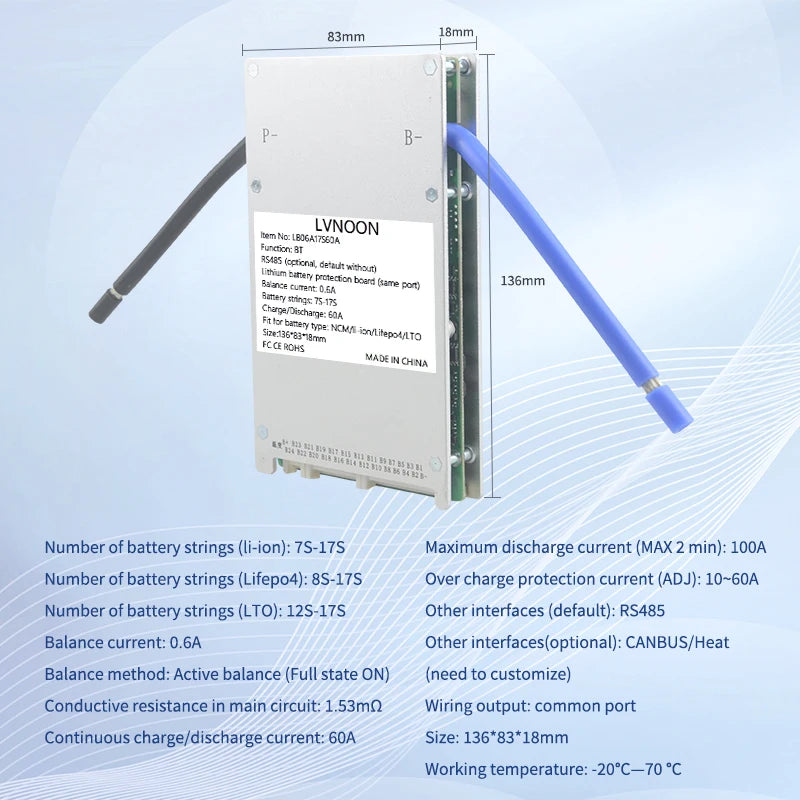

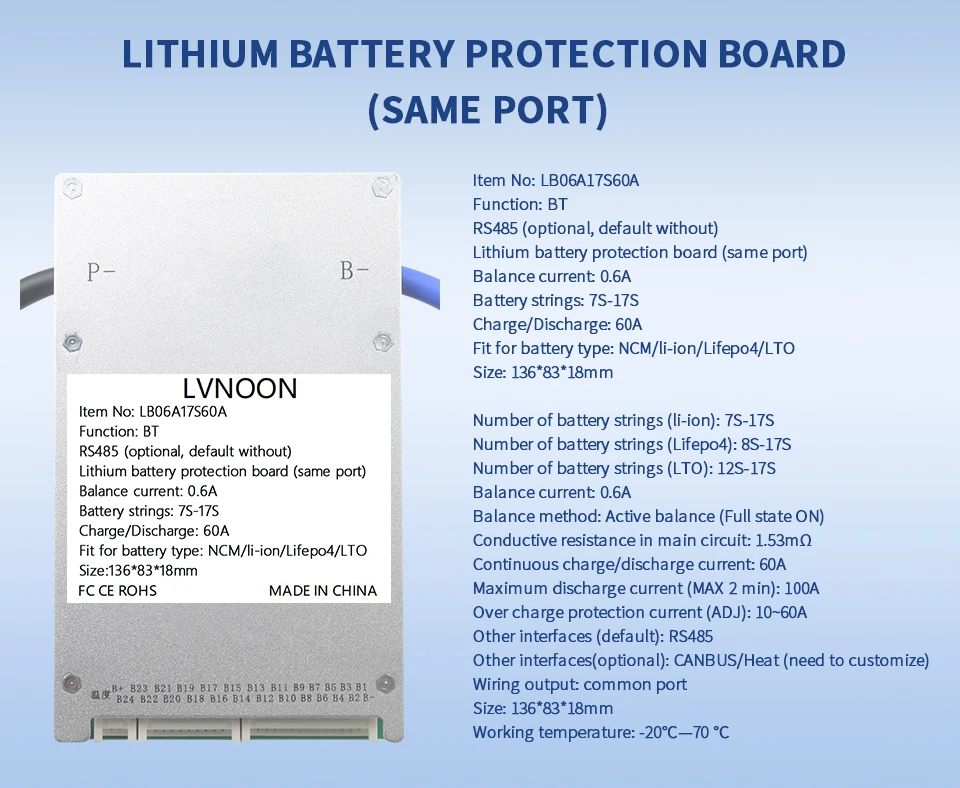

Product Paramenters

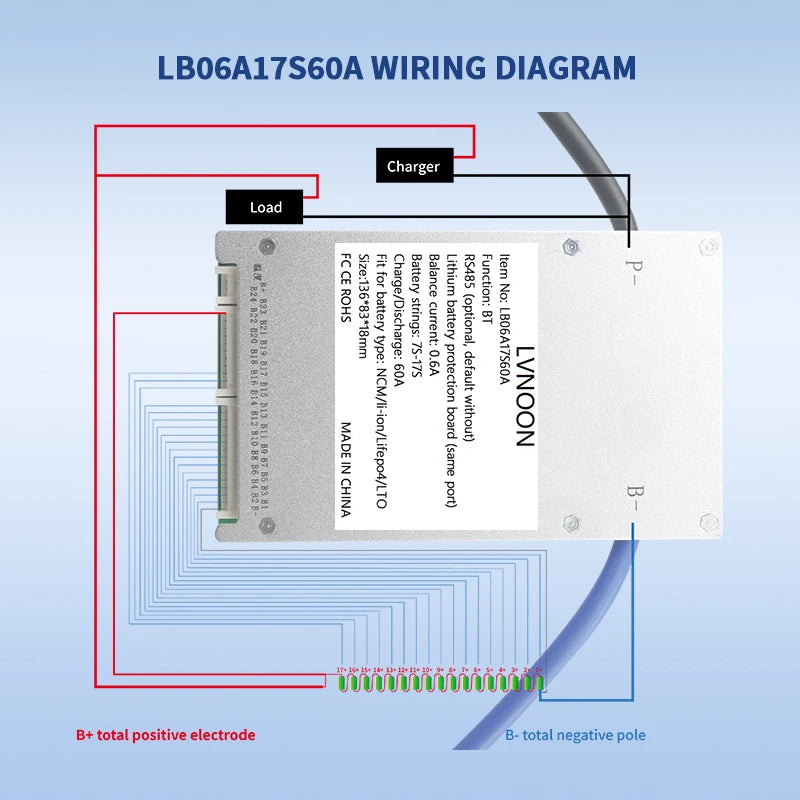

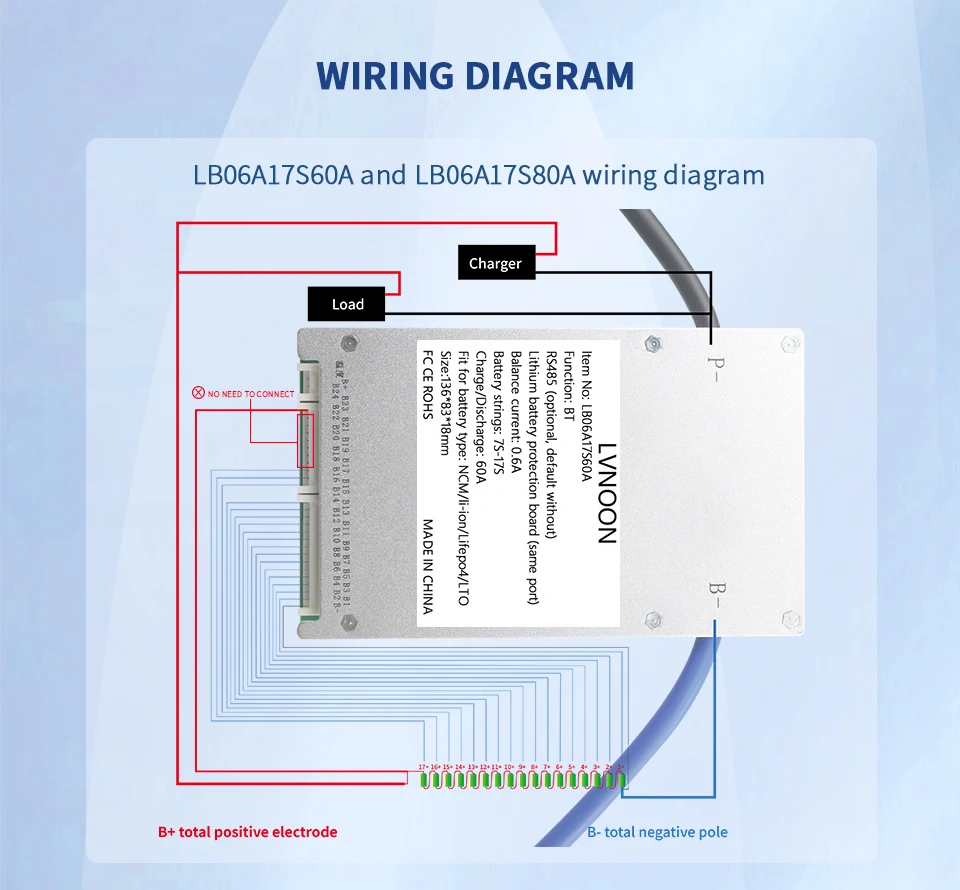

Wring diagram

Application Scenario

LVO6A series is widely used for 2 wheels/ 3 wheels eletrical vehicles and electric tools.
