Tycorun Miniature 12v Lithium Battery Electric Scooter Light 12v 12ah Battery Pack

12Ah / 12.8V

₱3,508.91

1/6

Tycorun Miniature 12v Lithium Battery Electric Scooter Light 12v 12ah Battery Pack

₱3,508.91

SPECIFICATIONS

Anode Material: LFP

Application: Toys,Home Appliances,Consumer Electronics,Electric Power Systems,Solar Energy Storage Systems,Uninterruptible Power Supplies,Home Appliances

BMS: Built-in

Battery Size: 32700

Battery Type: Liquid

Brand Name: Tycorun

Cathode Materials: LiFePO4

Certification: ISO9001, ISO14001, OHSAS18001, ROHS, TLC, etc

Cycle Life: 3000 cycles

Dimension (L*W*H): 151*98*95mm

Features: Deep Cycle Battery

Keyword: new energy battery

Max Load Quantity(cells): 32

Model Number: TC1212

Name: 12 volt 12ah lifepo4 batteries

Nominal Voltage: 12.8 Volt

OEM: Acceptaple

Operating Temperature(℃): -20℃~55℃

Place of Origin: Guangdong, China

Weight: 2kg

Product Description

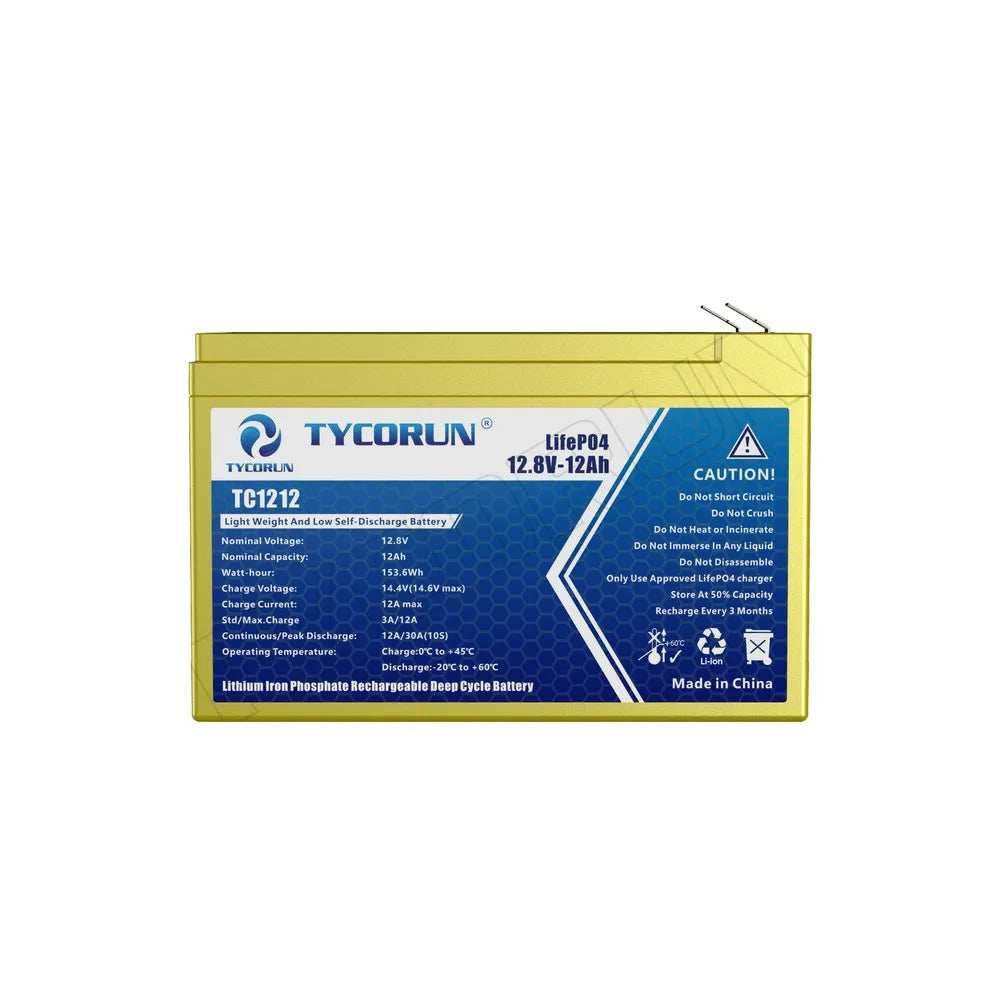

Tycorun miniature 12v lithium battery electric scooter light 12v 12ah battery pack

Modal	TC1206	TC1212	TC1250	TC12100	TC12200
Electrical Characteristics
Rated voltage	12.8V	12.8V	12.8V	12.8V	12.8V
Rated capacity	6Ah@0.2C	12Ah@0.2C	50Ah@0.2C	100Ah@0.2C	200Ah@0.2C
Rated power	76.8Wh	153.6Wh	640Wh	1280Wh	2560Wh
Internal Resistance	150≤mΩ	70≤mΩ	60≤mΩ	40≤mΩ	30≤mΩ
Cycle Life	>2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 80% Capacity
Months Self Discharge	≤3.5% per month at 25℃
Standard Charging
Charge Voltage	14.6±0.2V	14.6±0.2V	14.6±0.2V	14.6±0.2V	14.6±0.2V
Charge Mode(CC/CV)	CC/CV	CC/CV	CC/CV	CC/CV	CC/CV
Charging electricity	1.2A	2.4A	10A	20A	20A
Max charging electricity	6A	6A	50A	100A	100A
Standard Discharging
Discharging electricity	6A	2.4A	50A	100A	100A
Max. Continuous electricity	9A	12A	75A	150A	150A
Max.Pulse Current	18A(<3S）	30A(<3S）	150A(<3S）	300A(<3S）	300A(<3S）
Discharge Cut-off Voltage	10.8V	10.8V	10.8V	10.8V	10.8V
Operating Condition
Charge Temperature	0℃~45℃
Discharge Temperature	-20℃~60℃
Storage Temperature	0℃~45℃
Water Dust Resistance	IP65
Structure
Plastic Case	ABS

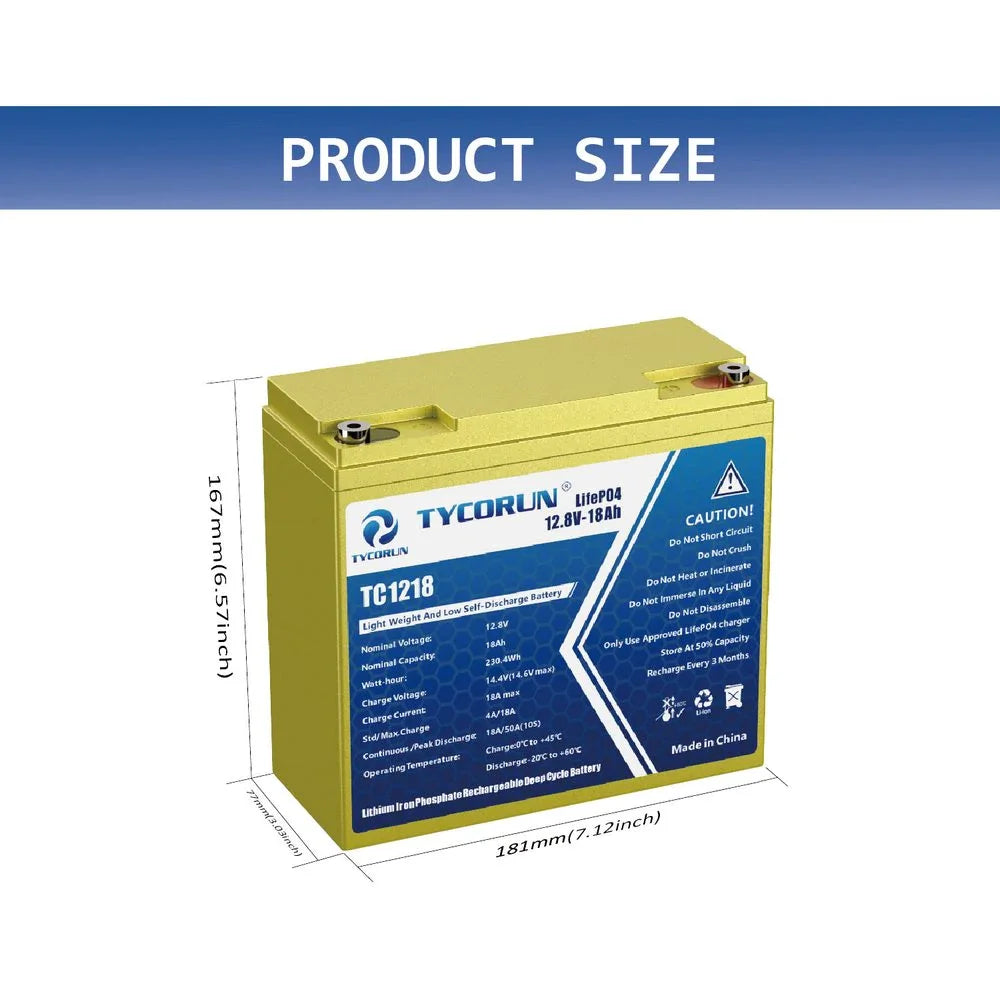

Dimension(LWH) mm	9070101	1519895	229138208	330173220	522240218
Weight	0.7Kg	1.55Kg	6Kg	12.5Kg	25Kg
Terminal	T2	F2	M6	M8	M8

Best Selling

Company Profile

Packaging & Shipping

Back To Home

FAQ

Q1. Can I have a sample order? A. Yes, we welcome sample order to test and check quality. Q2. What about the lead time? A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it depends on order quantity. Q3. Do you have any MOQ limit? A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive? A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional. Q5. How to proceed with an order? A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production. Q6. Is it OK to print my logo on the product? A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Contact us for more details about Price, Packing, Shipping and Discount.
