SPECIFICATIONS

Applicable Battery: 3.2V Lifepo4 Battery;3.6V/3.7V Li-ion Battery;LTO

Application field: inverter,Battery, E-Bike,E-Motorcycle,EV,Solar,RV, Energy storage UPS

BT Function: Internal

Balance Current: 0.4A

Balance Function: Active Balance

Board Size: 110.4*73*17.6(±2mm)

Board Thickness: /

Brand Name: JIKONG

Copper Thickness: /

Functional Application: Battery Charging

Min. Hole Size: 20*20MM

Min. Line Spacing: Customzied

Min. Line Width: /

Model Number: JK-BD4A8S4P

Number of Strings: 4-8S

Place of Origin: Guangdong, China

Surface Finishing: /

Type: Pcb Board

Voltage: 12V/24V

Working Current: 40A

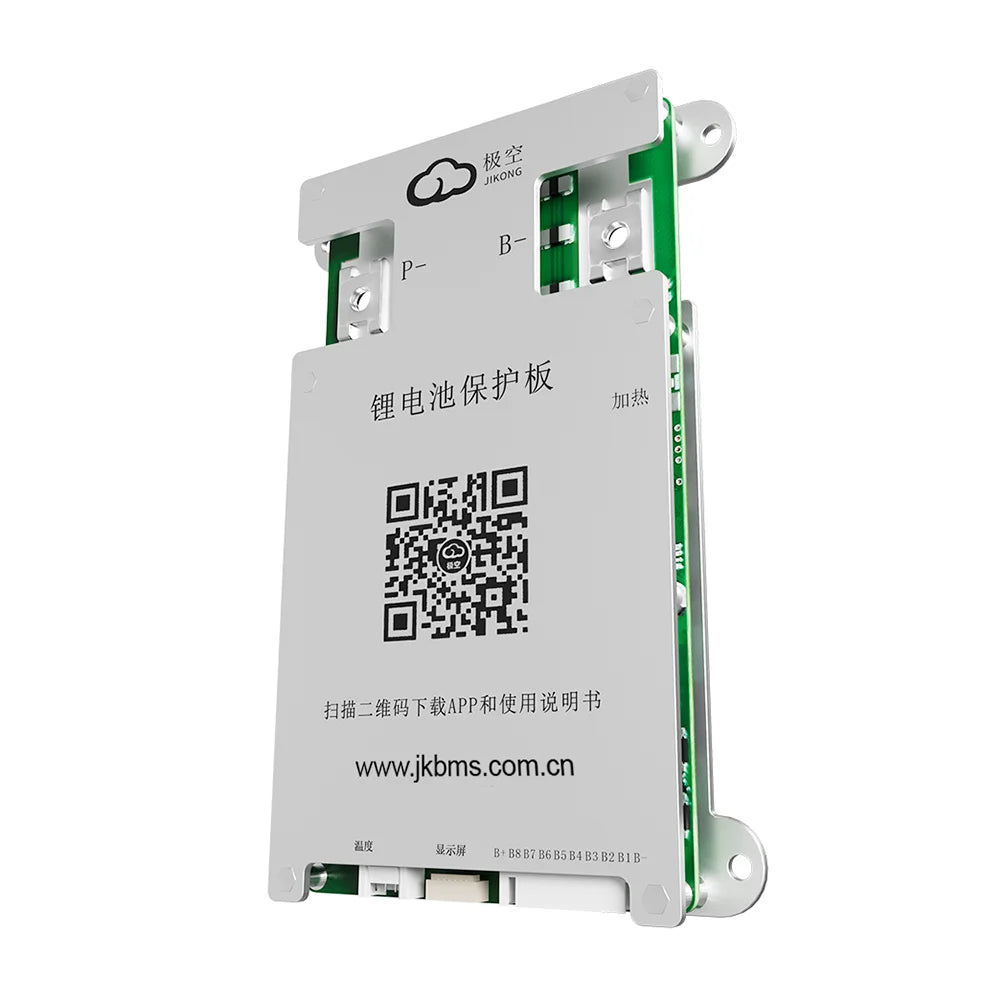

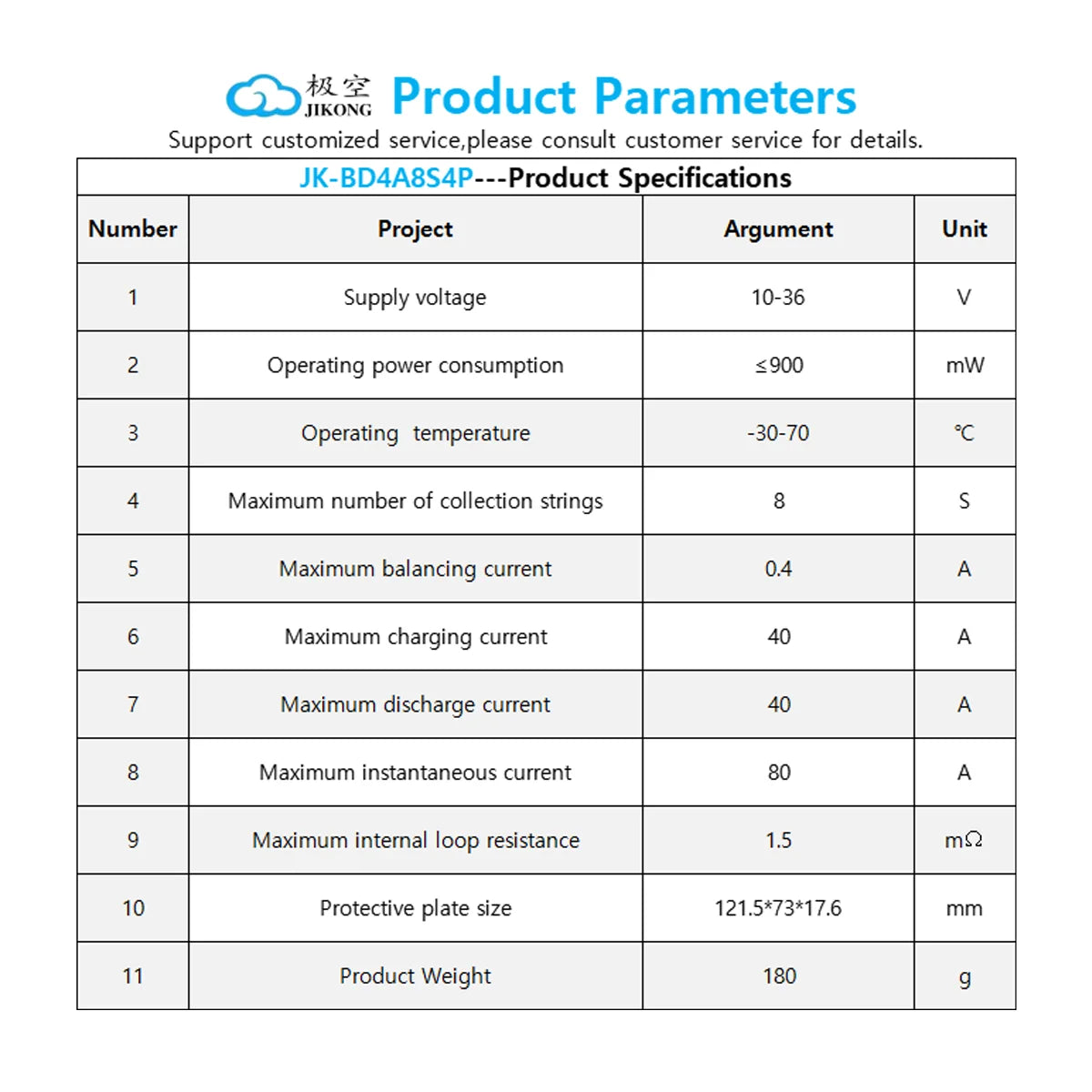

JK BMS BD4A8S4P 4-8S with 0.4A Active Balance Current JK Smart Active BMS 8S 40A BMS

Number of Strings	4-8S Smart Active BMS
Working Current	40A
Voltage	12V/24V
More Functions	Active Balance
Applicable Battery	3.2V Lifepo4; 3.6V /3.7V Li-ion;LTO
Communication	BT
Balance Current	0.4A

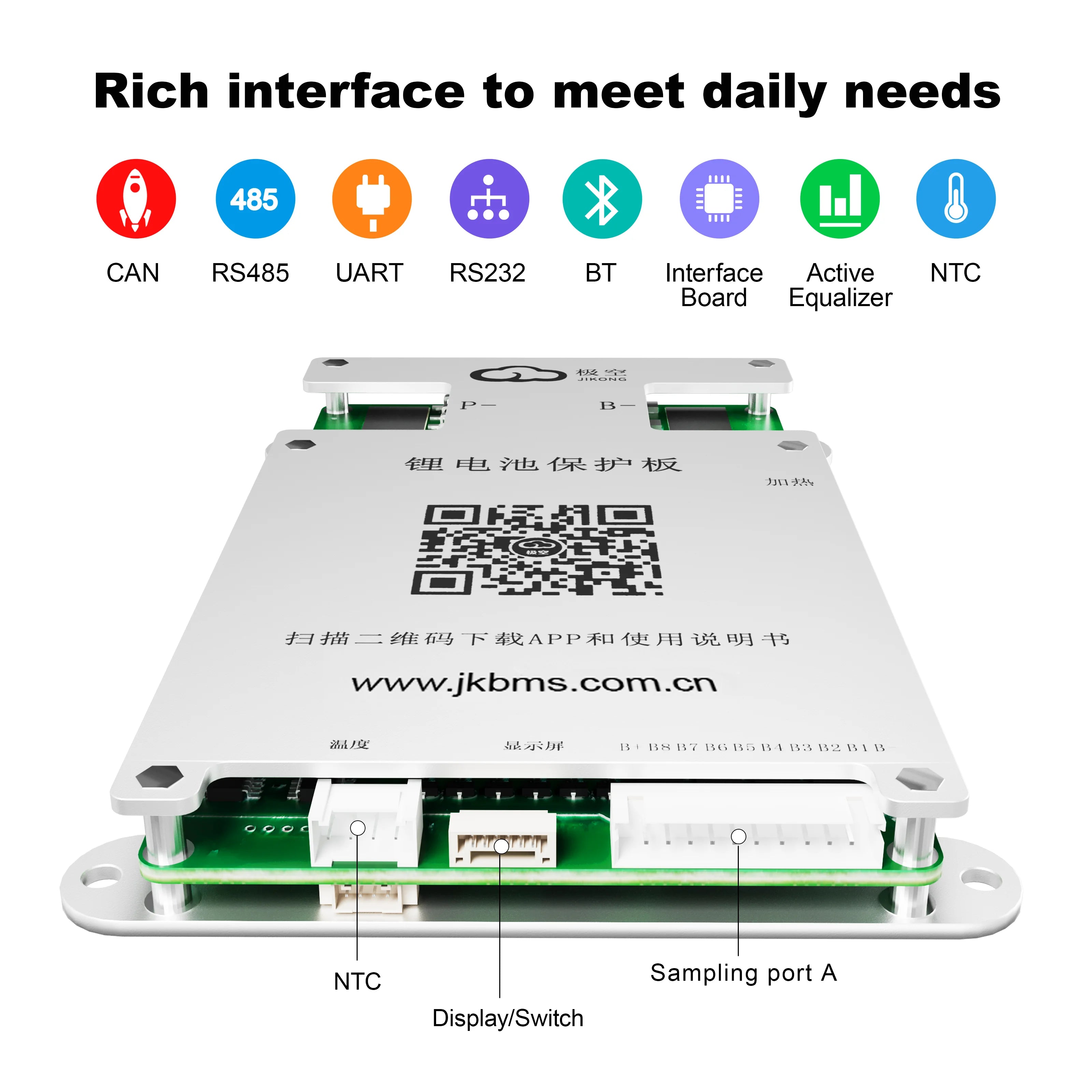

TIP(Contact for purchase)	RS485/CANBUS/Heating/Temp Sensor/Parallel Connection/ACC
