SPECIFICATIONS

Application: Low speed four wheeled vehicle

Brand Name: Jiabaida,JBD

Copper Thickness: 1 oz

Current: 100A/120A/150A/200A/250A

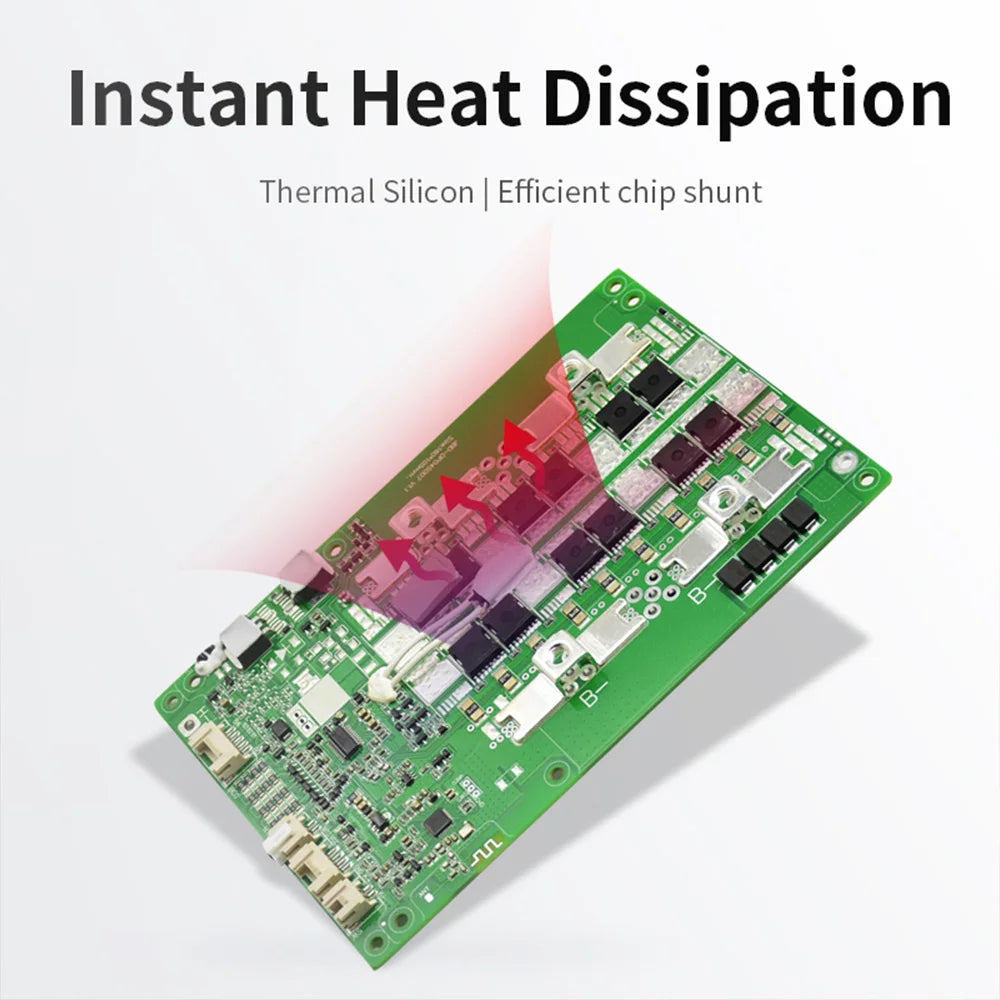

Heat sinks: Water ripple honeycomb radiator

Model Number: DP04S007

Place of Origin: Guangdong, China

Product name: BMS

Same port with balance function: Yes

Size: 160*116*25mm

Supplier Type: manufacturer

Type: bms pcba

Usage: Lifepo4 & Li-ion Battery Pack

Voltage: 12V/24V/36V/48V/60V/72V

function: balance and temperature control

Product Description

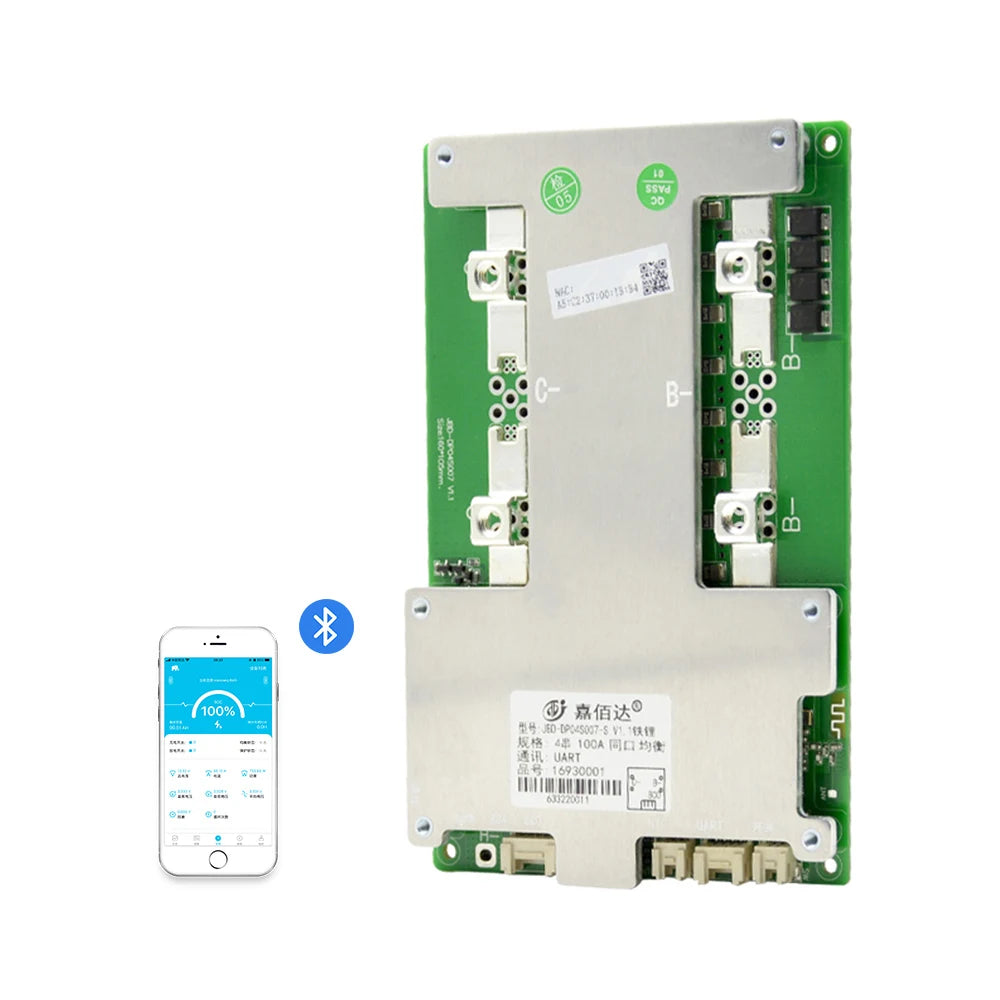

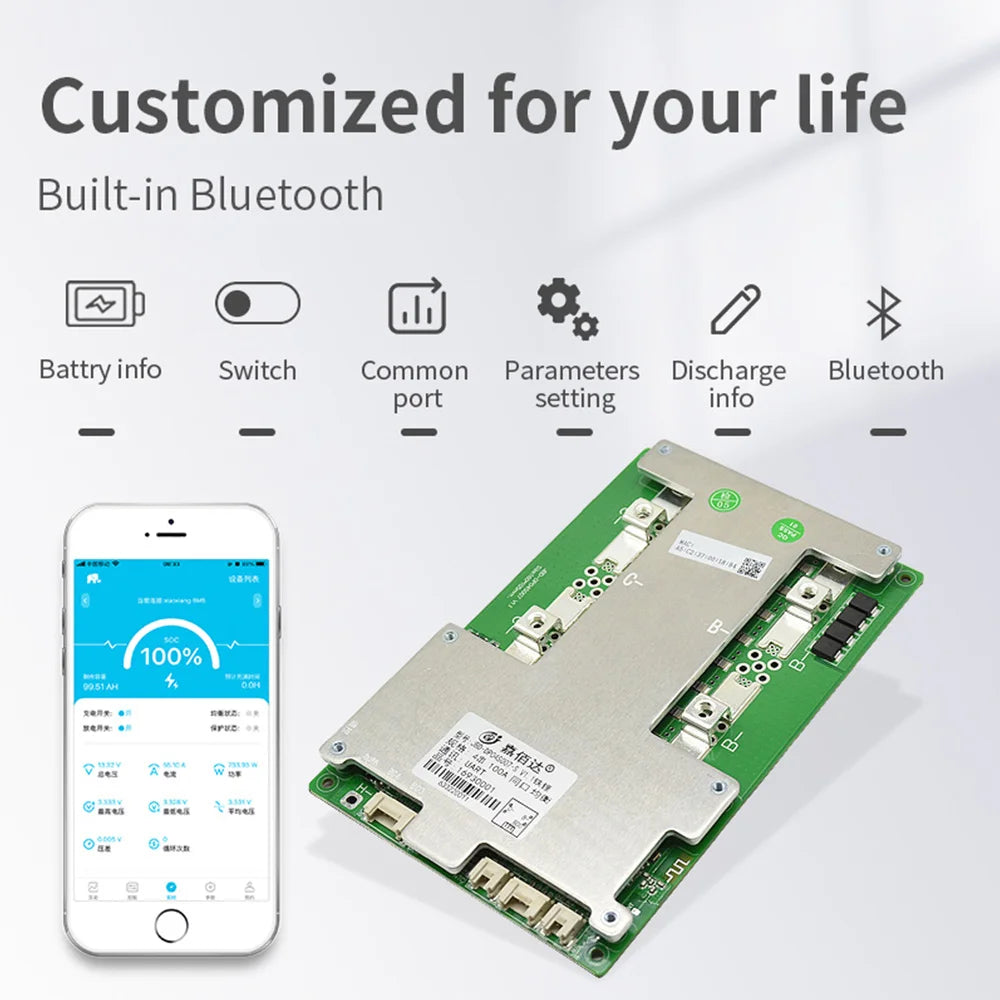

JBD-DP04S007 is a software protection board scheme specially designed for 3~4 strings of lithium battery packs. The product adopts architecture of front-end acquisition chip + MCU, and some parameters can be flexibly adjusted through the host computer according to customer needs.

Products Name	LiFePO4 BMS
Type	DP04S007
Size	160mm * 105mm * 15mm
Voltage	12V
Current	100A/120A/150A/200A
Strings	4s

Company Profile

Application

Certifications

Customer Reviews

Payment & Packaging & Shipping

FAQ

Q. What type of charger should I choose?
A. Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge. Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.

Q. The relationship between Battery capacity and BMS current?
A. There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.

Q. Whether my BMS damaged?
A. If you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with
voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the
start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.

Q. Are the CANbus ports on these BMS'es "electrically isolated"
A. Yes. Electrical isolation is also electrical isolation. The so-called electrical isolation is to electrically isolate the power
supply from the electrical circuit, that is, to isolate the electrical branch circuit from the entire electrical system, making it
an electrically isolated, independent, ungrounded safety system. In order to prevent the danger of indirect contact with
electricity when the exposed conductor fails and is electrified.
