SPECIFICATIONS

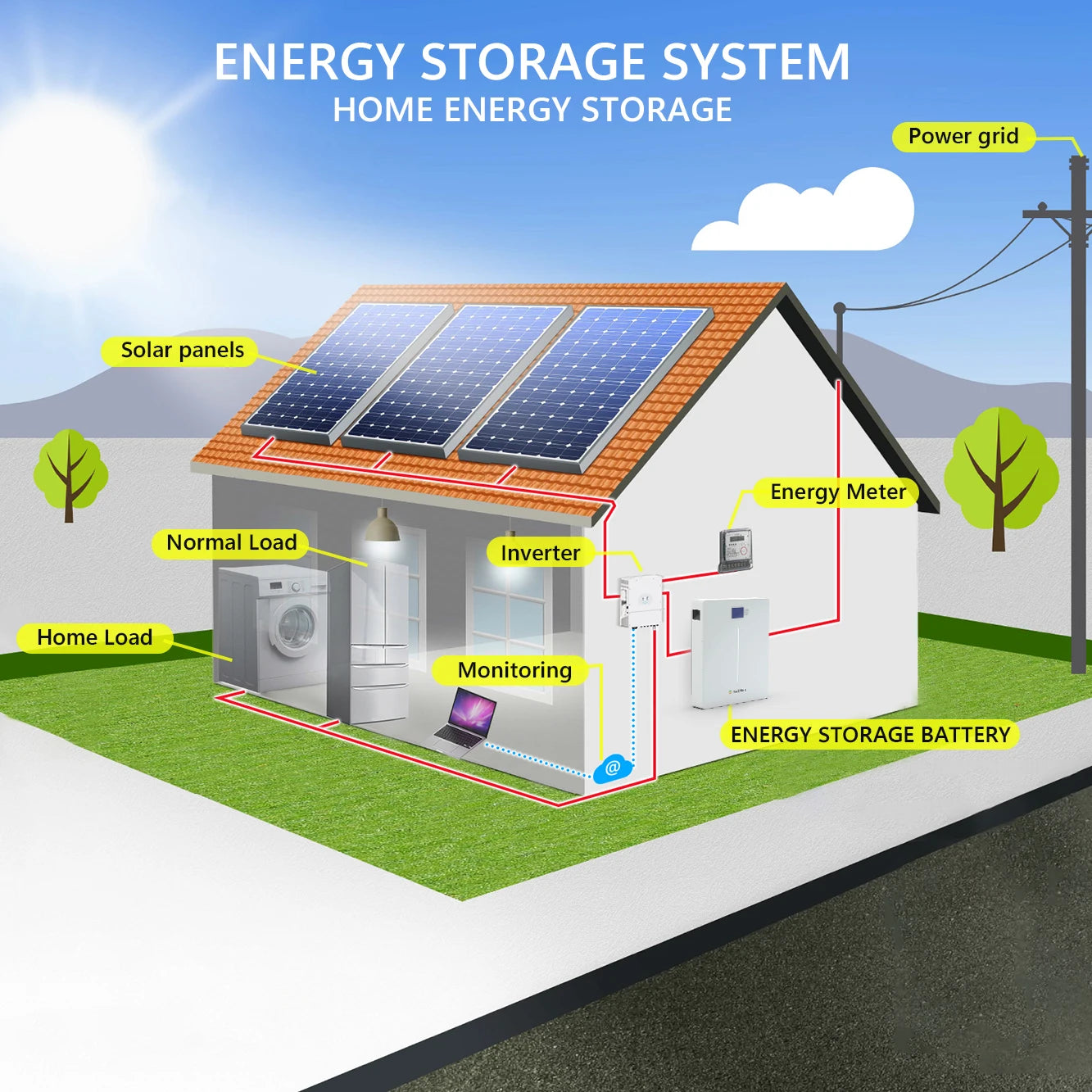

Application: Home Solar Energy Storage System

BMS: Built-in BMS Protection

Battery Type: LiFePO4,LiFePO4 Battery Cell

Brand Name: ASGOFT

Certification: CE/RoHS/UN38.3/MSDS

Communication Port: CAN,RS485,RS-232

Cycle life: 5000 Cycles

Dimension (L*W*H): 420*550*170.5mm

Grid Connection: Off grid,Hybrid grid,On Grid

Keywords: Battery Lithium Lifepo4

Model Number: ASH-51100-U

Output Power Range: 5-10kW,5~10 kWh

Place of Origin: Guangdong, China

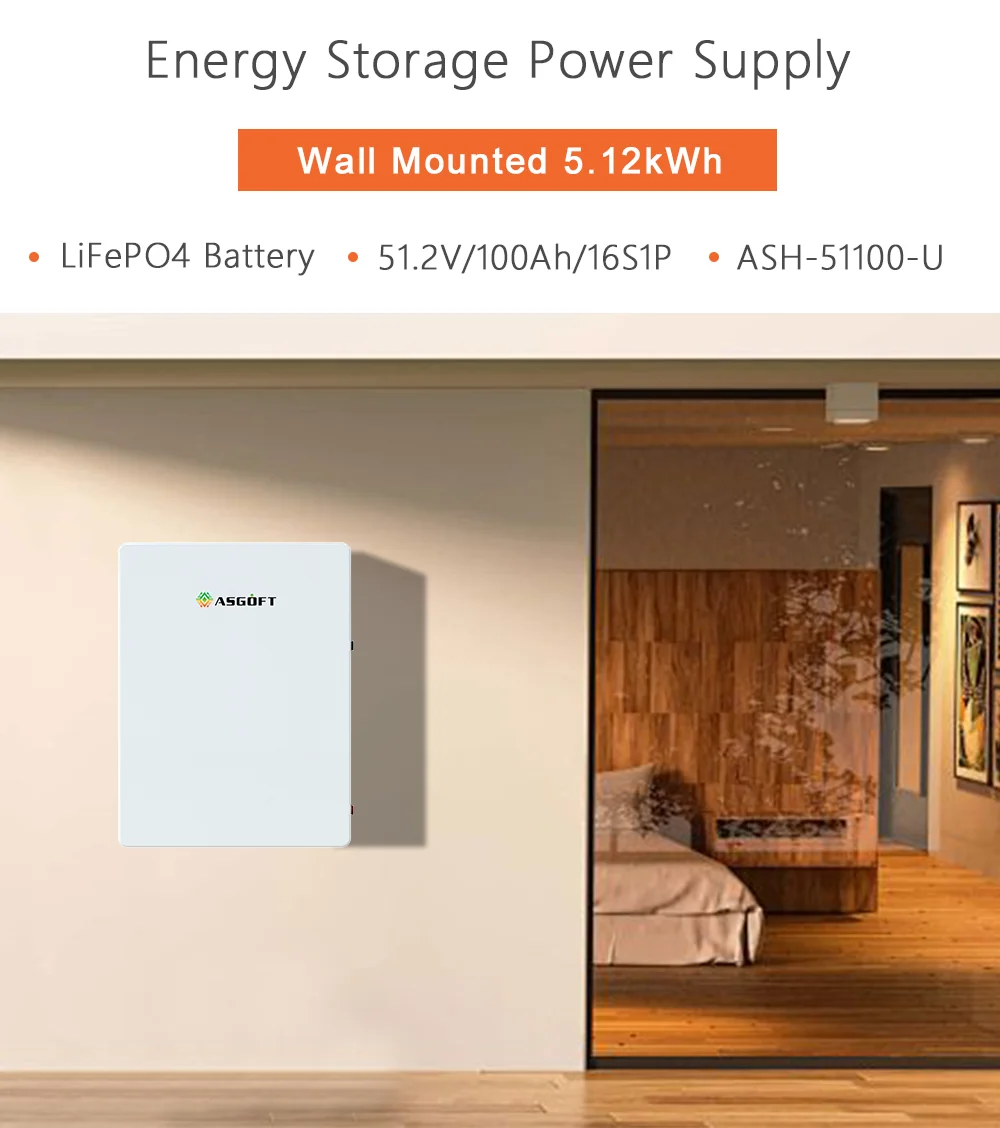

Product name: Home Energy Storage Battery System

Protection Class: IP54

System Type: Wall-Mounted,Stackable,Rack-mounted

System Voltage: 51.2 V

Type: Split

Usage: Home Battery Energy Storage System

Warranty: 5years

Weight: 45kg

Title goes here.

1. Grade-A Cells & Intelligent BMS Engineered with premium Grade-A LiFePO4 chemistry cells and integrated with a high-performance smart Battery Management System (BMS). Provides robust multi-tier protection against overcharge, over-discharge, overcurrent,and thermal runaway, guaranteeing a safe, reliable operation.
2. Germany & EU Local Stock, Duty-Free Warehoused locally in Germany and Poland to support rapid dispatch. Offers DDP (Duty-Paid) shipping or self-pickup options across Europe, ensuring zero tariff worries and exceptionally short transit times (3-7 days) to dramatically optimize your inventory cash flow.

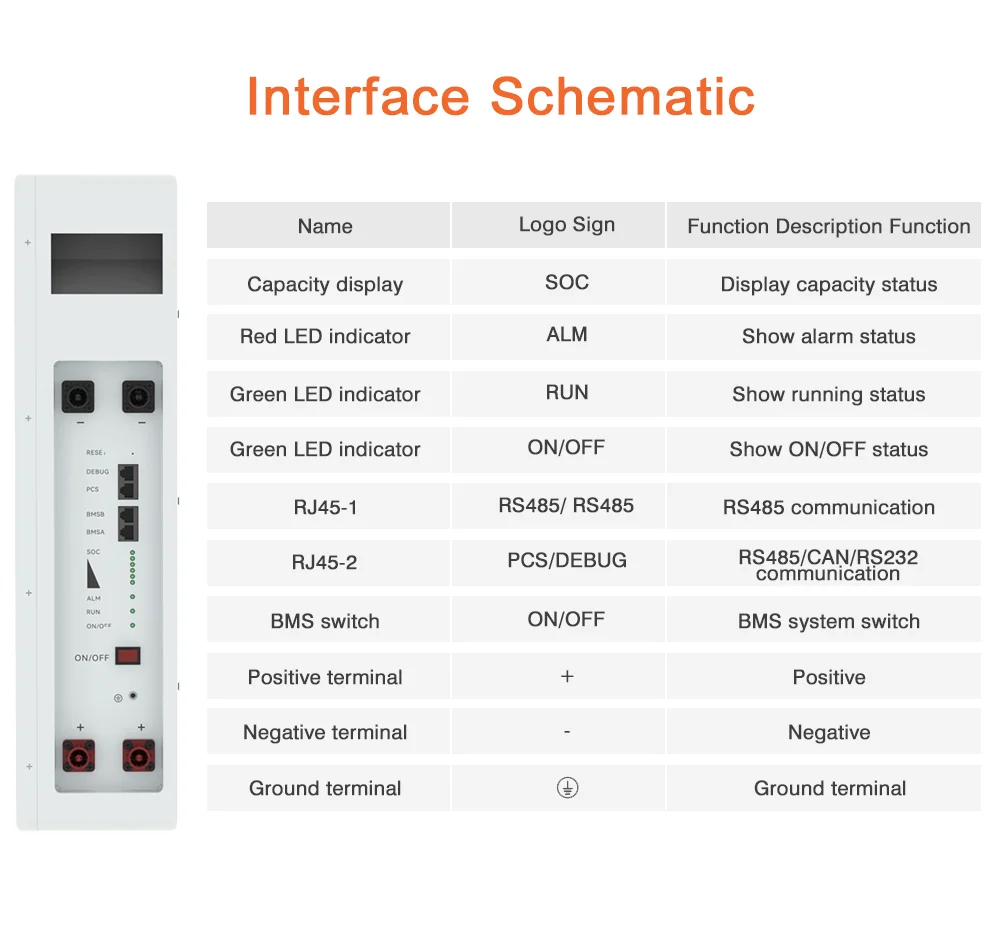

3. Universal Inverter Protocol Compatibility Equipped with advanced multi-protocol RS485, RS232, and CANbus communication ports.Fully compatible with mainstream hybrid and off-grid inverter brands globally, including DY, Solis, Growatt, Victron,GoodWe,and Voltronic for seamless system integration.
4. 5000+ Deep Cycles & 10+ Years Lifetime Delivers an outstanding service lifecycle of over 5000 cycles at 80% DoD (Depth of Discharge). Combining heavy-duty steel housing with exceptional thermal stability, the system ensures residential solar backup reliability for over 10-15 years.

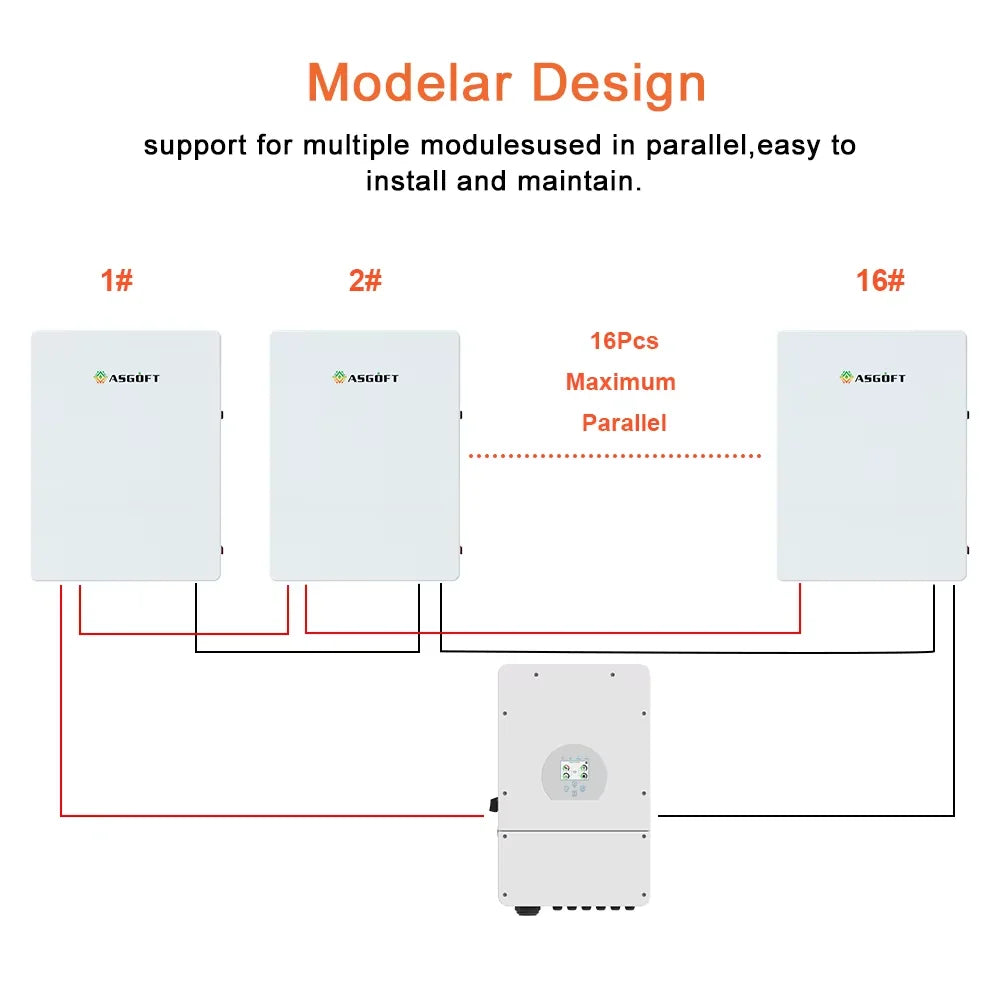

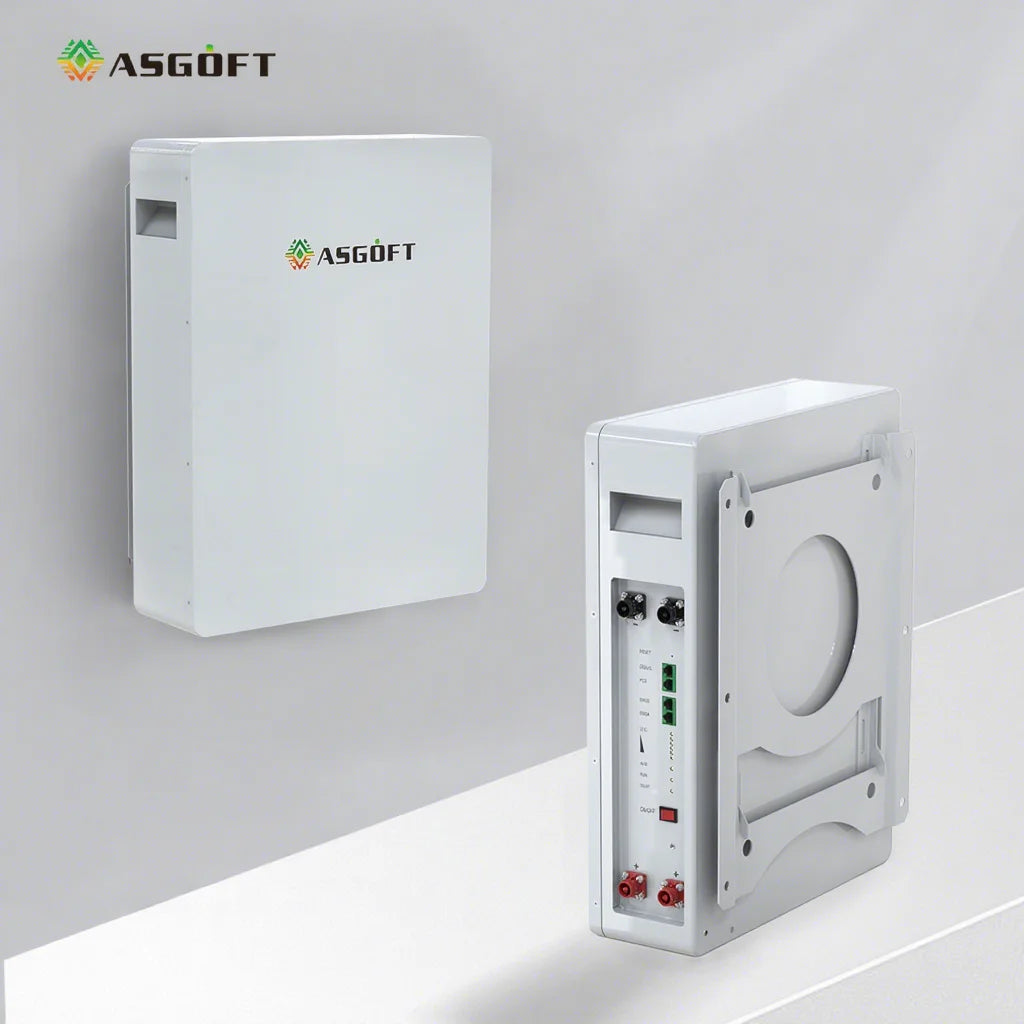

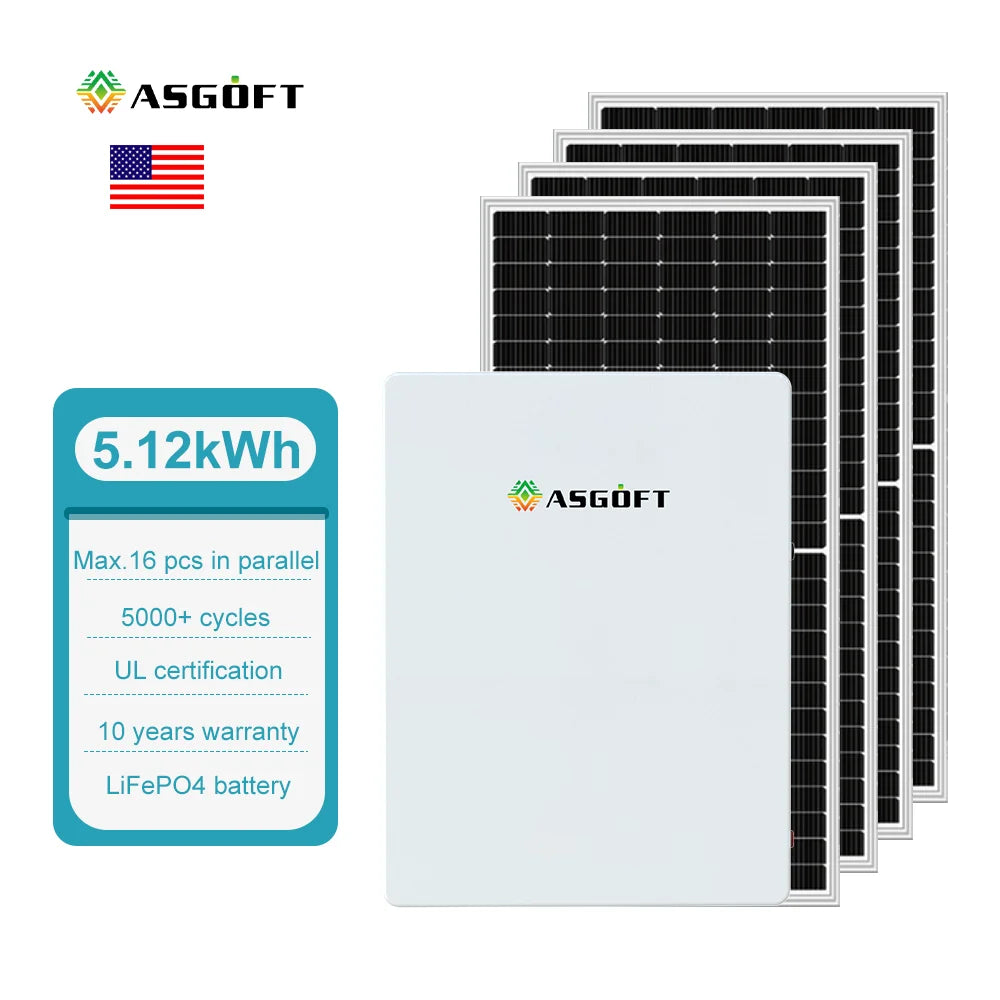

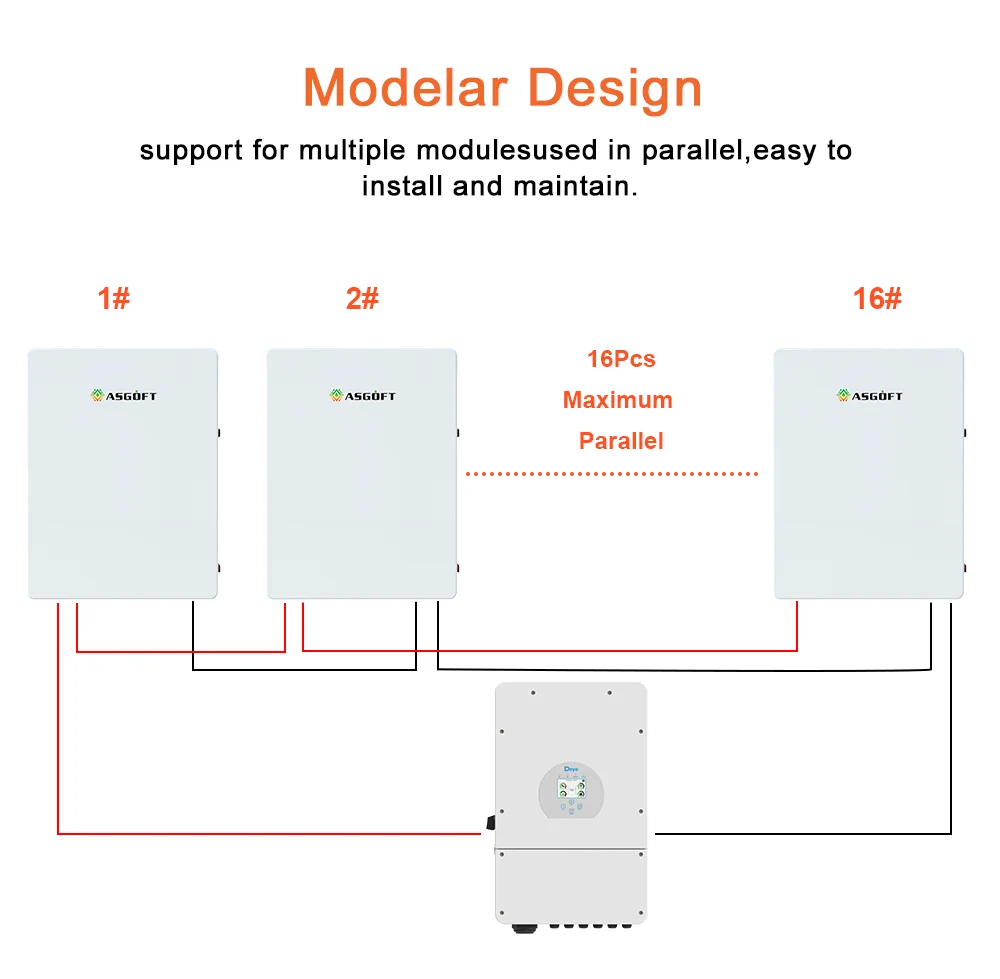

5. Modular & Scalable Residential Storage Features a compact, space-saving wall-mounted design supporting flexible parallel expansion. Scale seamlessly from a single 5kWh module up to a 75kWh/150kWh array (up to 15 units in parallel) to cover both typical residential and light commercial loads.
6. Smart Visual Interface & Aesthetic Design Crafted with a sleek, minimalist home-appliance aesthetic in a durable white finish.Includes a built-in high-definition BMS indicators for real-time monitoring of State of Charge (SoC), voltage, and operating parameters, and active fault alarms, and cell health.

Product Paramenters

Mode	ASH-51100-U
Battery Type	LiFePO4
Nominal Battery Energy	5.12kWh
Nominal Capacity	100Ah
Nominal Voltage	51.2V
Charging Cut-off Voltage	57.6V
Discharging End-off Voltage	40V
Recommended Charge / Discharge Current	50A
Max. Power Charge / Discharge Current	100A
Peak Power Charge / Discharge Current	200A(5s)
Weight	45kg

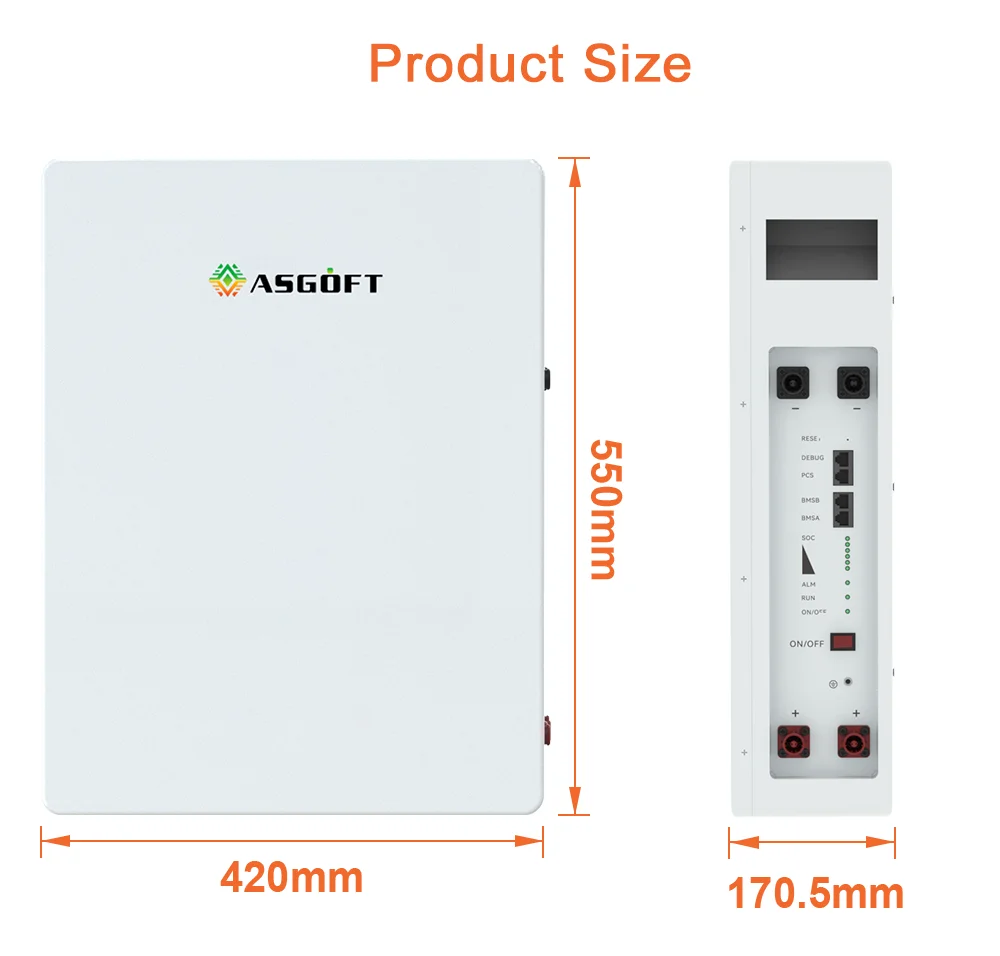

Max. Dimension(L*W*H)	550*420*170.5mm

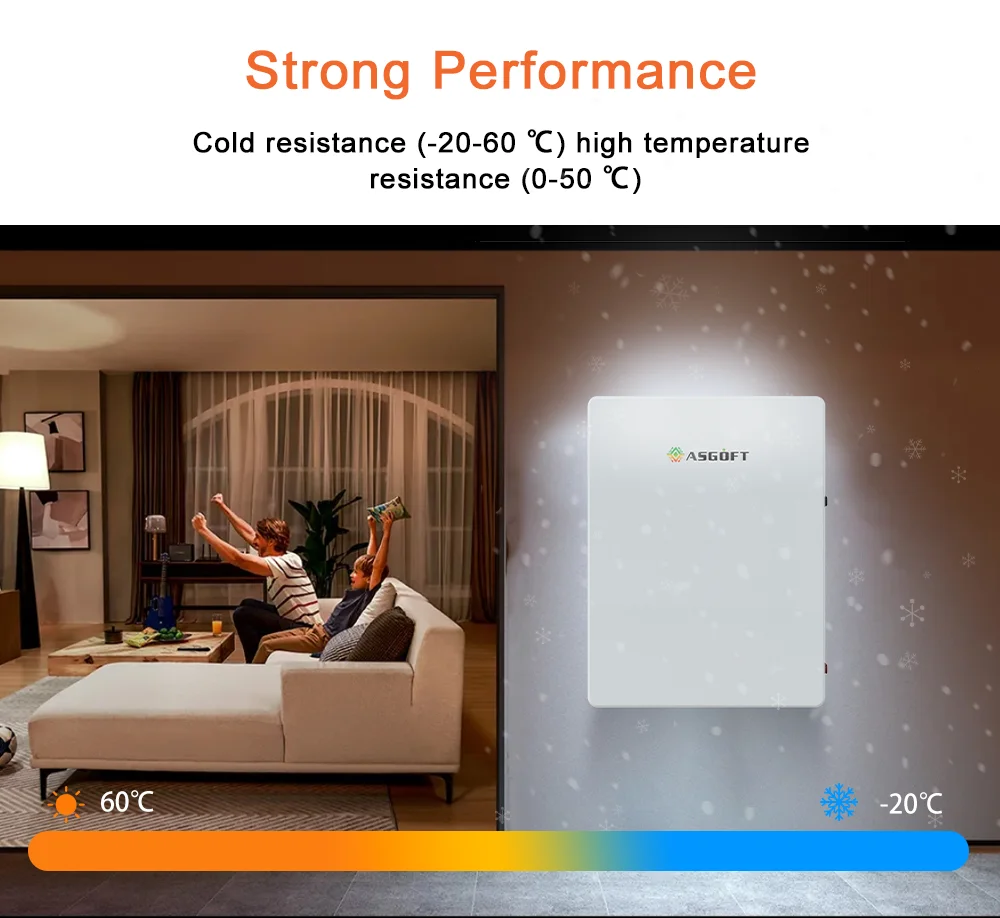

Charging Temp. Range	0-50℃
Discharging Temp. Range	-20-60℃
Communication	CAN / RE485
Warranty	10 Years
Warranty Document Supplied	Yes
Calendar Life	≥5000 Cycles
Scalability	IP20
Pros	Can be used in both off-grid and hybrid setups, compact design
Compatible Inverters	Victron/SMA/Goodwe/lmeonSolis/SAJ/Growatt/ Luxpower/Voltronic/Deye etc.
Certification & Safety Standard	TUV/CE/IEC62619/UN38.3

Our products have overseas warehouses in Germany

Welcome OEM/ODM Orders

Company Profile

Our Exhibition

Certifications

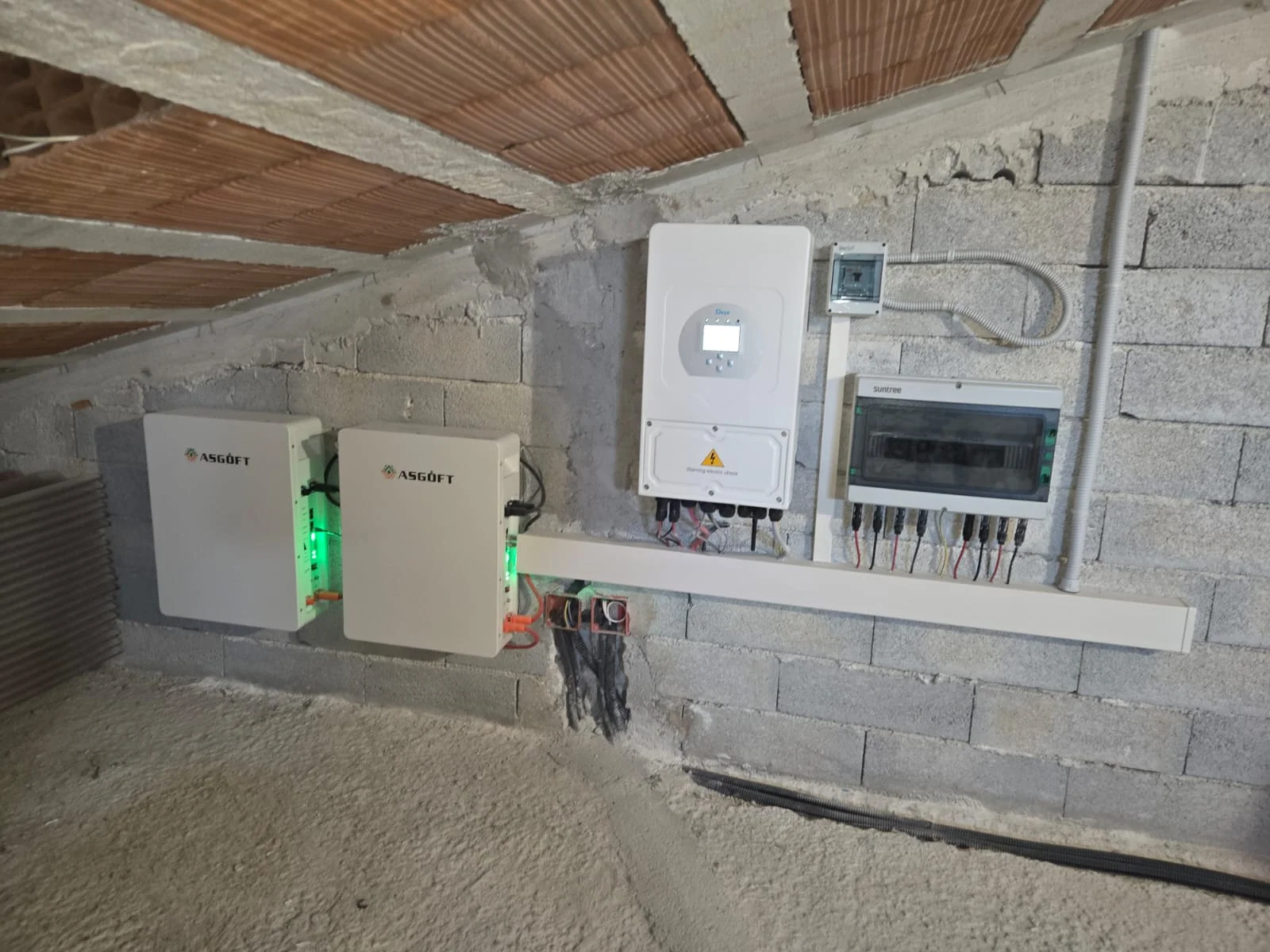

Customer Project

Logistics Transportation

FAQ

Q1: Do you support OEM?

A1: Yes. OEM & ODM are available.

Q2: How long is the warranty on the product?
A2: We provide 2-year warranty service for free, and we can also provide 10-year warranty service if you need it.

Q3: How do you ensure product quality?
A3: All of our products undergo rigorous testing before leaving the factory, and the defective rate is less than 0.2%

Q4: Can I buy one sample for testing?
A4: Sure, Support sample testing

Q5: How to solve technical problems?
A5: We have professional engineers to provide you with free after-sales service consultation 24 hours a day, so that your problems can be easily solved.

Q6: How long is the product delivery time?
A6: Sample:2-3 working days

Order:within 3-15 working days depending on the order quantities

OEM order:7-25 working days after confirming the sample

Q7: Why choose us?
A7: Reliable-- The full series of products have been approved with CE, UN, RoHS, MSDS, etc.
Advantage-- Custom service: BMS function increasing, High Voltage/High Current adjusting, Inverter-Battery Commissioning,
Warehouse and local service team in Europe.
Professional-- 8years of experience in Lithium Batteries, comprising the design, manufacturing, testing and application.
