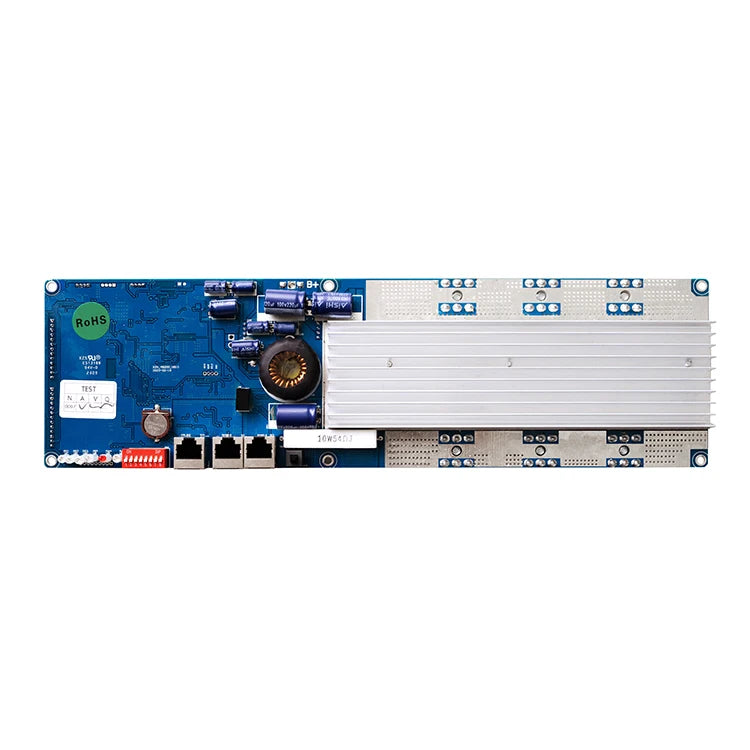

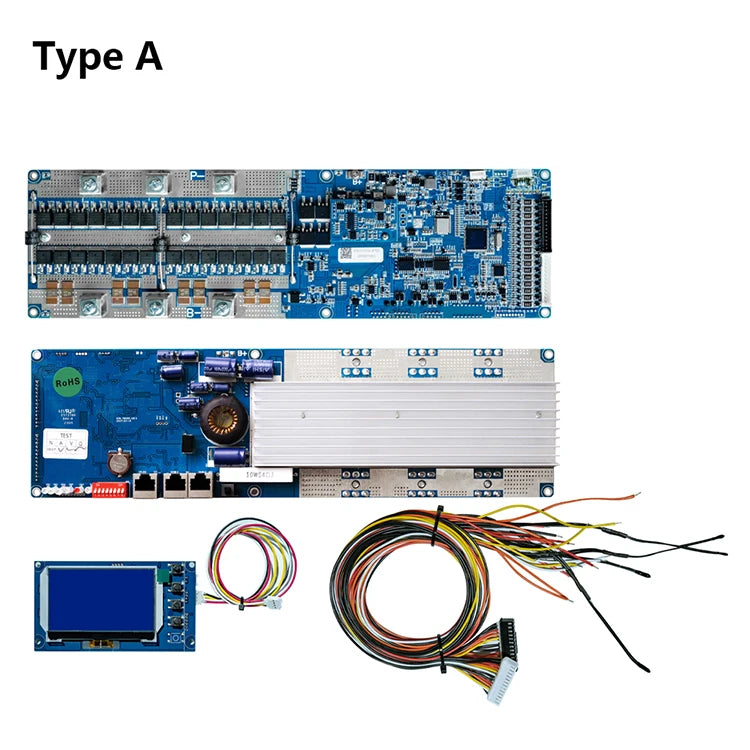

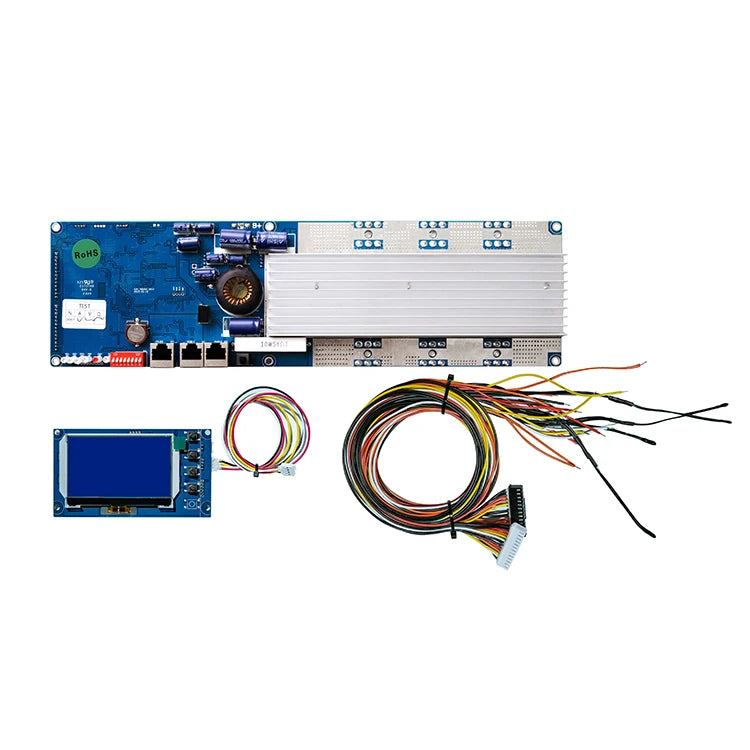

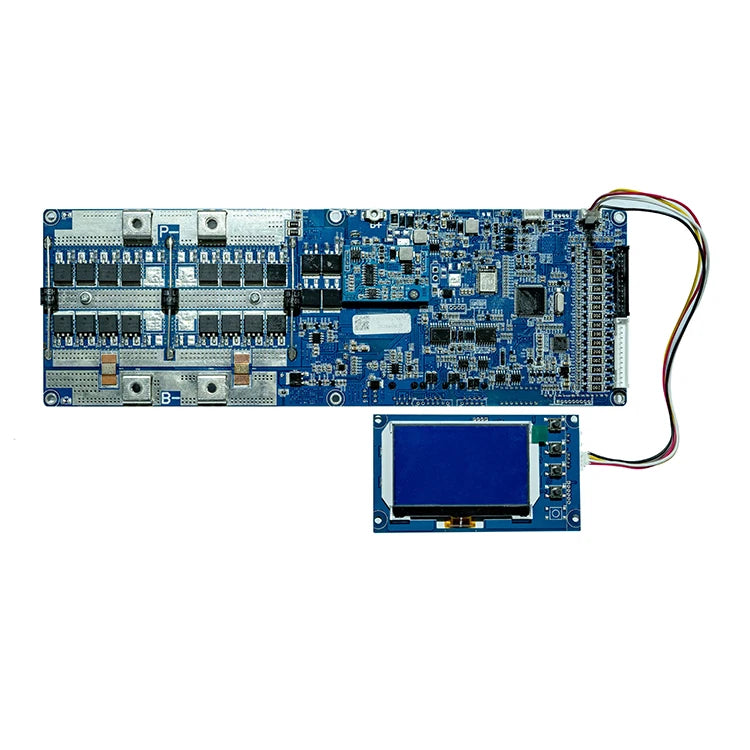

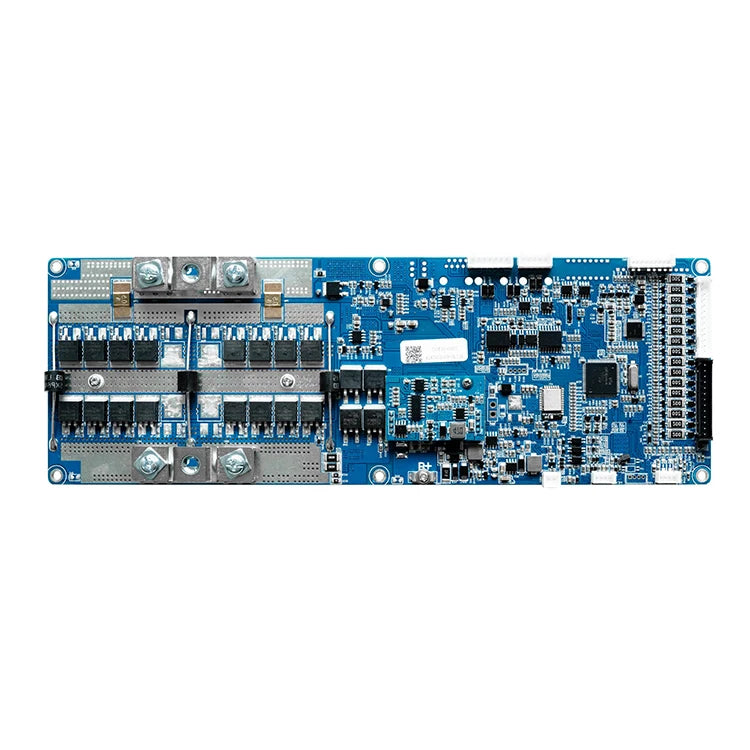

For 3.0 BMS 150Ah CE Certified 48V 15S/16S Lithium-ion Battery Packs with Circuit Protection for Home Energy Storage

48V 150A16S LFP

₱9,166.14

1/6

For 3.0 BMS 150Ah CE Certified 48V 15S/16S Lithium-ion Battery Packs with Circuit Protection for Home Energy Storage

₱9,166.14

SPECIFICATIONS

Application: Intelligent protection board

Brand Name: Seplos

Cell temperature: YES

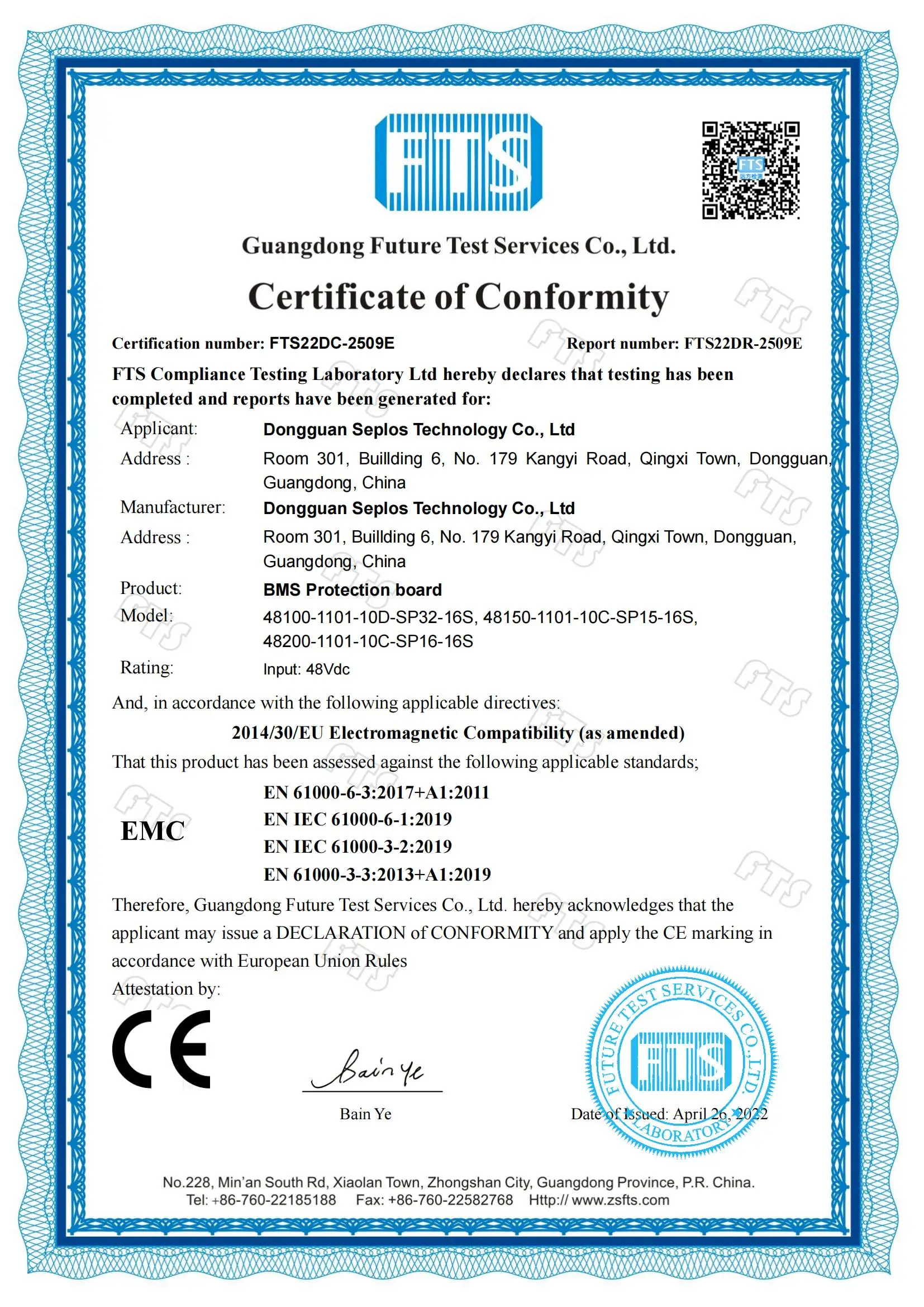

Certificate: CE

Copper Thickness: 1 oz

Functional Application: Circuit Protection

Individual cell over voltage protection: YES

Keywords: Pcba Manufature

MOQ: 1 PCS

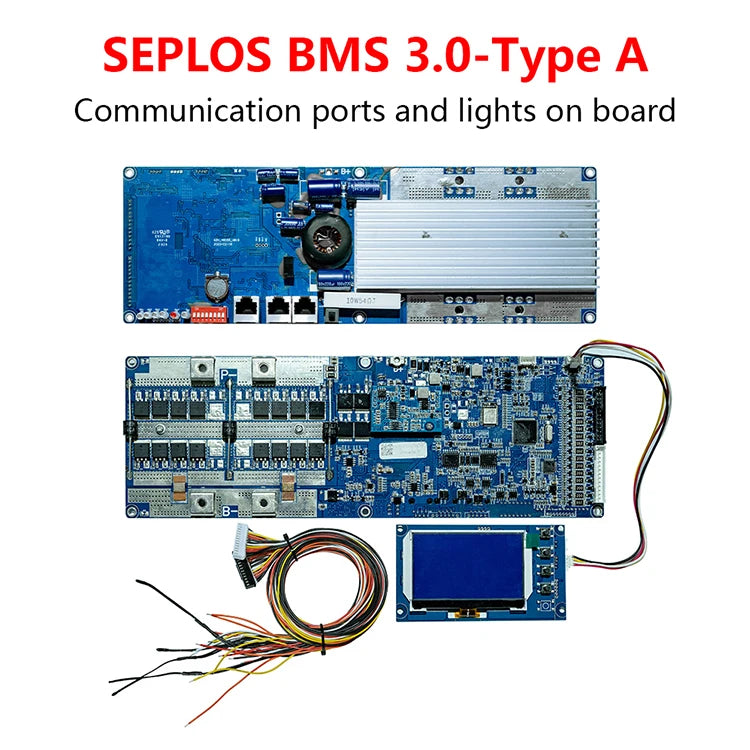

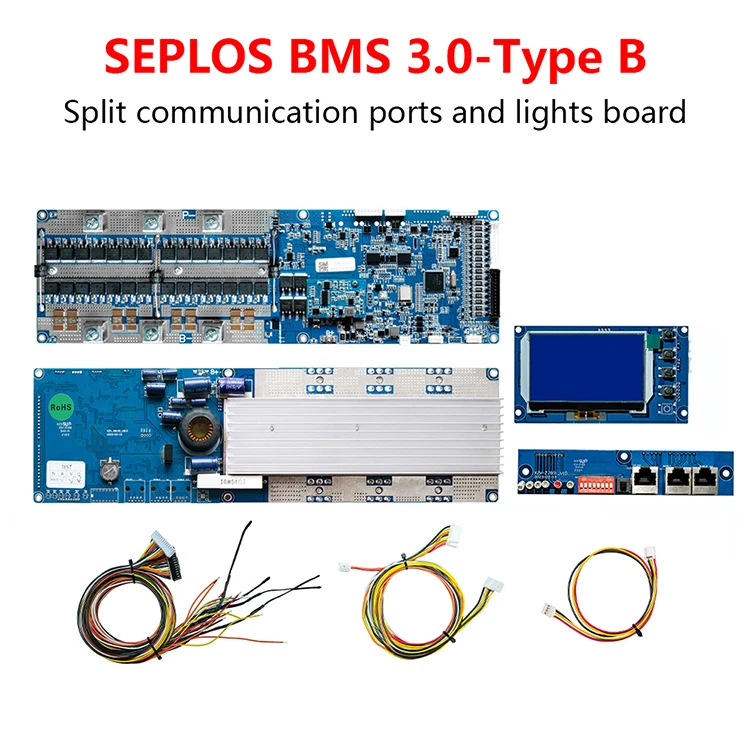

Model Number: Seplos BMS 3.0

Operating System: Home energy storage protection

Over current protection: YES

Over voltage protection: YES

Place of Origin: Guangdong, China

Product name: Seplos BMS

RAM: NO

Supplier Type: Manufature

Type: PCBA,PCBA

Usage: Li-ion /lifepo4 Battery Pack

Product Description

Specification

Battery type and serial number

LFP(16S/15S)

NCM(14S/13S)

Continuously charging/discharging current

50A

100A

150A

200A

50A

100A

150A

200A

Communication protocol

CANBUS（defult） RS485(Please contact Sale man)

Custom function

Heating function、External switch、RS485 protocol

Discharge Output Impedance

<2mΩ

Working Temperture

-20℃-70℃

compensating impedance

10mΩ

Pre-charging

0-3000ms

Current Balance

Passive balance

150mA(Max)

Power consumption

Working mode power consumption

<40mA

Sleeping mode power consumption

0uA

Capacity protection

Nominal capacity

5-500Ah

Remaining capacity protection

Short Circuit protection

Short circuit protection lock

Continuously short in the output circuit

Short circuit protection lock times

5 times

Short circuit protection lock release

Connected with charger

Individual cell voltage protection

Over voltage protection

3650mV

4200mV

Under voltage protection

2700mV

2900mV

Voltage protection

Over voltage protection

57.6V

58V

Under voltage protection

41.6V

40.6V

Current protection

Over current protection

60A

110A

160A

210A

60A

110A

160A

210A

Over current protection time delay

30mS

Current limiting(charging)

Passive current limiting

10A

Heating function

Start

0℃

Stop

10℃

Company Profile

shenzhen seplos technology company is a manufacturer of lithium ion battery pack with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in storage system Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2017,sell to Eastern Europe(30.00%),Southern Europe(20.00%),North America(10.00%),South America(10.00%),Western Europe(10.00%),Northern Europe(10.00%),Domestic Market(10.00%),South Asia(0.00%),Eastern Asia(0.00%),Oceania(0.00%),Central America(0.00%),Africa(0.00%),Mid East(0.00%),Southeast Asia(0.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Lifepo4 Battery Pack, Energy Storage Battery, Lithium Ion Battery

4. Why should you buy from us not from other suppliers?
1: Good Quality 2:Fast Delivery with local stock 3:Local After sales service. 4:Fast after sales service 5: Factory Price

5.What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:null;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,German
