SPECIFICATIONS

Anode Material: LFP

Application: Boats,Golf Carts,Electric Bicycles/Scooters,Electric Vehicles,Electric Wheelchairs,Electric Power Systems,Solar Energy Storage Systems,Electric Forklifts

Battery Type: Solid state

Brand Name: Swalle

Capacity: 100Ah (0.2C, 25℃)

Cathode Materials: LiFePO4

Charging current: 20A

Charging mode: 0.2C to 14.6V

Charging voltage: 14.6 ±0.2V

Cycle Life: 6000 cycles

Cycle times: ≥6000 times 0.2C 100% DOD

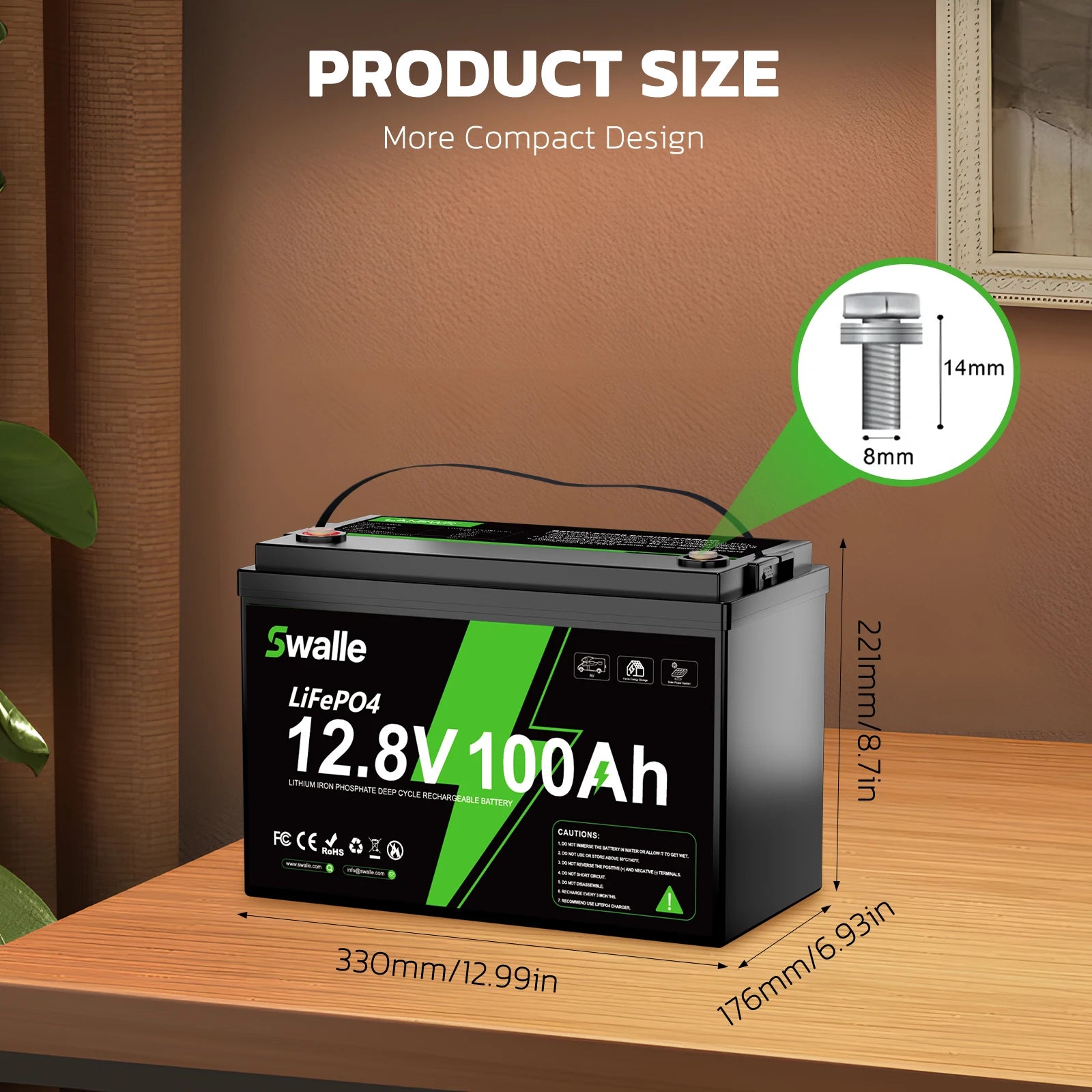

Dimension (L*W*H): 332*176*221mm

Energy: 1280Wh

Max Load Quantity(cells): 16

Model Number: LFP12-100

Name: 12V 100AH lithium iron phosphate battery Bluetooth5.0

Nominal Voltage: 12.8 Volts

Operating Temperature(℃): -10-60

Place of Origin: Guangdong, China

Type: LiFePO4 Battery

Weight: 10.2kg

Models	12.8V100Ah	12.8V200Ah	12.8V300Ah	25.6V100Ah
Norminal Capacity	100Ah	200Ah	300Ah	100Ah
Dimension (mm)	332*176*221mm	522*238*218mm	522*238*218mm	522*238*218mm
Weight (kg)	12	19.2	19.2	19.2
Cycle Life	6000 times
Max. discharge current	100A	150A/Customized	150A/Customized	100A
Max. charging current	100A	150A/Customized	150A/Customized	100A
Charge voltage	12V Absorption voltage： 14.2-14.6V Float voltage: 13.5-13.6V 24V Absorption voltage： 28.4-29.2V Float voltage: 27-27.2V
Working Condition	Charging: 0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity Discharge: -20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity Storage: 0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity
BMS temperature protection:	Charge Cut-off @ 0 ℃ Discharge Cut-off @ 60℃
Connection	MAX. 4S4P	Parallel Only, MAX.4P
Enclosure Protection Level	IP65
Certification	CE, MSDS, UN38.3, etc
