DC500V Photovoltaic DC Circuit Breaker Switch Outdoor Waterproof IP65 1 in 1 Out Solar Bus Photovoltaic DC Circuit Breaker
DC500V Photovoltaic DC Circuit Breaker Switch Outdoor Waterproof IP65 1 in 1 Out Solar Bus Photovoltaic DC Circuit Breaker
Pickup currently not available
SPECIFICATIONS
Application: Household,Photovoltaic charging station,Photovoltaic power station,Photovoltaic irrigation system
BCD Curve: D
Brand Name: HUABANG
Breaking Capacity: 3 kA
Insulation voltage: DC 500V
Material: Plastic,silver
Model Number: LQX-C
Mounting type: DIN rail mounting
Place of Origin: Zhejiang, China
Poles Number: 2
Rated Frequency: 50/60 Hz
Rated current: 16A/20A/25A/32A/40A/50A/63A
Type: Mini
application scope: outdoor
case material: plastic
contact material: silver contact
product series: single-throw disconnector
product type: circuit breaker
protection grade: IP65
rated voltage: DC 400V
wiring method: screw pressure wire
Product attributes
|
Specify heating current (A) /Rated current |
16A/20A/25A/32A/40A/50A/63A |
|
Protection |
against electric shock design |
|
electrical life |
please consult customer service |
|
application scope |
outdoor |
|
case material |
plastic |
|
special function |
board before operation |
|
wiring method |
screw pressure wire |
|
product certification |
CE |
|
mechanical life |
please consult customer service |
|
quality guarantee |
two years |
|
protection grade |
IP65 |
|
contact material |
silver contact |
|
product series |
single-throw disconnector |
|
3C rated voltage range |
50V above 440V and below |
|
3C certificate number |
please consult customer service |
|
Rated Voltage V |
400 |
|
pole number P |
2 |
|
rated frequency |
50/60HZ |
|
installation mode |
DIN guide rail installation |
|
outline size |
173.3 * 83.3 * 69.5 mm |
|
installation size |
173.3 * 83.3 * 69.5 mm |
|
color |
white |
|
weight |
450 |
|
product type |
circuit breaker |
|
bottom plate type |
plastic board |
|
operating mechanism |
ordinary operating mechanism |
|
auxiliary contact form |
No |
|
Fuse Body and auxiliary switch |
No |

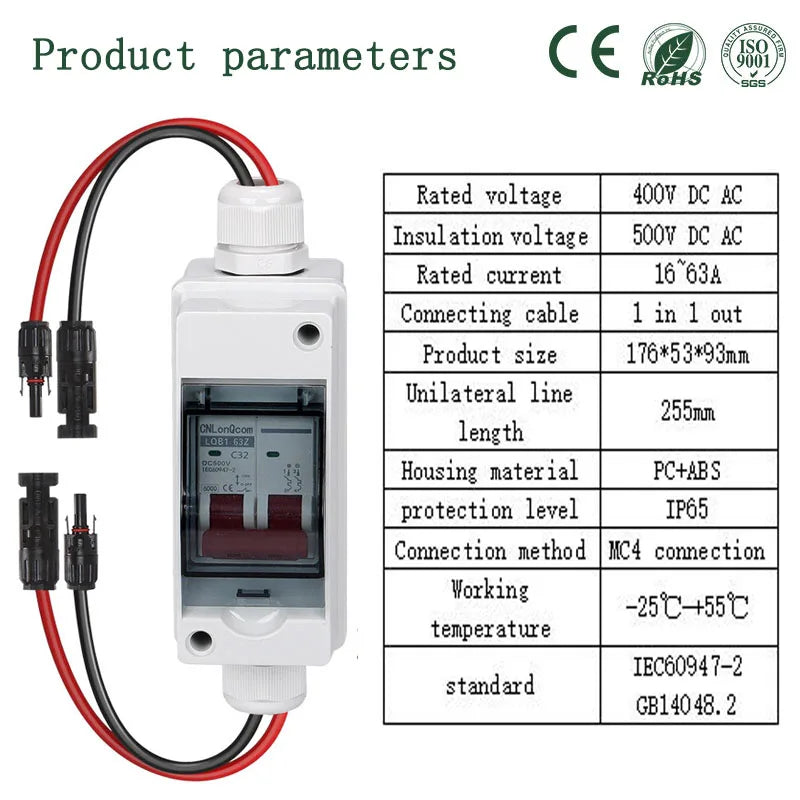

Product parameters
|
general data |
|
|
Input Group String |
1 string |
|
Output Group String |
1 string |
|
maximum voltage |
DC 500V |
|
maximum current |
16A/20A/25A32A/40A/63A |
|
The shell |
|
|
product material |
ABS/PC |
|
waterproof grade |
IP65 |
|
impact grade |
IK10 |
|
inner box size |
please consult customer service |
|
input/output terminal |
cable connector/MC4 |
|
DC circuit breaker |
|
|
Insulation voltage |
DC 500V |
|
rated voltage |
DC 400V |
|
rated current |
16-63A (optional) |
|
Meet the criteria |
IEC 60947-2 |
|
Related certification |
CE |
|
Environment |
|
|
Ambient temperature |
-25℃-+55℃ |
|
Humidity index |
0-95% |
|
Altitude |
2000M |
|
Installation mode |
Wall-mounted |

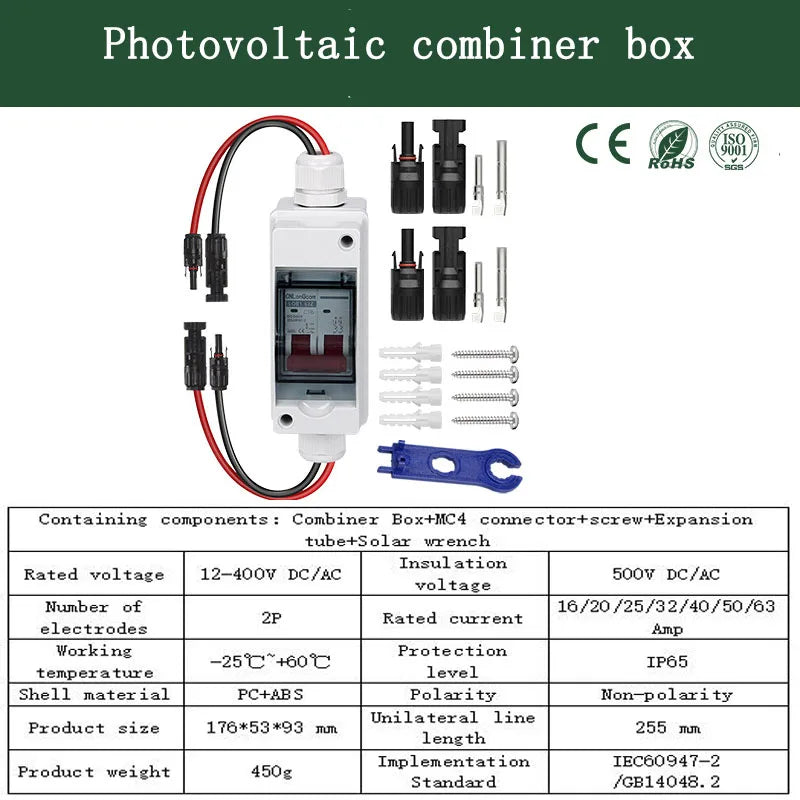

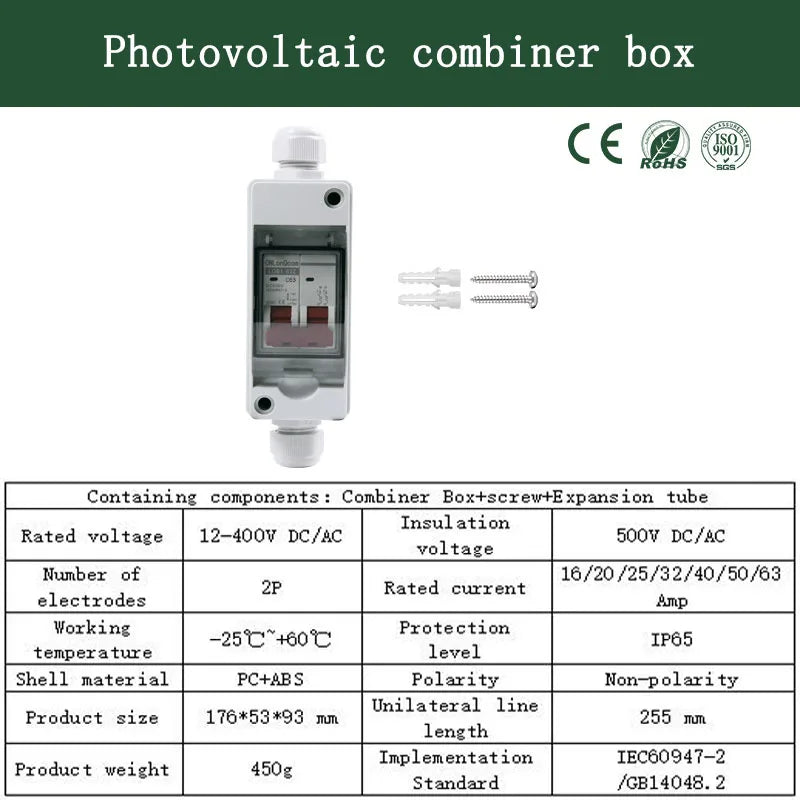

Packaging information
|
Models |
The package contains |
Long (cm) |
Wide (cm) |
High (cm) |
Volume (cm³) |
Weight (g) |
|
LQX-C16.2 |

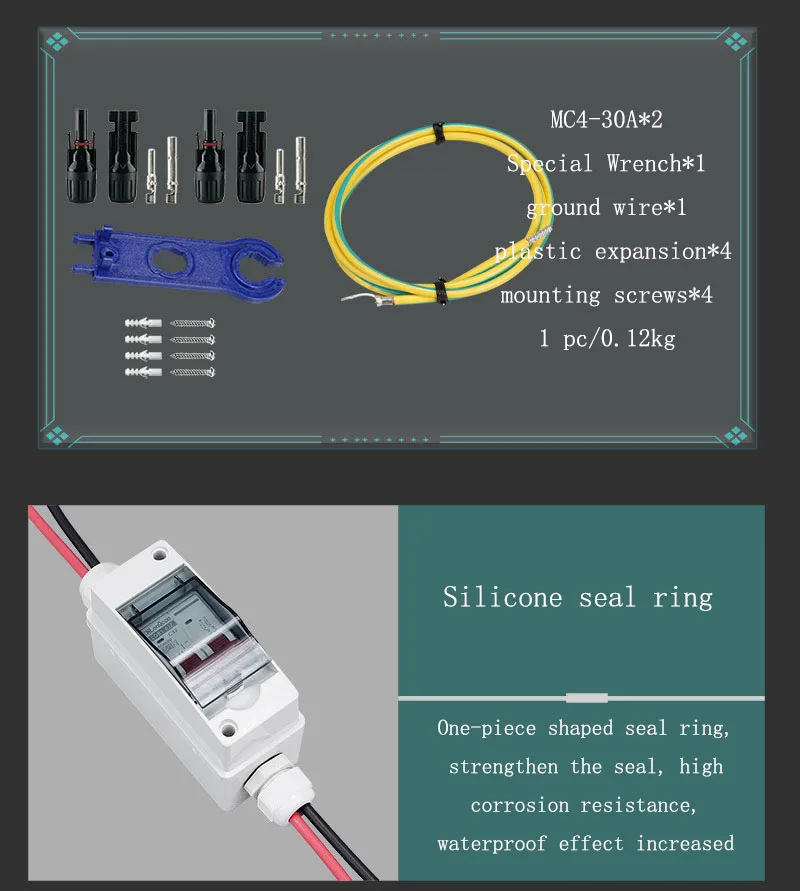

Bus Box +MC4 connector +Screws +Expansion tube +Solar Wrench |
17.60
|
5.30
|
9.30
|
867.504
|
450
|
|
LQX-C20.2 |
||||||
|
LQX-C25.2 |
||||||
|
LQX-C32.2 |
||||||
|
LQX-C40.2 |
||||||
|
LQX-C50.2 |
||||||
|
LQX-C63.2 |
||||||
|
LQX-C16.2 No wires |
Bus Box +Screws +Expansion tube
|
|||||
|
LQX-C20.2 No wires |
||||||
|
LQX-C25.2 No wires |
||||||
|
LQX-C32.2 No wires |
||||||
|
LQX-C40.2 No wires |
||||||
|
LQX-C50.2 No wires |
||||||
|
LQX-C63.2 No wires |
