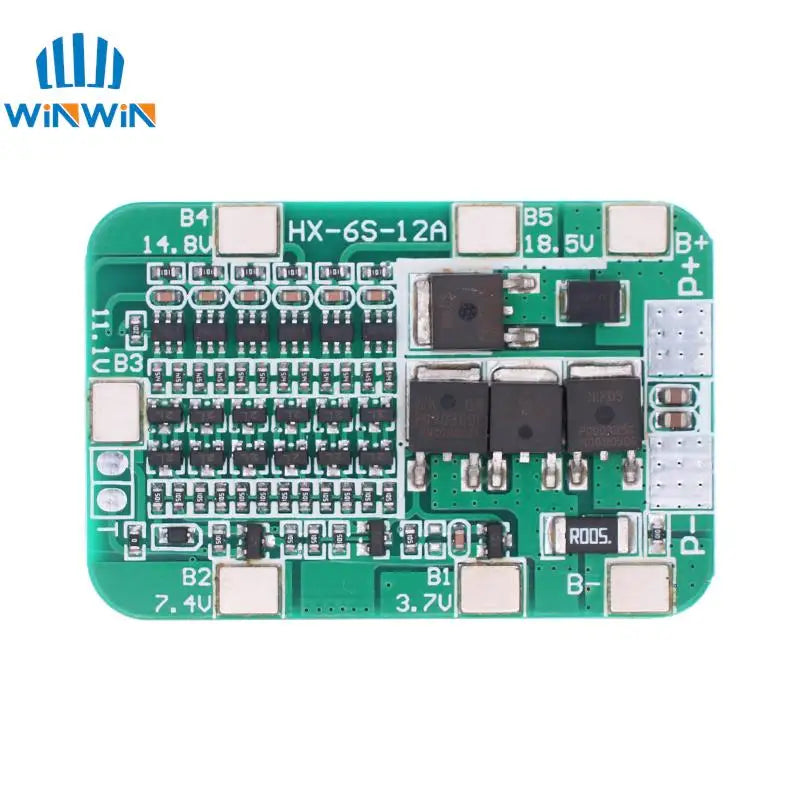

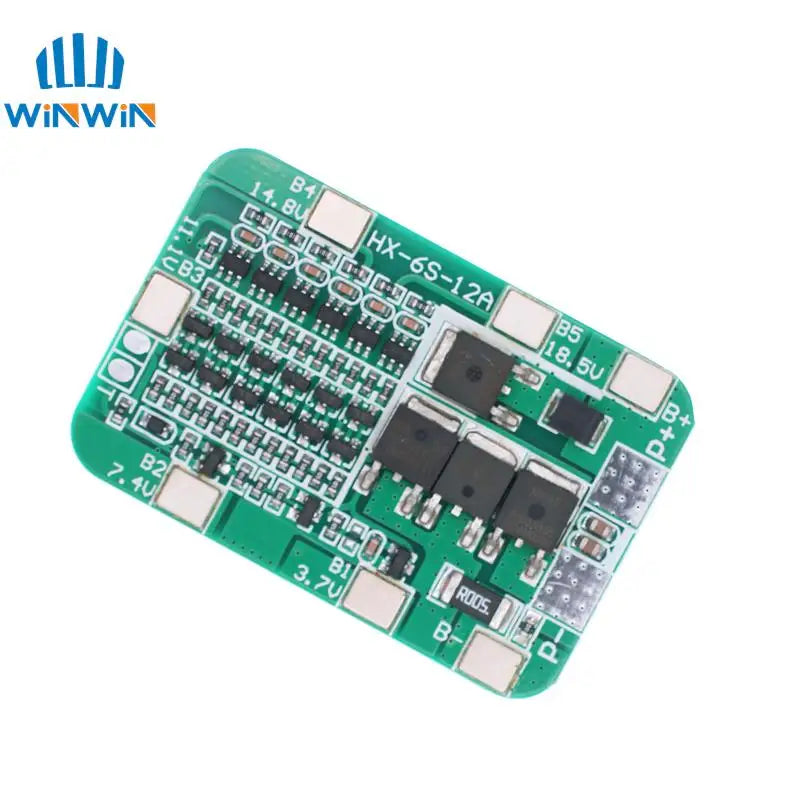

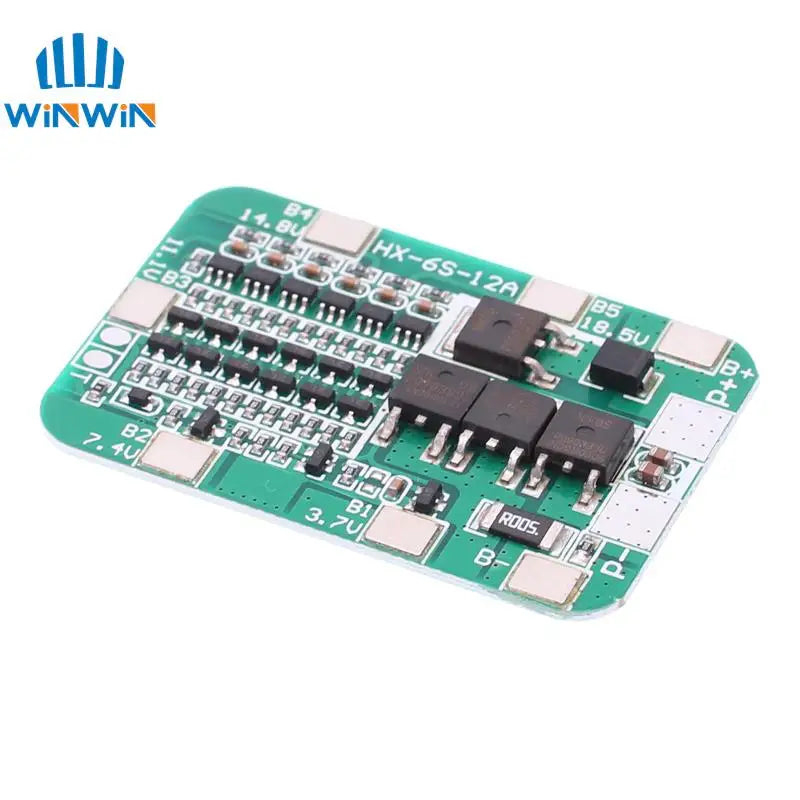

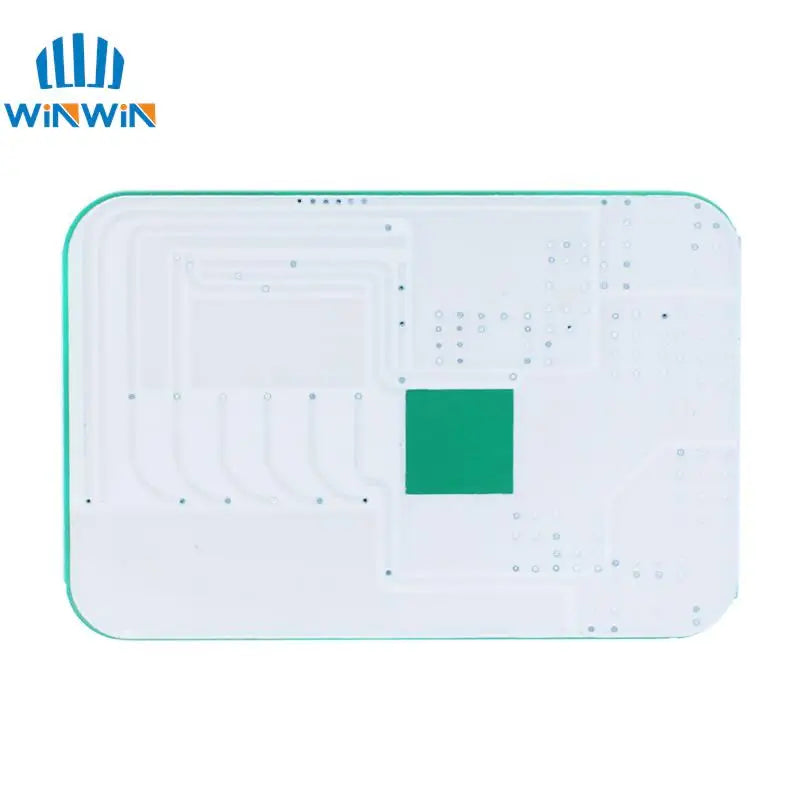

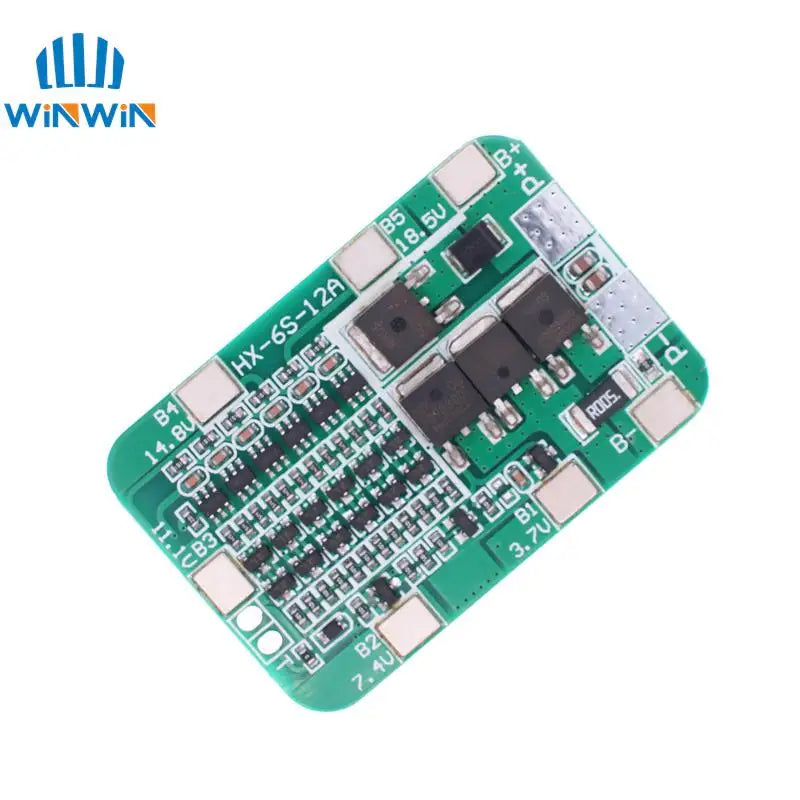

6S 15A 24V PCB BMS Protection Board for 6 Pack 18650 Li-ion Lithium Battery Cell Module DIY Kit
Default Title
₱108.85
Sale price
₱108.85
Regular price
Skip to product information
6S 15A 24V PCB BMS Protection Board for 6 Pack 18650 Li-ion Lithium Battery Cell Module DIY Kit
₱108.85
Sale price
₱108.85
Regular price
Pickup currently not available
SPECIFICATIONS
Brand Name: AITEWIN ROBOT
Choice: yes
Condition: New
Dissipation Power: 1
High-concerned chemical: none
Operating Temperature: 1
Origin: Mainland China
Package: SMD
Supply Voltage: 1
Type: Voltage Regulator
is_customized: Yes
Brand new
Size: approx.50*30*2mm
Lampshift maximum discharge current: 15A
Instantaneous discharge current: 25A
Charging voltage: 25.5V
Charging current: 15A (MAX)
Overcharge detection voltage: 4.28 ± 0.05V
Overcharge protection delay: 0.1S
Overcharge release voltage: 4.08 ± 0.05V
Over discharge detection voltage: 2.55 ± 0.08V
Overdischarge detection delay: 0.1S
The overdischarge release voltage: 2.9 ± 0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 9MS
Overcurrent protection current: 30 ± 3A
Overcurrent protection release condition: Disconnect the load
Short circuit detection delay: 250uS
Short circuit protection Release condition: disconnect negative open
Main circuit conduction resistance: ≤20mΩ
Working current: ≤30uA
Sleep current (battery over discharge) ≤10uA
Temperature range: -30 / + 80 °
