SPECIFICATIONS

100W Solarpanel: 1 pcs 100W Solar panel

16.5V 100W size: 1126*458*25mm

200W Solarpanel: 2 pcs 100W Solar panel

Brand Name: WUZECK

Certification: CE,FCC,RoHS,weee

Flexible Solar Panel: No

Foldable Solar Panel: No

High-concerned chemical: None

Material: Monocrystalline Silicon

Max. Power: 200 watt / 100 watt

Model Number: Solar panel

Module Efficien: 24%

Nominal Capacity: 200W / 100w

Number of Cells: 36 cell

Number of Panels: 1

Origin: Mainland China

Size: 1126*458*25mm

Type: Solar Panel

is_customized: Yes

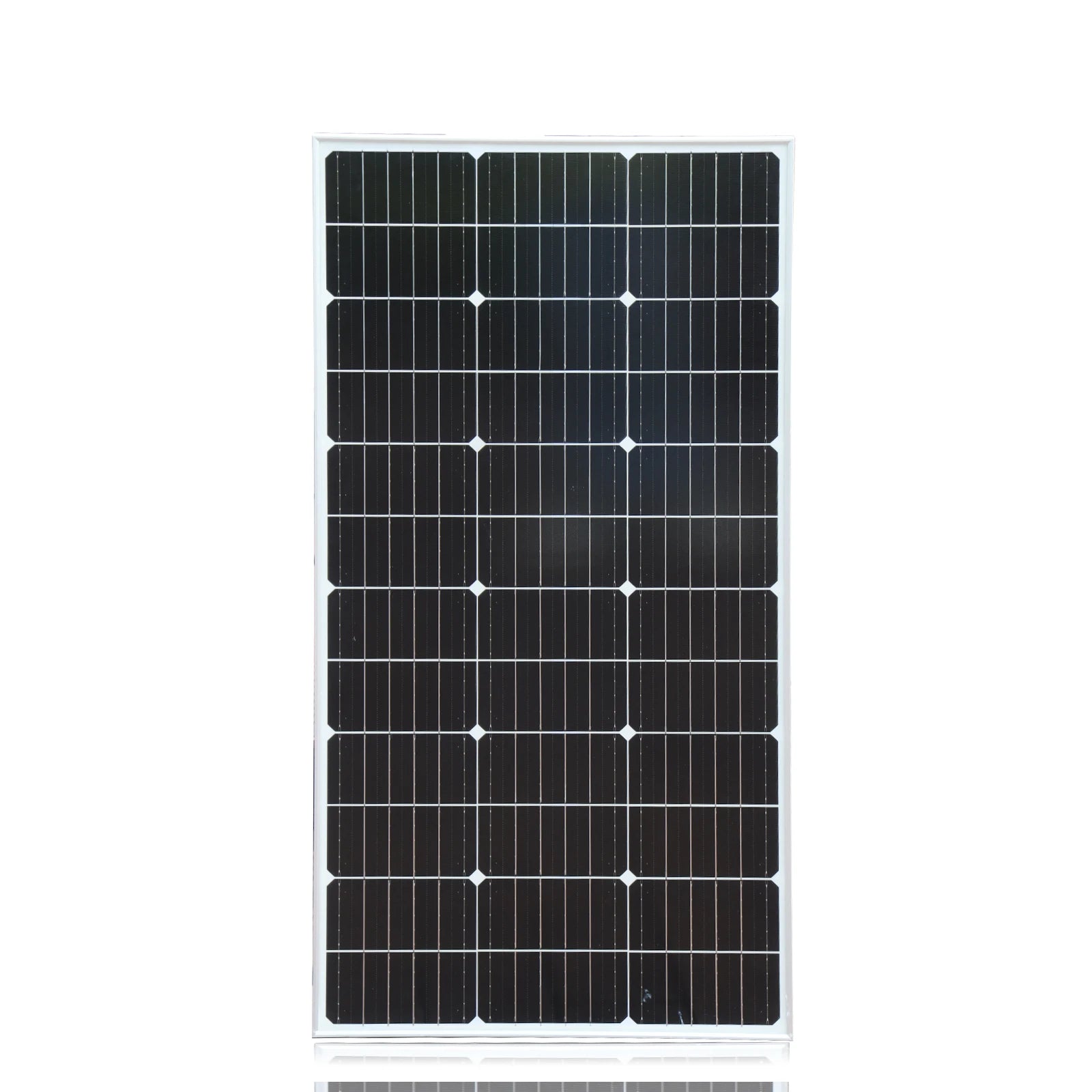

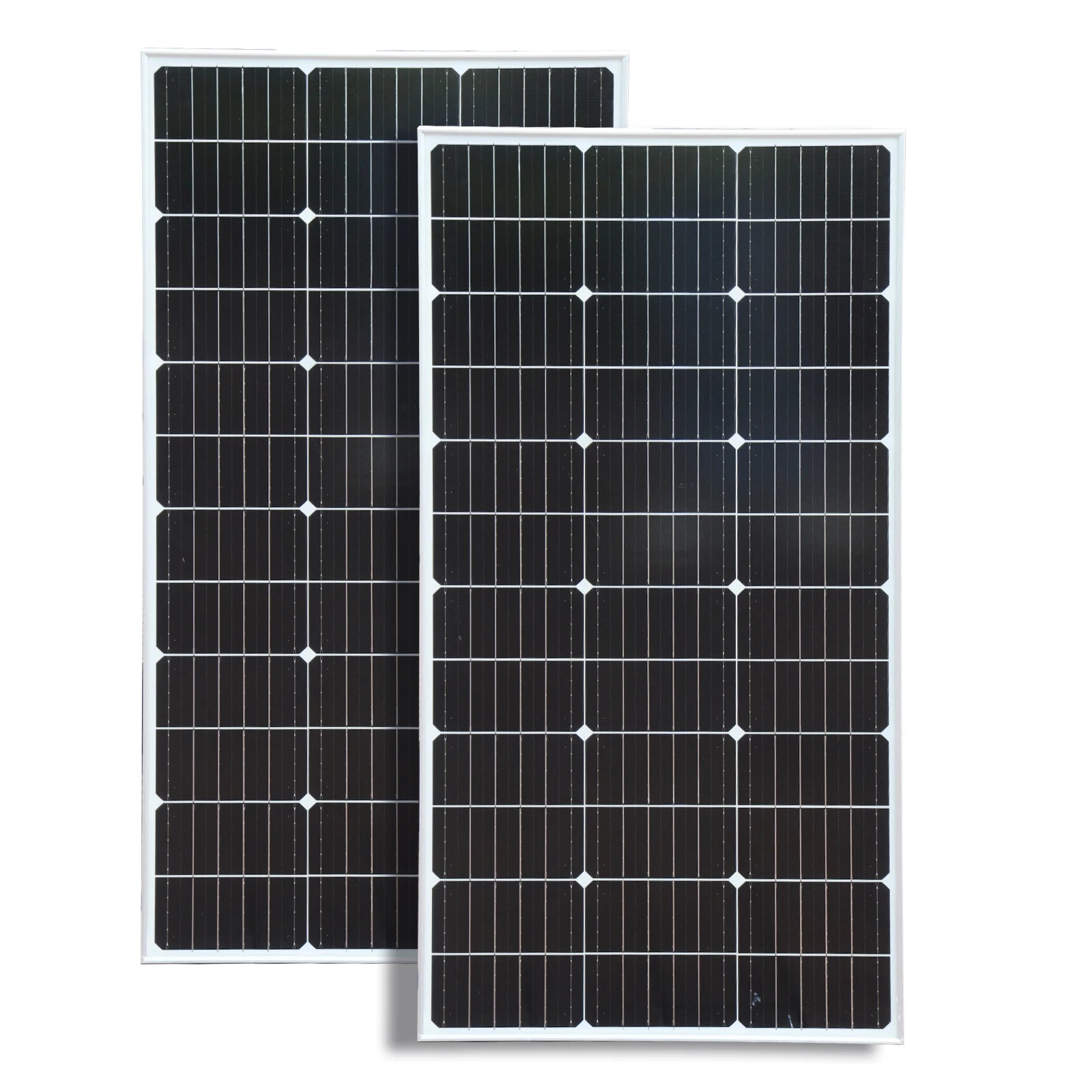

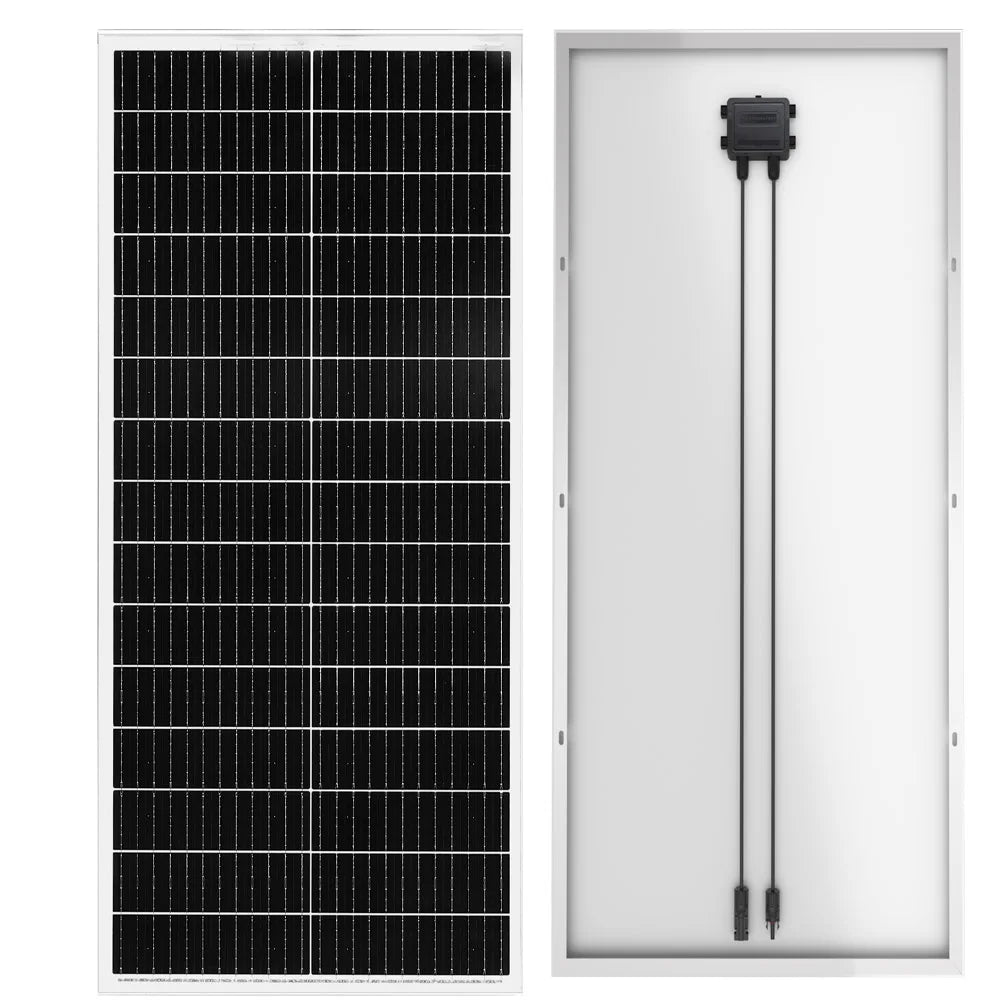

WUZECK Rigid Solar Panel 200W 100W 18V PV Module powerful solar panels solar energy Off Grid Power for Boat Rvs Cabin Battery

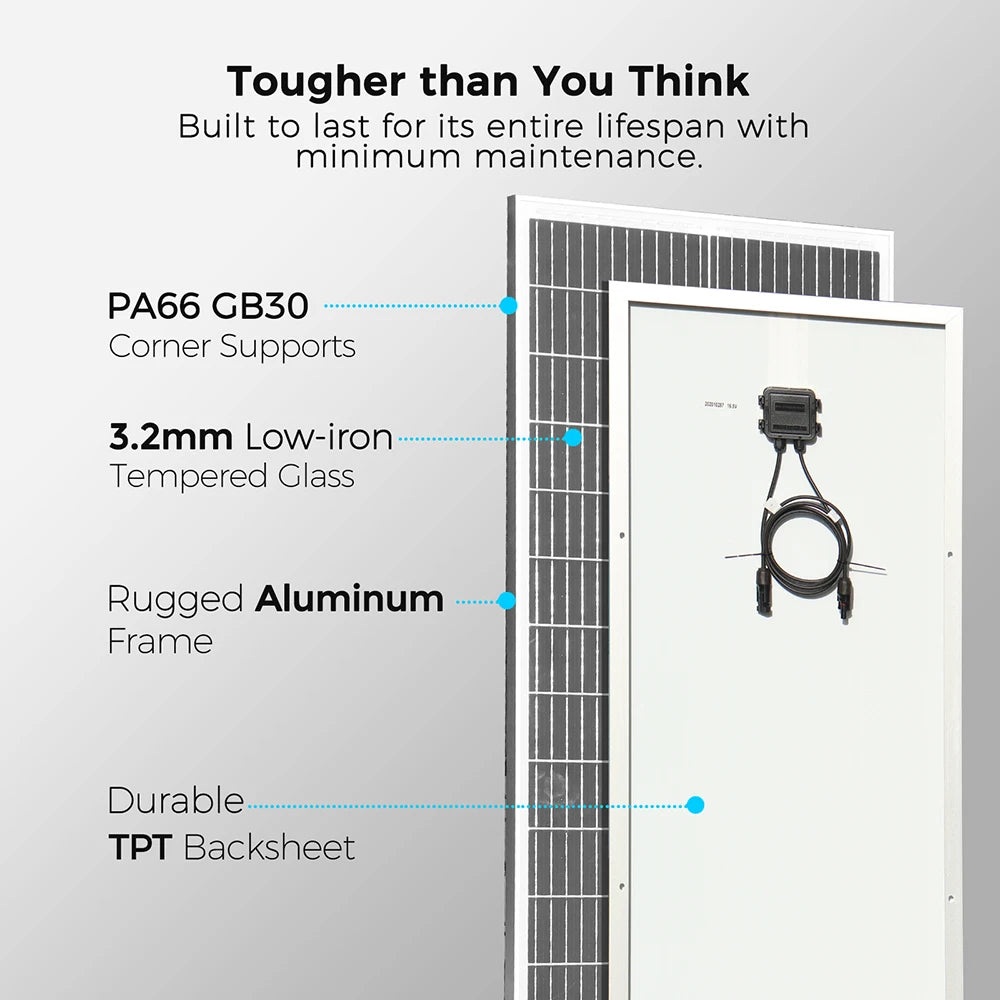

Rugged and durable : High quality encapsulation material , corrosion resistant aluminum frame , IP65+ waterproof rating . Can withstand high wind (2400 Pa ) and snow load (5400 Pa ) , can work in harsh environment such as ocean , desert .

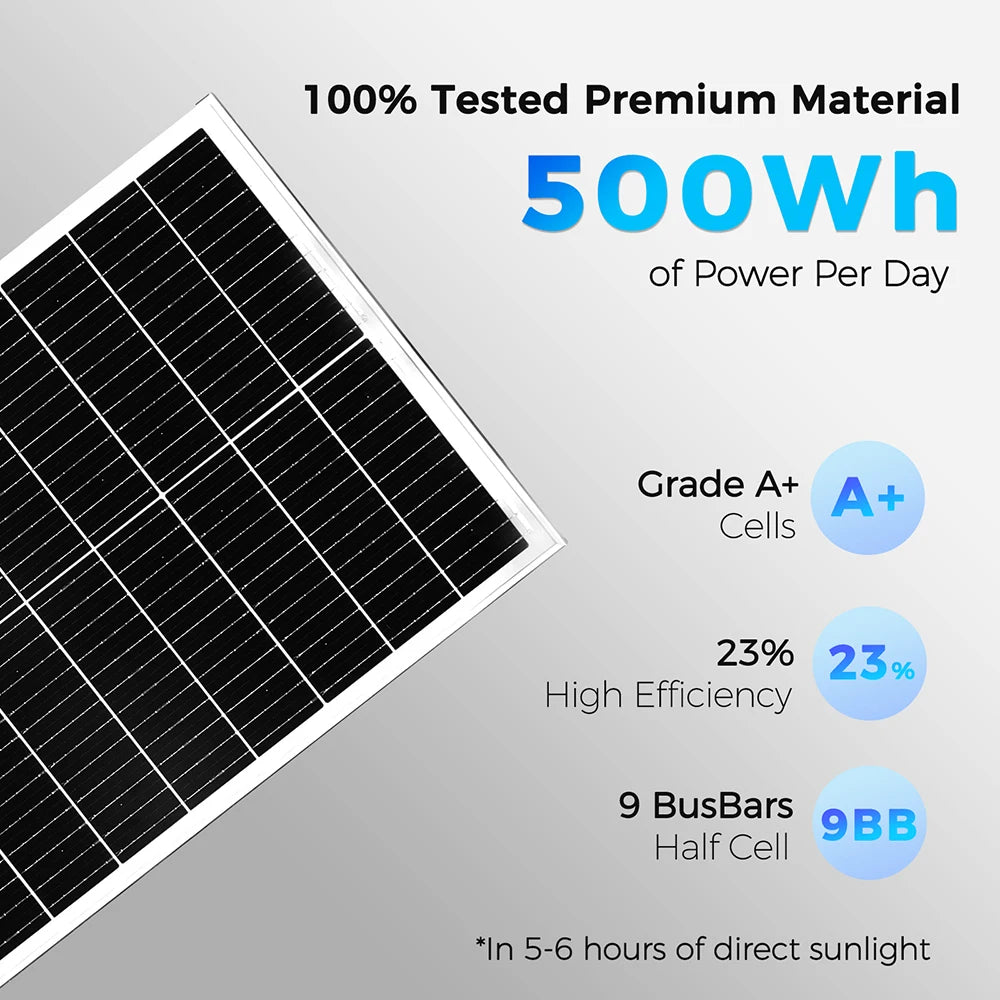

High efficiency：WUZECK solar panels are made of high performance PERC monocrystalline silicon cells with a conversion rate of 23%. Higher efficiency with sufficient light conditions.

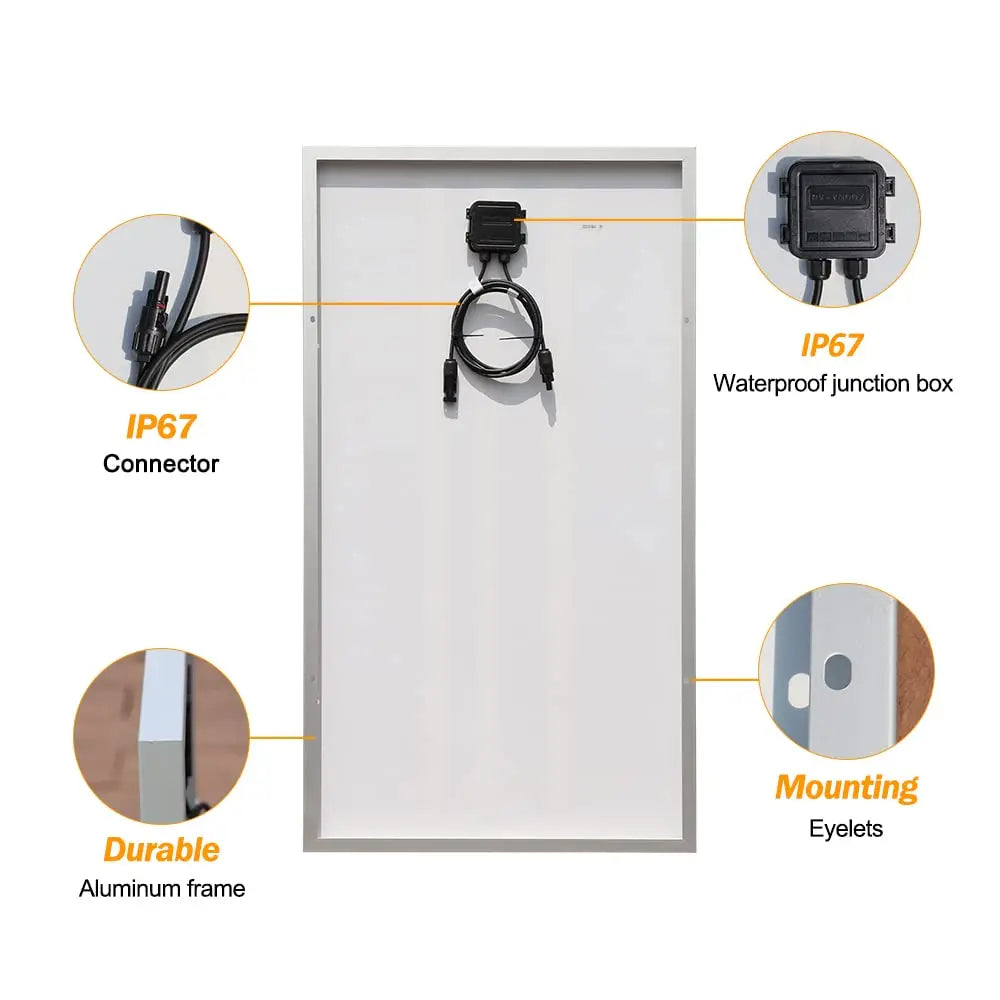

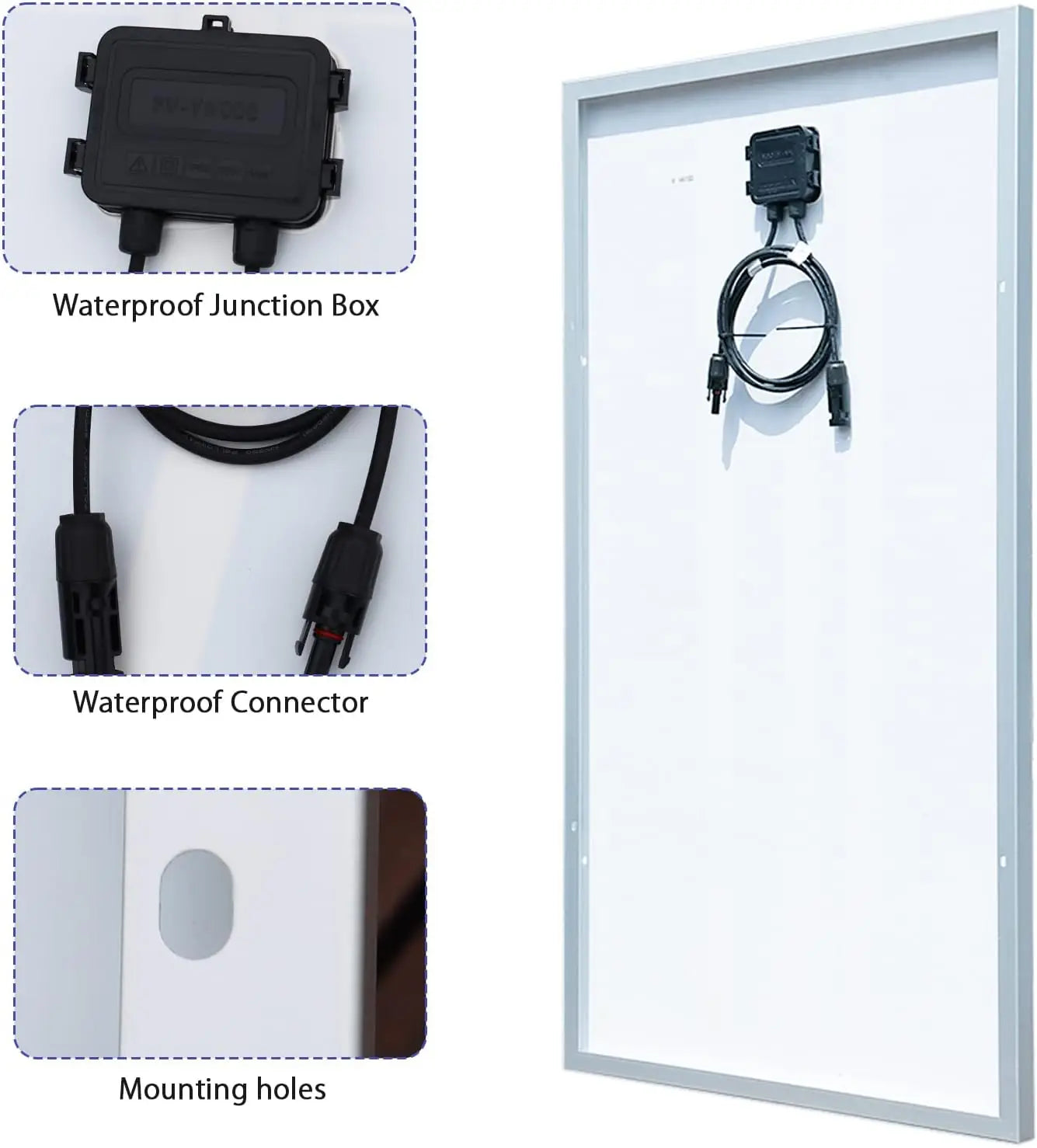

High quality performance : The junction box has built-in bypass diode to effectively protect the solar panel . Prevent the solar panel from overheating during the power generation process and continue to work in a sheltered environment . The controller of the kit has the functions of battery overcharge protection , overload protection and short circuit protection .

Easy installation: The aluminum frame of the solar panel is pre-drilled and can be installed using the Z-bracket included in the kit. The solar panel is used with a black extension cable for quick installation and fixing.

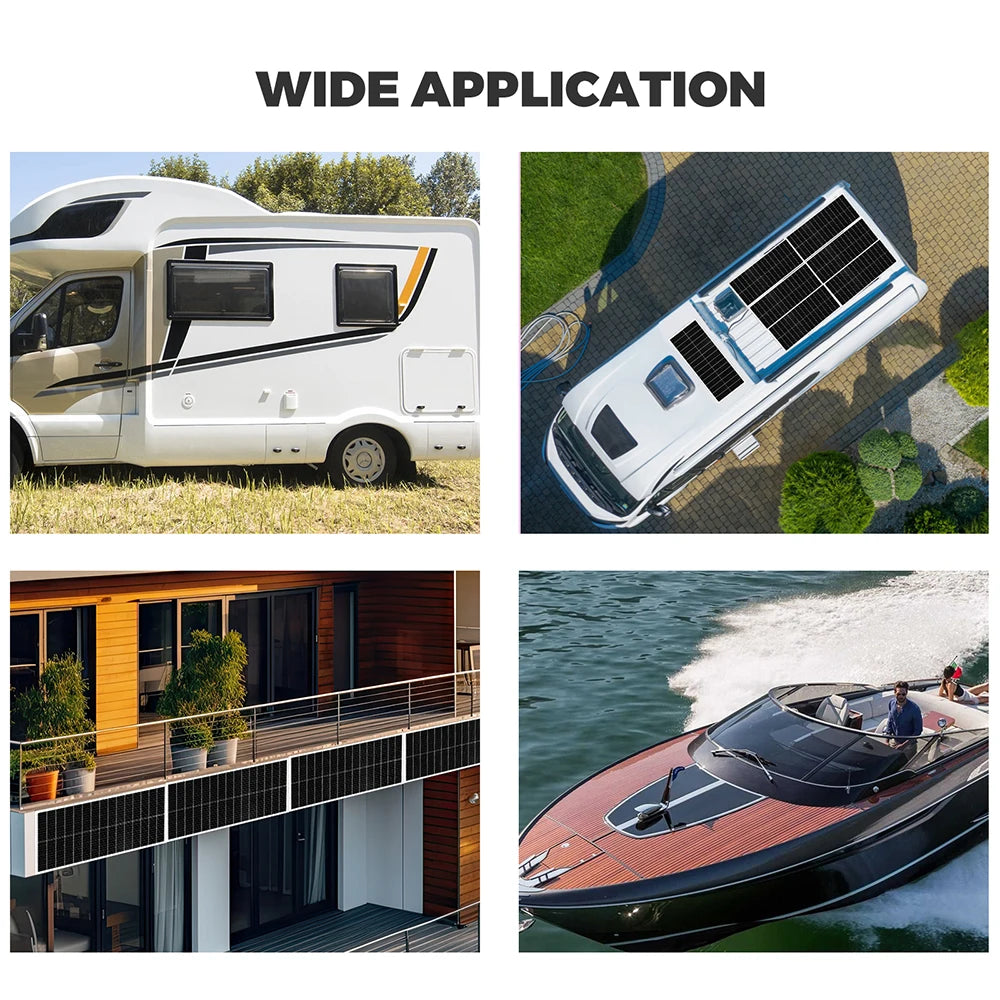

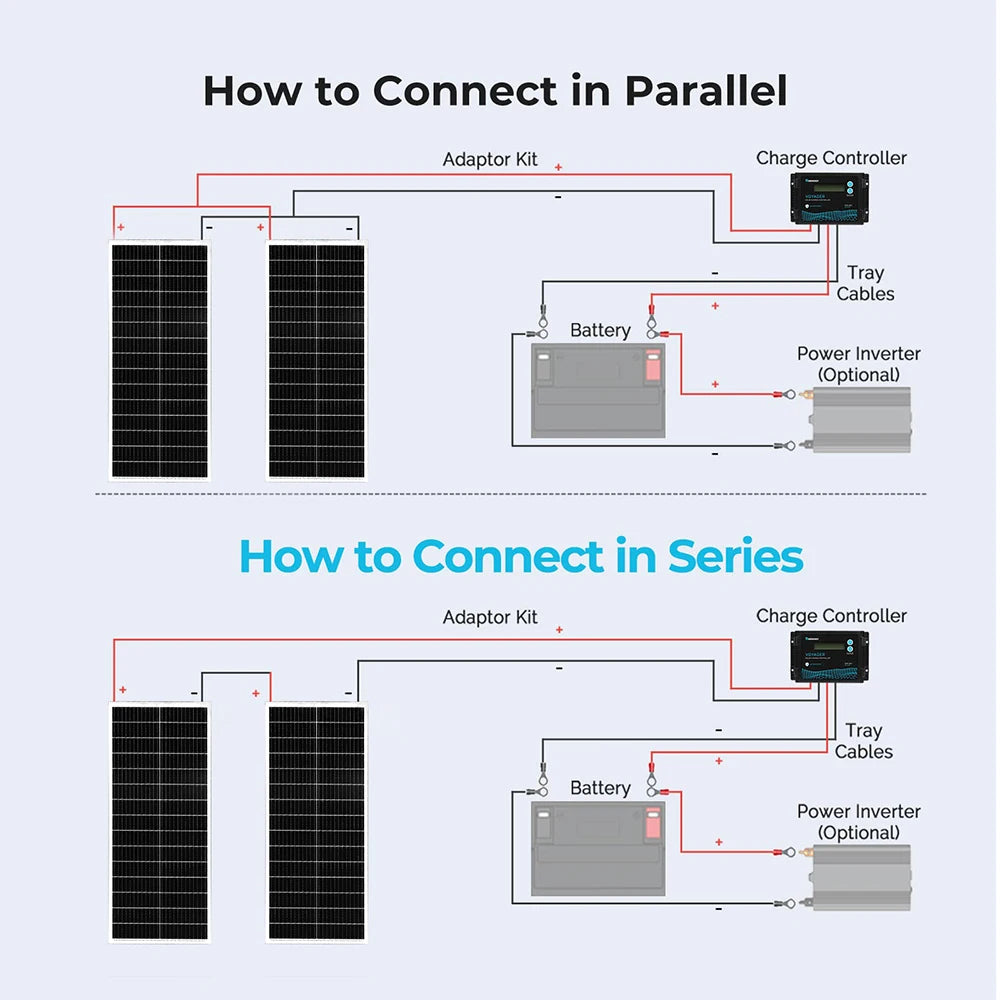

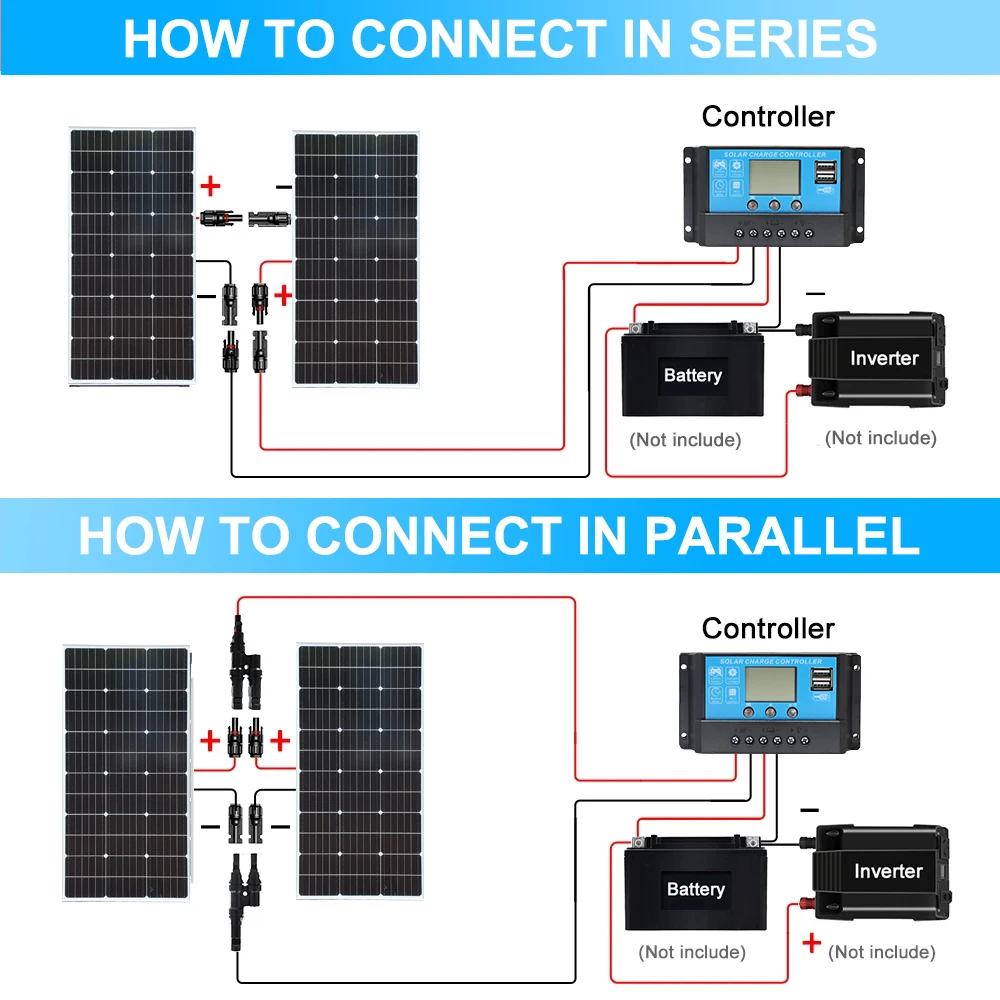

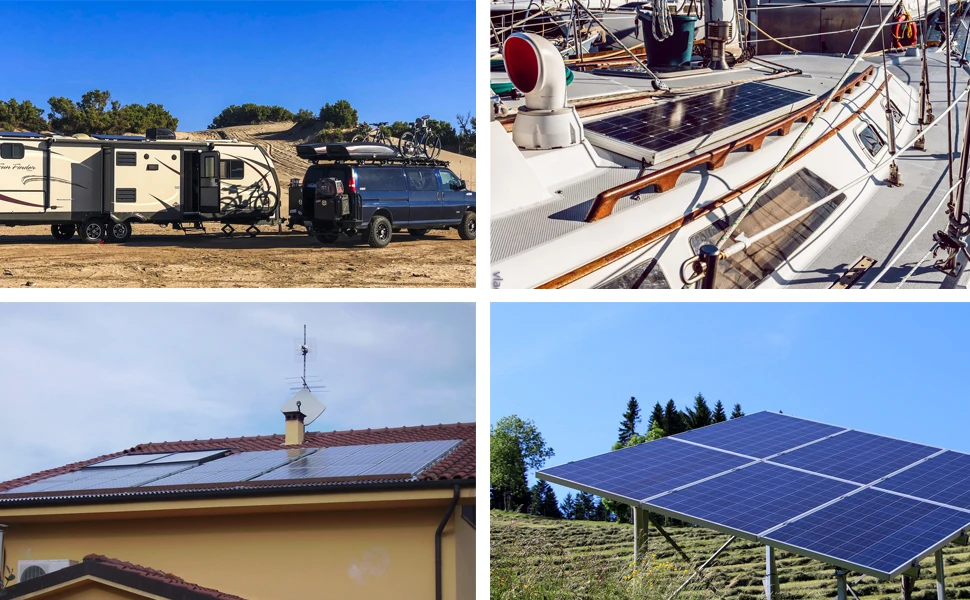

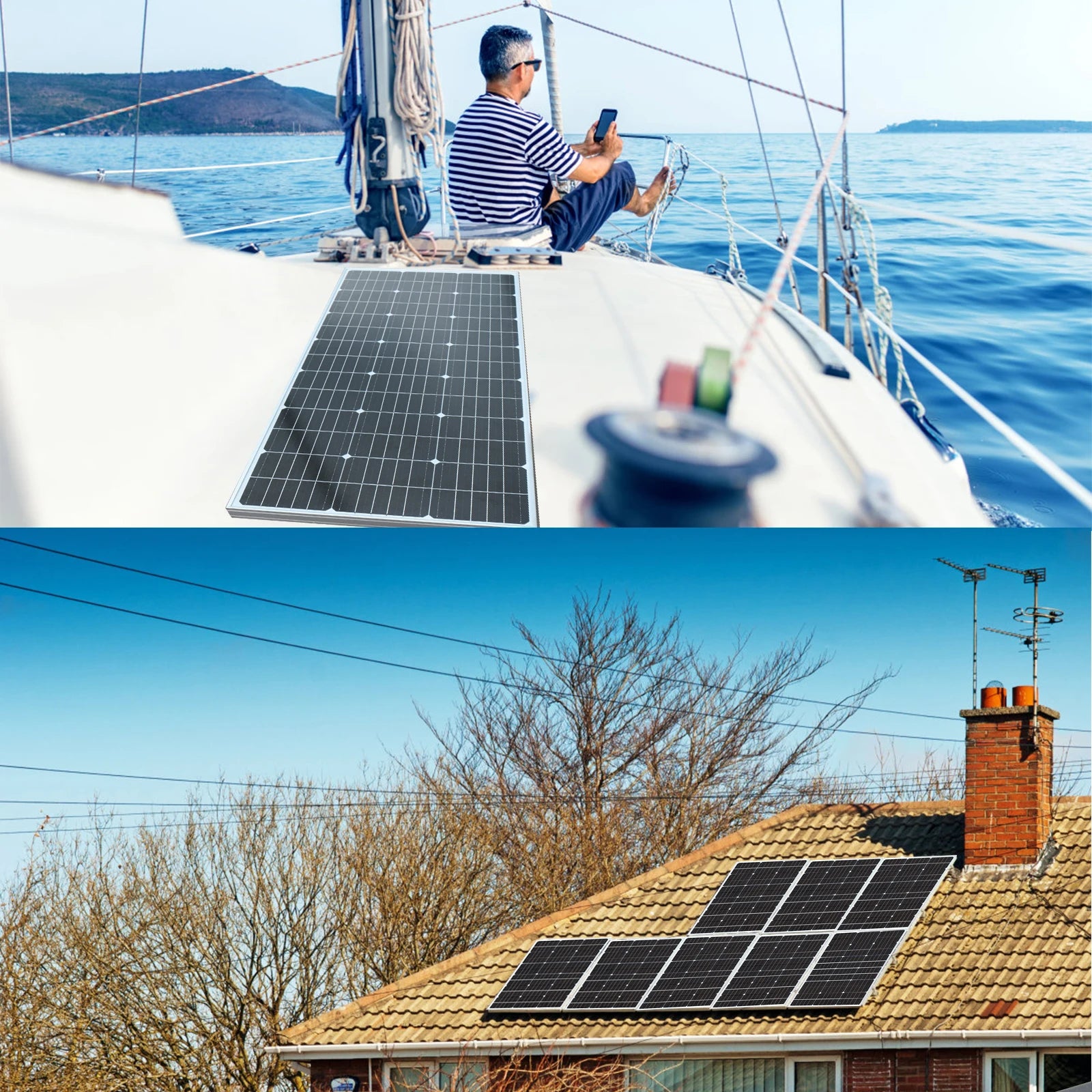

Multiple uses: The solar panel kit is ideal for 12V batteries（in Parallel ）or 24V batteries (in Series )and the Charge Controller in the kit is compatible with four different types of batteries: Sealed, Gel, Flooded, and Lithium batteries. Ideal for off-grid applications, including RVs, rooftops, cabins, boats, trailers, caravans, trucks, homes, etc.

Solar Panel Specification：

Maximum Power Output: 100W

Maximum Power Voltage (Vmp): 19.8V

Maximum Power Current (Imp): 5.05A

Open-Circuit Voltage (Voc): 23.76V

Short-Circuit Current (Isc): 5.55A

Maximum System Voltage: 1000V DC

Weight：13.22lb/6kg

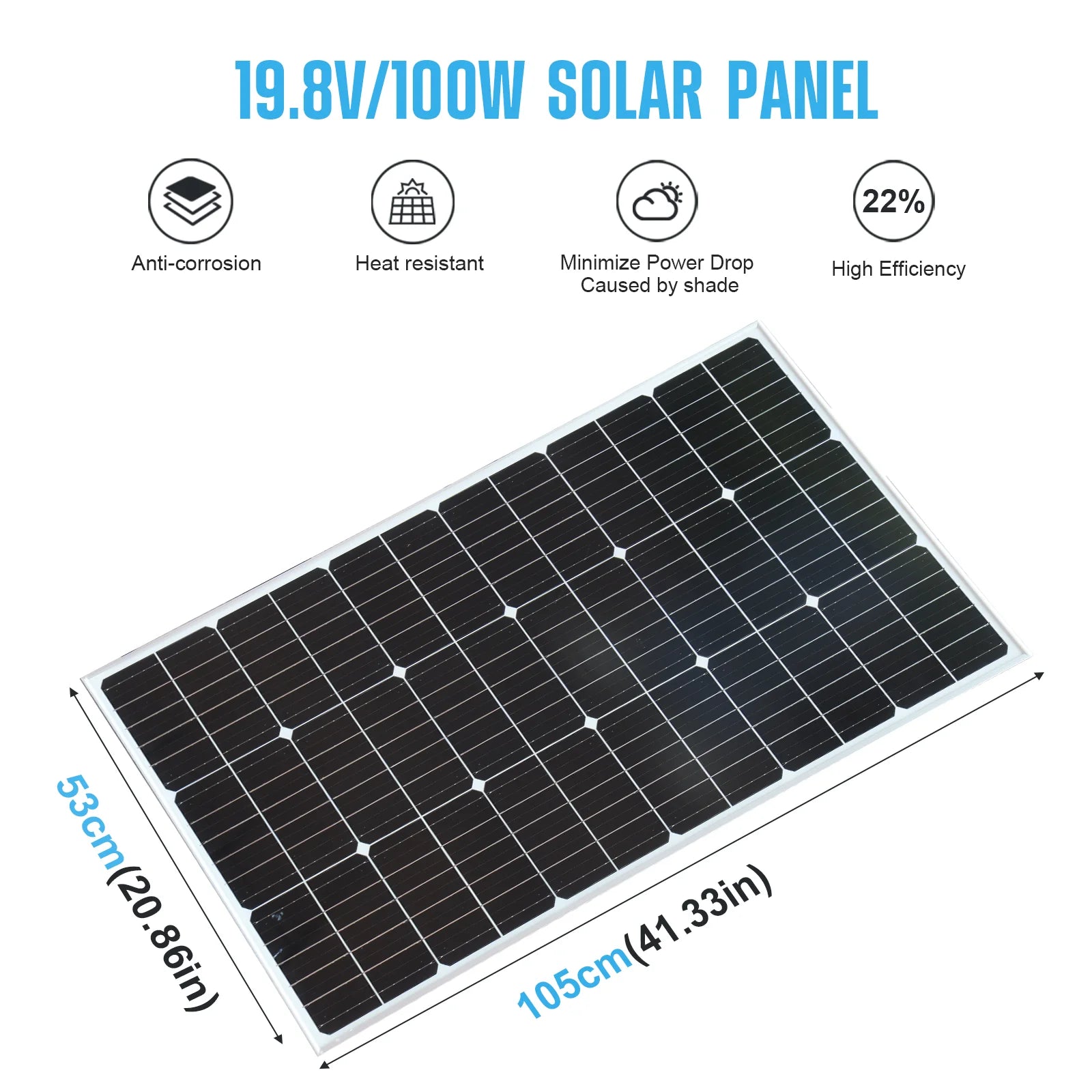

Dimensions: 41.73 x20.86x0.98 inch/106x53x2.5cm

Ausgangs toleranz ± 3%

Maximale Systems pannung 700V Gleichstrom

Betriebs temperatur (noct) 45 ± 2 ℃

Temperatur bereich-40 ℃ ~ + 80 ℃

Anzahl der Zellen 36 stücke

Gewicht 3Kg/6.6LB

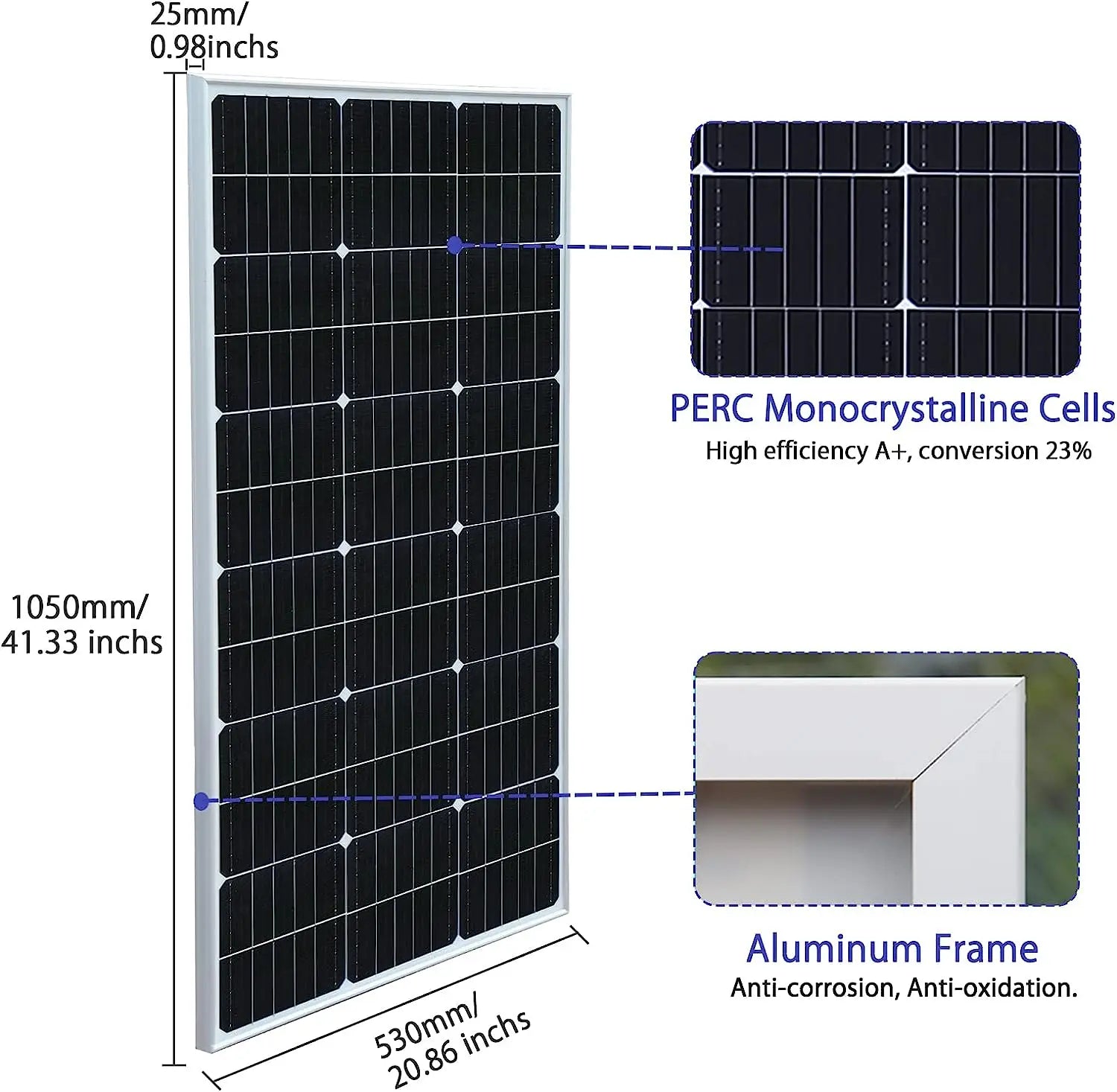

Größe 1050*530*25mm

Solarzelle 161*161mm mehrz eiliges Mono

Standard test bedingungen: lradiance 1000 w/m ^ 2, temperatur 25 ℃, am = 1,5

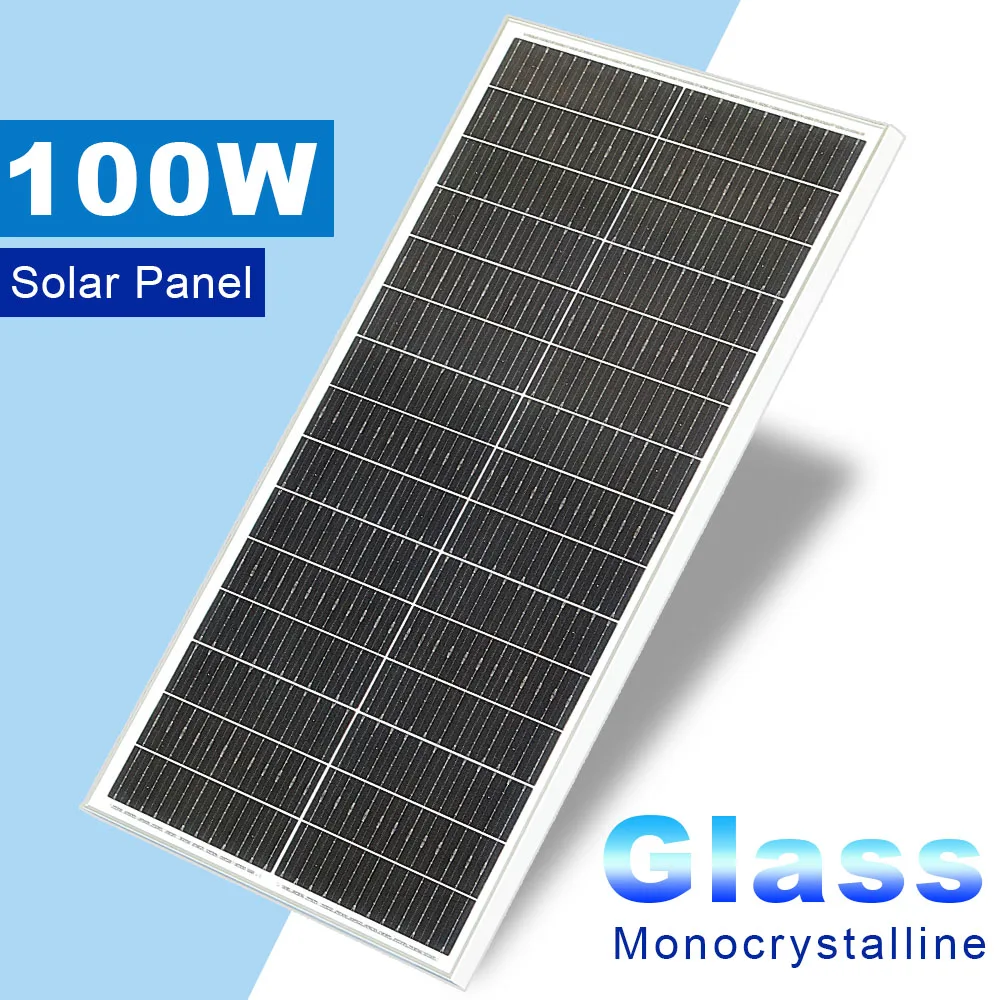

16.5V 100W Rigid solar panel Specification:

Maximum power (Pmax) 100W

Output tolerance ± 5%

Maximum system voltage 1000V DC

Open-circuit voltage (Voc) 19.8 V

6.06A Short-circuit Current (Isc)

16.5 V Maximum supply voltage (Vmp)

Maximum Power Current (Imp) 5.55A

Cell efficiency 24%

Operating Temperature (NOCT) 45 ± 2 ℃

Temperature range-40 ℃ ~ + 80 ℃

Cell monocrystalline silicon

Number of cells 30 pc

Weight 6kg

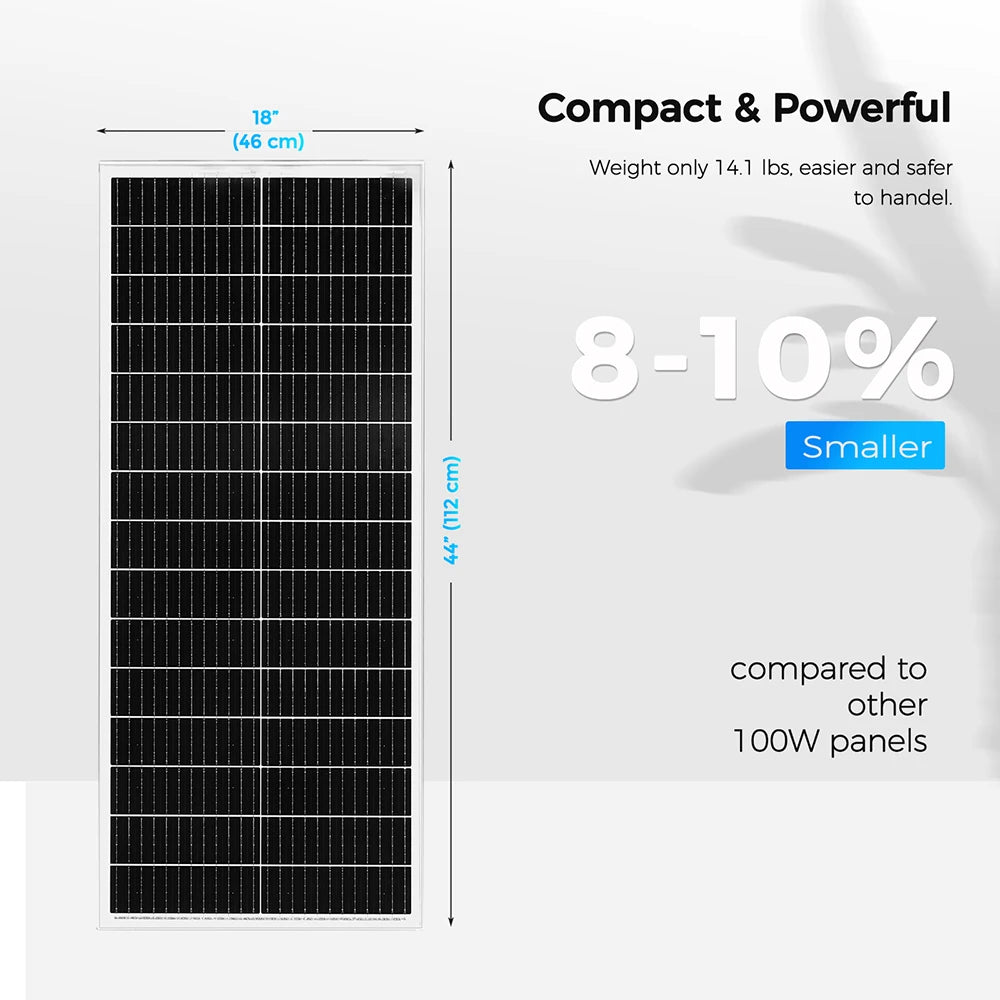

Size 1126*458*25mm

Surface material Toughened glass

Standard test conditions: radiation 1000 W/m ^ 2, temperature 25 ℃, AM = 1.5

Solar panels need to be in the sun to have power output, different sunlight illumination and temperature, temperature, solar panel output power is not the same, so the solar panel industry sunshine time is generally calculated according to 4-5 hours of solar panel output power.

What is the meaning of 12V in the product title，Why is this value different from the voltage of the solar panel？

When you open the product page, you will see a title like "xxx Watt 12 Volt Solar Panel". The "12V" here does not refer to the voltage of this solar panel (VOC or VMP), but to the fact that one xxxW solar panel is suitable for 12V system.

What does off-grid and on-grid mean ?

On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use.

Why is my solar panel under producing ?

Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.

How many solar panels do I need ?

To determine solar panel needs, calculate the power load (Watts) and capacity (Watt-hours). Size the battery bank based on minimum capacity, then adjust panel quantity or power input accordingly.

What do I need to complete my off-grid solar power system ?

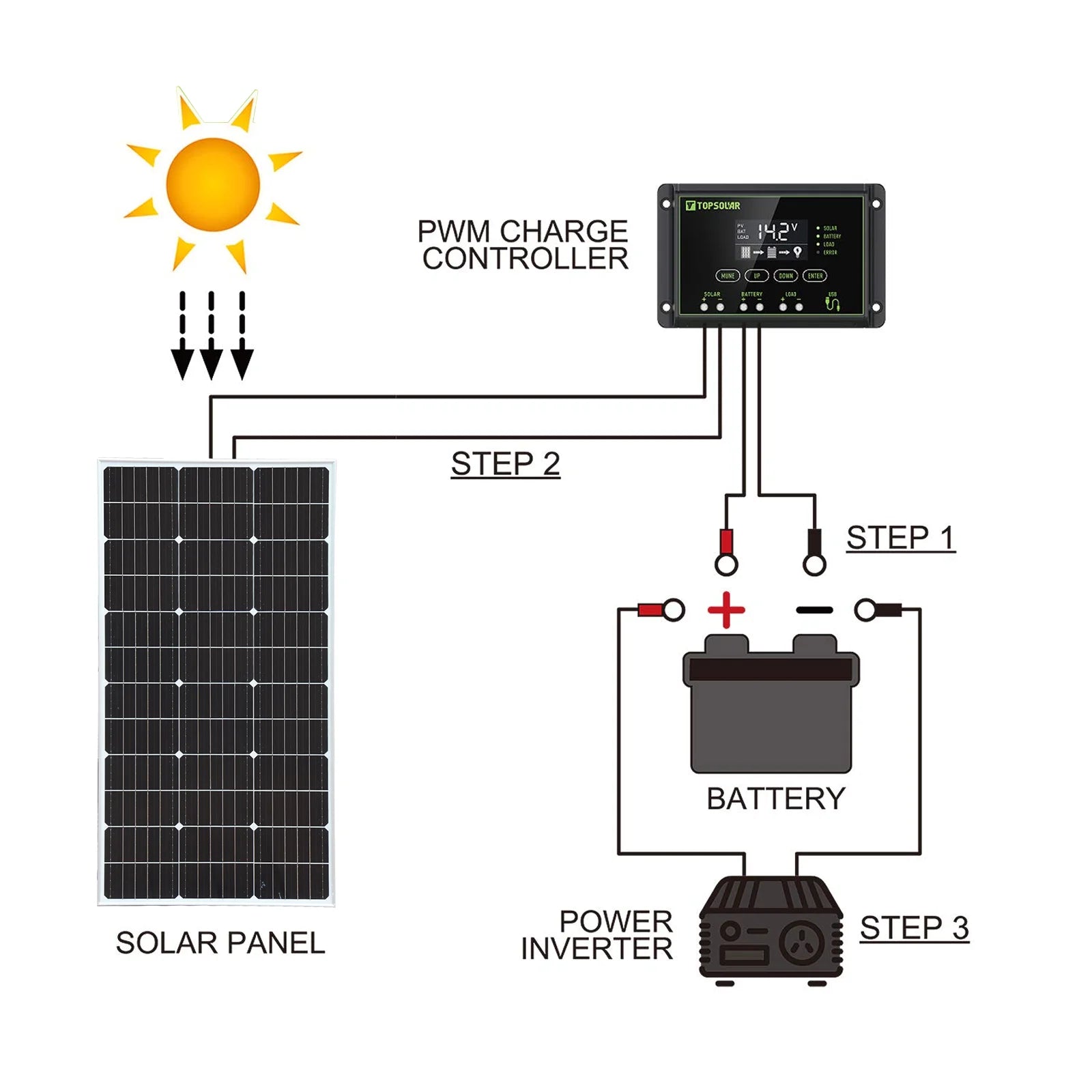

A solar panel must be connected to a charge controller to regulate current and to a battery to store power. You’ll need adapter kit cables to connect the panel(s) to the controller, plus tray cables to link the controller to a deep-cycle battery.
