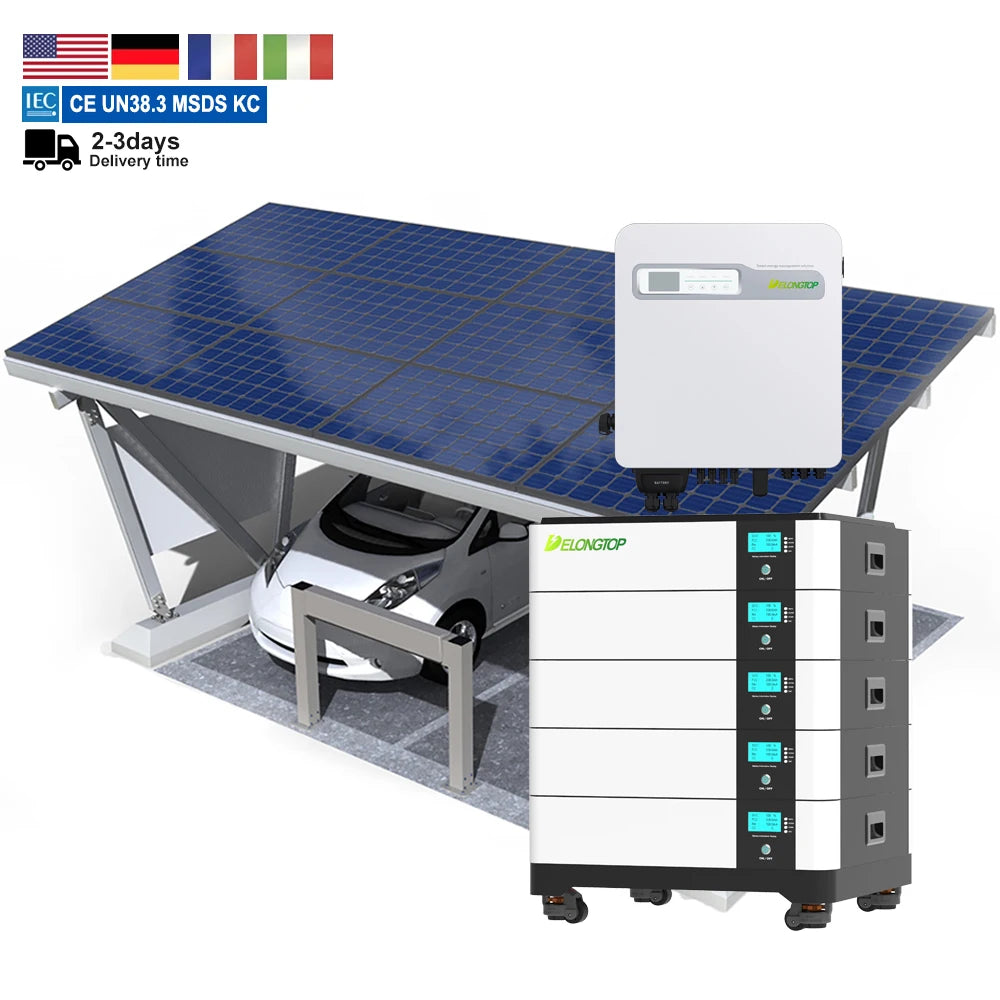

Stackable Energy Storage 48V 200AH 10kwh 20kwh 30kwh 50kwh 51.2v 100ah 5kwh Inverter Battery Solar Power System Lifepo4 Battery

Stackable Energy Storage 48V 200AH 10kwh 20kwh 30kwh 50kwh 51.2v 100ah 5kwh Inverter Battery Solar Power System Lifepo4 Battery

51.2V 100AH=5KWH with New Grade A BYD Cell / 5KWH=51.2V 100AH Battery / DC 51.2V|5KWH Single Flat Battery with 100A Pace BMS
₱42,499.28PHP
Sale price  ₱42,499.28PHP Regular price
Skip to product information
Stackable Energy Storage 48V 200AH 10kwh 20kwh 30kwh 50kwh 51.2v 100ah 5kwh Inverter Battery Solar Power System Lifepo4 Battery
1/7
Stackable Energy Storage 48V 200AH 10kwh 20kwh 30kwh 50kwh 51.2v 100ah 5kwh Inverter Battery Solar Power System Lifepo4 Battery
₱42,499.28PHP
Sale price  ₱42,499.28PHP Regular price
Capacity
Color
Output voltage|Energy

SPECIFICATIONS

Application: Off gird Hybrid Solar system /Solar panel

Battery Type: LiFePO4

Battery type: BYD CATL Prismatic cell 3.2v 200ah battery cell

Brand Name: Delongtop

Capacity: 200Ah

Certification: IEC62619/ U L /ETL/CE/RoHS/UN38.3/MSDS/Sea Report

Communication Port: RS-232,RS485,CAN,Wifi

Composed Type: 16S1P lifepo4 lithium iron phosphate

Cycle life: >8000 Times 95% dod

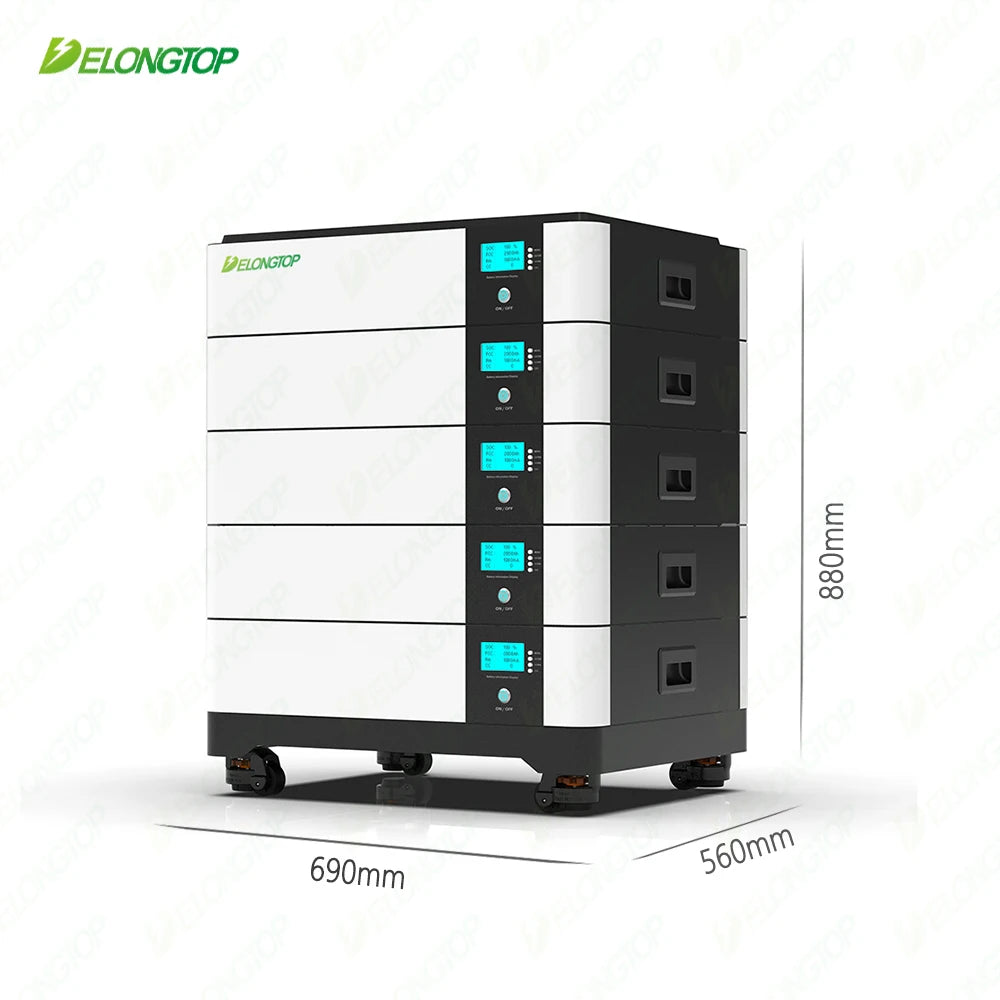

Dimension (L*W*H): 690*560*290mm

Grid connection: Hybrid grid

Model Number: HS51200-10,HS51200-10

Nominal Voltage: 51.2V (48V )

Output Power Range: 10-20Kw

Place of Origin: Guangdong, China

Product Name: Solar Storage LIFEPO4 51.2V 200AH Battery

Protection Class: IP55

Size: 690*560*390mm

System Type: Stackable

System Voltage: 51.2 V

Type: Split

Weight: 90KG

Welcome to Delongtop

EU Stock Lithium Batteries include:
1) Wall-mounted 51.2v 100Ah 5kWh lifepo4 battery
2) Stackable 51.2v 200Ah 10kWh lifepo4 battery
3) Stackable 51.2v 300Ah 15kwh lifepo4 battery
4) 5kw off-grid hybrid inverter
5) 10kw off-grid hybrid inverter
6) 12V 100Ah,200Ah,300Ah lifepo4 battery
Product Description
Stackable Lithium LifePO4 Battery 48V 51.2V 200Ah 10Kwh,Built-in A Grade BYD Cells and 200A BMS, Widely compatible with famous inverters,Perfect for Home Energy Storage
Product Power
10Kwh
15Kwh
30Kwh
50Kwh
Nominal voltage
51.2V
51.2V
51.2V
51.2V
Nominal capacity
200Ah
300Ah
600Ah
1000Ah
Model Number
HS51200-10
Cell type
LiFePO4 Battery ( Lithium iron Phosphate Battery )
Standard charge voltage
57.6V
Max charge current
80A(Single Pack)
Discharge cut-off voltage
44.8V
Max discharge current
200A
Display
LCD
Communication interface
RS232 / RS485 / CAN
Cycle life
≥8000 cycles at 80% dod
Charge temperature range
0~55℃
Discharge temperature range
-20°C to + 60°C
Certification
UL/IEC62619,CE, MSDS, UN38.3,Identification and Classification Report for Sea Transport of Goods etc.
Dimensions
690*560*290mm
690*560*390mm
690*560*610mm
690*560*930mm
Gross Weight
About 91Kg
About 135Kg
About 243Kg
About 395Kg
Optional Accessories
Movable Base / M8 Parallel Cables(30cm) / RS485 Communication Internet Cables for inverter and parallel

Delongtop 10Kwh Stackable Battery Internal Structure

Solar LifePO4 Battery Pack
51.2V 200Ah 10.24Kwh
1.Combination: 16S2P
2.Built in 32pcs A grade BYD cells
3.Built in smart balance16S 200A BMS
4.Each cell has a new complete QR code

Advantages of 10kwh Stackable Lithium Battery:
* Indoor mobility & space saving
* High-quality grade A LiFePO4 cells
* Over 8000 deep cycle life
* Design for 12+ years lifespan
* Supports for parallel connection
* Built-in smart BMS with RS485/CAN function
* Surface design, more stable and safe to use.
* 10 years warranty and professional engineer
* Use Grade A Battery Cells
Delong batteries use grade A lifepo4 cells to support 8000+ long cycle life.

We can assure you that our batteries are made of Grade A cells from BYD. We can provide an original datasheet and certificate from the BYD company to support this. You can inspect the cells upon receipt, and if any of them are not made by BYD, we offer a full refund with no need for a return.

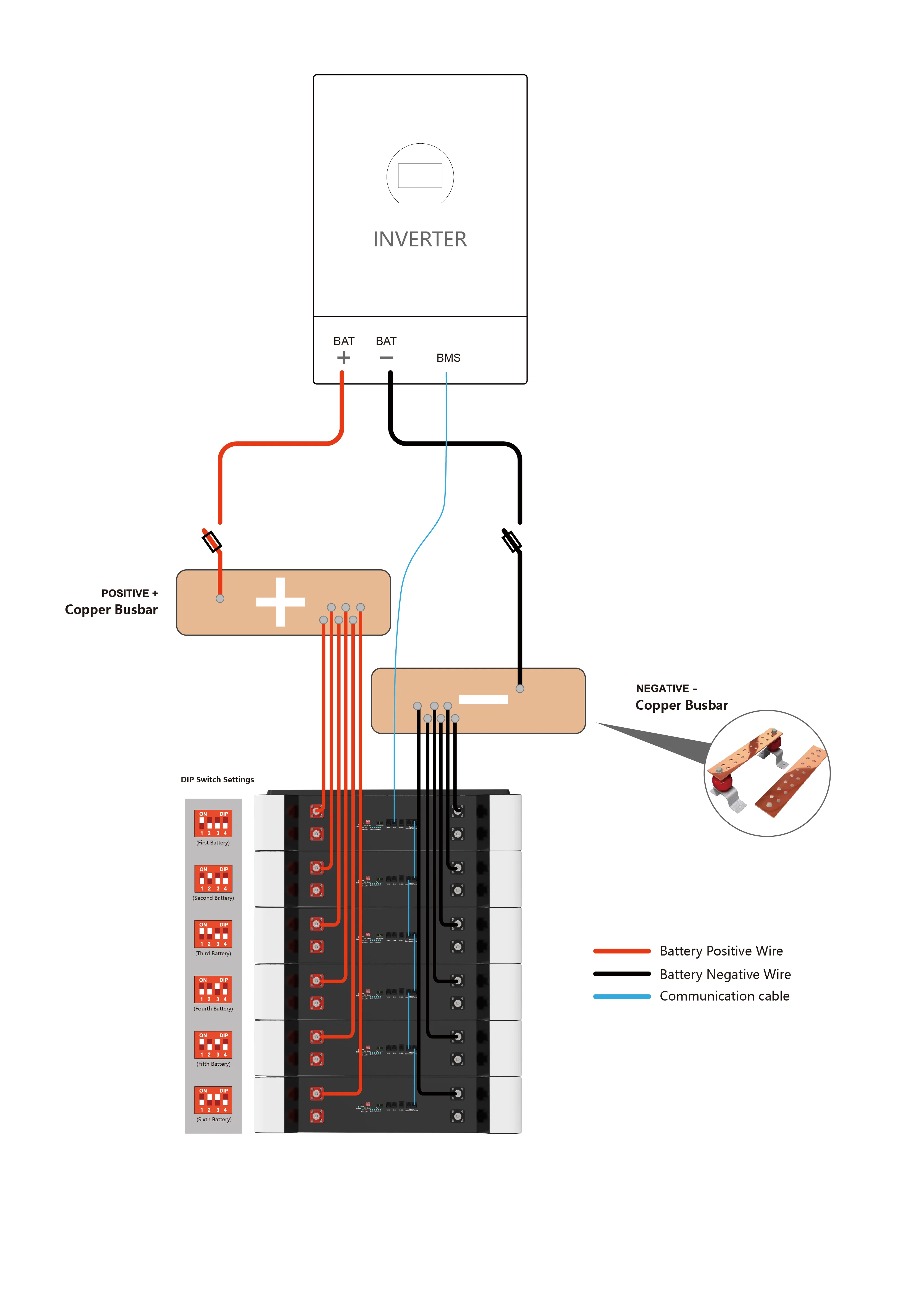

Installation Instructions

1). Compatible Inverter:

2). Grade A+ New lifepo4 battery cells.Cycle life up to 8000+ times at 80% DOD
! These are Stackable Modular Battery 48V 51.2V 10KWH 20KWH 30KWH 40KWH 50KWH LiFePO4 Battery Solar Home Energy Storage Battery

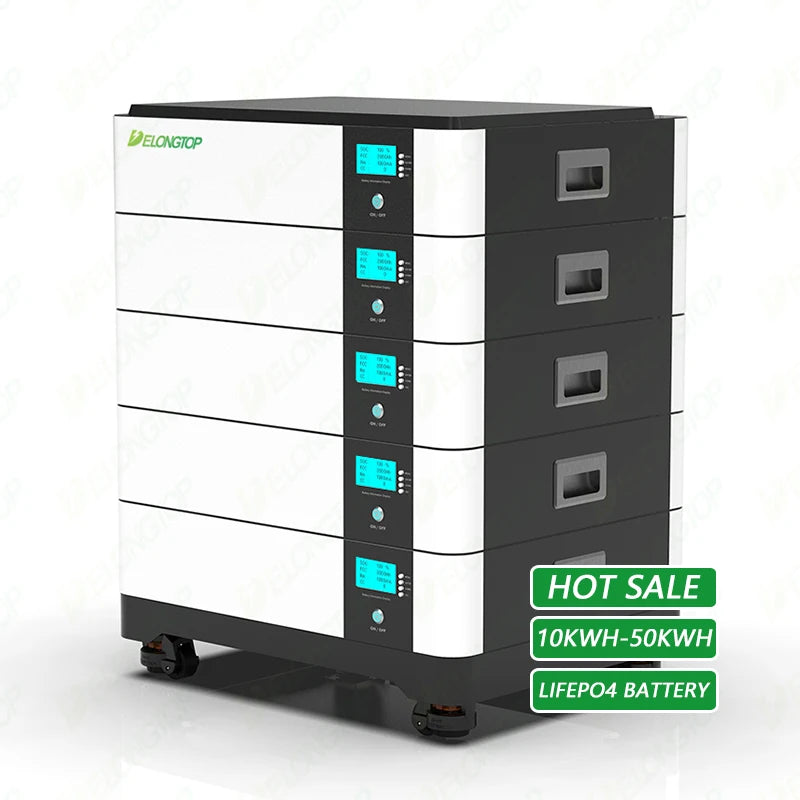

Stackable LiFePO4 10KWH 20KWH 30KWH 40KWH 50KWH Battery vertical Cabinet:

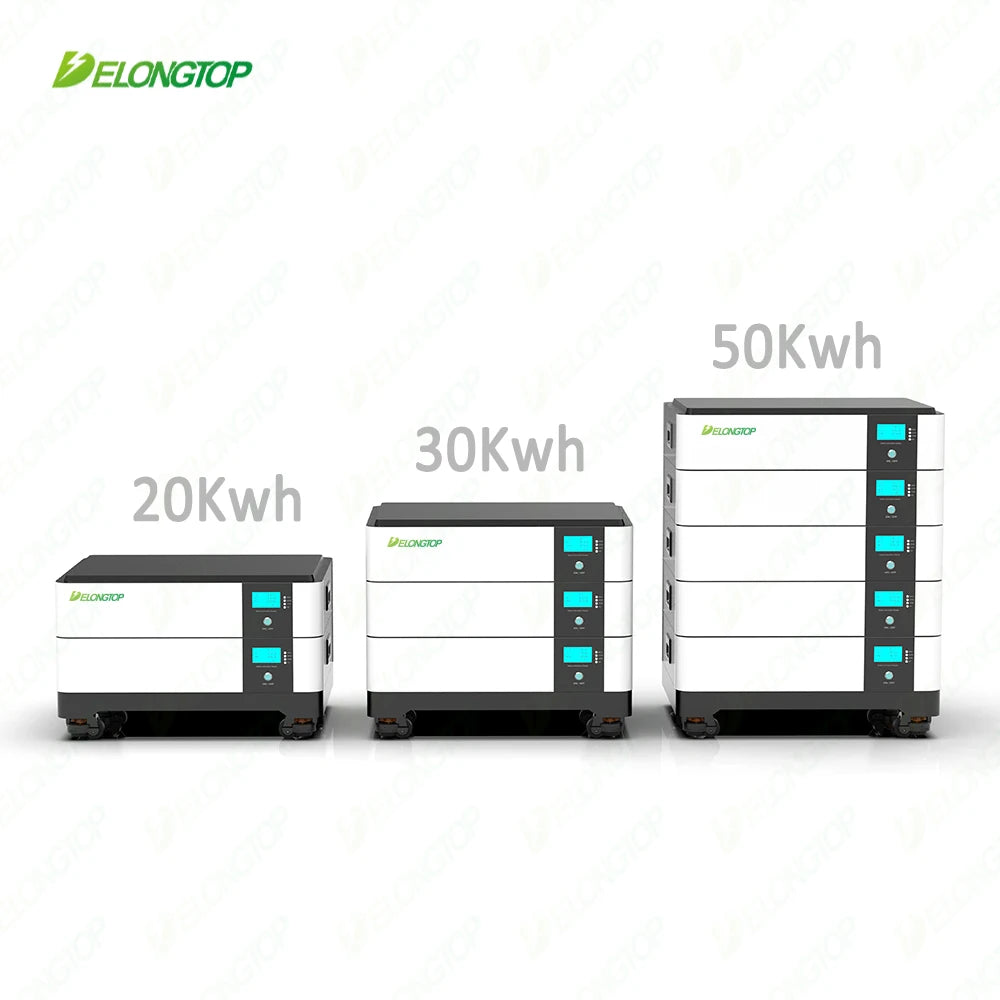

1>One Module 10KWH 51.2V 200AH LiFePO4 Battery , 2pcs Stackable modules in parallel will get 20KWH,3PCS Stackable modules in parallel will get 30KWH...unit max each cabinet contains 5pcs( 50kwh)
2> Battery Support smart communication function RS485/ RS232/ CANbus and can compatible with most of famous Hybrid off grid inverters / MPPT controllers
3> Built in accurate coulomb counter (LCD display), ON/OFF Switch, Handles,bracket and movable base.
4>For the bracket, we customized the high quality unique metal bracket which is more stable, safely and very firm to hold the power wall lifepo4 battery install on the wall and ground.
Another Choice:
EU Best Seller Stock Stackable Solar Storage 51.2v 48V 300Ah 15Kwh Lifepo4 Battery Real Photos details :

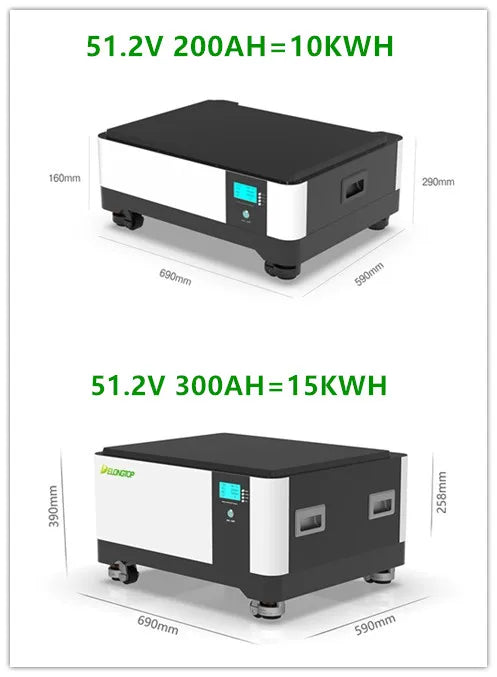

51.2V 300AH 15KWH Stackable Battery with Touch Screen.

Stackable & Movable Battery to Space Saving 1. Energy Dense Cells & Long Deep Cycle Life-Surface Design, More Stable and Safe to Use. 2. Supports Parallel Connection, 300ah 15kwh, size: 630*590*390mm, net weight: 132kg 600ah 30kwh, size: 630*590*631mm, net weight: 248kg 900ah 45kwh, size: 630*590*874mm, net weight: 364kg 1200ah 60kwh, size: 630*590*1117mm, net weight: 480kg 3. Built-in Smart BMS, RS485/CAN Inverter Communications (BMS function: charge protection, over charge protection, over discharge protection, short circuit protection,etc)

UL 15KWH Battery with FUSE and Breaker

4. UL/CE/IEC62619 REAL certificate
5. 12+ Years Lifespan & 10 Years Warranty
6. Support Customization & OEM /ODM Service
7. Provide Technical Support For You Anytime
8. Touch screen + Bluetooth/WiFi+Breaker+FUSE 9. Compatible Inverter List Delong lithium batteries are compatible with most inverters, providing you with a more convenient user experience.

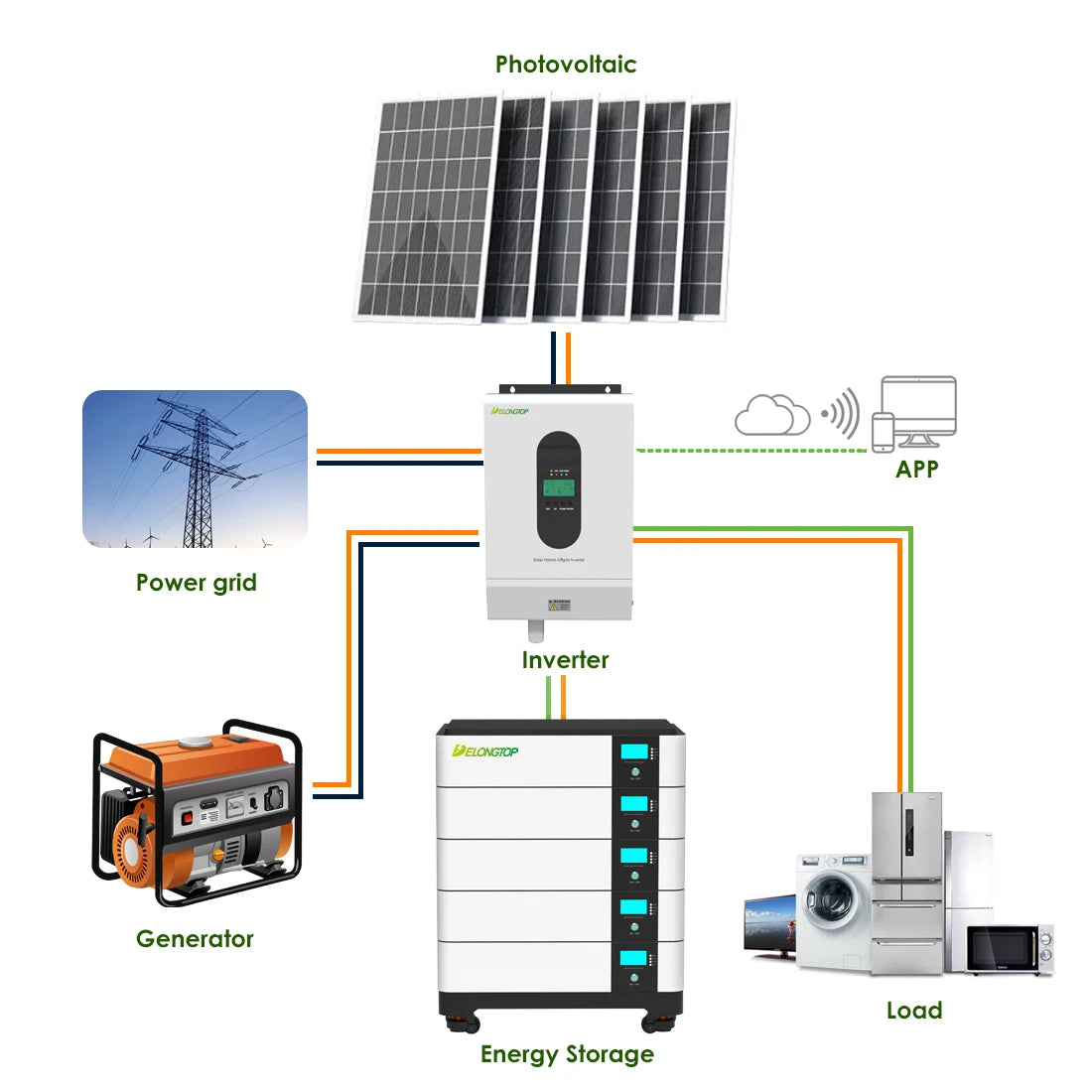

Product Applications
Product Packaging
REVIEWS
FAQ
Q1: What type of batteries do you produce?
A1: We specialize in LiFePO4 (Lithium Iron Phosphate) battery packs, mainly used for energy storage, solar systems, and off-grid power solutions.

Q2: What is the capacity range of your battery packs?
A2: Our standard LiFePO4 battery packs range from single 5kWh to 32kWh, and we can also provide custom solutions based on your project needs.

Q3: Are your products safe and reliable?
A3: Yes, all our products are built with high-quality cells, advanced BMS, and strict
quality control. They are certified with CE, RoHS, IEC62619, and UN38.3 for safety and reliability.

Q4: Do you offer OEM or ODM services?
A4: Yes, we provide both OEM and ODM services, allowing customization in capacity, size,
appearance, and functionality according to client requirements.

Q5: How can I get a price quote or technical support?
A5: You can contact us via email, website form, or phone. Our sales and engineering teams will provide detailed quotations, datasheets, and technical advice based on your project.

Q6: Can your batteries be used with solar power systems?
A6: Absolutely. Our LiFePO4 batteries are widely used in residential and commercial solar energy storage systems due to their long cycle life and stable performance.

Q7: What certifications do your batteries have?
A7: Our products hold CE, RoHS, IEC62619, and UN38.3 certifications, ensuring compliance with international safety, quality, and transportation standards.

Q8: Which countries do you export to?
A8: We export to more than 40 countries worldwide, including Europe, North America, South America, Africa, and Asia.

Q9: What is the cycle life of your LiFePO4 batteries?
A9: Our LiFePO4 batteries are designed for a minimum of 6,000 charge-discharge cycles at 80% depth of discharge (DoD), with a design life of over 10 years, making them ideal for long-term energy storage applications.

Q10: What BMS brand do you use in your ESS products?
A10: All our ESS products (5kWh and above) are equipped with PACE BMS, which supports RS485 and CAN communication protocols, enabling seamless integration with mainstream inverters and monitoring systems.

Q11: Which inverter brands are compatible with your batteries?
A11: Our batteries are compatible with a wide range of inverter brands, including Growatt, Deye, Solis, Victron Energy, SMA, Sofar Solar, and more. We provide full compatibility documentation and technical support upon request.

Q12: Do your products support parallel connection for larger capacity?
A12: Yes. Our low-voltage 15kWh stackable series (e.g.,LFP51300) supports multiple units in parallel to scale capacity according to project requirements, making it suitable for both residential and light commercial applications.

Q13: Do you have products certified for the North American market?
A13: Yes. Our LFP51300 ETL-listed model (51.2V 300Ah, 15.36kWh) meets ETL certification standards equivalent to UL requirements, and is specifically designed for the North American residential energy storage market.

Q14: What is your warranty policy?
A14: We offer a tiered 10-year warranty: full unit replacement in Year 1, free accessory replacement from Years 2–5, and free technical support from Years 6–10, ensuring long-term peace of mind for our customers.

Q15: What cell brands do you source from?
A15: We source premium-grade LiFePO4 cells from leading manufacturers including CATL, BYD, CALB, EVE, and Ganfeng Lithium, ensuring consistent quality and performance across all product lines.

Q16: What is your minimum order quantity (MOQ)?
A16: Our standard MOQ varies by product model. For most ESS products, the MOQ starts from 1 unit for sample orders, with competitive tiered pricing available for bulk orders. Please contact our sales team for a customized quote.
